Hertz MP 28.3 Mille Pro Series 1.38" Tweeters Neodymium Magnets
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

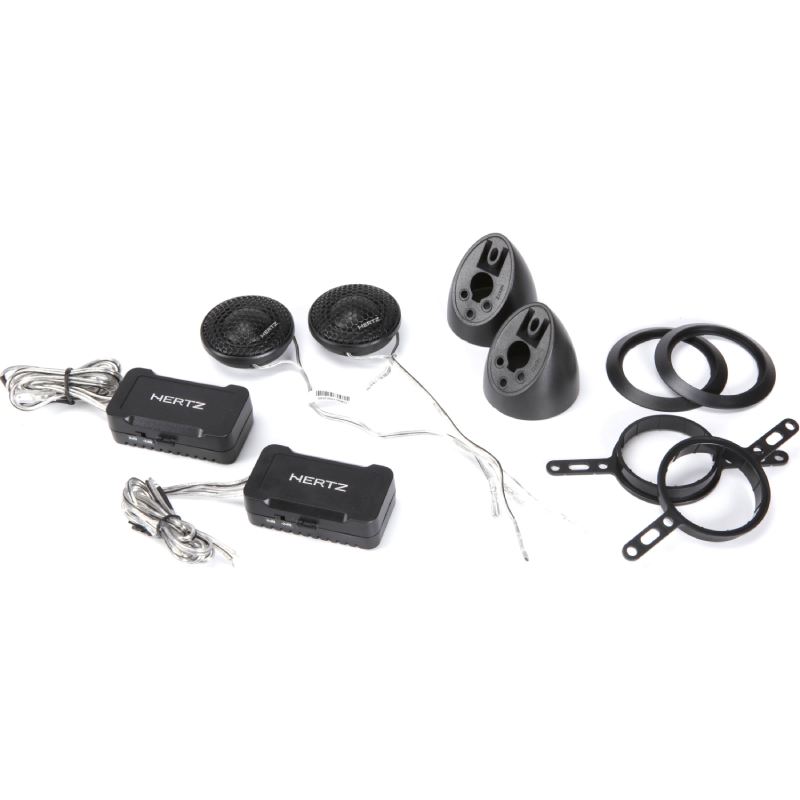

What's Inside?

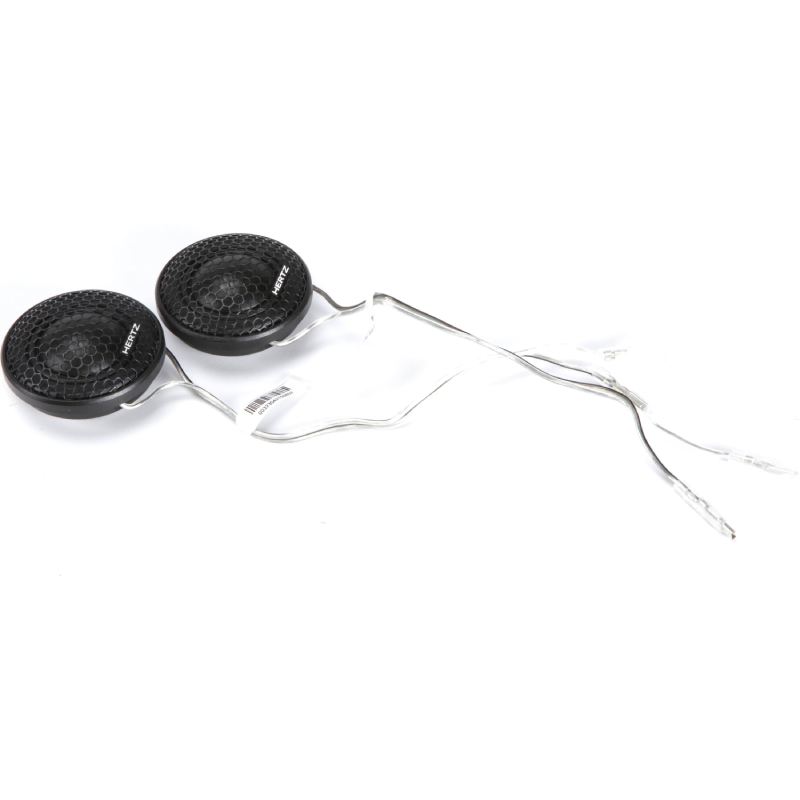

- •(2) MP 28.3 Dome tweeters (with 6" length of wire attached)
- •(2) MPCX 2T.3 Crossovers
- •(2) Flush mount trim rings
- •(2) Flush mount clamps
- •(2) Angled surface mount housings
- •(2) Factory mounting brackets
- •(2) Grilles (installed)
- •(2) 1" Screws
- •(10) 3/4" Screws
- •(2) M3x12mm Machine screws
- •(2) Flat washers
- •(4) Speed clips
- •(2) Adhesive backed pads
- •Two 10" Zip ties
- •Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 28 Others)
- •Template on box
High-performance 28mm-diameter Tweeter

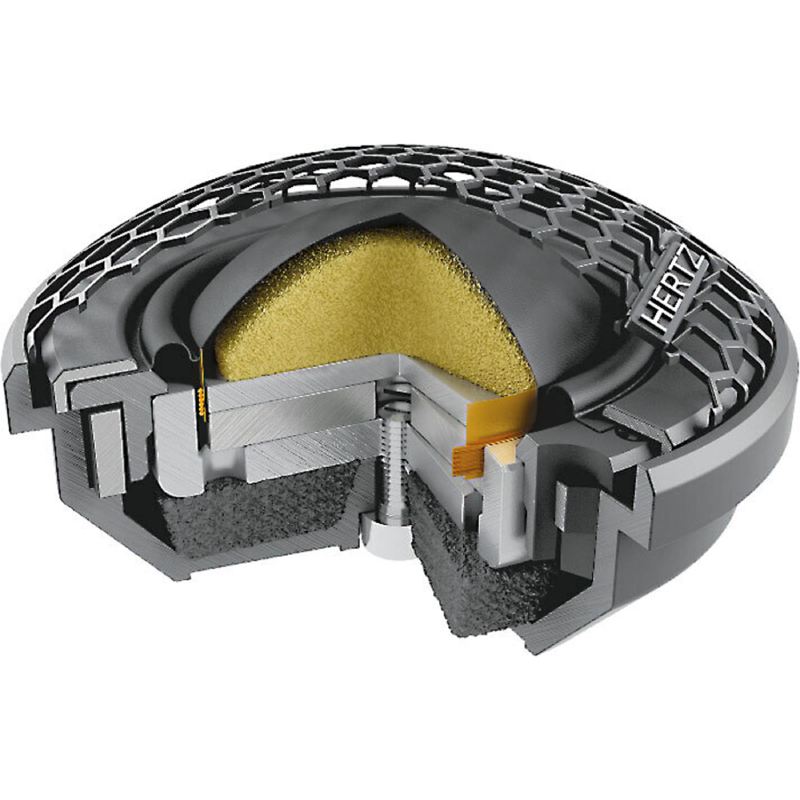

The Hertz MP 28.3 is a high-performance 28mm-diameter tweeter that incorporates advanced technology from the Mille Legend ML28.3 series. It boasts a Tetolon dome for optimal dispersion, a rear acoustic chamber with damping material to extend frequency response, and a robust neodymium motor to minimize nonlinearity.
Featuring a Level Adjustment Switch

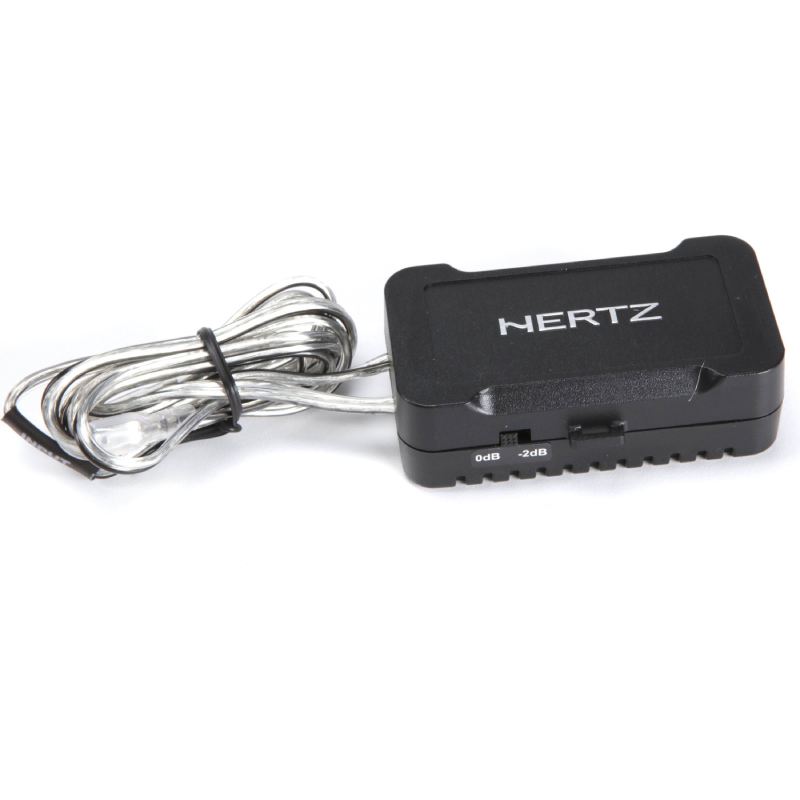

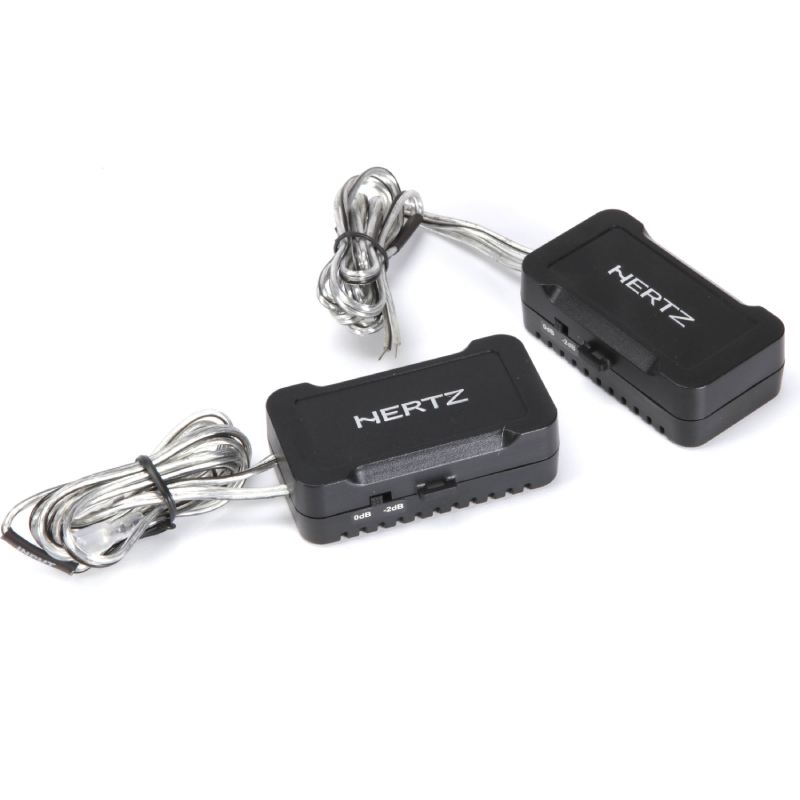

This tweeter has a separate ultra-compact crossover featuring a level adjustment switch (0, -2dB) to fine-tune the sound. Its design ensures excellent sound quality and performance, making it suitable for car audio enthusiasts seeking premium audio reproduction. It has a frequency response range of 1kHz to 28kHz, a sensitivity of 92dB, a power handling capacity of 90W RMS/180W peak, and a separate ultra-compact crossover with a level adjustment switch.
Excellent Option That Excels in Various Applications
If you desire superior sound quality and performance in your car audio system, the Hertz MP 28.3 is an excellent option that excels in various applications.
Frequency Response
The MP (mid-range speaker) operates at 28.3 Hertz, providing a robust foundation for audio reproduction, while its frequency response spans from 1 kHz to 25 kHz, ensuring an extensive range of audible frequencies for a detailed and immersive sound experience.
Physical Specifications
- • A: 53.4 mm (2.1 in.)
- • B: 48 mm (1.89 in.)
- • C: 28 mm (1.1 in.)
- • D: 13.5 mm (0.53 in.
- • E: 72 mm (2.8 in.)
- • F: 45.6 mm (1.8 in.)
- • G: 23 mm (0.9 in.)
- Diameter : 1.38 Inch
- Sensitivity : 91 dB
- Frequency Response : 1000-25000 Hz
- Peak Power Handling : 180 Watts
- RMS Power Handling : 90 Watts
Features:
- 1-3/8" Tetolon dome tweeters (pair)
- external crossovers with level adjustment
- handles up to 90 watts RMS (180 watts peak power)
- frequency response: 1,000-28,000 Hz
- sensitivity: 91 dB
- top-mount depth: 5/8"
- impedance: 4 ohms
- Width: 2"
- Height: 1"
- Depth: 1¾"
Specifications:
- Speaker Size: 35mm
- Design: 1-way
- Tweeter Design: Dome
- Impedance (Ohms): 4
- Tweeter Composition: Tetolon
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- Sensitivity (1W at 1 meter): N/A
- Sensitivity at 2.83 volts: 91
- Frequency Response: 1000 - 28k Hz
- Maximum RMS Wattage: 90
- Peak Power Handling (Watts): 180
- Top-mount Depth (Inches): 0 5/8
- Bottom-mount Depth (Inches): N/A
- Cutout Diameter or Length (inches): 1 7/8
- Mounting Height (Inches): 0.672
Electro-Acoustic Specifications:
- Diameter (D): 28 mm
- DC Resistance (Re): 3.3 Ohms
- Resonant Frequency (Fs): 900 Hz
- Voice Coil Inductance (Le): 0.024 mH
- Equivalent Air Volume (Vas): Not Available
- Moving Mass (Mms): 0.4 grams
- Mechanical Compliance (Cms): 0.08 mm/Newtons
- Force Factor (BL): 2 Tesla*meters
- Total Q-factor (Qts): 1.1
- Electrical Q-factor (Qes): 1.7
- Mechanical Q-factor (Qms): 3.3
- Sound Pressure Level (SPL): 91 dB
- UPC: 8018823135641
- Weight: 2
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
