AudioControl  D-5.1300

D Series 800W Max Power, 5-Channel Car Amplifier with Digital Signal Processing, Class-D

Item #79319

Condition:   Brand New

Product Highlights

  • 800W Max Power
  • 5-Channel
  • Car Amplifier
  • Digital Signal Processing
  • Class-D

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:
LIMITED TIME SALE!

Get 10% OFF on this item! Use coupon code OPTNOW

$899.00

Reg. Price $1,349.00  Save $450.00
In Stock
In Stock

Only 1 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $82/mo with . Check your purchasing power

No Credit needed for Learn More


AudioControl Authorized Dealer

Huge Saving on Other items:

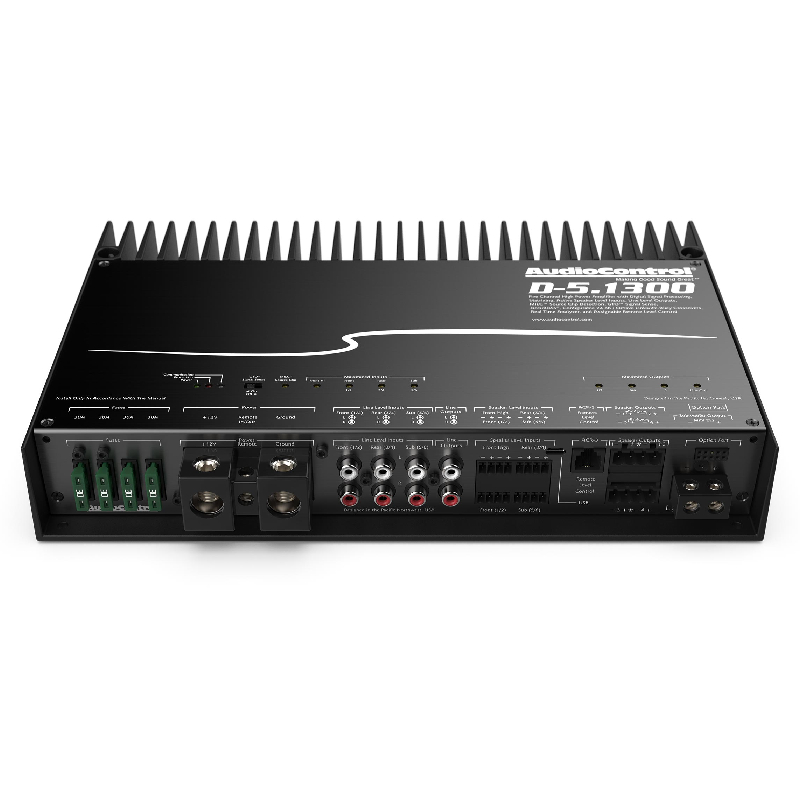

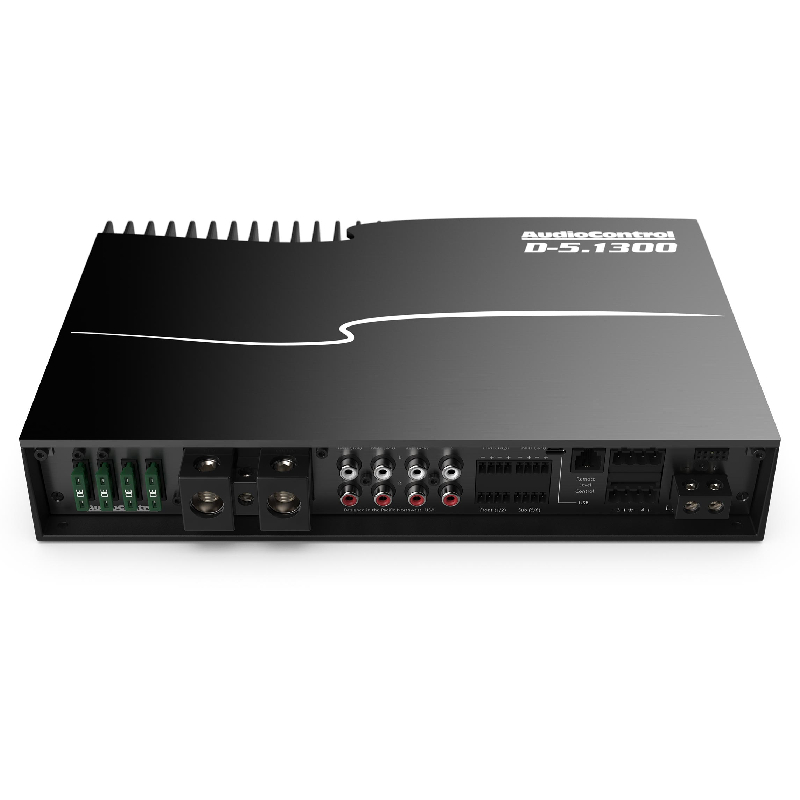

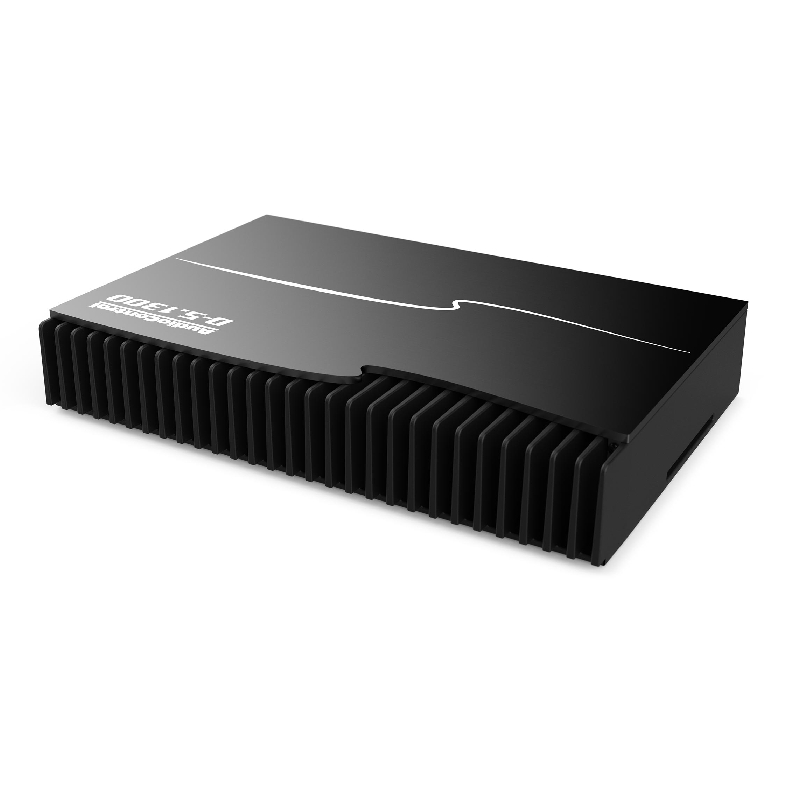

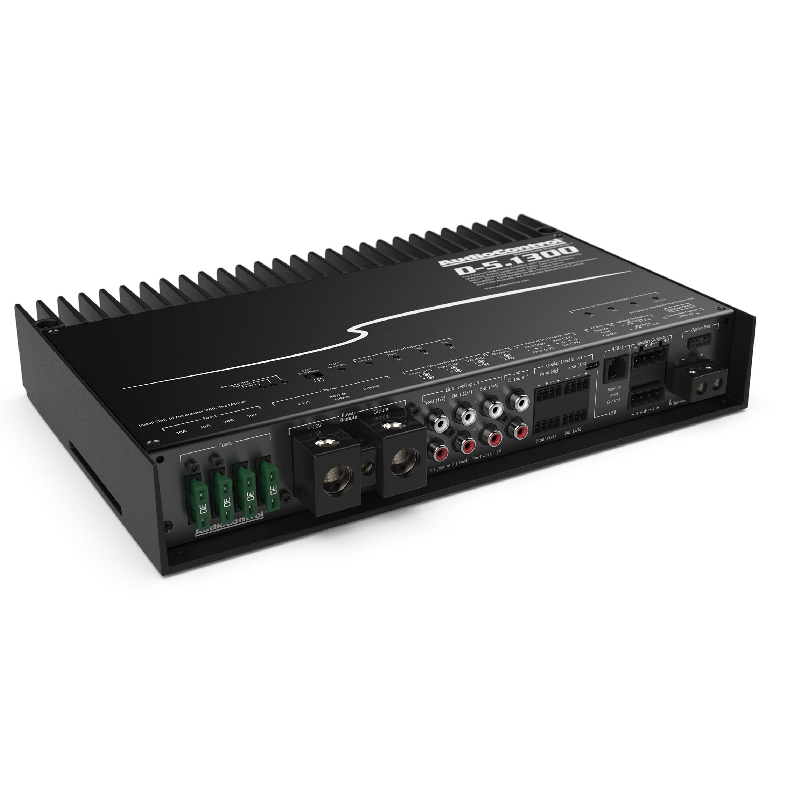

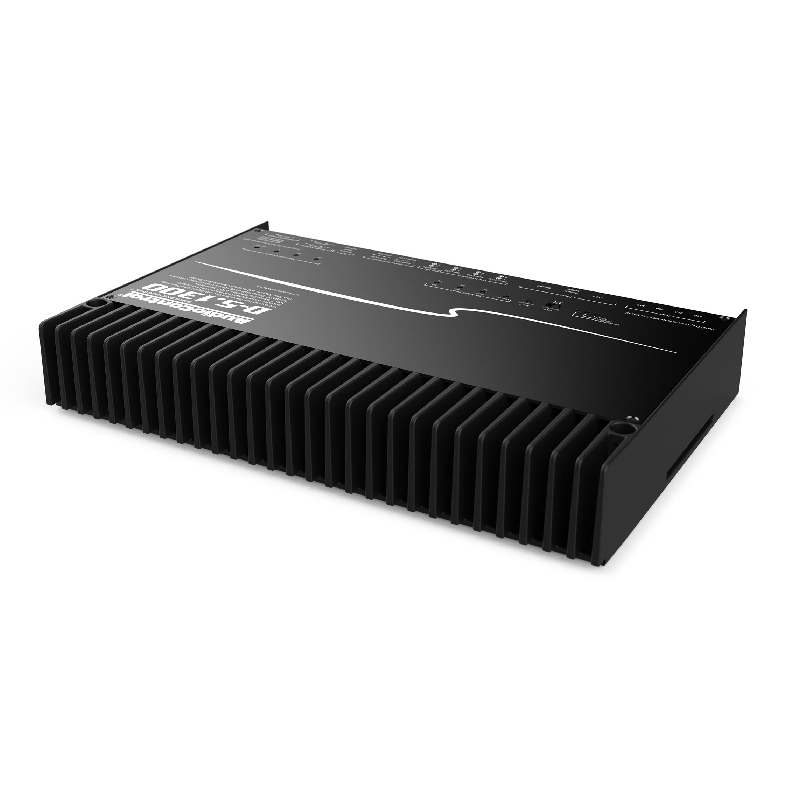

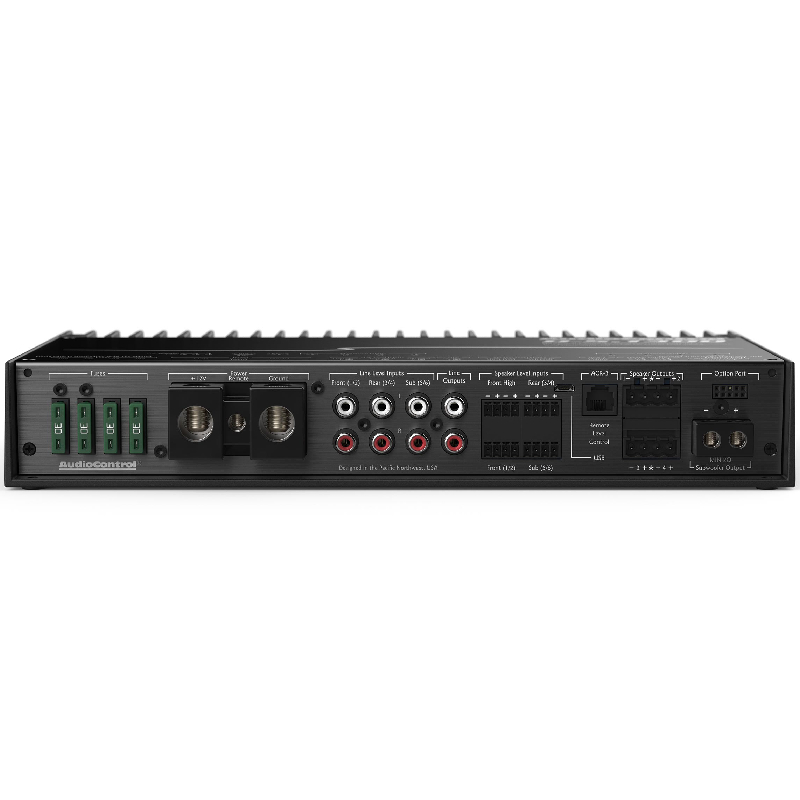

AudioControl D-5.1300 - D Series 800W Max Power, 5-Channel Car Amplifier with Digital Signal Processing, Class-D


We are a AudioControl authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • D-5.1300
  • • Speaker Connectors
  • • Fuses
  • • Manual
  • • Warranty
Audio-Control_DM-RTA
5-Channels of Sonic Purity and Unprecedented Levels of Power

The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.

  • Maximum Power : 1300 Watts
  • Number of Channels : 5
  • Frequency Response : 20-20000 Hz
  • Channel Separation : Yes
  • Amplifier Class : D
  • Fuse Rating : 30x4 A

Features:

  • Built-in DSP
  • Configurable as 5 or 3 channel amplifier
  • AccuBASS® Processing
  • MILCTMMaximum Input Level Control (Patent Pending)
  • GTOTMSignal Sense
  • Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • PFM Subsonic Filter
  • Solid One-Piece Aluminum Chassis
  • Input and Output RTA for precise and informed tuning
  • Input and Output Delay
  • 12 and 24 dB/octave Linkwitz-Riley crossovers
  • 30 band equalizer with auto EQ
  • Optional ACR-3 remote for preset recall and level control
  • Optional AC-BT24 Bluetooth Streamer/Programmer



Specifications:

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms
  • 4 x 200 watts + 1 x 500 watts @ 2 ohms
  • 4 x 100 watts + 1 x 300 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • Preamp Outputs: 2
  • Maximum Preamp Output: 8.5 V RMS
  • Frequency Response: 20 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Power / Ground Wire Gauge: 8 to 3 AWG wire
  • Fuse Rating: 4 x 30 A
  • Dimensions: 12.0″W x 8.0″D x 2.1″H
  • UPC: 0851523007812
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
