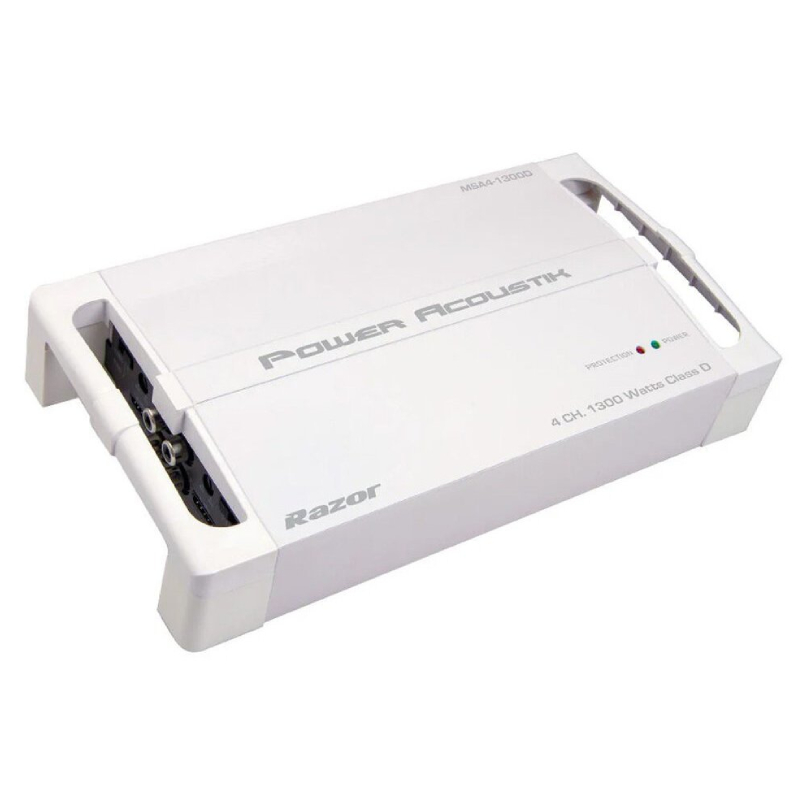

Power Acoustik  MSA4-1300D

Razor Series 1300W Max Power 4-Channel, Class-D Marine Grade Amplifier

Item #79536

Condition:   Brand New

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$63.69

Reg. Price $163.69  Save $100.00

Out of Stock Check out other products listed below
Power Acoustik Authorized Dealer


Huge Saving on Other items:


Brand Banner

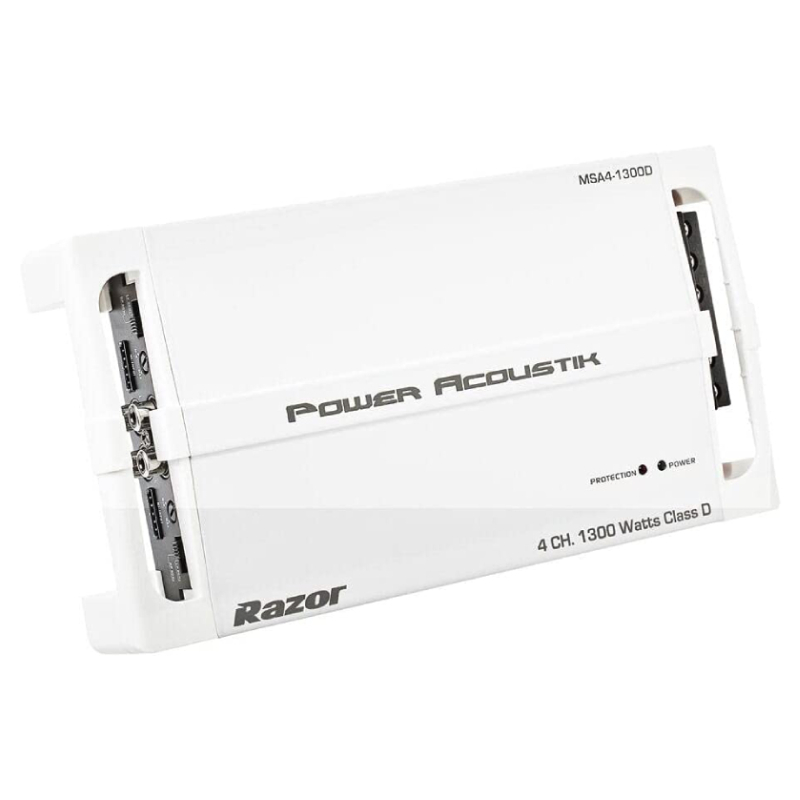

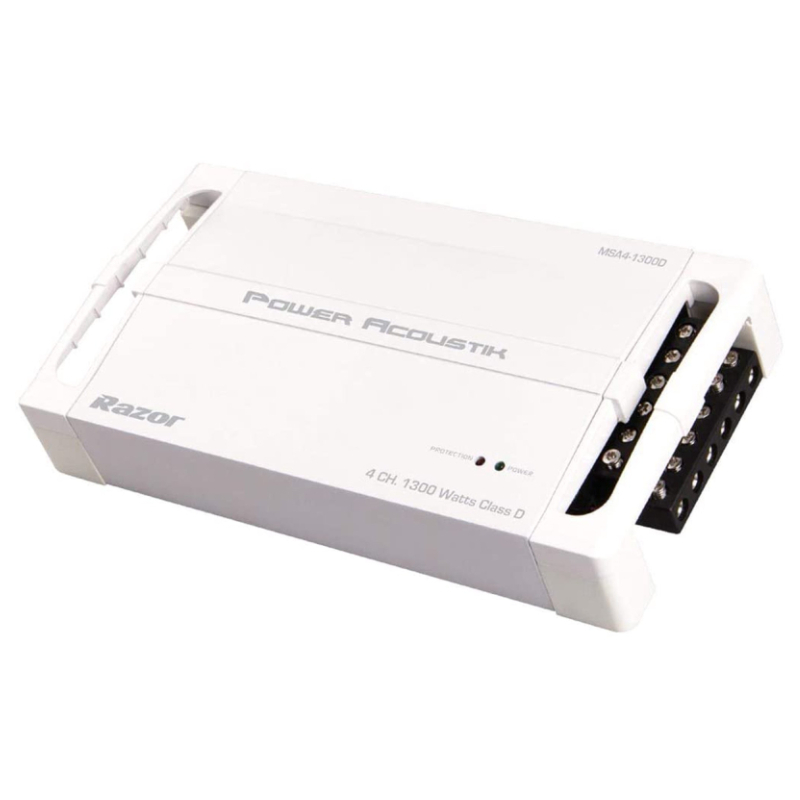

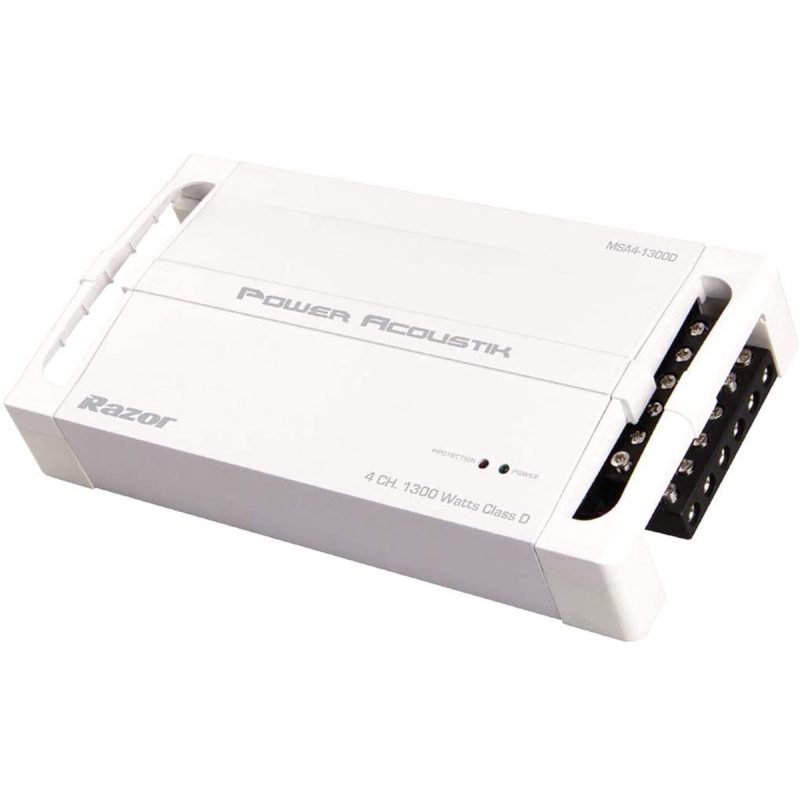

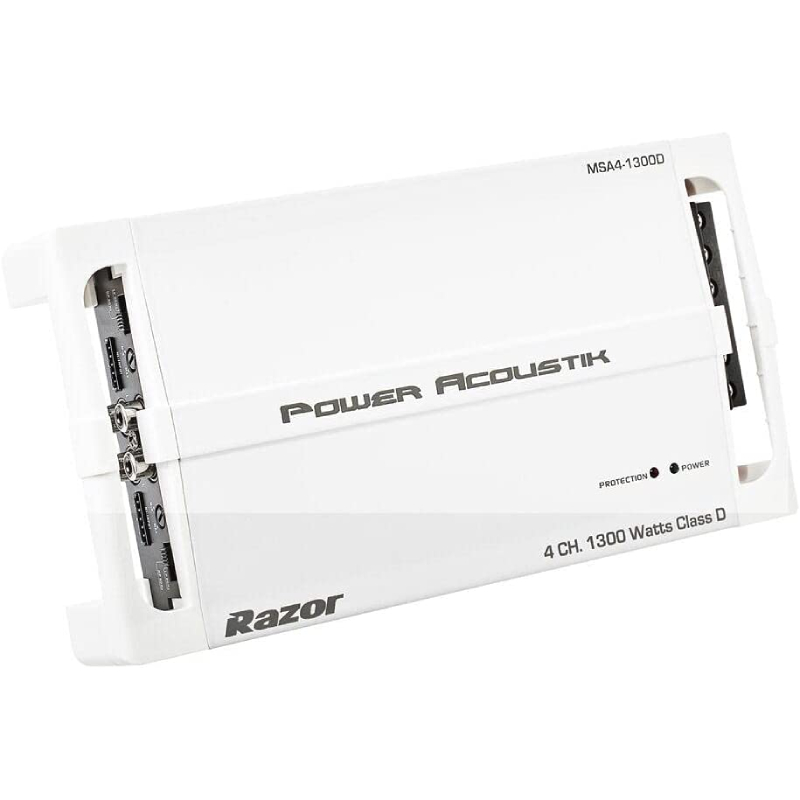

Power Acoustik MSA4-1300D Razor Series 1300W Max Power 4-Channel, Class-D Marine Grade Amplifier


We are a Power Acoustik authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 1300W Class D 4-Channel Marine Amplifier
  • • (4) Mounting screws
  • • (4) Washers
  • • Warranty/Registration card
  • • User manual
Power and Precision for Marine Audio Excellence

This amplifier is built to withstand the harsh marine environment, making it suitable for use in boats, yachts, or other marine applications. It is designed with materials and coatings that provide resistance to moisture, salt, and other corrosive elements. Also, it features a 4-channel configuration, allowing you to connect and power up to four speakers or a combination of speakers and subwoofers. Each channel can be independently adjusted to optimize the audio output for different speakers in your system.

Unprecedented Sound Control for the High Seas

The amplifier includes various additional features such as variable high-pass and low-pass crossovers, adjustable bass boost, and remote level control. These features allow you to fine-tune the audio output to match your preferences and the characteristics of your speakers. This is designed to provide powerful and efficient performance in a marine environment. With its maximum power output of 1300 watts and marine-grade construction, it can enhance the sound quality of your car audio system while withstanding the challenges of the marine environment.

Experience Class D Amplification at Its Finest

The MSA4-1300D is a Class D amplifier. Class D amplifiers are known for their efficiency and compact size. They are designed to convert the incoming audio signal into a high-frequency pulse width modulated (PWM) signal, resulting in efficient power delivery to the speakers.

Uncompromising Performance for Your Car Audio System

The RMS power rating for this amplifier is 250 watts x 2 channels at 2 ohms. This means that each pair of channels (channel 1 and 2, and channel 3 and 4) can handle a continuous power output of 250 watts, with a total of 500 watts across the two pairs. It provides a maximum power output of 1300 watts, which means it can deliver up to 325 watts per channel if all four channels are driven simultaneously.

  • Maximum Power : 1300 Watts
  • Low Frequency Response : 80 Hz
  • High Frequency Response : 80 Hz
  • Number of Channels : 4
  • Frequency Response : 10-20 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 4x125 Watts
  • Amplifier Class : D

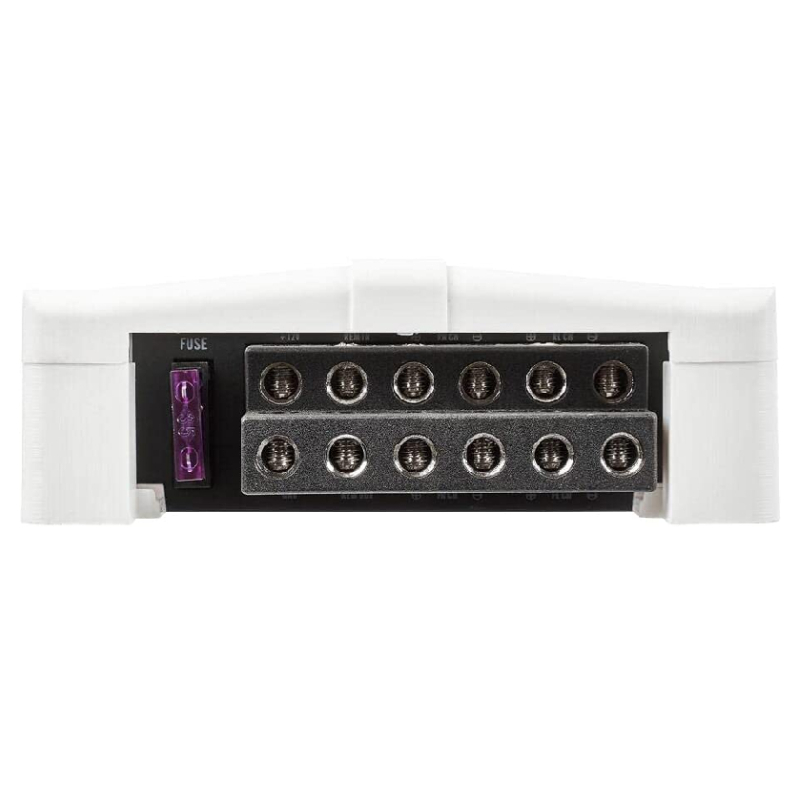

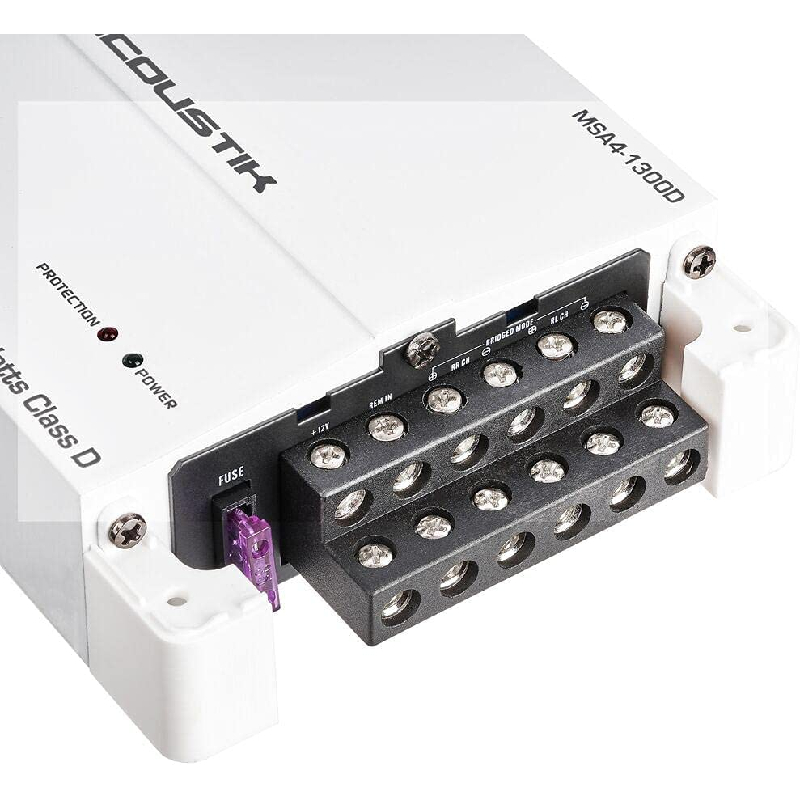

  • Fuse Rating : 35 A

Features:

  • Compact 4.75” Chassis Design for Installation Versatility
  • Splash Resistant Conformal Coated Circuit Boards
  • MOSFET Power Supply w/ Audiophile Grade IRTM Transistors
  • Military Grade SMT PCB Maintains Dynamic Performance
  • 2-ohm Stereo & 4-ohm Bridged Full Range Operation
  • Direct Short, Thermal, & Overload Circuits Protect Amplifier
  • 200mv-6V Low Level RCA Inputs
  • Total Harmonic Distortion: 0.5%
  • Frequency Response: 10-20Hz
  • Signal to Noise Ratio: 80dB
  • Damping Factor: >100
  • High Level Input w/ Signal Sense Auto Turn-on

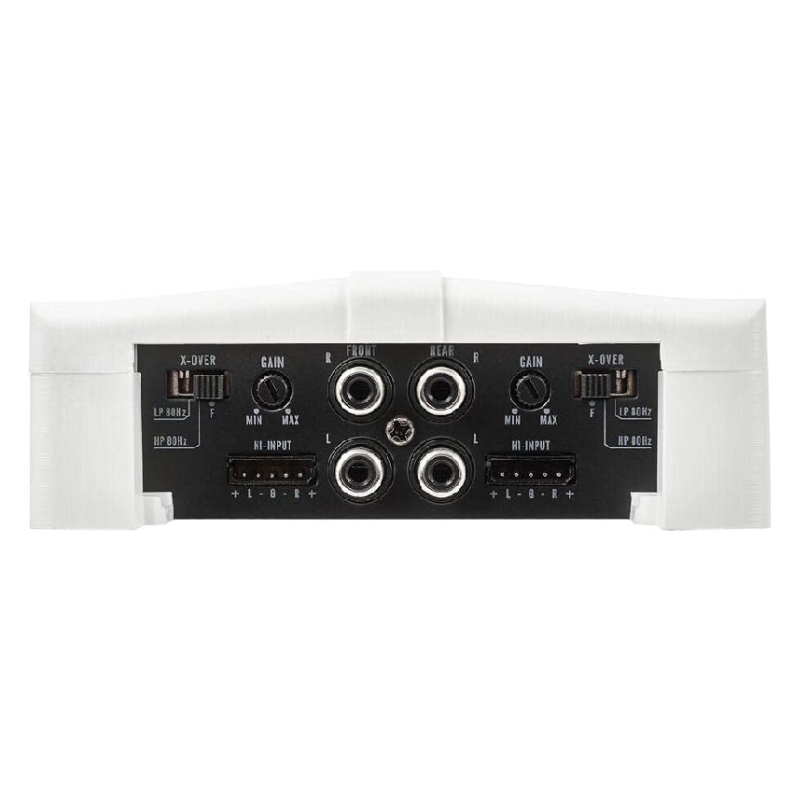

  • Variable 12dB High Pass & Low Pass Crossovers
  • 10-50Hz Variable 12dB Subsonic Crossover Protects Subwoofers
  • 9.25”H x 4.75"W x 1.625"W



Specifications:

  • Manufacturer: Power Acoustik
  • Part Number: MSA4-1300D
  • Amplifier Topology Class: Class D
  • Number of Channels: 4 Channel
  • Total RMS Power at 2 ohm: 1,254.00
  • Total RMS Power at 4 ohm: 754.00
  • RMS Output per Channel (x4 at 4 ohms): 75.00 Watts
  • RMS Output per Channel (x4 at 2 ohms): 125.00 Watts
  • Amplifier Bridging: Bridgable @ 4 ohms
  • Minimum Impedance in Bridged Mode: 4 ohm
  • Minimum Impedance in Un-Bridged Mode: 2 ohm
  • Strappable Amplifier: No
  • RCA Pre-amp Audio inputs: 2 Pairs (Front, Rear)
  • RCA Pre-amp Audio outputs: None
  • Preamp voltage: 200 mV - 6 V
  • Speaker level inputs: Yes
  • Gain Control: Yes
  • Bass Knob / Remote Gain: No
  • Built-in Crossover: High-pass, Low-pass
  • Cooling Fan: No
  • Color: White
  • Warranty: 1 Year
  • Recommended Power Wire Gauge: 8 Gauge
  • Overall Height: 1.68 inches
  • Overall Length: 9.25 inches
  • Overall Width: 4.75 inches
  • UPC: 709483057364
  • Weight: 8
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
