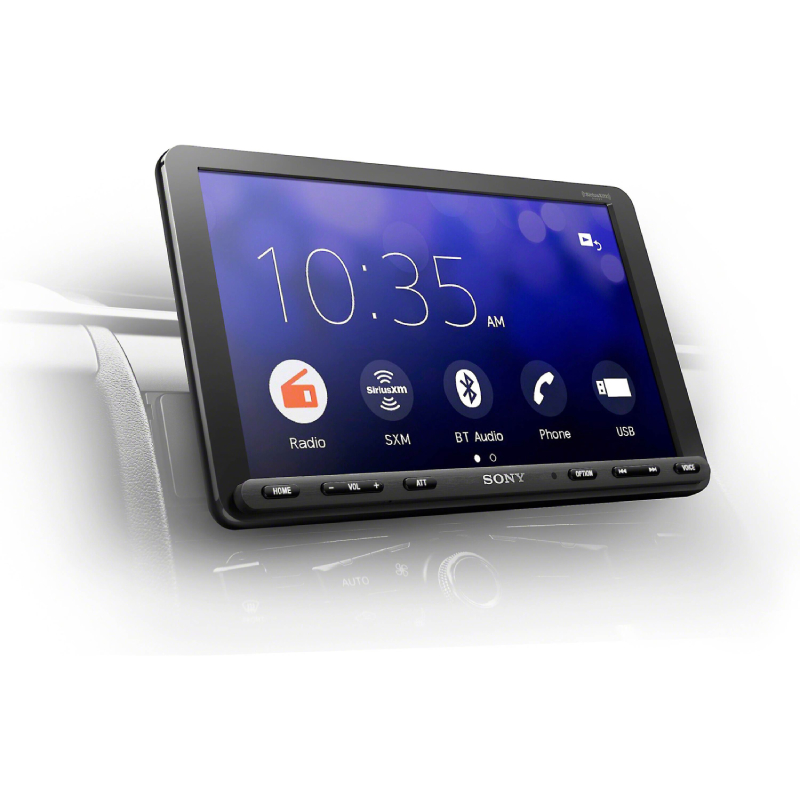

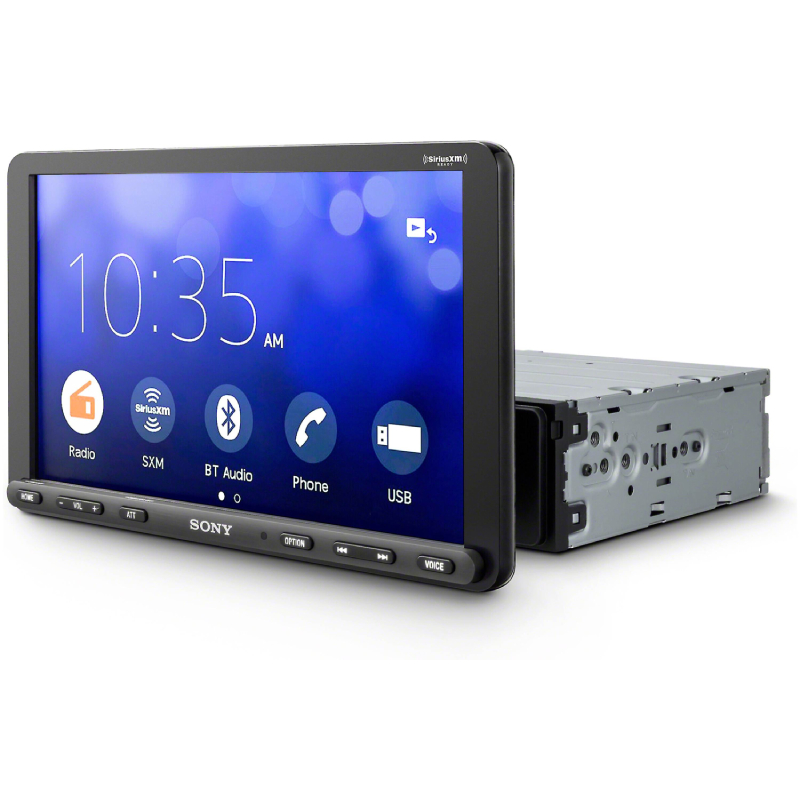

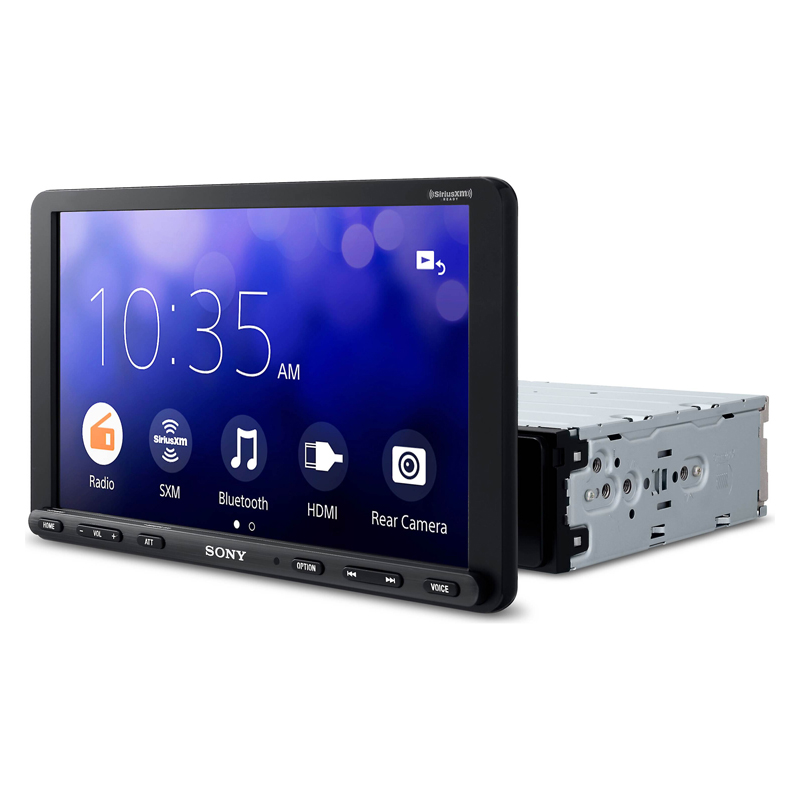

Sony XAV-AX8100 1-DIN 8.95" Digital Multimedia Receiver with Wired Apple CarPlay™ & Android Auto™, Bluetooth® and Back-Up Camera Ready™, SiriusXM Ready™ and WebLink™ Cast
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Single-DIN source unit (10A fuse)
- • 8.95" Touchscreen monitor
- • Wiring harness (attached 6.5' parking brake wire)
- • 3-Wire to 3.5mm SWC adapter
- • 52" USB extension cable
- • 23" USB extension cable
- • Remote control (RM-X170)
- • CR2025 3V battery (installed in remote)
- • Microphone w/ visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- • Surface bracket
- • Two-sided tape
- • Four M5x8mm ISO-screws
- • Four M4x6mm machine screws
- • M3x8mm machine screw
- • Hook-and-loop cable-tie
- • Joint-cover
- • 2 Rear-panel covers
- • Cable-cover (pre-installed)
- • Warranty Information
- • Installation Note
- • Owner's Manual

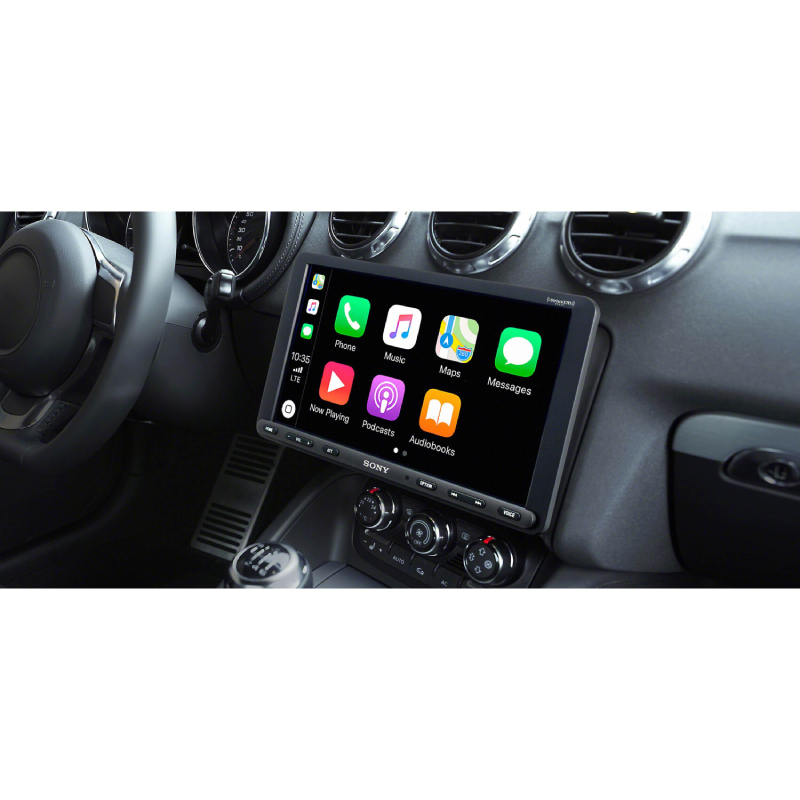

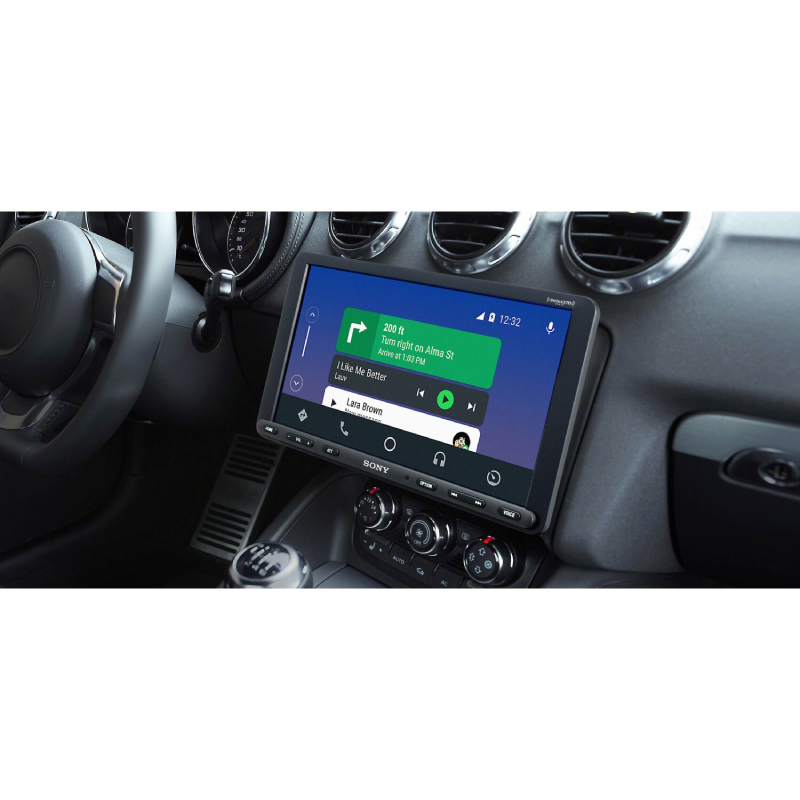

Android Auto and Apple CarPlay Compatible
Are you looking to upgrade your multimedia receiver with a premium one with modern features such as compatibility with Android Auto and Apple CarPlay, and more? Then, the Sony XAV-AX8100 is maybe what you are looking for. It comes with a massive 8.95-inch touchscreen display for you to have a better viewing experience.
Wireless Command

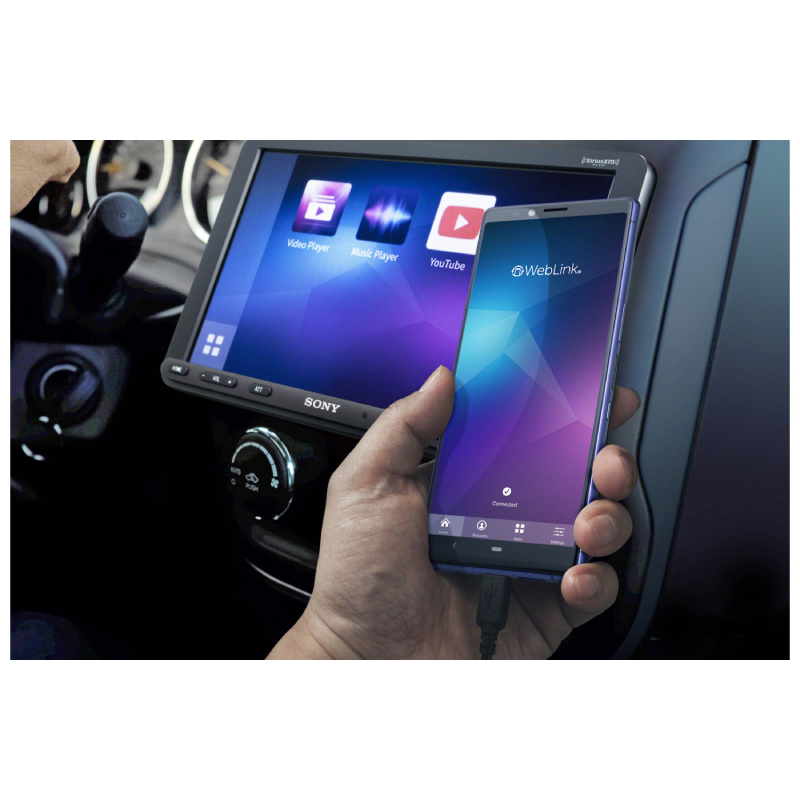

With the help of Google Assistant and Siri, you can now ask for directions, access your text messages, check for weather reports, listen to voicemails, and play music using voice commands. It also has a Bluetooth feature for wireless music streaming and answering phone calls hands-free. You can mirror your phone's display with the help of WebLink cast. It is compatible with SiriusXM satellite radio tuners, allowing you to connect one and listen to your favorite stations while on the road.
Built-In Amplifier
The Sony XAV-AX8100 has a built-in amplifier with five preamp outputs to connect your speakers and subwoofer. It can deliver a power output of 20 Watts RMS and can go up to 55 Watts of peak power per channel.
10 Band Equalizer

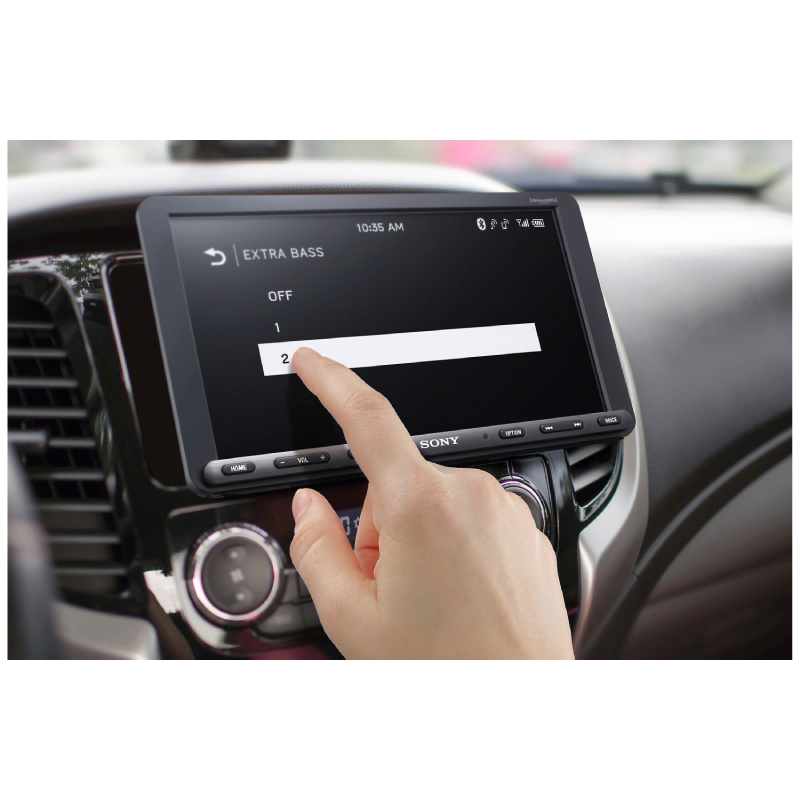

The receiver has a built-in 10-band graphic EQ to shape the amp's frequency response that will suit your vehicle's acoustics. It comes with high and low-pass filters to filter out unwanted frequencies, resulting in a better full-range frequency performance. Its EXTRA BASS feature allows you to boost its low frequencies for more massive bass output.
- Satellite Radio Ready : Yes
- Subwoofer Preamp Outputs : No
- Built-in EQ : Yes
- DIN : 1
- Preamp Voltage : 5 volts
- Display Size : 8.95 Inch
- Audio/Video Inputs : 1
- Bluetooth : Yes
- Aux Input : No
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Rear USB Input : 1
- Preamp Outputs : 5
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Bluetooth Audio Features:
- Audio Codec (Bluetooth Audio): SBC / AAC
- Audio Level Adjustment: Yes (-8 dB to +18 dB)
- Cue / Rev: Yes
- Group (Folder) +/-: Yes
- Meta Data Indication: Yes
- Pause (Bluetooth Audio): Yes
- Repeat Control (Audio Device side): Yes
- Shuffle Control (Audio Device side): Yes
- Track +/-: Yes
Bluetooth Features:
- Alphabetical Phonebook Sorting: Yes
- Call Volume Level Control: Yes
- External Microphone: Yes
- Last Dialed Call: YES (select from the dialed call history)
- Phone Battery Level Reminder: Yes
- Phonebook Access via PBAP: Yes
- Recent Calls (# of): Yes
- Ring Volume Level Control: Yes
- Signal Strength Indication: Yes
- Speed Dial: Yes (6 memories)
Bluetooth Profile:
- A2DP: Yes (1.3)
- AVRCP: Yes (1.3)
- HFP 1.5: Yes (1.6)
- PBAP: Yes (1.1)
Connectivity:
Display Panel:
- Dimmer Adjust: Yes
- Key Illumination: Yes (White)
General Features:
- Album artwork Indication: Yes
- DSO (Dynamic Stage Organizer): Yes
- EXTRA BASS: Yes (Off/1/2)
- Equalizer: 10-band Graphic Equalizer
- Firmware upgradability: Yes
- Output Power: 55 W x4
- Pre Out: 3 Pre (Front/Rear/Sub x 1)
- Rear View Camera in: Yes
- USB: Yes (Rear x1)
Monitor(AVC):
- Brightness: 400 cd / m2
- Contrast Ratio: 500
- Dimmer: Yes
- LCD Type: TFT Active Matrix
- Resolution (DOT): 800 x 480
- Screen Aspect: 16:9
- Screen Diagonal (inch / mm): 8.95"
- Screen Size (W x H mm): 7.79 x 4.39"
Multi-Language:
- Caution: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
- ID3 Tag: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
- Menu: English/Spanish/French/German/Italian/Russian/Portuguese/Thai/Simplified Chinese/Traditional Chinese/Korean/Arabic/Indonesian
Panel Design:
- Key Illumination: Yes (White)
- Panel Surface Finish Color: Black
Size & Weight:
- Dimensions (W x H x D): 9.02 x 5.35 x 9.96"
- Weight: 5.29 lb
Tuner Features:
- Auto Memory: BTM
- Preset: FM18 / AM12
- RDS / EON: Yes (RBDS)
USB Mass Storage Device Control Feature:
- USB Device Control (Audio Codec): PCM/MP3/WMA/AAC/FLAC
- USB Device Control (Pause): Yes
- USB Device Control (Repeat): TRACK / FOLDER / DRIVE
- USB Device Control (Resume Play): Yes
- USB Device Control (Shuffle): OFF / FOLDER / DEVICE
- USB Device Control (Video Codec): MPEG4-SP / AVC (H.264 Baseline) / WMV / FLV / MKV / XviD
- USB device control (audio playable file extension): .wav/.mp3/.wma/.m4a/.flac
- USB device control (video playable file extension): .mp4 / .wmv / .mkv
User Interface:
- Aspect Ratio Select: Yes
- Gesture Command: Yes
- Parking Control: Yes
- Parking Line Adjust: Yes
- Rear View Camera-In Marker Setting: Yes
- Remote Commander: RM-X170
- Touch Panel: Resistive + AG
- UPC: 0027242922211
- Weight: 8
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
Ratings are for the radio unit itself. But I think you should be aware of something. I had the Sony XAV-AX8100 installed in my Jeep by a local sound shop. Later I purchased the SiriusXM SXV300VI tuner and installed it myself. If you are familiar with how to remove your vehicles radio, the installation is a breeze. The hardest part for me was getting all of the wiring harnesses back in behind the head unit.
First, let me say the sound of the Sony head unit is amazing and the operation is what I expected. I am not sure if it is the radio or it's interaction with the SiriusXM tuner, but when listening to SiriusXM, I am not able to tag a song or an artist as a favorite, see any of my favorites (songs, artists or stations) in a list, do not have the ability to pause, rewind, or replay live satelitte radio, to use TuneMix, or TuneScan. According to the box the tuner came in, all of these should be there for me to use. I checked to see if the tuner was compatible with the 8100 and according to everything I could find, it is compatible. If I use SiriusXM through Android Auto, I have access to my list of favorite radio stations that I have set up on the SiriusXM app on my phone. This issue only presents itself if I am using SiriusXM as my music source on the radio head unit.
I have spent about 45 minutes on chats with SiriusXM and Sony discussing my concerns. SiriusXM and Sony went through their troubleshooting steps, and each of them say these features should be available to me and can't find a reason why they aren't. SiriusXM told me it's a radio problem and Sony told me it's a SiriusXM tuner problem. Either way, I do not have access to the features I expected. If these things are important to you, just beware.
-
Huge display. Nice sound as expected from Sony receivers. Experienced lags with Carplay, but it still works smoothly from time to time.
-
CarPlay sometimes fail to work, usually once a week. I don't have any what's the problem with it. But when it works mostly, it works smoothly. The sound quality is great and the usability of other features is perfect for newbie users. Setting it up didn't take a sweat too. Lastly is the screen, which is massive. nice receiver from Sony.
