MB Quart  MDR2.0

• Maximum Power : 160 Watts
• CD Text : No
• Satellite Radio Ready : No
• Detachable Face : No
• Built In Crossovers : No
• RMS Power Output : 80 Watts
• Subwoofer Preamp Outputs : No
• Built-in EQ : Yes
• DIN : 1
• Preamp Voltage : 5 volts
• Bluetooth : Yes
• Aux Input : Yes
• MP3 Playback : Yes
• WMA Playback : Yes
• HD Radio : No
• Rear USB Input : 1
• Preamp Outputs : 1
• SD Card Slot : No

Features:

• Marine Grade Protection / IPX Rating: Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
• Apple® Control: Quick control and access of iTunes collection with iPhone, iPod and iPad.
• Source Type: AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices.
• Input Types: Bluetooth, RCA, USB: Nearly nothing the device can not play.
• Control Buttons: Front facing buttons to engage and adjust all features.
• Bluetooth® Connect: Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.
• Secure Simple Pairing™ : Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.
• Quick-Pair™: No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.
• Built-In Power: Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

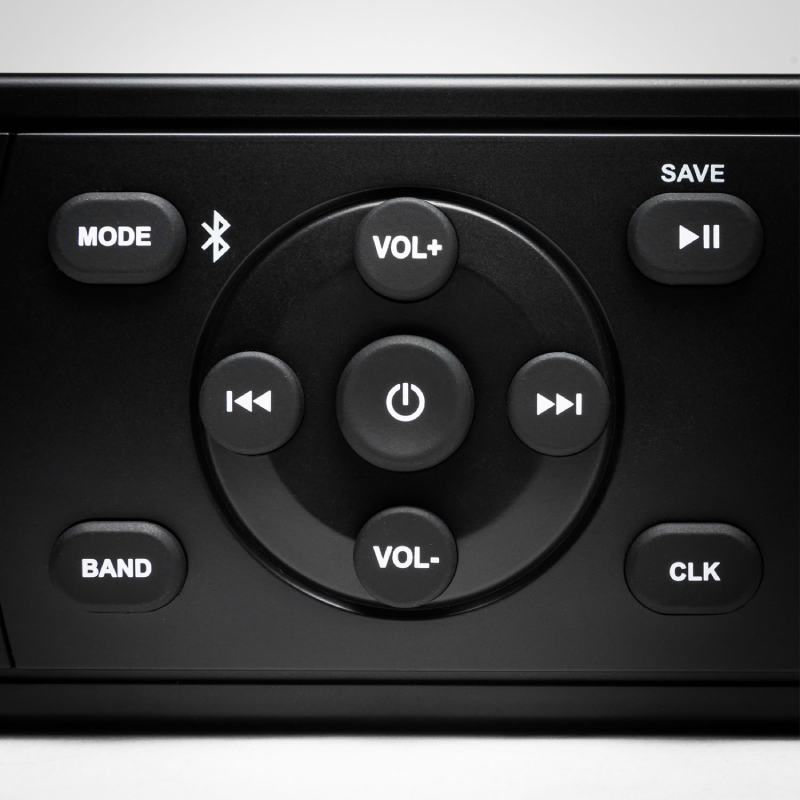

• Control Method: 9 control buttons on faceplate.
• Frequency Range: FM: 87.5-108, AM: 530-1710
• Weather Band: Includes built-in weather band radio. Marine digital media receiver (does not play CDs)
• Ideal for RV, marine, and powersports applications
• Built-in Bluetooth® for music streaming
• AM/FM tuner
• Built-in amp (16 watts x 4 RMS/40 peak x 4 channels)
• IPX5 rated for resistance to water and dust
• Marine-rated watertight face
• Intuitive, easy-to-use buttons
• Backlit LCD display

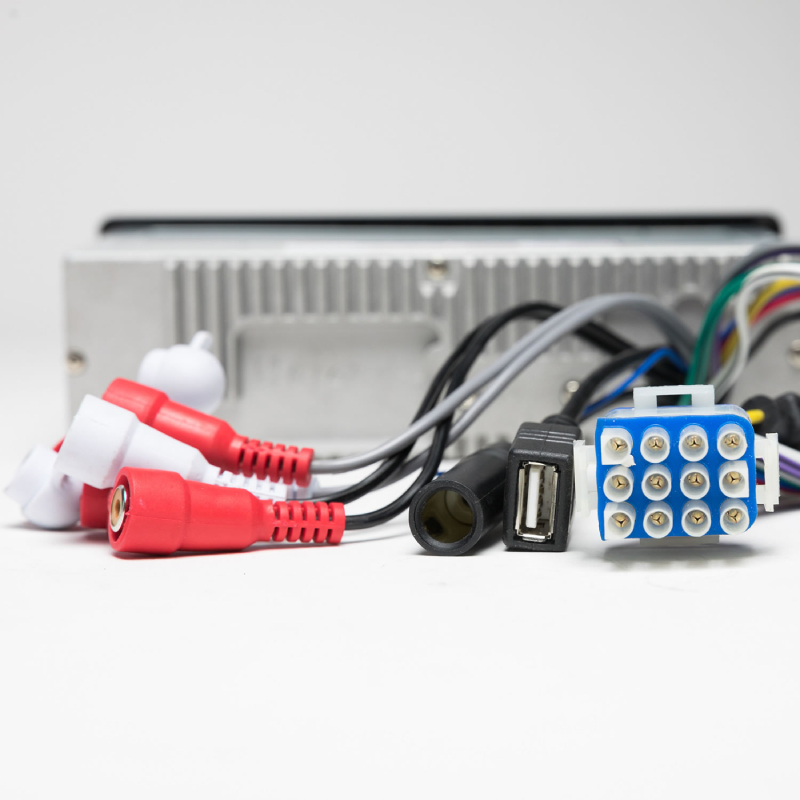

• Inputs: rear USB input and rear aux input (RCA)
• Outputs: 4-channel 5-volt preamp outputs
• Fits into a marine DIN (2" x 7") opening
• Waterproof, dustproof, and shockproof
• Mounting depth: 4"

Specifications:

• Weight: 1.68 lbs
• Dimensions: 8.75 × 4 × 6.5 in
• Brand: MB Quart
• Series: MDR
• Category: RV
• Condition: New
• Color: White
• IPX Rating: IPX5
• Compatible Vehicles: Universal
• Source Unit Tuner Section FM Stereo Frequency Range: 87.5MHz-108MHz
• Source Unit Tuner Section S/N Ratio: 86.4dBA
• Source Unit Bluetooth Range (ft): 32
• Source Unit RMS Power Output (watts): 4 x 16
• Source Unit Peak Power Output (watts): 4 x 40
• Source Unit S/N @1W: 90.6dBA
• Source Unit Frequency Response (Aux In): 20Hz-20kHz
• Source Unit Pre-amp Outputs (Y/N #): 1 Pair, Yes
• Source Unit Pre-amp Voltage: 5.9V
• Source Unit Minimum Impedance (ohms): 4
• Source Unit Display Type: LCD
• Source Unit Dimensions Mounting Hole (in): 7.0 x 2.0
• Source Unit Dimensions Total Mounting Depth (in): 4.5
• Additional Details: MAXIMUM THD+N AT 4 OHMS: 15.8 watts, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 5.9 Volts, SIGNAL TO NOISE (CTA-2006B): -86.4dBA AUX / -84.7dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -88.4dBA / Aux -90.6dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–19.5kHz AUX / 34Hz–15.6kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–20.0kHz AUX / 27Hz–20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -65.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 12.7dBf, AM MONO USABLE SENSITIVITY: 12-14µV

• UPC: 806576229810
• Weight: 2
