Diamond Audio  MICRO81U

Micro Series 1200 Peak Power Handling, Monoblock Digital Amplifier, Class-D

Item #80572

Condition:   Brand New

0
❮ ❯
  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
0 Review

$569.99

Reg. Price $669.99  Save $100.00
Add to Cart
Out of Stock Check out other products listed below
Or call us at 310-526-8635 and our expert tech-support would be happy to suggest alternative products for you!
Or email at [email protected]
 Fit Guide. Check if it will fit your car.
Diamond Audio Authorized Dealer

Huge Saving on Other items:

Available alternative products:

Huge Saving on Other items:

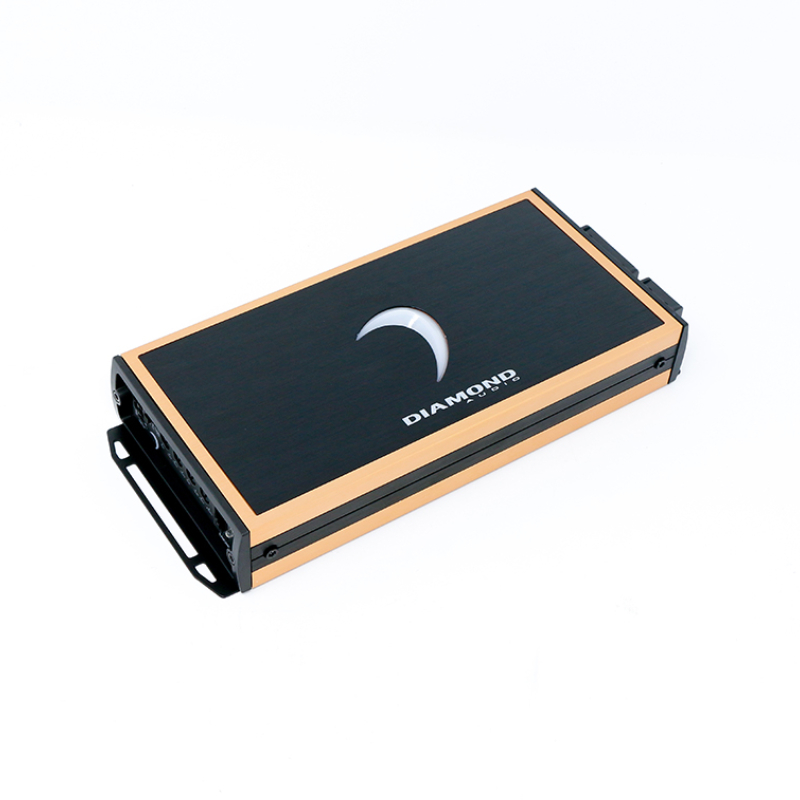

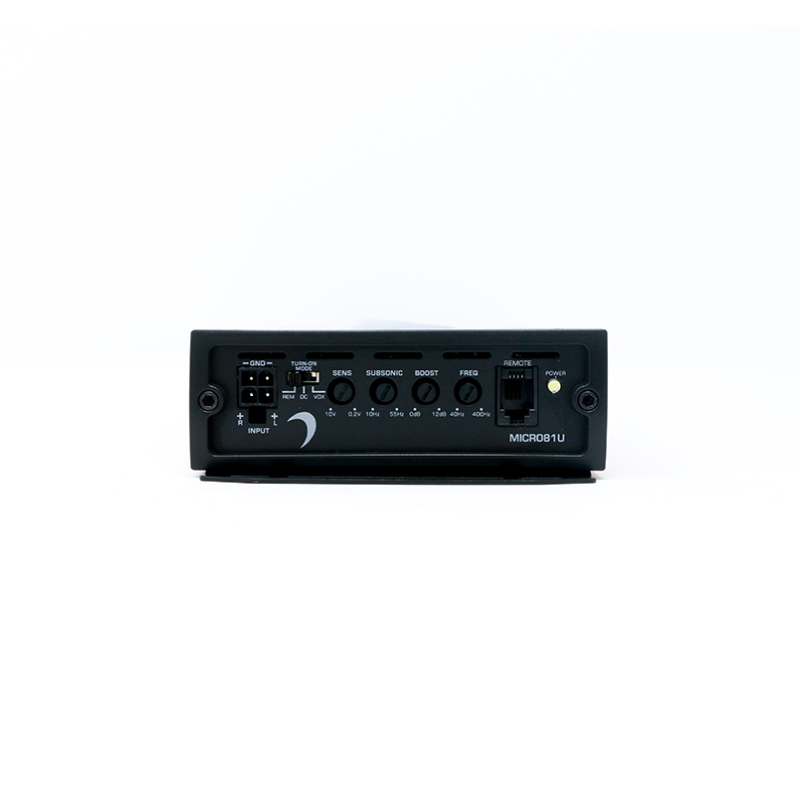

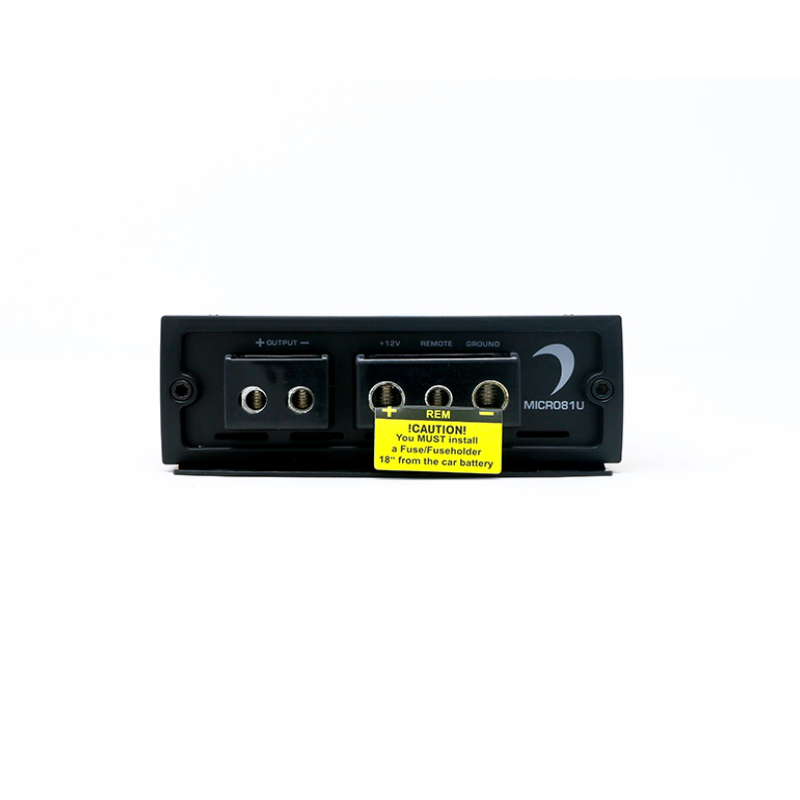

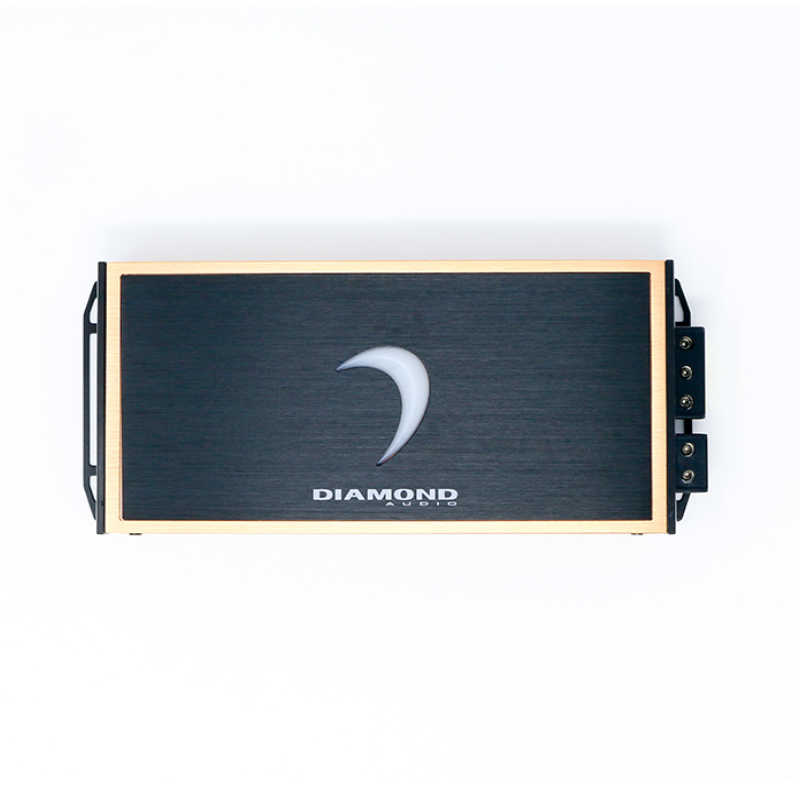

Diamond Audio MICRO81U - Micro Series 1200 Peak Power Handling, Monoblock Digital Amplifier, Class-D

We are a Diamond Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Monoblock Digital Amplifier, Class-D
  • • Owner's Manual
Enhanced Power and Elegant Design Series Amplifiers

Introducing the MICRO8U series of amplifiers for 2018, an evolution of the highly popular MICRO series. This new lineup offers increased power and performance while maintaining the same platform and dimensions for a streamlined installation and a refined appearance, except for the MICRO85U and MICRO88U models. Engineered from the ground up, these amplifiers are conformal-coated for durability in all-weather and outdoor environments, enhancing their versatility. The MICRO8U series combines powerful performance with a sleek, elegant design, embodying the signature Diamond Audio look.

  • Maximum Power : 600 Watts
  • Low Frequency Response : 40-400 Hz
  • High Frequency Response : 40-400 Hz
  • Number of Channels : 1
  • Frequency Response : 10-33000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 400x1 Watts
  • Amplifier Class : D
  • Fuse Rating : 25 A

Features:

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • Conformal Coated PCB assembly for added water resistance
  • ICAD circuit provides superior overload protection
  • Frequency response 10 Hz – 30kHz (Mono Block 10 Hz – 350Hz)
  • Variable 12db crossovers
  • MICRO Bass boost +12DB @45HZ
  • Premium 8 gauge power connections
  • Multi channels / Mono channel
  • Remote Bass Knob (Included with MICRO81U/MICRO82U)



Specifications:

  • 1 Ohm: 600 Watts RMS x 1 Channel
  • 2 Ohm: 400 Watts RMS x 1 Channel
  • 4 Ohm: 240 Watts RMS x 1 Channel
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.5%
  • S-N Ratio (A-weighted @ 1W): -85dBA
  • S-N Ratio (A-weighted @ 1W): -101.1dBA
  • Input Sensitivity – Low Input Level: 200mV – 10V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: 20 KΩ
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz@55Hz
  • Fuse Rating (ATC): 25A
  • Dimentions- Length x Width x Height (inches): 9.0″ x 4.06″ x 1.52″
  • Dimentions- Length x Width x Height (mm): 228.6 x 103 x 38.6 mm
  • UPC: 847169044717
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.

Do you own this product?

Write a review!
  • Maximum Power : 600 Watts
  • Low Frequency Response : 40-400 Hz
  • High Frequency Response : 40-400 Hz
  • Number of Channels : 1
  • Frequency Response : 10-33000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 400x1 Watts
  • Amplifier Class : D
  • Fuse Rating : 25 A

Features:

  • Full Range Class D IR Chipset
  • DirectFET Power Mosfet Output Stage
  • SMD Technology on 4 layer Glass PC Board
  • Conformal Coated PCB assembly for added water resistance
  • ICAD circuit provides superior overload protection
  • Frequency response 10 Hz – 30kHz (Mono Block 10 Hz – 350Hz)
  • Variable 12db crossovers
  • MICRO Bass boost +12DB @45HZ
  • Premium 8 gauge power connections
  • Multi channels / Mono channel
  • Remote Bass Knob (Included with MICRO81U/MICRO82U)



Specifications:

  • 1 Ohm: 600 Watts RMS x 1 Channel
  • 2 Ohm: 400 Watts RMS x 1 Channel
  • 4 Ohm: 240 Watts RMS x 1 Channel
  • Topology: Full Range Class D
  • Power Supply: Full PWM
  • Power Supply Threshold: 10.0DVC – 17.0DVC
  • Idle Current: (0.7A)
  • THD 4 (1KHz @4Ω): 0.5%
  • S-N Ratio (A-weighted @ 1W): -85dBA
  • S-N Ratio (A-weighted @ 1W): -101.1dBA
  • Input Sensitivity – Low Input Level: 200mV – 10V
  • Input Sensitivity – High Input Level: N/A
  • Input Impedance – Low Input Level: 20 KΩ
  • Impedance – High Input Level: 20 KΩ
  • Output Impedance: 0.011Ω
  • Damping Factor (50Hz @ 4Ω): >250
  • Bandwidth (-3dB): 10Hz-350Hz
  • Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
  • Crossover (-12 dB/ Oct) – Variable Sub-Sonic: 10Hz@55Hz
  • Fuse Rating (ATC): 25A
  • Dimentions- Length x Width x Height (inches): 9.0″ x 4.06″ x 1.52″
  • Dimentions- Length x Width x Height (mm): 228.6 x 103 x 38.6 mm
  • UPC: 847169044717
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
