JL Audio  10W0v3-4-Bundle3

JL Audio JD Series 250W Mono Amplifier + JL Audio W0v3 10" 300W Mono Voice Coil Subwoofer

Item #83719

Condition:   Brand New

Product Highlights

  • JL Audio JD Series mono amplifier
  • 250W power output
  • JL Audio W0v3 10" subwoofer
  • 300W mono voice coil

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$346.98

Reg. Price $439.99  Save $93.01
In Stock
In Stock

Only 1 left
  Free 2-Years Warranty Included!

Starting at $32/mo with . Check your purchasing power

No Credit needed for Learn More


JL Audio Authorized Dealer

Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

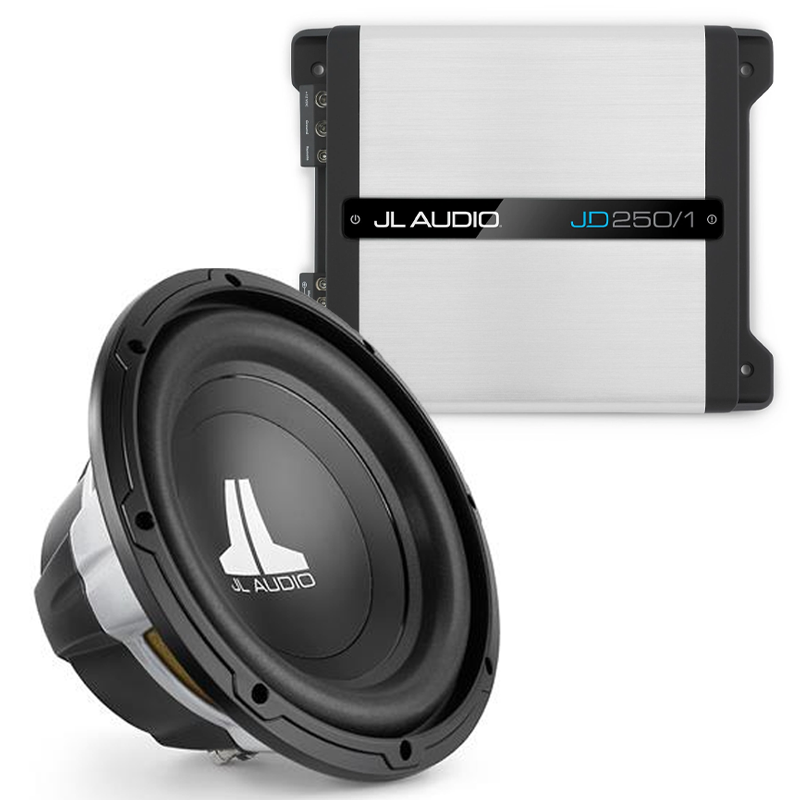

JL Audio 10W0v3-4-Bundle3 JD Series 250W Mono Amplifier + JL Audio W0v3 10" 300W Mono Voice Coil Subwoofer


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •JL Audio JD250/1
  • •JL Audio 10W0v3-4
  • •Owner's Manual

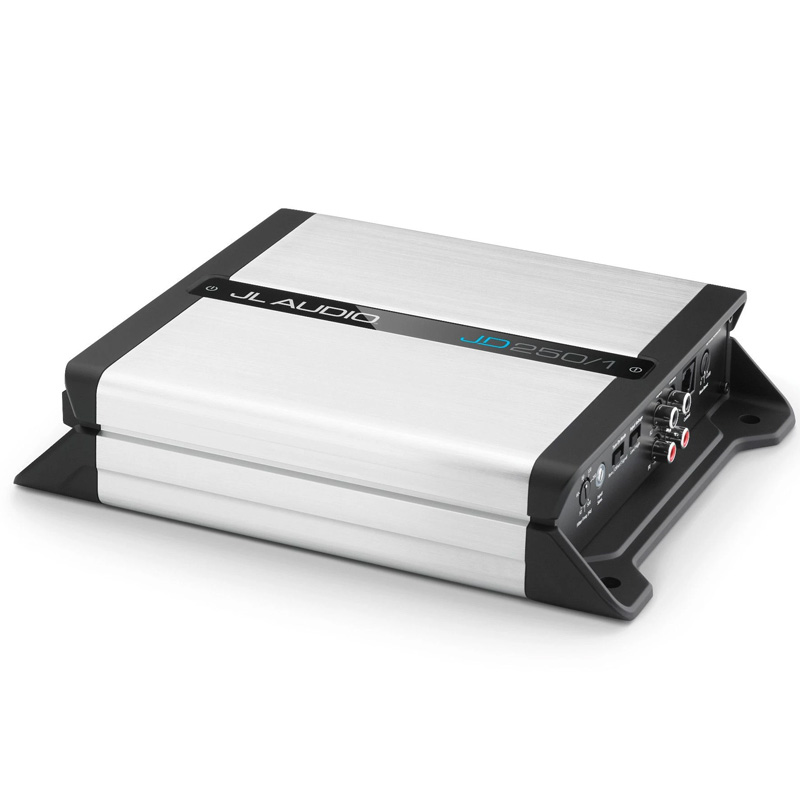

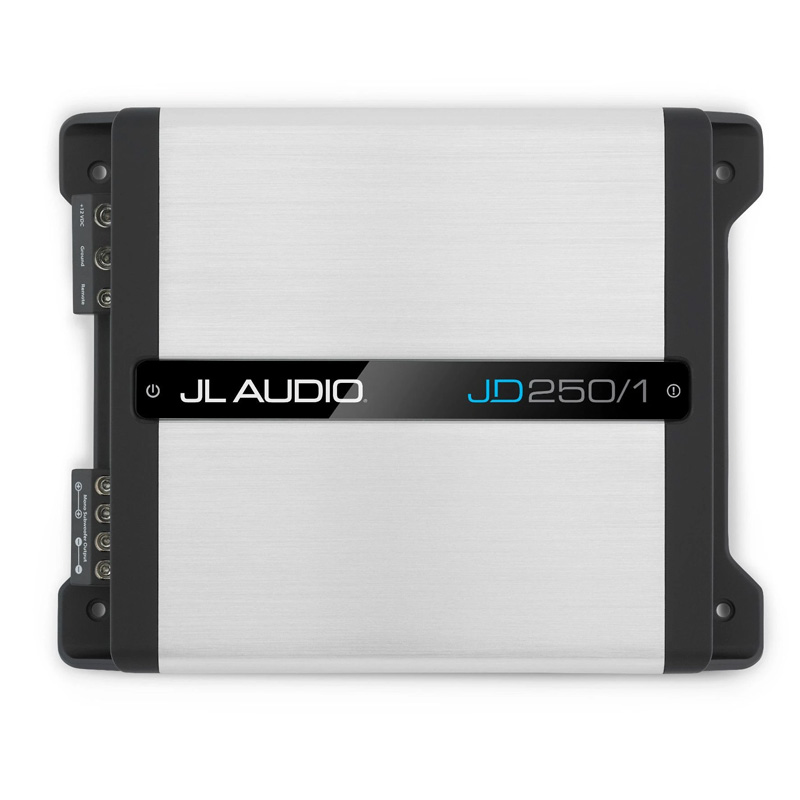

JD Series 250W x 1 RMS @2 Ohms, 250W Max Power Class D Monoblock Subwoofer Amplifier

NexD Switching Technology

The amplifier is equipped with the famous NexD Switching technology, which uses a self-oscillating modulator to help remove the noise that comes from fluctuations in power supply voltage. JL Audio’s JD250/1 is also loaded with differential-balanced inputs, which also cancels out the noise that comes from the usual car audio system wiring setup.

W0v3 Series 10" 300W RMS (600W Peak Power Handling) 4 Ohm Mono Voice Coil Subwoofer

Best Entry-level

The Massive Audio GTX104 is a high-performance 10-inch subwoofer that delivers powerful and accurate bass response. Designed with precision and durability in mind, this subwoofer is a popular choice among car audio enthusiasts looking to enhance their audio system.

JD250/1 175 Watts @ 4 ohm / 250 Watts @ 2 ohm - 14.4V Monoblock Class D Subwoofer Amplifier

Features:

Rated Continuous (RMS) Power @ 14.4 V

  • @ 4 ohms: 250 W RMS x 1
  • @ 3 ohms: 200 W RMS x 1
  • @ 2 ohms: 150 W RMS x 1
  • @ 1.5 ohms: N/A



Rated Continuous (RMS) Power @ 12.5 V

  • @ 4 ohms: 115 W RMS x 1
  • @ 3 ohms: 150 W RMS x 1
  • @ 2 ohms: 200 W RMS x 1
  • @ 1.5 ohms: N/A



General Specifications

  • Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
  • S/N Ratio, referred to highest rated power >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • S/N Ratio, referred to 1 W >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Damping Factor @ 4 ohms: >1000 / 50 Hz
  • Damping Factor @ 2 ohms: >500 / 50 Hz
  • THD+N @ Rated Power: <1% @ 2 Ω per Ch.
  • Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
  • Min.Copper Power / Ground Wire Gauge: 8 AWG wire
  • Fuse Rating: 30 A (AFS, AGU or MaxiFuse™)



Signal Processing

  • Filter Mode(s): Low-Pass only
  • Filter Slope(s): 12 dB/octave
  • Filter Frequency Range: 50 Hz - 500 Hz
  • Detented, Calibrated Filter Freq. Potentiometer: No
  • Filter Defeat Function: No
  • Infrasonic Filter: No
  • Bass Boost EQ: Yes
  • Output Polarity Switch: No
  • Remote Subwoofer Level Control: Optional (RBC-1)
  • Remote Bass EQ Boost Control: No
  • Pass-Through Preamp Output: Buffered



Physical Specifications

  • Height (H): 2.10 in / 53 mm
  • Width (W): 9.50 in / 242 mm
  • Depth (D): 7.50 in / 190 mm



10W0v3-4  W0v3 Series 10" 300W RMS (600W Peak Power Handling) Single 4 Ohm Voice Coil Subwoofer

Features:
  • 10" 4-ohm subwoofer
  • polypropylene cone with foam surround
  • power range: 75-300 watts RMS
  • peak power handling: 600 watts
  • frequency response: 25-250 Hz
  • sensitivity: 84.07 dB
  • top-mount depth: 4-15/16"
  • sealed box volume: 0.65 cubic feet
  • ported box volume: 1.125 cubic feet
  • UPC: 793276084378
  • Weight: 18
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
