ADC (Audison D-Class) Technology 2Ω stable output stage ensuring high audio performance in a compact size.
Extruded aluminum compact design with fanless convection cooling system.
Built-in USS (Universal Speakers Simulator).
Balanced high-noise rejection input speaker-In (for OEM head units) and RCA-In (for Aftermarket head units) inputs.
ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/ disabled, with Speaker-In inputs).
Pre-outs, also available when using Speaker-In level inputs.
5 ch/3 ch operation mode (selectable), to create a five-channel system (with sub), or a powerful sub + front three-channel system.
Bass Boost (50 Hz) adjustable to 12 dB, to increase the subwoofer punch.
Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to build a front + rear system, a multichannel woofer + tweeter system or a powerful sub + front system.
24 dB continuous adjustable (50 to 500 Hz) Lo-Pass subwoofer filter.
SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies from music signal to avoid damages to the subwoofer.
Optional VCR-S2 Remote Volume Control providing the ability to adjust subwoofer volume level from the dashboard.
- Maximum Power : 1000 Watts
- Low Frequency Response : 50-250 Hz
- High Frequency Response : 50-250 Hz
- Number of Channels : 1
- Frequency Response : 10-500 Hz
- Built In Crossovers : Yes
- RMS Power Output : 800x1 Watts
- Channel Separation : No
- Amplifier Class : D
- Fuse Rating : 40x1 A
What's Inside?

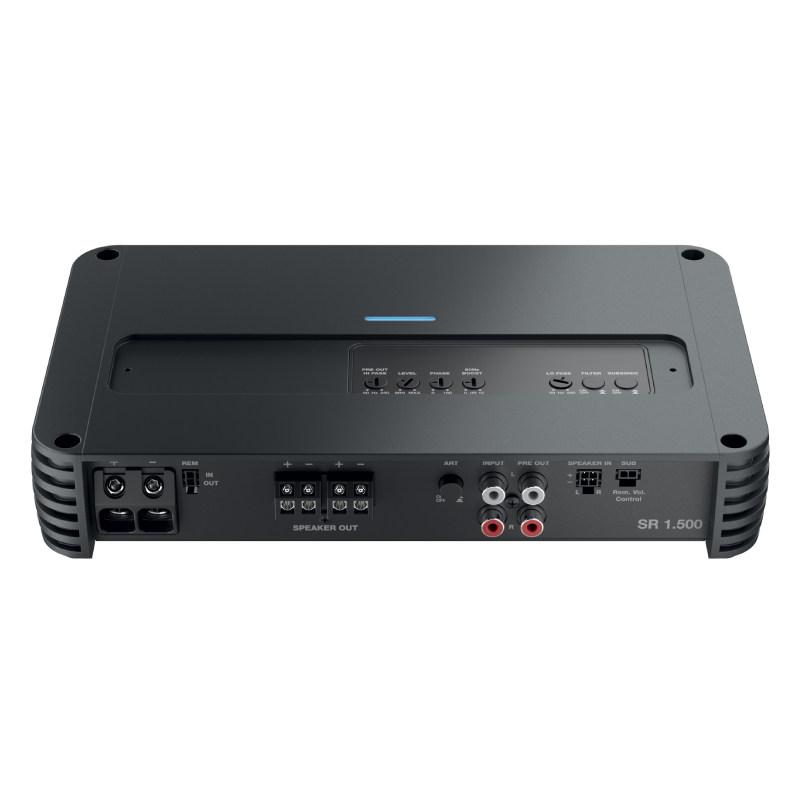

- 1 Monoblock D-Class Amplifier
Features:
- Power and Ground wire terminals updated from 8 AWG to 4 AWG
- Discrete MOSFET output devices used in the F/R amplifier channels
-
- Audison D-Class Technology
- Built-In Universal Speakers Simulator
- Automatic Remote Turn-On/Off
- Bass Boost Adjustable To 12 dB
- Extruded Aluminum Compact Design
- Black Finish
Specifications:
- Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35A
- Operating power supply voltage: 6.5 ÷17 VDC
- Idling current: 0.8 A
- Idling current when off: 0.02 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power: 40 A
- Remote IN: 6.5 ÷ 15 VDC (1 mA)
- Remote OUT: 6.5 ÷ 15 VDC (150 mA)
- ART - Automatic Remote Turn on/off from
- OUTPUT BTL speakers (Selectable): 1.5 ÷ 7 VDC
- Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power: 0.1 %
- Damping factor @ 100 Hz, 4Ω, 2 VRMS: > 300
- Bandwidth @ -3 dB 10Hz ÷ 500 Hz
- S/N ratio (A weighted @ 1 V Input) 100 dBA
- Pre-In sensitivity: 0.2 ÷ 5 VRMS
- Speaker-In sensitivity: 0.8 ÷ 20 VRMS
- Minimum load impedance: 1Ω
- OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
- 1Ch 500 W x 1 (4Ω)
- 1Ch 800 W x 1 (2Ω)
- 1Ch 1000 W x 1 (1Ω)
- PRE OUT Hi-Pass filtered: 50 ÷ 250Hz @ 12 dB/Oct.
- Filters: Full
- LP 50 ÷ 250Hz @ 24 dB/Oct.
- Phase: (0 ÷ 180) deg
- Bass Boost 50Hz (adjustable): (0 ÷12) dB
- SUBSONIC (on/off): 25 Hz @ 24 dB/Oct.
- SUB Volume Remote Control (-20 ÷ 6) dB
- UPC: 8018823138536
- Weight: 6
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
