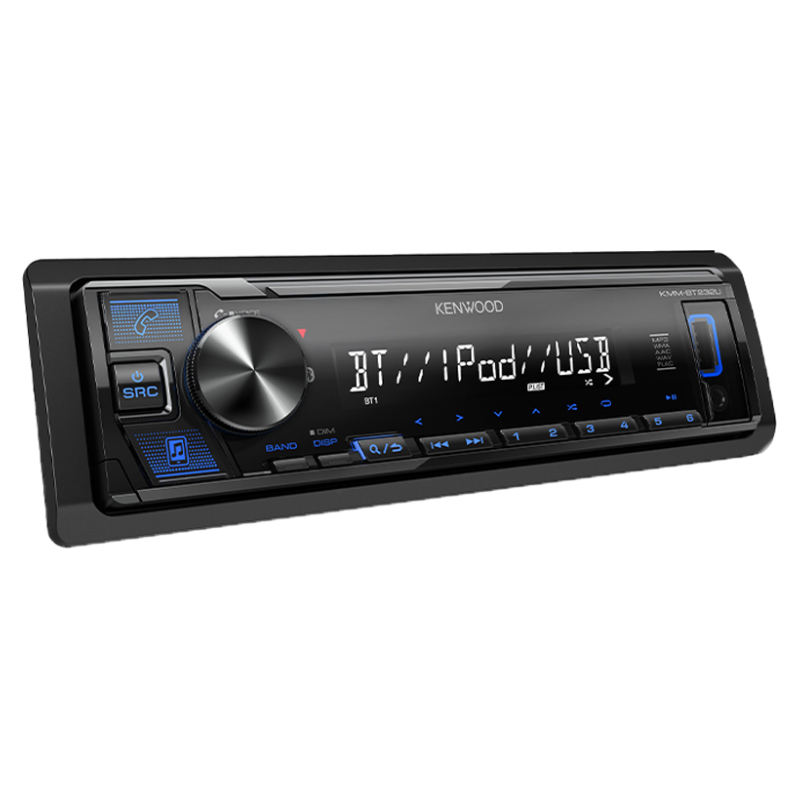

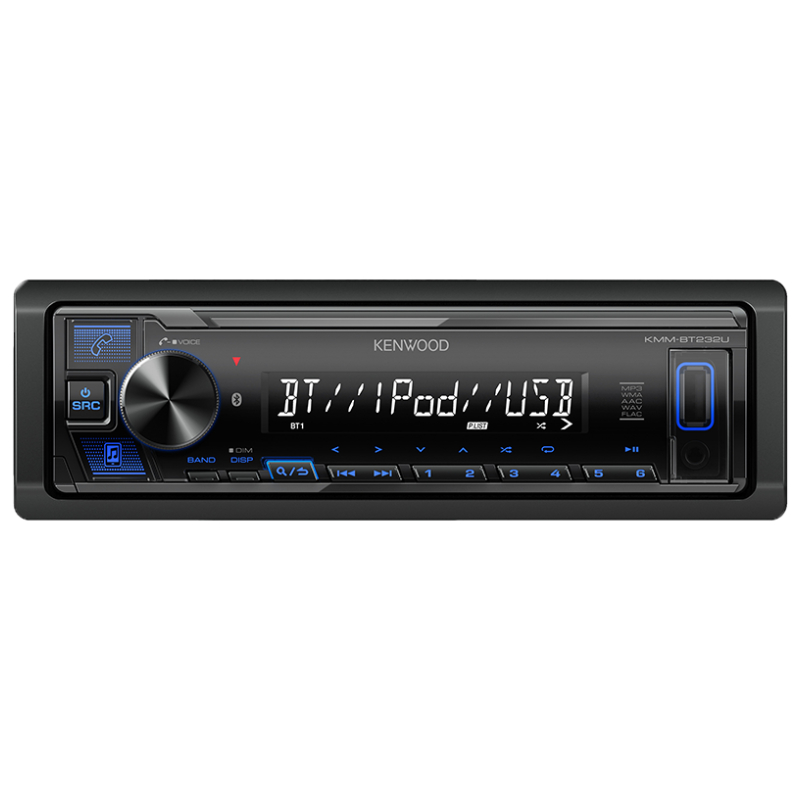

Kenwood  KMM-BT232U

1-DIN Digital Media Receiver with Bluetooth, Front USB & AUX, Blue Illumination, Short Chassis, Remote APP Ready

Item #84830

Condition:   Brand New

Product Highlights

  • 1-DIN Digital Media Receiver
  • Bluetooth
  • Front USB & AUX
  • Blue Illumination
  • Remote APP Ready

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$99.00

Reg. Price $120.00  Save $21.00
In Stock
In Stock

Only 4 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $18/mo with . Check your purchasing power

No Credit needed for Learn More


Kenwood Authorized Dealer

Huge Saving on Other items:


Kenwood Banner

Kenwood KMM-BT232U 1-DIN Digital Media Receiver with Bluetooth, Front USB & AUX, Blue Illumination, Short Chassis, Remote APP Ready


We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Digital media receiver (10A fuse)
  • •Face (attached)
  • •Trim ring (attached)
  • •Sleeve (installed)
  • •Wiring harness
  • •Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
  • •(2) Removal tools
  • •Quick Start Gude
  • •Warranty Card
  • •Owner's Manual
Latest Bluetooth® Connectivity

If you'd prefer not to tote CDs on the road with you, Kenwood's KMM-BT232U digital media receiver lets you bring your smartphone into the fold with the latest Bluetooth® connectivity.

You'll enjoy easy access to hands-free calling and audio streaming, thanks to the two biggest buttons on the stereo — one for calls and one for music. You can even grab a charge on the go from this receiver's front-panel USB input. And with Kenwood's Remote App on your smartphone, you can tweak your Kenwood's sound settings from your phone whenever you feel like it.

High-res FLAC Music Files

With a wired or wireless Bluetooth connection to your compatible phone, the KMM-BT232U lets you play music directly from your favorite music apps. This Kenwood can also play MP3, WMA, AAC, WAV, and even high-res FLAC music files right from a USB drive, so you can access your entire music library on your commute. And a front-panel aux input expands your source options too.

Lets You Pair Five Phones

For the family ride, Kenwood lets you pair two Bluetooth-equipped phones and quickly switch between them for hands-free calling. And when you're streaming audio, Kenwood's Music Mix feature lets you pair five phones so everybody can pick their tunes for the ultimate road trip party.

  • Maximum Power : 200 Watts
  • Satellite Radio Ready : Yes
  • Detachable Face : Yes
  • RMS Power Output : 25 Watts
  • Subwoofer Preamp Outputs : Yes
  • Built-in EQ : Yes
  • DIN : 1
  • Preamp Voltage : 2.5 volts
  • Bluetooth : Yes
  • Aux Input : Yes
  • MP3 Playback : Yes
  • WMA Playback : Yes
  • Front USB Input : 1
  • Preamp Outputs : 3

Features:

  • Equipped with the Intuitive KENWOOD Music Mix: Up to 5 Bluetooth devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
  • Control the Receiver from Your Smartphone with the KENWOOD Remote App:  A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
  • Streaming Music: Listen to popular music applications and music stored on your device with basic audio controls.
  • Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices: Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.



Specifications:

FM

  • Frequency Range(MHz) (Frequency step): 87.9MHz to 107.9MHz (200kHz)
  • Usable Sensitivity S/N:30dB: 8.2dBf (0.71μV/75Ω)
  • Quieting Sensitivity DIN S/N:46dB: 17.2dBf (2.0μV/75Ω)
  • Frequency Response (±3.0dB): 30Hz to 15kHz
  • S/N(dB): 64.0dB(MONO)
  • Stereo Separation: 40dB(1kHz)



MW(AM)

  • Frequency Range(kHz)(Frequency step): 530kHz to 1700kHz (10kHz)
  • Usable Sensitivity (S/N 20dB): 29dBμ (28.2μV)
  • Preout Level(mV)/Load-Unbalanced:  2,500mV/10kΩ
  • Preout Impedance(Ω): =<600Ω
  • Speaker Impedance(Ω): 4 to 8Ω



USB I/F

  • USB: USB 1.1 / 2.0 High Speed
  • File System: FAT12 / 16 / 32
  • Maximum Supply current: DC5V(DC logo) 1.5A
  • Frequency Response: 20Hz to 20kHz(±1dB)
  • S/N Ratio (dB): 98dB(1kHz)
  • Dynamic Range: 93dB
  • Channel Separation: 91dB
  • MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
  • WMA Decode: Compliant with Windows Media Audio
  • AAC Decode: AAC-LC ".aac",".m4a" files
  • WAV Decode: Linear-PCM
  • FLAC Decode: FLAC file (Up to 24bit/96kHz)



AUX

  • Input: Frequency Response 20Hz to 20kHz ±3dB
  • Input Maximum Voltage: 1,000mV
  • Input Impedance: 30kΩ



AMP

  • Maximum Power: 50Wx4
  • Full Bandwidth Power (at less than 1%THD): 22Wx4



TONE

  • Band1: 62.5Hz ±9dB
  • Band2: 100Hz ±9dB
  • Band3: 160Hz ±9dB
  • Band4: 250Hz ±9dB
  • Band5: 400Hz ±9dB
  • Band6: 630Hz ±9dB
  • Band7: 1kHz ±9dB
  • Band8: 1.6kHz ±9dB
  • Band9: 2.5kHz ±9dB
  • Band10: 4kHz ±9dB
  • Band11: 6.3kHz ±9dB
  • Band12: 10kHz ±9dB
  • Band13: 16kHz ±9dB



Bluetooth

  • Version: Bluetooth 4.2
  • Frequency Range: 2.402 to 2.480GHz
  • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
  • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Profile
    • HFP 1.7.1 (Hands Free Profile)
    • SPP(Serial Port Profile)
    • PBAP(Phonebook Access Profile)
    • A2DP(Advanced Audio Distribution Profile)
    • AVRCP 1.6.1 (Audio/Video Remote Control Profile)



GENE

  • Operating voltage: 12V DC car battery
  • Installation Size(W)(H)(D): 182(mm) 7-3/16(in) X 53(mm) 2-1/16(in) X 100(mm) 3-15/16(in)
  • (Trim plate and Mounting sleeve: Included)



  • UPC: 0019048234001
  • Weight: 4
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
