Sony XAV-AX4000 1-DIN 6.95" Digital Multimedia Receiver with Wireless Apple CarPlay, Android Auto, Bluetooth®, i-Datalink® Maestro®, Back-Up Camera Ready™, SiriusXM™ Satellite Radio Ready, and LDAC™
We are a Sony authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?

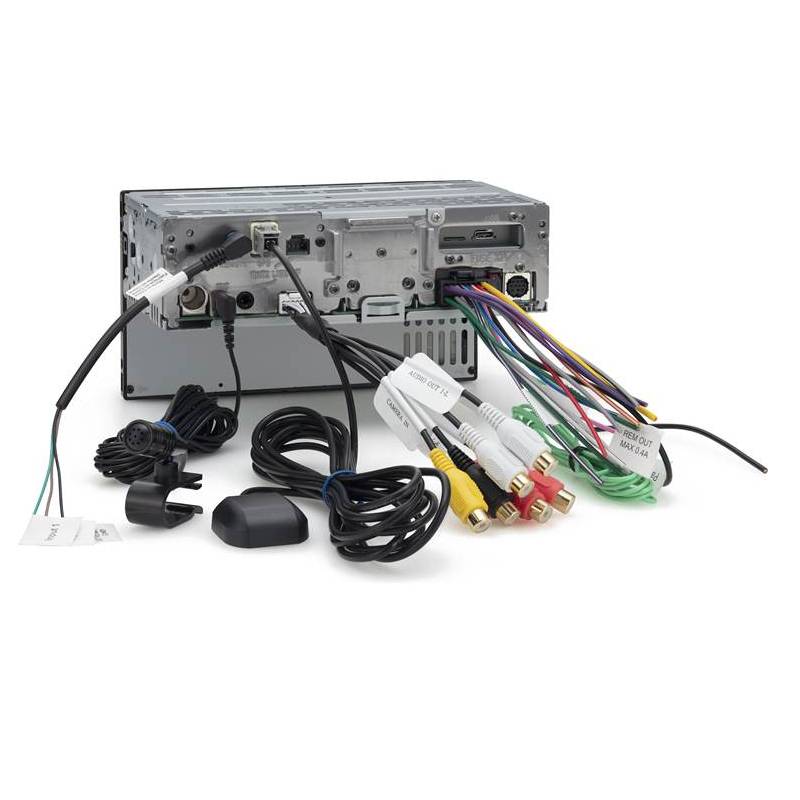

- • Digital multimedia receiver
- • Wiring harness (attached 6.5' parking brake wire)
- • Camera/Preout harness
- • 3-Wire to 3.5mm SWC adapter
- • 3-Wire to 3.5mm SWC adapter
- • GPS antenna (attached 10' cable terminated by a FAKRA connector)
- • GPS Antenna mounting plate
- • Microphone with visor-bracket (attached 12' cable terminated by a right-angle mono-3.5mm connector)
- • Surface bracket
- • Two-sided tape
- • Four M5x9mm ISO-screws
- • Warranty Information
- • Owner's Manual

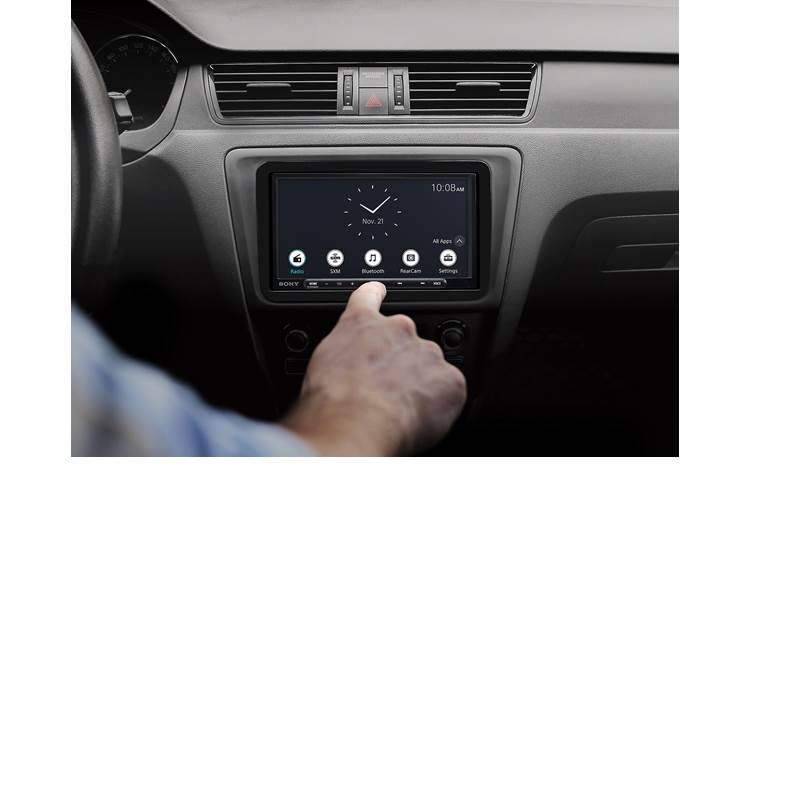

Intermediate-Level Multimedia Receiver
When it comes to intermediate-level multimedia receivers, the Sony XAV-AX4000 is an excellent option for you to upgrade from your old receiver. Equipped with lots of modern features that you would want in a multimedia receiver, you can be sure that you would get a whole new entertainment experience that you will not be able to get from your old one.

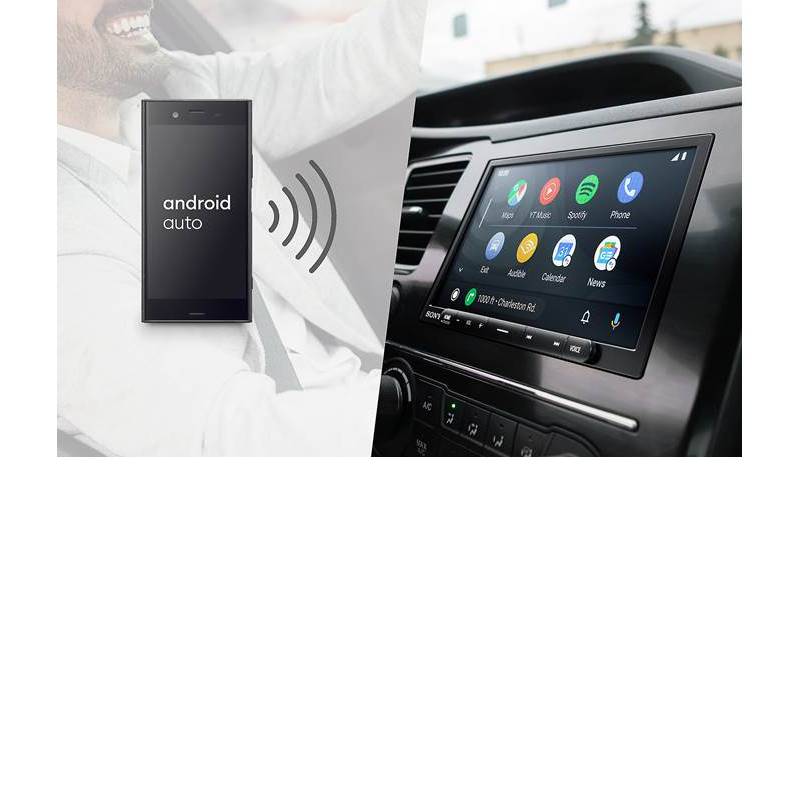

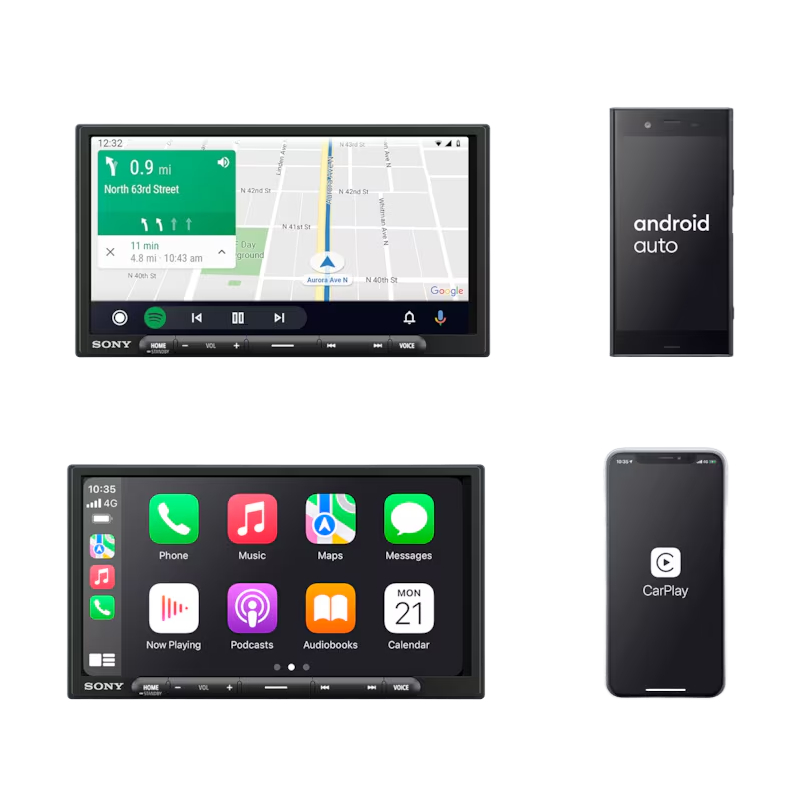

Android Auto and Apple CarPlay
This receiver is Android Auto and Apple CarPlay-ready, so you can easily ask for directions, read and send text messages, make and take calls, listen to voicemails and play music using voice commands with the help of Siri for iPhones and Google Assistant for Android phones. It also has a Bluetooth connectivity option that allows you to answer phone calls hands-free and stream music wirelessly.
iDatalink Maestro
You do not have to worry about upgrading to this receiver as well, as it is compatible with the iDatalink Maestro module, which allows you to keep all your car's factory features. You can also check out your engine's performance data using its 6.95-inch touchscreen display.
5-Channel Built-In Amplifier
The Sony XAV-AX4000 comes with a built-in amplifier with a five-channel preamp output, allowing you to connect a mono subwoofer aside from your front and rear speakers. It can deliver a power output of 20 Watts RMS and can go up to 55 Watts of peak power per channel. With its 14-band EQ, you can shape the amp's frequency response for a more defined audio quality.
- CD-R/CD-RW Compatible : No
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- Subwoofer Preamp Outputs : Yes
- DIN : 1
- Display Size : 6.95 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- Front USB Input : 1
- Rear USB Input : 1
- Preamp Outputs : 6

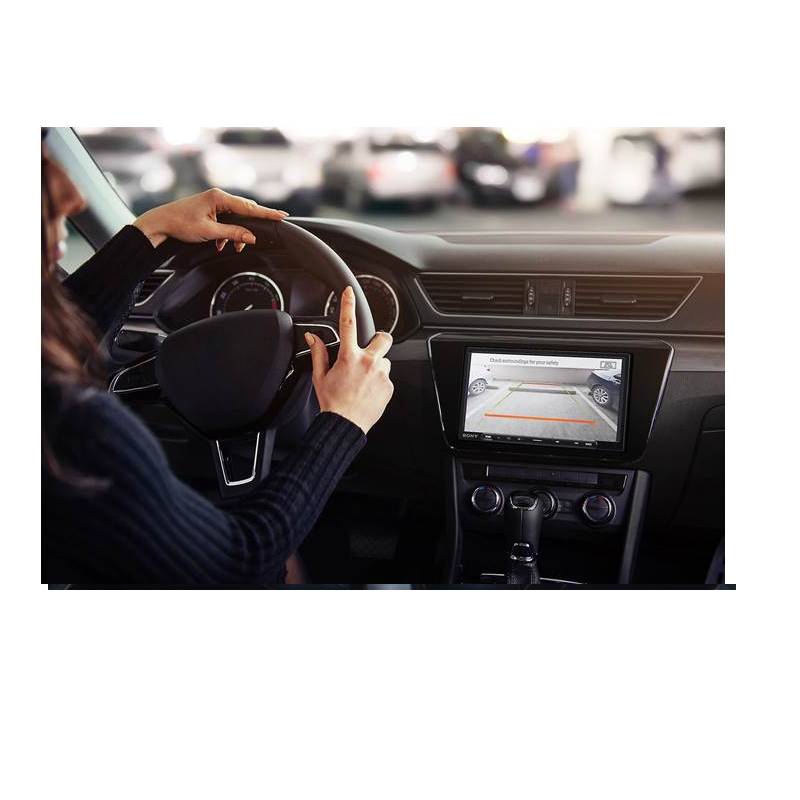

- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
- USB Mirroring : Yes
Features:
- digital multimedia receiver with AM/FM tuner

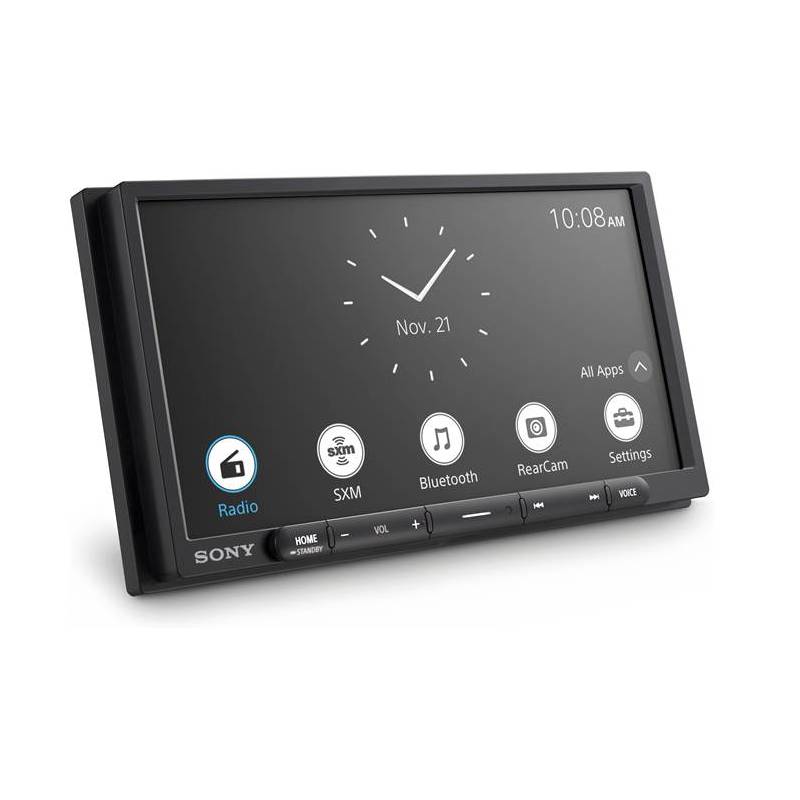

- 6.95" anti-glare resistive touchscreen display with brushed aluminum key terminal
- Bluetooth hands-free calling and audio streaming

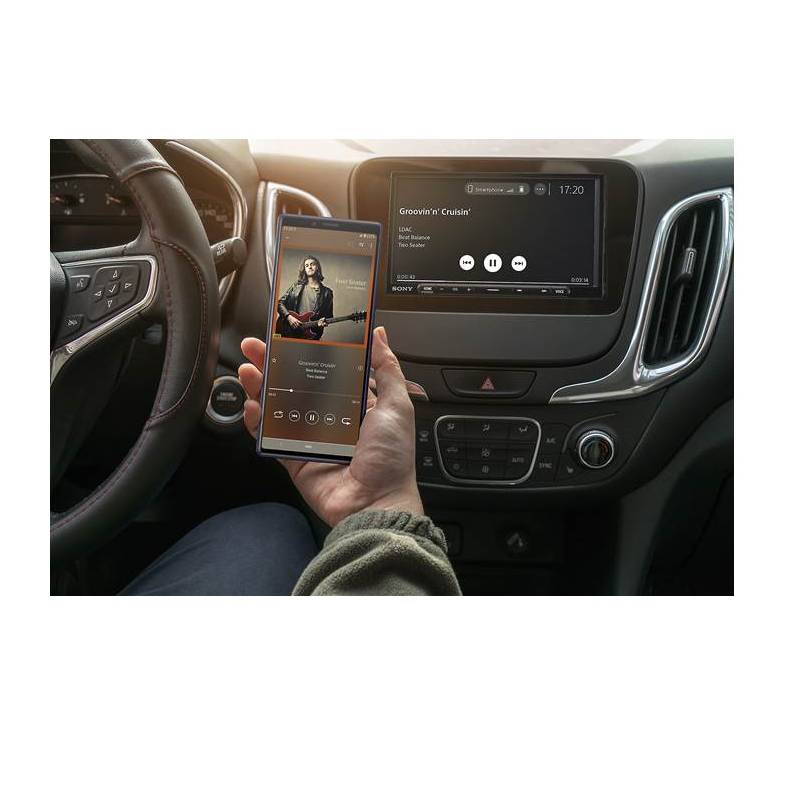

- high-quality wireless LDAC audio streaming
Smartphone Features:
- works with Apple CarPlay (wireless only) and Android Auto (wired/wireless)
- voice control with Siri and Google Assistant
Audio/Video Features:
- plays media from USB memory devices (see Details for full capabilities)
- 14-band equalizer with time alignment
- subwoofer controls
Expandability:
- inputs: rear USB input, rear-view camera input
- outputs: 5-channel preamp outputs (2-volt front, rear, mono sub)
Specifications:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (20 watts RMS/55 peak x 4 channels)

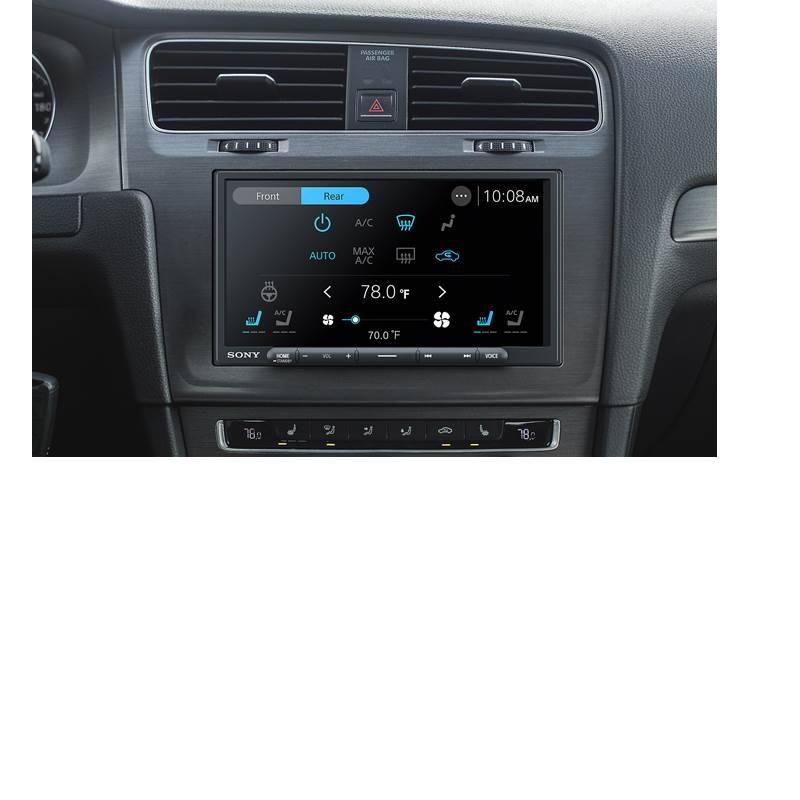

Works with iDataLink Maestro module
- retains factory features in a wide selection of vehicles
- displays engine performance and other vehicle data on touchscreen
- CTA-2006 compliant
- fits double-DIN dash openings
- compatible with most factory steering wheel audio controls (adapter required)
- warranty: 3 years
- Our 60-day money-back guarante
Size & Weight
DIMENSIONS (W X H X D)
WEIGHT
General Features
- OUTPUT POWER:55W x4
- PRE OUT:3 Pre (Front LR / Rear LR / Sub)
- REAR VIEW CAMERA IN:Rear
- USB:Yes (Type-C x 1, REAR)
- FIRMWARE UPGRADABILITY:Yes
- TIME ALIGNMENT:Yes
- EQUALIZER:14-band Equalizer
Connectivity
Tuner Features
- PRESET:FM18/AM12
- AUTO MEMORY:BTM
- RDS / EON:Yes (RBDS)
Bluetooth Profile
- HFP:Yes (1.7.1)
- A2DP:Yes (1.3.1)
- AVRCP:Yes (1.6.1)
- PBAP:Yes (1.1)
Bluetooth Features
- SPEED DIAL:Yes (6 memories)
- RECENT CALLS (# OF):Yes
- LAST DIALED CALL:Yes(select from the dialed call history)
- PHONEBOOK ACCESS VIA PBAP:Yes
- ALPHABETICAL PHONEBOOK SORTING:Yes
- RING VOLUME LEVEL CONTROL:Yes
- CALL VOLUME LEVEL CONTROL:Yes
- EXTERNAL MICROPHONE:Supplied
- BATTERY REMINDER:Yes
- SIGNAL STRENGTH INDICATION:Yes
Panel Design
- KEY ILLUMINATION:Yes (White)
Monitor(AVC)
- ASPECT:16 : 9
- SCREEN DIAGONAL (INCH / MM):6.95 inch
- RESOLUTION (DOT):800 x 480
- DIMMER:Auto/Manual select
- BRIGHTNESS:Typ: 600 cd/m2
Display Panel
- KEY ILLUMINATION INITIAL:White
- DIMMER ADJUST:Yes
User Interface
- TOUCH PANEL:Resistive + AG
- REMOTE COMMANDER:Yes
- PARKING CONTROL:Yes
- PARKING LINE ADJUST:Yes
- REAR VIEW CAMERA-IN MARKER SETTING:Yes
USB Mass Storage Device Control Feature
- USB DEVICE CONTROL (REPEAT):TRACK/FOLDER/DRIVE
- USB DEVICE CONTROL (SHUFFLE):OFF/FOLDER/DEVICE
- USB DEVICE CONTROL (PAUSE):Yes
- USB DEVICE CONTROL (RESUME PLAY):Yes
- USB DEVICE CONTROL (AUDIO CODEC):MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF
- USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION): mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff
Multi-Language
- MENU:English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
- CAUTION:English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch
- UPC: 027242923447
- Weight: 1
