Musway  M6

6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor

Item #85543

Condition:   Brand New

1
❮ ❯
1 / 4
Product Highlights
  • 6-Channel Full Range Amplifier
  • Class D Amplifier Technology
  • 8-Channel Digital Sound Processor
  Free 3-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
1 Review

$849.95

Reg. Price $949.95  Save $100.00
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 3-Years Warranty Included!

Starting at $77/mo with . Check your purchasing power

No Credit needed for . Learn More

Add to Cart
 Alert me on price change
We Price Match! Call Us! 310-526-8635
Musway Authorized Dealer

Huge Saving on Other items:

Musway Banner

6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor 105Wx6 @ 2 Ohms-13.8V - 210Wx3 @ 4 Ohms Bridged-13.8V

We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 1 - M6 6-Channel Full Range Class D Amplifier with 8-Channel Digital Sound Processor
  • • 1 - Owner’s Manual
  • • 1 - Power Harness
  • • 1 - Input/Output Harness
  • • 1 - USB Tuning Cable
  • • 1 - Extra 30-amp ATC Fuse
  • • 1 - Mounting Hardware

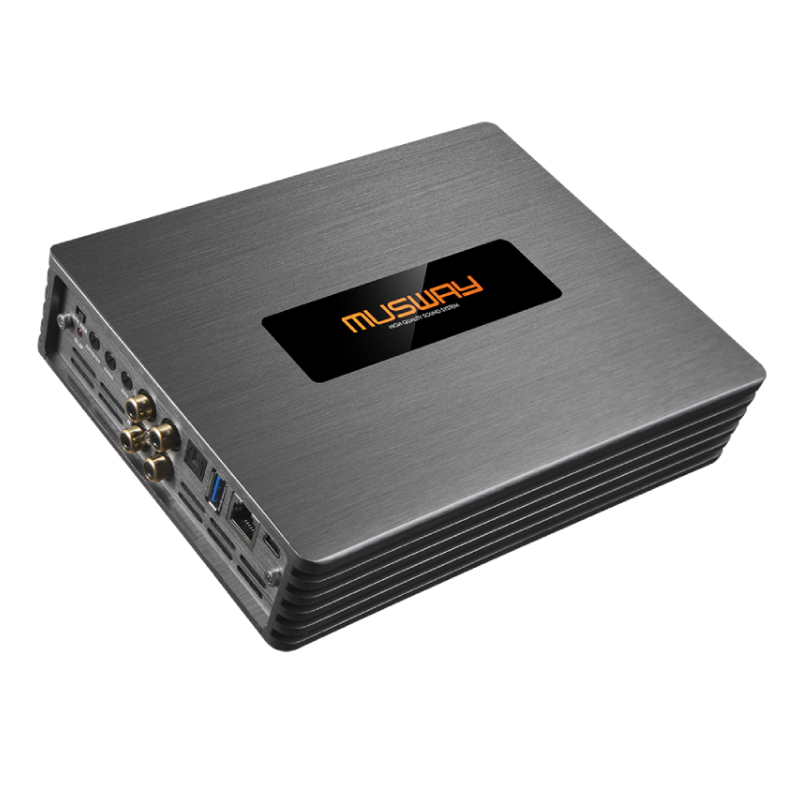

M6 Amplifier with built-in DSP

The M6 model can surely be seen as a new milestone in amplifier construction. It is barely imaginable that a fully grown six channel class D amplifier works in this small housing, featuring six channels of amplification, and 8 channels of Digital Sound Processing. The centerpiece is the high end dual 32 bit, 330 MIPS DSP processors from Texas Instruments which are controllable via PC software or the new MUSWAY app for your smartphone or tablet. The M6 features 6 x 70/105 watts at 4/2 Ohms and is bridgeable at 210 watts x 3 at 4 Ohms.

Product Highlights:
  • • Start-Stop ready
  • • EPS (Intelligent High-Level Input-Error Protection System)
  • • Brushed Aluminum Heat sink and End Panels
  • • Auto Turn On via DC Offset or Signal Sensing
  • • Utilizes 4-fold Laminated Circuit Boards that Allows for Small size and Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers
  • • Clipping LED’s
  • • Inputs: 6 x High-Level, 2 x AUX/RCA, 1 x Optical
  • • Outputs: 6 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP) with up to 6.5v
  • • With the Easy-to-Use MUSWAY PC Software, the M6 can be Configured Perfectly and in Real Time via PC or the New Musway App (via the optional BTA2) for your Smartphone or Tablet
  • • With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
  • • Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips

    • Optional Accessories

    BTA2

    Bluetooth USB - Dongle

    External Bluetooth USB Dongle for Audio Streaming and APP Tuning

    For Use on the M4+, M6, D8, M12, DSP68 and TUNE12

    Dimensions (H x L x W) 0.4” x 2.4” x 1.4”

    $139.95

    SHOP NOW
    BTS-HD

    aptX HD USB Bluetooth Dongle for Hi-Res Audio Streaming

    For use with TUNE12, DSP68, M6v3, M4+v3, M12.

    $139.95

    SHOP NOW
    BTS

    Bluetooth USB - Dongle

    External Bluetooth USB Dongle for Audio Streaming

    For Use on the M4, M4+, M6, D8, and DSP68

    Dimensions (H x L x W) 0.4” x 2.4” x 1.4”

    $84.95

    SHOP NOW
    DRC1

    Digital Remote Control

    Adjustable Master Volume and Subwoofer Level

    Signal Source Selector: High Level, Bluetooth, Auxiliary or Optical

    Selectable Mute . Set Channel Pair for Subwoofer Level

    For Use on the M4+, M6, D8 and DSP68

    Dimensions (H x L x W) 0.5” x 2.3” x 1.3”

    $164.95

    SHOP NOW
    P2

    2-Channel Micro Class D Amplifier

    Mini Amplifier to Drive Subwoofer

    2x100W RMS @ 2 Ohms

    2x80W RMS @ 4 Ohms

    Dimensions (H x L x W) 1.4” x 4.9” x 3.0”

    $239.95

    SHOP NOW
    • Number of Channels : 6
    • RMS Power Output : 210 Watts
    • Amplifier Class : D

    Product Highlights:

    • Start-Stop Ready
    • EPS (Intelligent High-Level Input-Error Protection System)
    • Brushed Aluminum Heat sink and End Panels
    • Auto Turn On via DC Offset or Signal Sensing
    • Utilizes 4-fold Laminated Circuit Boards that Allows for Small size and Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers
    • Clipping LED’s
    • Inputs: 6 x High-Level, 2 x AUX/RCA, 1 x Optical
    • Outputs: 6 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP) with up to 6.5v
    • With the Easy-to-Use MUSWAY PC Software, the M6 can be Configured Perfectly and in Real Time via PC or the New Musway App (via the optional BTA2) for your Smartphone or Tablet
    • With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
    • Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips



    Specifications:

    • Distortion  THD (1 kHz @ 4 Ohms, 90% Power): 0.05%
    • Bandwidth (-3 dB, 2 V RMS, 4 Ohms): 15 Hz - 22 kHz
    • S/N ratio @ A weighted, 1 V, Max. Power: 95 dB A
    • Damping factor @ 1 kHz, 2 V RMS, 4 Ohms:  > 70
    • Input sensitivity
      • 10V-20V RMS(Highlevel)
      • 2V-6V RMS(Lowlevel)
    • Input impedance  13 Ohms (Highlevel); 47 kOhms (Lowlevel)
    • LOAD IMPEDANCE (MIN):
      • 6CH: 2 Ohms
      • 3CH  Bridge (12) (34) (56)  4 Ohms
    • OUTPUT POWER (RMS) @ 13.8 VDC, 1% THD:
      • 6CH @ 4 Ohms 70 W x 6
      • 6CH @ 2 Ohms 105 W x 6
      • 3CH  (Bridge 1/2; 3/4; 5/6) @4 Ohms  210 W x 3
    • Operating Voltage: DC 9 - 15V
    • Dimensions: (H x L x W) 1.7” x 8.7” x 5.9”









    • UPC: 9672502090176
    • Weight: 4
    • Authorized Internet Dealer
    Warranty: 3 Year(s) Warranty.
    This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.

    Do you own this product?

    Write a review!

    • Powerful amp. not just with its power output. well 105 Watts per channel is already impressive but I'm more amazed with its DSP feature. My expectations was that I'm going to have a hard time using the DSP as I'm not a techy guy but after two days of studying it, I'm think I'm already getting the hang of it. There's many more that you can do with the amp and that's what I really love about it.

      Elmer
      5/31/2024
    • Number of Channels : 6
    • RMS Power Output : 210 Watts
    • Amplifier Class : D

    Product Highlights:

    • Start-Stop Ready
    • EPS (Intelligent High-Level Input-Error Protection System)
    • Brushed Aluminum Heat sink and End Panels
    • Auto Turn On via DC Offset or Signal Sensing
    • Utilizes 4-fold Laminated Circuit Boards that Allows for Small size and Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers
    • Clipping LED’s
    • Inputs: 6 x High-Level, 2 x AUX/RCA, 1 x Optical
    • Outputs: 6 x High-Level, Low-Level 2 x Pre-Amplifier Outputs RCA (configurable via DSP) with up to 6.5v
    • With the Easy-to-Use MUSWAY PC Software, the M6 can be Configured Perfectly and in Real Time via PC or the New Musway App (via the optional BTA2) for your Smartphone or Tablet
    • With the 3 Optional USB Bluetooth Dongles you can Stream Audio (BTS), Stream aptX HD Hi Res Audio (BTS HD) and can Stream Audio and have App Control for DSP Tuning from your Smartphone or Tablet (BTA2)
    • Also Available is the Optional DRC1 Digital Remote Control with OLED Display that puts the Control of your Audio System at your Fingertips



    Specifications:

    • Distortion  THD (1 kHz @ 4 Ohms, 90% Power): 0.05%
    • Bandwidth (-3 dB, 2 V RMS, 4 Ohms): 15 Hz - 22 kHz
    • S/N ratio @ A weighted, 1 V, Max. Power: 95 dB A
    • Damping factor @ 1 kHz, 2 V RMS, 4 Ohms:  > 70
    • Input sensitivity
      • 10V-20V RMS(Highlevel)
      • 2V-6V RMS(Lowlevel)
    • Input impedance  13 Ohms (Highlevel); 47 kOhms (Lowlevel)
    • LOAD IMPEDANCE (MIN):
      • 6CH: 2 Ohms
      • 3CH  Bridge (12) (34) (56)  4 Ohms
    • OUTPUT POWER (RMS) @ 13.8 VDC, 1% THD:
      • 6CH @ 4 Ohms 70 W x 6
      • 6CH @ 2 Ohms 105 W x 6
      • 3CH  (Bridge 1/2; 3/4; 5/6) @4 Ohms  210 W x 3
    • Operating Voltage: DC 9 - 15V
    • Dimensions: (H x L x W) 1.7” x 8.7” x 5.9”









    • UPC: 9672502090176
    • Weight: 4
    • Authorized Internet Dealer
    Warranty: 3 Year(s) Warranty.
    This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
