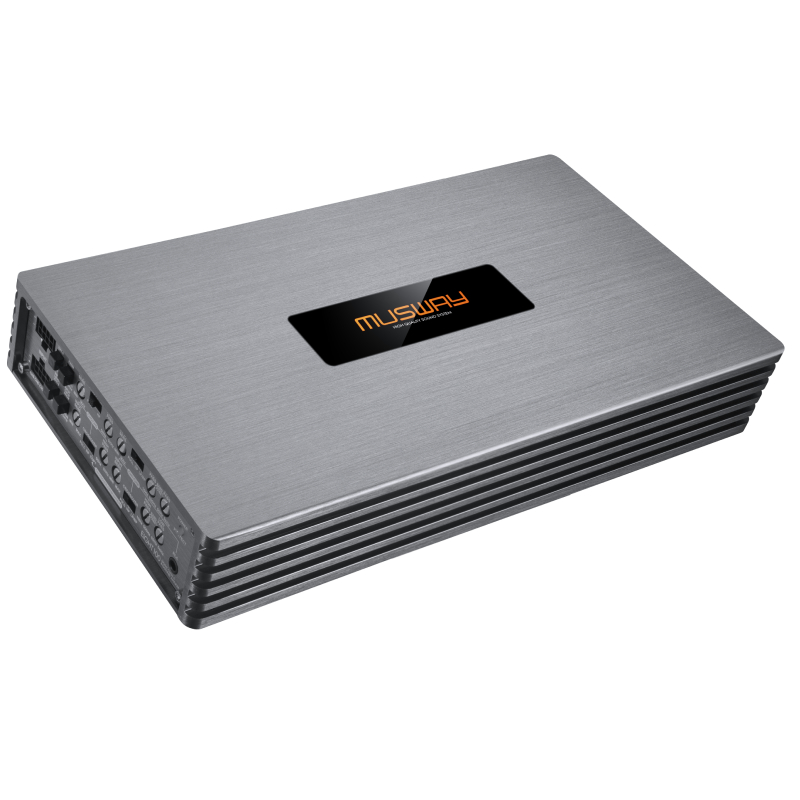

MX Series 8-Channel Full Range Class D Amplifier 180Wx8 @ 2 Ohms-13.8V – 360Wx4 @ 4 Ohms Bridged-13.8V
We are a Musway authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 1 - EIGHT.100 8-Channel Full Range Class D Amplifier
- • 1 - Owner's Manual
- • 1 - External ANL Mini Fuse holder
- • 1 –120-amp Mini ANL Fuse
- • 2 - Inline EPS High-Level input harness
- • 2 - Low Level (RCA) input harness
- • 2 - High Level output harness
- • 1 - RLC Knob
- • 1 - RLC Cable 16.5’
- • 1 - 1’ RLC Breakaway Cable
- • 1 - Mounting hardware
Most powerful 8-channel power amplifier in the world
Recently winning the Car & HiFi Product of the Year for 2022, the Musway EIGHT.100 is considered by many to be one of the most powerful 8-channel amplifiers in the market today. Even with its compact size, the amplifier can accommodate up to 8 speakers, giving you the flexibility to achieve exceptional car audio quality.
Equipped With a Brushed Aluminum Heat Sink
The Musway EIGHT.100 is equipped with a brushed aluminum heat sink and end panels, allowing the amplifier to stay cool and efficient even after long hours of use at cranked-up volume levels. It also uses a 4-fold laminated circuit board that is perfect for eliminating interference, especially with small-sized amplifiers.
Has an Auto Turn-on Feature
With its low and high-level inputs, the Musway EIGHT.100 also uses its renowned Intelligent High-Level Input Error Protection System to protect the amplifier from getting damaged. It also has an Auto Turn-on feature, so controlling the amplifier would be as easy as it gets.
Deliver an Extensive Full-range Frequency Performance
The Musway EIGHT.100 can handle a power output of 100 Watts RMS at 4 ohms per channel and 180 Watts RMS at 2 ohms per channel. With its range reaching up to 38k Hz, this 8-channel amplifier can deliver an extensive full-range frequency performance with less noise at high volume levels.
- Number of Channels : 8
- Built In Crossovers : Yes
- Channel Separation : Yes
- Amplifier Class : D
- Fuse Rating : 1 x 120 A
Product Highlights:
- Start-Stop ready
- EPS (Intelligent Hi-Level Input Error Protection System)
- Utilizes 4-fold Laminated Circuit Boards that allows for Small Size and
- Effectively Suppresses EMI (RF) Interference which is a must with Full Range Class D Amplifiers
- Selectable Input Mode Switch: 4 channel or 8 channel input
- High and Low-Level Inputs
- Brushed Aluminum Heat Sink and End Panels
- Auto Turn On via DC Offset or Signal Sensing
- Remote Level Controller is Included in the Box
Specifications:
- Model: EIGHT100
- Channels: 8
- Circuit: Digital Class D
- Frequency Range –3dB: 4 - 38,000 Hz
- Damping Factor: > 150
- Signal-to-Noise Ratio: 107 dB
- THD+N: < 0.02%
- Input Sensitivity: 5 - 0.2 V
- Start-stop Capability: 8.5 V
- High Level Inputs with EPS: Yes
- Auto Turn On: Via DC or Signal
- Bass Level Remote Controller: Yes
- Fuse Rating: 1 x 120 A (external)
- Dimensions: 150 x 45 x 300 mm
Output Power RMS @ 13.8 V:
- Watts @ 4 Ohms: 8 x 100
- Watts @ 2 Ohms: 8 x 180
- Watts @ 4 Ohms Bridged: 4 x 360
Output Power RMS @ 14.4 V:
- Watts @ 4 Ohms: 8 x 110
- Watts @ 2 Ohms: 8 x 195
- Watts @ 4 Ohms Bridged: 4 x 390

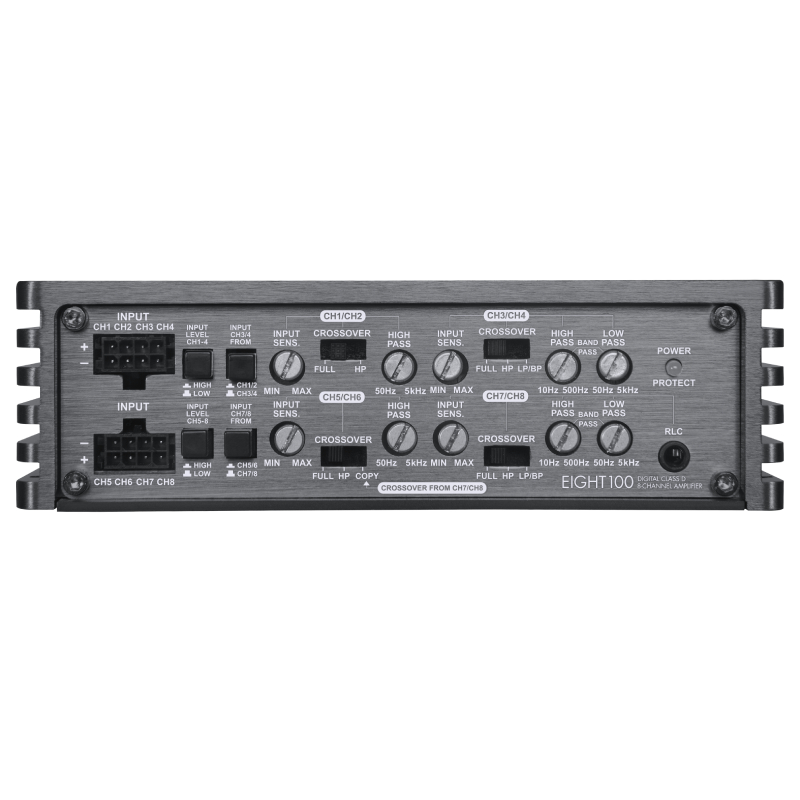

Channel 1/2 Crossover Modes:
- High Pass Filter: 50 - 5,000 Hz
- Modes: Full, HP
Channel 3/4 Crossover Modes:
- High Pass Filter: 10 - 500 Hz
- Low Pass Filter: 50 - 5,000 Hz
- Modes: Full, HP, LP/BP
Channel 5/6 Crossover Modes:
- High Pass Filter: 50 - 5,000 Hz
- Modes: Full, HP, Copy
Channel 7/8 Crossover Modes:
- High Pass Filter: 10 - 500 Hz
- Low Pass Filter: 50 - 5,000 Hz
- Modes: Full, HP, LP/BP
- UPC: 6972502090213
- Weight: 7
- Authorized Internet Dealer
Warranty: 3 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 3 Year(s) from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
I'm a type of guy who loves to have a massive speaker setup, and this amplifier allows me to have my dream setup. With having eight speakers, I really do not have to purchase again another amp. and they make speakers also sound better than before.
