PCH Custom Audio  KD-TD91BTS Full Car Audio Package-1

Universal Full Car Audio Package includes the following: JVC KD-TD91BTS + (2) JVC CS-DF620 + Autotek MM1020.4

Item #85567

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Universal Full Car Audio Package includes the following: JVC KD-TD91BTS + (2) JVC CS-DF620 + Autotek MM1020.4


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •JVC KD-TD91BTS
  • •(2) JVC CS-DF620
  • • Autotek MM1020.4
  • •Owner's Manual

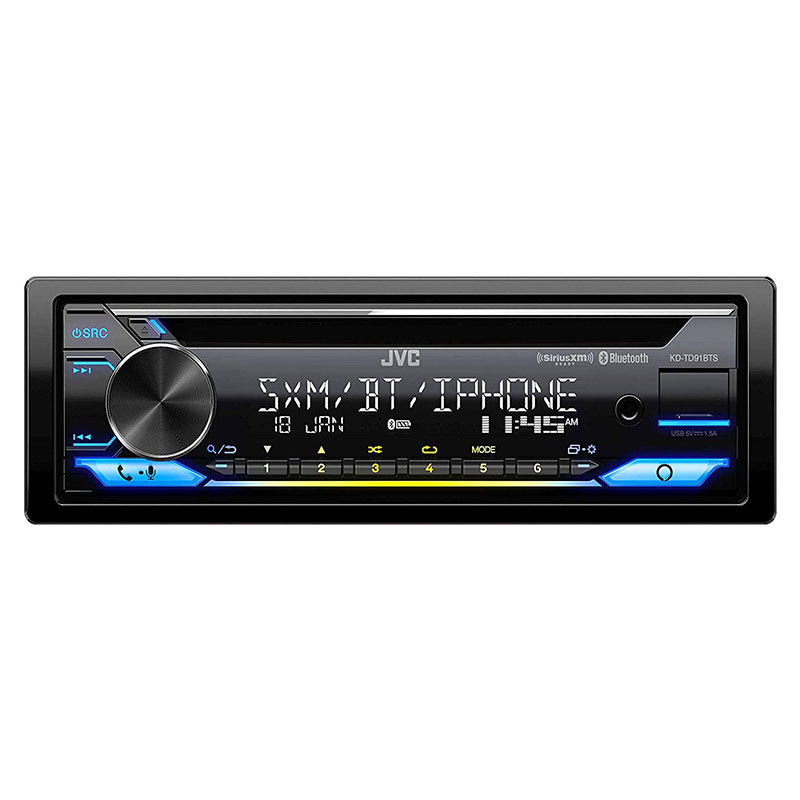

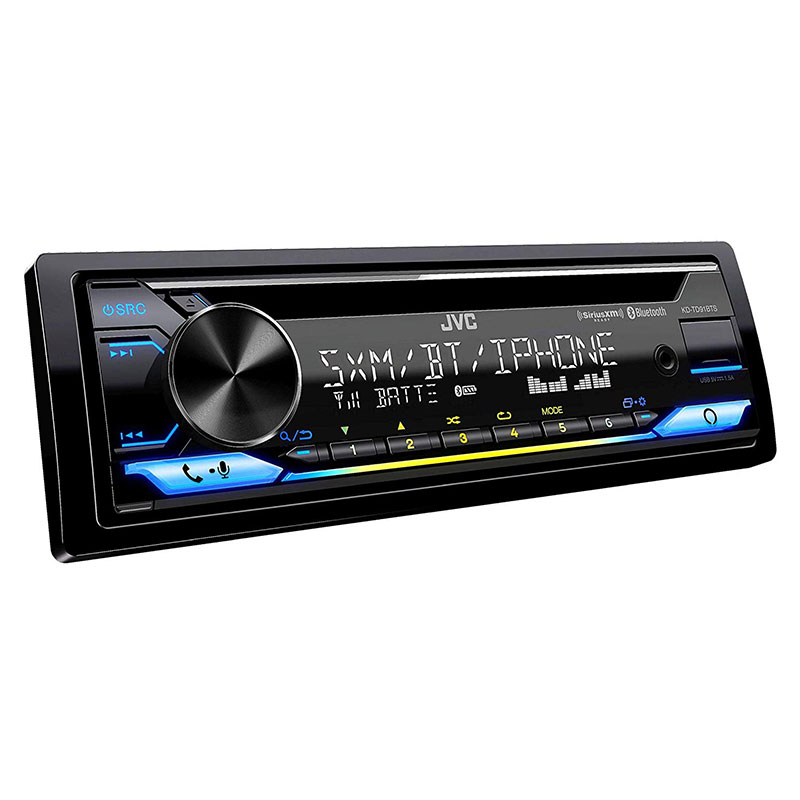

JVC KD-TD91BTS CD Receiver featuring Bluetooth, USB, SiriusXM, Amazon Alexa

Bluetooth Audio Streaming & Control (A2DP, AVRCP)

With built-in Bluetooth audio, you can listen to and control songs stored on your iPhone or Android smartphone – all wirelessly. Extra high-quality playback can also be achieved with FLAC compatibility that allows digital audio to be compressed in a lossless format.

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.



Amazon Alexa Compatible

You can talk to Amazon Alexa on your JVC receiver. With Alexa built-in, you can ask to play music, place calls, listen to audiobooks, hear the news, check the weather, control smart home devices, get directions, find parking, and more – all while you keep your hands on the wheel and eyes on the road.

Listen to Pandora and Spotify from your smartphone with smooth control on the receiver via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices. Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

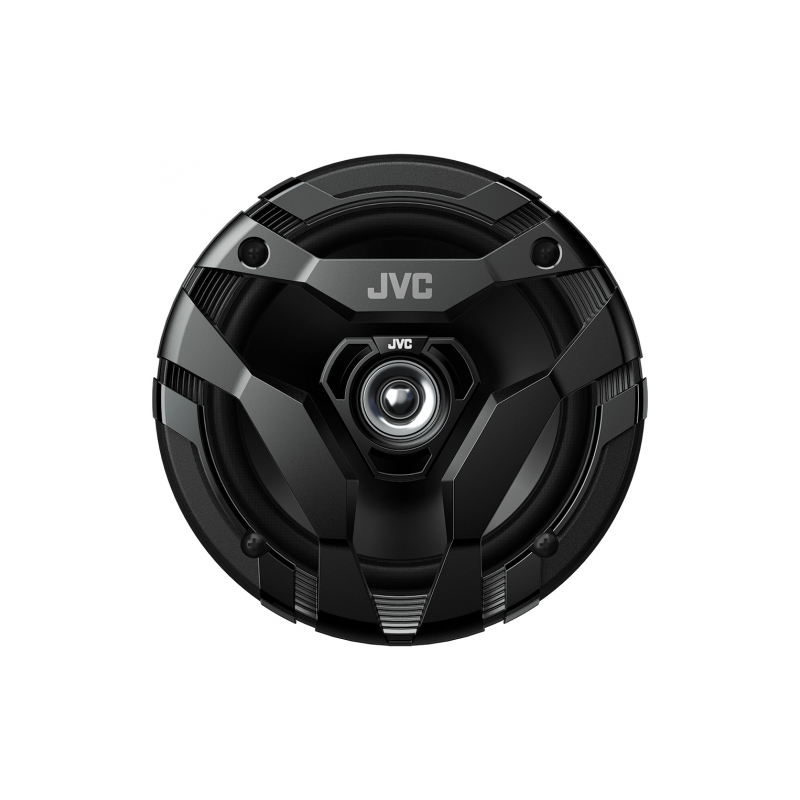

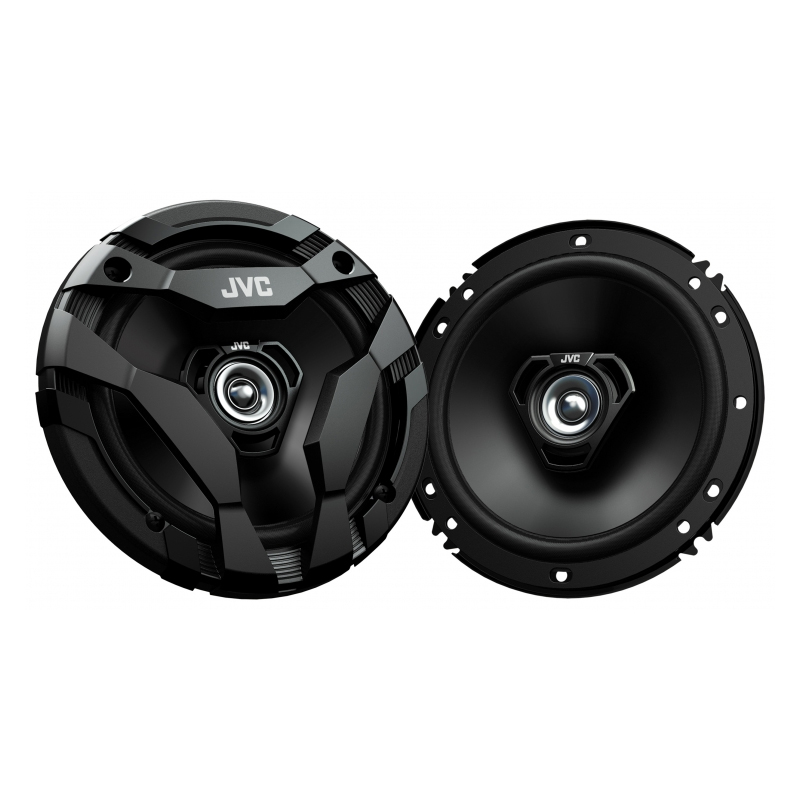

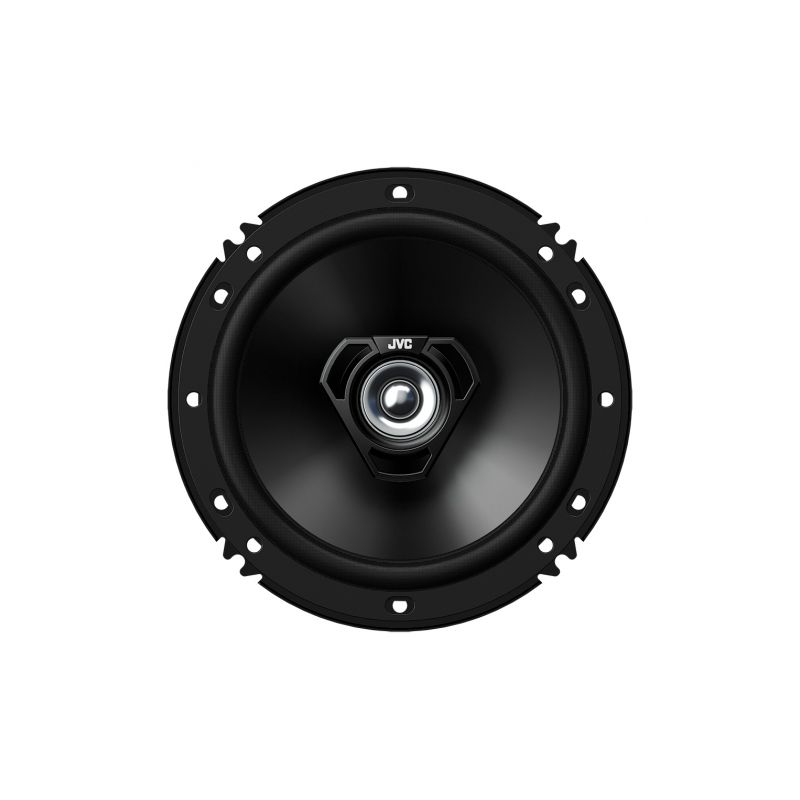

JVC CS-DF620 DF Series 6-1/2" 25W RMS 2-Way Coaxial Speakers

Deep Bass, Best in the class

Entry class model that enables powerful sound reproduction. DS Series speakers are a great option if you are looking for a car audio upgrade without spending a whole lot. DS Speakers come in 2-way or 3-way, and also in different sizes to make sure they fit what your car needs. The speakers also feature high-strength ABS grille. The DS Series speakers are an easy add-on for existing systems.

Autotek MM1020.4 Mean Machine Series 1000 Watts Max Power Class A/B 4-Channel Amplifier

Low Noise Pre-amplifier Circuitry

Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process. RCA inputs and outputs provide the highest sound quality connection. High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included.

4 channel operation mode allows either stereo or mono bridged operation, Switched FULL / LPF / HPF for complete control of amplifier signal which is essential when using two or more amplifiers, Electronic equalizer provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers.

Led System Protection Circuitry Diagnostics

Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel, Full-range signal pass through output allows additional amplifiers to be run from the "output" RCA connections which minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.

Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection, Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion, High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact.

  • Satellite Radio Ready : Yes

KD-TD91BTS CD Receiver featuring Bluetooth, USB, SiriusXM, Amazon Alexa, 13-Band EQ,  JVC Remote App Compatibility

Display

  • Display Type: 2-Line VA LCD Display
  • LCD Color: White
  • Key Color; Variable Color
  • Music Sync. Effect: Yes
  • Spanish Text Display Compatible; Yes
  • French Text Display Compatible: Yes (Canadian French)
  • Auto Dimmer: Yes
  • Brightness Control: Yes

Media Playback

  • MP3 Compatible with Tag: CD/USB
  • WMA Compatible with Tag: CD/USB
  • WAV Compatible with Tag: USB
  • AAC Compatible with Tag: CD/USB
  • FLAC Compatible with Tag: USB ( Up to 96kHz/24bit )

Bluetooth Control

  • Built-in Bluetooth[1]: Yes (Ver 4.2, Wired-Mic included)
  • Hands Free Call: Yes (HFP 1.7 wideband speech)
  • 2 Phones Full-Time Connection: Yes
  • Audio Streaming & Control (A2DP, AVRCP): Yes
  • Supported Audio Formats; AAC / SBC
  • 5 BT-Audio Connection [JVC Streaming DJ]: Yes
  • Voice Dialing (voice recognition compatible mobile phone required): Yes
  • Phone Book Access Profile (PBAP): Yes
  • iPhone & Android Automatic Pairing; Yes (iPhone only)
  • Low Battery Information: Yes

Android Control

  • Android Music Playback: Yes (via Bluetooth(R))
  • Spotify Control: Yes (via Bluetooth(R))
  • Pandora Control (Available in countries that support this service.): Yes (via Bluetooth(R))

iPod/iPhone Control

  • iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
  • Spotify Control: Yes (via USB or Bluetooth(R))
  • Pandora Control (Available in countries that support this service.); Yes (via USB or Bluetooth(R))

Amazon Alexa

  • Amazon Alexa Compatible: Yes

USB

  • Position: Front
  • USB Power Supply: Yes (1.5A)
  • Drive Change Mode for Mass Storage Class: Yes

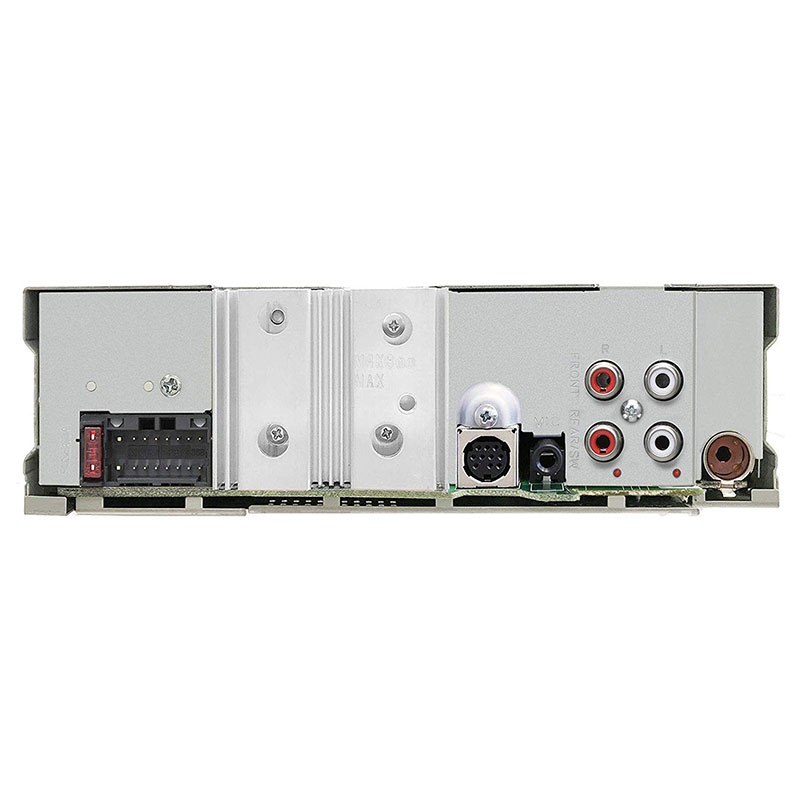

Inputs and Outputs

  • AUX Input: 1 (Front)
  • Line Output Terminals (Pair): 2 Pairs (Front + Rear/Subwoofer Selectable)
  • Pre-Output Level: 2.5V
  • Subwoofer Output with Level/Frequency Control: Yes (Level -50 to +10)
  • Subwoofer Output Level: 2.5V

Tuner

  • SiriusXM Ready: Yes
  • Radio Data Broadcast System (RBDS): Yes
  • Preset Stations: 18FM + 6AM
  • Strong Station Memory (for FM): Yes
  • Radio Timer: Yes (Once/Daily/Weekly)
  • Tuner Preset Memory (for power disconnection): Yes

FM

  • Frequency Range: 87.9 - 107.9MHz (200kHz)

AM

  • Frequency Range: 530 - 1,700kHz (10kHz)

Audio

  • Maximum Power Output: 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
  • Full Bandwidth Power (at less than 1%THD): 22W x 4
  • Subwoofer Direct Connection (Mono Lch): Yes
  • EQ: Yes (13-Band Graphic EQ)
  • Preset EQ: Yes (11-Preset)
  • Bass Boost: Yes
  • Loudness Control: Yes
  • High-Pass Filter/Low-Pass Filter: Yes/Yes
  • K2 Technology: Yes
  • Time Alignment: Yes
  • Space Enhancement: Yes
  • Sound Response: Yes
  • Sound Lift: Yes
  • Volume Link EQ: Yes

General

  • Back Up Memory: Yes
  • Detachable Face Panel: Yes
  • Wireless Remote Control: Ready (RM-RK52 required)
  • Steering Remote Control Ready: Yes
  • Remote Control Application: Yes

Dimensions (W x H x D)

  • Installation Size 7-3/16" x 2-1/8" x 6-3/16" (182 x 53 x 156mm)
  • Weight 2.6 lbs. (1.2kg)
  • Unit weight in individual package 3.31 lbs. (1.5kg)



(2) CS-DF620 DF Series 6-1/2" 25W RMS (300W Peak Power Handling) 2-Way Coaxial Speakers

Woofer

  • Size: 16 cm (6-1/2'')
  • Diaphragm: PP injection cone
  • Surround: Hybrid Surround (Rubber & Cloth)
  • Magnet: Ferrite

Tweeter

  • Size: 2.5 cm (1'')
  • Type: Balanced Dome

General

  • Frequency Response: 70 - 19,000Hz
  • Power Handling Capacity (RMS): 25W
  • Power Handling Capacity (Peak Power): 300W
  • Impedance: 4 ohms
  • Sound Pressure Level: 86dB
  • Mounting Depth: 46 mm (1-13/16'')



MM1020.4 Mean Machine Series 1000 Watts Max Power Class A/B 4-Channel Amplifier

Features:

  • LOW NOISE PRE-AMPLIFIER CIRCUITRY
    • Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process
  • RCA INPUTS
    • RCA inputs and outputs provide the highest sound quality connection
  • HI LEVEL INPUTS
    • High level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
  • OPERATION MODE
    • 4 channel operation mode allows either stereo or mono bridged operation
  • CROSSOVER TYPE
    • Switched
    • FULL / LPF / HPF for complete control of amplifier signal which is essential when using two or more amplifiers
  • ELECTRONIC EQUALIZER
    • Electronic equalizer provides control of amplifier output with onboard electronic crossover to tailor specific frequencies to speakers and subwoofers
  • CLASS / TOPOLOGY
    • Class A/B amplifiers have larger heatsinks with very musical bass
  • OUTPUT DEVICE TECHNOLOGY
    • MEAN MACHINE'S ROAD WORTHY™ TCID (Twin Coil Isolation Design) and PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels
  • HEAT SINK
    • Heavy-duty aluminum alloy heatsink with illuminated connectors provide a blue wash of light from the heatsink underside
  • POWER SUPPLY
    • High energy PWM (Pulse Width Modulated) power supply provides MAXXimum power with minimal electrical impact
  • OUTPUT CONNECTIONS
    • Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion
  • CONNECTION TYPE
    • Angled, Allen Key connectors provide easy access for hand tools allowing a quick and secure connection
  • FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
    • Full-range signal pass through output allows additional amplifiers to be run from the "output" RCA connections which minimize the need for additional cables running the length of the vehicle. This can dramatically minimize noise.
  • LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
    • Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

Specifications:

  • CLASS
    • Class A/B
  • VARIABLE VOLTAGE
    • 6V - 0.2V
  • SIGNAL TO NOISE
    • >90dB
  • FREQUENCY RESPONSE
    • 30Hz - 12kHz
  • CROSSOVER
    • CH1 & CH2: Switchable: FULL / HPF
    • CH3 & CH4: Switchable: HPF / LPF / FULL
  • VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
    • CH1 & CH2: Switchable: FULL / HPF
    • 60Hz - 1.2kHz
    • CH3 & CH4: Switchable: HPF / LPF / FULL
    • HPF: 60Hz - 1.2kHz
  • VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
    • CH3 & CH4: Switchable: HPF / LPF / FULL
    • LPF: 30Hz-250Hz
  • TONE CONTROL/PARAMETRIC EQ
    • Built-in bass control
  • BASS BOOST
    • Switchable: 12 / 6 / 0dB
  • POWER @ 1 OHM
    • N/A
  • POWER @ 2 OHMS
    • 4 x 250 Watts
  • POWER @ 4 OHMS
    • 4 x 125 Watts
  • MONO BRIDGED @ 4 OHMS
    • 2 x 500 Watts
  • TOTAL CHANNELS
    • 4
  • AUDIO INPUTS
    • RCA
  • AUDIO OUTPUTS
    • RCA
  • POWER TERMINAL 12V/GND
    • 4 AWG
  • SPEAKER TERMINAL WIRE GAUGE
    • 8 AWG
  • FUSING
    • 15Ax2
  • TOTAL HARMONIC DISTORTION (THD)
    • <0.05%
  • UPC: 798418840218
  • Weight: 28
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
