PCH Custom Audio  DMH-341EX Full Car Audio Package-1

Pioneer DMH-341EX 6.8" Digital Multimedia Receivers + (2 Pair) JL Audio C2-600X 6" 60W RMS Speakers + Alpine S-SB10V 10" 600W RMS Subwoofer Enclosure + JL Audio RD900/5 5-Channel Amplifier + XS Power XP750-SE 600W Battery

Item #85569

Condition:   Brand New

Product Highlights

  • 6.8 inches
  • JL Audio 6" speakers
  • 10" Alpine subwoofer box
  • JL Audio 5-channel
  • XS Power 600W

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,513.87

Reg. Price $2,166.87  Save $653.00

Out of Stock Check out other products listed below
PCH Custom Audio Authorized Dealer


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

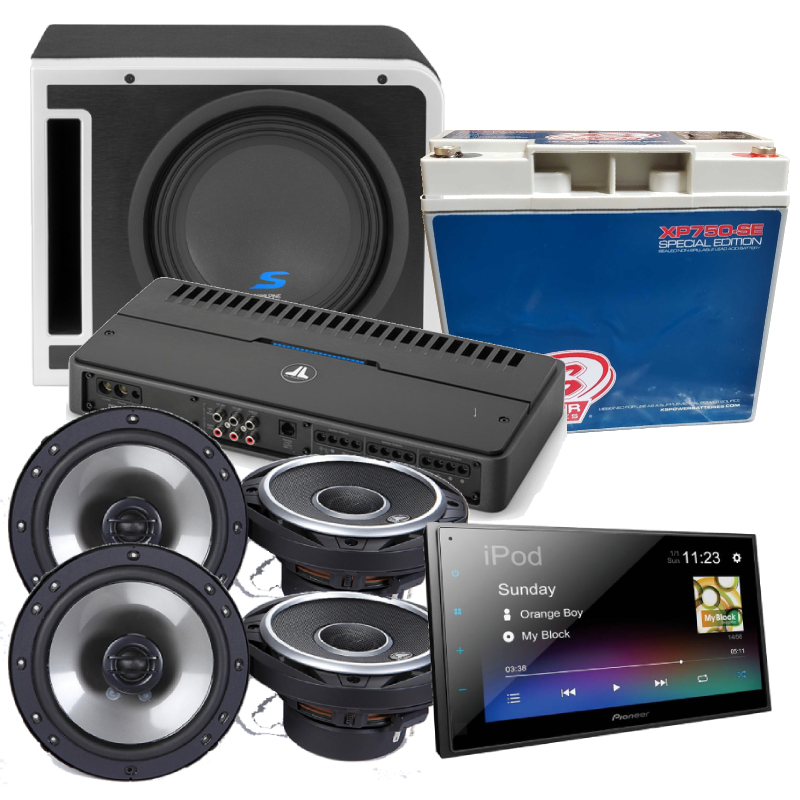

DMH-341EX Full Car Audio Package-1 includes Pioneer DMH-341EX 6.8" Digital Multimedia Receiver + (2 Pair) JL Audio C2-600X 6" 60W RMS Speakers + Alpine S-SB10V 10" 600W RMS Subwoofer Enclosure + JL Audio RD900/5 5-Channel Amplifier + XS Power XP750-SE 600W Battery


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Pioneer DMH-341EX
  • • (2) JL Audio C2-600X
  • • Alpine S-SB10V
  • • JL Audio RD900/5
  • • XS Power XP750-SE

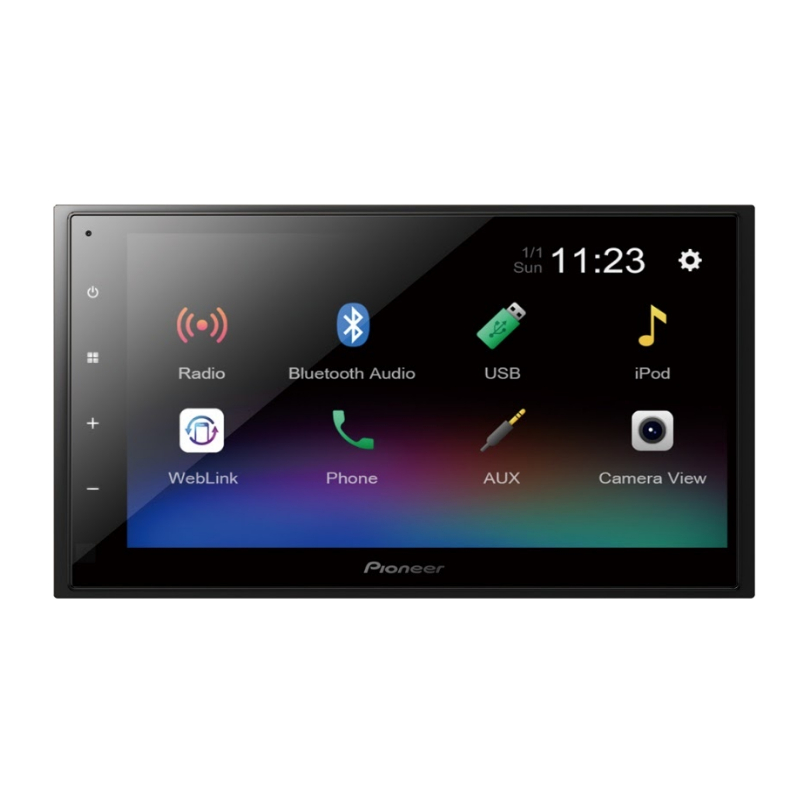

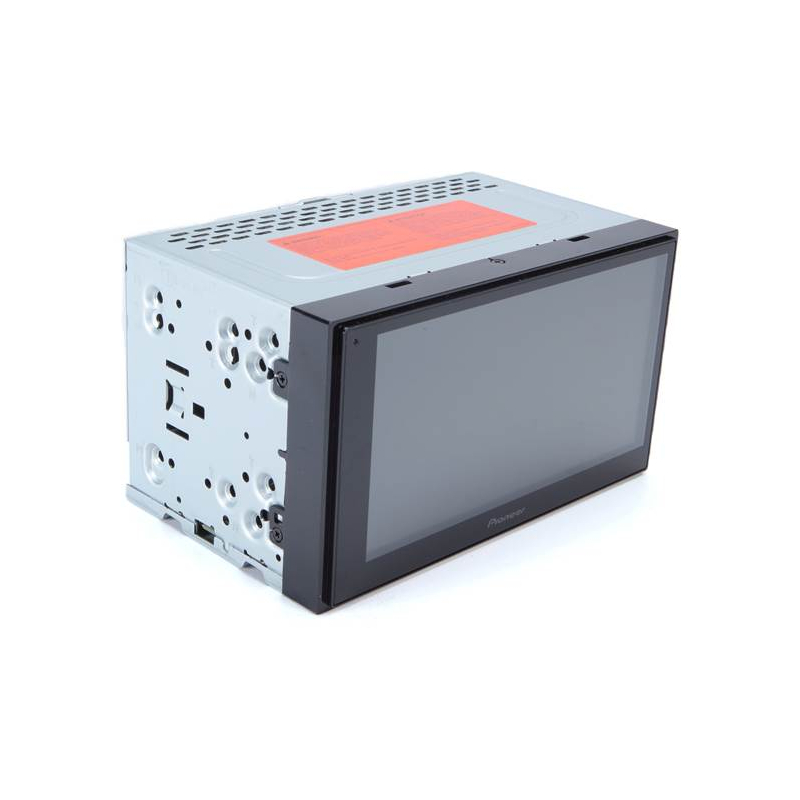

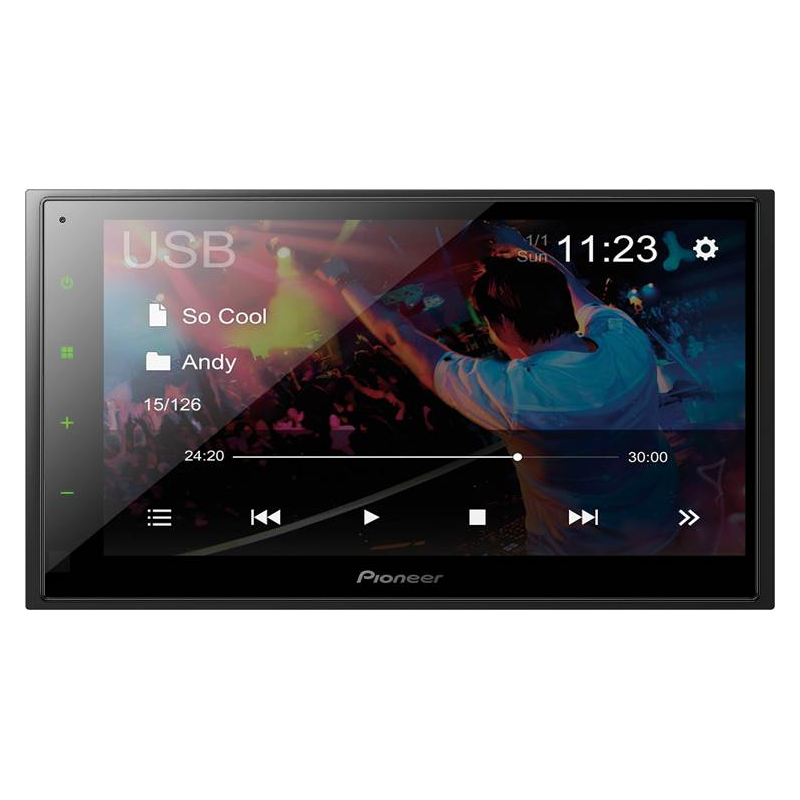

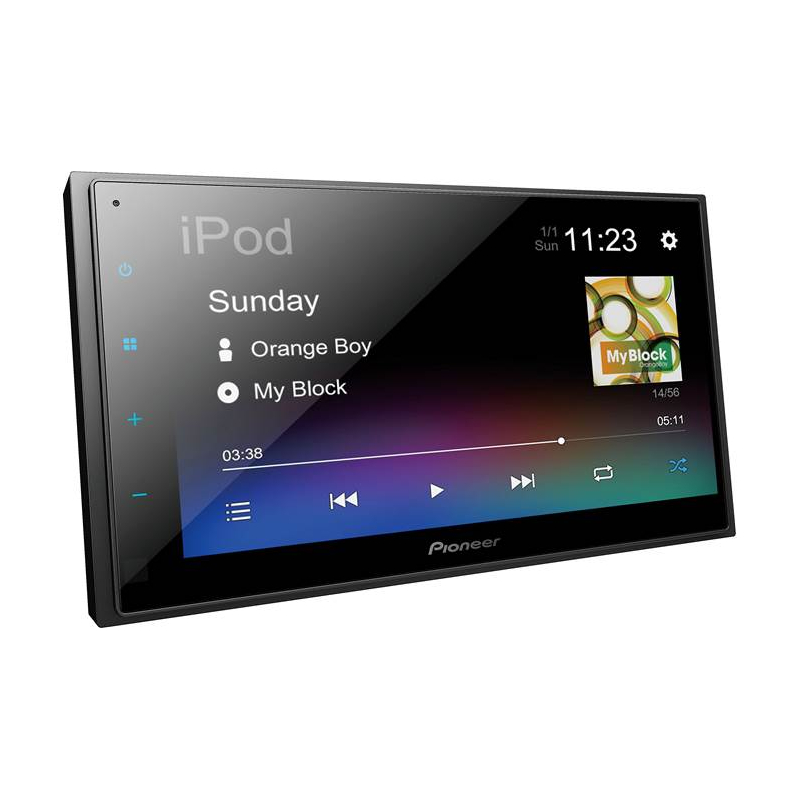

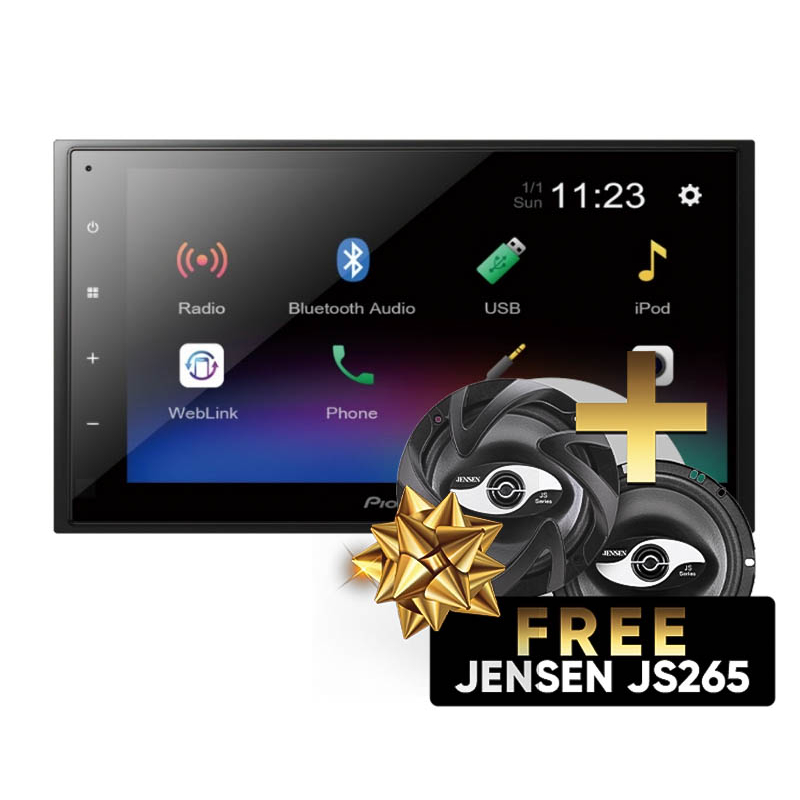

Pioneer DMH-341EX 6.8" Capacitive touch panel, High-quality AV unit with Bluetooth® technology

DMH-341EX

The DMH-341EX is a 6.8" capacitive touchscreen digital media receiver designed to improve in-vehicle entertainment and connectivity with your smartphone. Enjoy features such as built-in Bluetooth® for hands-free calling and audio streaming. Audio/video playback from USB. Safety features such as back up camera ready and much more.

Customize Your Colors

Select among five colors (blue/red/amber/green/violet) for the display and 112 different colors to match unit illumination to your vehicle's interior lighting. Also choose from several background images to suit your mood.



Vozsis with Amazon Alexa

Vozsis is a smartphone app available for both iOS and Android OS devices that brings Amazon Alexa capability to compatible Weblink-enabled Pioneer multimedia in-dash receivers. Downloading both the Vozsis and Weblink applications makes using Alexa in your car simple – just tap-and-ask, and Alexa will respond instantly.

With Alexa, you can ask to play music, hear the news, check weather, control smart home devices1, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically.

Visit www.pioneerelectronics.com/PUSA/Car/Alexa to learn more including the latest features, apps, and language support for Alexa compatible Pioneer in-dash receivers.

Back Up Camera Input Ready*

Back Up Camera Input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.

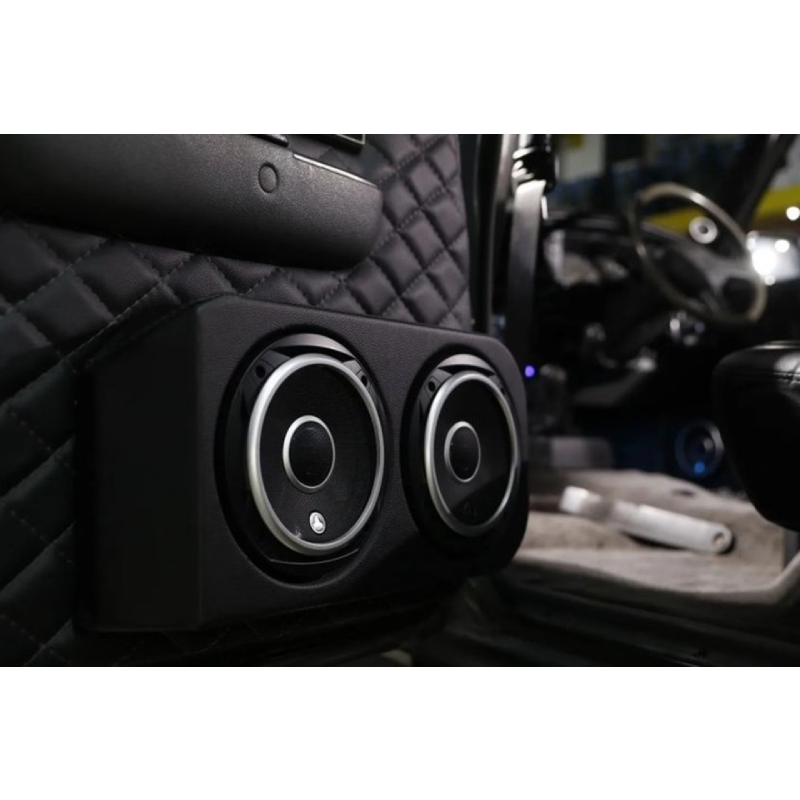

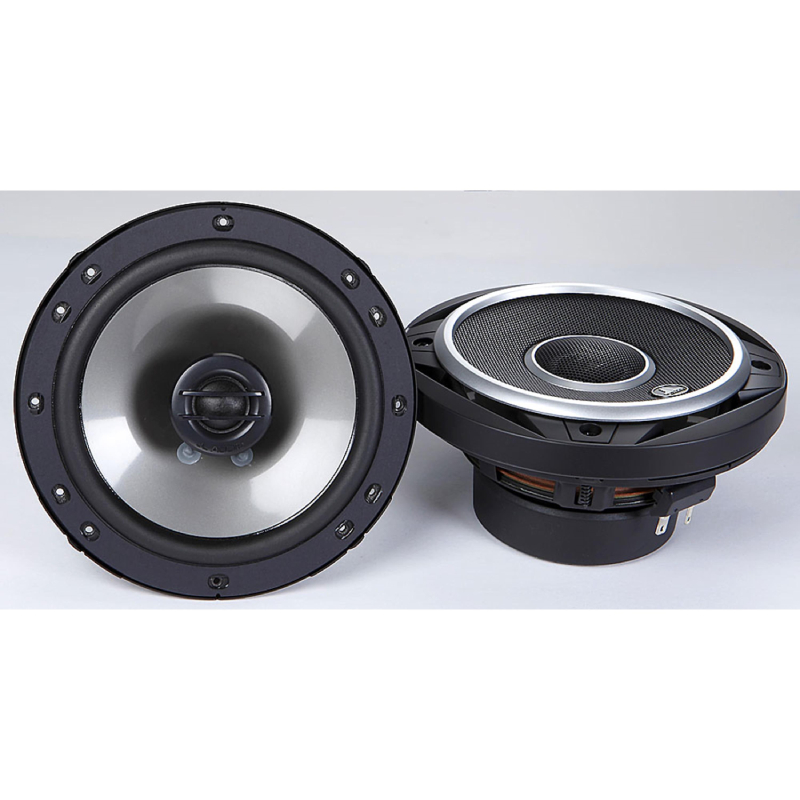

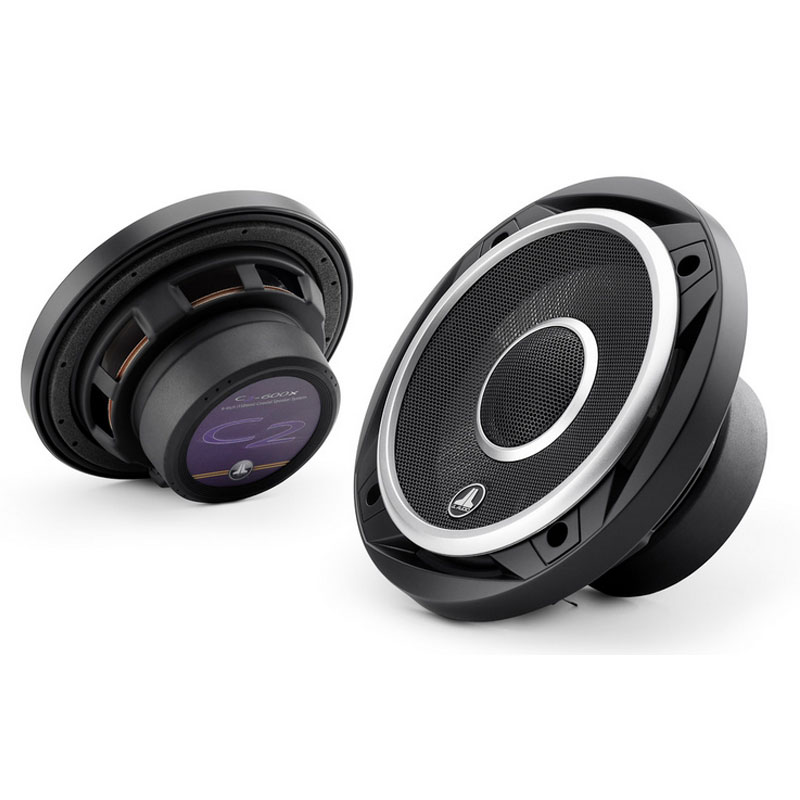

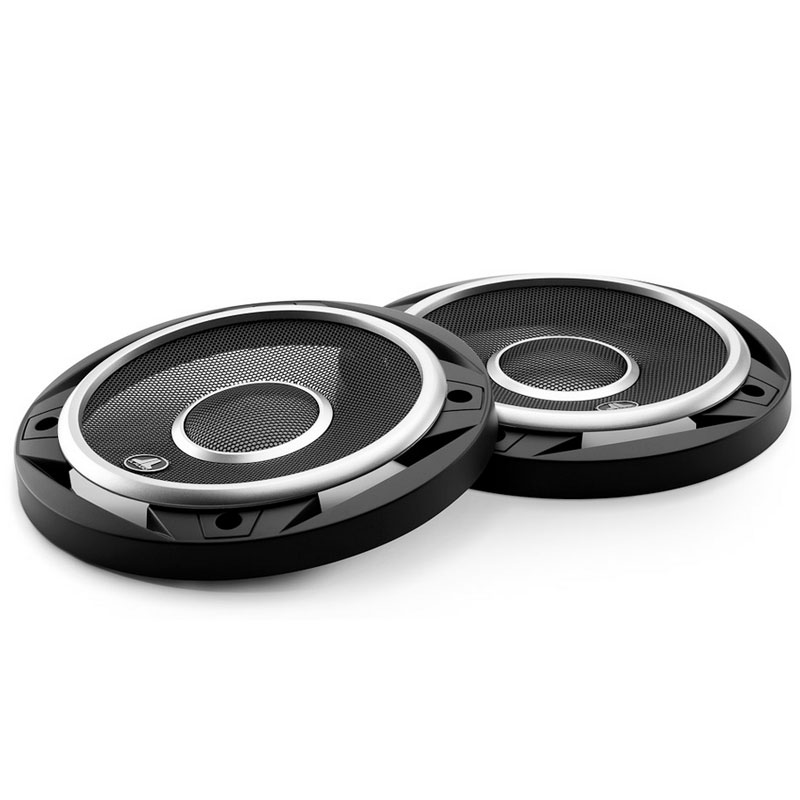

JL Audio C2-600X Evolution™ C2 Series 6" 60W RMS 2-way car speakers

The Evolution C2 systems

The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The 6-inch (150 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.

Vast woofer design

The C2-600x system features 6-inch (150 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems. Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis.

The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles. Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Silk Dome Tweeter

Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter’s passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.

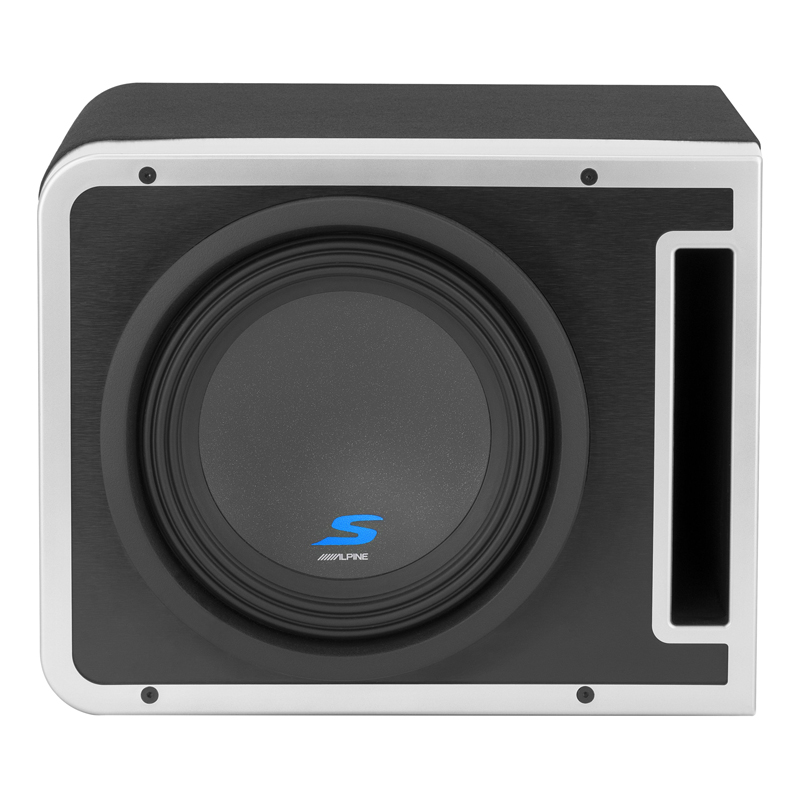

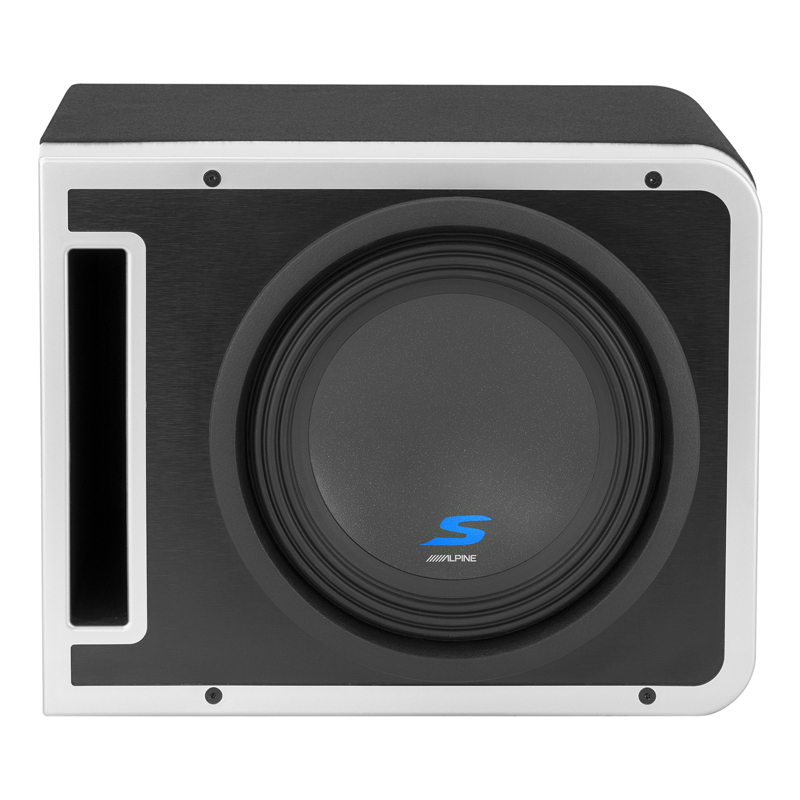

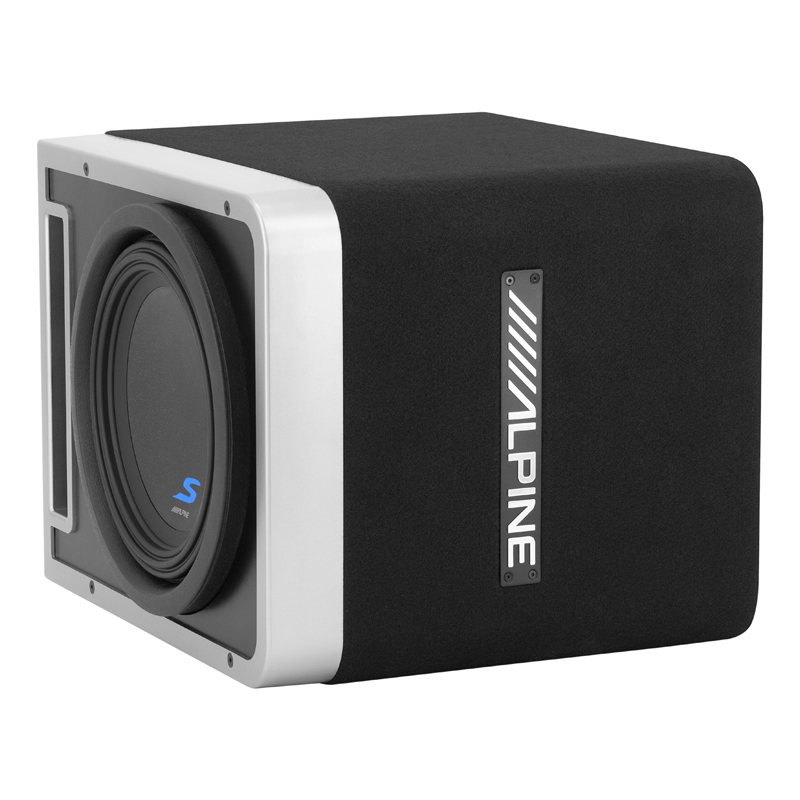

Alpine S-SB10V Halo S-Series 10" 600W RMS Dual 4 Ohm Voice Coils Pre-Loaded Subwoofer Enclosure

Unique Prolink™ Design

When you’re looking to make a noticeable impact in your sound system, you add a subwoofer that will bring out the low ends of your music. But what if you already have a single subwoofer and still crave more bass? You could throw out your single enclosure and purchase a new dual enclosure or you can build your bass with Alpine's new ProLink™ technology. ProLink™ is unique to Alpine and allows you to link two S-SB10V enclosures together using an optional KTX-H10 Linking Kit (sold separately) to create a dual subwoofer-enclosure.

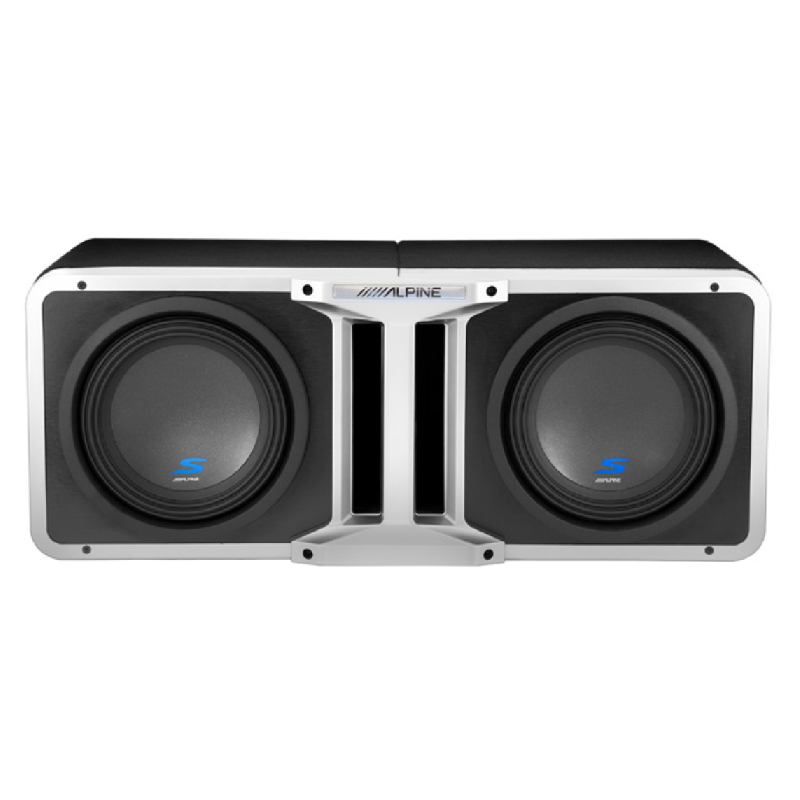

Now you have the flexibility in power and price to use a single subwoofer or add another subwoofer when more bass is desired.

Stand Out in the Crowd

The Alpine Halo platform has a reputation for accessible, premium technology that modernizes the look and feel of any vehicle. Drawing inspiration from the sleek, tapered lines and clean silver finish of the Alpine Halo Display, the S-SB10V shares the same unique, curved edges outlined by a silver trim and a metallic front baffle for a matching system aesthetic. The S-SB10V will not only provide a premium sound performance, but also elevate the interior of the vehicle for a subwoofer enclosure you can be proud to show off.

Optimal Sound Performance

Finally, a subwoofer that sounds as good as it looks. The S-SB10V delivers a premium sound experience to bring out the low end of your music. The ported enclosure design features an optimized vent and rounded internal port edges that maximize the output performance of the subwoofer. The result is a higher total sound output for deep, powerful bass, reliable sound reproduction, and overall great sound quality.

Built to Perform

When it came to construction, Alpine didn't cut corners. The S-SB10V is built from premium construction materials so you can get the custom look without the custom work. Made from 3/4-inch medium density fiberboard (MDF) with internal edge bracing, the S-SB10V is sturdy with a rugged, yet stylish black carpet cover and brushed aluminum finish on the metallic front baffle. A sliver Alpine logo is embossed on the side of the enclosure for a tasteful finish to a unique subwoofer enclosure.

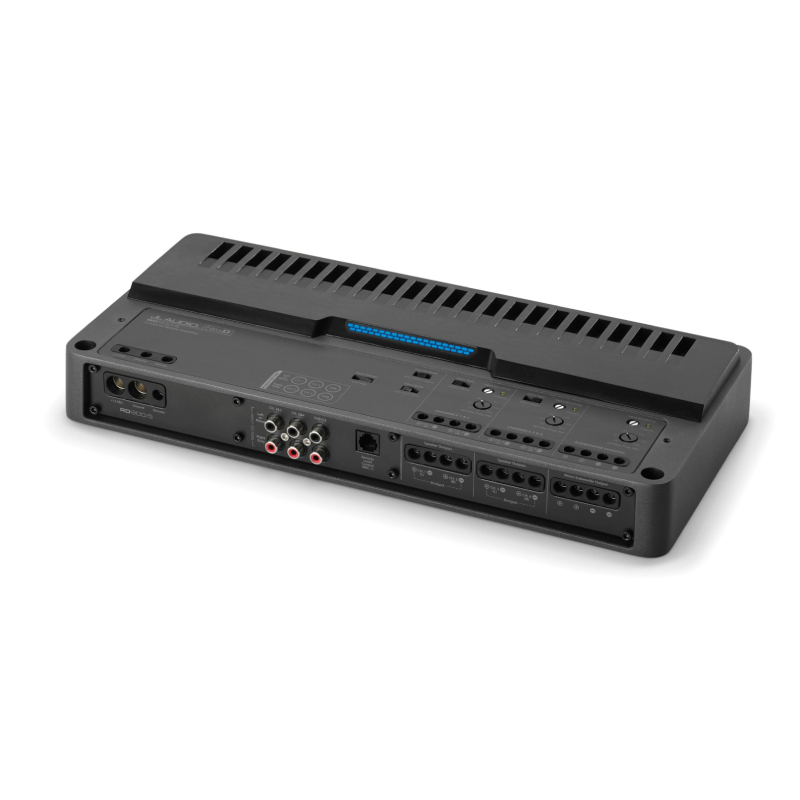

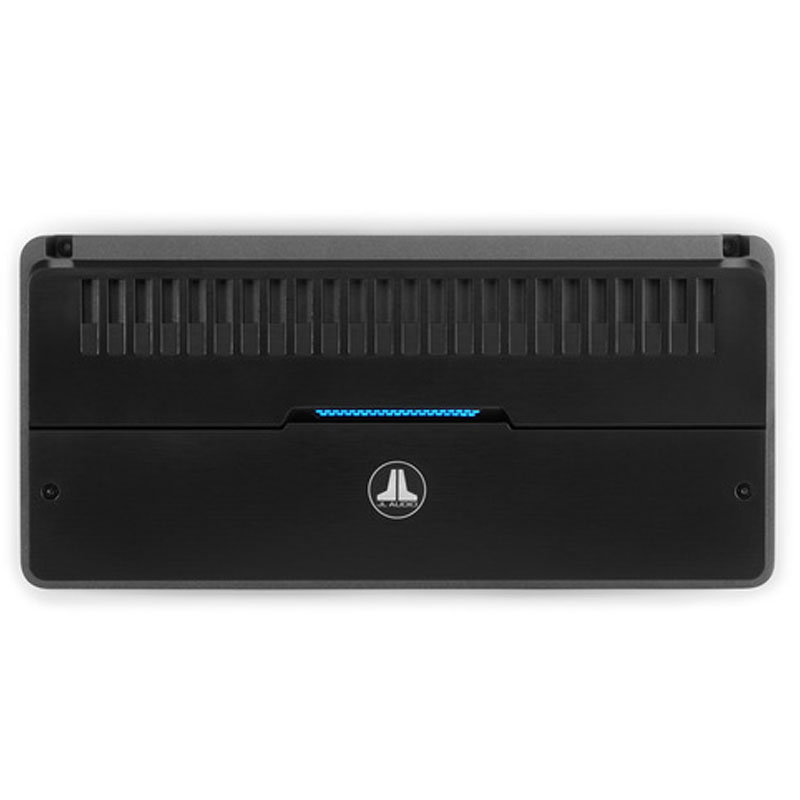

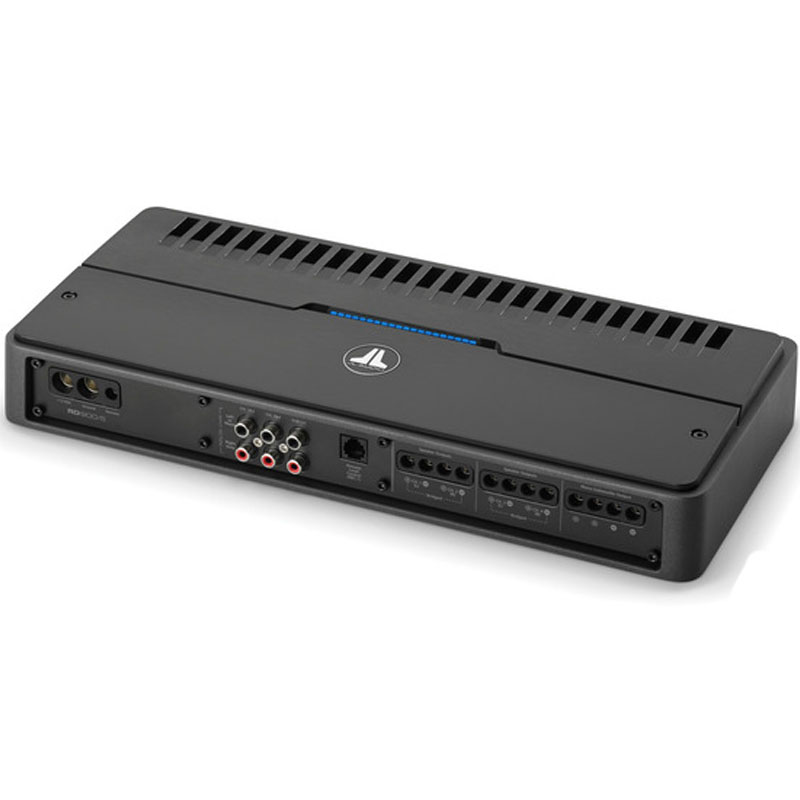

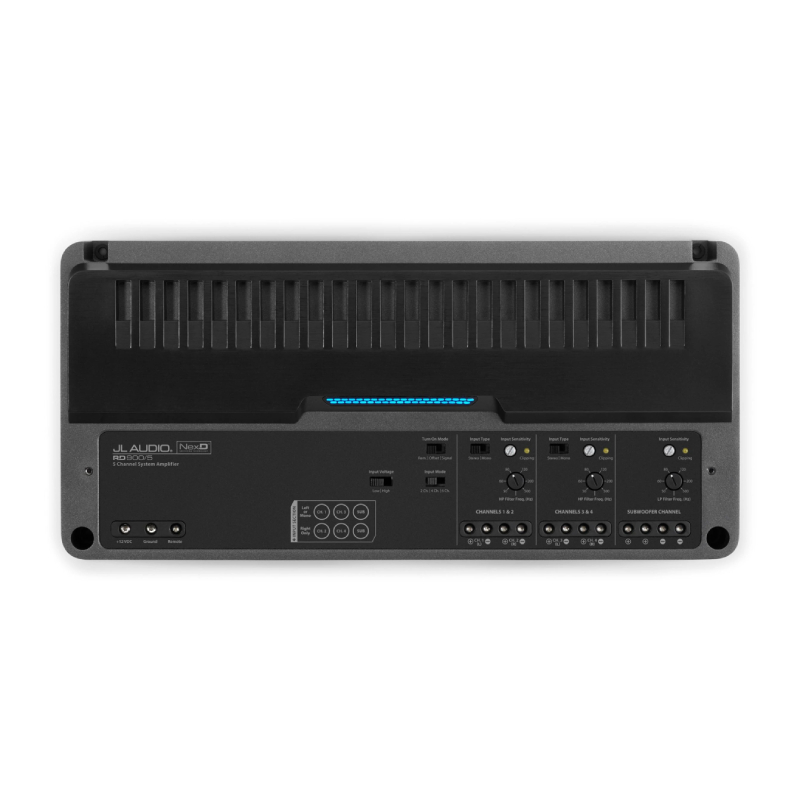

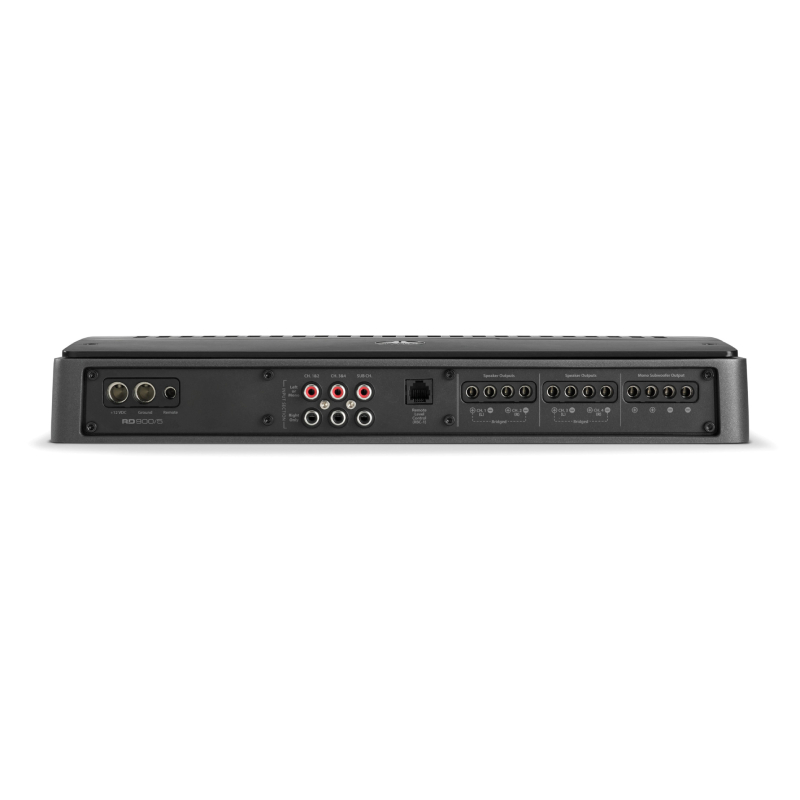

JL Audio RD900/5 RD Series 100Wx4+500W RMS @ 2Ohms Class D 5-Channel Full-Range Car Amplifier with NextD™

All-in-one

PCrafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.

Signal Processing

Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel.

All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.

NexD™ Switching Technology

For the full-range NexD™ amplifiers and channels JL Audio applied a variable, ultra-high speed version of the NexD™ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with "feed-forward" sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation.

This reduces distortion prior to applying feedback, simplifying the overall feedback loop design. The bottom line is simply great audio: clean, powerful and reliable.

LED-clipping Indicator

LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed.

The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.

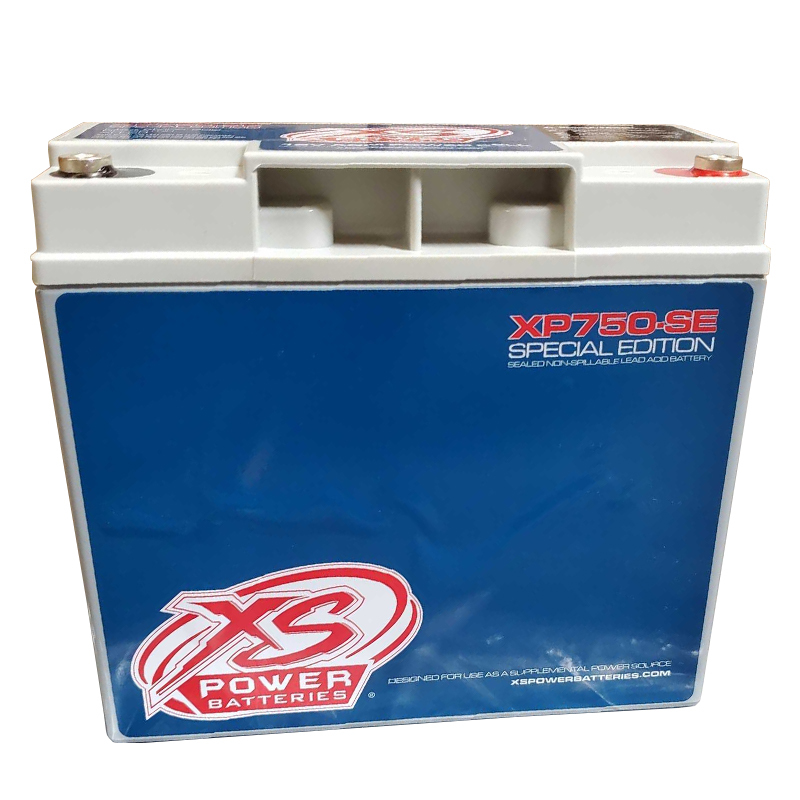

XS Power XP750-SE Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps

Resists Extreme Vibrations

12-Volt Deep Cycle AGM Power Cell, Sealed Absorbed Glass Mat (AGM) Design, Leak-Proof, non-hazardous design, Designed for use as an additional battery to power your high-performance sound system, Stores energy so you don't need a capacitor for your system, Resists extreme vibrations for ultimate performance, M6 Terminal hardware included Amp Hours: 20, Dimensions: 4.35 x 9.65 x 9.85 inches, Weight: 15.5 pounds Voltage: 12 Volts, Max Amps: 600A.







DMH-341EX 6.8" Capacitive touch panel, High-quality AV unit with Bluetooth® technology, Amazon Alexa when Paired with Backup Camera Ready, Wireless Remote (Included)

Features:

  • 6.8-inch Capacitive touch panel
  •  RGB illumination (5 display colors, 112 key colors)
  •  13-band GEQ
  •  Selectable preset wallpapers

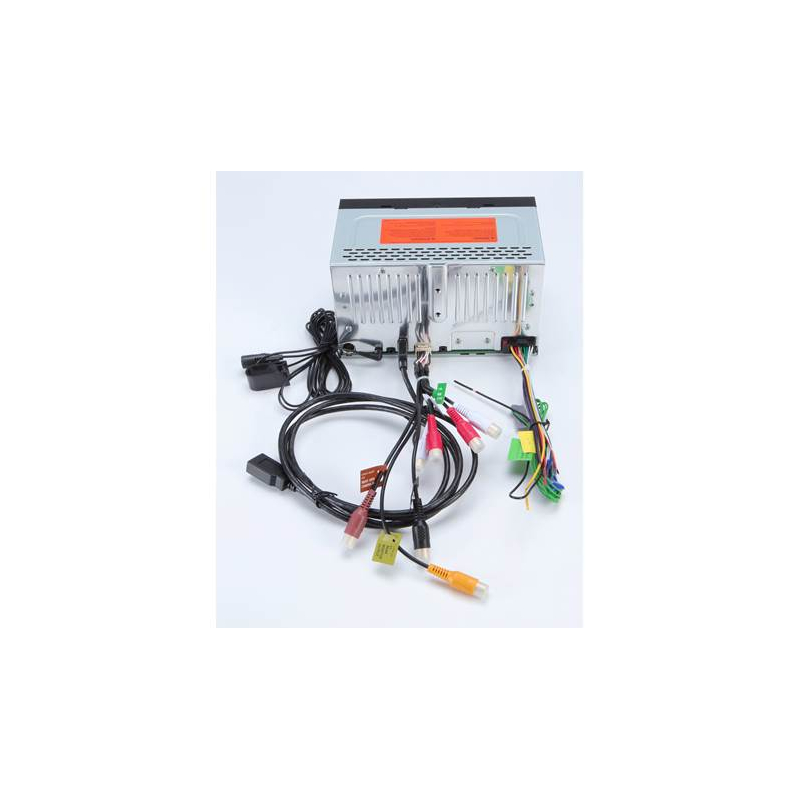

  •  Rear USB and Rear AUX-IN (Audio & Video)
  •  Rear View Camera Input
  •  Video Output
  •  3 RCA Pre-Out (2V) Front & Rear & SW (monaural)
  •  Bluetooth (A2DP/HFP/AVRCP)
  •  Rear BT Mic Input
  •  Wired Remote Input
  •  Reduced Chassis depth

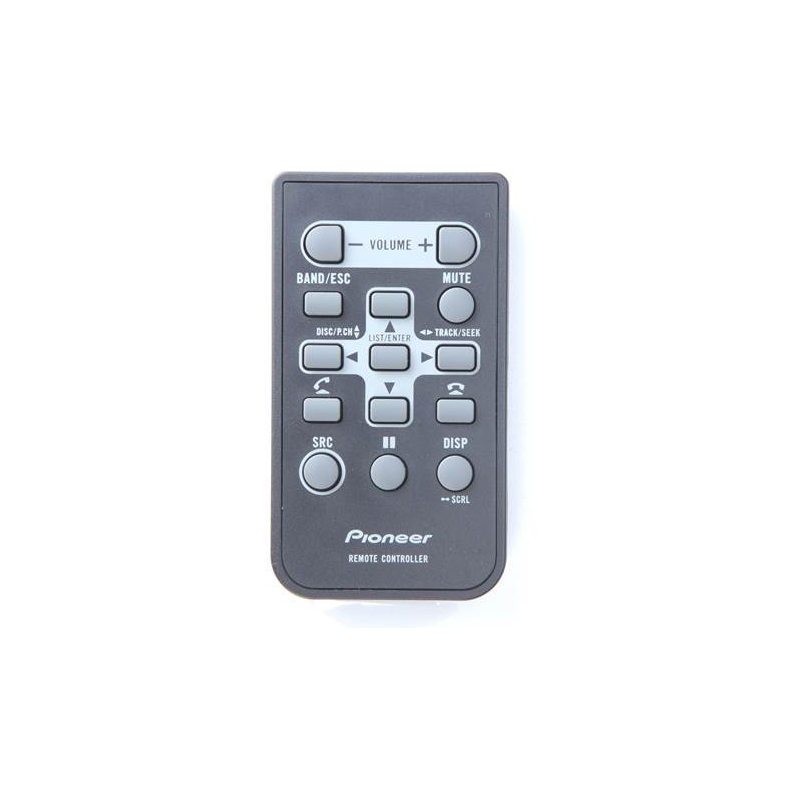

  •  Wireless Remote (Included)



Specifications:

  •  Audio CODEC from USB (WMA, MP3, WAV, AAC, FLAC)
  •  Video CODEC from USB (AVI,DivX,Xvid,MPEG-2/4,WMV,JPEG)
  •  WebLink
  •  Amazon Alexa when Paired with Pioneer Vozsis App
  •  iPhone & Android smartphone compatible
  •  iPod interface via USB

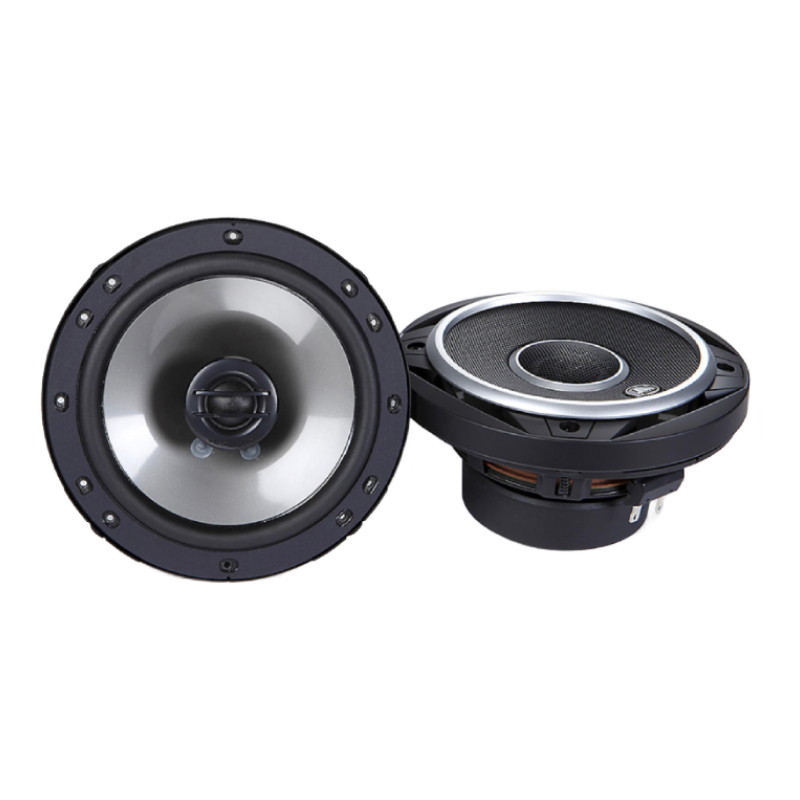

C2-600X Evolution™ C2 Series 6" 60W RMS (225W Peak Power Handling) 2-way car speakers

Specifications:



  • 6.0" Evolution C2 Series 2-way Coaxial Car Speakers
  • Power Handling:
  • Peak: 450 watts per pair / 225 watts each
  • RMS: 120 watts per pair / 60 watts each
  • Recommended Power Range: 15 - 100 watts per channel
  • Top-mount depth: 2.38"
  • Cutout Dimensions: 5.00"
  • Nominal Impedance: 4 ohm
  • Efficiency: 90.5 dB @ 1 watt / 1 meter
  • Frequency Response: 59 Hz - 22 KHz ± 3 dB
  • Injection Molded, Mica-filled Polypropylene Cone
  • Butyl Rubber Surround
  • 1.00" Voice Coil on Kapton® Former
  • Symmetrical Roll Spider
  • Ferrite Woofer Magnet
  • 0.75" Silk Dome Tweeter
  • Ferrofluid Cooling/Damping Neodymium Tweeter Magnet
  • Natural Roll-Off Low-Pass, 1st Order High-Pass Filter with Electrolytic Capacitor
  • Black steel mesh grille with satin silver accents Included
  • Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
  • Sonic character: Clean and Dynamic
  • Sold as a pair.



S-SB10V Halo S-Series 10" 600W RMS Dual 4 Ohm Voice Coils Pre-Loaded Subwoofer Enclosure

  • Features:Groundbreaking Alpine Halo Design
  • ProLink™ ported enclosure design
  • Optimal Sound Performance
  • 600W RMS Power Handling
  • Includes preloaded S-W10D4 10” S-Series subwoofer
  • CARB compliant 3/4-inch MDF construction
  • Premium black carpet
  • Silver Alpine embossed side logo badge
  • Brushed aluminum finished metallic front baffle

Specifications:
  • Dimensions: 16” W x 12.6825” H x 14.5” D
  • Dual 4Ohm Voice Coils Wired in Parallel for a 2Ohm Load (Compatible with S-A60M)
  • 12 Gauge OFC Speaker Box Wire

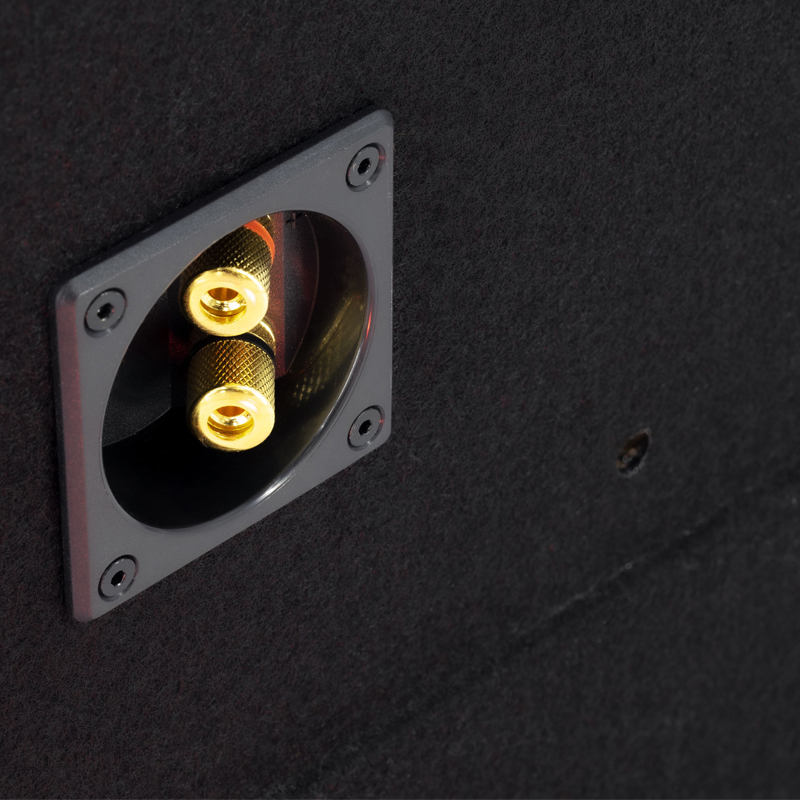

  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • 2Ohm Impedance
  • Frequency Response: 28-200Hz
  • Vented Enclosure Tuning Frequency: 36Hz
  • Sensitivity 84dB



RD900/5 RD Series 100Wx4+500W RMS @ 2Ohms Class D 5-Channel Full-Range Car Amplifier with NextD™ Switching Amp Technology



  • Specifications:JL Audio RD-Series RD900/5
  • Class-D 5-Channel Amplifier
  • RMS Power Rating @ 14.4 V:
  • Main Channels @ 4 Ohms: 70 W RMS x 4
  • Main Channels @ 2 Ohms: 100 W RMS x 4
  • Main Channels - Bridged @ 4Ohms: 200 W RMS x 2
  • Subwoofer Channel @ 4 Ohms: 225 W RMS x 1
  • Subwoofer Channel @ 3 Ohms: 325 W RMS x 1
  • Subwoofer Channel @ 2Ohms: 500 W RMS x 1
  • Subwoofer Channel @ 1.5 Ohms: N/A
  • 1 ohm: N/A
  • RMS Power Rating @ 12.5 V:
  • Main Channels @ 4 Ohms: 60 W RMS x 4
  • Main Channels @ 2Ohms: 90 W RMS x 4
  • Main Channels - Bridged @ 4Ohms: 180 W RMS x 2
  • Subwoofer Channel @ 4Ohms: 200 W RMS x 1
  • Subwoofer Channel @ 3Ohms: 250 W RMS x 1
  • Subwoofer Channel @ 2Ohms: 350 W RMS x 1
  • Subwoofer Channel @ 1.5Ohms: N/A
  • Total power output: 1800 watts
  • Total Harmonic Distortion (THD): <1%
  • Variable low-pass filter: 50 - 500 Hz, 12 dB/octave
  • Variable high-pass filter: 50 - 500 Hz, 12 dB/octave
  • Low-Pass Slope (dB/octave): 12 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 45 Hz
  • Fuse Rating: 80 A x 1
  • 4 gauge power and ground wiring is recommended for installation.
  • Dimensions: 7"W x 14-11/16"L x 2-3/16"H
  • CEA-2006 Compliant Amplifier
  • NexD™ Technology delivers outstanding sound quality, efficiency and reliability
  • LED clipping indicators
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • Bridging switch for each channel pair
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation



XP750-SE XP750 Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps

  • Features:12-Volt Deep Cycle AGM Power Cell
  • Sealed Absorbed Glass Mat (AGM) Design
  • Leak-Proof, non-hazardous design
  • Designed for use as an additional battery to power your high-performance sound system
  • Stores energy so you don't need a capacitor for your system
  • Resists extreme vibrations for ultimate performance
  • M6 Terminal hardware included
  • Amp Hours: 20
  • Dimensions: 4.35 x 9.65 x 9.85 inches
  • Weight: 15.5 pounds
  • Voltage: 12 Volts
  • Max Amps: 600A
  • UPC: 798418840232
  • Weight: 73
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
