Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

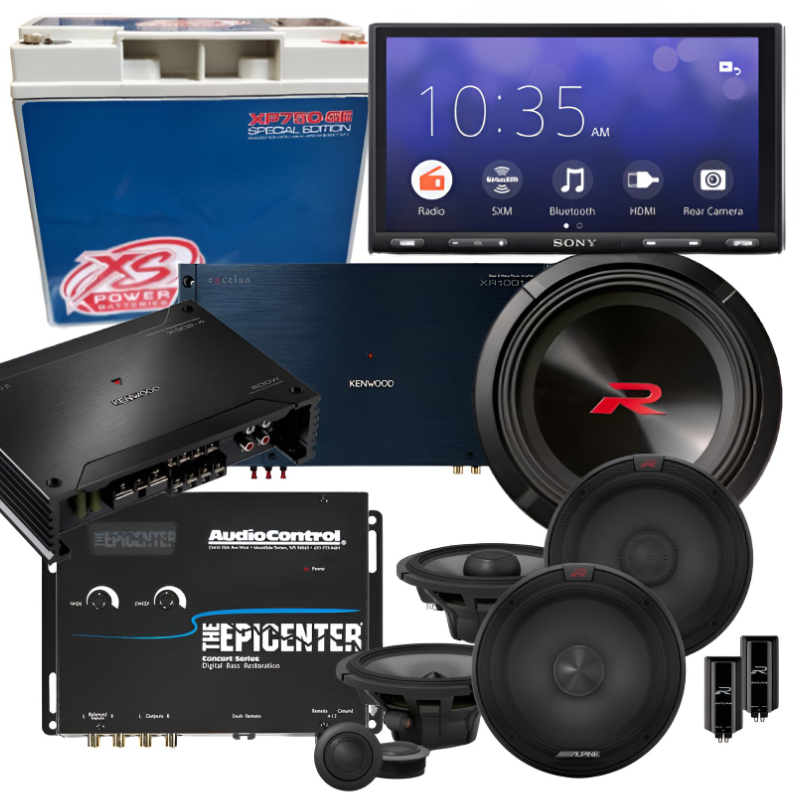

Universal Full Car Audio Package Sony XAV-AX5600 + Alpine R-S65C.2 + Alpine R-S65.2 + Alpine R2-W12D4 + Kenwood Excelon X302-4 + Kenwood Excelon XR1001-1 + XS Power XP750-SE + AudioControl EPICENTER-BLACK
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Sony XAV-AX5600
- • Alpine R-S65C.2
- • Alpine R-S65.2
- • Alpine R2-W12D4
- • Kenwood Excelon X302-4
- • Kenwood Excelon XR1001-1
- • XS Power XP750-SE
- • AudioControl EPICENTER-BLACK
- • Owner's Manual
Sony XAV-AX5600
Enjoy smooth and simple control for every journey. An anti-glare 6.95" diagonal (17.6cm) capacitive touchscreen wakes up right after turning on the ignition 1 and gives you intuitive control over music, communications, and more. Newly added HDMI 2 connectivity allows you to hook up an external audio and visual source device. WebLink™ is a lightweight app delivery platform designed especially for in-vehicle use. Using the Android or iOS device connection, it is now possible to mirror your smartphone screen right on the car audio display—for reliable, responsive infotainment anytime on the road.
Alpine R-S65C.2
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.
Alpine R-S65.2
If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.
Alpine R2-W12D4
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
Kenwood Excelon X302-4
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Kenwood Excelon XR1001-1
Special capacitors and inductors have been carefully selected for the digital amplifier’s LC filter, which is essential for achieving highresolution audio. These high-performance parts reduce noise and distortion and ensure excellent sound quality. By using a down-firing subwoofer and superior technologies, the audio system generates high-quality sound and powerful bass, while still being compact.
XS Power XP750-SE
With a variety of models available, the XP Series are not only perfect for the mobile audio enthusiast looking for all of the reserve power that they can get, but also for marine enthusiasts that need the extra capacity for those long days and nights out on the lake. The auxiliary power source provided by the XP series of batteries are ideal for commercial/fleet, emergency lighting/alarms, communication systems, as well as any other uninterruptible power supply need.
AudioControl EPICENTER-BLACK
The Epicenter contains a bass maximization circuit that accurately recreates and injects low frequency information back into the signal path. What that means in everyday terms is that The Epicenter will give more bass impact to your best compact discs or even your old tapes. The Bass Output Control circuit allows The Epicenter to maximize the bass output of any autosound audio system while restraining destructive bursts. Yeh!!

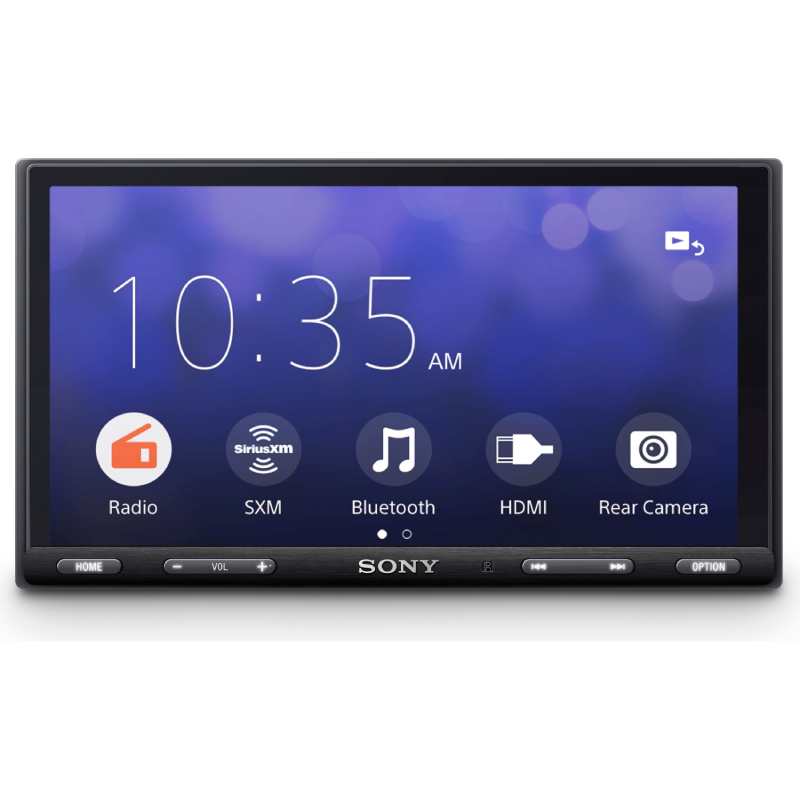

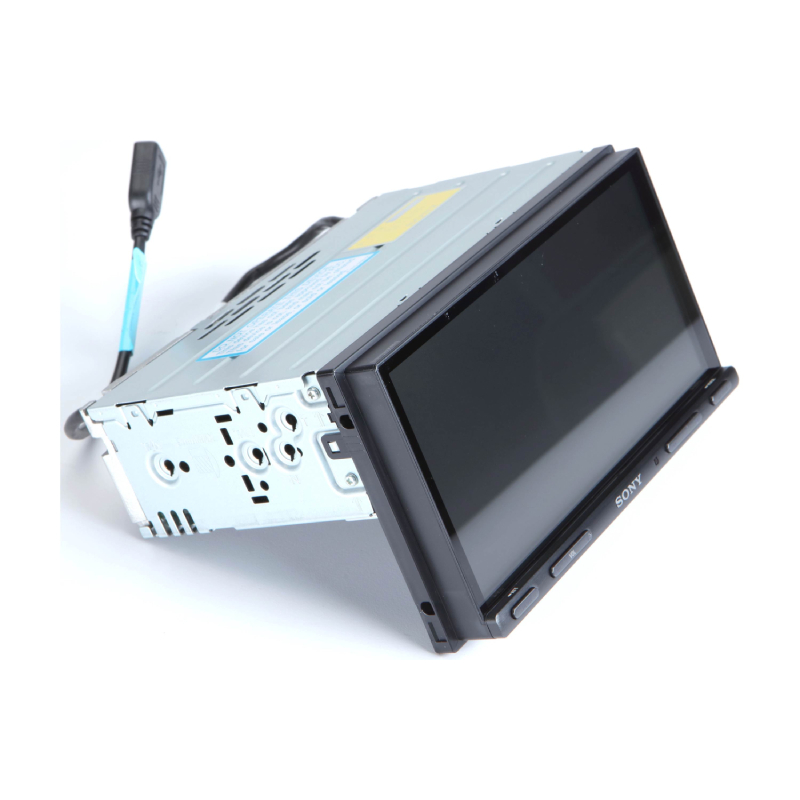

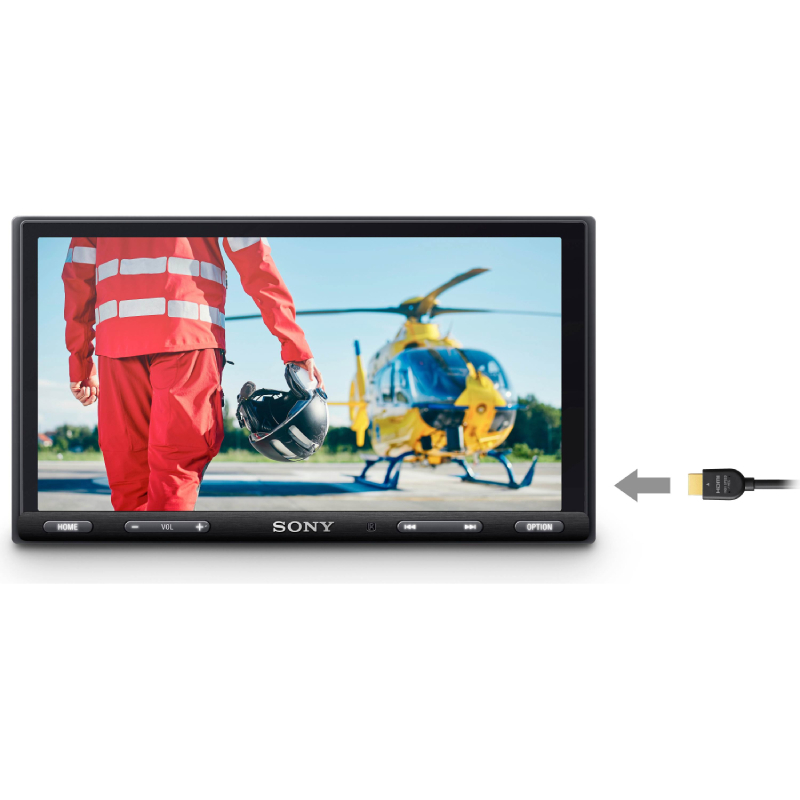

XAV-AX5600 6.95'' (17.6 cm) Digital Media Receiver with CarPlay, Android Auto, Weblink Cast
Features:
- Weight: 2.20 Lb
- Dimensions (W X H X D): 7.01 X 3.94 X 5.47 Inches
General Features
- Pre Out: 3 Pre (Front/rear/sub X 1)
- Dso (Dynamic Stage Organizer): Yes
- Extra Bass: Yes (Off/1/2)
- Firmware Upgradability: Yes
- Output Power: 55 W X4

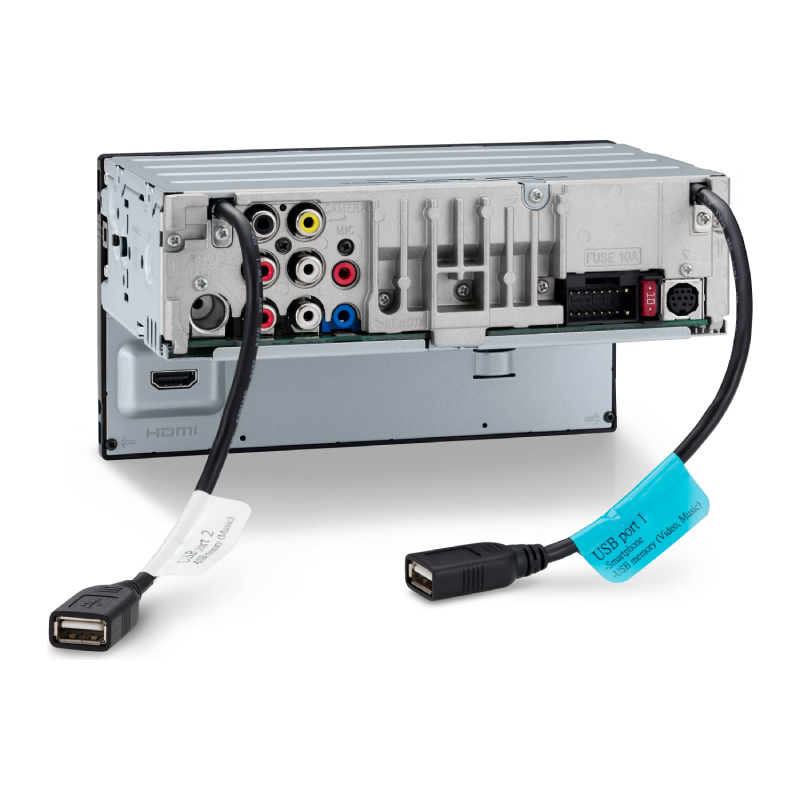

- Usb: Yes (Rear X2)
- Equalizer: 10-band Graphic Equalizer
- Rear View Camera In: Yes
Connectivity
Tuner Features
- PRESET: FM18 / AM12
- AUTO MEMORY: BTM
- RDS / EON: Yes (RBDS)
Bluetooth Profile
- HFP 1.5: Yes (1.6)
- AVRCP: Yes (1.3)
- A2DP: Yes (1.3)
- PBAP: Yes (1.1)
Bluetooth Features
- Call Volume Level Control: Yes
- Ring Volume Level Control: Yes
- External Microphone: Supplied
- Speed Dial: Yes (6 Memories)
- Signal Strength Indication: Yes
- Alphabetical Phonebook Sorting: Yes
- Last Dialed Call: Yes (Select From The Dialed Call History)
- Recent Calls (# Of): Yes
- Phone Battery Level Reminder: Yes
- Phonebook Access Via Pbap: Yes
Bluetooth Audio Features
- Meta Data Indication: Yes
- Pause (Bluetooth Audio): Yes
- Track +/-: Yes
- Repeat Control (Audio Device Side): Yes
- Audio Codec (Bluetooth Audio): Sbc / Aac
- Cue / Rev: Yes
- Shuffle Control (Audio Device Side): Yes
- Audio Level Adjustment: Yes (-6 Db To +6 Db)
- Group (Folder) +/-: Yes.
Panel Design
- Panel Surface Finish Color: Black
- Key Illumination: Yes (White)
Monitor(AVC)
- Screen Diagonal (Inch / Mm): 6.95 Inch
- Resolution (Dot): 800 X 480
- Contrast Ratio: 400
- Lcd Type: Tft Active Matrix
- Screen Size (W X H Mm): 156.6 X 81.6 (Mm)
- Screen Aspect: 17: 9
- Dimmer: Yes
- Brightness: 500 Cd/m2
User Interface
- Parking Control: Yes
- Rear View Camera-in Marker Setting: Yes
- Touch Panel: Yes/capacitive
- Parking Line Adjust: Yes
- Remote Commander: Rm-x170
- Gesture Command: Yes
- Aspect Ratio Select: Yes
USB Mass Storage Device Control Feature
- Usb Device Control (Video Playable File Extension): Only Usb1: .mp4 / .wmv / .mkv
- Usb Device Control (Repeat): Track / Folder / Drive
- Usb Device Control (Resume Play): Yes
- Usb Device Control (Audio Codec): Usb1: Pcm / Mp3 / Wma / Aac / Flac, Usb2: Mp3 / Wma / Flac
- Usb Device Control (Shuffle): Off / Folder / Device
- Usb Device Control (Pause): Yes
- Usb Device Control (Audio Playable File Extension): Usb1: .wav / .mp3 / .wma / .m4a / .flac, Usb2: .mp3 / .wma / .flac
- Usb Device Control (Video Codec): Only Usb1: Mpeg4-sp / Avc (H.264 Baseline) / Wmv / Mkv / Xvid

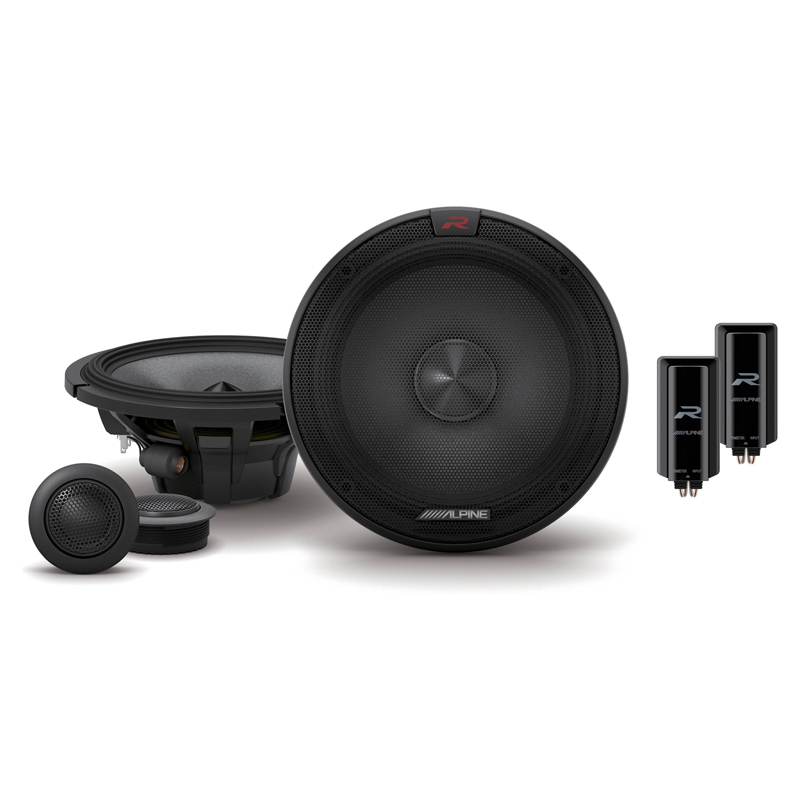

R-S65C.2 R Series 6-1/2" 100W RMS (300W Peak Power Handling) 2-Way Component Speaker System
Features:
- (2) 6-1/2” 2-Way Car Speakers
- 6-1/2” Carbon Fiber Reinforced Polymer (CFRP) woofer
- 1” Carbon Fiber Reinforced Polymer dome tweeter
- Alpine patented High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Hi-Res Audio (High-Resolution Audio Playback)
- 35mm Voice Coil
- R-Series Speaker Grilles Included
Specifications:
- Peak Power Capacity: 300W
- Max RMS Power Capacity: 100W
- Nominal Impedance: 4 ohms
- Frequency Response: 65 Hz - 40 kHz
- Sensitivity: 88 dB SPL (1W @ 1m)
- Recommended Amplification: Up to 100W RMS per channel
- Woofer Size: 6-1/2" (16.5cm)
- Tweeter Size: 1" (2.5cm)
- Cutout Diameter: 5" (12.8cm)
- Mounting Depth: 2-3/8" (6cm)

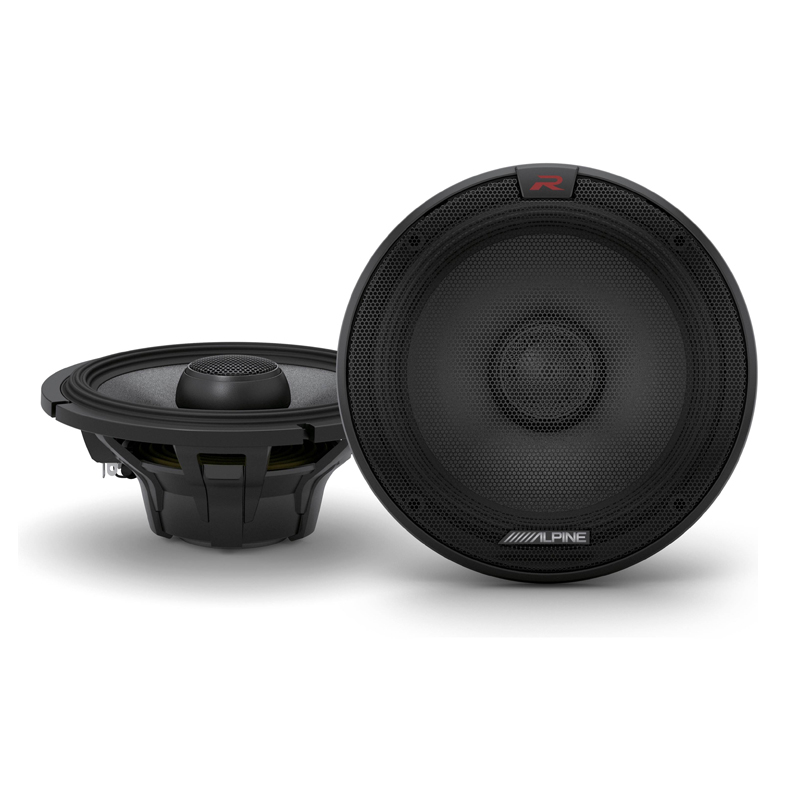

R-S65.2 R-Series 6-1/2" 100W RMS (300W Peak Power Handling) 2-Way Car Speakers
Features:
- (2) 6-1/2” 2-Way Car Speakers
- 6-1/2” Carbon Fiber Reinforced Polymer (CFRP) woofer
- 1” Carbon Fiber Reinforced Polymer dome tweeter
- Alpine patented High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Hi-Res Audio (High-Resolution Audio Playback)
- 35mm Voice Coil
- R-Series Speaker Grilles Included
Specifications:
- Peak Power Capacity: 300W
- Max RMS Power Capacity: 100W
- Nominal Impedance: 4 ohms
- Frequency Response: 65 Hz - 40 kHz
- Sensitivity: 88 dB SPL (1W @ 1m)
- Recommended Amplification: Up to 100W RMS per channel
- Woofer Size: 6-1/2" (16.5cm)
- Tweeter Size: 1" (2.5cm)
- Mounting Depth: 2-3/8" (6cm)

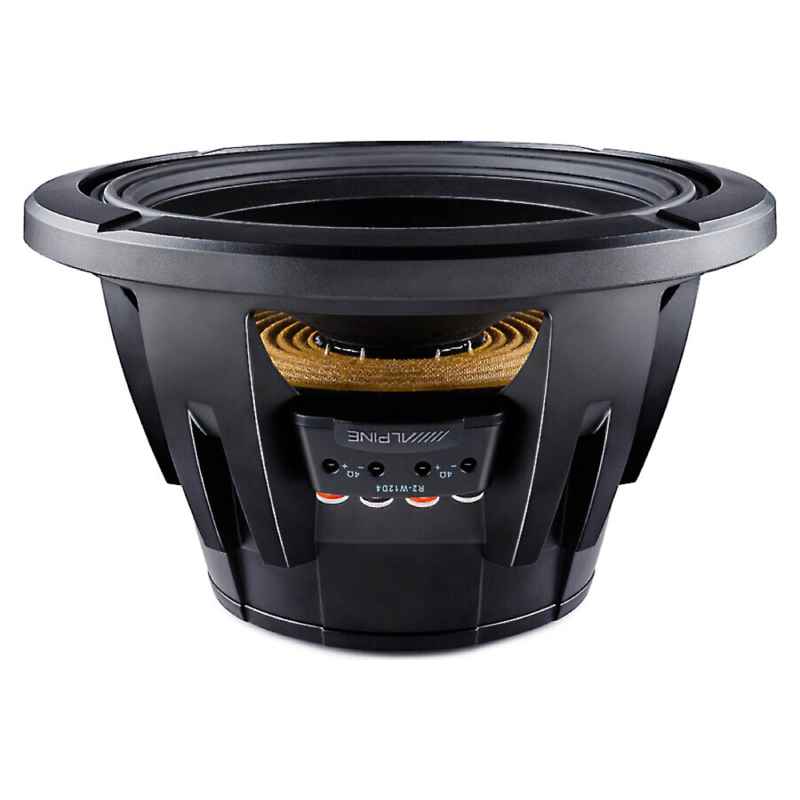

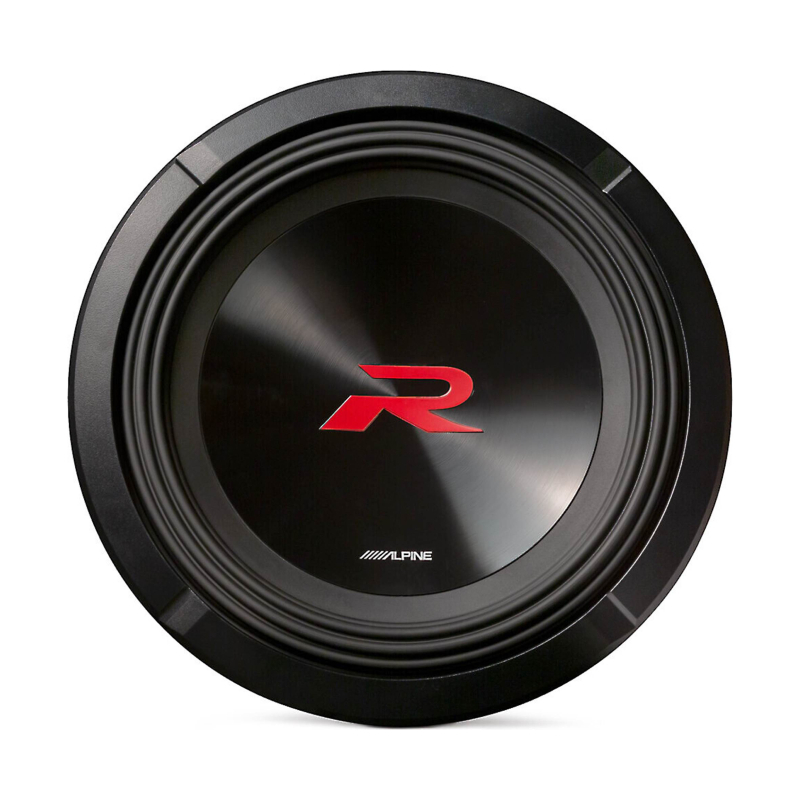

R2-W12D4 R-Series 12" 750W RMS (2250W Peak Power Handling) Dual 4 Ohms Voice Coil Car Subwoofer
Features:
- Peak: 2250 watts
- RMS: 750 watts
- Sensitivity: 84.6 dB
- Kevlar Reinforced Pulp Paper Cone
- High-Amplitude Multi-Roll (H.A.M.R) Surround
- Push-Type Speaker Terminals (Up To 8AWG Wire Size)
- Oversized Dust Cap
- Frequency Response: 24 - 200 Hz
- 2.6" High Temperature Voice coil
- Top-mount depth: 6.5"
- Sealed box volume: .55 cubic feet
- Ported box volume: 1.71 cubic feet

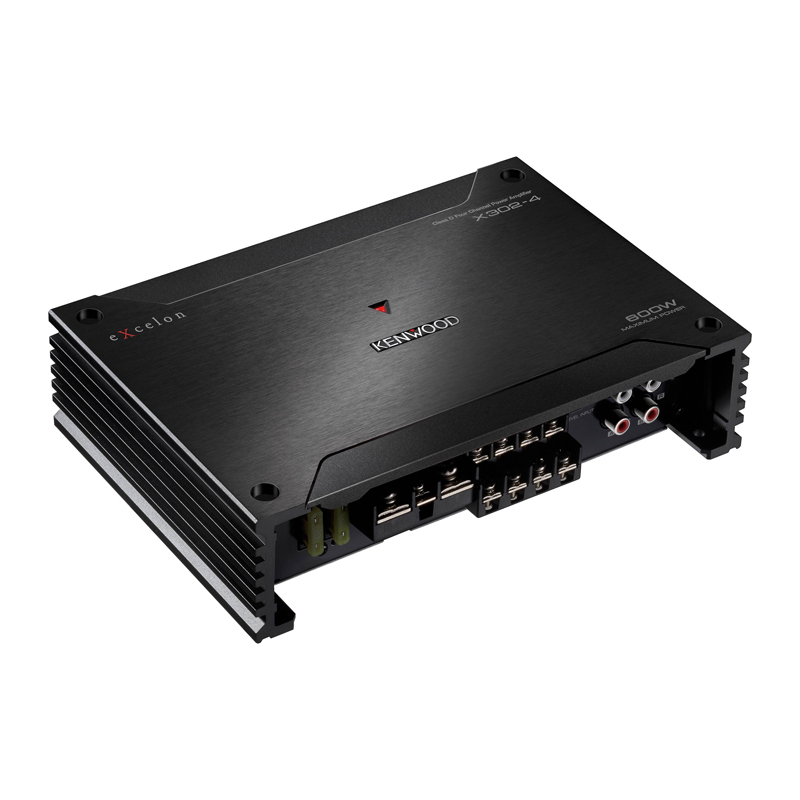

X302-4 X Series 600 Watts Max Power Class D 4 Channel Amplifier
Features:
CTA-2006 Primary Ratings
- Power Output: 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
Rated Power Output at 14.4V
- A/B (4 Ohms): 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
- A/B (2 Ohms): 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
- SUB (4 Ohms): -
- SUB (2 Ohms): -
- A/B (Bridged 4Ohms): 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-50kHz (+0dB, -3dB)
- Frequency Response: -
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: 4Ω to 8Ω allowable
Audio Section
- Low-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- High-Pass Filter: 50Hz-200Hz, -12dB/oct (A/B)
- Bass Boost: 40Hz, 0dB - +18dB (Bch)
- Infrasonic Filter: -
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]
Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.1 lbs ( 1.4 kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 20[A]
Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
Accessorries
- Signal Sensing Turn-On
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design

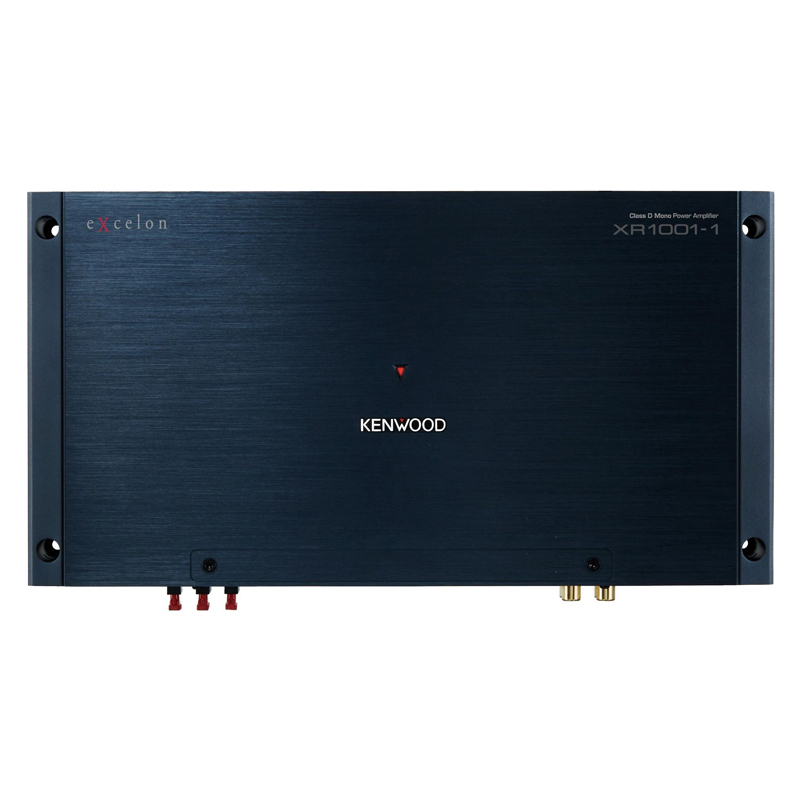

XR1001-1 Reference Series Class D Monoblock Car Amplifier with 2000W RMS Max (1000W) at 2 Ohms Speaker Level Inputs
Features:
- CTA-2006 Compliant
- Dual ΣDrive
- Speaker Level Input
- Signal Sensing Turn-on
- Terminal Cover
- Cooling Fan
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
- Line Output Terminals for Extension
- ClassD
- Version: 2 ohms
- Channels: 1
- RMS Power Rating:
- 4 ohms: 1 channel x 500 watts
- 2 ohms: 1 channel x 1000 watts
- 1 ohm: N/A
- Max Power Output: 800 watts
- Input ImpedanceL: 10000 ohms
- Signal to Noise Ratio: 100dB
- Frequency Response: 20 Hz to 200 Hz
- Variable Low-Pass Filter: 50 - 200 Hz, 24 dB/octave
- Input Sensitivity:
- 0.2V-5V (low)
- 4V-12V (high)
- Infrasonic Filter: 15Hz-40Hz, -24dB/oct
- Bass Boost: 40Hz, 0dB-+18dB
- Total Harmonic Distortion: <1%
- Fuse Rating: 40A x 3
- Dimensions (W x H x D): 320 x 51 x 169 mm (8-11/26 x 1-3/8 x 6-5/8)

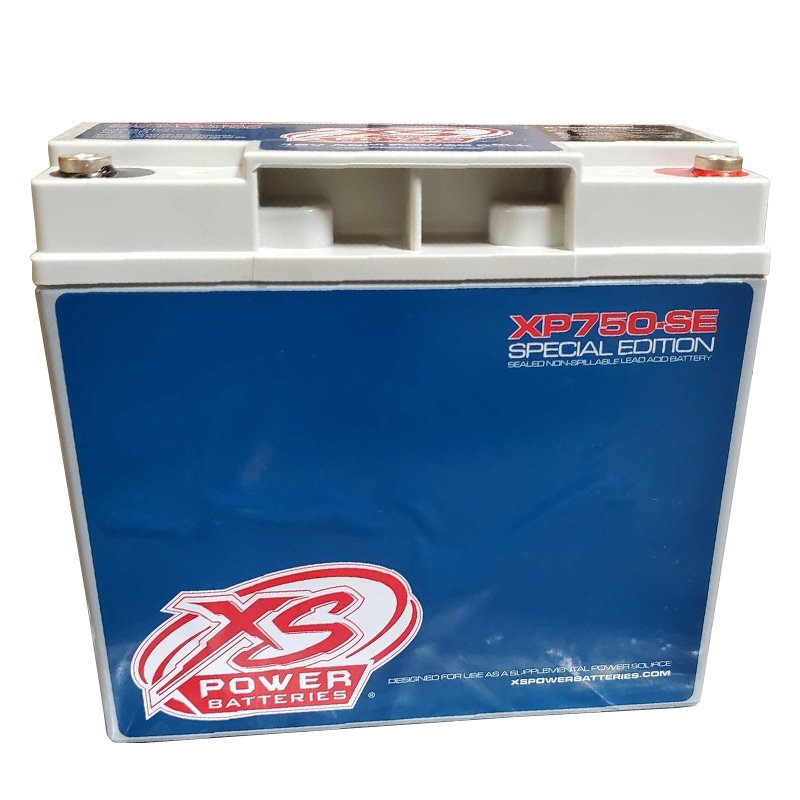

XP750-SE XP750 Special Edition 600W Battery 12-Volt Deep Cycle AGM Battery Power Cell with 600 Max Amps
Features:
- 12-Volt Deep Cycle AGM Power Cell
- Sealed Absorbed Glass Mat (AGM) Design
- Leak-Proof, non-hazardous design
- Designed for use as an additional battery to power your high-performance sound system
- Stores energy so you don't need a capacitor for your system
- Resists extreme vibrations for ultimate performance
- M6 Terminal hardware included
- Amp Hours: 20
- Dimensions: 4.35 x 9.65 x 9.85 inches
- Weight: 15.5 pounds
- Voltage: 12 Volts
- Max Amps: 600A

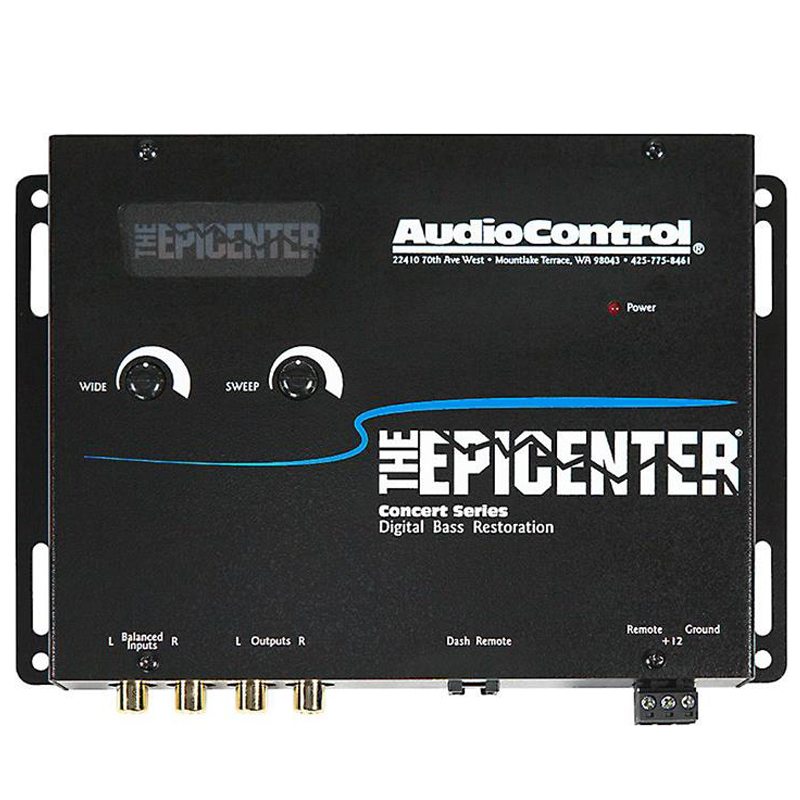

EPICENTER-BLACK Concert Series Digital Bass Maximizer and Restoration Processor with PFM Subsonic Filter (Black)
Features:
- Black or Sierra White
- Bass Restoration Processor
- Available in Espresso
- Bass Maximizaion Circuit
- Balanced inputs
- ParaBASS controls for tuning the bass restoraion efect
- Intelligent logic circuits
- Programmable Frequency Match (PFM) ilter
- Bass maximizing light display
- Adjustable Subsonic Filter
- Dash Mount ACR-1 for bass restoraion included
Specifications:
- Remote In Power Supply: High Headroom PWM Switching
- Frequency Response: 10Hz-100kHz
- Dimensions: 8W x 5.5D x 1.2H
- Preamp Inputs: 1 (2 channels)
- Maximum Input Level: 15Vrms
- Current Draw: 150mA
- Maximum Output Level: 13.5Vrms
- Preamp Outputs: 1 (2 channels)
- Input Impedance: 10kOhm
- Output Impedance: 150Ohm
- Total Harmonic Distortion: 0.003%
- Signal to Noise: 110dB
- Recommended Fuse Rating: 1A
- Weight: 1.8 lbs (0.8 kg)
- UPC: 798418839830
- Weight: 55
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
