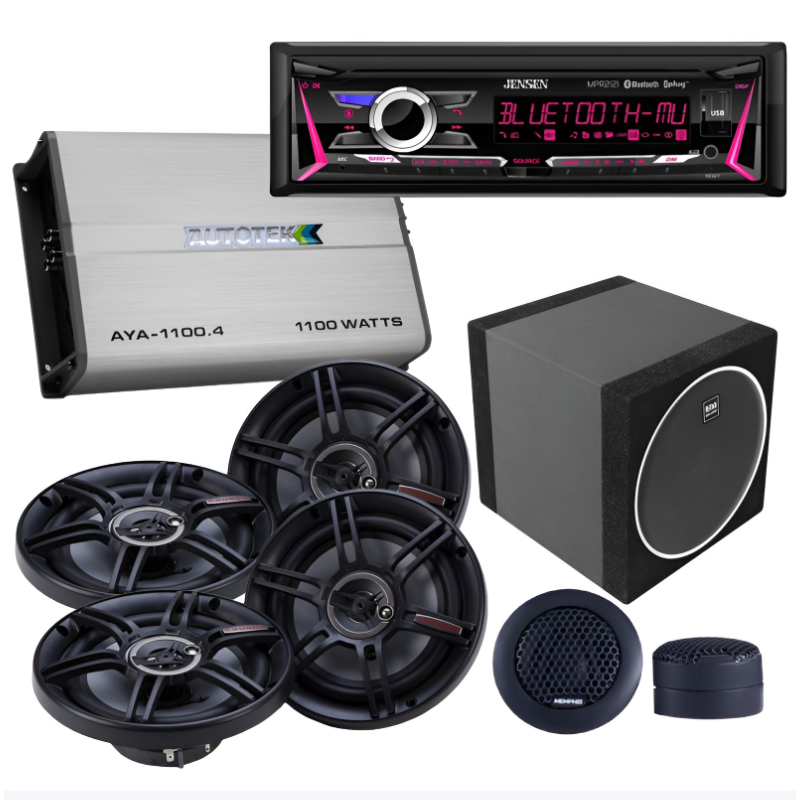

PCH Custom Audio  MPR2121 Full Car Audio Package-3

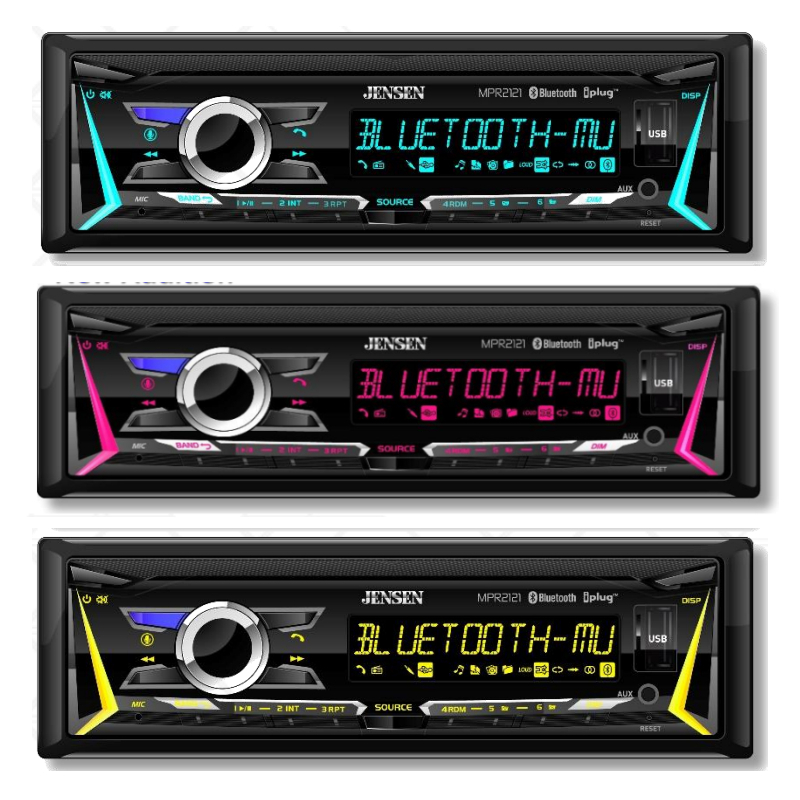

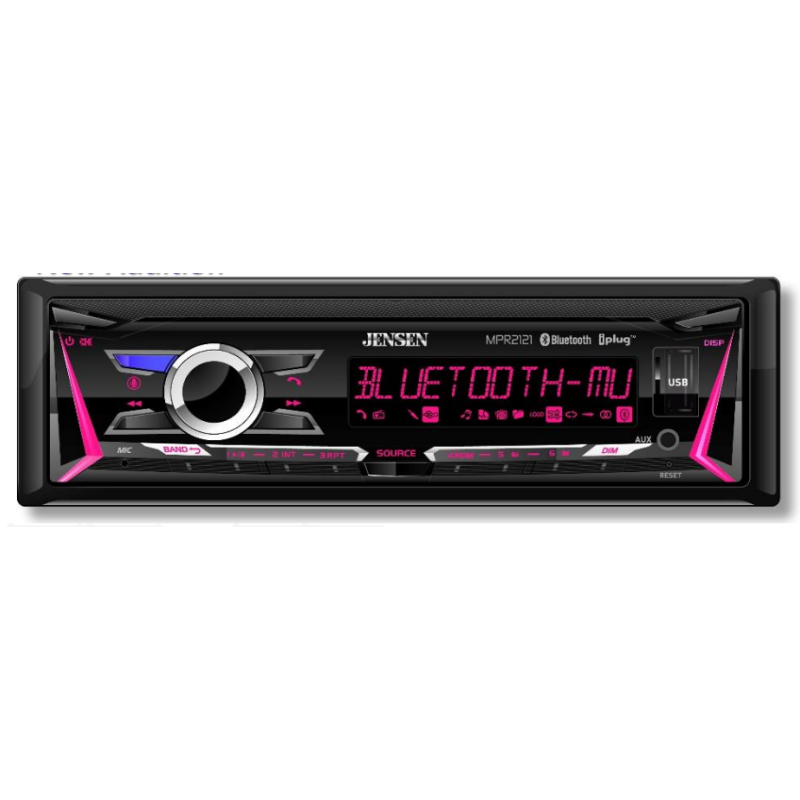

MPR2121 1-DIN Mechless Headunit Built-in Bluetooth technology, AM/FM, jLink Smart Remote app via Bluetooth, and RGB Custom color illumination

Features:

• Built-in Bluetooth technology with hands-free calling, music streaming, internal mic
• AM/FM Receiver with 30 Station presets (18FM/12AM)
• jLink Smart Remote app via Bluetooth (Apple®/Android™)
• Push-to-talk button to access smartphone voice assistant
• Front panel USB input with 1A charging
• Front panel 3.5mm AUX input
• 3 Pairs of RCA preamp outputs (F/R/S)
• Media playback: MP3/FLAC
• Digital media receiver, does not play CDs
• 4 Preset EQ curves (Classic, Rock, Pop, Flat)
• 12 Character LCD
• RGB Custom color illumination (over 32k combinations)
• Auto color-changing illumination (automatically rotates through all LED colors)
• RGB customization from iPlug smart app
• 200 Watts max power (50W x 4)
• Dimmer for LCD and button brightness
• Shallow mount design for easy install

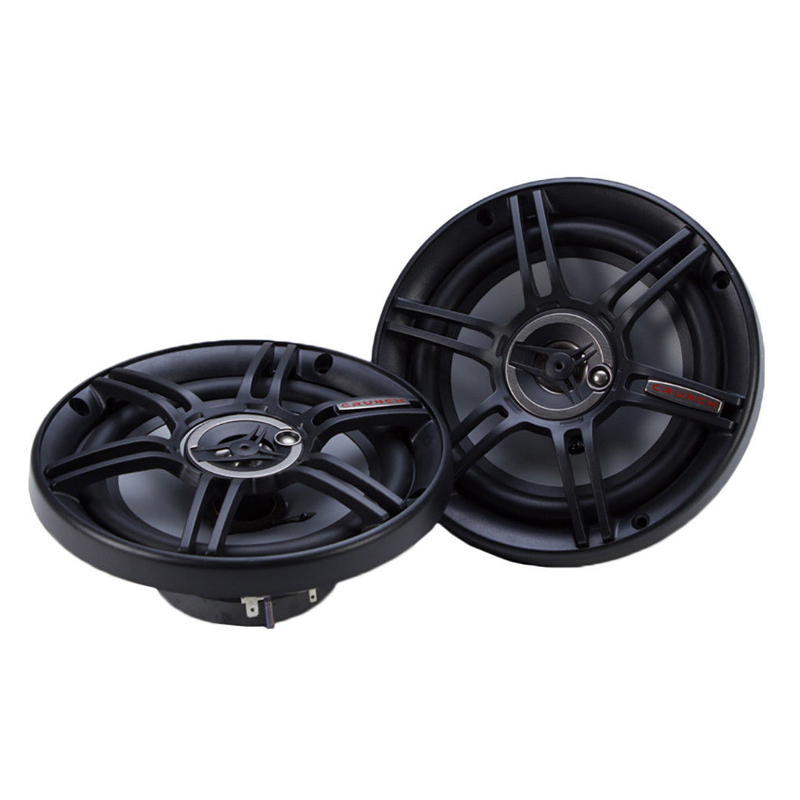

CS653 CS Series 6-1/2" 150W RMS (300W Peak Power Handling) 3-way Full Range Automotive Speakers

Features:

• TWEETER DOME MATERIAL: Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
• SURROUND: UV Resistant Rubber Surround
  Moisture Resistant Rubber Surround with high Mid-Bass Impact
• CONE: Silver Alpha-Cellulose Poly Cones
  Produces musical midrange and bass tones while remaining light weight
• SURROUND / CONE COUPLING: High Temperature Adhesive
  The cone/surround connection utilizes a high temp adhesive which assure the cone and surround do not separate in high power uses or extremes of weather
• GASKET: Textured ABS
  Assures a ridged linear seal to the mounting surface
• TINSEL LEADS: Braided
  Highly conductive while remain flexible during high power applications
• VOICE COIL: Pure Copper
  Creates strong magnetic field with a very thin extrusion
• VOICE COIL FORMER: Kapton
  Lightweight and efficiently dissipates heat
• SPIDER: Epoxy infused Natural Fiber
  Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
• COOLING SYSTEM: Over-Coil
  Air is exchanged over the voice coil through the spider
• CROSSOVER TYPE: Passive Butterworth
  Smooth transition of frequencies from midrange/midbass to the tweeter element
• CROSSOVER SPECIAL: 6dB Internal
  Integrated into the design to assure smooth midrange to tweeter frequency transitions
• FRAME: Anti-Resonant Stamped Steel Basket
  Very strong with minimal harmonics or distortions from flex or ringing
• MOTOR: Ferrite Magnet
  Creates a strong magnetic field while remaining small enough to fit nearly every application
• CONNECTORS: Spade
  Use spade connectors or solder direct for the best connection
• GRILLS: Yes
  Protects the speaker from accidental damage. Not used if speaker is mounted behind vehicle panel
• TWEETER MATERIAL: Neo-Mylar Soft Dome
  Great sound quality and increased reliability
• TWEETER SIZE: 1 inch
  Clear highs while handling plenty of power without sound harsh
• TWEETER SURROUND MATERIAL: Kapton
  Lightweight and efficiently dissipates heat

Specifications:

• RMS POWER HANDLING(CEA426B)
  150 watts
• PEAK POWER HANDLING (CEA426B)
  300 watts
• SPEAKER IMPEDANCE
  4 ?
• FREQUENCY RESPONSE +/- 10DB
• FREQUENCY RESPONSE +/- 3DB
  40 Hz - 22 kHz
• SENSITIVITY (1 WATT/1 METER)
  88dB
• CROSSOVER POINT
  4K Hz
• CROSSOVER SLOPE
  12dB
• MOUNTING DIAMETER/CUT OUT
  5.59
• OUTSIDE DIAMETER
  7.01
• MOUNTING DEPTH/CHASSIS DEPTH
  2.13
• PRODUCT DIMENSIONS
  14.88 x 8.5 x 4.13 in
  37.7 x 21.5 x 10.4 cm
• PRODUCT WEIGHT
  3.5 lbs (1.5kg)

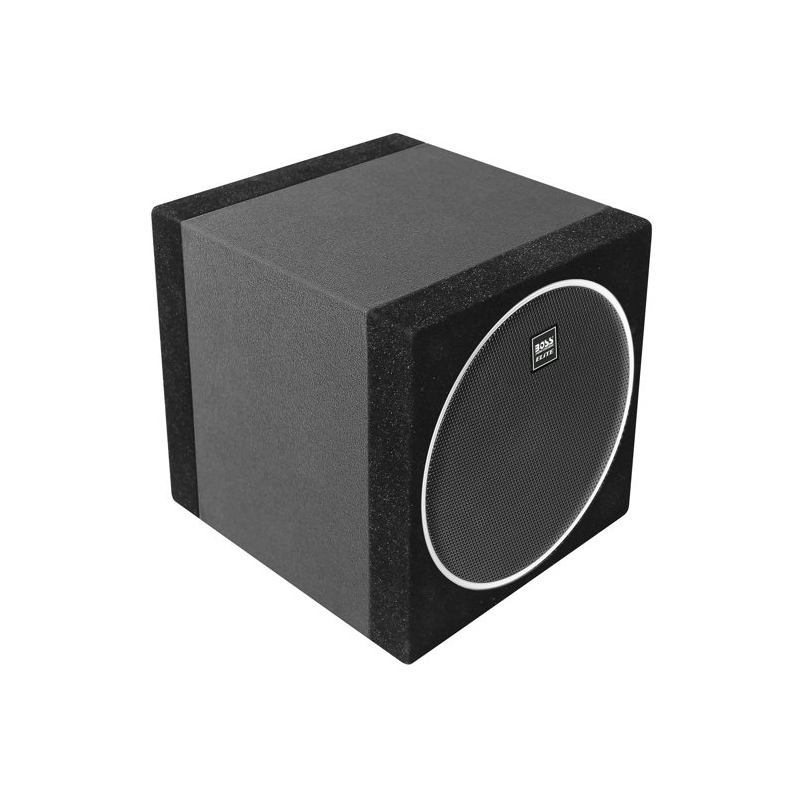

BE10AE 10" 300W RMS (600W Peak Power) Single 4 Ohm Voice Coil Subwoofer Enclosure with Built-In Amplifier Featuring 10" Passive Radiator

Features:

• High Performance Voice Coil
• RCA & Speaker Level Inputs
• Phase Control
• Bass Boost
• Low Pass Filter
• Class D Topology
• Subsonic Filter
• Remote Subwoofer Control
• LED Status Indicator
• Thermal, Short and Overload Protection Circuits

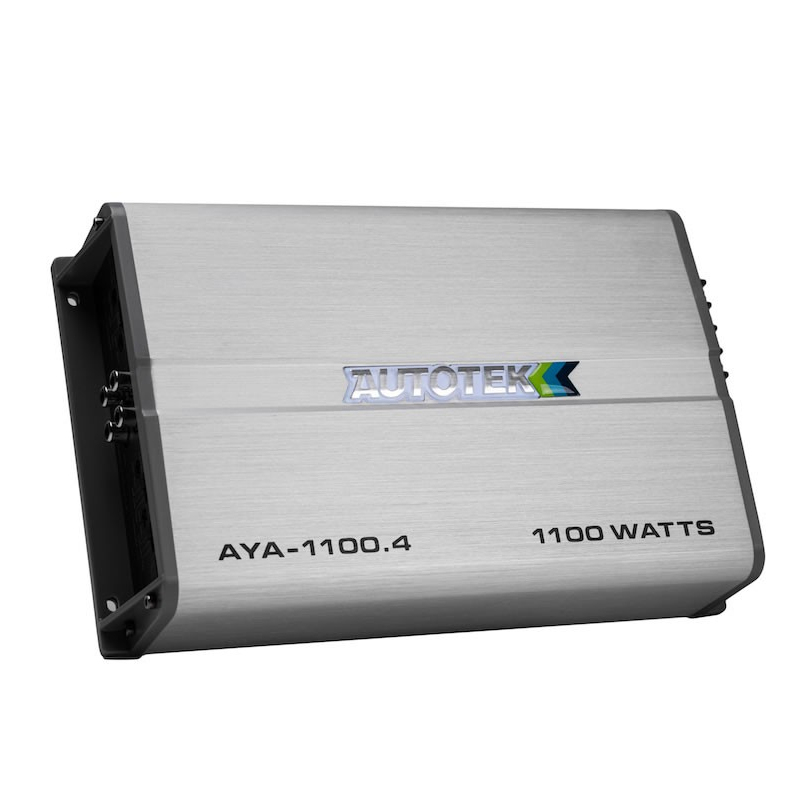

AYA-1100.4 Alloy Series 40W x 4 RMS @2Ohms, 1100W Max Power Class A/B 4-Channel Car Audio Amplifier

Features:

• LOW NOISE PREAMPLIFIER CIRCUIT - Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
• RCA INPUTS - Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• HIGH LEVEL INPUTS - Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• OPERATION MODE - Mono Only
• CROSSOVER TYPE - Variable Electronic 12dB Per Octave
• ELECTRONIC EQUALIZER - Fully Adjustable 12dB Crossovers
• CLASS/TOPOLOGY - Class A/B: High sound quality circuit that allows Alloy to develop high levels of power with minimal distortion.
• OUTPUT DEVICE TECHNOLOGY- PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
• HEAT SINK - QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• POWER SUPPLY - High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.
• OUTPUT CONNECTIONS - Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
• CONNECTION TYPE - Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS - Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.

Specifications:

• Class: Class A/B
• Total Channels: 4
• Power @ 1 Ohm (Ch X Watts): N/A
• Power @ 2 Ohms (Ch X Watts): 4 X 40
• Power @ 4 Ohms (Ch X Watts): 4 X 30
• Mono Bridged @ 4 Ohms (Ch X Watts): 2 x 60
• Crossover: Variable Electronic 12db Per Octave
• Tone Control/parametric Eq: Built-in Bass Control
• Bass Boost: Switchable: 0 / +6 / +12db
• Variable Voltage: .2 To 9v
• Frequency Response: 10hz-22khz
• Speaker Level Audio Inputs: Yes
• Power Terminal 12v/gnd: 4 Awg
• Speaker Terminal Wire Gauge: 12 Awg
• Fusing: 30A

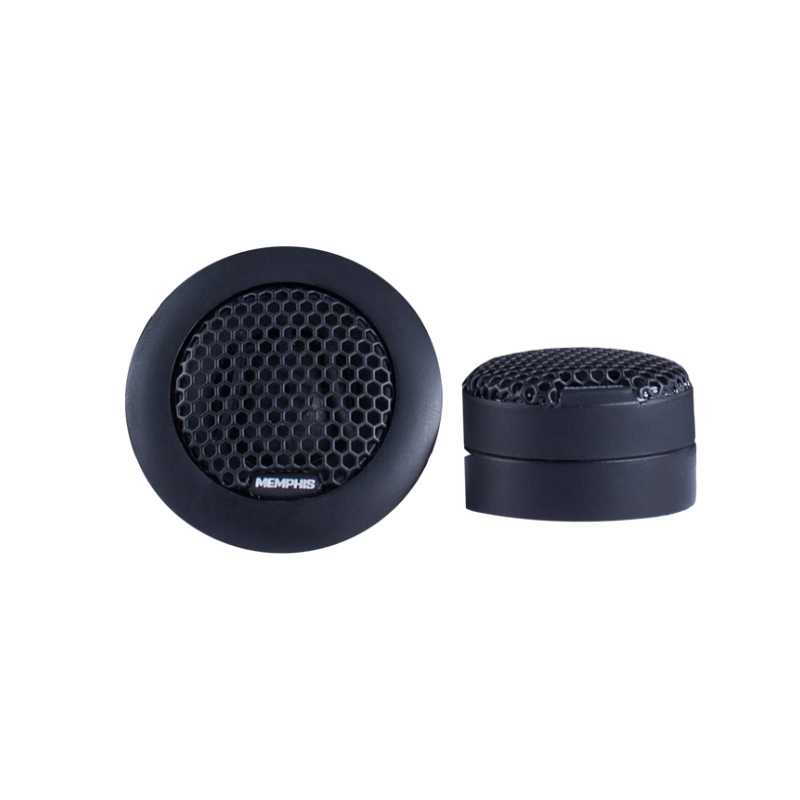

SRX1 Street Reference Series 1" (40 Watts Peak Power Handling) Electrostatic Car Soft Dome Tweeters

Features:

• Lightweight foam surround
• Mylar tweeter
• Treated paper cone
• Shallow mounting depth
• Maximum Peak Power (Watts) 40
• Recommended RMS Power (Watts) 20
• Sensitivity (dB) 97
• Mounting Depth (in) Surface
• Size (in) 1

• UPC: 798418838178
• Weight: 49
• Authorized Internet Dealer
