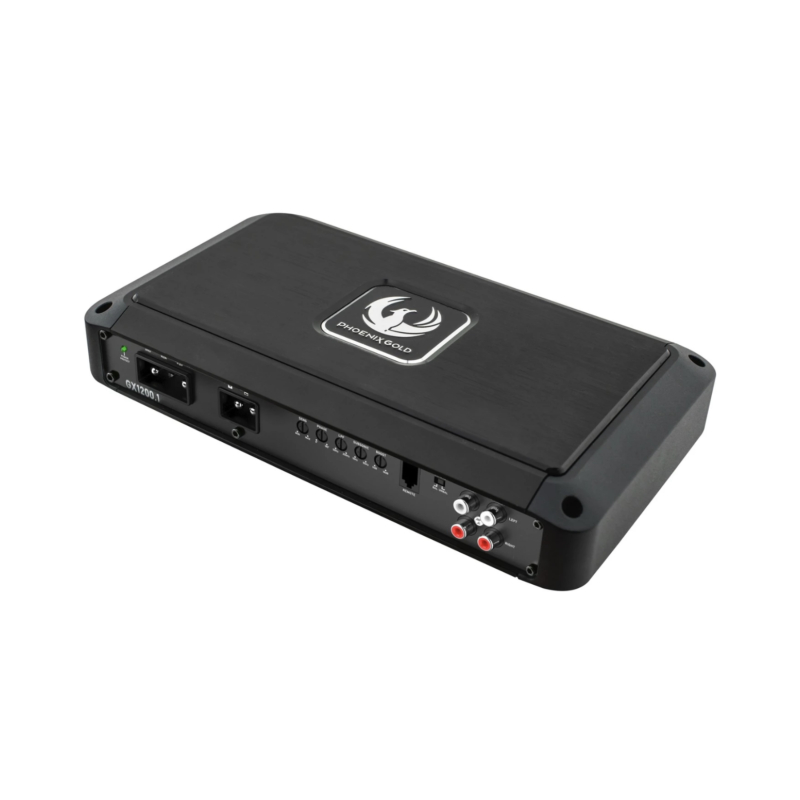

Phoenix Gold GX1200.1 1200W 1-Channel Monoblock Class D Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Audiophile Grade Mono Class D
- • Surface-Mount Component Technology
- • High-Level Input Capable
- • Selectable Balanced / Unbalanced Inputs
- • Low Pass and Subsonic Crossovers
- • Proprietary PG Quick Connects
- • Flush Mountable Bass Knob
- • Full Radiation Heat Sink
- • Rotatable Badge
- • Single Sided Control Panel
- • Onboard Short/Therm/Impedance Protection
Easy Installation and Serviceability
An optimized chassis through balanced flow dissipation and unregulated power supplies to deliver hard-hitting, articulate bass. This audiophile-grade 1-channel amplifier also features surface-mount component technology for superior performance and proprietary Phoenix Gold quick connects for easy installation and serviceability.
- Maximum Power : 1200 Watts
- Number of Channels : 1
- Channel Separation : Yes
- Amplifier Class : D
Features:
- Audiophile Grade Mono Class D:
- Precision Components and Op Amps used to increase sound quality and lower distortion
- Surface-Mount Component Technology
- Precision manufacturing process provides reliability and strict quality control
- High-Level Input Capable
- for Easy OEM Integration
- Can accept input sources from most OEM radios(requires X2LINE)

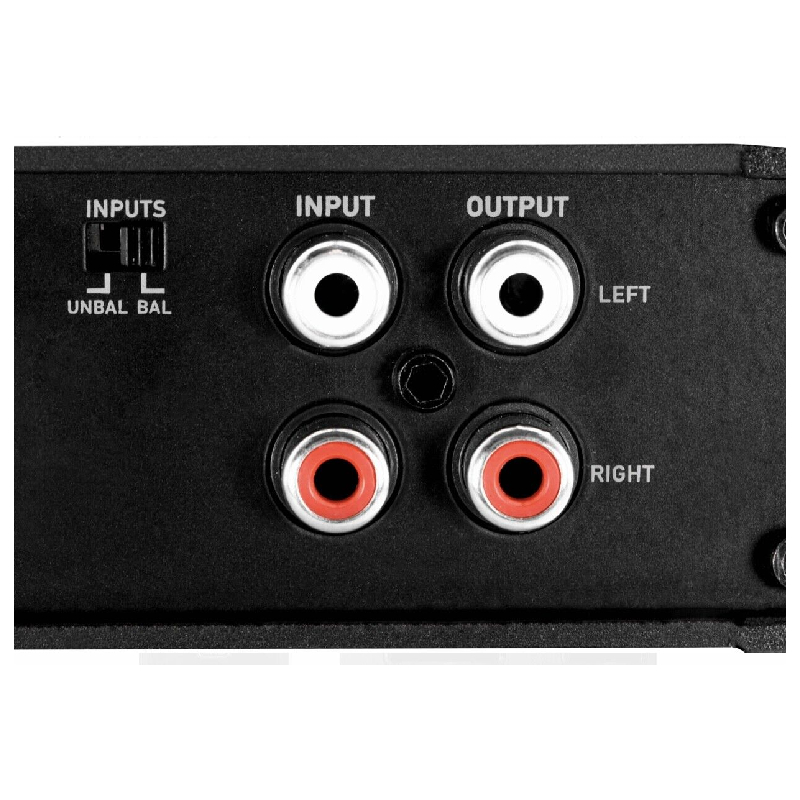

- Selectable Balanced / Unbalanced Inputs
- Matching input typesallow for the best possible signal transfer and the lowest noise
- Low Pass and Subsonic Crossovers
- Reduces the need for external processing, optimizes system tuning while maximizing subwoofer output

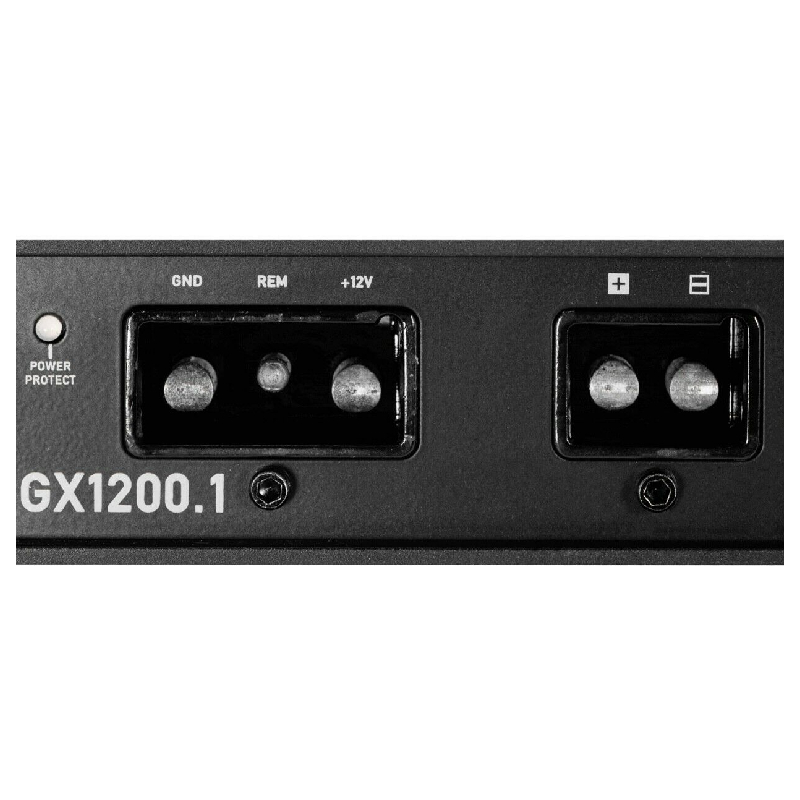

- Proprietary PG Quick Connects
- Enables high current transfer while increasing installation ease and serviceability

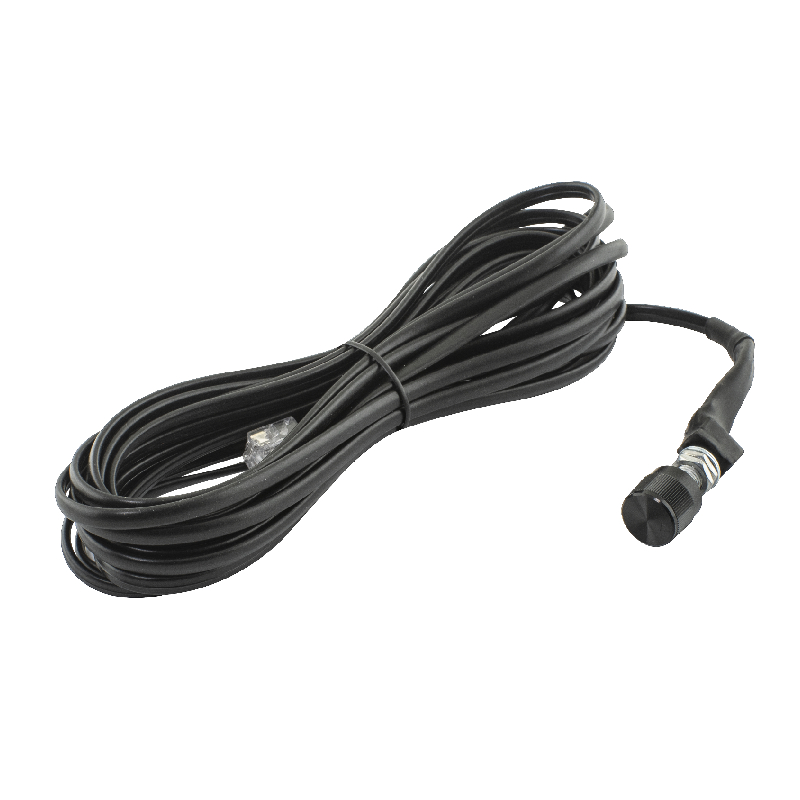

- Flush Mountable Bass Knob
- Remote bass control for easy level adjustment paired with custom installation options for ergonomic placement

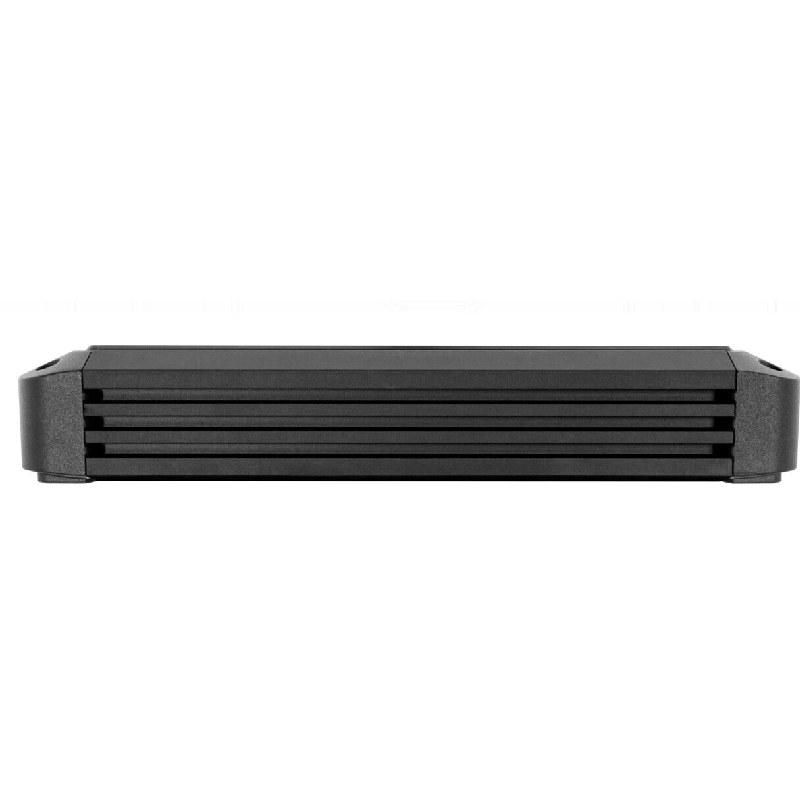

- Full Radiation Heat Sink
- Computer aided design heat sink was created to utilize entire chassis for head dissipation while reducing amplifier size and lowering operating temperatures

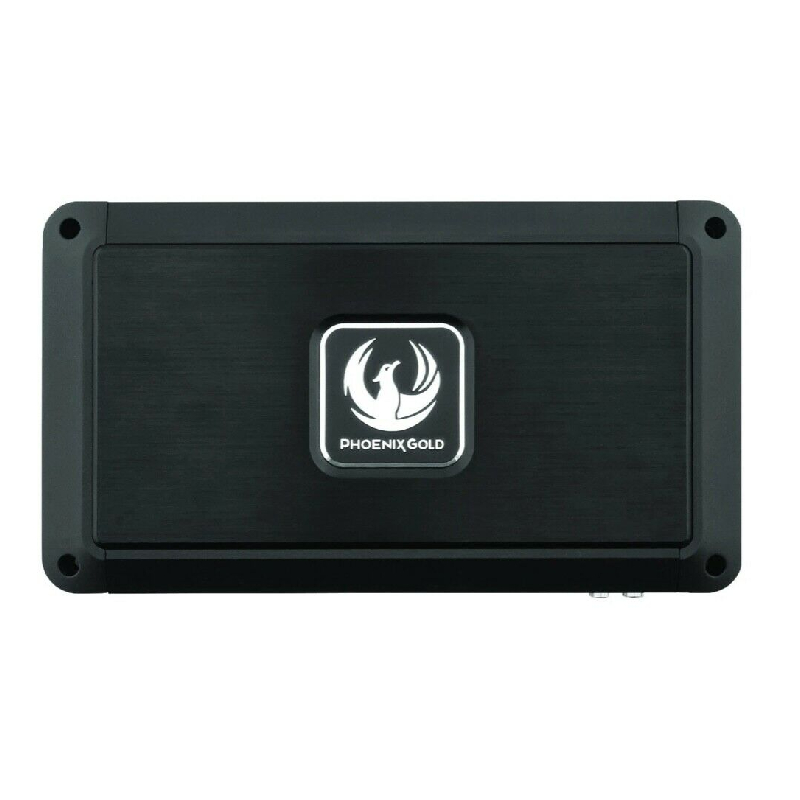

- Rotatable Badge
- Badge can be rotated to allow for increased custom installation mounting optionswhile retaining proper aesthetics

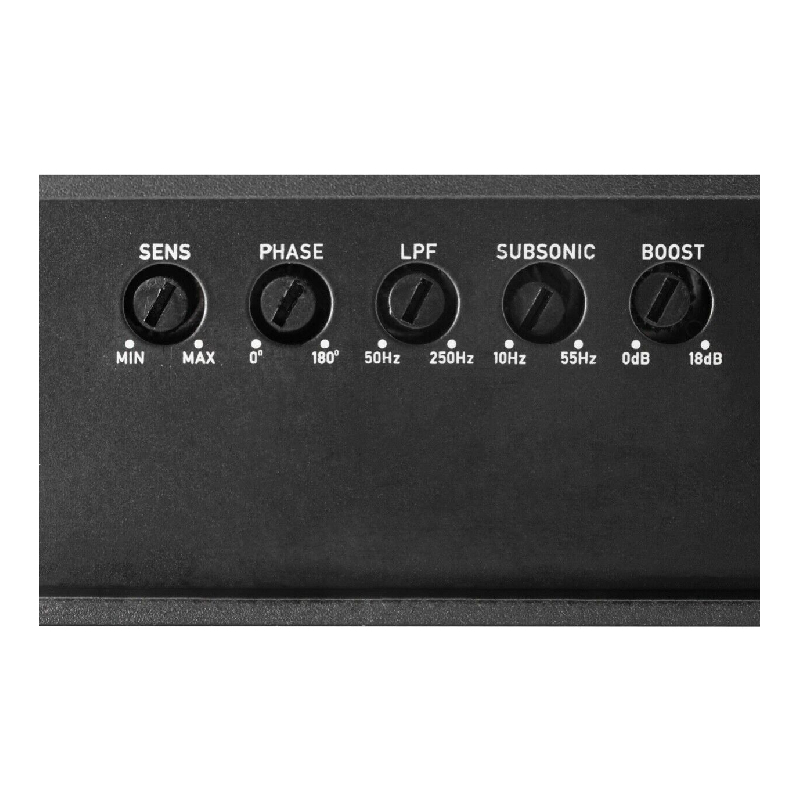

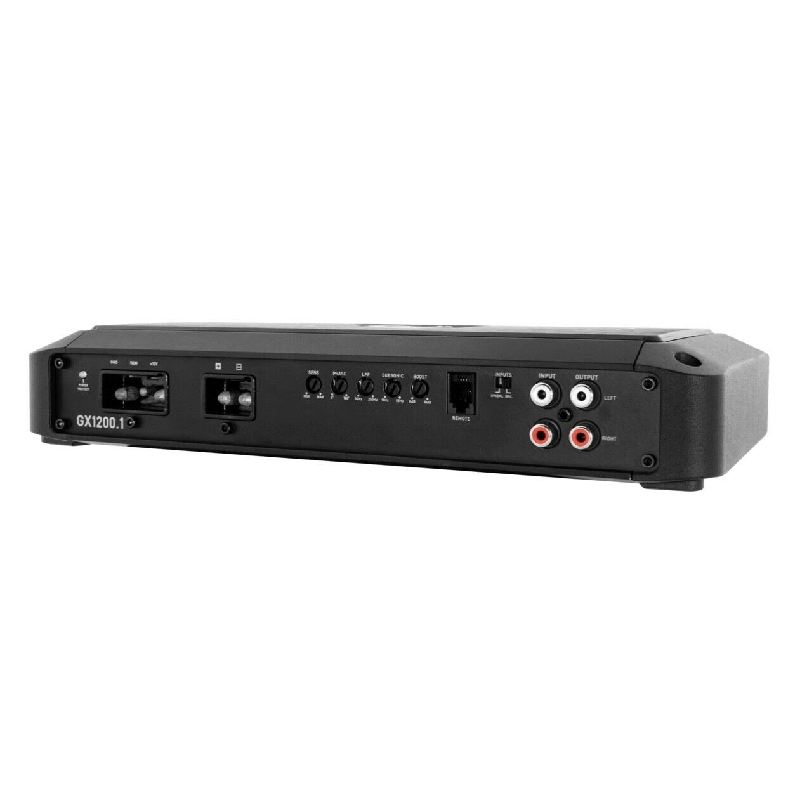

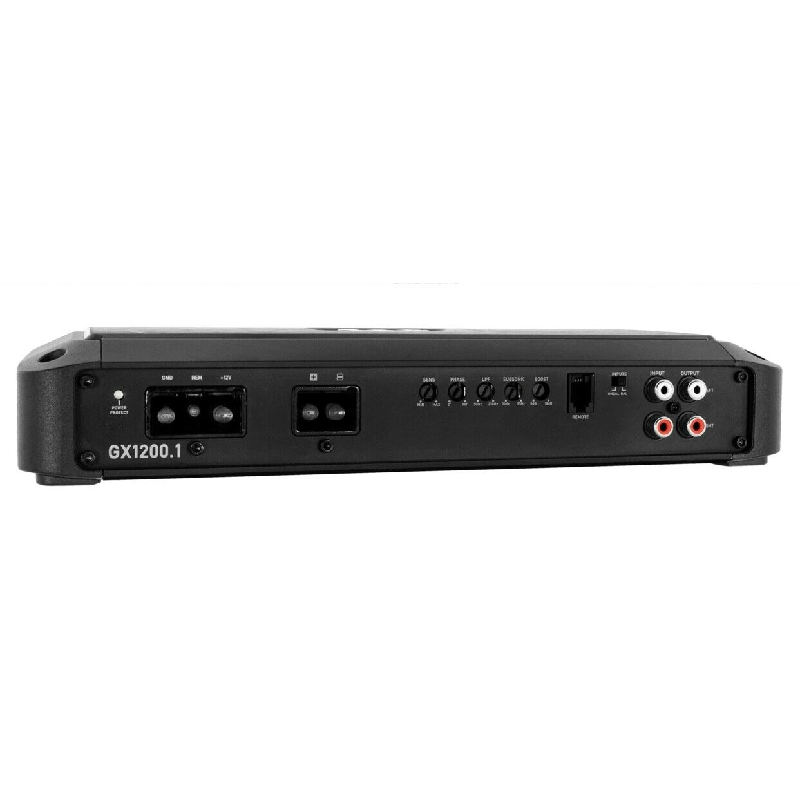

- Single Sided Control Panel
- Increased installation speed, system adjustments, and mounting options with the use of single side amplifier controls and connections
- Onboard Short/Therm/Impedance Protection
- Designed for system reliability and fault protection from thermal overload, short circuits, and low impedance situations
Specifications
RMS Power Ratings listed at less than 1% THD @ 14.4v
- Number of Channels: 1
- 1Ω: CH 1 1200W x 1
- 2Ω: CH 1 800W x 1
- 4Ω: CH 1 500W x 1
- Total RMS Power (Sum of rated power): 1200W
- Bridgeable: N/A
- Crossover Mode, Linkwitz-Riley:
- LP
- 50Hz - 250Hz @ 24dB/Oct
- Input Selection: 0.4-10V
- Signal to Noise (@ CEA Standard): >100dB
- Frequency Response: Full Range 15-250k
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge Quick Connect
- Speaker Terminal: 8 Gauge Quick Connect
- Recommended Inline Fuse: 80A
- Dimensions (L x W x H):
- 11.57” x 6.5” x 2.03”
- 294mm x 165mm x 51.5mm
- UPC: 609098832380
- Weight: 1
