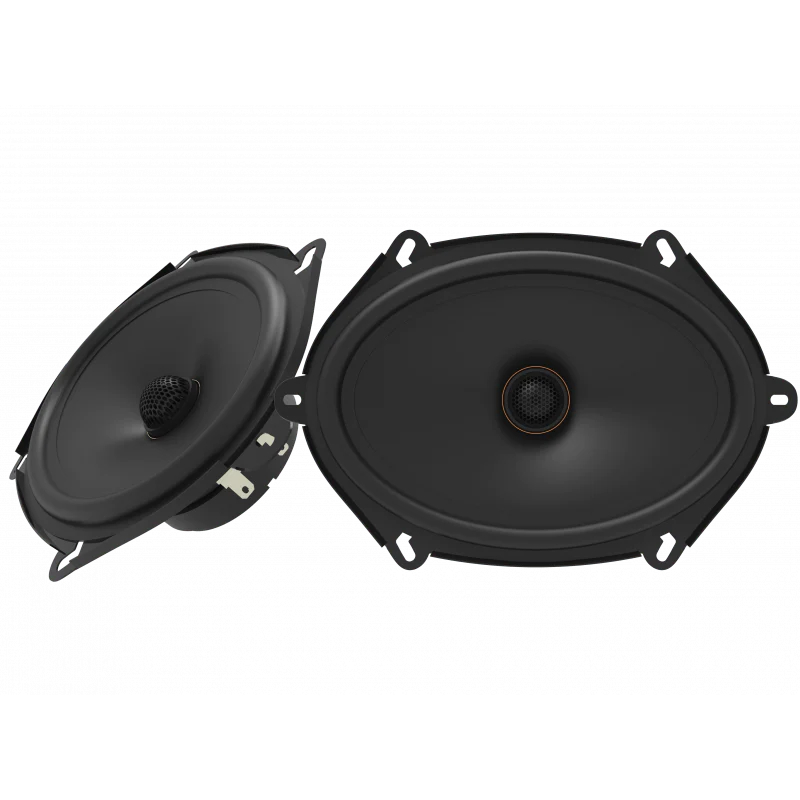

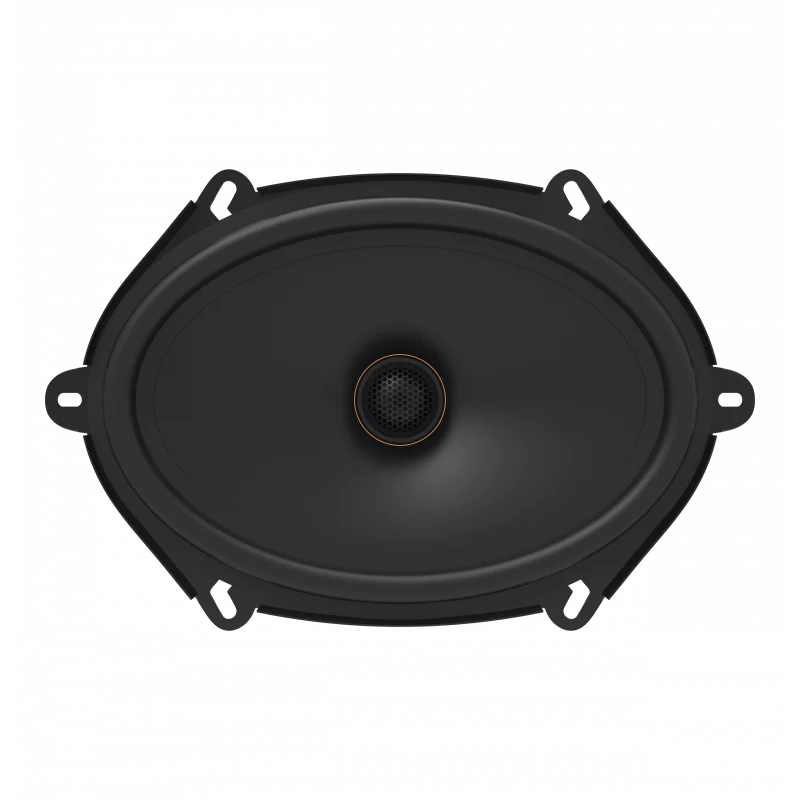

Phoenix Gold MX57CX MX 5x7" Dual Concentric Coaxial Speakers
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

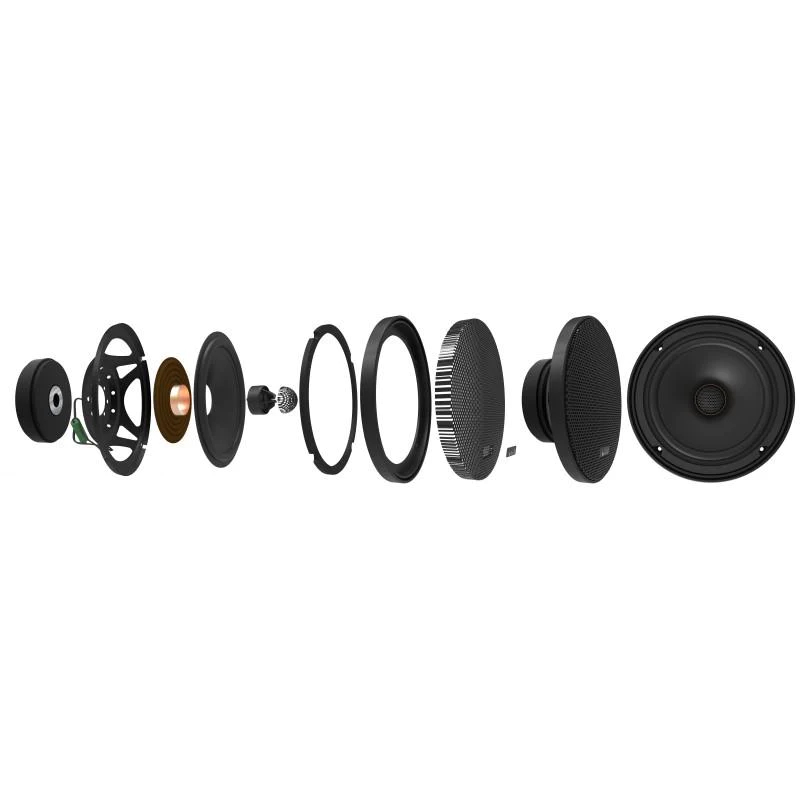

What's Inside?
- • Shallow Mount
- • Dual Concentric Design
- • Polypropylene Carbon Impregnated Cone
- • High-Temperature Voice Coil
- • Phoeniroll Surround Technology
- • Silk Dome Tweeter
- • Corona Lens
Features are combined to create an engrossing listening experience with detail, impact and tonality unrivaled from any other speakers in or even double MX?s price point. The MX drivers will be an easy drop-in replacement with an excellent increase in performance and sound quality from stock locations.
- Diameter : 5x7/6x8 Inch
- Sensitivity : 90 dB
- Impedance : 4 Ohm
- Frequency Response : 67-20000 Hz
- Peak Power Handling : 150 Watts
- Shallow Mount : 5x7/6x8 Inch
- RMS Power Handling : 100 Watts
Features:
- Shallow Mount

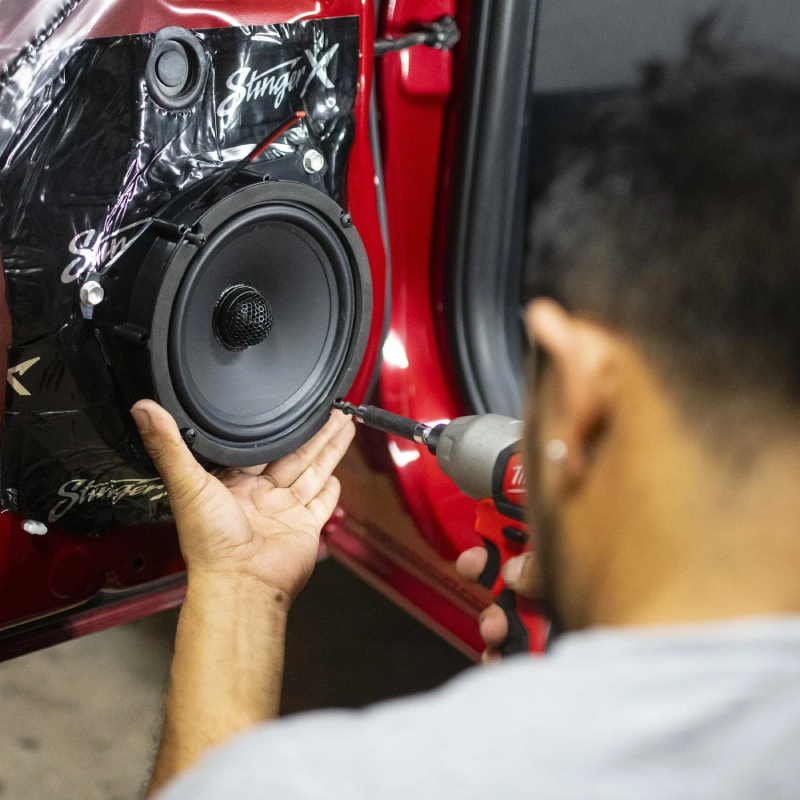

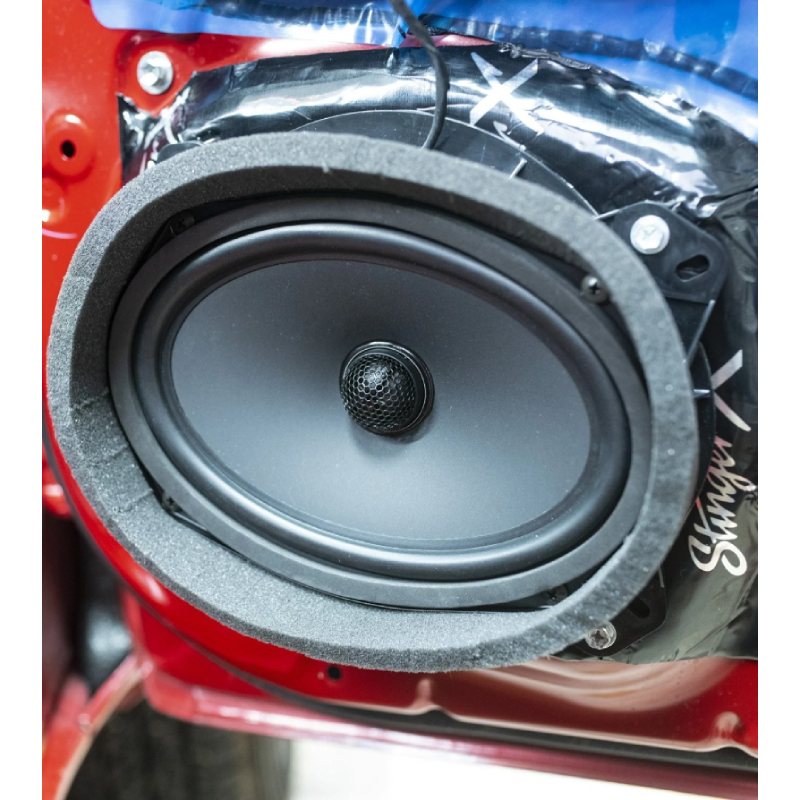

- Allows for easy installation behind factory panels
- Dual Concentric Design
- Provides excellent off-axis response as the woofer and tweeter share a common center thus focusing the sound of both drivers in a uniform field of sound resulting in premium sound quality from stock locations
- Polypropylene Carbon Impregnated Cone
- Strong yet lightweight material for crisp, accurate mid and low notes
- High-Temperature Voice Coil
- Our proprietary Torriform Technology provides superior current distribution while effectively dissipating heat
- Phoeniroll Surround Technology
- A Phoenix Gold Standard that supports smooth linear movement for optimal accuracy
- Silk Dome Tweeter
- delivers rich, warm treble with remarkable clarity and definition
- Corona Lens
- Our unique waveguide technology, focuses the tweeter correcting any phase cancellation that occurs in traditional “point source” speakers. The lens provides a smooth blend of the tweeter frequencies with mid woofer by dispersing the sound waves in a balanced fashion
Specifications
- Power Handling (RMS) 100watts
- Peak Power Handling 150watts
- Frequency Response 67hz-20khz
- Impedance 4ohm
- FS 67hz
- Vas 10.90Lrt
- Xmax 10mm
- Qts 1.278
- Sensitivity (1W/M) 90dB
- Cone Material PP cone
- Surround Material rubber surround
- Tweeter Size (mm) 19mm
- Tweeter Material silk
- Magnet diameter φ80x12mm
- Magnet Weight 226g"
Dimensions
- Overall Diameter (Dimensions) 5.51x8.66in / 140x220mm
- Cutout Diameter 4.96 x 7.16in / 126 x 182mm
- Mounting Depth 2.20in / 56mm
- Net Weight 715g
- UPC: 609098829205
- Weight: 5
