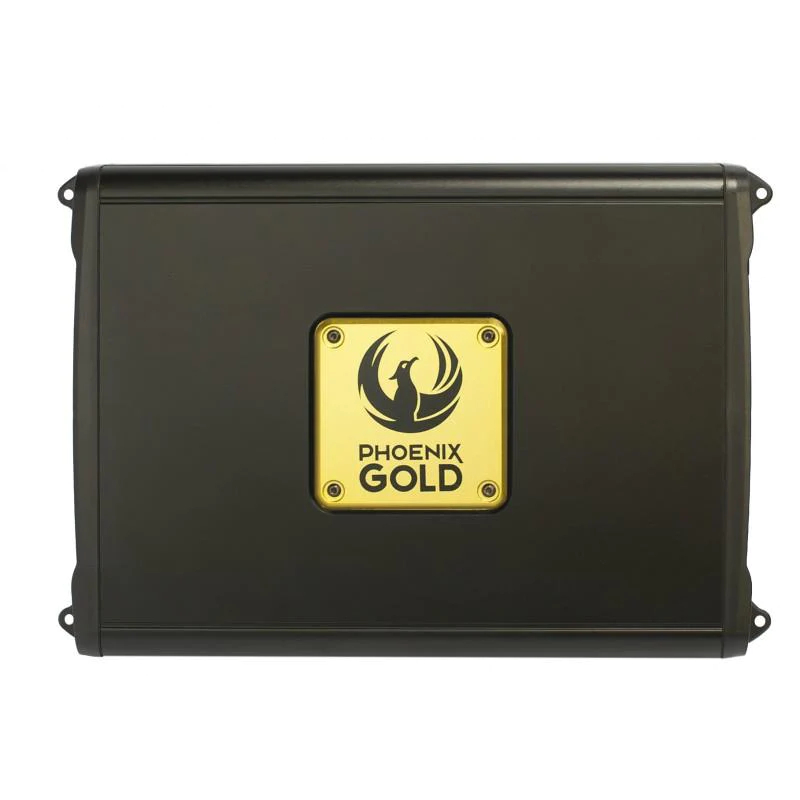

Phoenix Gold RX2250.1 RX 250 Watt Class A/B Monoblock Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-A/B Topology
- • Robust Unregulated Power Supplies

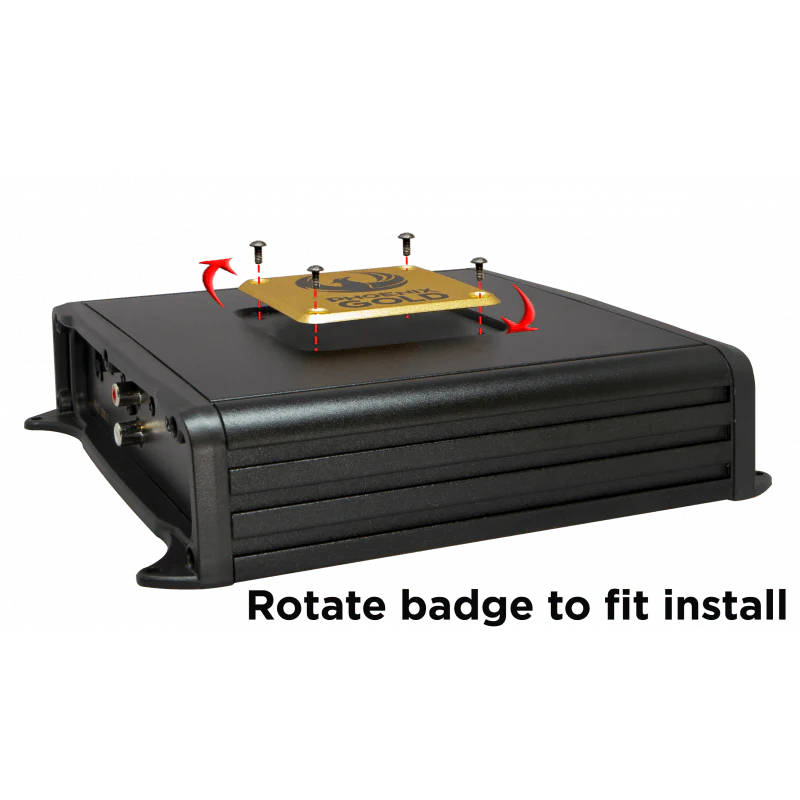

- • Rotatable Badging for installation flexibility
- • High level Inputs for Easy OEM Integration

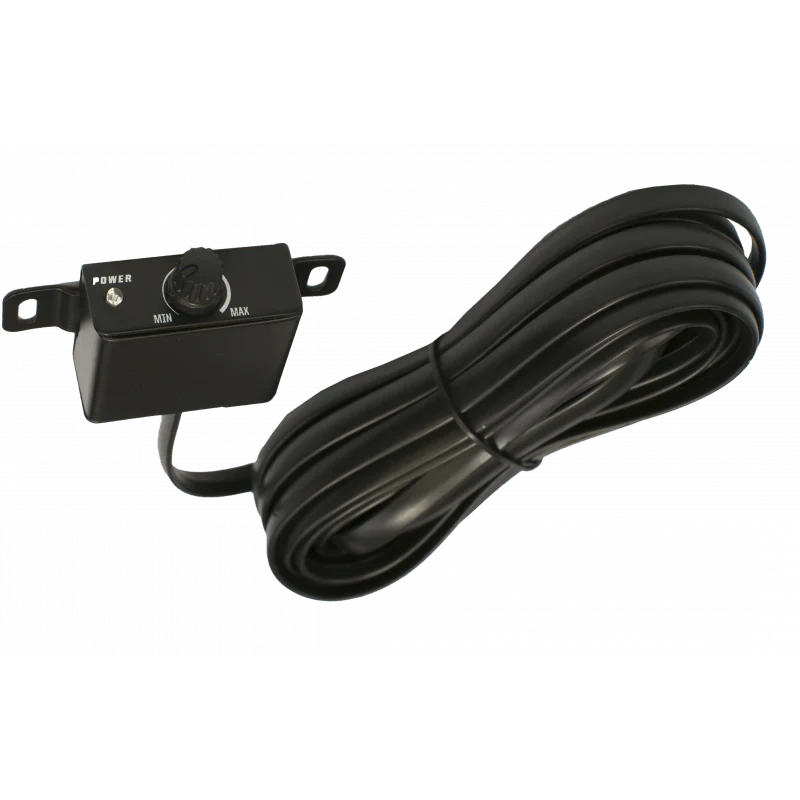

- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
RX2250.1 Amplifier
RX2 series amplifiers are the reference for style and value in any installation. Built with the legendary Phoenix Gold reliability, they feature heavy duty heatsinks, robust unregulated power supplies, and oversized direct input power and speaker terminals. They also sound sweet thanks to the audiophile-grade output transistors.
Easy installation
We made upgrading your stock system easy by allowing high level inputs, so you can keep that hard to replace radio, and still upgrade the sound. RX2-series amplifiers are ready to impress with their effortless ability to provide power and clarity while keeping the chassis at a convenient size for any installation.
- Maximum Power : 250 Watts
- Low Frequency Response : 40-200 Hz
- High Frequency Response : 10-40 Hz
- Number of Channels : 1
- Frequency Response : 15-250 Hz
- Built In Crossovers : Yes
- Amplifier Class : A/B
- Fuse Rating : 30 A
Features:
- Class-A/B Topology
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration
- Remote Bass Controller Included
- Audio Precision® Quality Control Verification
Specifications:
- Number of Channels: 1
- 4Ω: CH 1 150W x 1
- 2Ω: CH 1 250W x 1
- 1Ω: CH 1 N/A
- Total RMS Power (Sum of rated power): 250Watts
- Bridgeable: NO
- Crossover Mode: LP
- CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Subsonic 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley

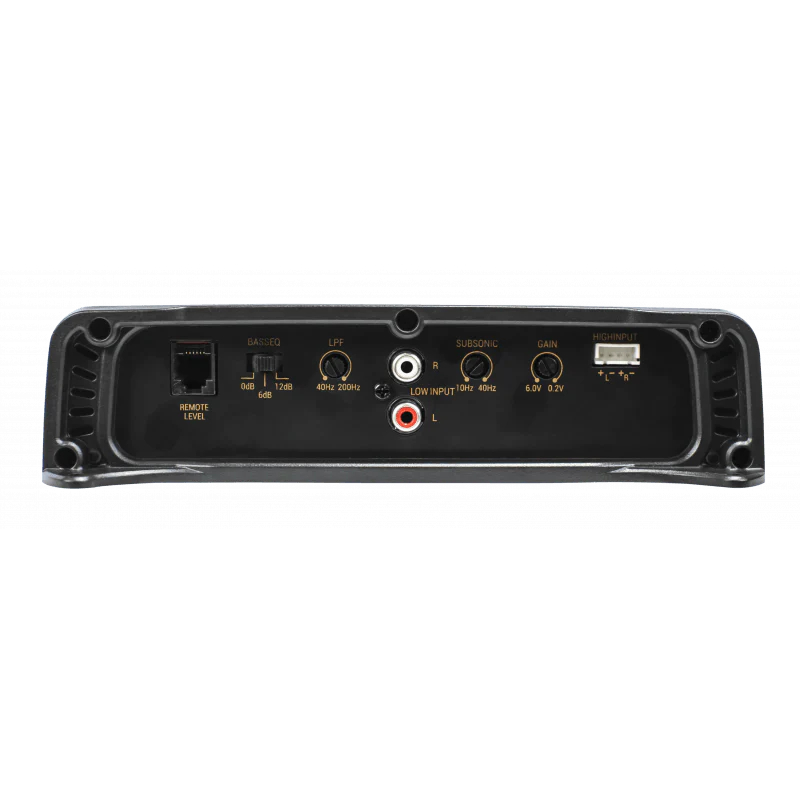

- Input Channels: 2CH L/R
- Input Mode: Unbalanced / Balanced
- Input Sensitivity:
- .2v - 5v Unbalanced Low-Level RCA
- .5v - 15v Balanced Hi-Level Harness
-
- Processing: Bass Boost 0dB / +6dB / +12dB @45hz
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range CH1 15Hz - 250Hz
- Topology Class: A/B
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated

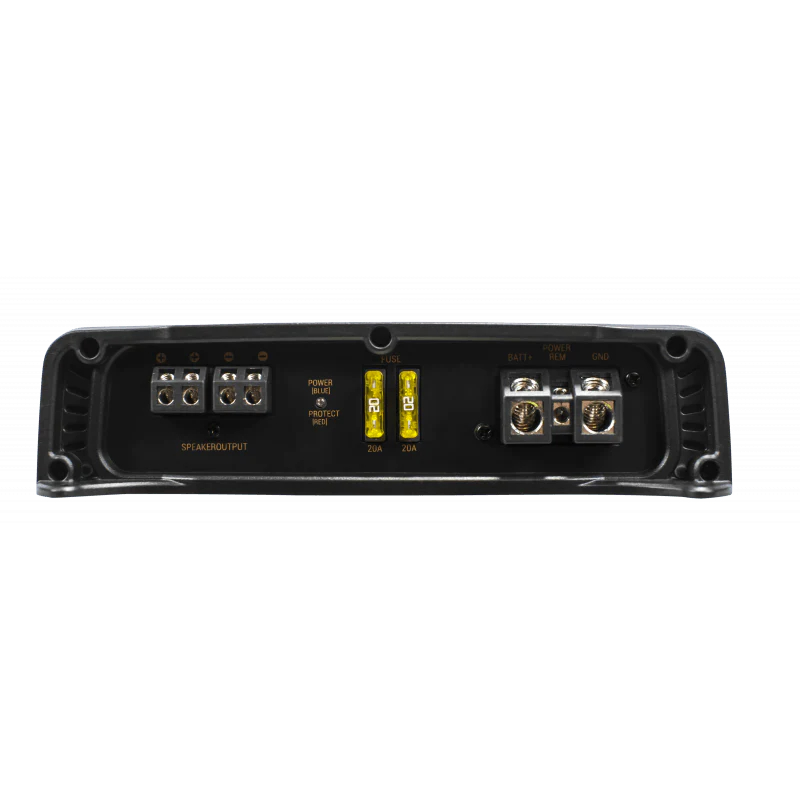

- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On-Board Fusing: 2 x 20A ATC
- Recommended Inline Fuse: 30A
- Dimensions (L x W x H): 11.81” x 8.11” x 1.98” / 258mm x 150mm x 48.5mm
- UPC: 609098827560
- Weight: 5
