Phoenix Gold RX2500.1 RX 500 Watt Class D Monoblock Amplifier
We are a Phoenix Gold authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class-D Topology
- • Small Footprint Chassis Design
- • Robust Unregulated Power Supplies
- • Rotatable Badging for installation flexibility
- • High level Inputs for Easy OEM Integration
- • Remote Bass Controller Included
- • Audio Precision® Quality Control Verification
RX2500.1 RX2500.1

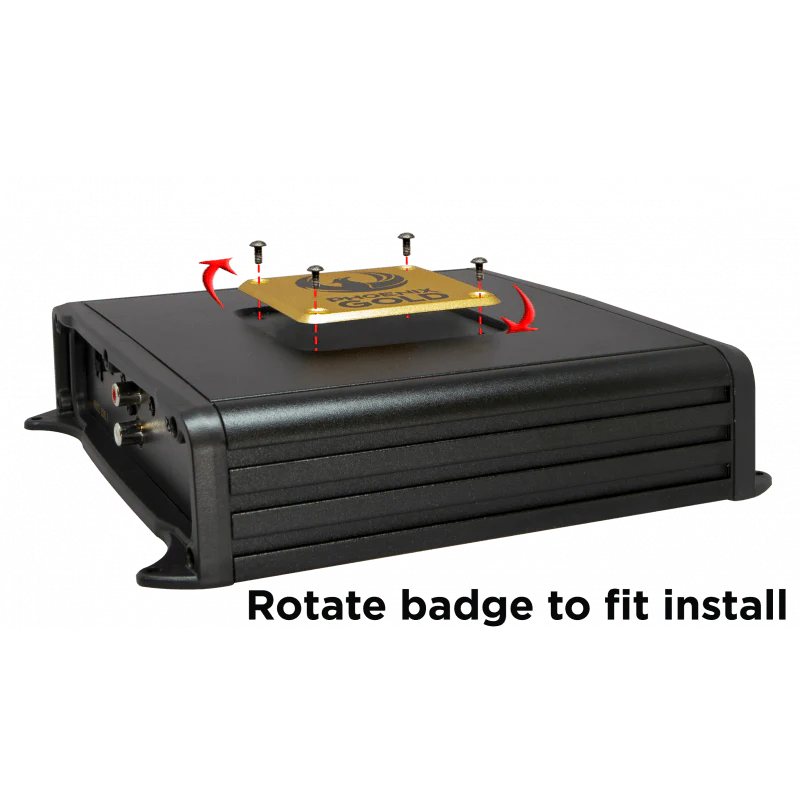

RX2-series amplifiers are ready to impress with their effortless ability to provide power and clarity while keeping the chassis at a convenient size for any installation. The devil is in the details, so it just made sense that we allow the PG name plate to be removed and turned to match the orientation you might need for your install because we know you're going to want show off your system and make all your friends jealous.
- Maximum Power : 500 Watts
- High Frequency Response : 10-40 Hz
- Number of Channels : 1
- Frequency Response : 15-250 Hz
- Amplifier Class : D
- Fuse Rating : 40 A
Features:
- Class-D Topology
- Small Footprint Chassis Design
- Robust Unregulated Power Supplies
- Rotatable Badging for installation flexibility
- High level Inputs for Easy OEM Integration

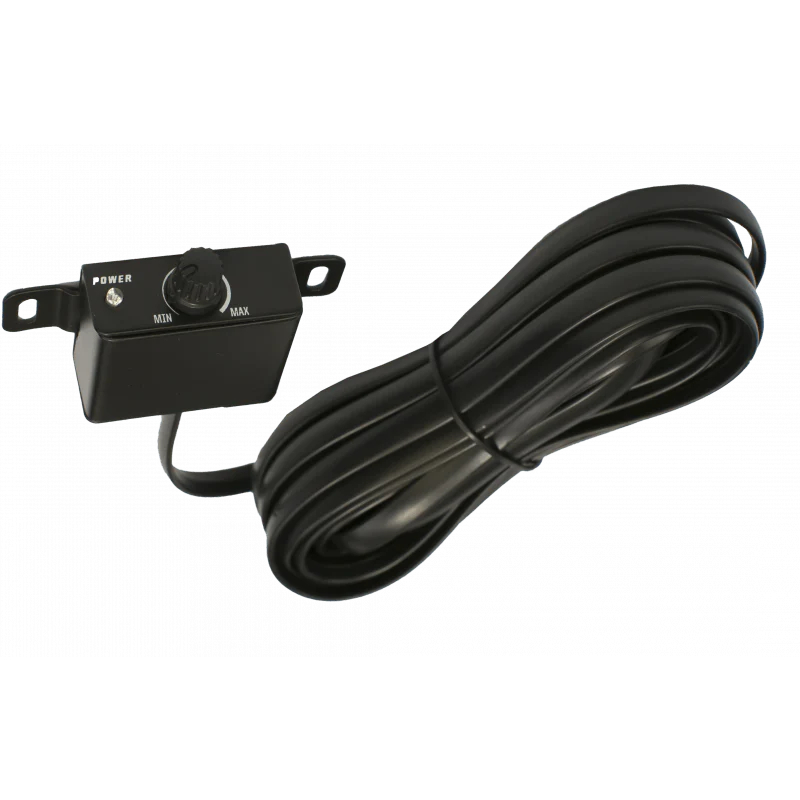

- Remote Bass Controller Included
- Audio Precision® Quality Control Verification
Specifications
-
- Number of Channels: 1
- 4Ω: CH 1 350W x 1
- 2Ω: CH 1 500W x 1
- 1Ω: CH 1 N/A
- Total RMS Power (Sum of rated power): 500Watts
- Bridgeable: NO
- Crossover Mode: LP
- CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley
- Subsonic 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley
- Input Channels: 2CH L/R
- Input Mode: Unbalanced / Balanced
- Input Sensitivity:
- .2v - 6v Unbalanced Low-Level RCA
- .5v - 15v Balanced Hi-Level Harness
-
- Processing: Bass Boost 0dB / +6dB / +12dB @45hz
- Signal to Noise (@ CEA Standard): >80dB
- Frequency Response: Full Range CH1 15Hz - 250Hz
- Topology Class: D
- Heatsink Type: Extruded Aluminum
- Cooling Type: Radiation
- Operating Voltage: 8V to 16V
- Switchable Auto-Turn On: No
- Power Supply Type: Unregulated
- Power Terminals: 4 Gauge
- Speaker Terminal: 10 Gauge
- On-Board Fusing: 2 x 25A ATC
- Recommended Inline Fuse: 40A
- Dimensions (L x W x H): 8.66” x 8.11” x 1.98” - 258mm x 150mm x 48.5mm
- UPC: 609098827560
- Weight: 4
