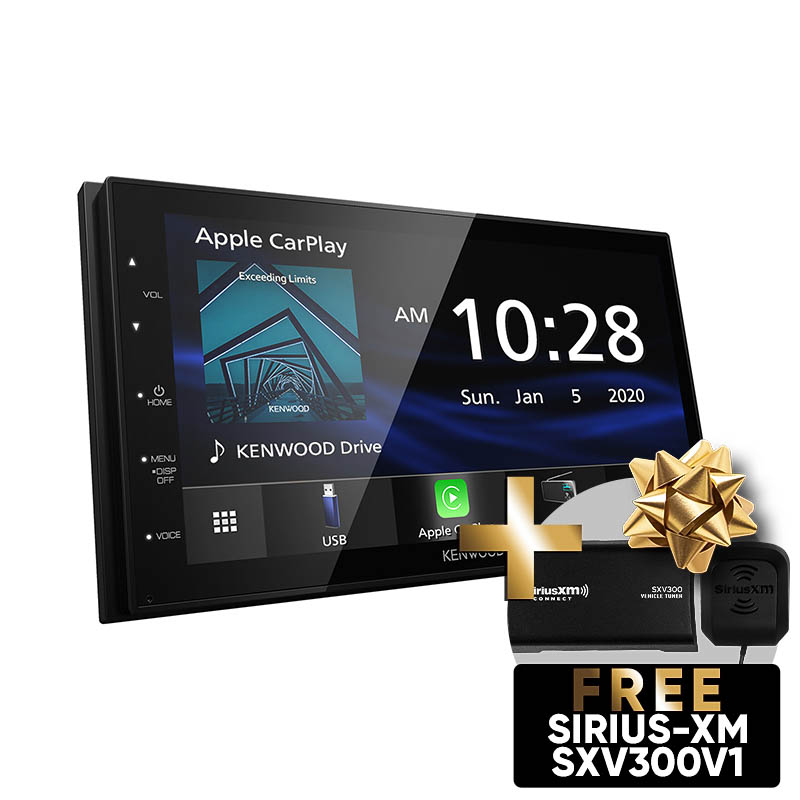

Kenwood DMX47S 2-DIN 6.8" Digital Multimedia Receiver with Capacitive Touch Screen + Sirius-XM SXV300V1 Satellite Radio Tuner (Free After $70 Mail-in Rebate) Exclusive Car Stereo Package
We are a Kenwood authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Digital media receiver w/ fixed 6.75" touchscreen monitor (15A fuse)
- • SiriusXM Connect vehicle tuner (w/ attached 25" cable terminated by a proprietary connector)
- • SiriusXM antenna (w/ attached 23' cable terminated by a right-angle SMB connector)
- • Alcohol Prep Pad
- • Installation Guide
- • Sleeve (attached)
- • Trim ring
- • Power harness
- • Speaker harness
- • 6.5" Light-green parking brake wire (pre-installed)
- • Microphone w/ bracket (attached 10' cable terminated by a right-angle mono 3.5mm connector)
- • (2) Radio removal tools
- • Trim-ring removal tool
- • (6) Pan-head ISO-mount screws
- • (6) Flat-head ISO-mount screws
- • Owner's Manual

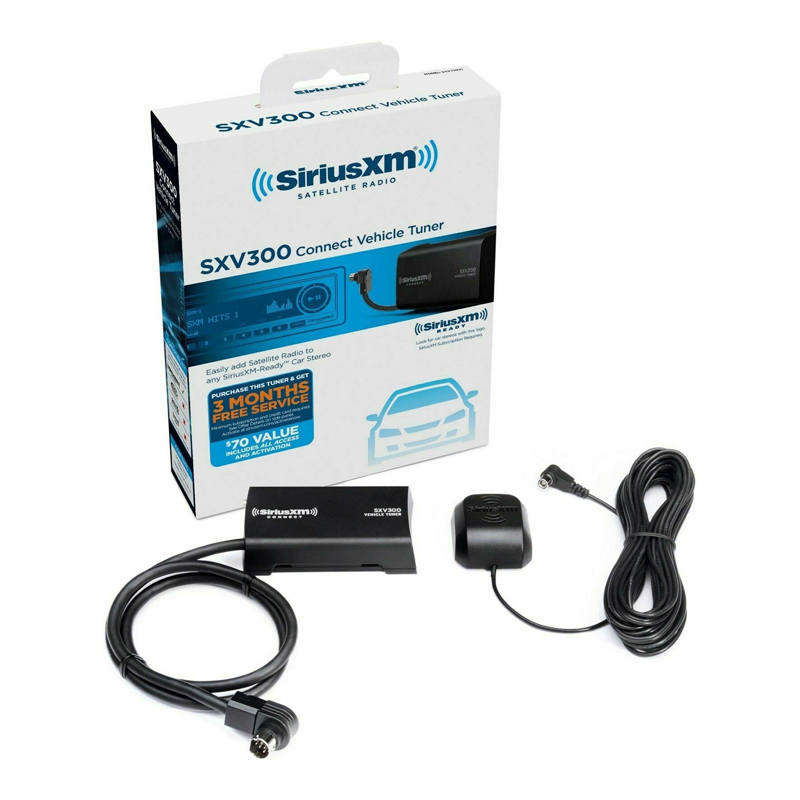

SiriusXM SXV300V1
Enjoy music, sports, news, entertainment and more with this SiriusXM Connect SXV300V1 vehicle tuner, which provides access to the SiriusXM network. The compact design enables installation behind the dash of compatible vehicles.

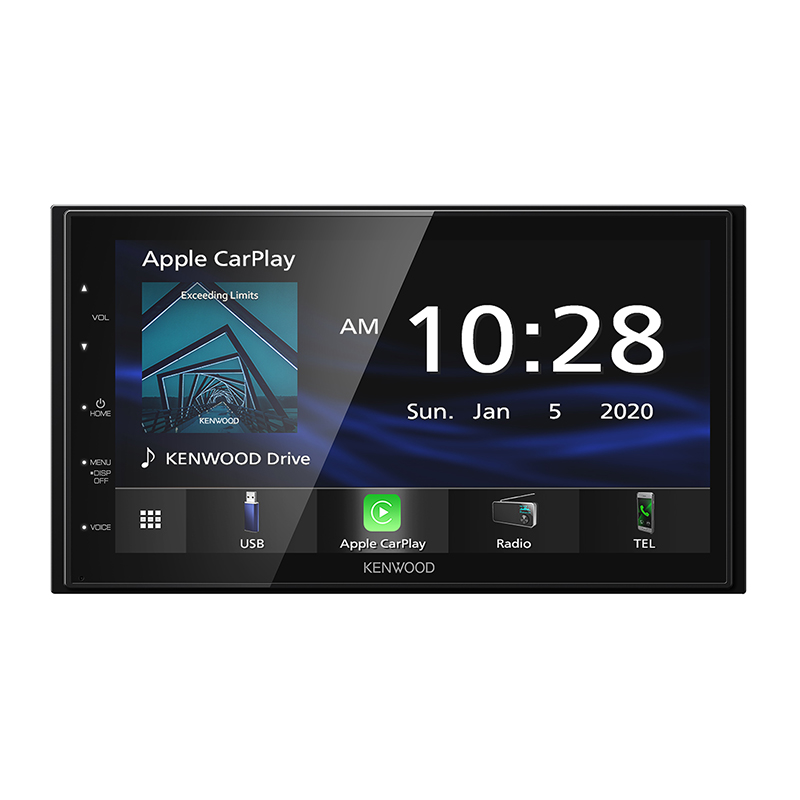

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

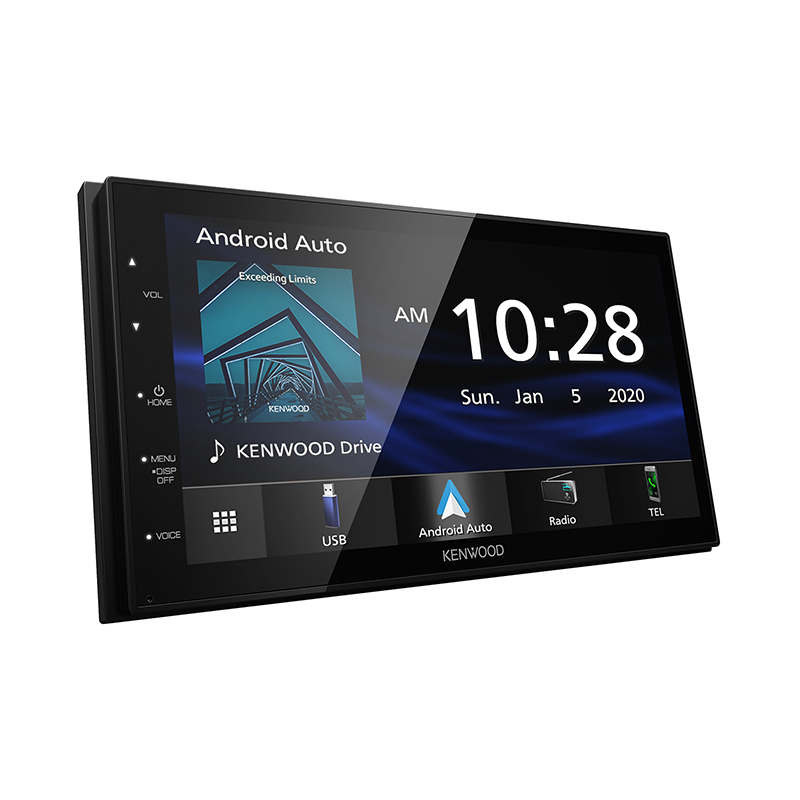

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
FLAC Support
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
True Mirroring via USB, 2-Way Touch Control for Android
Allows you to display and control your Android smartphone on the screen of the receiver. You can enjoy your favorite apps on a large display and with impressive sound quality. Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to KENWOOD receiver via a USB cable and Bluetooth.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.
- Maximum Power : 50 Watts
- Satellite Radio Ready : Yes
- DIN : 2

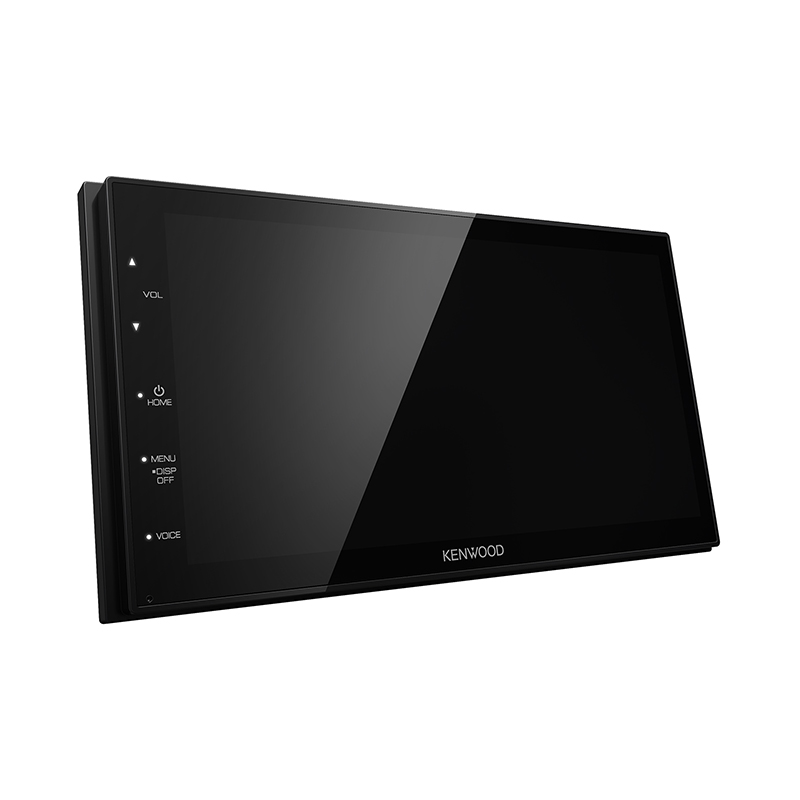

DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android
Features:
Monitor Section:
- Picture size: 6.75inches(diagonal) wide
- W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels:1,152,000
- 800H x 480V x RGB
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
USB I/F Section:
- USB Standard: USB2.0 High Speed
- File System: FAT 16/32 , exFAT
- Maximum Power Supply Current: DC5V=1.5A
- D/A Converter: 24Bit
- Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
- Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
- Frequency response 192k Sampling: 20 - 20,000 Hz
- 96k Sampling: 20 - 20,000 Hz
- 48k Sampling: 20 - 20,000 Hz
- 44.1k Sampling: 20 - 20,000 Hz
- Total harmonic distortion 1kHz: 0.2
- Signal to Noise ratio: 75dB
- Dynamic range: 75dB
Bluetooth Section:
- Technology: Bluetooth Ver4.1
- Frequency: 2.402 – 2.480 GHz
- RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
- Maximum Communication range: Line of sight approx.10m(32.8ft)
- Audio Codec: SBC / AAC
- Multi Profile Support: Multi Profile
Profile:
- HFP (V1.6) (Hands Free Profile)
- SPP (Serial Port Profile)
- A2DP (Advanced Audio Distribution Profile)
- AVRCP (V1.5) (Audio/Video Remote Control Profile)
- PBAP (Phonebook Access Profile)
Graphics equalizer:
- BAND: 13 Band
- frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
- Gain: -09 to +09 (-9dB to +9dB)
2Way X'Over:
- HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
- LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
- SLOPE: -6/ -12/ -18/ -24 dB/Oct.
- Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
Position:
- Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
- Gain: -8 to 0dB
- Subwoofer Level: -40 to +6dB
FM:
- Frequency Range: 87.9 - 107.9 MHz
- (Frequency step): (200kHz)
- Usable sensitivity: 16.2dBf
- S/N:30dB: 1.8μV/75 Ohms
- Quieting sensitivity -
- DIN S/N 46dB -
- Frequency response / (±3.0dB): 30Hz - 14kHz
- S/N (dB): 50dB (MONO)
- Selectivity -
- Stereo separation: 35dB (1kHz)
AM:
- Frequency Range: 530 - 1700 kHz
- (Frequency step): (10kHz)
- Usable sensitivity: 99μV(40dBμ)
- Video: Color system of external video input NTSC/ PAL
- External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
- External audio max input level (RCA jacks): 1.5V / 25k Ohms
- Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms
Audio:
- Maximum Power Output (Front&Rear): 45Wx4
- Full Bandwidth Power / (at less than 1%THD): 21Wx4
- Output frequency band: 20 - 20,000Hz
- Preout level (V): 2.0V / 10k Ohms
- Preout impedance (Ω): 1.4k Ohms
- Speaker Impedance (Ω): 4-8 Ohms
General:
- Operating voltage: 12V DC Car Battery
- Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
- Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
- Weight Main unit: 1.1 kg / 2.4 lbs
- (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs

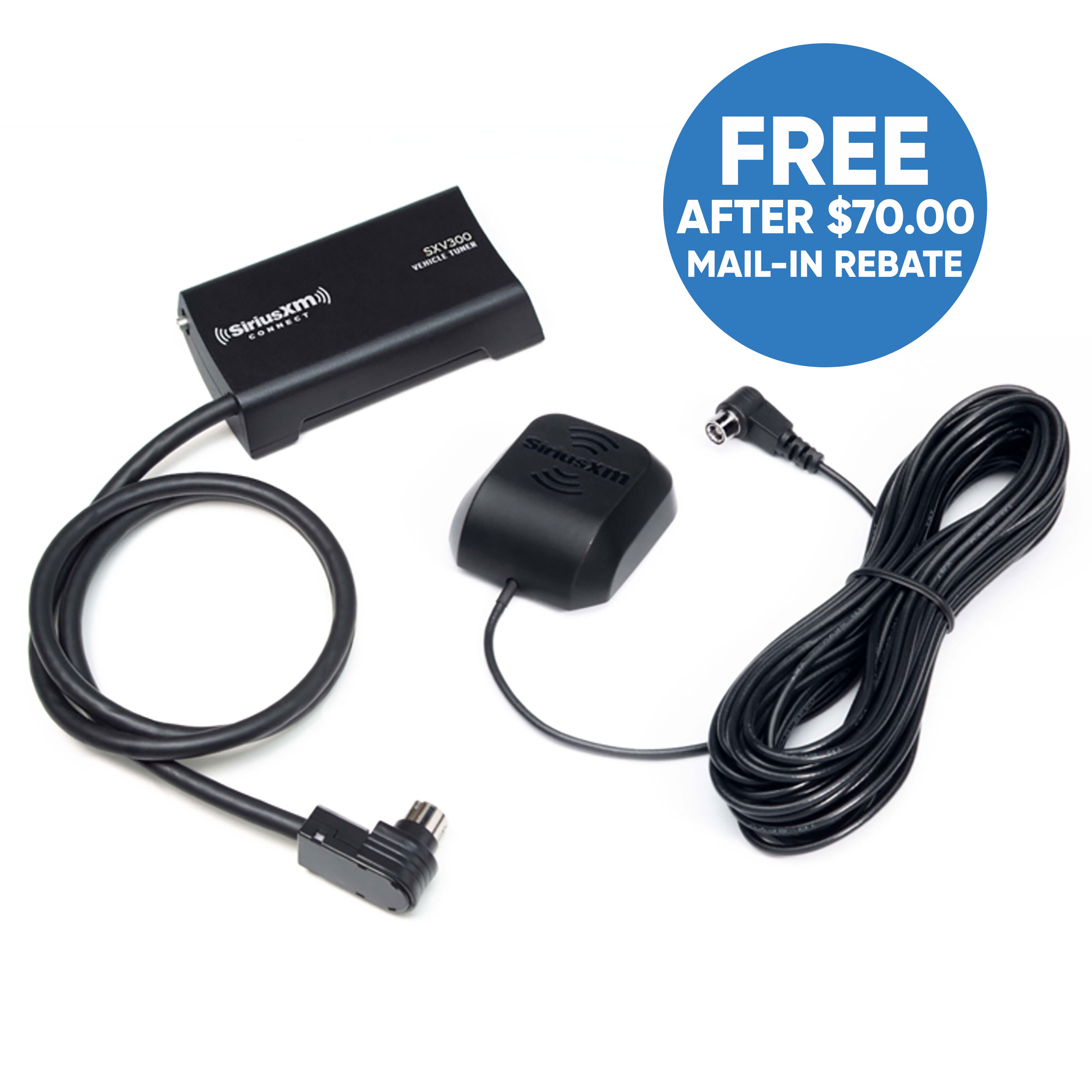

(FREE) SXV300V1 Satellite Radio Tuner (Free After $70 Mail-in Rebate with 3 months free Platinum Programming or 12 months of Platinum Programming for $99)
Features:
- Connect, control and enjoy SiriusXM though the vehicle's in-dash audio system; no special translators or cable adapters are needed.
- Compact size hides discreetly behind the dash for a fully integrated look.
- Single interface cable connection to SiriusXM-Ready car stereo simplifies installation.
- Pause, Rewind and Replay up to 60 minutes of live Satellite Radio.*
- Automatically start songs from the beginning on your favorite channels with TuneStart™.*
- Use TuneMix™ to hear a mix of songs from your favorite channel.*
- Use TuneScan™ to preview songs that you have not yet heard on your favorite channels.*
- Keep up with the big plays for your favorite teams with SportsFlash™.*
- Keep Moving with the most current updates using Traffic & Weather Now™.*
- Get alerts when your favorite song, artist or team is playing.*
- Discover new music and tag for purchase with iTunes® radio tagging.*
- Compatible with all SiriusXM-Ready car stereo receivers from leading manufacturers. Look for the SiriusXM-Ready logo.
- Includes: SXV300 Tuner and Magnetic Mount Antenna.
- UPC: 798418838963
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
