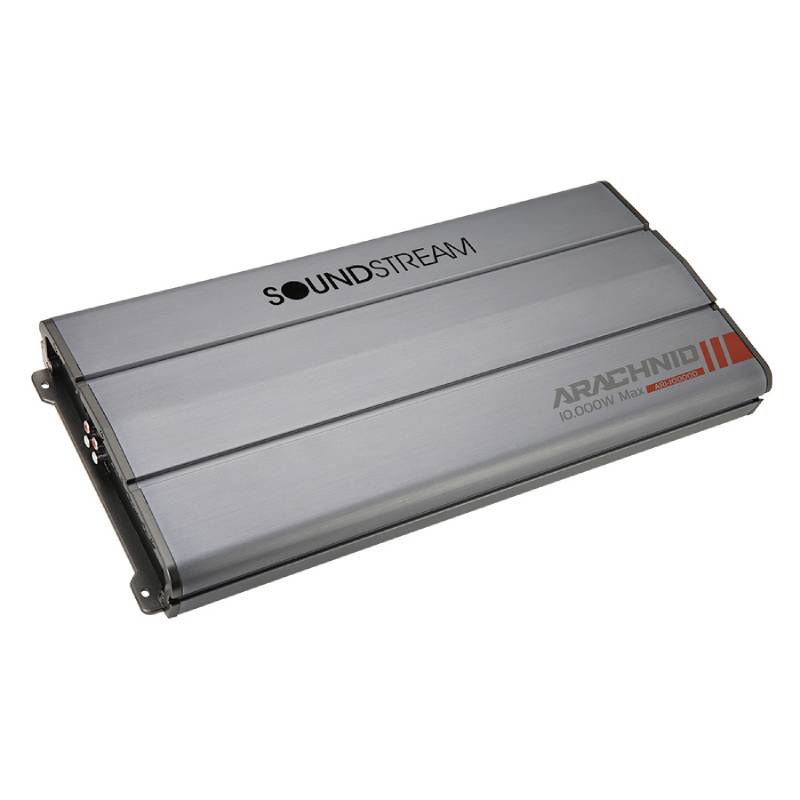

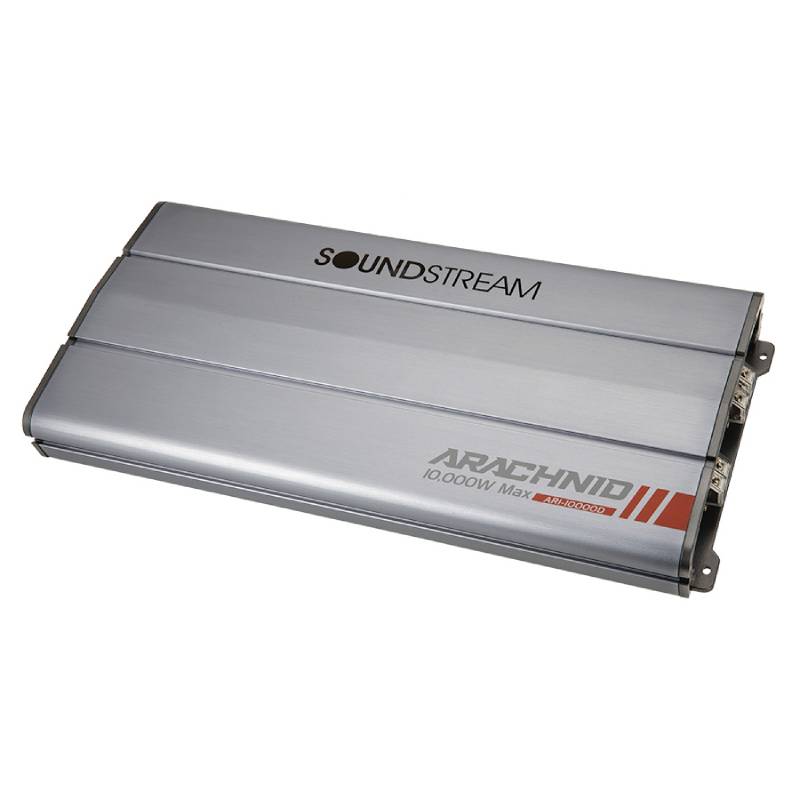

AR1-10000D Arachnid Series 7500W Max Power Monoblock Class D Car Stereo Subwoofer with Bass Remote
We are a Soundstream authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Arachnid Series Monoblock Class D Car Stereo Subwoofer
- •Owner's Manual
Arachnid Amplifiers
Arachnid Amplifiers are the next step in amplifier fundamentals. Monoblock models take every advantage afforded by Class D switching amplifier technology, a compromise of power and efficiency. Each monoblock can power a paralleled pair of 2-ohm subwoofers, or a single 1-ohm load.
A bridged/strapped pair of Arachind monoblocks combine their 1-ohm strength to a 2-ohm load. Regardless of the configuration, Arachnid amplifiers pave the road of reliability and longevity you expect from Soundstream.
- Maximum Power : 10000 Watts
- Frequency Response : 15-500 Hz
- Built In Crossovers : Yes
- Amplifier Class : D
Features:
1-OHM MINIMUM IMPEDANCE STABILITY
- An amplifier's impedance stability is its ability to continuously power speaker(s) of no less than the given impedance per channel, without the risk of damage.
- Subwoofers are available in a variety of voice coil configurations and impedances, so be sure yours will be no less than 1 ohm.

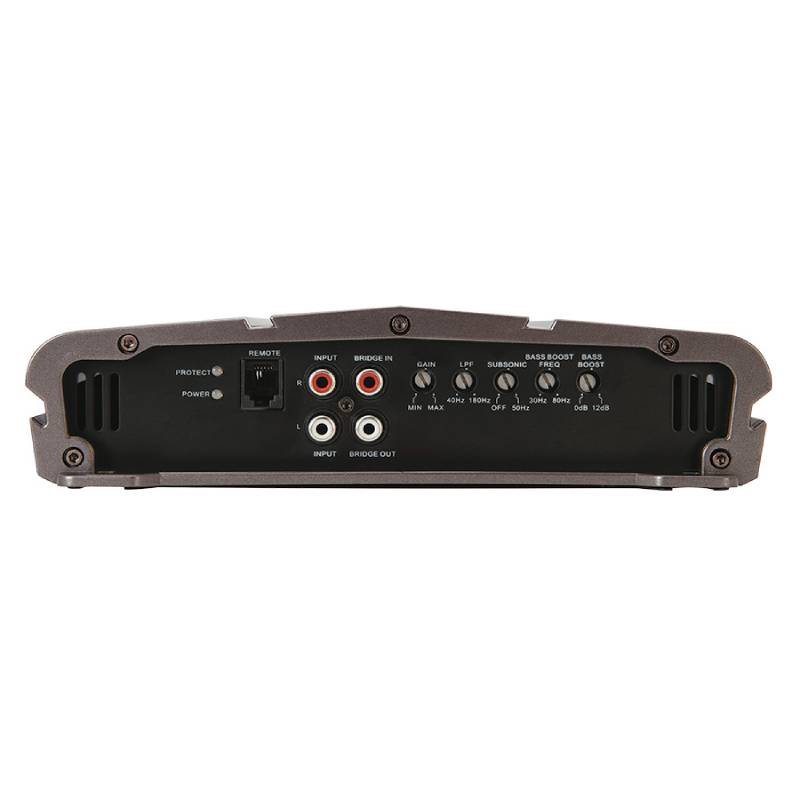

LOW-LEVEL RCA INPUT & PRE-AMP OUTPUT
- Connect the low-level (pre-amp) audio output of the car stereo to the amplifier, using good quality twisted pair RCA interconnect cables.
- The amplifiers pre-amp output daisy-chains the audio signal to multiple amplifiers of complex audio systems.
ACTIVE 12DB/OCTAVE CROSSOVERS & PHASE SHIFT
- Active crossovers built into an amplifier are the most efficient type of crossovers to use in car audio systems.
- Active crossovers protect speakers from damage by harmful frequencies and preserve optimum performance.
MILITARY-GRADE FR-4 PCB W/ MOSFET POWER SUPPLY
- FR-4 circuit board substrate is a woven fiberglass cloth impregnated with an epoxy resin, providing good electrical insulation properties and heat resistance exceeding 260OF.
- The MOSFET power supply is the stable & efficient conversion of a vehicle's Direct Current (DC) power to Alternating Current (AC) power for speakers.

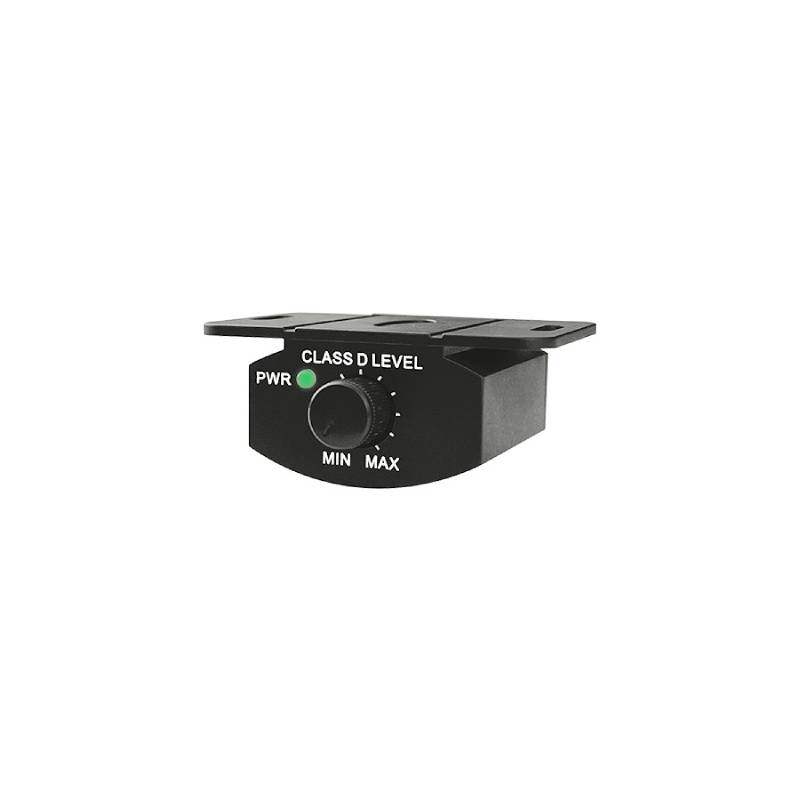

DASH MOUNT CONTROL
- Dash mountable control is included with this amplifier and can be mounted anywhere in the vehicle, but near the driver seat is recommended.
- The gain level of the Arachnid Monoblock can be adjusted on-the-fly to accommodate various music styles & your listening preference.
DIRECT SHORT, THERMAL, & OVERLOAD PROTECTION
- Conventional amplifier circuitry includes a self-preservation mode, which temporarily shuts down the amplifier, protecting it from stress and the risk of damage.
- Protection triggers include speaker output direct short, speaker impedance less than the stability of the amplifier, or other unknown conditions causing the amplifier's internal temperature to rise to unsafe levels.
Specifications:
- Max Power: 10000 Watts
- RMS Power @ 4Ω: 1000W x 1
- RMS Power @ 2Ω: 1800W x 1
- RMS Power @ 1Ω: 3000W x 1 (1Ω)
- Active Low Pass Crossover: 40-180Hz 12dB/Octave
- Active Subsonic Crossover: 10-50Hz 12dB/Octave
- Variable Bass Boost: 30Hz-80Hz 0-12dB
- Total Harmonic Distortion: <0.3%
- Frequency Response: 15-500Hz
- Signal-to-Noise Ratio: 105dB
- Input Sensitivity: 200mV-6V
- Dimensions (8.75″W x 2.25″ H): 17.50″
- UPC: 709483064270
- Weight: 0
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
