Audison AV 5.1k HD - VOCE Series 1010W Max Power, 5-Channel Amplifier, Class-A/B
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • AV 5.1k HD amplifier
- • Quick start guide
- • nr.4 3,9 x 25mm / 0,15” x 0,99 self-tapping cross-headed fixing screws
- • headed fixing screws
- • N. 1 Allen wrench 0,118”
- • nr.1 100A AFS spare fuse
- • CD ROM with: This Owner’s Manual (.pdf format) Test tracks
1650W Power Amplifier

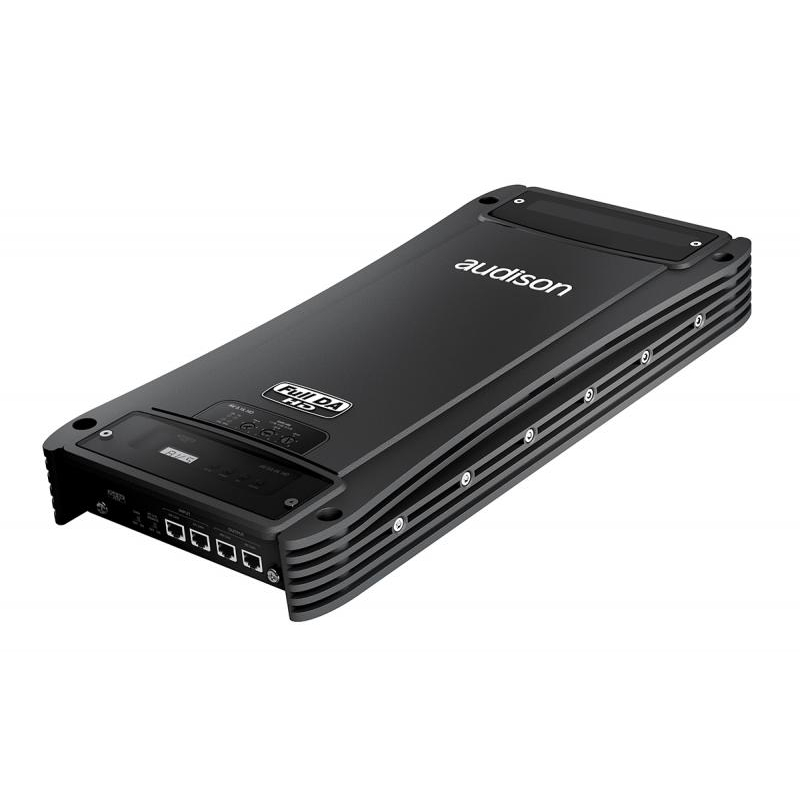

The Voce AV 5.1k HD is a powerful 5-channel car audio amplifier with a total output of 1650W (RMS). It features a hybrid design with A Class, AB Class, and D Class channels, making it versatile for various audio setups. Notably, it's the first car audio amplifier with digital inputs only, enabling a direct connection to digital signal processors like Audison's bit One and bit Ten D. This allows for a Full DA HD audio chain, minimizing signal deterioration. The amplifier also supports Audison AC Link connectivity for system control and expansion with other Audison Voce amplifiers, making it an ideal choice for high-quality Hi-Res audio files.

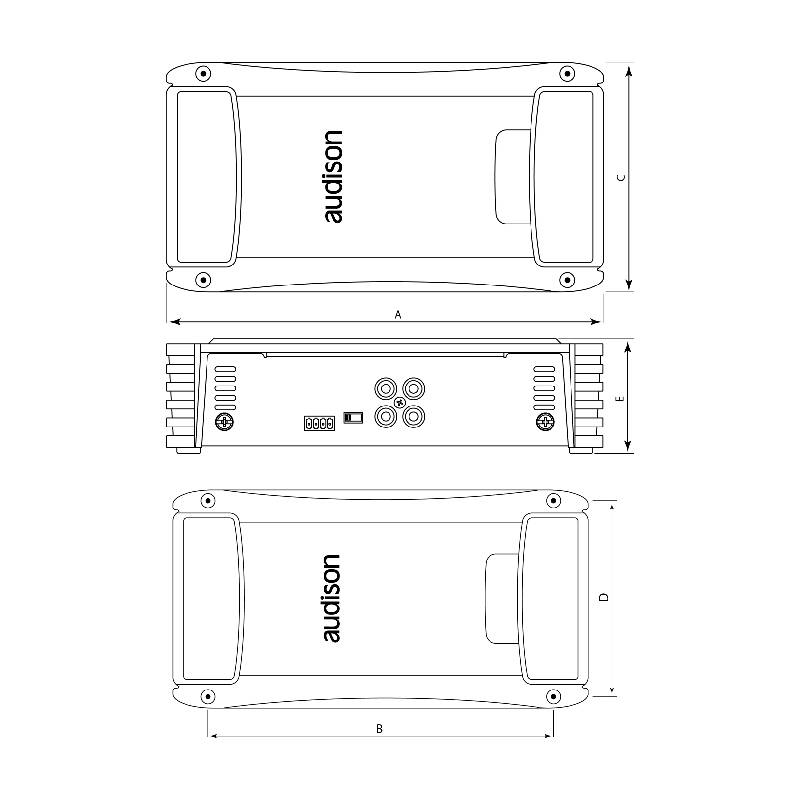

DIMENSIONS
Physical Specifications
- • Dimension A: 470 mm
- • Dimension B: 399 mm
- • Dimension C: 220 mm
- • Dimension D: 198 mm
- • Dimension E: 58 mm
- Maximum Power : 1650 Watts
- Number of Channels : 5
- Built In Crossovers : No
- RMS Power Output : 600 Watts
- Channel Separation : Yes
- Amplifier Class : A/B
- Fuse Rating : 100 A
Features:
- Hybrid design made up of two 75 W A Class channels, two 250 W AB Class channels, and one 1000 W D Class channel
- AD Link connection to create a Full DA HD chain with bit One HD Virtuoso processor
- Hi-Res audio certification thanks to 192 kHz/24-bit built-in DA converters and 4 ÷ 60k Hz bandwidth
Technical Specifications:
Power Supply:
- Power supply voltage: 11 ÷ 15 VDC
- Idling current: 3 A
- Idling current when off: 0.02 mA
- Consumption @ 14.4 VDC (Max Musical Power): 110 A
Amplifier Stage:
- Distortion - THD (1k Hz @ 4? ) A, B Ch: 0.05 %
- Distortion - THD (100 Hz @ 4?), C (sub) Ch: 0.3 %
- Bandwidth (-3 dB) A, B Ch: 5 ÷ 20k Hz
- Bandwidth (-3 dB) C (sub) Ch: 7 ÷ 350 Hz
- S/N ratio (A weighted @ 0dB) A, B Ch: 100 dB
- S/N ratio (A weighted @ 0dB) C (sub) Ch: 87 dB
- Damping factor (1k Hz @ 4?) A, B Ch: 100
- Damping factor (100 Hz @ 4?) C (sub) Ch: 80
- Gain (ON/OFF selectable): -15 / +3 dB
- Minimum load impedance A / B / C Ch: 4Ohms / 2Ohms / 2Ohms
- NOMINAL POWER (RMS) A + B + C Ch @ 12 VDC, THD 0,3%, 4?: 50 W x 2 + 120 W x 2 + 500 W x 1
- OUTPUT POWER (RMS) A + B + C Ch @ 14.4 VDC, THD 1%:
- 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 600 W x 1 (4Ohms)
- 5 Ch: 75 W x 2 (4Ohms) + 140 W x 2 (4Ohms) + 1000 W x 1 (2Ohms)
- 5 Ch: 75 W x 2 (4Ohms) + 250 W x 2 (2Ohms) + 1000 W x 1 (2Ohms)
CEA Specifications:
- Output power @ 4?, 1% THD+N, 14.4 V: 75 W x 2 + 140 W x 2 + 600 W x 1
- SN ratio (ref. 1W output):
- 75 W Channels: 80 dBA
- 140 W Channels: 80 dBA
- 600 W Channels: 78 dBA
Digital Connection Panel:
- Digital resolution: 24 bit / 192 kHz
- Input: AD Link / AC Link
- Output: AD Link / AC Link
Other functions:
- Remote IN: 7 ÷ 15 VDC - 1mA
- Remote OUT: 12 VDC - 50mA
- Fuse (Strip type): 100 A
Size/Weight:
- Max size (mm/inch): 220 x 470 x 58 / 8.66” x 18.50” x 2.28”
- Weight (kg/lb): 7,2 / 15.87
- UPC: 8018823117050
- Weight: 16
