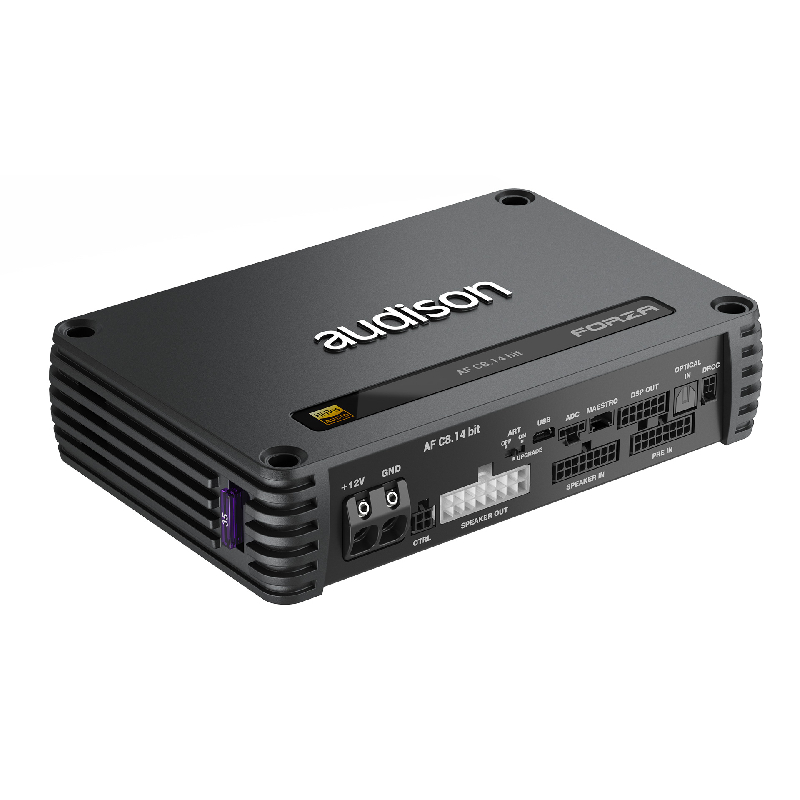

Audison AF C8.14 bit FORZA Series 8-Channel Amplifier with 14 Channels DSP, D-class Fully Bridgeable
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

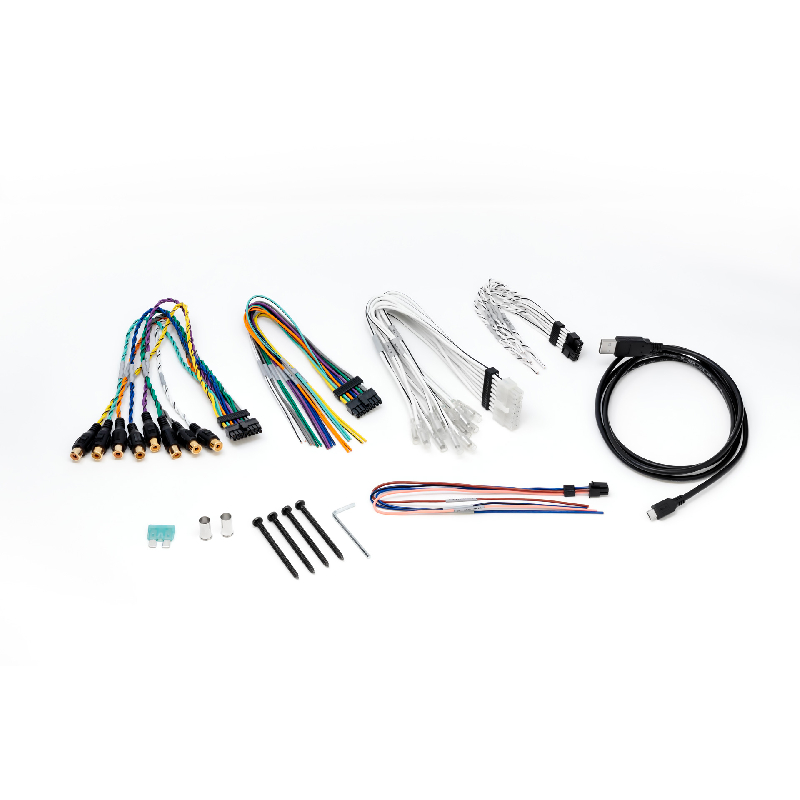

What's Inside?
- • 8-channerl Amplifier, Class D Fully Bridgeable
- • USB Cable
- • Control Cable AF bit
- • DSP Out
- • SPK Out 8CH
- • Pre In Cable 8CH
- • Speaker in Cable 8CH
- • Forza Install Kit
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF C8.14 bit boasts eight high-fidelity amplified channels 65W x 8 @4Ω*, 100W x 8 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 200W x 4 @4Ω*, guaranteeing flexible and powerful performance. Support for the Audison B-CON’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!
NEXT-GENERATION TUNING CAPABILITIES FOR MAXIMUM CONTROL
Audison’s completely-new bit Drive PC software can analyze, route, and correct the signal in completely new ways – now you can measure, mix, and finally tune the sound with one powerful tool! The new Graphical User Interface simplifies every control and function, integrating acoustic measurement, and ensuring efficient tuning and great sound! The Acoustic RTA is integrated into the equalizer graph, and is compatible with your USB microphone or sound card. The Final EQ function allows final equalization without damaging the delicate left/right frequency relationships. The six processed preamp outputs are in addition to the eight amplified channels, allowing Forza’s DSP section to manage a larger system easily.
ADVANCED OEM INTEGRATION CAPABILITIES
Forza’s eight analog inputs, plus an optical Toslink digital input, support total connectivity even with the most complex OEM systems. If more analog inputs are required, the optional F4IN expansion card adds four additional analog input channels! If a Coaxial SPDIF or a second Toslink SPDIF input is needed, the optional F2O expansion card can be used. Audison’s classic de-EQ process is joined by de-Time and de-Phase capabilities, enabling sound restoration in nearly every OEM system., The electrical signal analysis ensures proper integration and correction for each input and output channel. The built-in universal speaker simulation technology (USS) yields maximum compatibility with any OEM Source, without muting or instability.

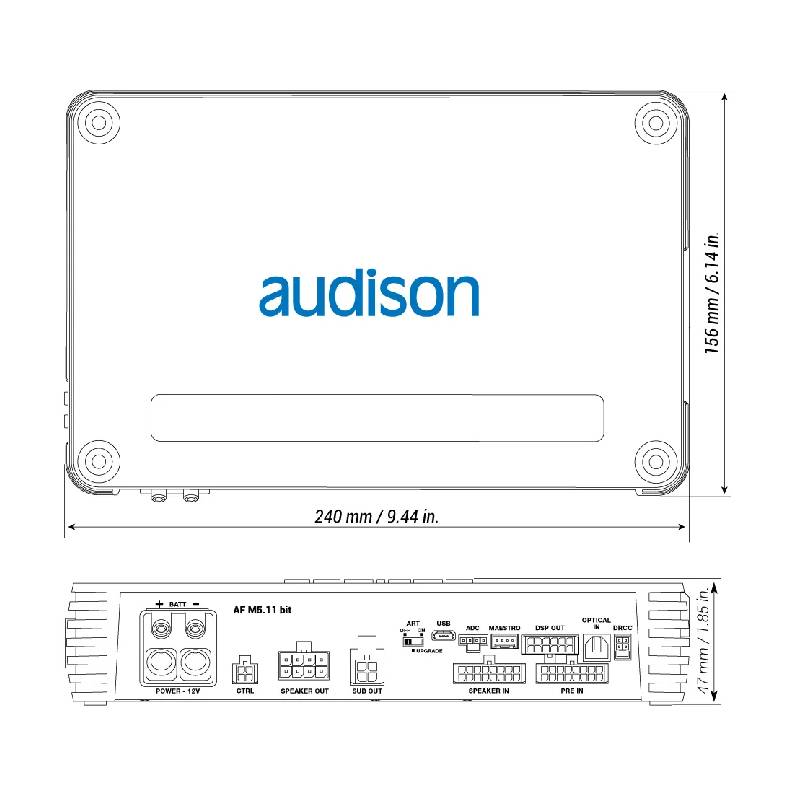

DIMENSIONS
Physical Specifications
- • Dimension A: 240 mm
- • Dimension B: 156 mm
- • Dimension C: 47 mm
- Number of Channels : 8
- Frequency Response : 20-20000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 65x8 Watts
- Amplifier Class : D
- Fuse Rating : 35 A
Features:
- Enjoy the improved audio performance of the latest generation Audison D-Class technology.
- Maximum versatility thanks to the bridging option for each pair of channels.
- Forza amplifiers have two independent power supplies: the audio amplifier power supply is loosely regulated, which allows superior dynamic performance. The DSP power supply is stiffly regulated, which maintains DSP microprocessor operation even during lower-voltage transient states (i.e., start/stop operation).
- Native DSP working at 24 bit/96 kHz and an extended audio band up to 40 kHz.
- Pure digital signal transfer with a resolution up to 24bit/96 kHz.
- Quick I/O Configuration speeds up system definition and signal routing.
- When connected with Audison B-CON hi-res Bluetooth receiver, this feature manages the Master Volume of the Forza amp thus ensuring full dynamic range signal at the input.
- iDatalink Maestro AR native support for a total integration with OEM infotainment.
- Equipped with eight analog inputs, to support total connectivity even with the most complex OEM systems.
- Electrical Signal Analysis ensures proper integration and correction for each input channel.
- Automatically sums and reverses OEM equalization.
- Input delay compensation of time-delayed factory outputs prior to signal summing.
- Allows left and right inputs to match in phase before tuning, even if OEM phase processing has been used.
- Universal Speaker Simulator technology on high-level inputs for maximum compatibility with any type of Head-Unit OEM Source.
- Next-generation bit Drive software platform - developed for this family of products - simplifies every control and function.
- 14 DSP-processed output channels for a total control.
- 6 native pre-out channels for maximum versatility.
- The acoustic analysis integrates the response graph into the equalizer display ensuring efficient tuning and great sound, compatible with any 24-bit USB microphone.
- The electrical analysis integrates the response graph into the input equalizer display, ensuring efficient tuning.
Technical Specifications:
Power Supply:
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 1 x 35A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.3 A
- Standby current draw: 1.5 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 34 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
Amplifier Stage:
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 85
- Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 98.5 dBA
- S/N ratio (A weighted @ Rated Power) Optical Input: 105 dBA
- Minimum load impedance:
- 8Ch: 2Ω
- 4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
- 8 Ch @ 4Ω: 65 W x 8
- 8 Ch @ 2Ω: 100 W x 8
- 4Ch (Bridge 1/2; 3/4; 5/6; 7/8) @ 4Ω: 200 W x 4
CEA Specifications:
- Output power @ 4Ω, 1% THD+N, 14.4 V: 55Wx8
- SN ratio (ref. 1 W output): 80 dB
Inputs/Outputs:
- Pre-In (8 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
- Speaker-In (8 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
- Digital IN: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
- DSP Preout (2 Ch): 5V RMS
Digital Signal Processor:
- Audio DSP and converters: Analog Devices ADAU1467 automotive qualified audio processor. Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
- Filter type: Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope:
- Linkwitz-Riley @ 12/24/36/48 dB/Oct.
- Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
- Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
- Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
- QLP @ 6 dB/Oct.
- Crossover frequency: 20 Hz ÷ 20 kHz
- Phase control: 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
- Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Input and Output Real Time Audio Monitor: RTA
- Time Alignment Distance: 0 ÷ 510 cm / 0 ÷ 200.8 inches
- Time Alignment Delay: 0 ÷ 15 ms
Control Connections:
- Audison DRCC port: Input for DRCC remote control (Optional)
- Audison ADC port: Manage other Audison devices that support this standard
- Control 1 wire: Customizable functions (+ 12 V activated)
- Control 2 wire: Customizable functions (+ 12 V activated)
General Requirements:
- PC connections: Micro USB 1.1 / 2.0 / 3.0 Compatible
- Software/ PC requirements: Windows 10, Windows 11 (min. res. 1024 x 768
- Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)
Size/Weight:
- Max size W x H x D (mm/inch): 200 x 47 x 134 / 7.87 x 1.85 x 5.27
- Weight (kg/lb): 1.49 / 3.28
- UPC: 8018823136747
- Weight: 4
