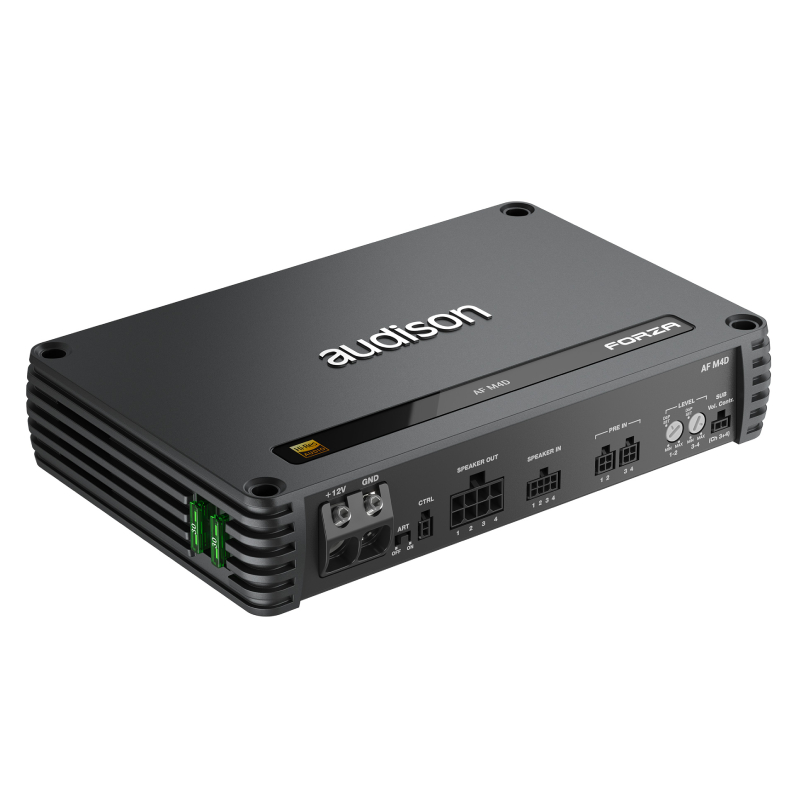

Audison AF M4D FORZA Series 4-Channel Car Amplifier with 1040W @2Ohm, D-class Fully Bridgeable
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • 4-channel Car Amplifier, Class D, Fully Bridgeable
- • Remote In-Out AF AMP
- • SPK out Cable 4CH
- • Pre In Cable 2CH
- • Speaker in Cable 4CH
- • Forza Install Kit
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M4D boasts four high-fidelity amplified channels 160W x 4 @4Ω*, 260W x 4 @2Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! The audio band is extended up to 40 kHz earning the coveted High-Resolution certification. Bridging channel pairs results in 520W x 2 @4Ω*, guaranteeing flexible and powerful performance.

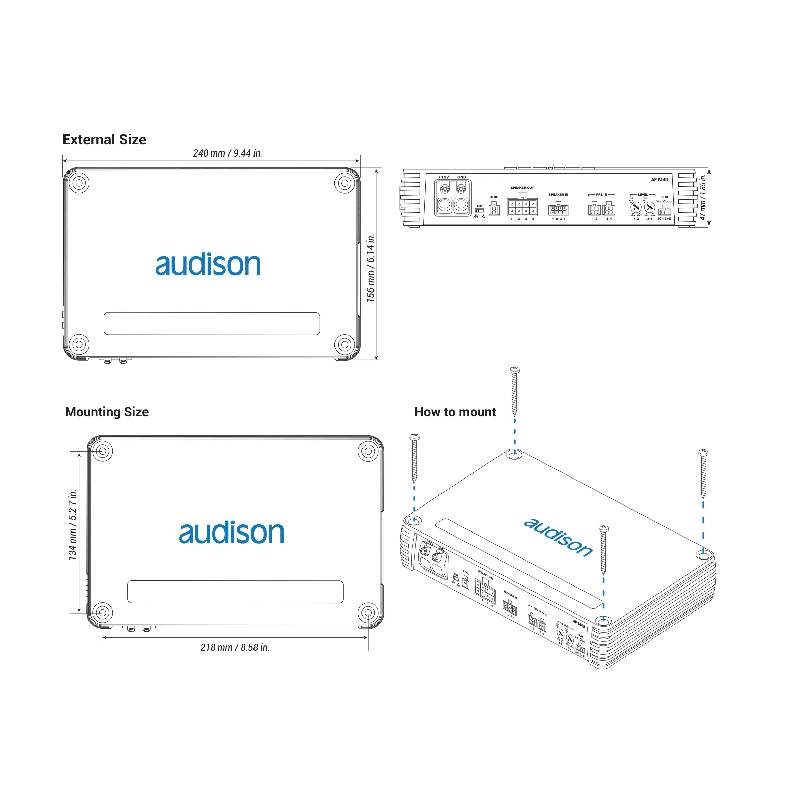

DIMENSIONS
Physical Specifications
- • Dimension A: 200 mm
- • Dimension B: 156 mm
- • Dimension C: 47 mm
- Maximum Power : 1040 Watts
- Number of Channels : 4
- Frequency Response : 10-42000 Hz
- Built In Crossovers : No
- RMS Power Output : 260x4 Watts
- Amplifier Class : D
- Fuse Rating : 2x30 A
Power Supply:
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 30A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.12 A
- Standby current draw: 0.007 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 47 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 83%
Amplifier Stage:
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.05%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160
- Bandwidth @ -3 dB: 10 Hz ÷ 42 kHz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA
- Minimum load impedance:
- 4 Ch: 2Ω
- 2 Ch – (Bridge 1/2; 3/4): 4Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
- 4Ch @ 4Ω: 160 W x 4
- 4Ch @ 2Ω: 260 W x 4
- 2Ch (Bridge 1/2; 3/4) @ 4Ω: 520 W x 2
CEA Specifications:
- Output power @ 4Ω, 1% THD+N, 14.4 V: 150 W x 4
- SN ratio (ref. 1 W output): 80 dB

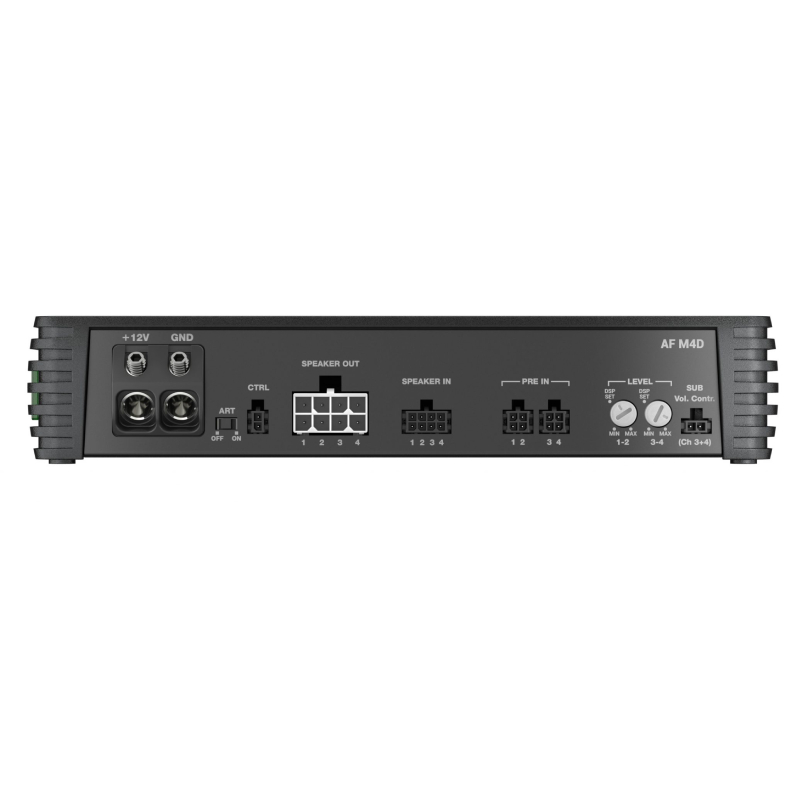

Inputs / Outputs / Filters:
- Inputs: Pre-In / Speaker-In
- Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
- SUB remote Volume Control (optional): (-20 ÷ 6) dB
Size:
- Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
- UPC: 8018823136792
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
