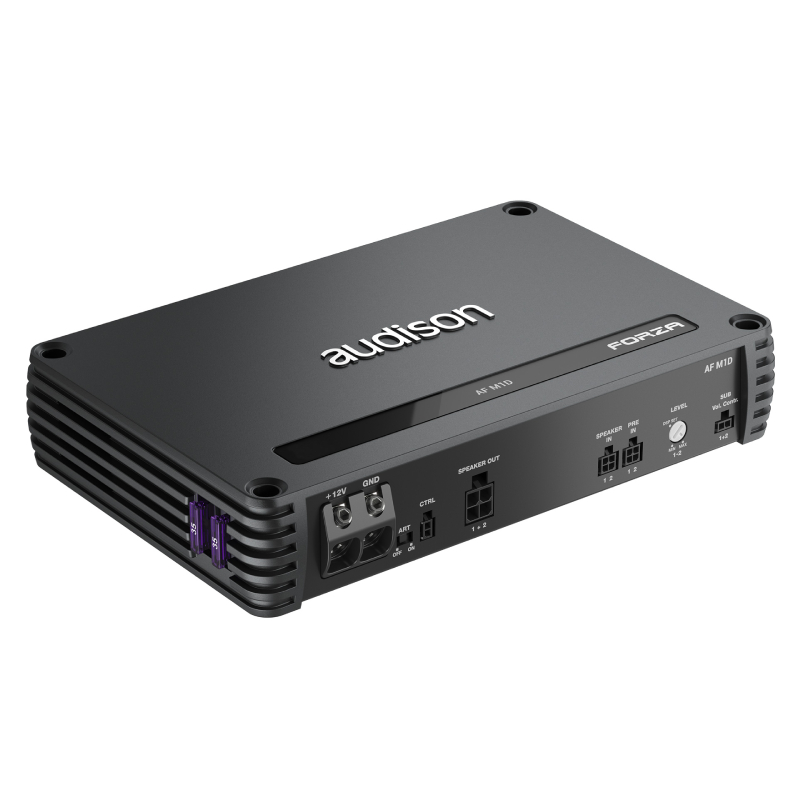

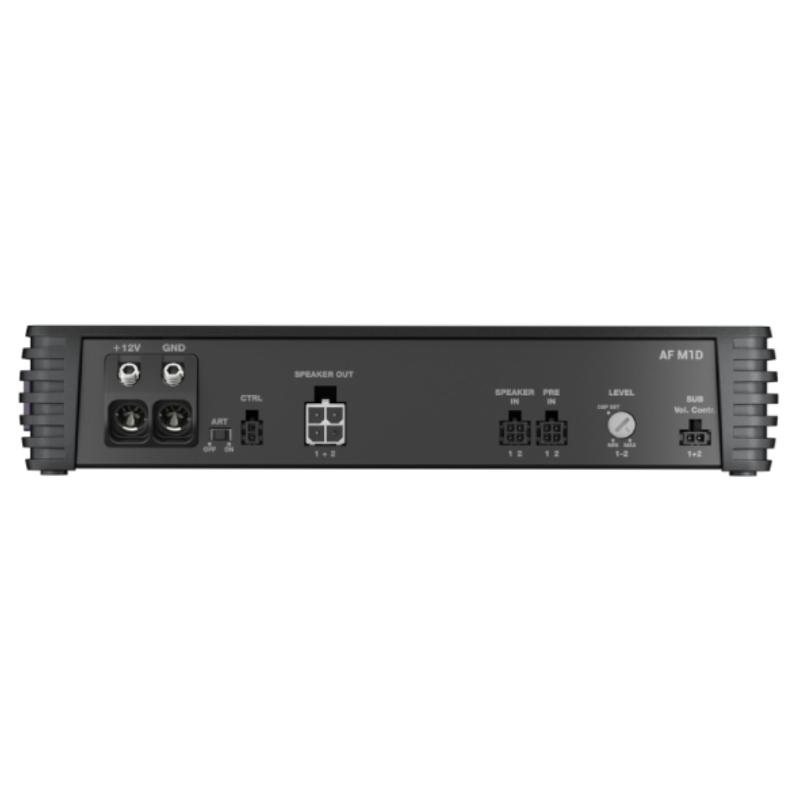

Audison AF FORZA Series Monoblock Car Amplifier, 1200 Total Max Power, D-Class
We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Class D Monoblock car Amplifier
- • Remote In-Out AF AMP
- • SPK out Cable 2CH
- • Pre In Cable 2CH
- • Speaker in Cable 2CH
- • Forza Install Kit
- • Owner's Manual
AUDIOPHILE SOUND YOU EXPECT FROM AUDISON
AF M1D boasts one high-fidelity amplified channel 600W @4Ω*, 1000W @2Ω*, and 1200W @1Ω* with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package!
- Maximum Power : 1200 Watts
- Number of Channels : 1
- Frequency Response : 10-500 Hz
- Built In Crossovers : Yes
- RMS Power Output : 1000x1 Watts
- Amplifier Class : D
Power Supply:
- Nominal power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 35 A
- Pulse operating voltage: 6.5 ÷ 17.5 VDC
- Idling current: 1.3 A
- Standby current draw: 0.005 mA
- Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 65 A
- Remote IN: 4 ÷15 VDC (1 mA)
- Remote OUT: 6.5 ÷15 VDC (150 mA)
- ART – Automatic Remote Turn on/off from Speaker-In: 1.5 VDC
- Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%
Amplifier Stage:
- Distortion – THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.1%
- Damping factor @ 1 kHz , 4Ω, 2 VRMS: 140
- Bandwidth @ -3 dB: 10 Hz ÷ 500 Hz
- S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 105 dBA
- Minimum load impedance: 1 Ω
- Output Continuous Power (RMS) @14.4 VDC, 1% THD:
- 1Ch @ 4Ω: 600 W
- 1Ch @ 2Ω: 1000 W
- 1Ch @ 1Ω: 1200 W
CEA Specifications:
- Output power @ 4Ω, 1% THD+N, 14.4 V: 600 W
- SN ratio (ref. 1 W output): 80,5 dBA
Inputs / Outputs / Filters:
- Inputs: Pre-In / Speaker-In
- Input sensitivity Pre-In: 0.6 ÷ 6 VRMS
- Input sensitivity Speaker-In: 2.2 ÷ 22 VRMS
- SUB remote Volume Control (optional): (-20 ÷ 6) dB
Size:
- Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14
- UPC: 8018823136778
- Weight: 5
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
