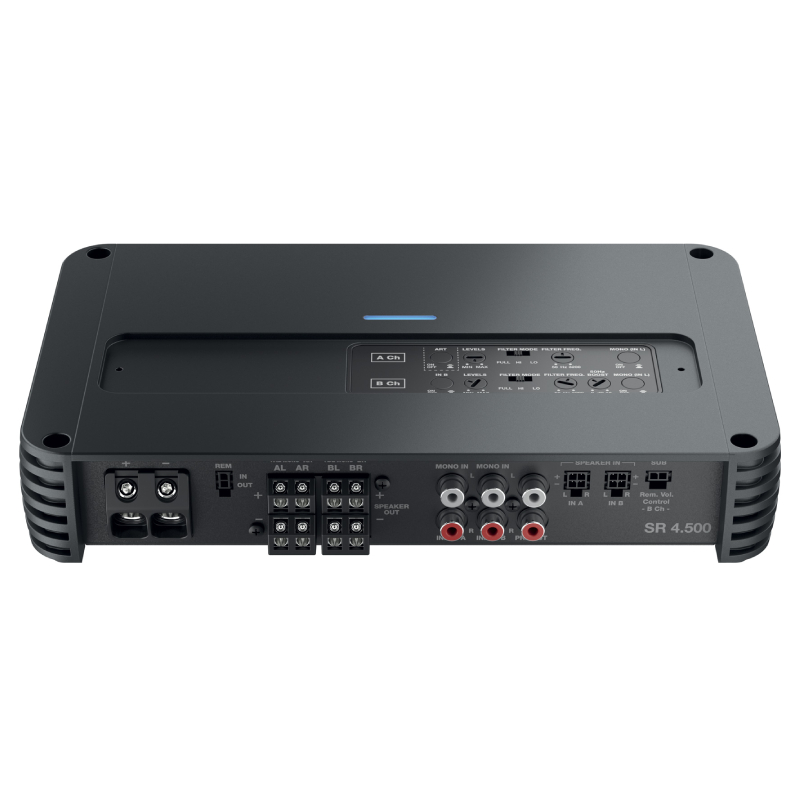

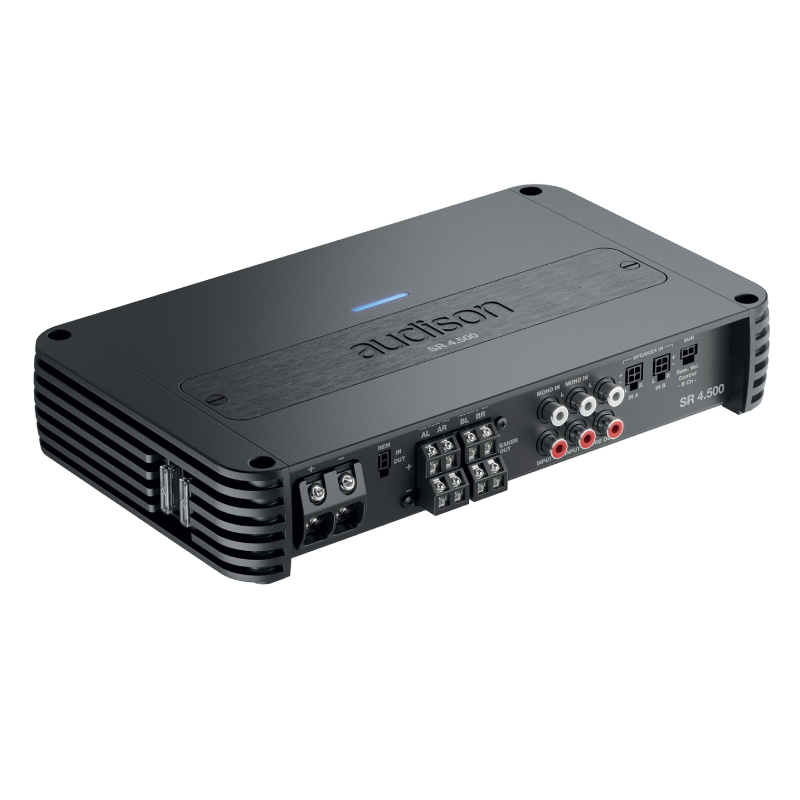

Audison  SR 4.500.2

Audison SR 4.500.2 - SR.2 Series 4-Channel Amplifier with 500W Max Power, D-class

Item #87317

Condition:   Brand New

1 / 2
Product Highlights

  • Model: Audison SR 4.500.2
  • Series: SR.2
  • Type: 4-Channel Amplifier
  • Max Power: 500W
  • Class: D-class

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$499.99

Reg. Price $550.00  Save $50.01
In Stock
In Stock

Only 2 left
Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $46/mo with . Check your purchasing power

No Credit needed for Learn More


Audison Authorized Dealer

Huge Saving on Other items:


Audison Banner

Audison SR 4.500.2 - SR.2 Series 4-Channel Amplifier with 500W Max Power, D-class


We are a Audison authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • 4-Channel Amplifier
  • • Owner's Manual
Audison_SR4.500.2
High Power in a Compact Size

New D-Class Technology called ADT (Audison D-Class Technology) made it possible to reduce the size of the amplifiers while preserving the audio performance that characterizes every Audison product.

Edgeless Design

As for the electronics design, the Audison style center has taken care of every aesthetic and functional detail, obtaining a compact amplifier made of extruded aluminium with rounded corners that ease the installation of the product in narrow spaces. Thanks to the generous heat sinks on the two short sides of the amplifiers, internal cooling fans are not necessary, which are often cause of noise and dust accumulation.

Audison_SR4.500.2
  • Maximum Power : 500 Watts
  • Number of Channels : 4
  • Frequency Response : 10-35000 Hz
  • Built In Crossovers : Yes
  • RMS Power Output : 220 Watts
  • Amplifier Class : D
  • Fuse Rating : 2x25 A

Features:

  • High Power In A Compact Size
  • New D-Class Technology called ADT (Audison D-Class Technology)
  • Made it possible to reduce the size of the amplifiers while preserving the audio performance that characterizes every Audison product.



Power Supply:

  • Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 25A
  • Operating power supply voltage: 6.5 ÷17 VDC
  • Idling current: 1.7 A
  • Idling current when off: 0.09 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical
  • Power: 40 A
  • Remote IN: 6.5 ÷ 15 VDC (1 mA)
  • Remote OUT: 6.5 ÷ 15 VDC (150 mA)
  • ART - Automatic Remote Turn on/off from
  • OUTPUT BTL speakers (Selectable): 1.5 ÷ 7 VDC



Amplifier Stage:

  • Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power: 0.08 %
  • Damping factor @ 1 kHz, 4Ω, 2 VRMS: 200
  • Bandwidth @ -1.5 dB: 10 Hz ÷ 35 kHz
  • S/N ratio (A weighted @ 1 V Input): 105 dBA
  • Pre-In sensitivity: 0.2 ÷ 5 VRMS
  • Speaker-In sensitivity: 0.8 ÷ 20 VRMS
  • Minimum load impedance:
    • @4Ch: 2Ω
    • @ 3Ch: 2Ω + 2Ω + 4Ω
    • @ 2Ch: 4Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
    • 4Ch: 130 W x 4 (4Ω)
    • 4Ch: 220 W x 4 (2Ω)
    • 3Ch: 120 W x 2 (4Ω) + 480 W x 1 (4Ω)
    • 3Ch: 220 W x 2 (2Ω) + 440 W x 1 (4Ω)
    • 2Ch: 450 W x 2 (4Ω)



CEA Specifications:

  • Output power @ 4?, 1% THD+N, 14.4 V: 125 W x 4 Ch
  • SN ratio (ref. 1W output): 83 dBA
  • UPC: 8018823138550
  • Weight: 7
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
