Kenwood Excelon X502-1 + Kenwood Excelon P-XW1221DHP Bass Package
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Kenwood Excelon X502-1
- • Kenwood Excelon P-XW1221DHP
- •Owner's Manual

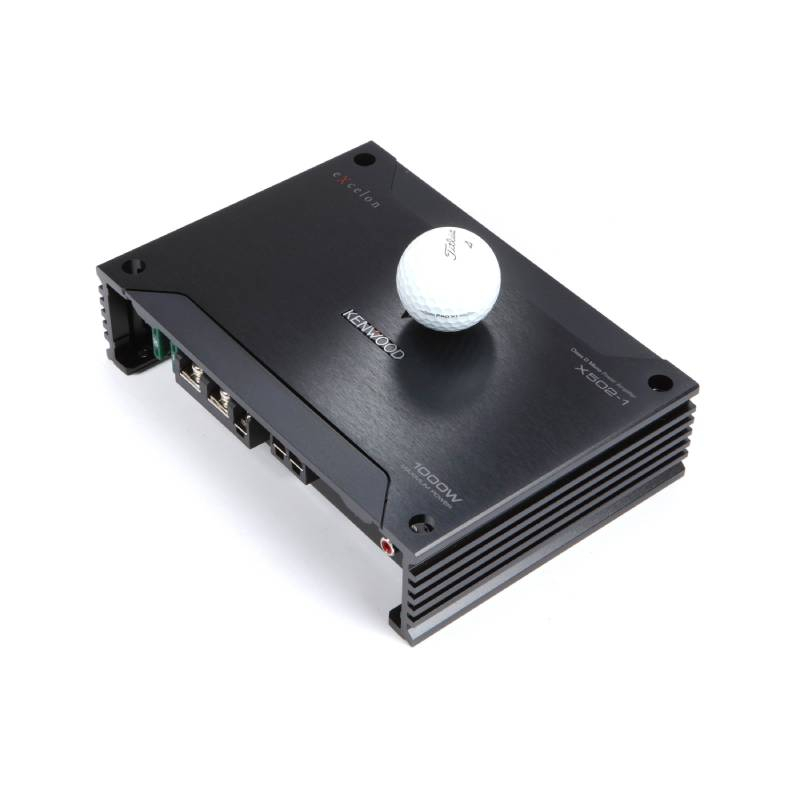

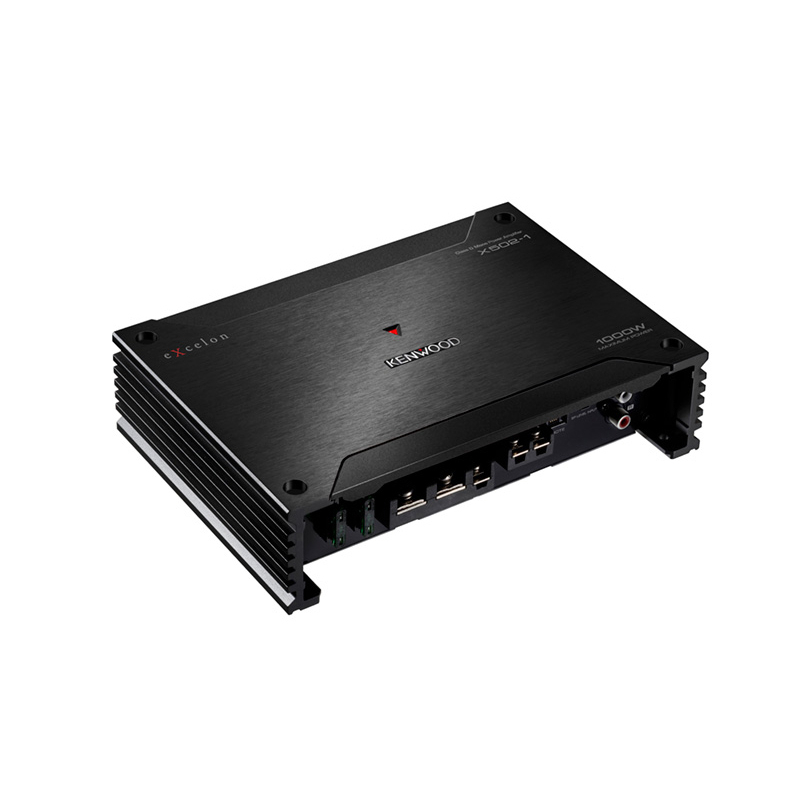

Kenwood Excelon X502-1
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality. Detachable sliding terminal cover offers a sleek design and easier installation.

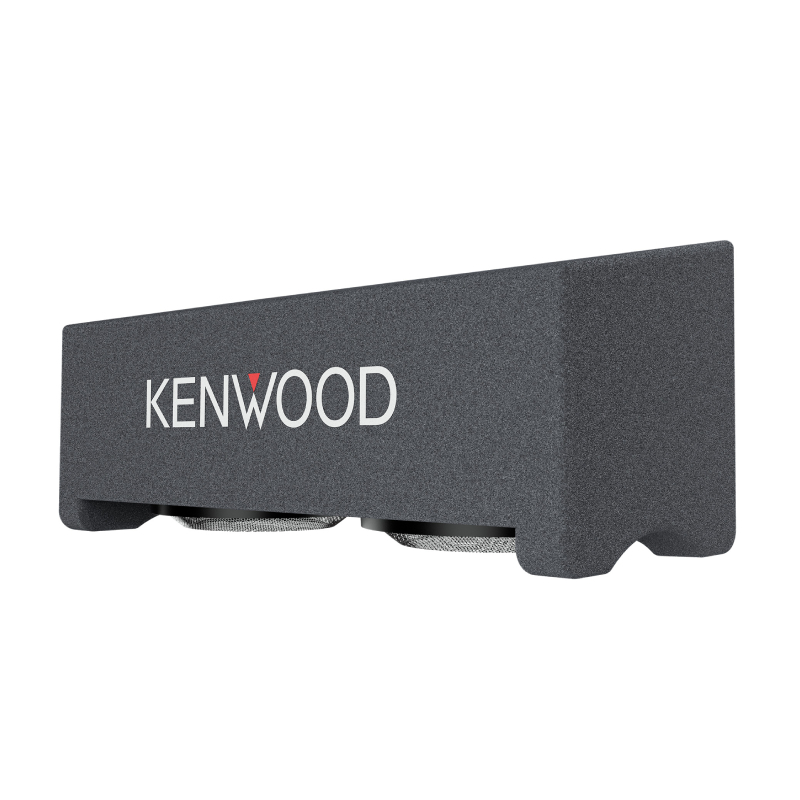

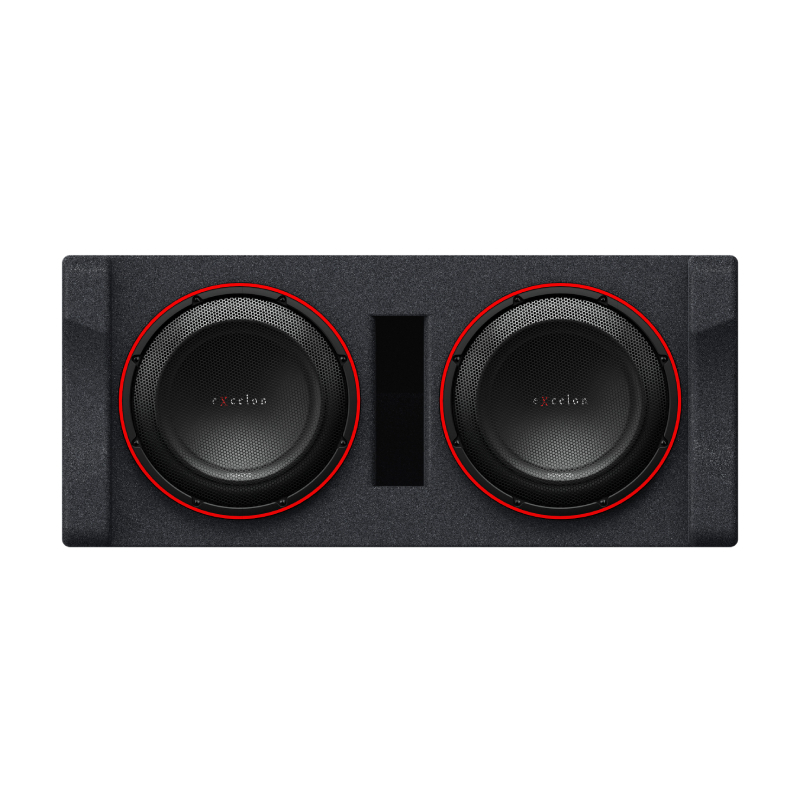

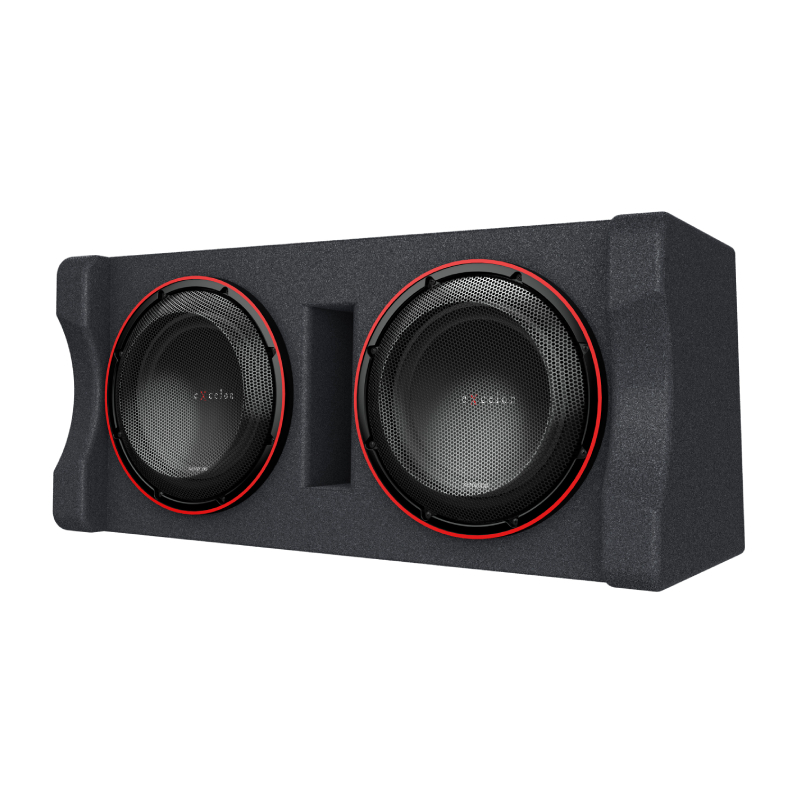

Kenwood Excelon P-XW1221DHP
The P-XW1221DHP comes loaded with two 12" Excelon Series subwoofers wired for 2 ohms total impedance. Each sub's polypropylene cone features a diamond array pattern to minimize distortion, while the rubber surround and computer-optimized stress-controlled spider keep things on track. The speaker is designed to dissipate heat generated by extended high-powered use, with internal works that direct airflow to avoid overheating.
X502-1 X Series 1000 Watts Max Power Class D Mono Subwoofer Amplifier
Features:
CTA-2006 Primary Ratings
- Power Output: 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
- Signal-to-Noise Ratio: 85dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output:
Rated Power Output at 14.4V
- A/B (4 Ohms): -
- A/B (2 Ohms): -
- SUB (4 Ohms): 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
- SUB (2 Ohms): 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
- A/B (Bridged 4Ohms):
Specifications
- Signal to Noise Ratio: 100dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 20Hz-200Hz (+0dB, -3dB)
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable)
- Bridged Connection: -
Audio Section
- Low-Pass Filter: 50Hz-200Hz, -24dB/oct
- High-Pass Filter: -
- Bass Boost: 40Hz, 0dB - +18dB
- Infrasonic Filter: 25Hz, -24dB
- RCA Input Sensitivity: 0.2[V] - 5.0 [V]
- Speaker Level Input Sensitivity: 4.0[V] - 12.0 [V]

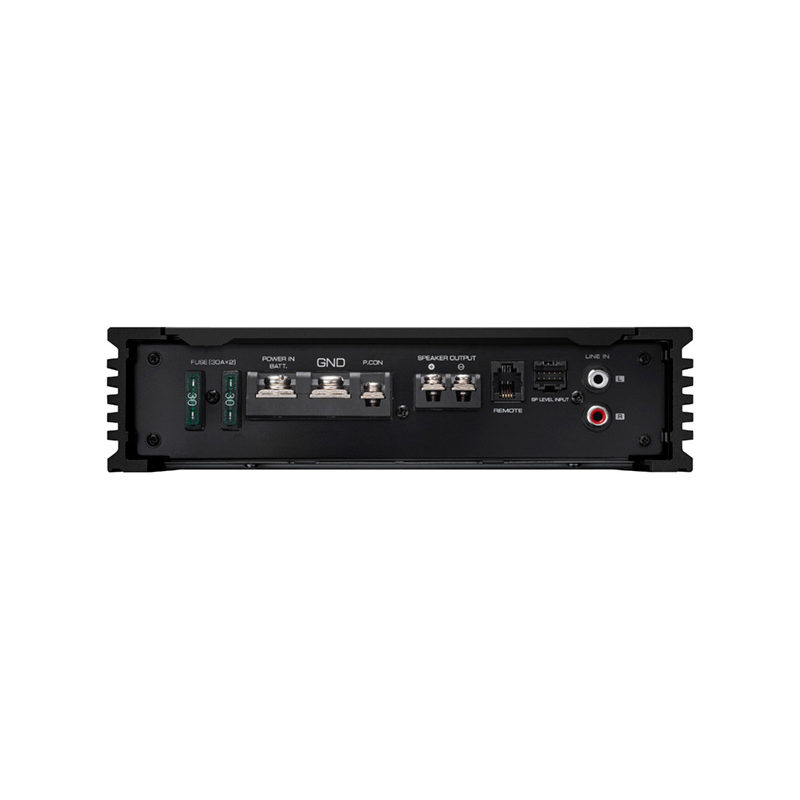

Terminals
- Battery & Ground: M6 Screw Type Terminal Block
- Speaker Output: M4 Screw Type Terminal Block
General
- Dimensions(WxHxD): (W)8-3/8” x (H)2-1/16” x (D)5-7/8”
- Dimensions(WxHxD): (W) 213cm x (H) 53cm x (D) 149cm
- Weight: 3.3 lbs ( 1.5kg)
- Operating Voltage: 14.4V(11-16V allowable)
- Current Consumption: 25 [A]
Key Features
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
- Signal Sensing Turn-On
Accessorries
- Remote Level Control Ready ( Optional KCA-RC01A)
- Terminal Cover
- Power MOS-FET Switching Power Supply
- Extruded Aluminum Heat Sink Design
P-XW1221DHP Excelon Series Dual 12” 1000W RMS (2000W Peak Power Handling) 2-Ohms Pre-loaded High-Power Subwoofer Enclosure
Features:
- Polypropylene Cone with Dual Area Cap Woofers
- 1000W RMS, 2000W MAX Input Power
- Freq. Response: 29Hz-300Hz
- Final Impedance: 2Ω
- 35-3/4” W x 15-13/16” H x 15-13/16” Bottom Depth / 12-9/16” Top Depth
- UPC: 798418838574
- Weight: 79
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
