Hertz  VENEZIA V5

220W RMS x 4 + 780W RMS @2Ohms 5 Channel Marine Mono Amplifier

Item #89568

Condition:   Brand New

Product Highlights

  • 220W RMS x 4 channels
  • 780W RMS @ 2 Ohms
  • 5 Channel
  • Marine Mono Amplifier

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$1,234.99

Reg. Price $1,430.00  Save $195.01
Special Order Item

Estimated shipping time is 7-10 days. Risk Free

Add Extended Warranty
  Free 2-Years Warranty Included!

Starting at $112/mo with . Check your purchasing power

No Credit needed for Learn More


Hertz Authorized Dealer

Huge Saving on Other items:


Brand Banner

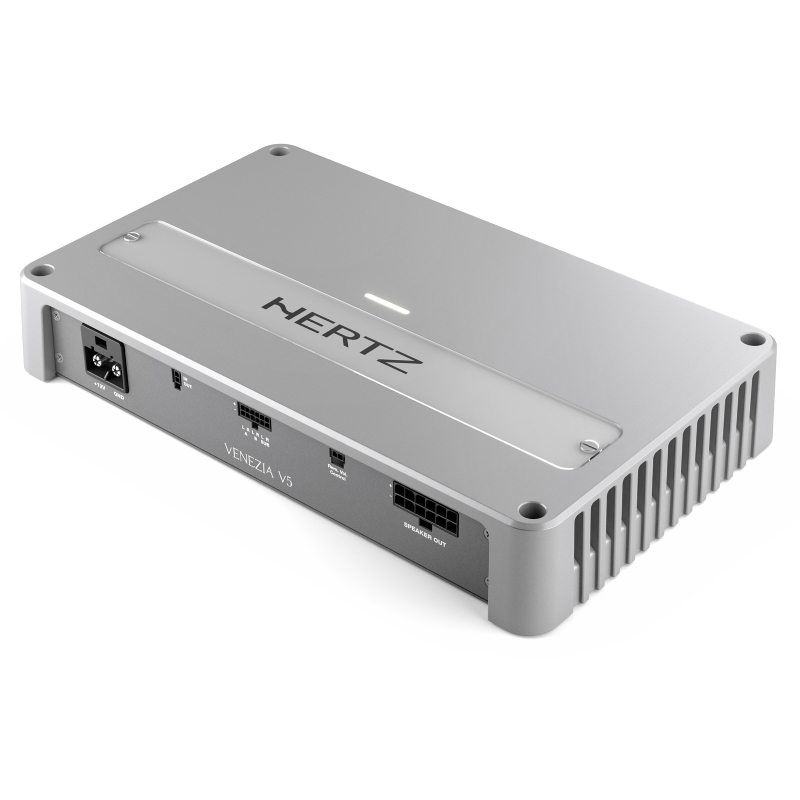

Hertz VENEZIA V5 220W RMS x 4 + 780W RMS @2Ohms 5 Channel Marine Mono Amplifier


Alpine Banner for OCS

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •5 Channel Mono Amplifier
  • •Owner's Manual
The Most-powerful Five-channel Hertz Marine Amplifier

Venezia V5 is the most-powerful five-channel Hertz marine amplifier ever, featuring 130 W x 4 (4Ω) plus 470 W (4Ω) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment.

Tested for Marine Applications

Venezia V5 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis.

Fully Protected by Short-circuit

The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.



  • Maximum Power : 1740 Watts
  • Low Frequency Response : 10 Hz
  • High Frequency Response : 42,000 Hz
  • Number of Channels : 5
  • Frequency Response : 10-42,000 Hz

Specifications:

  • Channels: 5 - 3
  • Power supply voltage 9 ÷ 16 VDC
  • ldling current (power ON/OFF): 1.8 A / 0.04 mA
  • Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 70 A
  • Remote In: 7 ÷ 15 VDC - 1 mA



Amplifier Stage:

  • Distorsion - THD (100Hz @ 4Ω): <0,05%
  • Bandwidth: 10 ÷ 42 kHz
  • S/N Ratlo (A welghted @ 1 V): 102 dB
  • Damping factor (100Hz @ 4Ω) 130
  • Pre-ln sensitivity: 0.2 ÷ 5 VRMS
  • Pre-ln impedance: 10 kΩ
  • Load impedance (MIN)
    • 5 channel: 2Ω
    • 3 channel: 4Ω + 4Ω + 2Ω
  • Adjustable Crossovers: yes
  • lnputs:
    • A Ch. Pre in
    • B Ch. Pre in
    • Sub Ch. Pre in
  • Pre Out: No
  • A Ch. filters: Yes
    • By-Pass Yes
    • Hi-Pass : 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
  • B Ch. filters:
    • By-pass: Yes
    • Hi-Pass: 50 ÷ 500 Hz @ 12 dB/Oct
    • Band-Pass: 50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
  • Sub Ch. filters:
    • By-pass: No
    • Low-Pass: 50 ÷ 250 Hz @ 24 dB/Oct
    • Phase (adjust°): (0 ÷ 180°)
    • Subsonic: 25 Hz @ 24 dB/Oct
    • Boost 50 Hz (adjust): (0 ÷ 12) dB



Output Power

  • OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
    • 5Ch 130 W x 4 (4Ω) + 490 x 1 (4Ω)
    • 5Ch 220 W x 4 (2Ω) + 820 W x 1 (2Ω)
    • 3Ch 440 W x 2 (4Ω) + 490 W x 1 (4Ω)
    • 3Ch 440 W x 2 (4Ω) + 820 W x 1 (2Ω)
    • Total Power RMS: 1700 Watts
  • UPC: 8018823138857
  • Weight: 8.2
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
