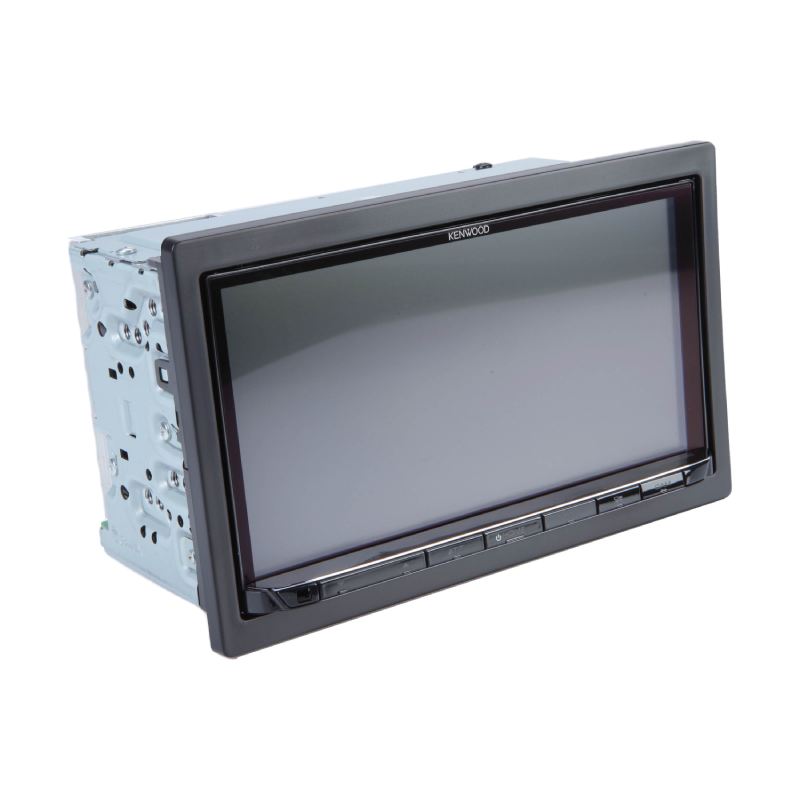

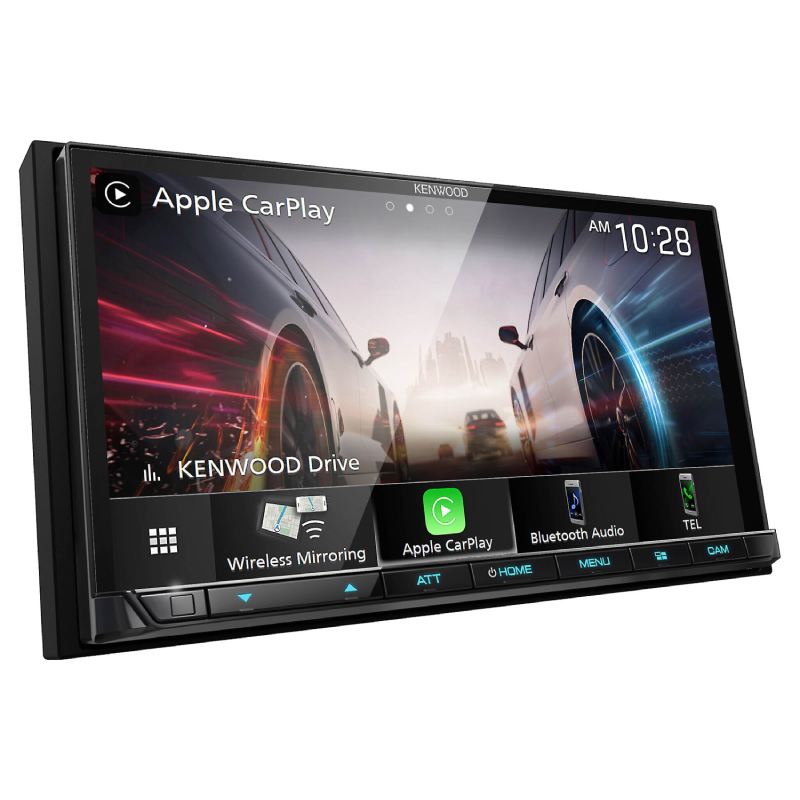

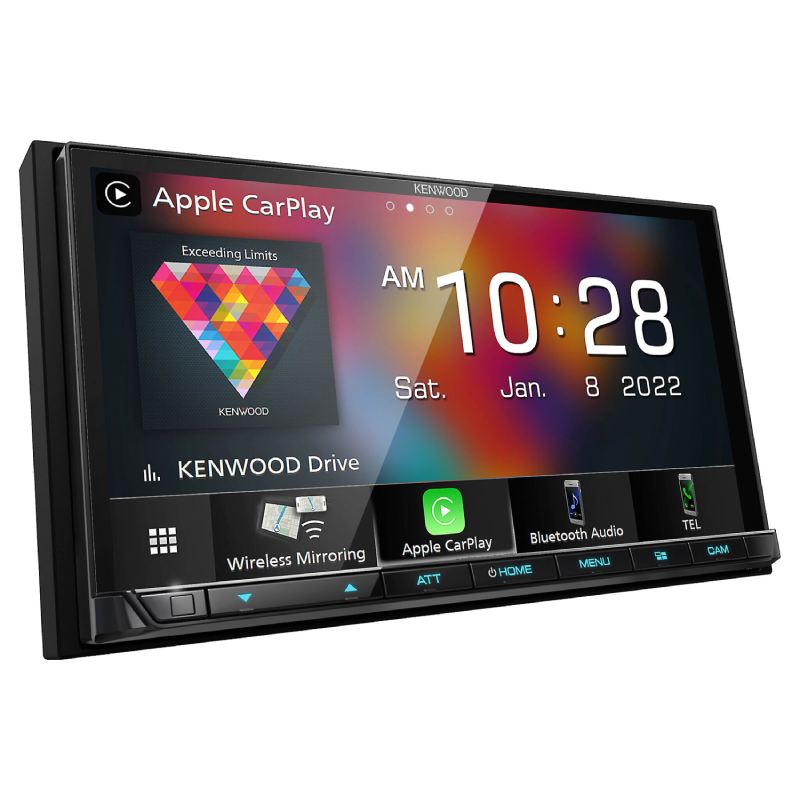

Kenwood DMX9708S 6.95" Double DIN Digital Multimedia Receiver with Capacitive Touch Panel, Apple CarPlay and Android Auto
We are a Kenwood Excelon authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

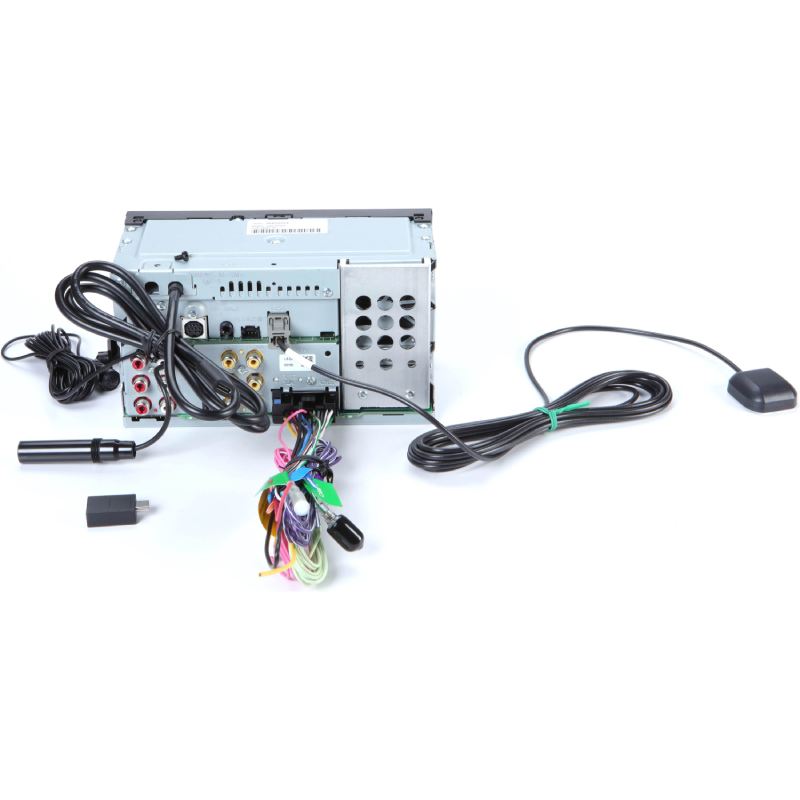

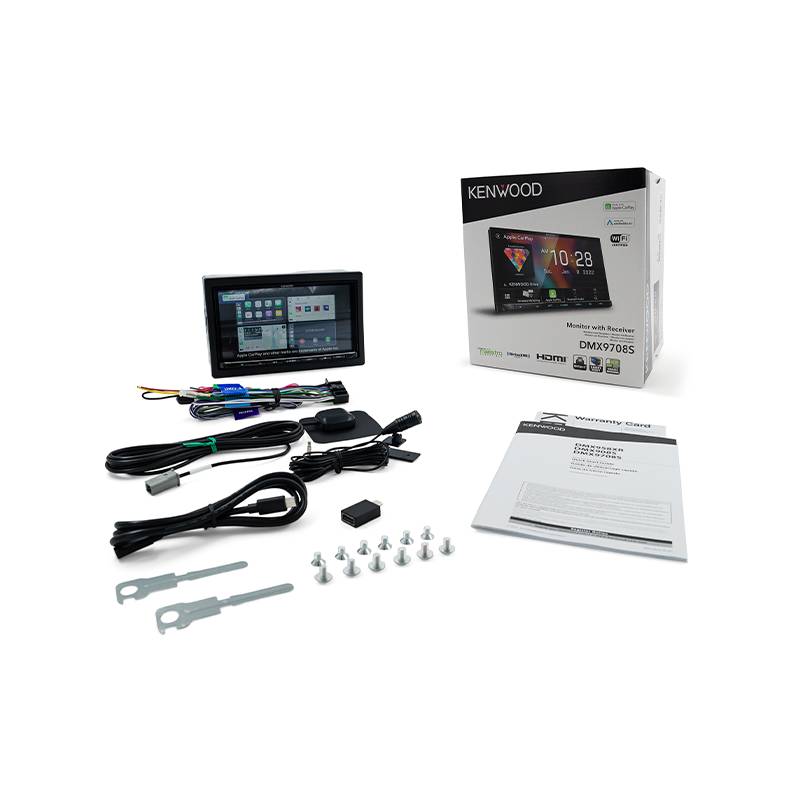

What's Inside?
- •Digital multimedia receiver w/ integrated 6.75" monitor
- •Wiring harness
- •Mounting sleeve
- •Trim-ring
- •USB-C to USB-A adapter
- •40" USB-C extension cable
- • GPS antenna
- •Microphone w/ bracket
- •Self-adhesive pad
- •(6) Pan-head ISO-mount screws (M5x8mm)
- •(6) Flat-head ISO-mount screws (M5x8mm)
- •USB/HDMI connector bracket
- •(2) Removal tools
- •Quick Start Guide
- •Warranty Information
- •Owner's Manual

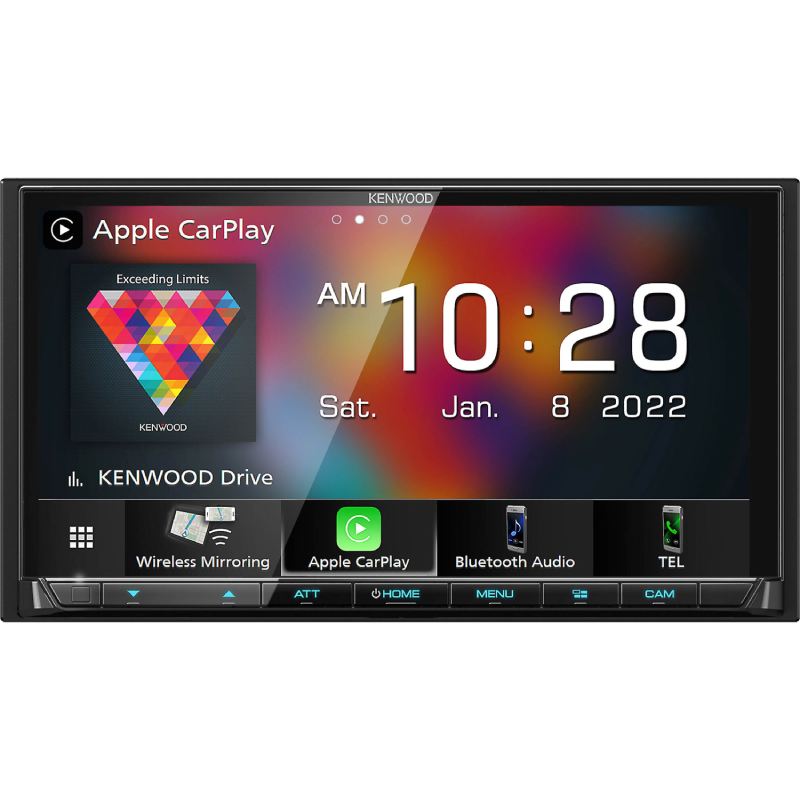

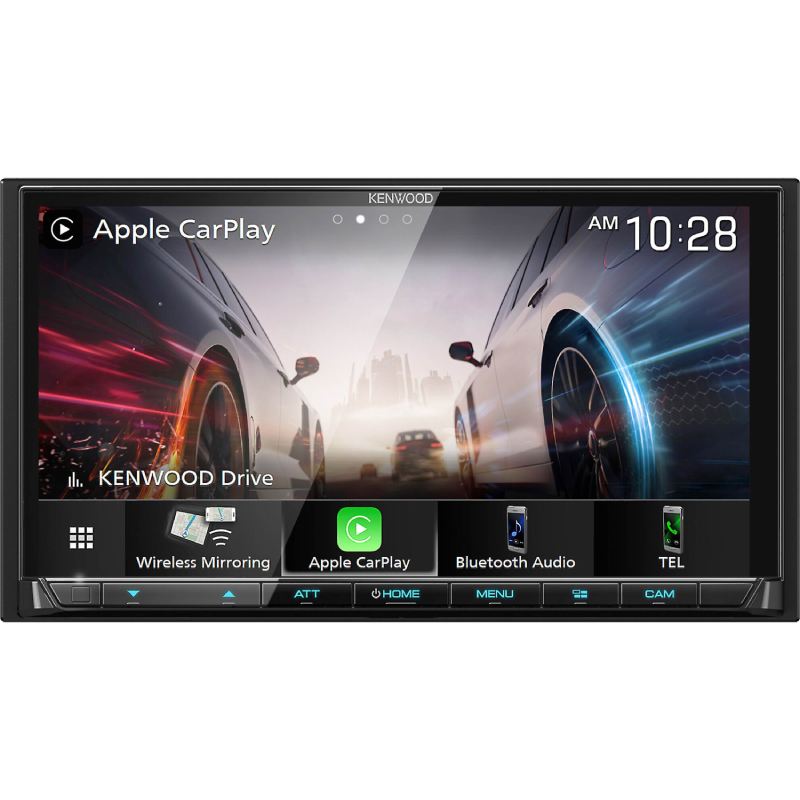

Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
Experience Superior Audio Quality
Experience superior audio quality with the Kenwood DMX9708S. Equipped with advanced audio features such as a 13-band graphic equalizer and time alignment, this multimedia receiver allows you to fine-tune your audio settings and enjoy a personalized and immersive listening experience.
Effortlessly Enjoy Your Favorite Music and Media
The DMX9708S offers a range of connectivity options, including USB, Bluetooth, and auxiliary inputs, ensuring compatibility with various devices and media sources. Connect your smartphone, USB drive, or other external devices to effortlessly enjoy your favorite music and media.Featuring a stunning 6.95-inch touchscreen display, the Kenwood DMX9708S delivers vibrant visuals and a user-friendly interface.

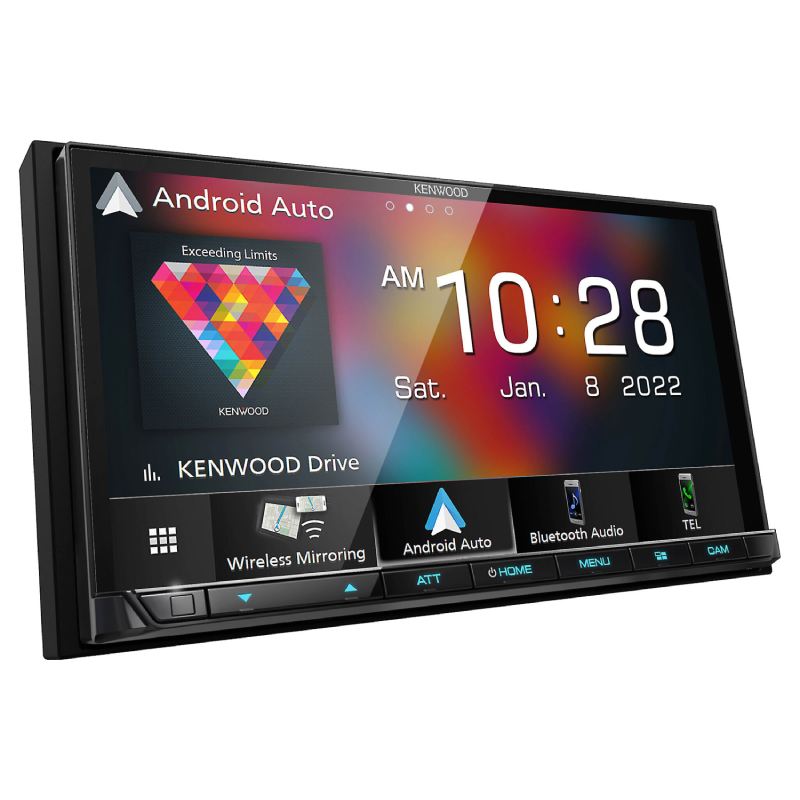

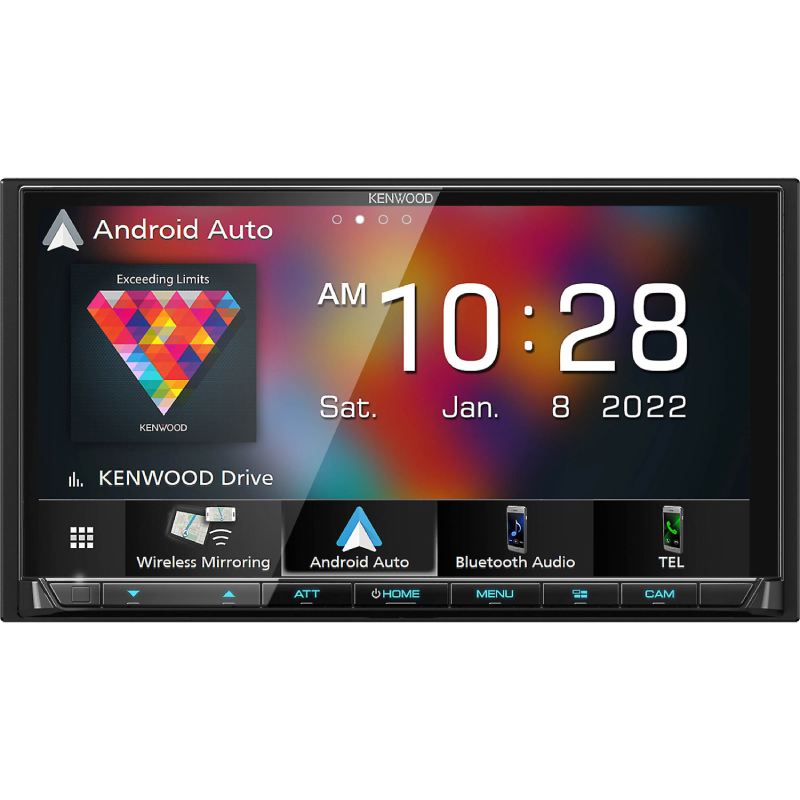

Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required). - To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.
- Satellite Radio Ready : Yes
- Built In Crossovers : Yes
- Built-in EQ : Yes
- DIN : 2
- Preamp Voltage : 4 volts
- Display Size : 6.95 Inch
- Bluetooth : Yes
- MP3 Playback : Yes
- WMA Playback : Yes
- HD Radio : No
- Preamp Outputs : 6
- Rear View Camera Input : Yes
- Apple CarPlay : Yes
- Android Auto : Yes
Features:
- Capacitive Touch Panel: Clear glass display with swipe functionality that provides superior picture and touch panel control.
- Wireless Mirroring for Android: Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
- 4 Camera Inputs: Optional camera connection method for up to 4 cameras in various configurations.
- Parking Guidelines: Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
- Music Mix: Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
- Dual Phone Connection: While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
- Graphic EQ / Digital Time Alignment: 13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
- Drive EQ: Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
- USB Type-C: USB Type-C cable and USB Type-A adapter are included to the set. Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
- Variable Color Illumination: Bright variable color LEDs can be adjusted to match any color dash lighting.
- Short Chassis: With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Specifications:

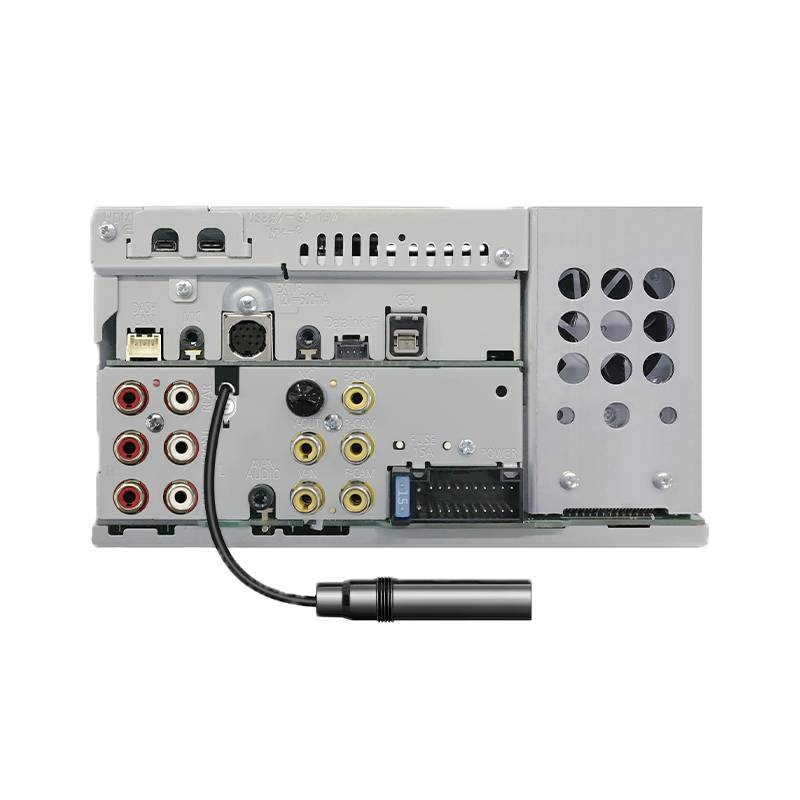

- AUX Input: Mini (rear)
- Audio/video Input: Composite + Mini (rear), HDMI (rear)
- USB Input: Rear (USB-C)
- USB Port Power: 3A
- Backup Camera Input: Yes
- Second Camera Input: Yes
- CarPlay: Wireless
- Android Auto: Wireless
- Siri Control: CarPlay only
- Alexa Voice Control: N
- Android Control: Yes
- Memory Card Slot: USB
- Bluetooth Compatible: Built-in
- Satellite Radio Ready: SiriusXM 3.0
- HD Radio: No
- Navigation:p Optional
- iPod: Compatibility
- Full size: No
- Nano: No
- Touch: 7Gen
- iPhone: 6S and newer
- RMS Power (CTA-2006): N/A
- RMS Power (Manufacturer): 22 watts
- Peak Output: 50 watts
- RMS Power Bandwidth: 20-20kHz
- Preamp Outputs: 6-channel
- Sub Preamp Outputs: Yes
- Switchable Rear Preamp Outputs: No
- Video Screen: Yes
- Navigation App Compatible: (iOS) Apple, Google, Waze
- Navigation App Compatible: (Android) Google, Waze
- Preamp Voltage: 4 volts
- Screen Size: 6.95
- Screen Type: Swipeable (Capacitive)
- Display: Color
- Key Button Color: Variable
- EQ Bands: 13
- Wireless Remote: Optional
- Steering Wheel Control Compatible: Adapter required
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- FM Sensitivity: 9.3 dBf
- European Tuning: No
- Seek/Scan: Seek
- Radio Data System: Yes
- Music File Playback: MP3,WMA,AAC,FLAC,WAV
- High-res Playback: WAV/FLAC (24-bit/192kHz)
- UPC: 019048233936
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
