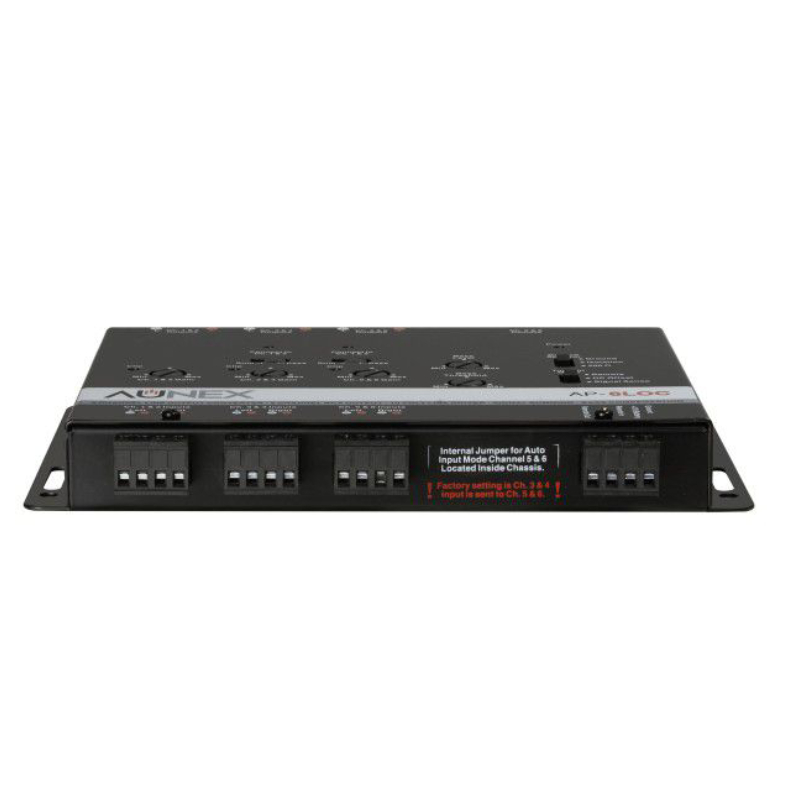

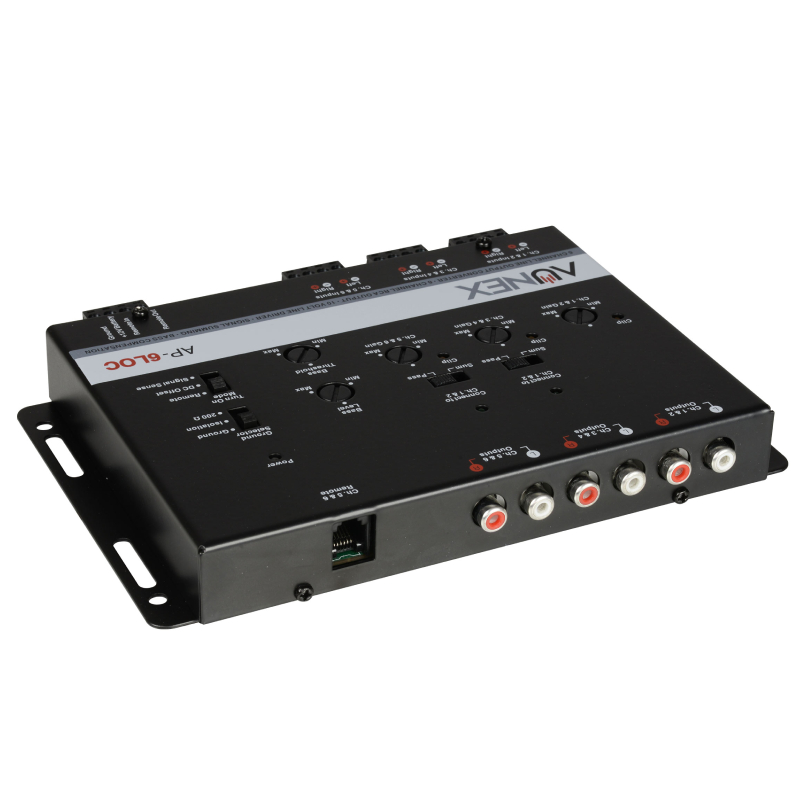

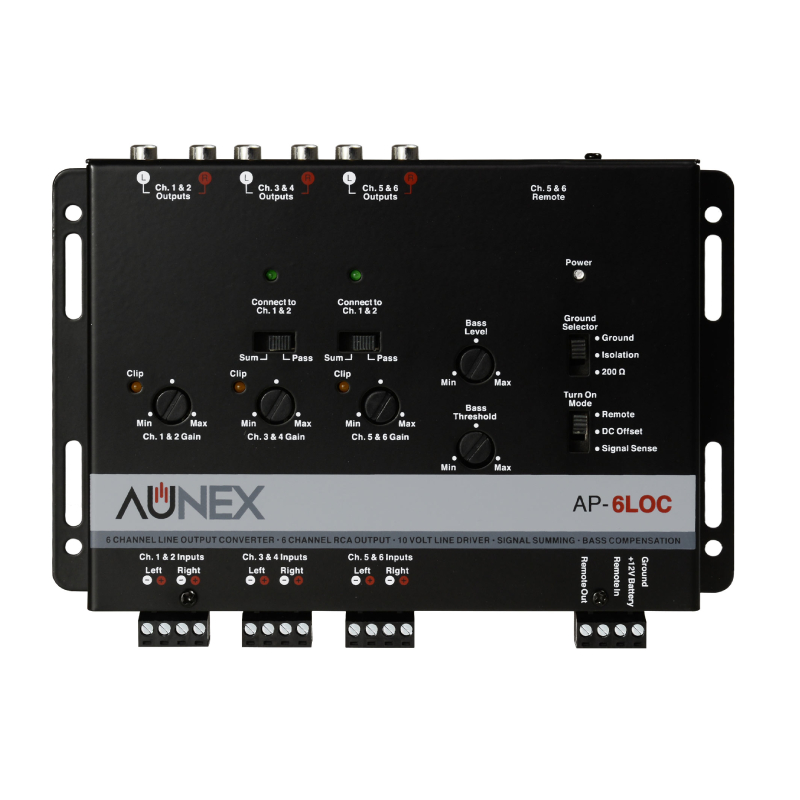

Aunex AP-6LOC Performance Series 6 Channel Line Output Converter, 6 High-Level Speaker Inputs/8 Low-Level RCA Outputs with Remote Level Control
We are a Aunex authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (1) 6 Channel Line Output Converter, 6 High-Level Speaker Inputs/8 Low-Level RCA Outputs
Adjust the frequency response of your system
The Aunex AP-6LOC is a 6-channel line output converter designed to integrate aftermarket amplifiers into your vehicle's factory audio system. With its advanced features and reliable performance, this converter allows you to achieve high-quality sound while retaining the original factory head unit. The AP-6LOC converts the speaker-level signals from your factory stereo into low-level RCA outputs, which can be connected to aftermarket amplifiers. This enables you to add external amplifiers and speakers to your system for enhanced audio performance.
Low distortion and low noise design
Featuring six channels, the AP-6LOC offers versatile connectivity options for amplifiers, subwoofers, and additional speakers. It ensures accurate signal conversion and preserves the audio signal's integrity throughout the conversion process. The converter is built with high-quality components to deliver clear and distortion-free audio. Its compact and durable design allows for easy installation in various vehicle models.
Includes Adjustable Gain Control
The AP-6LOC also includes adjustable gain control for each channel, allowing you to match the output levels of your amplifier and achieve balanced sound reproduction. It features a ground loop isolation circuit, which helps eliminate noise and interference for cleaner audio.
Features:
- 2 Layer PCB, SMD Technology
- 6 Channel Line Output Converter
- 6 High Level Speaker Inputs/8 Low Level RCA Outputs
- 3 Independent Clipping Indicators
- Remote Level Control for Ch.5 & Ch.6 Included
- Finish: Anodized with Textured Paint
- Selectable Signal Summing or Signal Pass Through
- Selectable Ground Isolator: Ground, Isolation, 2000
- Selectable Tum On Mode: Remote, DC Offset, Signal Sensing
- Selectable Input Mode for Ch.5 & Ch.6
- Variable Bass Compensation Circuit
- 12VDC Remote Output
Technical Specifications:
- Total Outputs: 3 Pairs Low Level RCA
- Total Inputs: 3 Pairs Speaker Level
- Output Voltage: 10 Volts Maximum
- Bass Compensation: 0-16dB Centered at 45HZ
- Frequency Response: 10Hz-50kHz
- THD+Noise: <0.05%
- S/N Ratio A-Weighted: >90dB
- Channel Separation: 50dB @ 1kHz
- Input Sensitivity: 250mV-10V
- Input Impedance: 20k oHMS
- Output Impedance: 150 Ohms
- High Level Input: Up to 400 Watts Per Channel
- Power Supply: PWM Switching
- Operating Voltage: 10-18 Volts DC
- Dimensions (H x W x D) 1.0" x 8.1" x 5.2"
- Dimensions (H x W x D) 27mm x 205mm x 133mm
- Fuse Requirement: 2A (Included)
- UPC: 798418837348
- Weight: 4
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
