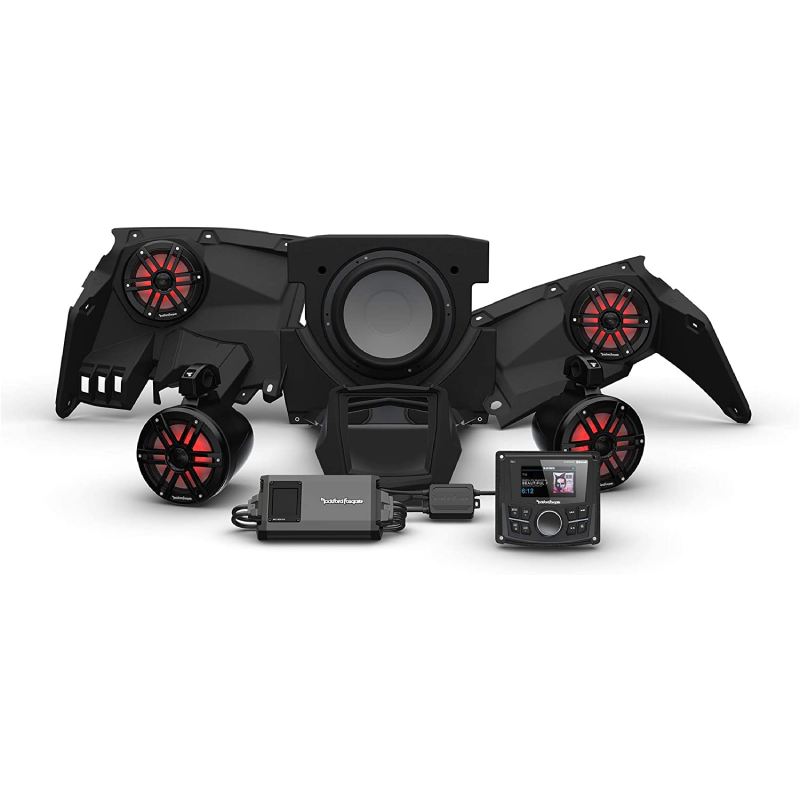

Rockford Fosgate X317-STG4 Stage-4 Audio System for 2017 and Up Can-Am X3 (Gen-3)
We are a Rockford Fosgate authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

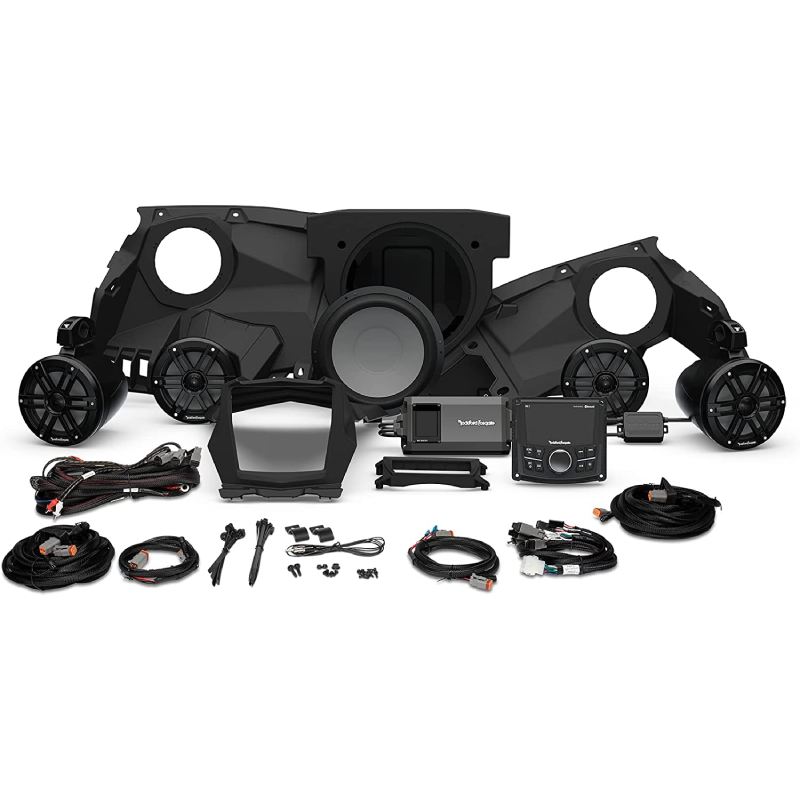

What's Inside?
- • PMX-2 Digital Media Receiver
- • X317-DK Dash Kit
- • (2) X317-FSE Front Color Optix™ Speaker Panels
- • (2) M1-65B 2-Way Marine Coaxial Speakers
- • M5-800X4 4-Channel Marine Amplifier
- • X317-M1FWE Loaded Subwoofer Enclosure

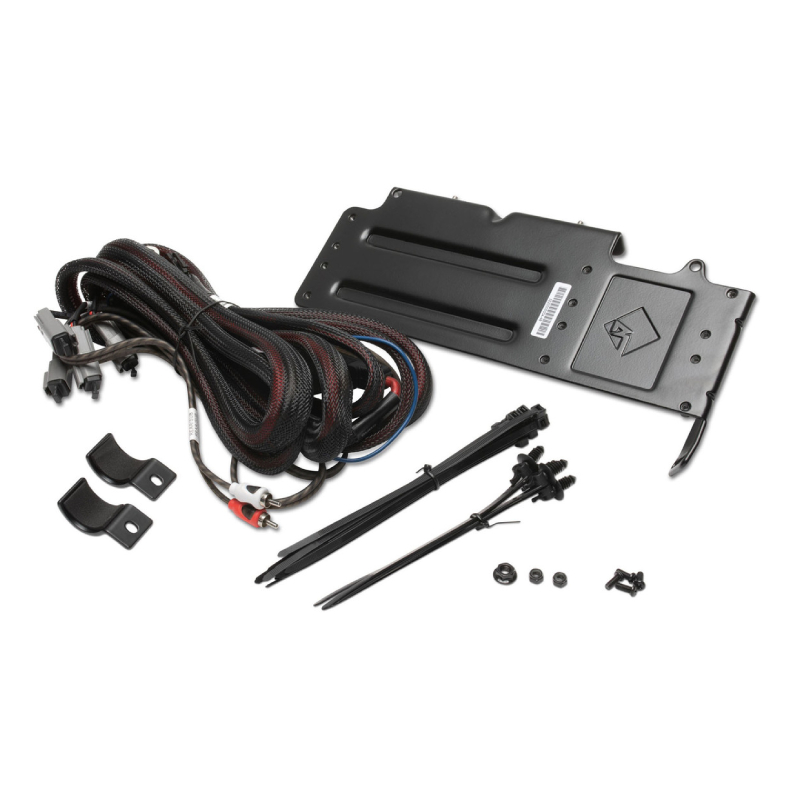

- • X317-K8 8 AWG Amp Installation Kit
- • (2) M1WL-65MB Moto-Can Speakers
- • MX-RSW16 Speaker Add-On Harness
- • PMX-RGB Light Controller
- • Owner's Manual
Supplied With All Necessary Mounting and Installation Hardware

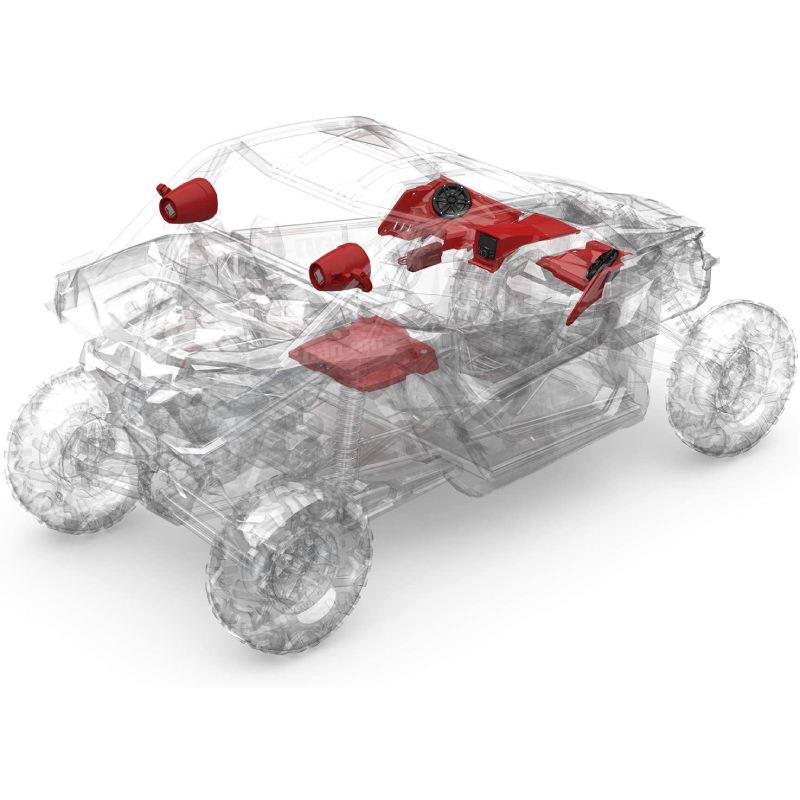

Our Gen-3 Stage 4 lets you hit the dunes and trails and make an impact! System allows you to add front and rear Color Optix™ speakers and a subwoofer on select Maverick X3 models. Kit is equipped with a PMX-2 digital media receiver, upper dash kit, front speaker panels, M1 6.5” Color Optix™ speakers, 800-watt Element Ready™ amplifier, under-seat front subwoofer enclosure, M1 10” Element Ready™ subwoofer, 8-gauge wiring harness, M1 6.5” Color Optix™ moto-cans with harness, and a Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools.
Bring Amazing Sound and Cool RGB LED Lights
Rockford Fosgate's Stage 4 audio upgrade kit will bring amazing sound and cool RGB LED lights to your Can-Am Maverick X3. With a digital media receiver, four speakers, a 4-channel amp, and a 10" subwoofer, this Color Optix™ system really rocks. Each component is tough enough for trail duty, so whether you're racing up a sand dune or blasting through a mud pit, you won't have to worry about your audio gear getting swamped.
Water-resistant Package
Rockford Fosgate's PMX-2 digital media receiver gives you a nifty array of entertainment options in a compact, water-resistant package. You can stream music with built-in Bluetooth® connectivity, check weather and news on the AM/FM/WB radio, or connect a music player or thumb drive to the USB input. This receiver works with Apple® or Android™ smartphones to let you enjoy downloaded music or stream your favorite Pandora playlists. You can easily see what's playing on the 2.7" color display.
Features:
- Complete Element Ready™ Audio System: Full system designed for outdoor and off-road environments, ensuring superior performance and durability.
- Enclosures for Speakers/Subwoofer: Integrates seamlessly with no loss of passenger space, maintaining functionality and comfort.
- Direct Connect Wiring Harnesses for Can-Am X3 Models: Simplifies installation with a direct connection to select Can-Am X3 models for hassle-free setup.
- Color Optix™ Enabled: Allows for customizable lighting effects to enhance the audio system's visual appeal.
- Easy Setup of Audio System: Amplifier preset for maximum performance without the need for manual tuning, ensuring optimal sound quality.
- MX-RSW16: Rear Color Optix™ Speaker Add-On Harness for Select UTV Models: Expands your audio system with added lighting options, available for specific UTV models.
- M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black: High-performance speakers with Color Optix™ lighting, designed for marine and outdoor use.
- M5-800X4: 800-Watt 4-Channel IPX6 Element Ready™ Amplifier: Delivers powerful audio output with IPX6 water-resistant protection for reliable outdoor performance.
- PMX-RGB: Color Optix™ Light Controller with Optional App Interface: Customizes and controls the lighting effects of your audio system with an easy-to-use app interface.
- M1WL-65MB: M1 6.5" Element Ready™ Color Optix™ Moto-Can Speaker - Black: Built for the toughest conditions, these 6.5" speakers feature Color Optix™ lighting for added style.
- X317-K8: 8 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models: Complete installation kit designed for seamless amplifier integration in specific Can-Am Maverick X3 models.
- X317-M1FWE: M1 10" Element Ready™ Loaded Subwoofer Enclosure for Select Can-Am® Maverick X3 Models (No RGB Color Optix™): Adds deep bass with an element-ready subwoofer enclosure, designed for select Can-Am Maverick X3 models.

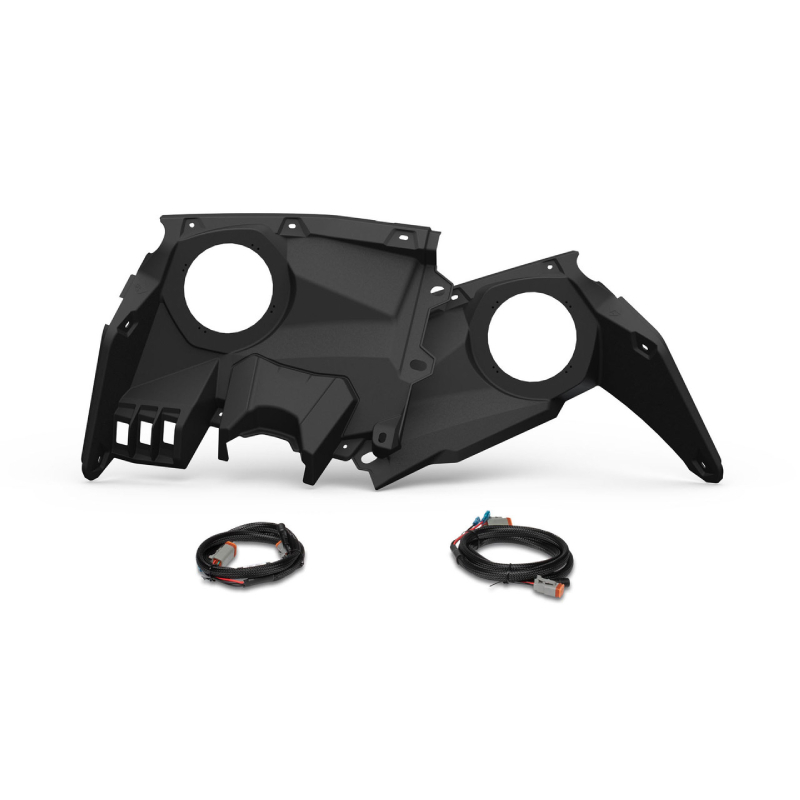

- X317-FSE: 6.5" Front Color Optix™ Speaker Panels with Smart-Lok for Select Can-Am® Maverick X3 Models: Features Smart-Lok and Color Optix™ lighting for enhanced front speaker integration in select models.

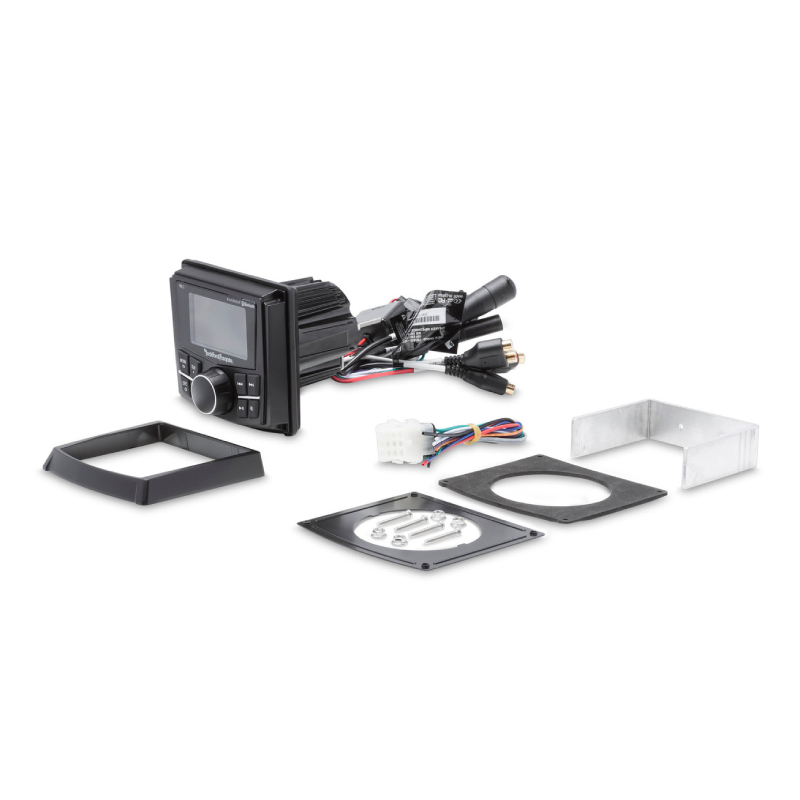

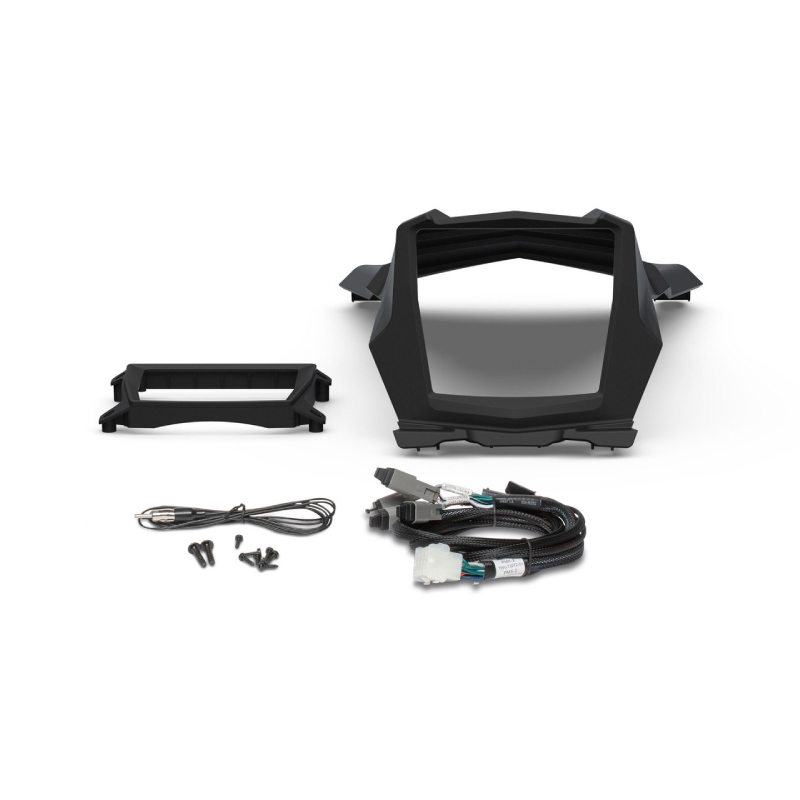

- X317-DK: Dash Kit for PMX-1, PMX-2, or PMX-3 on Select Can-Am® Maverick X3 Models: Provides a perfect fit for PMX receivers in specific Can-Am Maverick X3 models, including a wired antenna for clear reception.
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display: A compact and durable receiver with a 2.7" display, offering AM/FM and WB radio capabilities.
Specifications:

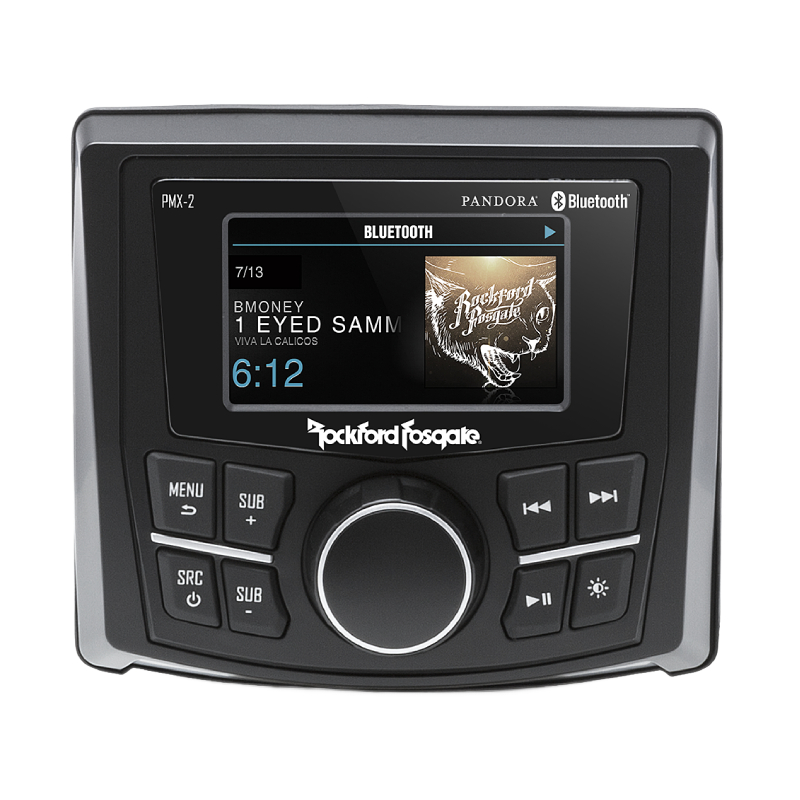

PMX-2
- FM Tuner Sensitivity: 8 dB
- FM Tuner Frequency Range: 87.5 MHz - 107.9 MHz
- AM Tuner Frequency Range: 530 kHz - 1710 kHz
- AM Tuner Usable Sensitivity: 40 dB
- WB Tuner Frequency Range: 162.40 - 162.55 MHz (US & Canada)
- RCA Output Voltage: 2V RMS
- RCA Output Impedance: 500?
- Operating Voltage: 10.5 V - 16 V
- Speaker Impedance: 2-Ohms
- Fuse Rating: 20 A
- Dimensions (HxWxD): Width 4.5" (11.5 cm), Face Depth 1.5" (3.8 cm), Mount Depth 2.9" (7.4 cm), Height 4.2" (10.6 cm)
- USB Capacity: 32Gb max
- USB File Limits: 999 Folders max, 999 Songs max
- Audio Format Compatibility: MP3, WMA, FLAC
- Compatible Remotes: PMX-1R, PMX-0R (3 Remote Limit, 100 ft Total Wired Distance)
- Android Compatibility: Bluetooth® Only
- Speaker Outputs: Yes (4-channel)
- Bluetooth®: Yes (3.0+EDR, A2DP 1.3)
- Pandora® Internet Radio: Yes
- Device Type: Digital-Media Receiver
- Tuner Presets: 18 FM / 12 AM / 6 WB
- USB Version: 2.0
- USB Charging: Yes (1A Output Current)
- Frequency Response: 20 Hz - 20 kHz
- Power Output: CEA-2006 Power Rating 25W x 4 @ 4? RMS, Peak 50W x 4 @ 2?, ≤1.0% THD+N
- Display Size: 2.7" Color TFT
- Made for iPod Models: iPod Touch (5th & 4th generation), iPod Nano (7th & 6th generation)
- Made for iPhone Models: iPhone XS, XS Max, XR (pending), iPhone X, 8, 8 Plus, 7, 7 Plus, 6s, 6s Plus, 6, 6 Plus, 5S, 5C, 5, 4, 4S, 3GS
- Apple®/Android™ Compatible: Yes (Limited functionality on Android)
- AUX Input: Yes (1 pair)
- Back Panel Cutout: 3" (77mm)

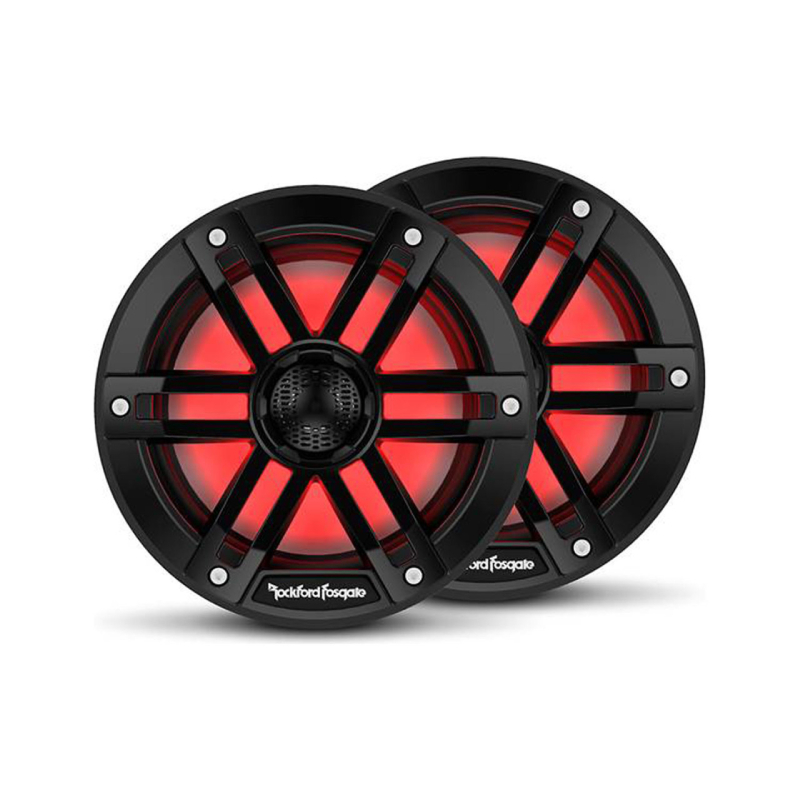

M1-65B
- Speaker Type: 2-way Coaxial
- Midrange Size: 6.5" (Nominal Diameter)
- Tweeter Size: 1" (25.4 mm)
- Frequency Response: 38 Hz - 22 kHz
- Nominal Impedance: 4-Ohm
- Crossover: High Pass, 6 dB/Octave
- Power Handling: 75 Watts RMS, 300 Watts Peak
- Midrange Mounting Depth: 2.49" (63.18 mm)
- Sensitivity: 90 dB @ 1W/1M, 92 dB @ 2.83V/1M
- Mounting Hardware: Stainless Steel
- Grille/Trim Ring: Included

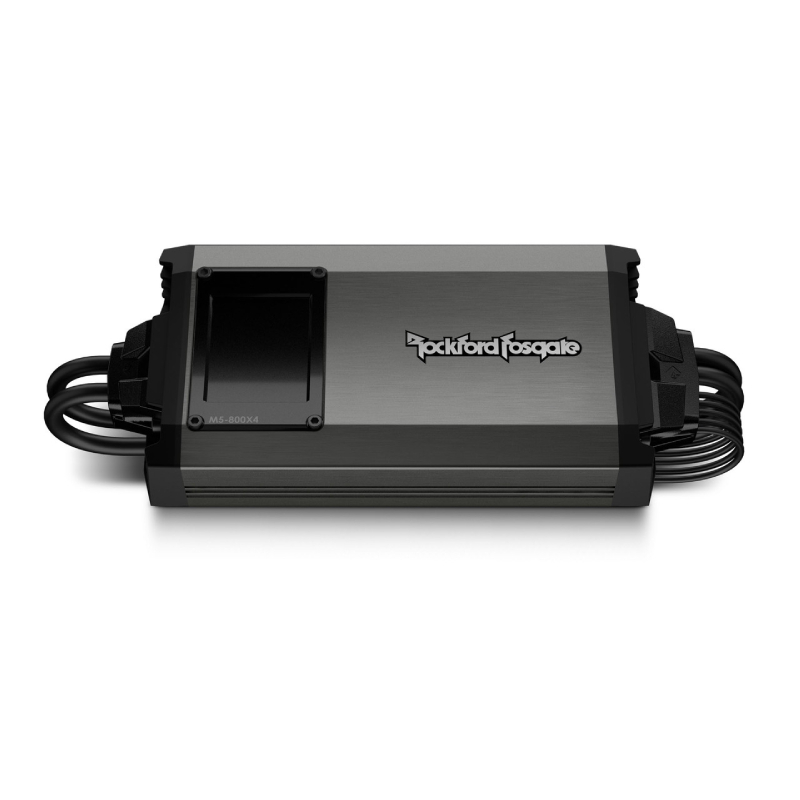

M5-800X4
- Number of Channels: 4
- Total Power (Sum of Rated Power): 800 Watts
- Rated Power (RMS Continuous Power): 100 Watts x 4 @ 4Ω, 100 Watts x 4 @ 2Ω, 200 Watts x 2 @ 4Ω Bridged/Mono
- Dynamic Power (PVC/PowerCube®): 125 Watts x 4 @ 4Ω, 200 Watts x 4 @ 2Ω, 400 Watts x 2 @ 4Ω Bridged/Mono
- Bridgeable: Yes
- Frequency Response: 10 Hz - 50 kHz
- Input Sensitivity: 150mVrms - 12Vrms
- Circuit Topology Class: Class-AD
- Efficiency (average): >75%
- Total Harmonic Distortion (THD+Noise): <0.25% THD+N @ 1 Watt
- Signal Input: Low-Level (4 RCA), High-Level (2 4-Pin Molex)
- Tone Controls: Front/Rear: 0-14dB @ 12.5kHz, Front/Rear: 0-18dB @ 45Hz
- Crossover Controls: High-Pass (50 Hz - 250 Hz @ 12dB/Octave Butterworth), Low-Pass (50 Hz - 250 Hz @ 12dB/Octave Butterworth), All-Pass: Yes
- Remote Controls: No
- Visual Indicators: Power (Blue), Protect (Red), Input Clip (Red), Output Clip (Blue/Red)
- Power Wire Gauge: 8 AWG
- Power Input Connector: Compression Terminal Block
- Speaker Wire Gauge: 16 AWG
- Speaker Output Connector: 4-Pin Molex
- Cooling: Convection
- Heatsink: Extruded Aluminum
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 80A MAXI, Littelfuse #0299080
- Average Current Draw (13.8V Music): 29 A (4Ω Stereo, 2Ω Stereo, 4Ω Bridged)
- Max. Current Draw (13.8V Sinewave): 55 A (4Ω Stereo), 85 A (2Ω Stereo), 90 A (4Ω Bridged)
- Dimensions (H x W x D): 1.7" x 4.25" x 8.41" (42.8 mm x 108 mm x 213 mm)
- Included in the Box: Control Cover, Extension Harnesses, Pwr/Gnd/Rem Connector, Front RCA Input Harness, Rear RCA Input Harness, Front Speaker Out Harness, Rear Speaker Out Harness, Allen wrench, RF sticker, PRESET warning label, Performance verification certificate
- Does not include harnesses

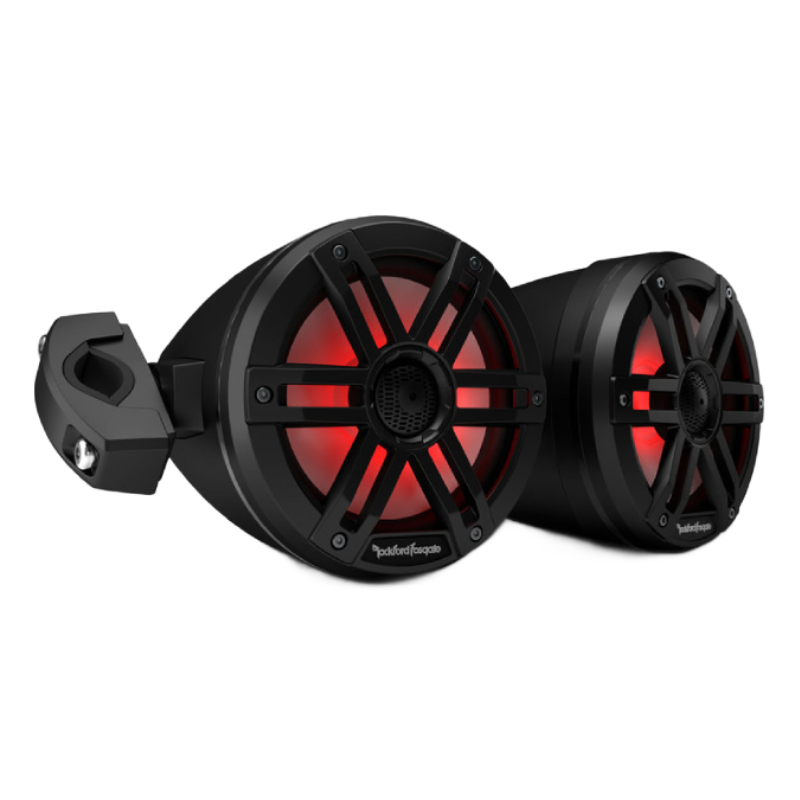

M1WL-65MB
- Nominal Impedance: 4Ω
- Speaker Connector: 6-pin Deutsch™/Amphenol™
- Frequency Response: 38 Hz - 22 kHz
- Enclosure Material: High-density ASA
- Enclosure Design: Sealed
- Speaker Series: M1-65
- Speaker Size: 6.5"
- Speaker Quantity: 2
- Speaker Type: 2-Way Loaded Enclosure
- Power Handling: 75 Watts (RMS), 300 Watts (PEAK)
- LED Current Draw: 0.25 A
- LED Voltage Range: 9 - 16 VDC
- LED Recommended Fuse: 1 A
- Dimensions: 9.6" x 7.1" x 8.1" (243.2 mm x 180.5 mm x 206.4 mm)
- In The Box: (2) Loaded moto-cans, (2) Universal clamps, (4) Grommets, (2) Security bolt safety covers, (1) Safety Torx wrench, (2) 1" to 1.6" rubber inserts and stainless screws, (2) 1.6" to 2" rubber inserts and stainless screws, (2) 2-pin Deutsch Pigtails
PMX-RGB
- Max Speaker Capacity: 16 Speakers and/or Subwoofers
- Power/Ground Cable: Extended 16" from box
- Signal Cable: 8 cables extended 16.5" from box
- Max Cable Length: 100-ft (30.48 m)
- Includes Y-Adaptors
- Internal Fuse: 2 Amp
- RF Connect™ Capacity: Unlimited number of PMX-RGB
- Note: Slight dimming may occur at the end of the string
- UPC: 780687360061
- Weight: 58
