Kenwood Excelon  Tacoma Sound System-4

Kenwood DMX47S 6.8" Digital Multimedia Receiver w/ Android Auto, Apple CarPlay + Metra 95-8214TB Dash Kit + Metra 70-1761 Wiring Harness + Axxess AXDI-TY1 + Axxess AXSWC SWC Interface

Item #91321

Condition:   Brand New

Product Highlights

  • Kenwood DMX47S 6.8" Digital Multimedia Receiver
  • Android Auto & Apple CarPlay Compatibility
  • Metra 95-8214TB Dash Kit
  • Metra 70-1761 Wiring Harness
  • Axxess AXSWC Steering Wheel Control Interface

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$386.49

Reg. Price $535.50  Save $149.01

Out of Stock Check out other products listed below
Kenwood Excelon Authorized Dealer


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

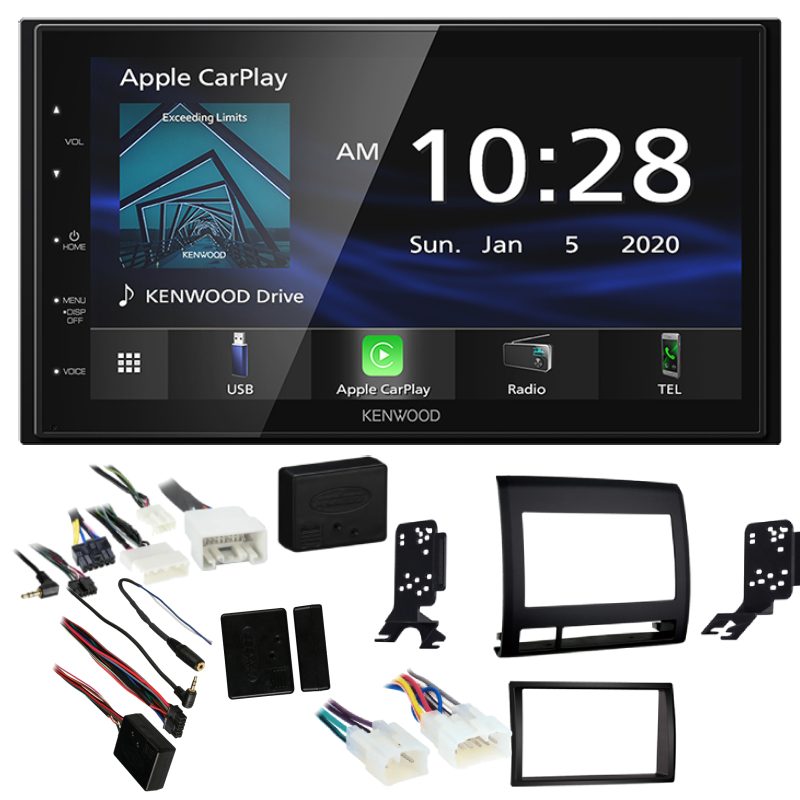

PCH Custom Audio Tacoma Sound System-4 includes Kenwood DMX47S 6.8" Digital Multimedia Receiver w/ Android Auto, Apple CarPlay + Metra 95-8214TB Dash Kit + Metra 70-1761 Wiring Harness + Axxess AXDI-TY1 + Axxess AXSWC SWC Interface


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Kenwood DMX47S
  • • Axxess AXDI-TY1
  • • Axxess AXSWC
  • • Metra 95-8214TB
  • • Metra 70-1761

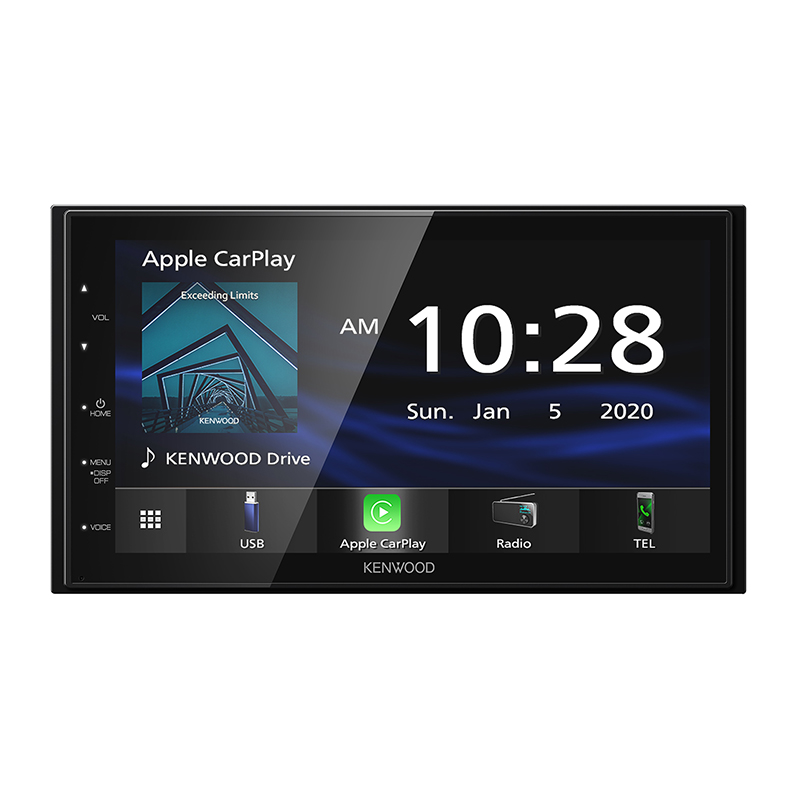

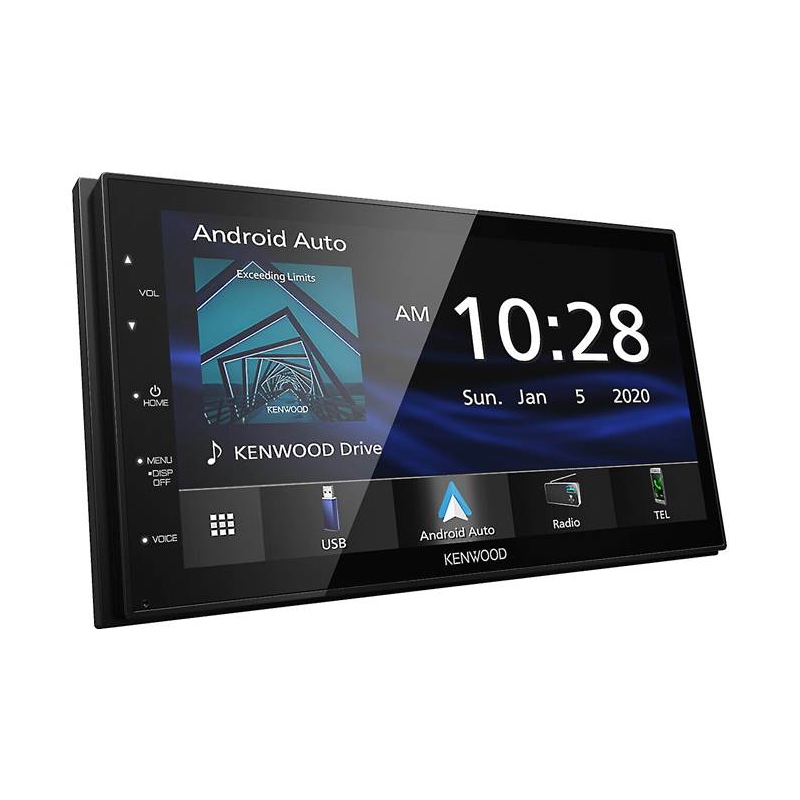

Kenwood DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android

Safe, Smart and Comprehensive Control with Apple CarPlay

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.

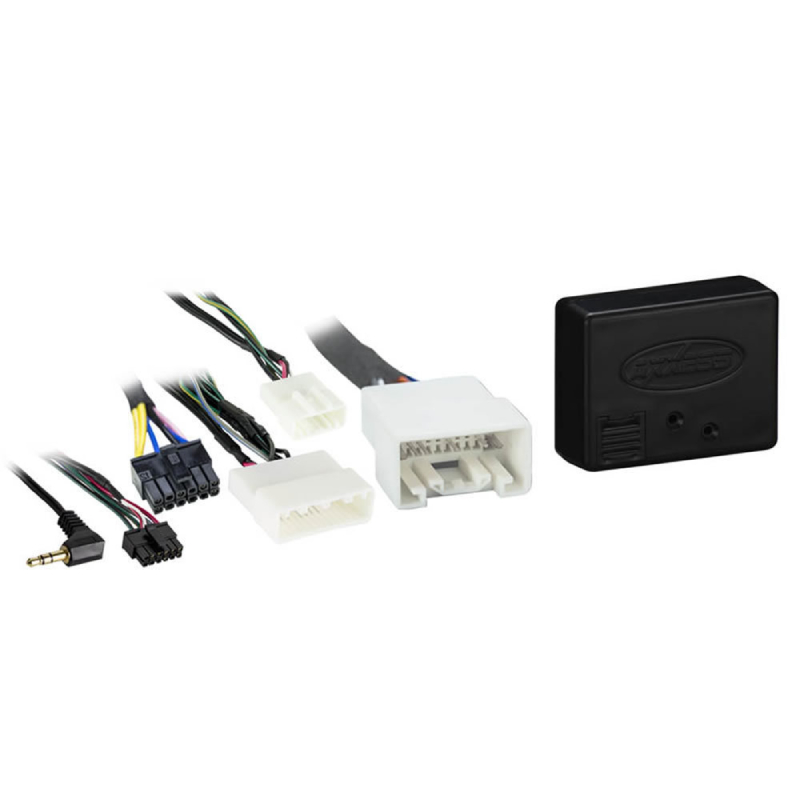

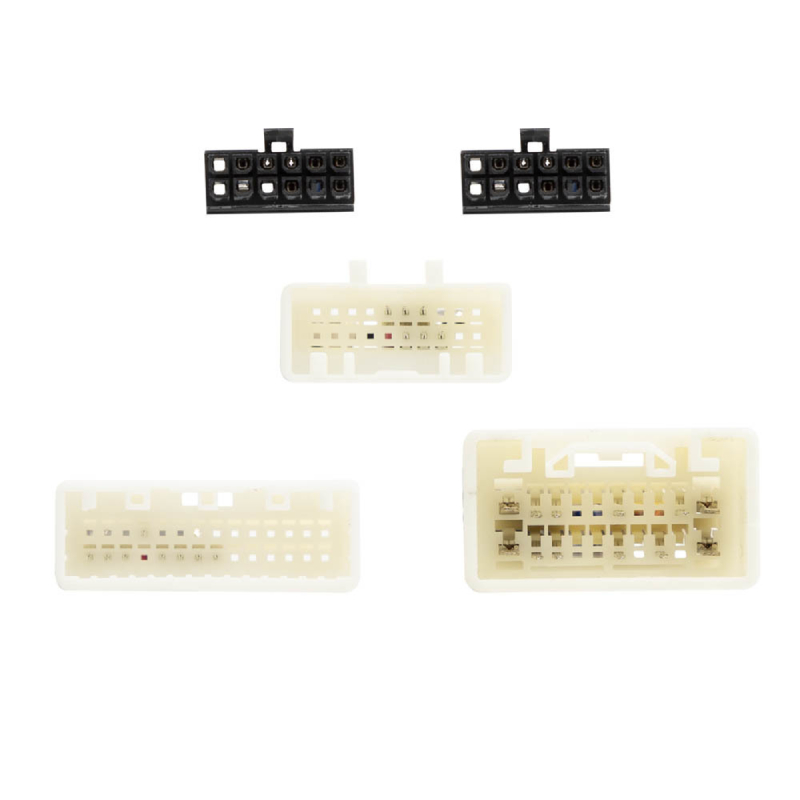

Axxess AXDI-TY1 Amp Interface for Lexus/Toyota 2001-2015

Provides a Low-Noise Preamp Output

This is a device that allows you to easily add an amplifier to your vehicle's factory audio system. It provides a direct connection to the factory radio, allowing you to retain all of the original equipment functions and features. The interface provides a low-noise preamp output, allowing you to easily connect an aftermarket amplifier. The interface also features a remote turn-on output, allowing you to easily turn your amplifier on and off with the factory radio. The interface is designed to be used with a variety of radio and amplifier combinations, making it a versatile and cost-effective solution.

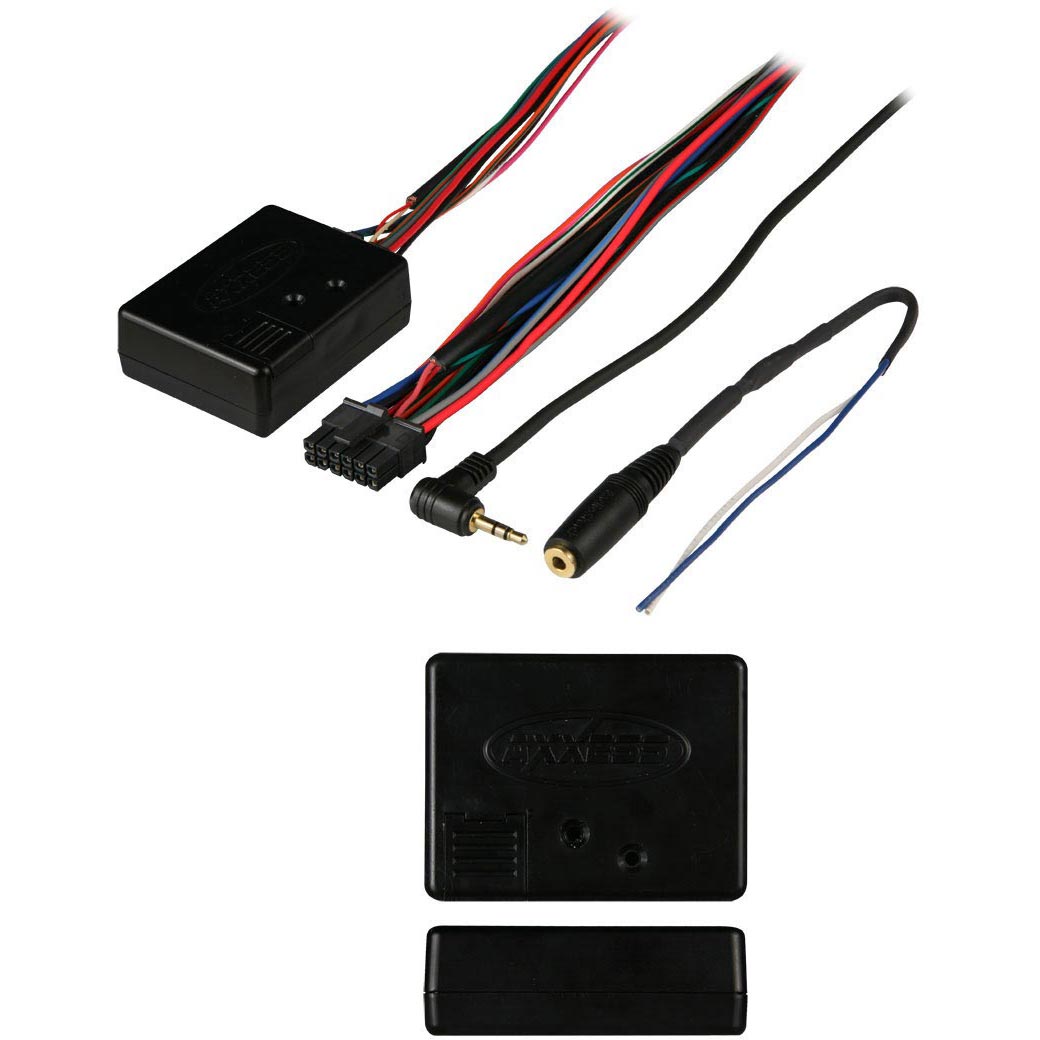

Axxess AXSWC Universal Steering Wheel Control Interface

Steering Wheel Control Harness

This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.

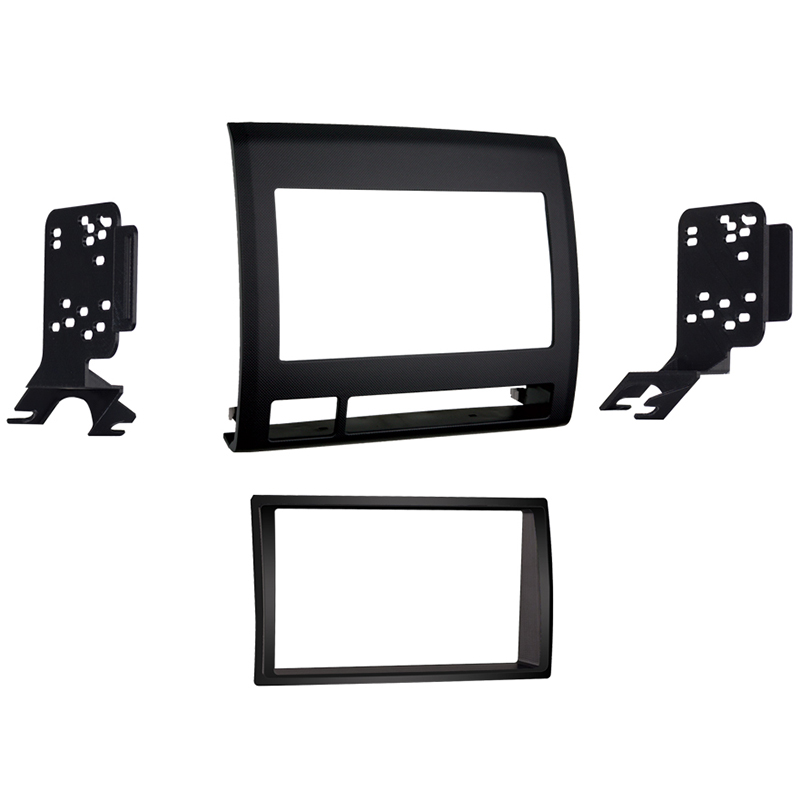

Metra 95-8214TB 2-DIN Dash Installation Kit for 05-2011 Toyota Tacoma Vehicles

Match the Original Look

This stereo installation kit is engineered to help you install an aftermarket 4" tall (Double-DIN) radio into the original vehicle dashboard. Also, this dash kit helps make radio replacement simple and is painted black and “golf ball” textured to match the original look and feel of the vehicle's dashboard.

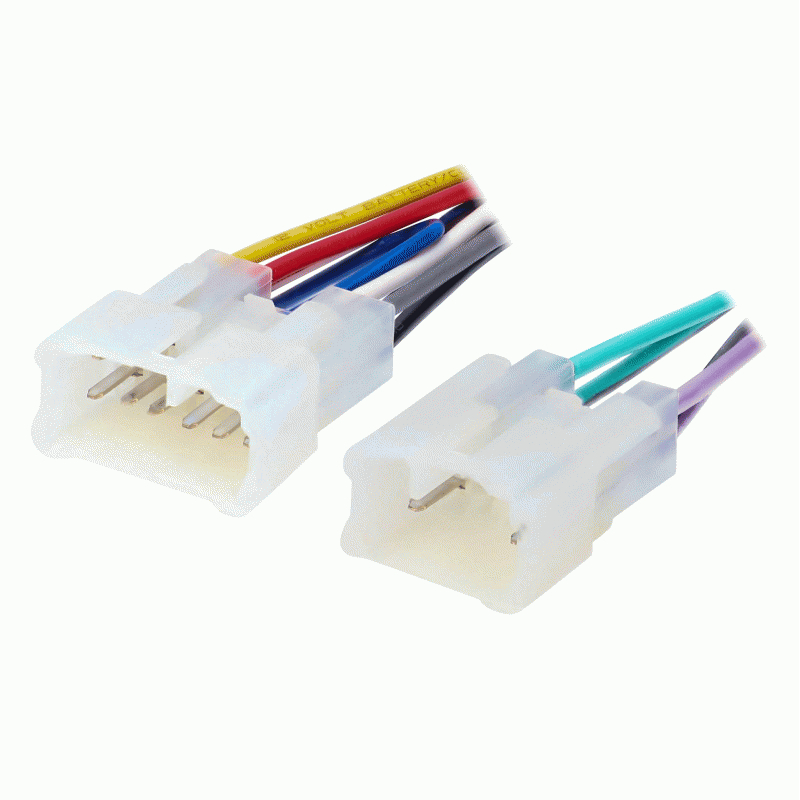

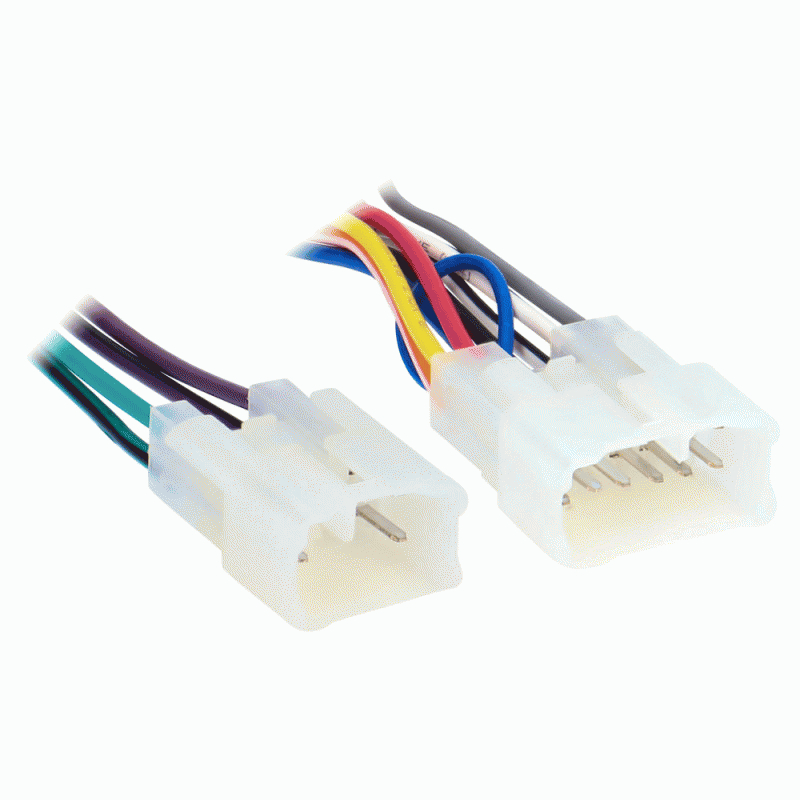

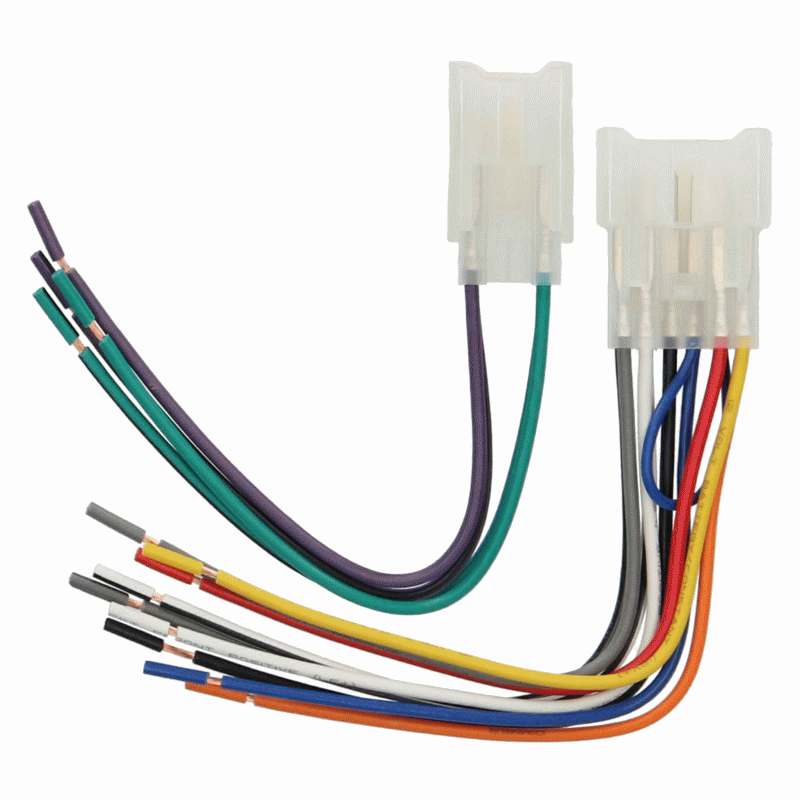

Metra 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up

No cutting of factory wiring is needed

Install a new car radio faster with this wiring harness that plugs right into the vehicle's connectors, allowing you to hook up the radio into the vehicle's electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver.

  • Vehicle Make : Toyota
  • Vehicle Model : Tacoma

DMX47S 6.8" Digital Multimedia Receiver with Capacitive Touch Screen, Built-in Bluetooth, Android Auto, Apple CarPlay, USB Mirroring for Android

Features:

  • 6.8" WVGA Monitor with Capacitive Touch Panel
  • Apple CarPlay™ & Android Auto™
  • USB Mirroring for Android
  • 13 Band EQ with Digital Time Alignment
  • Rear View Camera Input with Parking Guidelines
  • Built-in Bluetooth
  • Short Chassis
  • 2 Preouts 2V + Subwoofer Out



Monitor Section:

  • Picture size: 6.75inches(diagonal) wide
  • W x H: 151.8 x 79.7mm, 5-15/16 x 3-1/8 inch
  • Display system: Transparent TN LCD panel
  • Drive system: TFT active matrix system
  • Number of pixels:1,152,000
  • 800H x 480V x RGB
  • Effective pixels: 99.99%
  • Pixel arrangement: RGB striped arrangement
  • Back lighting: LED



USB I/F Section:

  • USB Standard: USB2.0 High Speed
  • File System: FAT 16/32 , exFAT
  • Maximum Power Supply Current: DC5V=1.5A
  • D/A Converter: 24Bit
  • Audio Decoder: MP3 / WMA / AAC / WAV / FLAC
  • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / .mkv
  • Frequency response 192k Sampling: 20 - 20,000 Hz
  • 96k Sampling: 20 - 20,000 Hz
  • 48k Sampling: 20 - 20,000 Hz
  • 44.1k Sampling: 20 - 20,000 Hz
  • Total harmonic distortion 1kHz: 0.2
  • Signal to Noise ratio: 75dB
  • Dynamic range: 75dB



Bluetooth Section:
  • Technology: Bluetooth Ver4.1
  • Frequency: 2.402 – 2.480 GHz
  • RF Output Power: (E.I.R.P.) +8dBm (Avg.), Power Class 1
  • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Audio Codec: SBC / AAC
  • Multi Profile Support: Multi Profile



Profile:

  • HFP (V1.6) (Hands Free Profile)
  • SPP (Serial Port Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (V1.5) (Audio/Video Remote Control Profile)
  • PBAP (Phonebook Access Profile)



Graphics equalizer:

  • BAND: 13 Band
  • frequency (Hz) (BAND1-13): 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k 10k/ 16k
  • Gain: -09 to +09 (-9dB to +9dB)



2Way X'Over:

  • HIGH PASS FILTER frequency (Hz): Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250
  • SLOPE: -6/ -12/ -18/ -24 dB/Oct.
  • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
  • LOW PASS FILTER frequency (Hz): 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250/ Through
  • SLOPE: -6/ -12/ -18/ -24 dB/Oct.
  • Gain: -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB



Position:

  • Front / Rear /Subwoofer Delay: 0 to 6.1m (0.01m Step)
  • Gain: -8 to 0dB
  • Subwoofer Level: -40 to +6dB



FM:
  • Frequency Range: 87.9 - 107.9 MHz
  • (Frequency step): (200kHz)
  • Usable sensitivity: 16.2dBf
  • S/N:30dB: 1.8μV/75 Ohms
  • Quieting sensitivity -
  • DIN S/N 46dB -
  • Frequency response / (±3.0dB): 30Hz - 14kHz
  • S/N (dB): 50dB (MONO)
  • Selectivity -
  • Stereo separation: 35dB (1kHz)



AM:
  • Frequency Range: 530 - 1700 kHz
  • (Frequency step): (10kHz)
  • Usable sensitivity: 99μV(40dBμ)
  • Video: Color system of external video input NTSC/ PAL
  • External video input level (Mini jacks): 1.0Vp-p / 75 Ohms
  • External audio max input level (RCA jacks): 1.5V / 25k Ohms
  • Video Output level (RCA jacks): 1.0Vp-p / 75 Ohms



Audio:
  • Maximum Power Output (Front&Rear): 45Wx4
  • Full Bandwidth Power / (at less than 1%THD): 21Wx4
  • Output frequency band: 20 - 20,000Hz
  • Preout level (V): 2.0V / 10k Ohms
  • Preout impedance (Ω): 1.4k Ohms
  • Speaker Impedance (Ω): 4-8 Ohms



General:
  • Operating voltage: 12V DC Car Battery
  • Installation Dimensions WxHxD: 182 x 112 x 75 (mm) 7-3/16 x 4-7/16 x 2-15/16 (inch)
  • Main Unit Installation size W x H x D(w/o sleeve): 178 x 100 x 75 (mm) 7 x 3-15/16 x 2-15/16 (inch)
  • Weight Main unit: 1.1 kg / 2.4 lbs
  • (Including Sleeve and Trim plate): 1.3 kg / 2.8 lbs





AXDI-TY1 Amp Interface for Lexus/Toyota 2001-2015

Features:

  • Pre-wired AXSWC harness (AXSWC sold separately)
  • Retains the factory AUX-IN jack (less Avalon 2005-2010)
  • Designed for amplified models
  • Retains balance
  • Micro B USB updatable



Vehicle Applications:

  • Lexus
    • ES Series 2007-2012
    • ES Series
    • ES300 (multi CD radio only) 2002-2003
    • ES330 (multi CD radio only) 2004-2006
    • GS Series 2001-2005 (1)
    • IS Series 2002-2005
    • LS Series 2001-2006 (2)
    • RX Series 2004-2009
    • SC Series 2002-2010 (1)
  • Toyota
    • 4-Runner 2003-2013
    • Avalon 2005-2010 (3)
    • Avalon 2011-2012
    • Camry Solara 2004-2008
    • Camry (w/o nav) 2012-2013
    • Camry 2007-2011
    • Corolla 2003-2011
    • FJ Cruiser 2011-2014
    • Highlander 2008-2013
    • Matrix 2005-2012
    • Prius 2004-2011
    • Prius 3rd Gen (w/o nav) 2012-2015
    • Prius Plug-In (PHV) (w/o nav) 2012-2015
    • Rav-4 2004-2014.5
    • Sequoia (w/o nav) 2013
    • Sequoia 2005-2012
    • Sienna 2004-2014
    • Tacoma 2005-2013
    • Tundra 2006-2013
    • Tundra (Double Cab) 2004-2005
    • Venza (w/SD card based nav) 2013-2014
    • Venza 2009-2012



(1) These models require the ASWC-TOY-LEX (sold separately) instead of the ASWC-1 (sold separately) to retain steering wheel controls. The ASWC-1/AUX-IN harness will not be used in these applications.

(2) Steering wheel controls cannot be retained in this application.


(3) The ASWC-1/AUX-IN harness will not be used in this application.





AXSWC Universal Steering Wheel Control Interface

Features:

  • Works with Many Popular Aftermarket Receivers
  • One Interface does it all – No additional interfaces needed
  • Designed to be compatible with all major radio brands
  • Auto detects (1) vehicle type, radio connection, and presets controls
  • Ability to dual assign steering wheel control buttons
  • Can be manually programmed for most vehicles
  • Retains settings even after battery disconnection or interface removal
  • All connections done at the radio location
  • Micro “B” USB updatable





95-8214TB 2-DIN Dash Installation Kit for 05-2011 Toyota Tacoma Vehicles

Features:
  • Installation dash kit for Double DIN Radios
  • For Toyota Tacoma 2005-2011 vehicles
  • Includes a storage pocket below the radio for single DIN mounting
  • Designed and manufactured with precision tolerances
  • Gapless fit between the dash and the kit
  • Painted to match factory dash color
  • Factory matched texture style
  • High-grade ABS plastic construction
  • Color: Factory Black over the factory golf ball texture





70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up

Features:

  • Plugs into Car Harness at radio
  • Power – 4 Speakers



Vehicle Applications:

  • Hino 1987-Up
  • Scion 1987-Up
  • Subaru 1987-Up
  • Toyota 1987-Up
  • See the Vehicle Application Guide for specific vehicle applications

(1) Power & speaker only, no illumination control (disregard illumination wire, will damage circuit)

  • UPC: 798418837119
  • Weight: 17
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
