Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

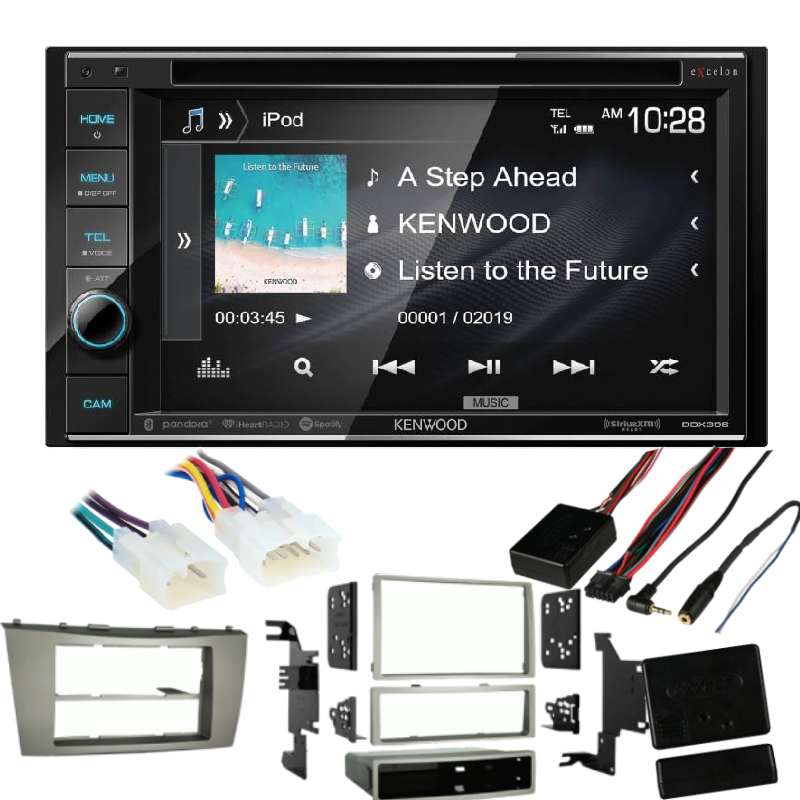

PCH Custom Audio Camry Radio Replacement-Bundle18 Radio Replacement Bundle for Camry includes the following: Kenwood Excelon DDX396 2-DIN 6.2" CD/DVD/AM/FM Car Receiver with Built-in Bluetooth, Rear View Camera, Pandora, iHeart Radio, Spotify App Ready + Axxess AXSWC Universal Steering Wheel Control Interface + Metra 99-8218 Toyota Camry 2007-Up Dash Kit + Metra 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Kenwood Excelon DDX396
- • Axxess AXSWC
- • Metra 99-8218
- • Metra 70-1761
- • Owner's Manual

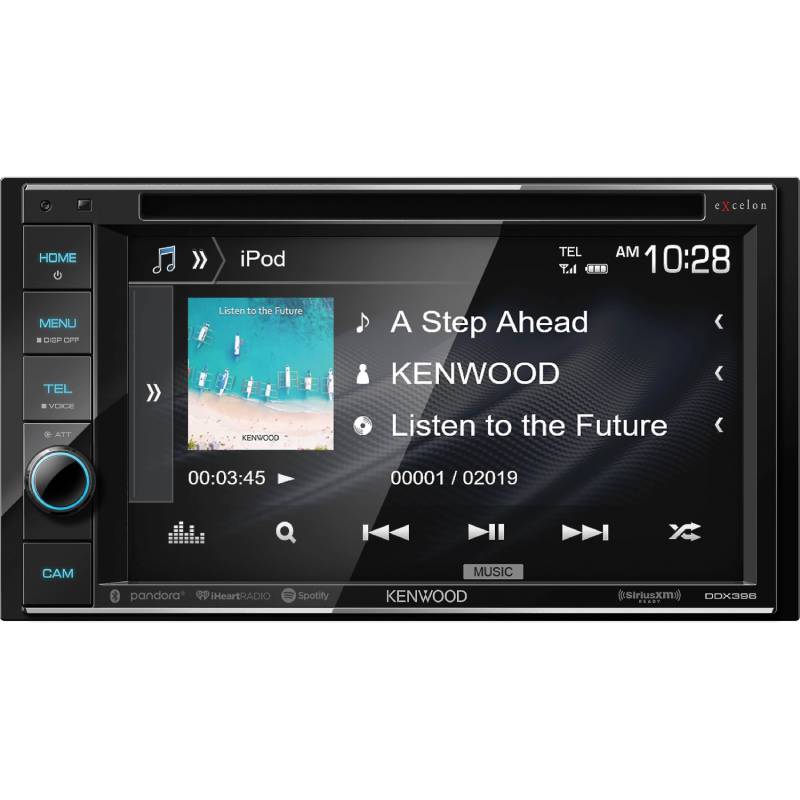

Kenwood Excelon DDX396 2-DIN 6.2" CD/DVD/AM/FM Car Receiver with Built-in Bluetooth, Rear View Camera, Pandora, iHeart Radio, Spotify App Ready
Music Application Controls
Connect your iPhone or Android device to access and control the most popular music application sources. Simply install the Spotify, Pandora, and/or iHeartAuto apps on your device, then connect iPhone (USB or Bluetooth) or Android (Bluetooth only) to enjoy music playback.

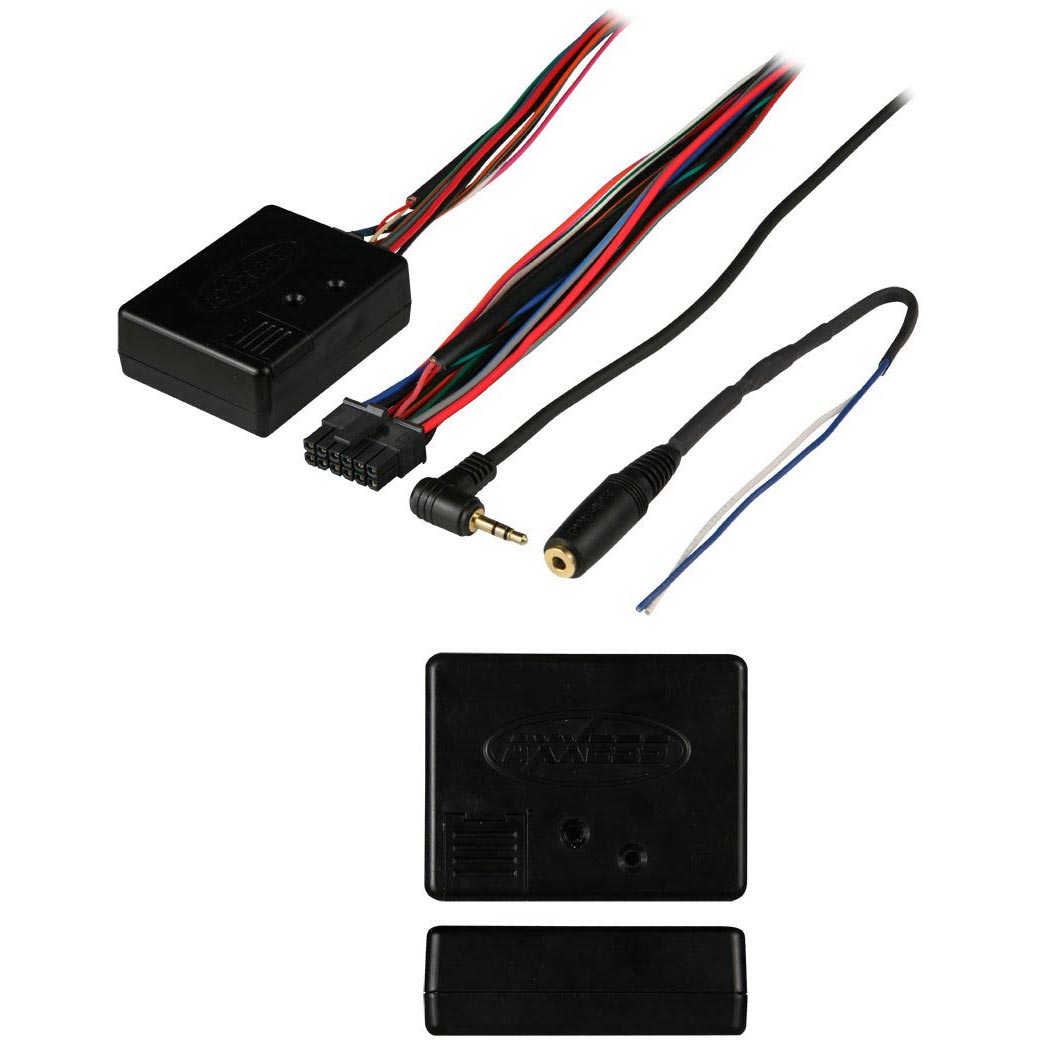

Axxess AXSWC Universal Steering Wheel Control Interface
Steering Wheel Control Harness
This wiring harness allows you to connect various electrical components of a car to the steering wheel. It is typically used to connect a hands-free device such as a Bluetooth headset, or a car stereo system, to the steering wheel. This harness is designed to provide a secure connection that ensures the electrical components are securely connected to the steering wheel.

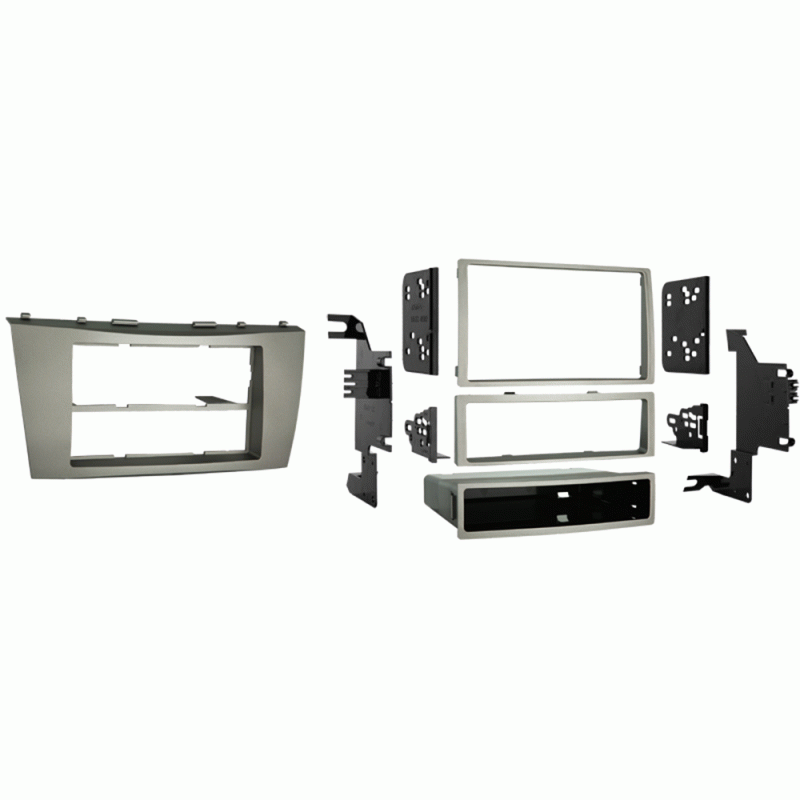

Metra 99-8218 Toyota Camry 2007-Up Dash Kit
Easy to Install
This stereo installation kit has been engineered to help you install either a 2" tall (Single-DIN) or a 4" tall (Double-DIN) aftermarket radio into the original vehicle dashboard. This dash kit makes radio replacement simple and comes with a pocket that is installed below the 2" radio to fill the extra space in the radio opening, which can be used for storage. The dash kit is painted silver and contoured to match the original look and feel of the vehicle's dashboard. Installing an aftermarket radio can upgrade the sound quality and provide additional features the original factory radio couldn't offer but requires this dash kit to make it fit.

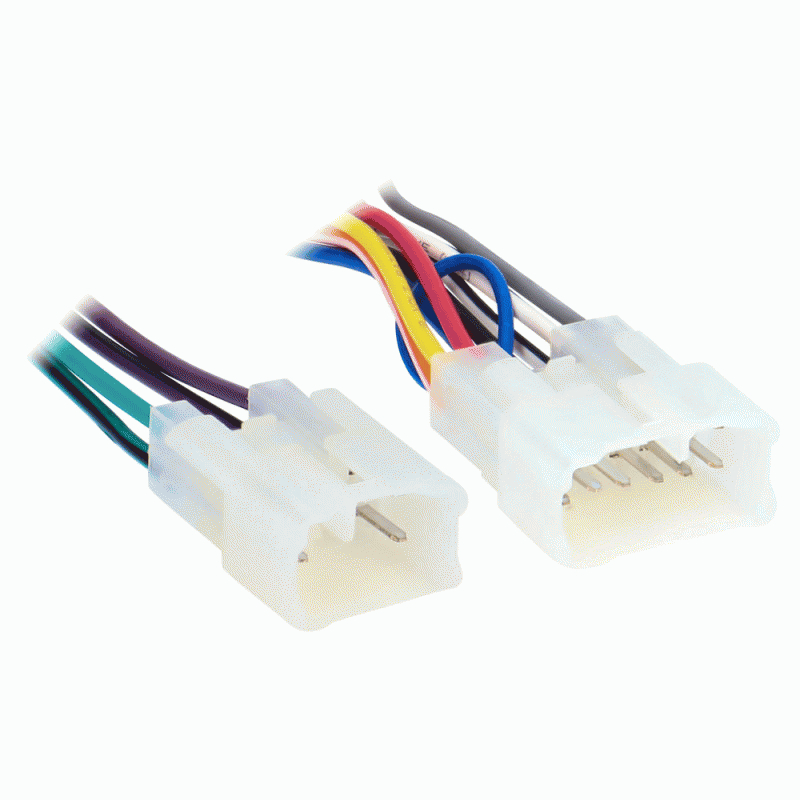

Metra 70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
No cutting of factory wiring is needed
Install a new car radio faster with this wiring harness that plugs right into the vehicle's connectors, allowing you to hook up the radio into the vehicle's electrical system. On one side, the wiring harness is color-coded with wires that you'll connect or solder into the aftermarket radio/receiver.
- Vehicle Make : Toyota
- Vehicle Model : Camry
DDX396 2-DIN 6.2" Wide VGA Color LCD In-Dash CD/DVD/AM/FM Car Receiver with Built-in Bluetooth, Rear View Camera Video Input | Pandora / iHeart Radio / Spotify App Ready
Features:
- 6.2 inch Wide VGA Color LCD Display with LED Backlight
- Clear Resistive Panel
- Touch Panel Control
- Variable Key Illumination
- Top Menu and Background Customize
- Multi-Language Menu & Tag (22 Languages (English, Spanish, French and others)
Audio/Video Features:
- Maximum Output Power : 50W x 4 (MOSFET Power IC)
- 3 Preouts (5V)
- 1 AV Output (V:RCA)
- 1 RCA Video Input for Rear View Camera
- Parking Guide Line
- 13 Band Graphic Equalizer
- Time Alignment
- System E's (Built-in HPF & LPF)
- Loudness
- Installer & Backup Memory (Store & Backup Audio/Video Settings)
- DVD Video/±R/RW Playback, MPEG 1/2 Video Playback
- VCD Compatible, MP3 / WMA / WAV / CD-R / -RW Playback
- CD Text Ready, Repeat / Random Play
- 24 Bit D/A Converter
- Sirius XM Ready
- FM / AM 20 Station Presets (FM x 15, AM x 5)
- RBDS with Radio Text Plus
- AME (Automatic Memory Entry), Up/Down Seek Tuning
- USB Interface x 1 (Rear)
- MP3 / WMA / AAC / WAV / FLAC Playback, MPEG 1/2 Video / JPEG Playback
- iPhone/iPod USB Direct Connection with Optional Cable *1
- iPhone App Mode
- Pandora / iHeart Radio / Spotify App Ready (iPhone App)
- Android Music Play Back
- Android Rapid Charge
- Picture size: 6.2 inches(diagonal) wide
- W x H: 137.5mm x 77.2 mm , 5-7/16 x 3-1/16
- Display system: Transparent TN LCD panel
- Drive system: TFT active matrix system
- Number of pixels: 1,152,000(800H x 480V x RGB)
- Effective pixels: 99.99%
- Pixel arrangement: RGB striped arrangement
- Back lighting: LED
- DVD Section D/A Converter: 24Bit
- Audio Decoder: Linear PCM,Dolby digital,MP3/WMA/AAC(.m4a)/WAV
- Video Decoder: MPEG1/MPEG2/JPEG
- Total harmonic distortion 1kHz: 0.010%
- Signal to Noise ratio: 99dB(DVD-Video 96k)
- Dynamic range: 99dB(DVD-Video 96k)
- DISC Format: DVD-Video/VIDEO-CD/CD-DA
- Sampling frequency: 44.1kHz/48kHz 96kHz
- Quantifying bit number: 16/20/24bit
- USB Standard: USB2.0 Full Speed / High Speed
- Compatible Devices: Mass storage class
- File System: FAT 16/32
- Maximum Power Supply Current: DC5V(DC logo)=1.5A
- D/A Converter: 24bit
- Audio Decoder: MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC
- Video Decoder: MPEG1/MPEG2/JPEG
- Technology: Bluetooth V3.0
- Frequency: 2.402 - 2.480 GHz
- Output Power: +4dBm (MAX),0dBm (AVE) Power Class 2
- Maximum Communication range: Line of sight approx.10m (32.8ft)
- Audio Codec: SBC/AAC
- Frequency Range: 87.9 MHz - 107.9 MHz
- (Frequency step): (200 kHz)
- Usable sensitivity: 7.2 dBf
- S/N:30dB: 0.63 μV / 75 Ohms
- Quieting sensitivity: 15.2 dBf
- S/N:50dB: 1.58 μV / 75 Ohms
- Frequency response (±3.0 dB): 30 Hz - 15 kHz
- S/N (dB): 68 dB(MONO)
- Selectivity: Over 80 dB(±400 kHz)
- Stereo separation:40 dB(1 kHz)
- Frequency Range: 530 kHz - 1700 kHz
- (Frequency step): (10 kHz)
- Usable sensitivity: 29 dBμ
AXSWC Universal Steering Wheel Control Interface
Features:
- Works with Many Popular Aftermarket Receivers
- One Interface does it all – No additional interfaces needed
- Designed to be compatible with all major radio brands
- Auto detects (1) vehicle type, radio connection, and presets controls
- Ability to dual assign steering wheel control buttons
- Can be manually programmed for most vehicles
- Retains settings even after battery disconnection or interface removal
- All connections done at the radio location
- Micro “B” USB updatable
99-8218 Toyota Camry 2007-Up Dash Kit
Features:
- DIN radio provision with pocket
- ISO DIN radio provision with pocket
- ISO DDIN radio provision
WIRING & ANTENNA CONNECTIONS
- Wiring Harness:
- 70-1761 (Sold Separately)
- TYTO-01 (Sold Separately)
- Antenna Adapter: Not Required
70-1761 Car Harness for Hino, Scion, Subaru, and Toyota 1987-Up
Features:
- Plugs into Car Harness at radio
- Power – 4 Speakers
Vehicle Applications:
- Hino 1987-Up
- Scion 1987-Up
- Subaru 1987-Up
- Toyota 1987-Up
- See the Vehicle Application Guide for specific vehicle applications
(1) Power & speaker only, no illumination control (disregard illumination wire, will damage circuit)
- UPC: 798418838956
- Weight: 13
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
