Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

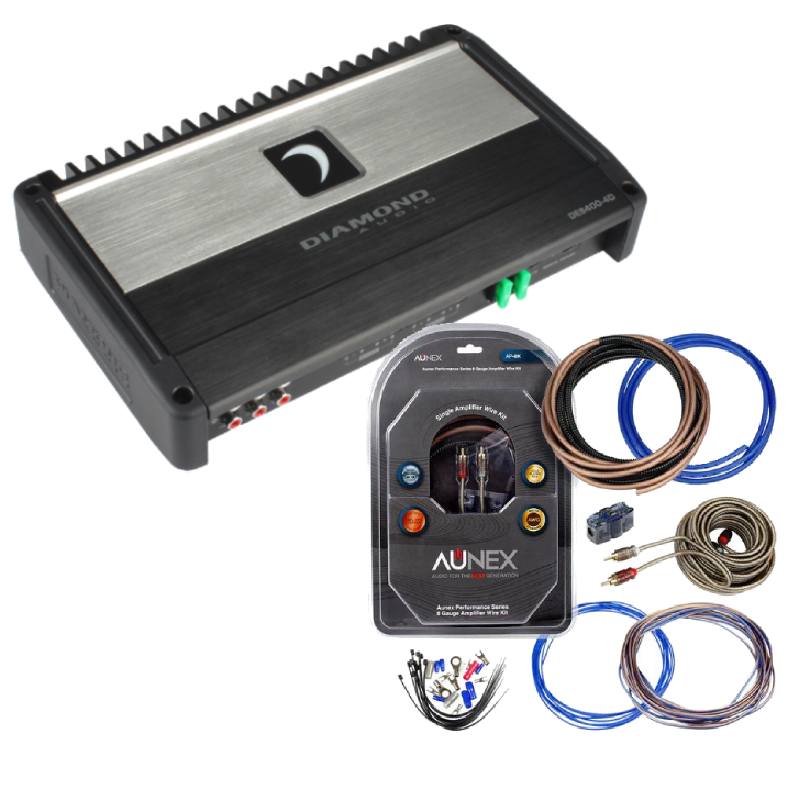

Diamond Audio DES400.4D-Bundle includes Diamond Audio DES400.4D 150WX4 @4Ohms Full Range Class D 4-Channel Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Diamond Audio DES400.4D
- • Aunex AP-8K

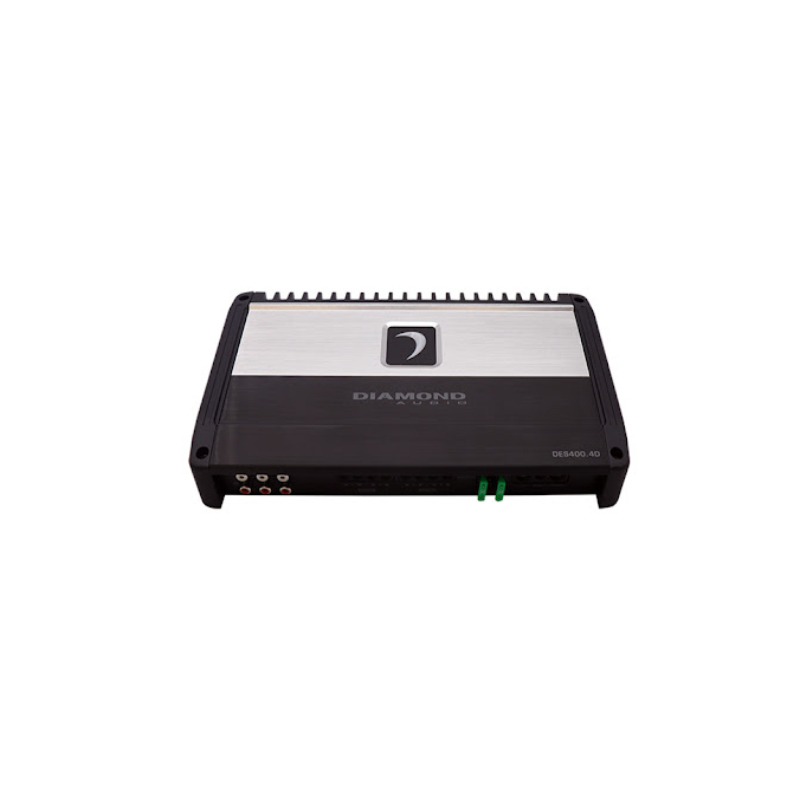

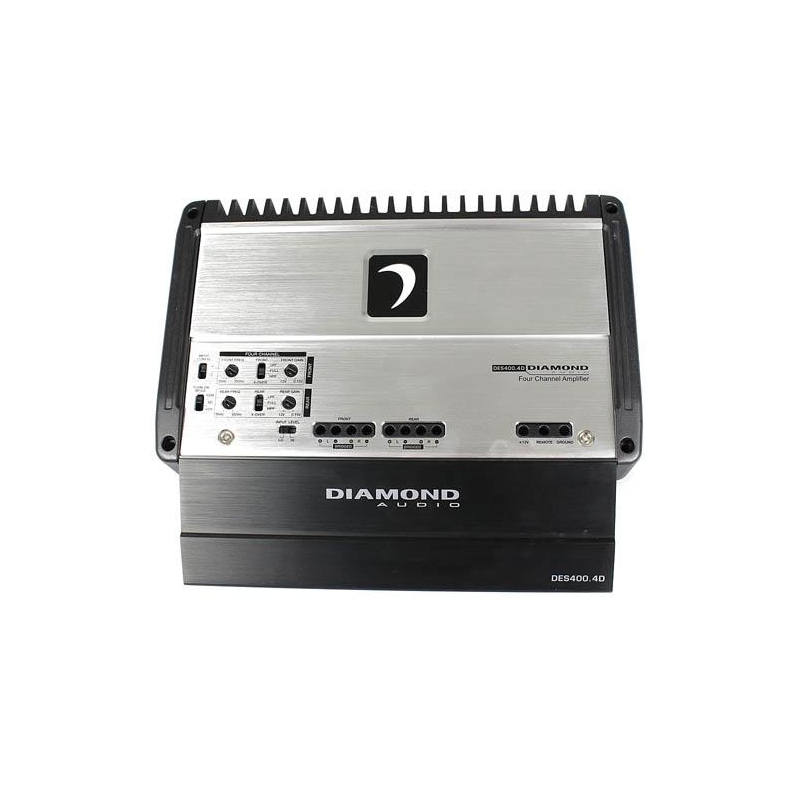

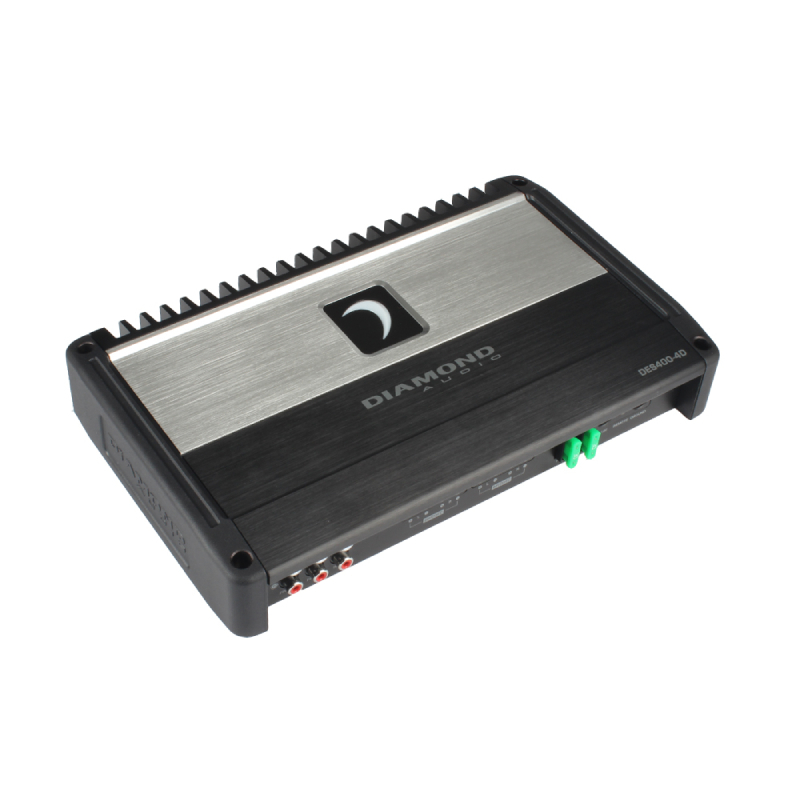

DES400.4D Diamond Elite Series 150WX4 @4Ohms Full Range Class D 4-Channel Amplifier
Unleash Crisp Sound
The Diamond Audio DES400.4D is a 4-channel amplifier from the Diamond Elite Series by Diamond Audio. It's designed to provide powerful and high-quality audio amplification for car audio systems. This amplifier can power four separate audio channels, typically used to drive front and rear speakers in a car audio setup.
Efficiency Redefined
Class D amplifiers are known for their efficiency and compact size. They use digital switching technology to amplify audio signals, making them more energy-efficient and generating less heat compared to traditional Class A/B amplifiers.
Precision Sound Engineering
The amplifier might include built-in crossover and filtering features. These help in directing specific frequency ranges to appropriate speakers, ensuring optimal sound quality and preventing distortion.

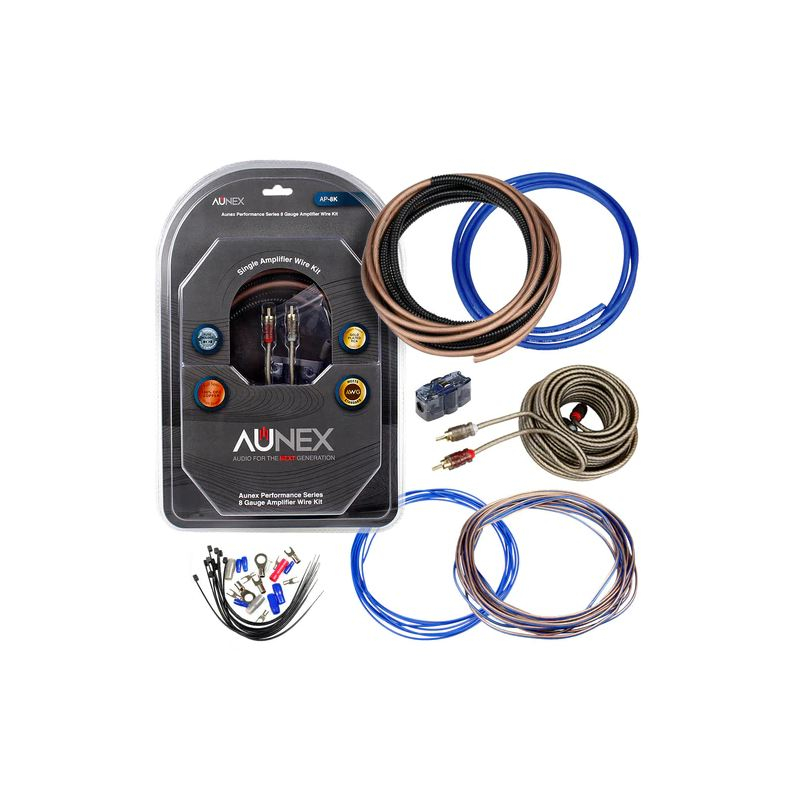

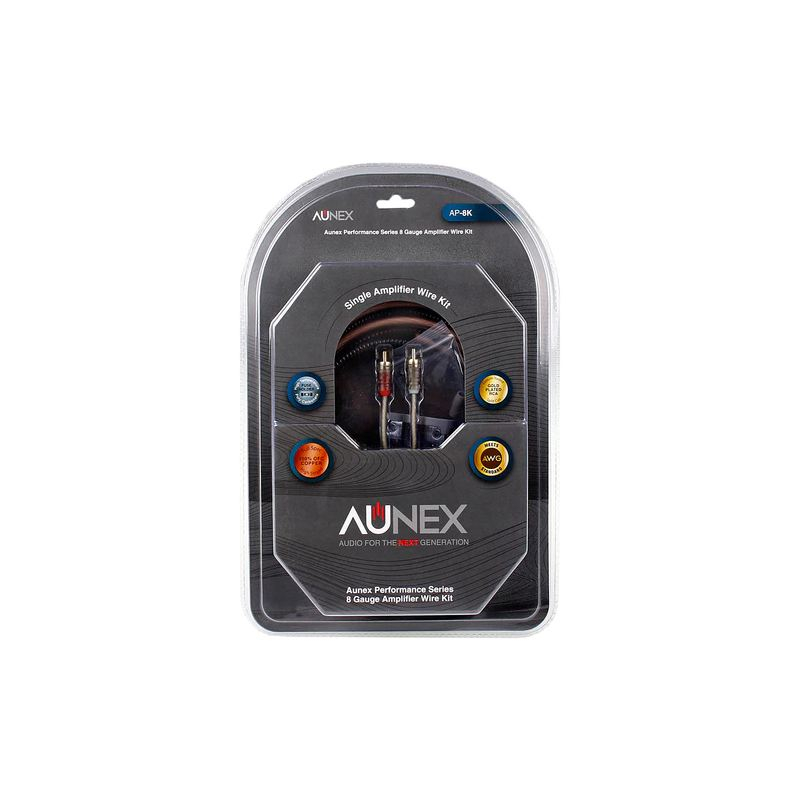

AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
100% Oxygen Free Copper
The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance.
The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.
Includes RCA Cables
Additionally, the kit includes RCA cables for connecting the amplifier to your audio sources, such as a head unit or signal processor. These cables are shielded to minimize interference and ensure a clean audio signal.
The wiring kit also includes fuse holders and fuses to ensure proper installation. These components protect your amplifier and electrical system from potential damage due to power surges or short circuits.
The Aunex AP-8K wiring kit is designed with convenience in mind. It includes all the necessary connectors, terminals, and wire ties to make the installation process straightforward and hassle-free.
DES400.4D Diamond Elite Series 150WX4 @4Ohms Full Range Class D 4-Channel Amplifier
Features:
- Latest High-Efficiency Full-Range Digital Topology
- Surface Mount Component Technology with 4-Layer PCB
- Common Compact Size with Single-Sided Connections and Top Mount Controls
- Handles HI and LO level input up to 12V
- Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
- Input configuration switch on 4 and 5 channel amplifiers
- Fully Variable 35Hz – 350Hz 12dB per Octave Crossovers
Specifications:
- RMS Power (2 Ω): 150W X 4
- RMS Power (4 Ω): 150 W X 4
- Bridged (mono 4 Ω): 300 W X 2 (4Ω Only)
- Topology: Full Range Class D
- Power Supply: Full PWM
- Power Supply Threshold: 10.0DVC – 17.0DVC
- Idle Current: (0.7A)
- THD 4 (1KHz @4Ω): 0.07%
- S-N Ratio (A-weighted @ 1W): -77.4dBA
- S-N Ratio (A-weighted @ 1W): -97.4dBA
- Input Sensitivity – Low Input Level: 0.2mV – 10.0V
- Input Sensitivity – High Input Level: YES- UP to 35 W RMS
- Input Impedance – Low Input Level: 22 KΩ
- Impedance – High Input Level: N/A
- Output Impedance: 0.047Ω
- Damping Factor (50Hz @ 4Ω): >250
- Bandwidth (-3dB): 10Hz-35kHz
- Crossover (-12 dB/ Oct) – Variable High Pass: 35Hz-350Hz
- Crossover (-12 dB/ Oct) – Variable Low Pass: 35Hz-350Hz
- Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
- Fuse Rating (ATC): 2 X 30A
- Dimentions- Length x Width x Height (inches): 9.3″ x 5.27″ x 1.75″
- Dimentions- Length x Width x Height (mm): 237 x 133.9 x 44.5 mm
AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC
Features:
- 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
- 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
- 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
- 17 Ft. 100% OFC Remote Cable — 74 Strands
- 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
- 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
- 4 - 8 Gauge Fuse Holder Rubber Adapter
- 10 - High-Temperature Wire Ties
- Firewall Grommet, Ring, Spade and Fork Terminals and Self Tapping Screws Included
- UPC: 798418839632
- Weight: 10
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
