AudioControl  ACM-4.300-Bundle

AudioControl ACM-4.300 75W x 4 @2Ohms Class D 4-channel Car Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit

Item #91826

Condition:   Brand New

Product Highlights

  • AudioControl ACM-4.300 Amplifier
  • 75W x 4 @ 2 Ohms
  • Class D 4-channel
  • Aunex AP-8K Wiring Kit
  • 8 Gauge

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Special offer:

$330.97

Reg. Price $518.95  Save $187.98
In Stock
In Stock

Only 2 left
  Free 2-Years Warranty Included!

Starting at $30/mo with . Check your purchasing power

No Credit needed for Learn More


AudioControl Authorized Dealer

Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

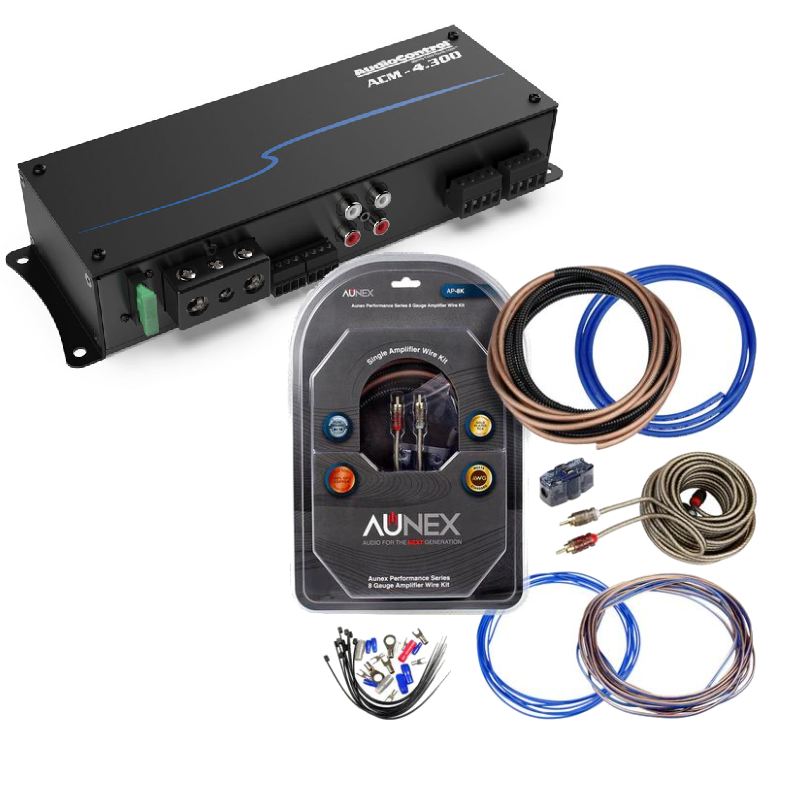

AudioControl ACM-4.300-Bundle AudioControl ACM-4.300 75W x 4 @2Ohms Class D 4-channel Car Amplifier + Aunex AP-8K 8 Gauge Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • AudioControl ACM-4.300
  • • Aunex AP-8K

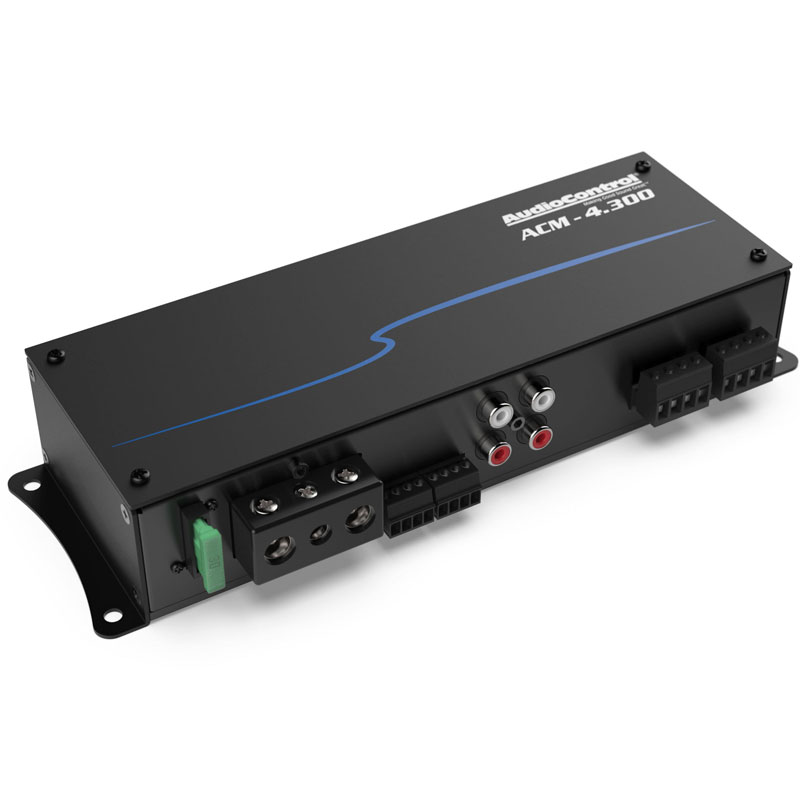

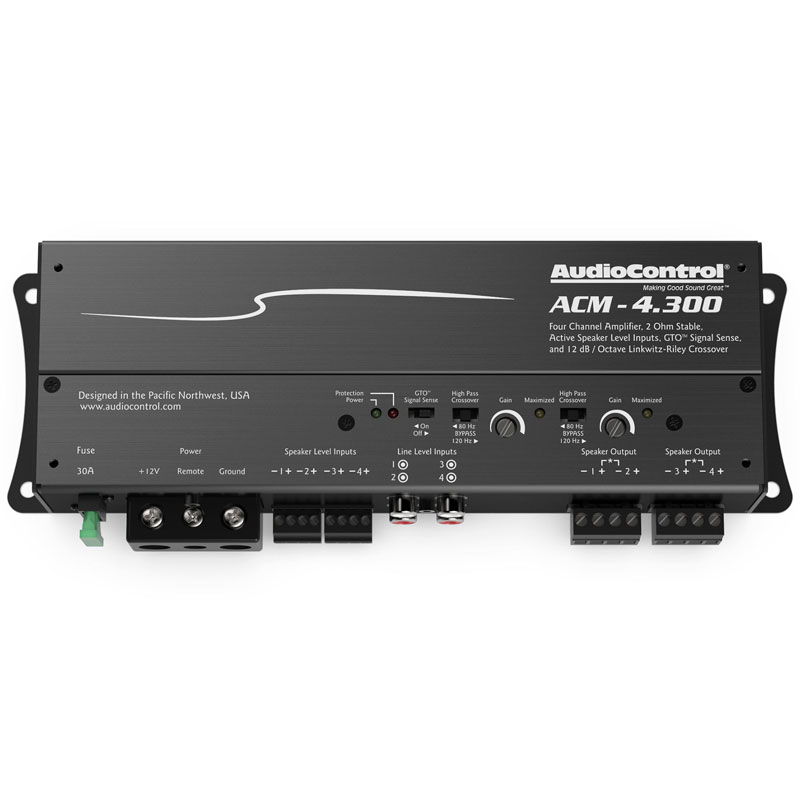

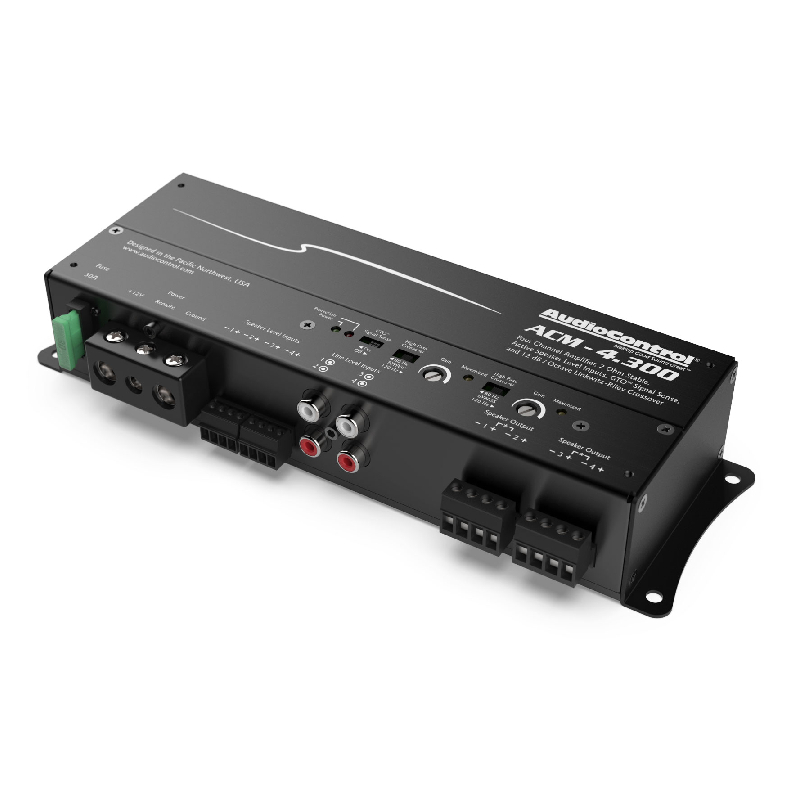

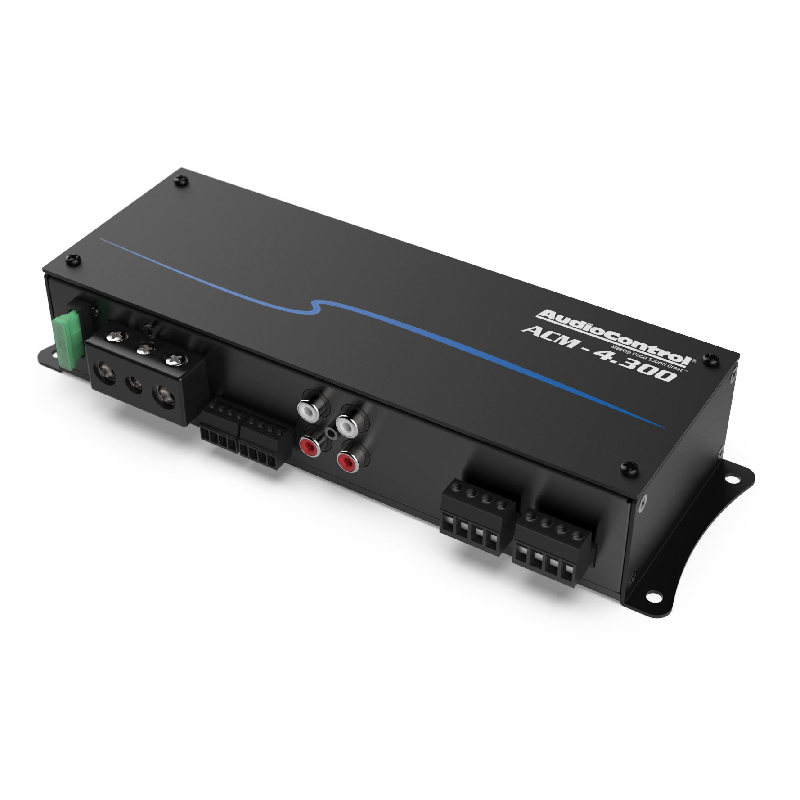

AudioControl ACM-4.300 ACM Series 75W x 4 RMS @2Ohms Class D 4-Channel Car Amplifier

The AudioControl ACM-4.300 is a versatile and high-performance 4-channel car audio amplifier designed to deliver exceptional sound quality and precise control over your vehicle's audio system. With its advanced features and compact size, this amplifier is a powerful tool for enhancing your audio experience on the road. Featuring a Class D amplifier design, the ACM-4.300 can deliver up to 300 watts of clean and efficient power to your speakers.

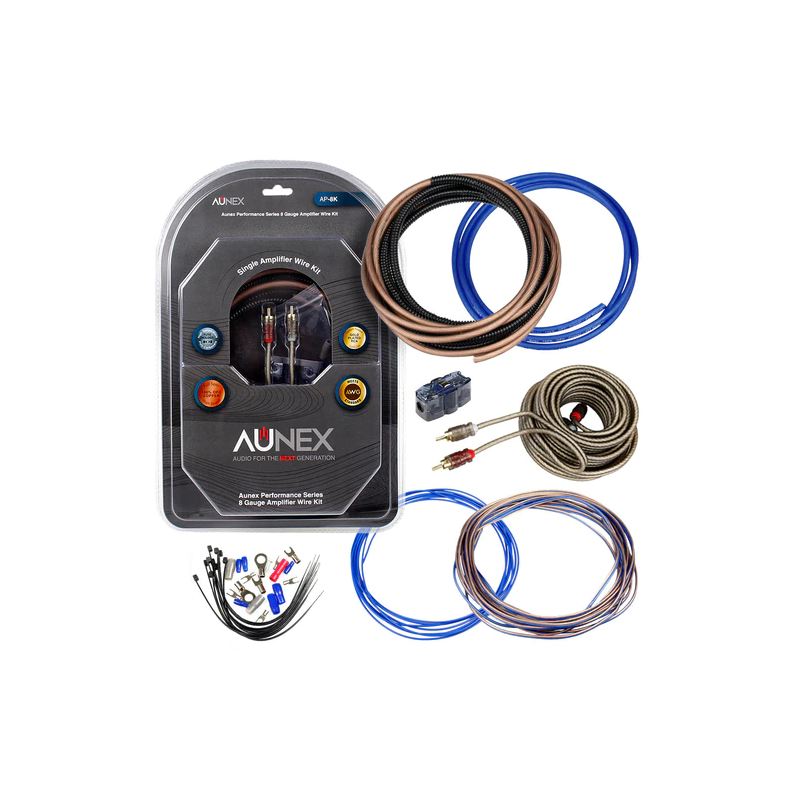

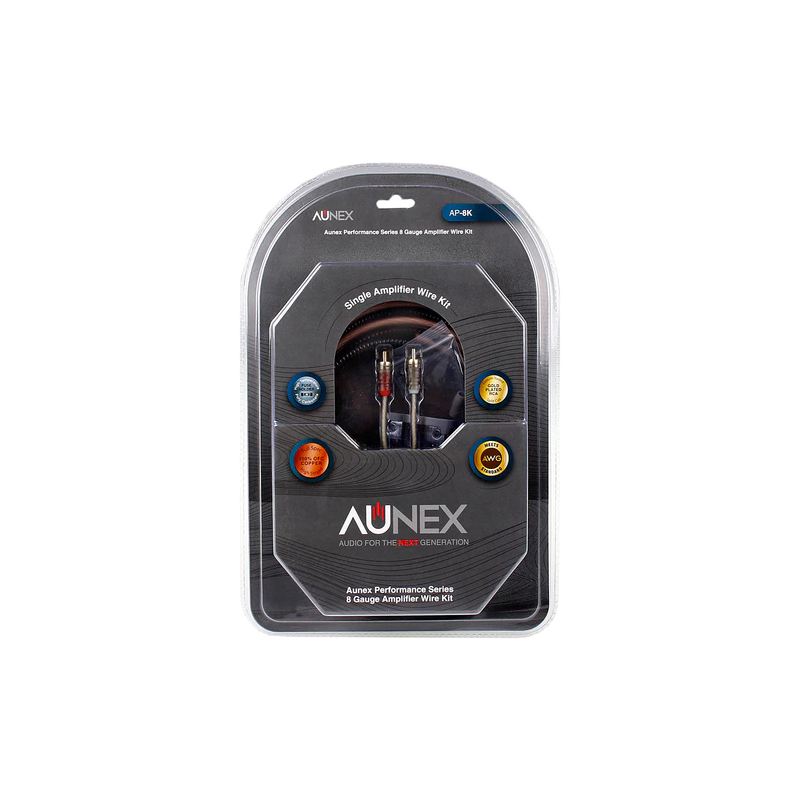

Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance. The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.

ACM-4.300 ACM Series 75W x 4 @2Ohms, Class D 4-Channel Car Amplifier

Features:

  • 4-channel car amplifier
  • 50 watts RMS x 4 at 4 ohms (75 watts RMS x 4 at 2 ohms)
  • 150 watts RMS x 2 bridged at 4 ohms
  • Class D amp technology
  • selectable high-pass filter (bypass, 80, 120 Hz at 12 dB/octave) on front and rear channels
  • subsonic filter: 32 Hz
  • preamp and speaker-level inputs
  • GTO™ (Great Turn On) signal-sensing turn-on with speaker-level input
  • fuse rating: 30A x 1
  • wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
  • dimensions: 9-1/2"W x 1-3/4"H x 3-1/2"D

Specifications:

  • 4 x 75 watts @ 2 ohms
  • 4 x 50 watts @ 4 ohms
  • 150 watts @ 4 ohms bridged
  • Preamp Inputs: 4 Balanced
  • Preamp Input Voltage Range: 500 mV – 6 Vrms
  • Speaker Level Inputs: 4
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms
  • Frequency Response: 10 Hz – 22 kHz
  • Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
  • THD+N: < 0.01%
  • Power / Ground Wire Gauge: 10 to 4 AWG wire
  • Fuse Rating: 1 x 30 A
  • Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
  • PFM Subsonic Filter: 32 Hz
  • Dimensions: 9.4″W x 3.0″D x 1.75″H
  • GTOTMSignal Sense
  • Active speaker-level inputs for OEM integration
  • RCA Line Inputs
  • Linkwitz-Riley Crossover
  • Reversible Cover Plate
  • Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)



AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

Features:

  • 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
  • 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
  • 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
  • 17 Ft. 100% OFC Remote Cable — 74 Strands
  • 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
  • 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
  • 4 - 8 Gauge Fuse Holder Rubber Adapter
  • 10 - High-Temperature Wire Ties
  • Firewall Grommet, Ring, Spade and Fork Terminals, and Self Tapping Screws Included
  • UPC: 798418839762
  • Weight: 6
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
