JL Audio  C1-690tx-Bundle

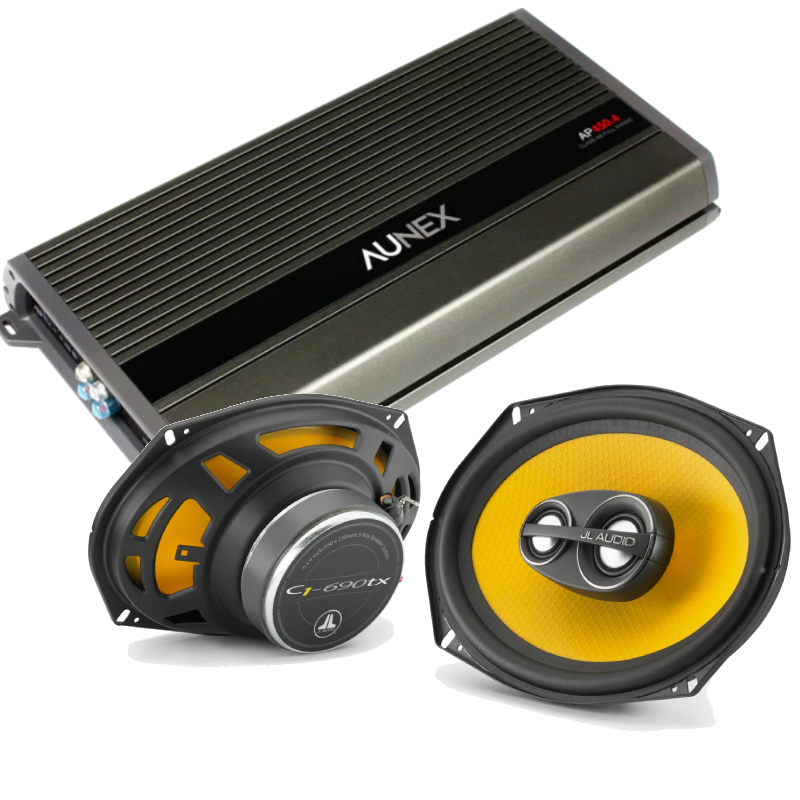

JL Audio C1-690tx C1 Series 6x9" 225W Peak Power Handling 4 Ohms 3-way Coaxial Car Speaker System + (50% OFF) Aunex AP450.4 AP Series 4-Channel 700W Max Power Class A/B Amplifier Exclusive Bundle

Item #91853

Condition:   Brand New

Product Highlights

  • JL Audio C1-690tx 6x9"
  • 225W peak power handling
  • High-quality sound
  • Aunex AP450.4 4-channel
  • Exclusive bundle

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.

$289.96

Reg. Price $389.94  Save $99.98

Out of Stock Check out other products listed below
JL Audio Authorized Dealer

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

JL Audio C1-690tx C1 Series 6x9" 60W RMS (225W Peak Power) 4 Ohms 3-way Coaxial Car Speaker System + (50% OFF) Aunex AP450.4 AP Series 115W x 4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier Exclusive Bundle


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • JL Audio C1-690tx
  • • Aunex AP450.4
  • • Owner's Manual

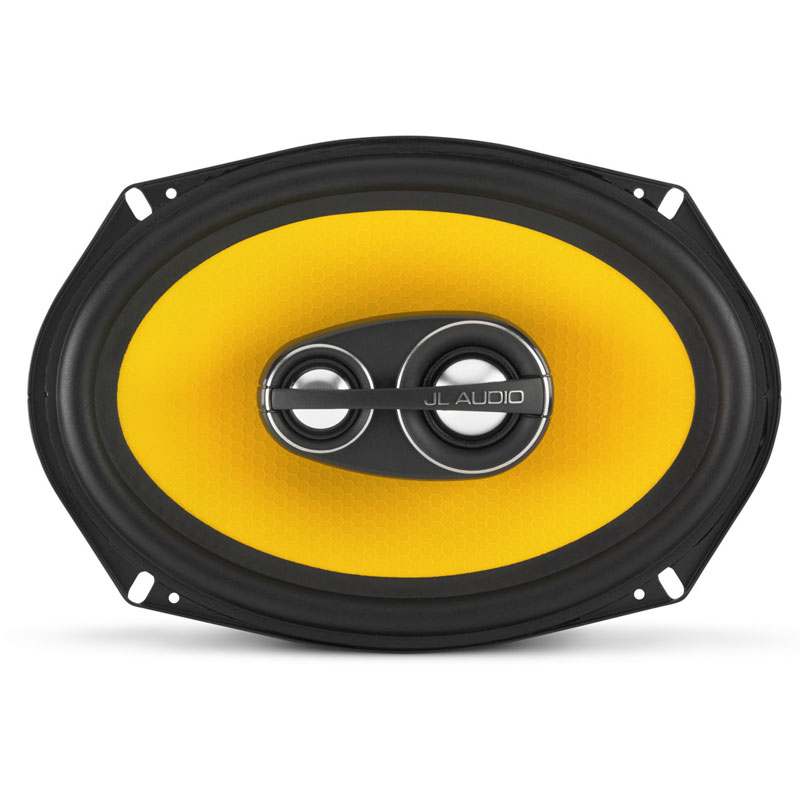

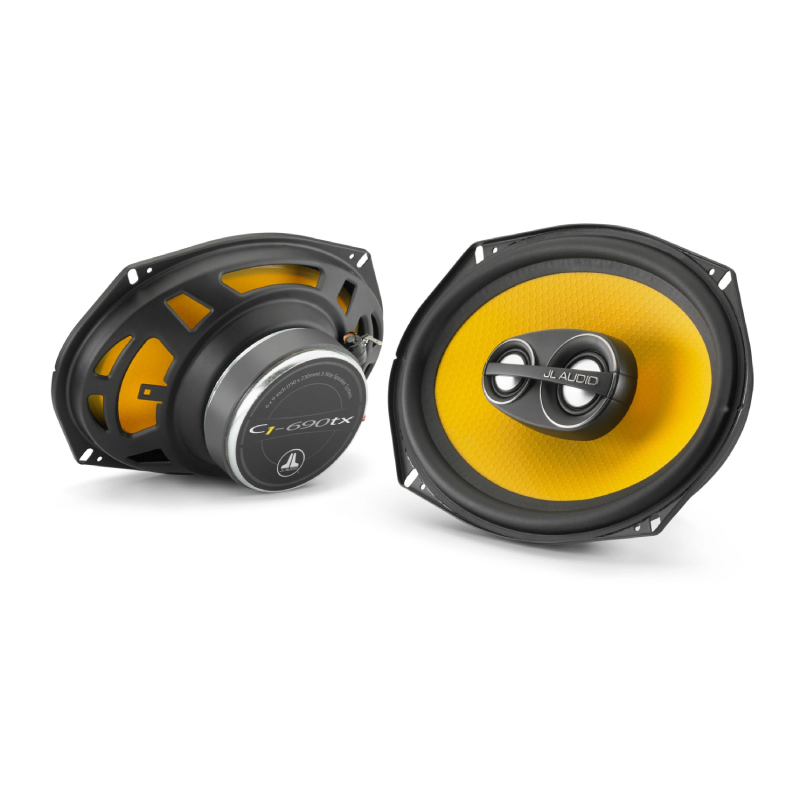

C1-690tx C1 Series 6 x 9" 60W RMS (225W Peak Power) 4 Ohms 3-way Coaxial Car Speaker System





Giving It the Edge Over Its Competition in Its Class

Though JL Audio has always been known for its premium products, its entry-level speakers, including the C1-690tx, are worth upgrading. If you do not want to break the bank in replacing your stock speakers, then you should consider going for this one. With its expertise in top-notch speakers, JL Audio applied some technologies in its C1 Series, giving it the edge over its competition in its class.

Polypropylene Cone With a Rubber Surround

This 3-way car speaker comes with a polypropylene cone with a rubber surround, ensuring a natural and accurate low-frequency production with minimal distortion. It also gives durability to the JL Audio C1-690tx, allowing it to withstand any effects that come with long hours of use, especially at high volume levels.

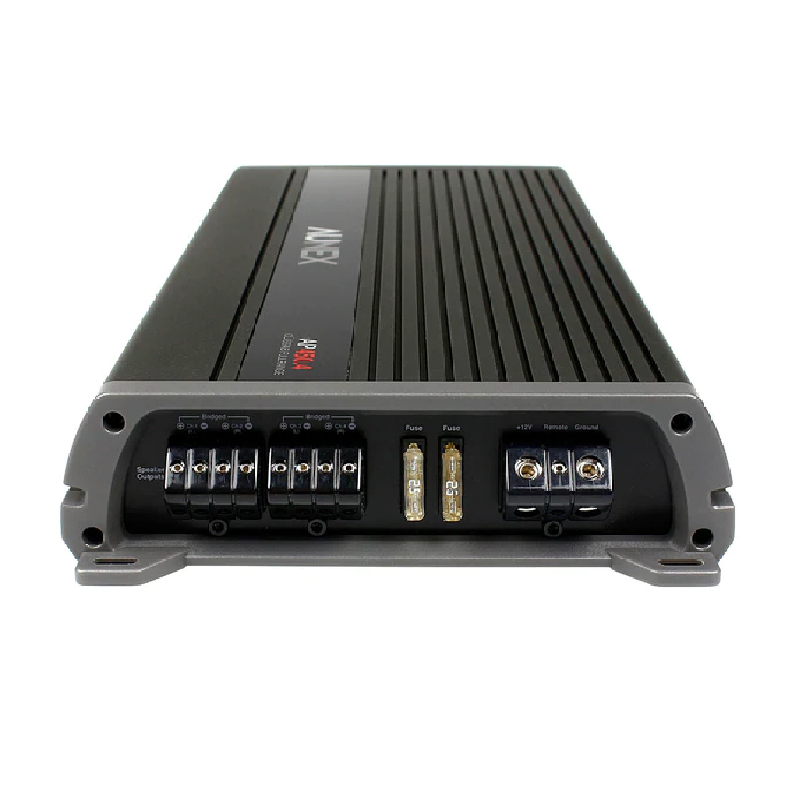

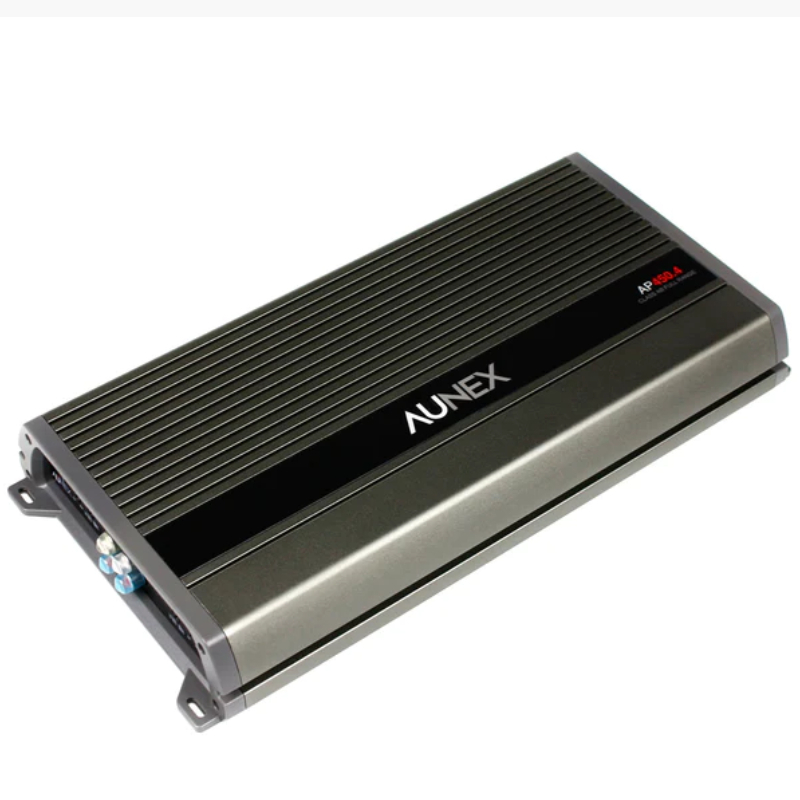

AP450.4 AP Series 115W x 4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier

High-quality Amplifier

When it comes to car audio systems, a high-quality amplifier is essential for delivering powerful and clear sound. The Aunex AP450.4 amplifier is a force to be reckoned with, offering unmatched performance and versatility. In this article, we delve into the key features and benefits of the Aunex AP450.4, explaining why it stands out as a top choice for car audio enthusiasts.

Immersive Audio Experience

The Aunex AP450.4 boasts a maximum power output of 700 watts, substantially boosting your car's audio system. Whether you enjoy heart-pounding bass or crisp highs, this amplifier delivers the power to create an immersive audio experience.

C1-690tx C1 Series 6 x 9" 60W RMS (225W Peak Power)  4 Ohms 3-way Coaxial Car Speaker System

Specifications:
  • Continuous Power Handling (RMS) 60 W
  • Peak Music Power 225 W
  • Recommended Amplifier Power (RMS) 10 - 100 W / Ch.
  • System Efficiency 90.5 dB @ 1 W / 1 m
  • System Nominal Impedance 4 Ω
  • System Frequency Response 36 Hz - 24 KHz ± 3 dB
  • injection-molded mineral-filled polypropylene woofer cone with rubber surround
  • Frame Outer Diameter* (A): 6.38 x 9.33 in / 162 x 237 mm
  • Grille Tray Outer Diameter (B): N/A
  • Motor Outer Diameter (C): 3.94 in / 100 mm
  • Frontal Coaxial Tweeter Protrusion** (D): 0.72 in / 18 mm
  • Frontal Grille Protrusion (E): N/A
  • Mounting Hole Diameter (F): N/A
  • Mounting Depth (G): 3.09 in / 79 mm



AP450.4 AP Series 115W x 4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier

Features

  • 2 Layer PCB, SMD Technology
  • Heavy Density Aluminum Extruded Heatsink
  • Anodized Finish with Texture Paint
  • Illuminated Logo Status Indicator
  • Direct Wire Speaker and Power Terminals
  • Fully Variable Crossover 12dB/Octave Slope
  • Differential Balanced Inputs
  • Auto-Sensing in High-Level Input Mode
  • Boost Eq Active in Full Range and Low Pass Modes



Specifications

  • Channels: 4
  • Rated Power: 14.4 V @ 1kHz
  • 4 Ohm Stereo 70W x 4
  • 2 Ohm Stereo 115W x 4
  • 4 Ohm Mono 225W x 2
  • Frequency Response 10Hz- 50,000Hz
  • THD + Noise < 0.2%
  • S/N Ratio A-Weighted > 100dB
  • Input Sensitivity (Low Level) 250mV — 6V
  • Input Sensitivity (High Level) 450mV — 11V
  • Crossover High Pass 50Hz — 500Hz
  • Crossover Low Pass 30Hz — 500Hz
  • Boost EQ 0 —18dB @ 45Hz Center
  • Efficiency @ 4 Ohm 84%
  • Operating Voltage 9 — 17 Volts
  • Dimensions: H 2.0” x W 15.2” x D 7.2”
  • UPC: 798418840188
  • Weight: 16
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
