Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

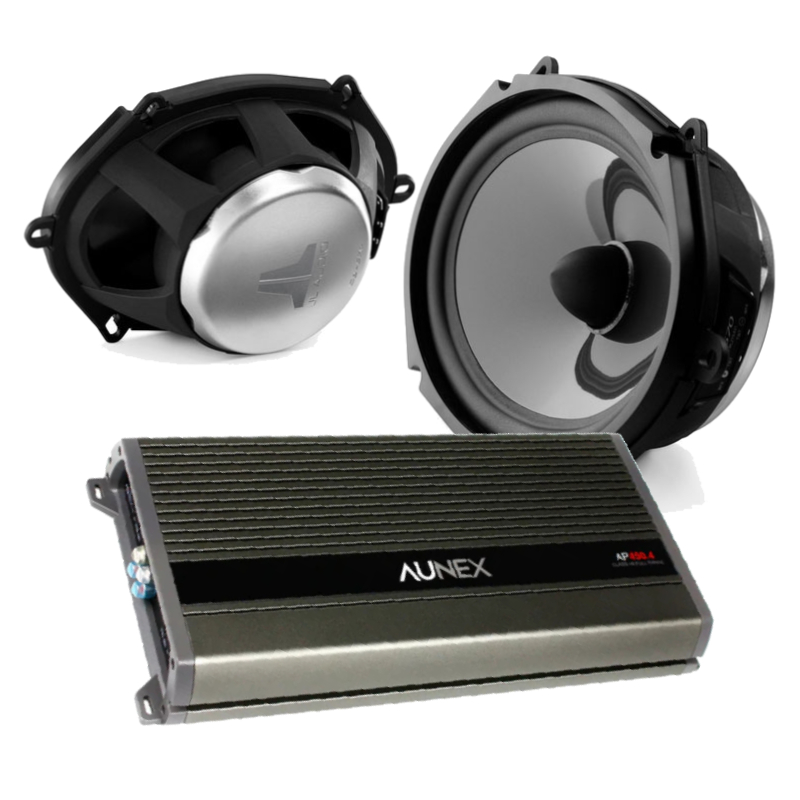

JL Audio C3-570-Bundle includes JL Audio C3-570 5x7" 75W RMS 4 Ohms Component Speaker System + Aunex AP450.4 115Wx4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JL Audio C3-570
- • Aunex AP450.4

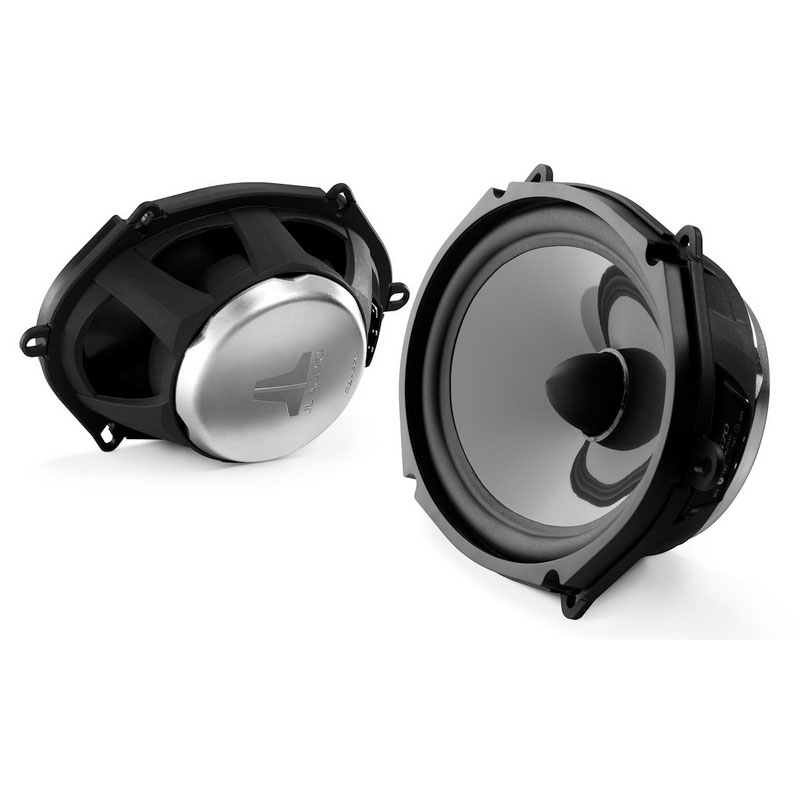

C3-570 C3 Series 5x7" 75W RMS (225W Peak Power Handling) 4 Ohms 2-way Convertible Component Speaker System
Quality in Each Application
There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.
Deliver Powerful Extended Response

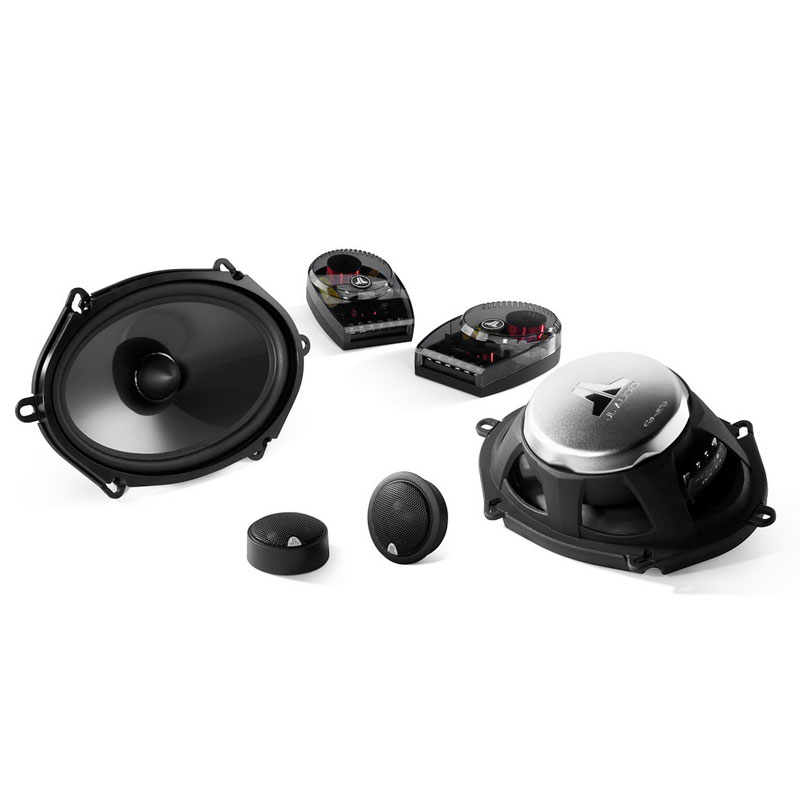

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

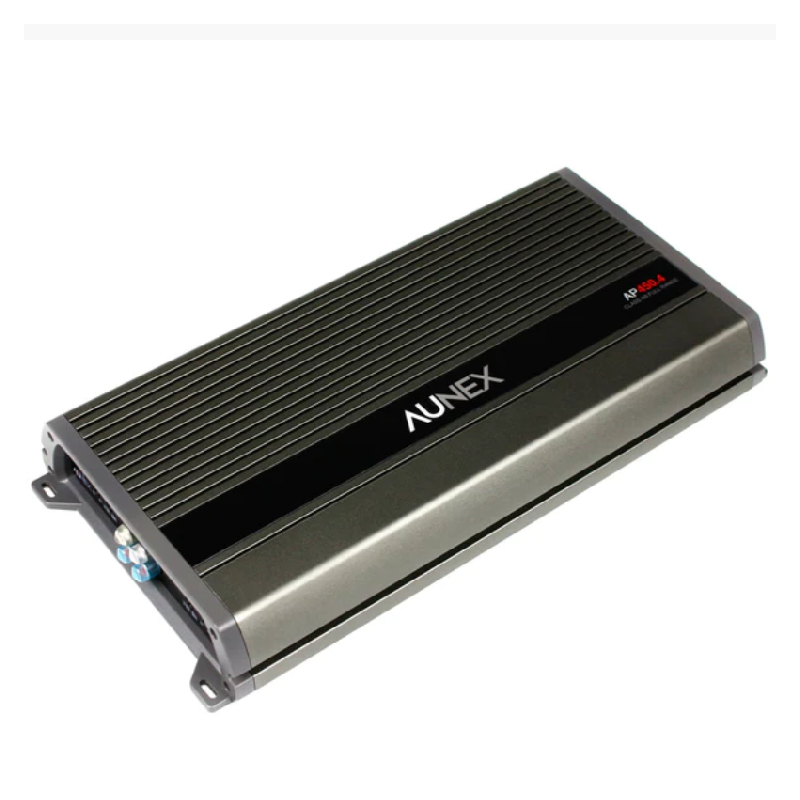

AP450.4 AP Series 115W x 4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier
Unleash the Power of Sound
When it comes to car audio systems, a high-quality amplifier is essential for delivering powerful and clear sound. The Aunex AP450.4 amplifier is a force to be reckoned with, offering unmatched performance and versatility. In this article, we delve into the key features and benefits of the Aunex AP450.4, explaining why it stands out as a top choice for car audio enthusiasts.
Immersive Audio Experience
The Aunex AP450.4 boasts a maximum power output of 700 watts, substantially boosting your car's audio system. Whether you enjoy heart-pounding bass or crisp highs, this amplifier delivers the power to create an immersive audio experience.
C3-570 C3 Series 5x7" 75W RMS (225W Peak Power Handling) 4 Ohms 2-way Convertible Component Speaker System
Specifications:
- Continuous Power Handling (RMS): 75 W
- Recommended Amplifier Power (RMS): 25 - 150 W / Ch.
- System Efficiency: 90.0 dB @ 1 W / 1 m
- System Nominal Impedance: 4 Ω
- System Frequency Response: 48 Hz - 25 KHz ± 3 dB
- Frame Outer Diameter (A): 5.52 x 7.68 in / 140 x 195 mm
- Grille Tray Outer Diameter (B): N/A
- Motor Outer Diameter (C): 4.08 in / 104 mm
- Frontal Coaxial Tweeter Protrusion (D): 0.78 in / 20 mm
- Frontal Grille Protrusion (E): N/A
- Mounting Hole Diameter (F): N/A
- Mounting Depth (G): 2.52 in / 64 mm (Does not take into account mounting tabs)
- Frontal coaxial tweeter protrusion measured from mounting surface
- Flush Mount Fixture Diameter (A1): 2.12 in / 54 mm
- Surface Mount Fixture Diameter (A2): 1.93 in / 49 mm
- Flush Mount Mounting Hole Diameter (B): 1.875 in / 48 mm
- Flush Mount Fixture Mounting Depth (C): 0.71 in / 18 mm
- Flush Mount Tweeter Frontal Protrusion (D1): 0.32 in / 8 mm
- Surface Mount Tweeter Frontal Protrusion (D2): 0.95 in / 24 mm
- Width (W): 3.36 in / 85 mm
- Height (H): 1.44 in / 37 mm
- Depth (D): 4.72 in / 120 mm
AP450.4 AP Series 115W x 4 RMS @2Ohms, 700W Max Power Class A/B 4-channel Amplifier
Features
- 2 Layer PCB, SMD Technology
- Heavy Density Aluminum Extruded Heatsink
- Anodized Finish with Texture Paint
- Illuminated Logo Status Indicator

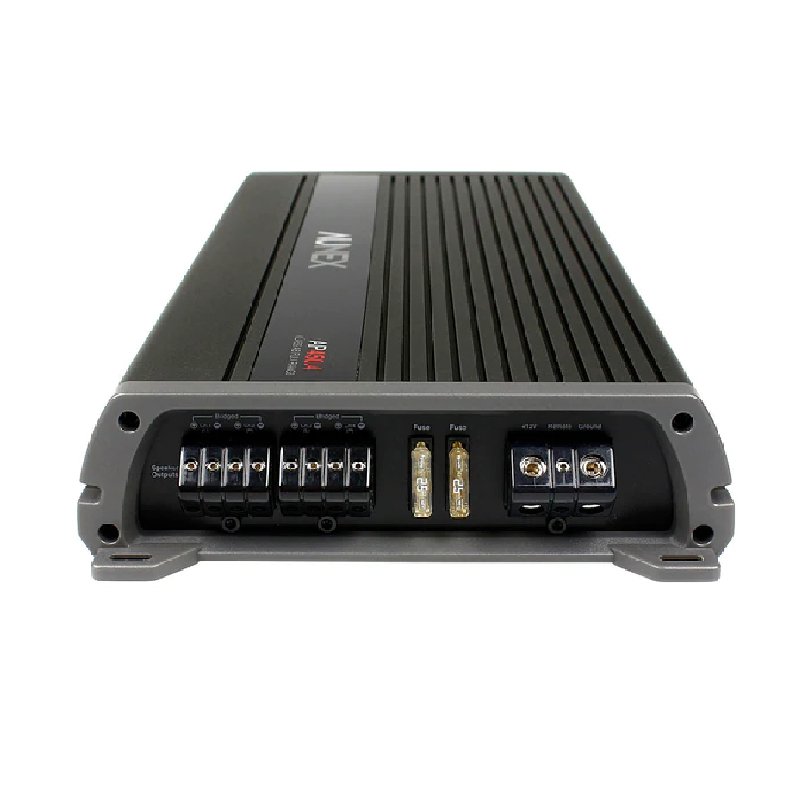

- Direct Wire Speaker and Power Terminals
- Fully Variable Crossover 12dB/Octave Slope
- Differential Balanced Inputs
- Auto-Sensing in High-Level Input Mode
- Boost Eq Active in Full Range and Low Pass Modes
Specifications
- Channels: 4
- Rated Power: 14.4 V @ 1kHz
- 4 Ohm Stereo 70W x 4
- 2 Ohm Stereo 115W x 4
- 4 Ohm Mono 225W x 2
- Frequency Response 10Hz- 50,000Hz
- THD + Noise < 0.2%
- S/N Ratio A-Weighted > 100dB
- Input Sensitivity (Low Level) 250mV — 6V
- Input Sensitivity (High Level) 450mV — 11V
- Crossover High Pass 50Hz — 500Hz
- Crossover Low Pass 30Hz — 500Hz
- Boost EQ 0 —18dB @ 45Hz Center
- Efficiency @ 4 Ohm 84%
- Operating Voltage 9 — 17 Volts
- Dimensions: H 2.0” x W 15.2” x D 7.2”
- UPC: 798418840133
- Weight: 14
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
