Audison  APF1D-Bundle

Audison APF1D 1000W Max Power, Monoblock Amplifier, Class-D + Aunex AP-8K 8 Gauge Amplifier Wiring Kit

Item #91907

Product Highlights

  • Audison APF1D Monoblock Amplifier
  • 1000W Maximum Power Output
  • Class-D Amplifier Technology
  • Aunex AP-8K 8 Gauge Amplifier Wiring Kit Included
  • Complete solution for high-performance car audio installation

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.
Sorry, this product is no longer available.
Checkout other products listed below

Huge Saving on Other items:



Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

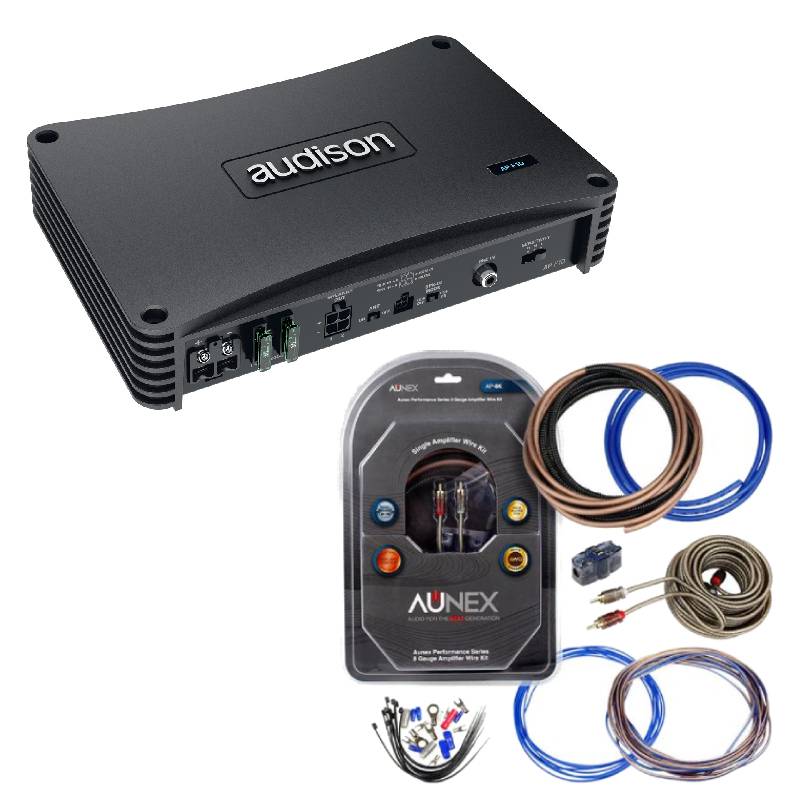

Audison APF1D-Bundle includes Audison APF1D 1000W Max Power, Monoblock Amplifier, Class-D + Aunex AP-8K 8 Gauge Amplifier Wiring Kit


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • • Audison APF1D
  • • Aunex AP-8K

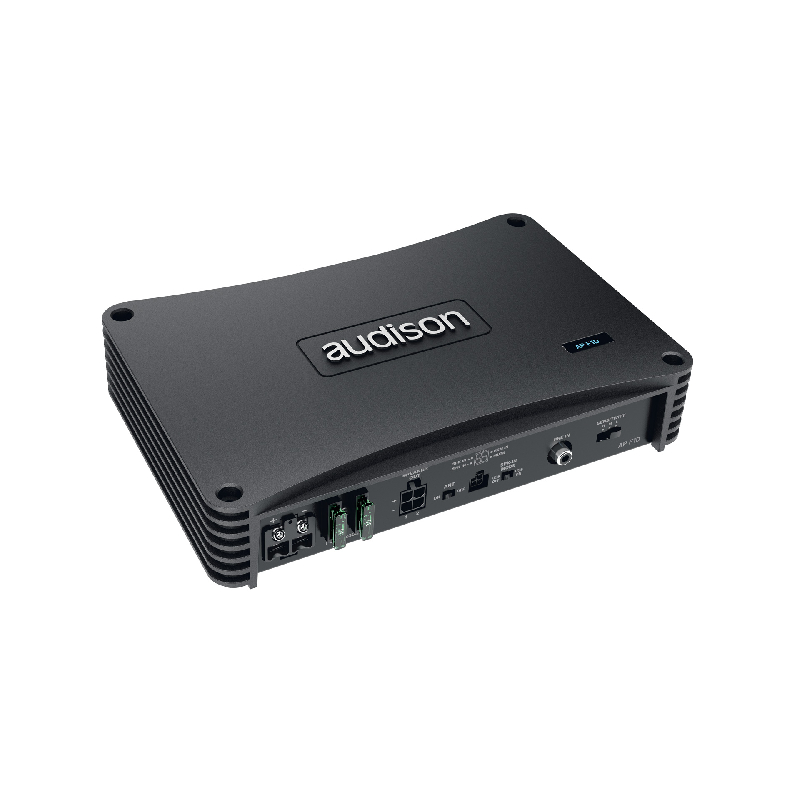

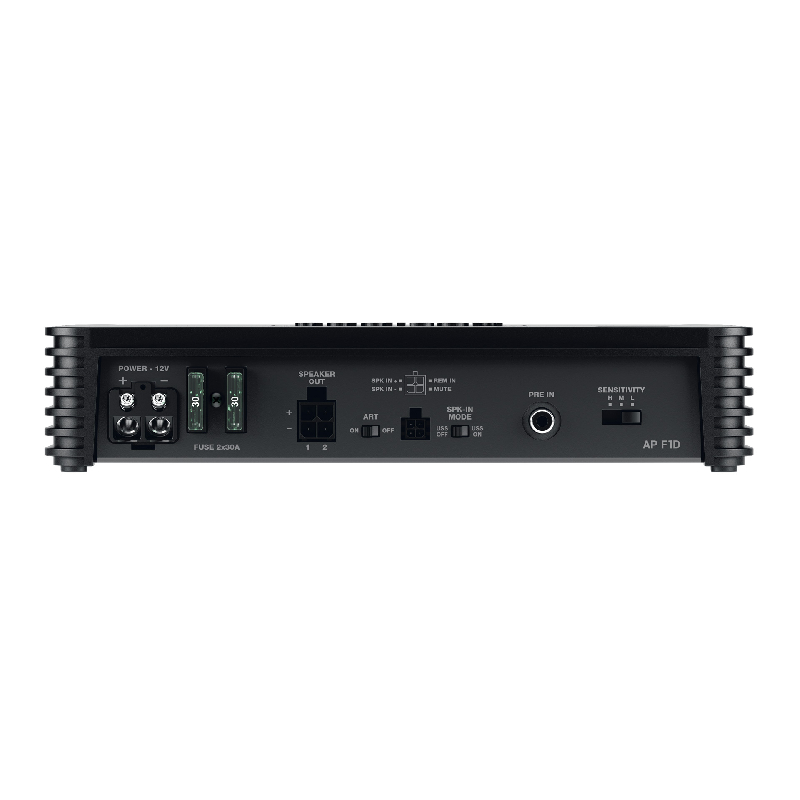

Audison APF1D PRIMA Series 500W x 1 RMS @4Ohms, Monoblock Amplifier

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.

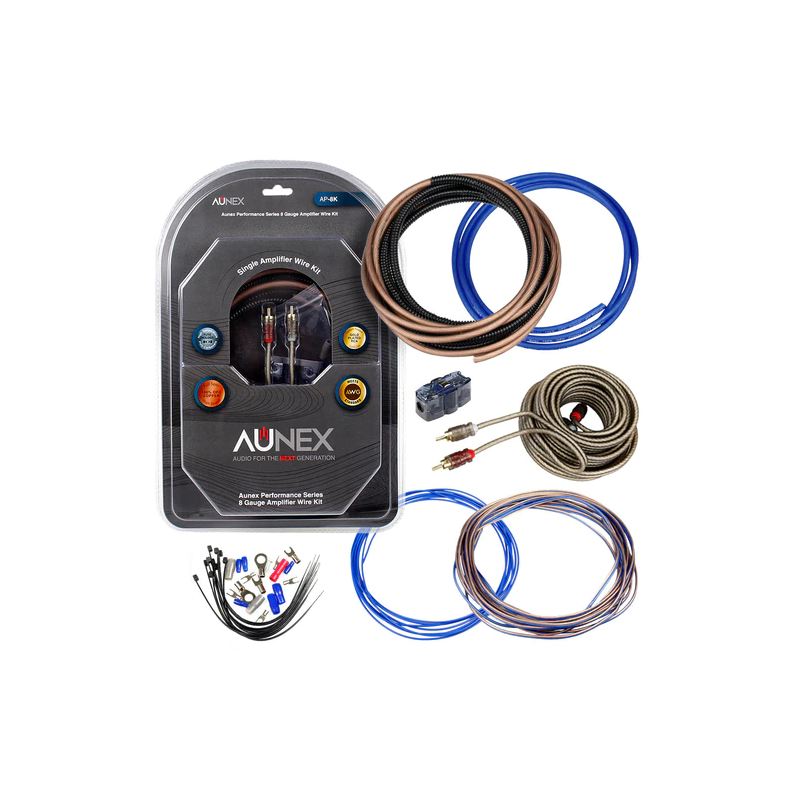

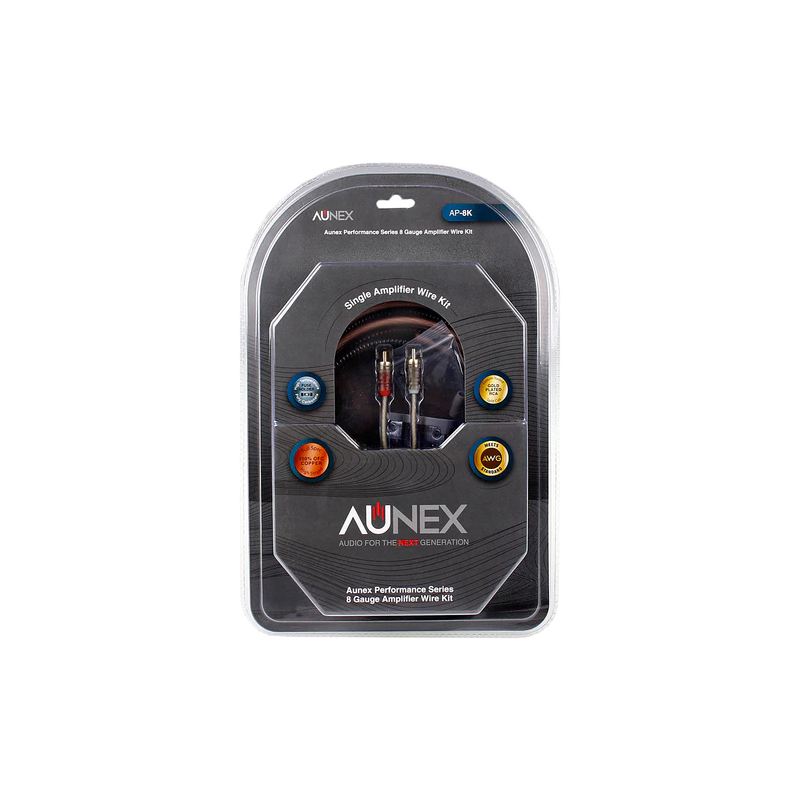

Aunex AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

The Aunex AP-8K wiring kit is a comprehensive package that includes all the necessary components to install and wire your car's audio amplifier properly. This kit is specifically designed with the Aunex AP-8K amplifier, ensuring compatibility and optimal performance. The wiring kit includes power and ground cables, which are crucial for delivering the necessary electrical current to your amplifier. These cables are made of high-quality materials and feature the appropriate gauge size to handle the power requirements of the AP-8K amplifier.


SPECIFICATIONS



FEATURES


APF1D PRIMA Series 500W x 1 RMS @4Ohms, Monoblock Amplifier

Features:

  • Power supply voltage / fuse 11 ÷ 15 VDC / 2 x 30A
  • Operating power supply voltage 6.5 ÷ 17 VDC
  • Idling current 1.3 A
  • Idling current when off 0.05 mA
  • Consumption @ 14.4 VDC, 2Ω, Max Musical Power 50 A
  • Remote IN 6.5 ÷ 15 VDC (1 mA)
  • ART - Automatic Remote Turn on/off from OUTPUT
  • BTL speakers (Selectable) 2 ÷ 7 VDC



Amplifier Stage:

  • Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power 0.1%
  • Damping factor @ 100 Hz, 4Ω, 2 VRMS 140
  • Bandwidth @ -3 dB 10 Hz ÷ 500 Hz
  • S/N ratio (A weighted @ 1 V Input) 110 dBA
  • Input sensitivity Pre-In Selectable:
  • 0.6 - 2.0 - 6.0 VRMS
  • Input sensitivity Speaker-In Selectable:
  • 2.0 - 6.5 - 20 VRMS
  • Minimum load impedance 1Ω
  • OUTPUT POWER (RMS) @14.4 VDC, 1% THD:
  • 1Ch @ 4Ω 500 W x 1
  • 1Ch @ 2Ω 800 W x 1
  • 1Ch @ 1Ω 1000 W x 1



Inputs:

  • Pre-In Inputs RCA
  • Speaker-In Inputs wired
  • Mute (Energy Saving control) wired (active to groung)



Other:

  • Ambient operating
  • temperature range 0 °C to 55 °C (32 °F to 131 °F)



Size:

  • Max size W x H x D (mm/inch) 238 x 49.5 x 155 / 9.37 x 1.95 x 6.1
  • Weight (kg/lbs) 1,92 / 4.23



AP-8K 8 Gauge Complete Amplifier Wiring Kit 100% Copper OFC

Features:

  • 17 Ft. of 8 Gauge 100% OFC Ultra-Flex Power Cable — 427 Strands
  • 6 Ft. of 8 Gauge 100% OFC Ultra-Flex Ground Cable — 427 Strands
  • 30 Ft. of 16 Gauge 100% OFC Ultra-Flex Speaker Wire — 67 Strands
  • 17 Ft. 100% OFC Remote Cable — 74 Strands
  • 17 Ft. 2 Channel Dual Layer Shielding RCA Interconnects with Advance Twinning Construction (ATC)
  • 60A Mini ANL High-Temperature Polycarbonate Fuse Holder
  • 4 - 8 Gauge Fuse Holder Rubber Adapter
  • 10 - High-Temperature Wire Ties
  • Firewall Grommet, Ring, Spade and Fork Terminals and Self Tapping Screws Included
  • UPC: 798418840294
  • Weight: 12
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
