Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

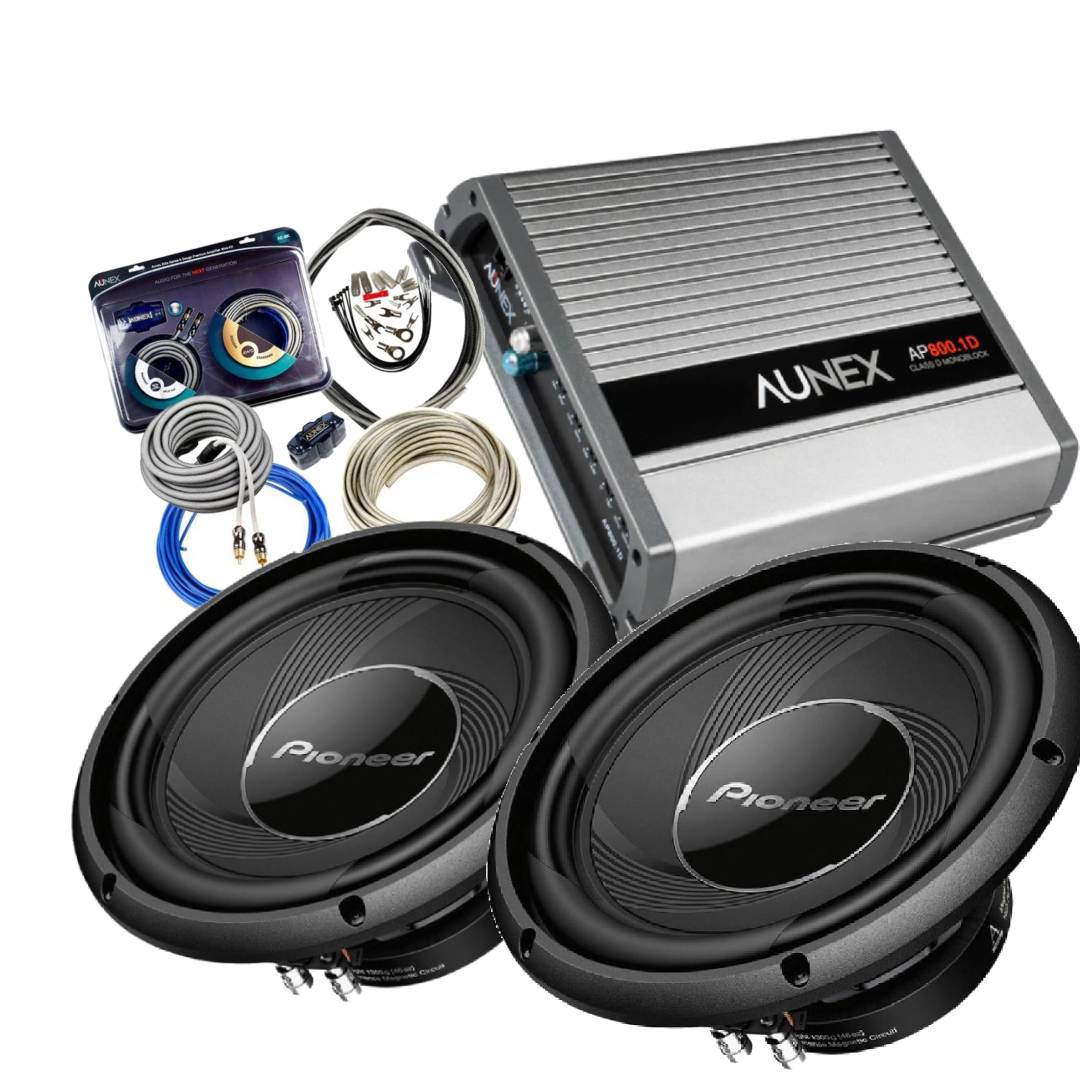

Aunex AP800.1D-Bundle4 includes Aunex AP800.1D Class D Monoblock Amplifier + (2 Pack) Pioneer TS-A120S4E 12” 400W RMS Subwoofer + Aunex AE-8K 8AWG Amplifier Wiring Kit
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Aunex AP800.1D
- • (2) Pioneer TS-A120S4E
- • Aunex AE-8K

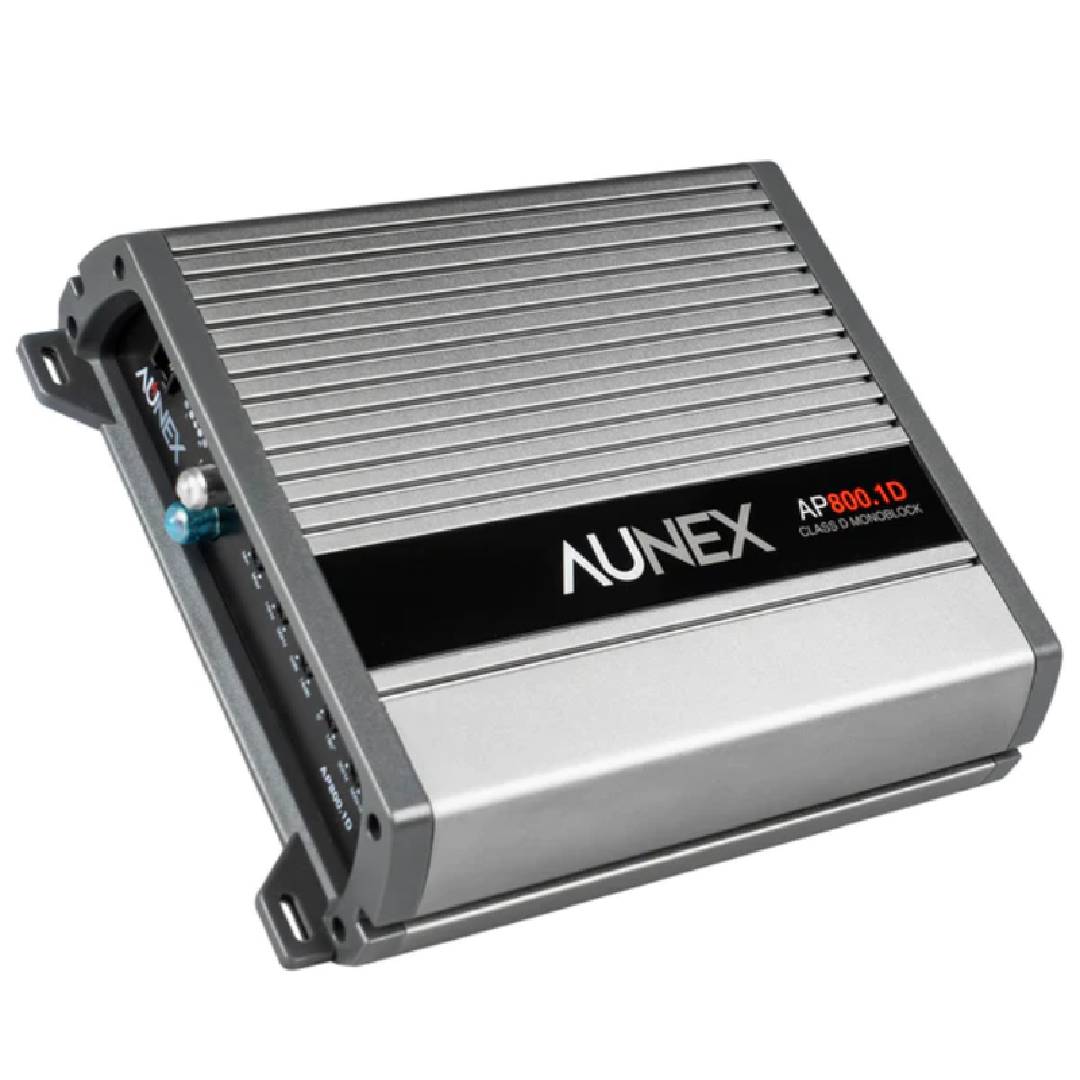

AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier
Elevate Your Audio Experience with the Aunex AP800.1D Amplifier
For car audio enthusiasts seeking to enhance their bass performance, the Aunex AP800.1D amplifier is a game-changer. With its robust power output and advanced features, this amplifier delivers unparalleled bass reproduction, taking your in-car audio experience to new depths. The Aunex AP800.1D boasts a continuous power output of 800 watts, providing the punch you need to feel the bass in your music. Its Class-D amplifier technology ensures high efficiency, minimizing power consumption and reducing strain on your car's electrical system.

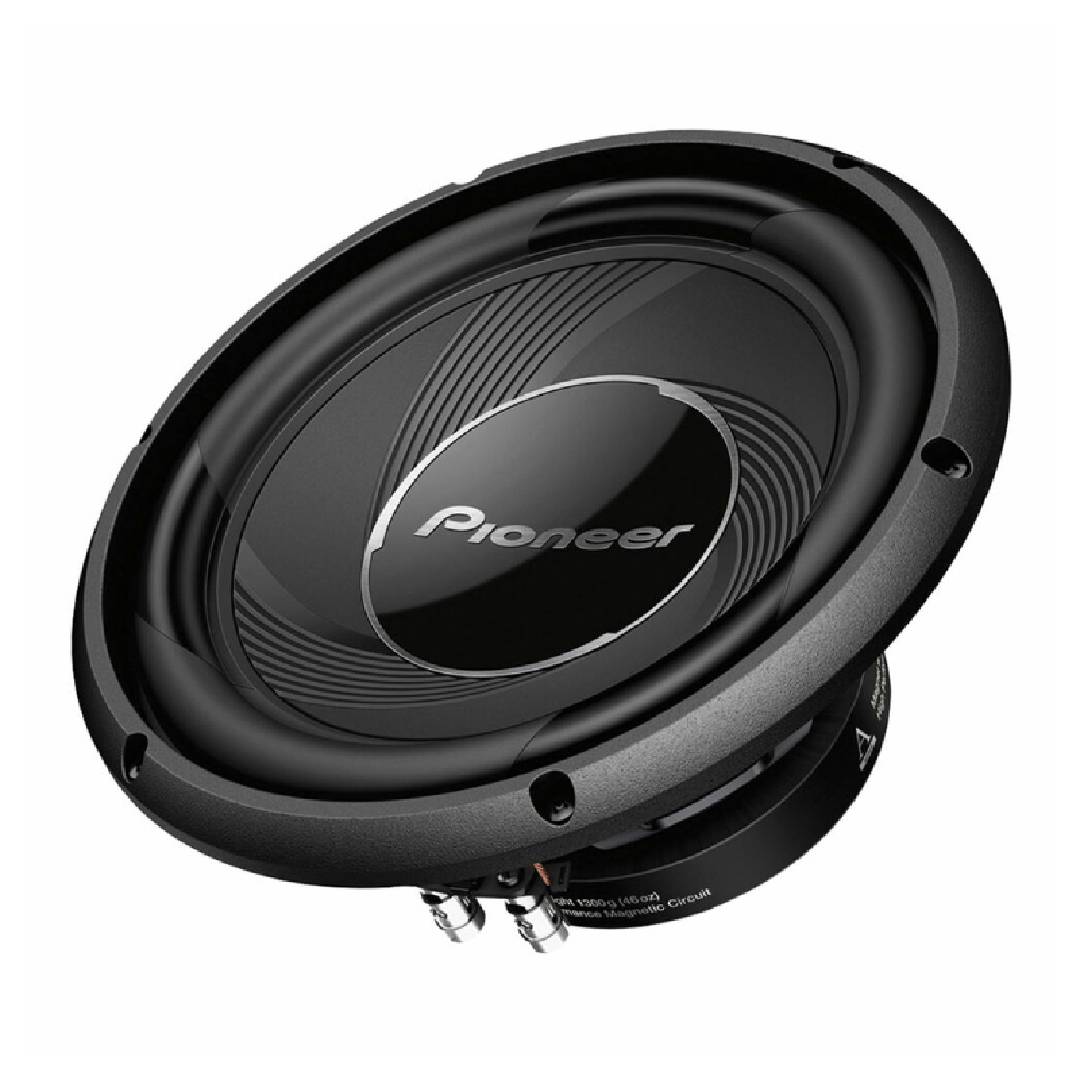

TS-A120S4E A Series 12” 400W RMS (1400W Peak Power Handling) Single 4 Ohms Voice Coil Impedance Car Subwoofer
Your Ultimate Sound Enhancement Solution for In-Car Audio
The Pioneer TS-A120S4E is a top-notch 12-inch subwoofer engineered for in-car audio systems, delivering robust and precise bass performance. Its remarkable features and durable build enhance your music experience by adding depth and impact. It boasts a rigid yet lightweight injection-molded polypropylene cone for accurate bass reproduction, supported by a rolled rubber surround to ensure controlled cone movement and minimal distortion.

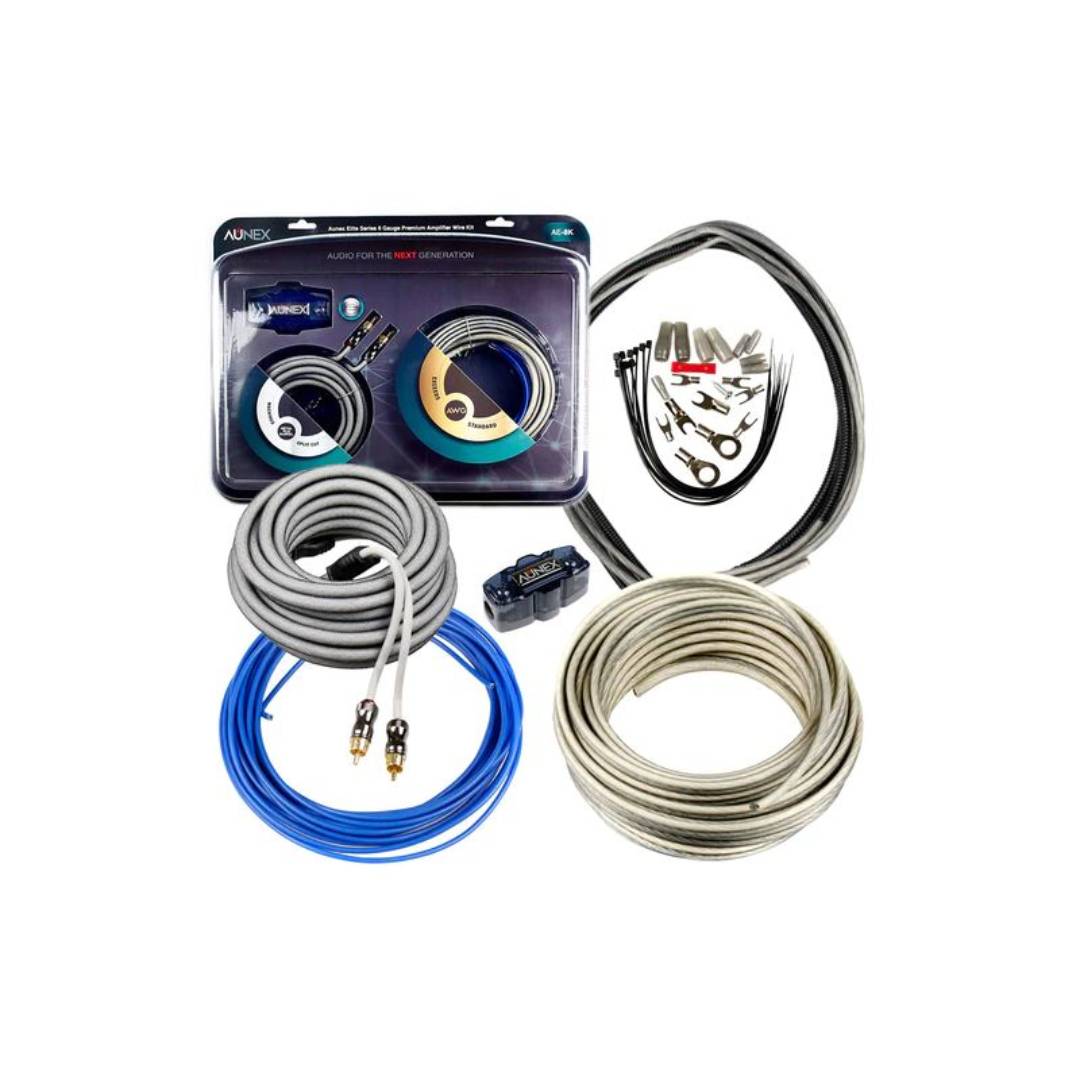

AE-8K Elite Series 8 Gauge Amplifier Wiring Kit OFC Copper
Amplify Your Audio Experience!
The Aunex AE-8K wiring kit is a complete package designed for seamless installation and wiring of your car's audio amplifier, with a focus on compatibility and performance. It comes with top-notch power and ground cables tailored to meet the AE-8K amplifier's power needs, ensuring efficient power delivery, minimal loss, and peak performance.
AP800.1D AP Series 800W x 1 RMS @4Ohms, 1600W Max Power Class D Monoblock Amplifier
Features:
- Heavy Density Aluminum Extruded Heatsink
- 2 Layer PCB, SMD Technology
- Differential Balanced RCA Inputs
- Fully Variable Crossover: 30Hz - 500Hz @ 24dB/Octave Slope
- Fully Variable Infrasonic Filter: 10Hz - 50Hz @ 24dB/Octave
- Boost Eq. 0 - 18dB @ 45Hz Center
- Auto-Sensing in High-Level Input Mode
- Power and Protection Logo Illuminated Status Indicator
- 4 Gauge Power and Ground Terminals
- 12 Gauge Speaker Output Terminals
- Advance Protection Circuit Monitoring: Short, Thermal, Overload, And Impedance
- Finish: Anodized with Texture Paint
Specifications:
- Channels: 1
- Rated RMS Power 4 Ohms Mono @ 14.4V: 300 Watts x 1
- Rated RMS Power 2 Ohms Mono @14.4V: 600 Watts x 1
- Rated RMS Power 1 Ohm Mono @ 14.4V: 800 Watts x 1
- Peak Music Power: 1600 Watts
- Frequency Response: 10Hz - 500Hz
- THD + Noise: <0.5%
- S/N Ratio A-Weighted: >105dB
- Input Sensitivity (Low Level RCA): 250mV - 6V
- Input Sensitivity (High Level Speaker Output): 450mV - 11V
- Crossover Low Pass (24dB/Octave): 50Hz - 500Hz
- Boost EQ Low Pass - 45Hz Centered: 0 - 18dB
- Infrasonic Filter: 10Hz - 50Hz
- Phase - Fully variable: 0 - 108°
- Efficiency @ 4 Ohm: 85%
- Operating Voltage: 9 - 17 Volts
- Fuse Requirement: 80A (Included)
- Dimensions (H x W x D): 2.0" x 8.5" x 7.2"
(2) TS-A120S4E A Series 12” 400W RMS (1400W Peak Power Handling) Single 4 Ohms Voice Coil Impedance Car Subwoofer
Features:
- Pioneer’s A-series sound design purposely matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.
- Specially designed voice coil offers higher power handling, linear movement and greater excursion for extreme bass output.
- Cone provides increased strength and rigidity for optimized bass response.
Specifications:
- System Type: Component Subwoofer
- Sensitivity (1W/1m): 87 dB
- Frequency Range: 22 Hz to 1.6 kHz
- CTA-2031 Compliant: Yes
- Warranty: 1 Year
- Continuous Power handling (RMS) - Watts: 400 Watts
- Maximum Peak Power Handling - Watts: 1400 Watts
- Nominal Impedance - OHM: 4
- Shape: Round
- Size: 12"
- Cone Material: IMPP - Composite
- Center Cap Material: ABS
- Surround Material: Rubber
- Surround Type: Rolled
- Basket Material: Stamped Metal
- Magnet Material: Ferrite
- Magnet Weight: 46 oz
- Voice Coil Type: Single Voice
- Voice Coil Bobbin: Alminum
- Voice Coil wire: Copper
- Damper: Poly cotton Aramid
- Gasket: PP
- Wire Terminals: Push Type
- Unit Size (Dimensions): 12-1/2"
- Mounting Depth: 5-3/8"
- Cut Out dimensions: 11-1/8"
- Equivalent Compliance (VAS) [L]: 56.1
- Free Air Resonance (Fs) [Hz]: 32.1
- Total Speaker "Q" (Qts): 0.7
- Linear Excursion (Xmax) [mm]: 8.25
- Recommended Sealed Box Volume [L]: 35.4
- Port Box volume [L]: 42.5
- Port Length: 6-1/2"
- Port Diameter: 3"
AE-8K Elite Series 8 Gauge Amplifier Wiring Kit OFC Copper
Features:
- High-performance quality and convenience make this amplifier wiring kit essential for the discerning mobile audio enthusiast.
- Aunex Elite accessories exceed the American Wire Gauge (AWG) standard — as they are overbuilt to supply the necessary current for high power
- high-performance audio systems while being low resistance for maximum current transfer.
- AE cables use 100% Tinned Oxygen-Free Copper (OFC) which is both corrosion and rust-resistant and is the perfect choice for Marine installations.
- The AE Series further adds 4 layers of advanced shielding to reject unwanted noise from entering through the audio signal path.
- Audio signal is transferred through premium gold-plated RCA Interconnects and also incorporates advanced twinning techniques — which result in pure audio signal being sent from your source unit to your amplifiers.
- UPC: 798418840706
- Weight: 26
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
