Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Pioneer GM-D1004-Bundle2 Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms + Amplifier + (2-SETS OF SPEAKERS) Pioneer TS-D69F D Series 6x9" 110W RMS 2-Way Car Coaxial Speakers
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •Pioneer GM-D1004
- •(2) Pioneer TS-D69F
- •Owner's Manual

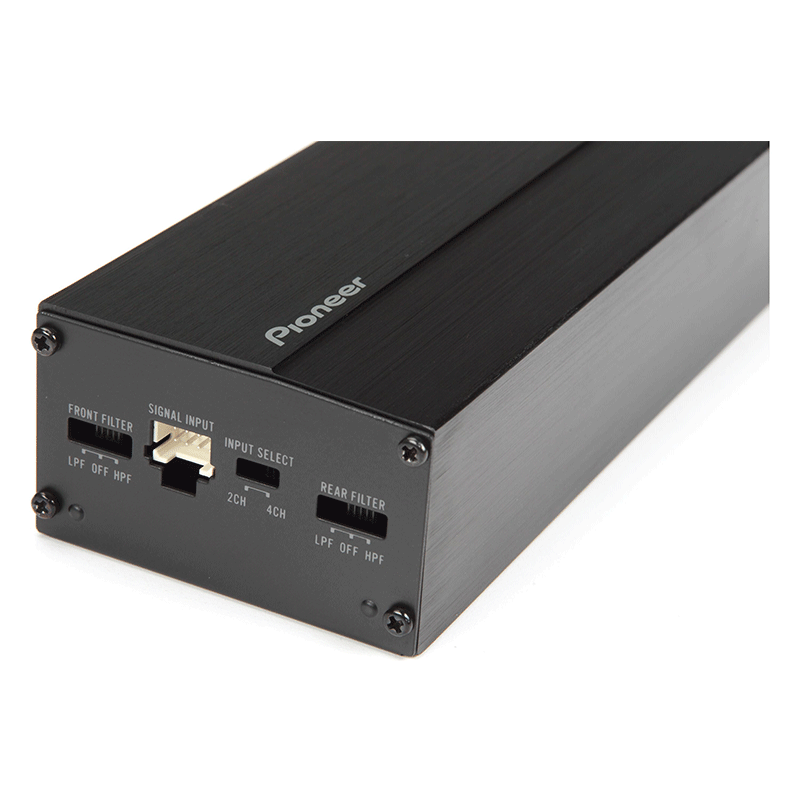

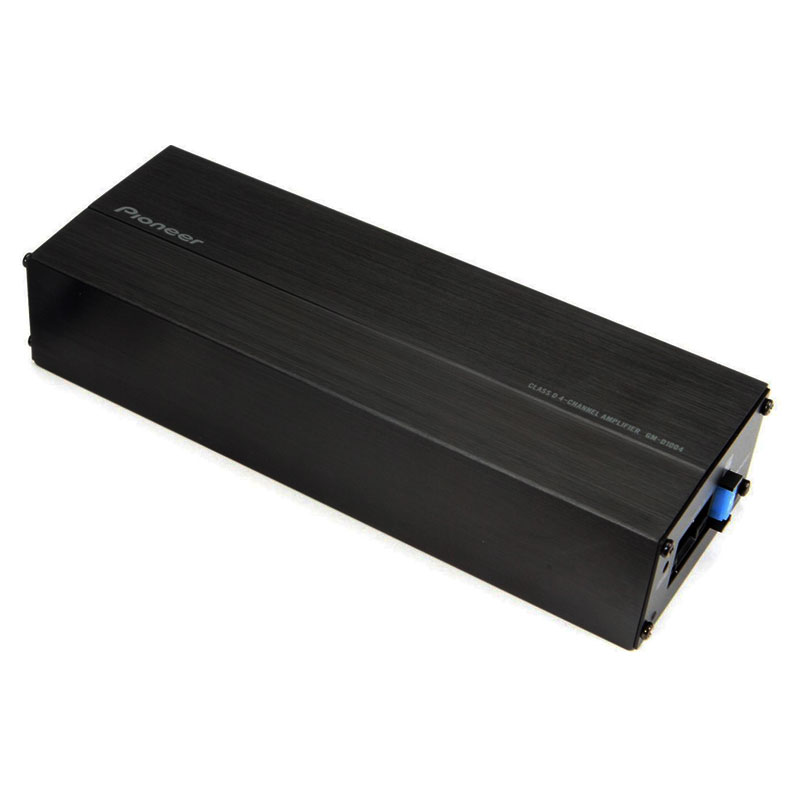

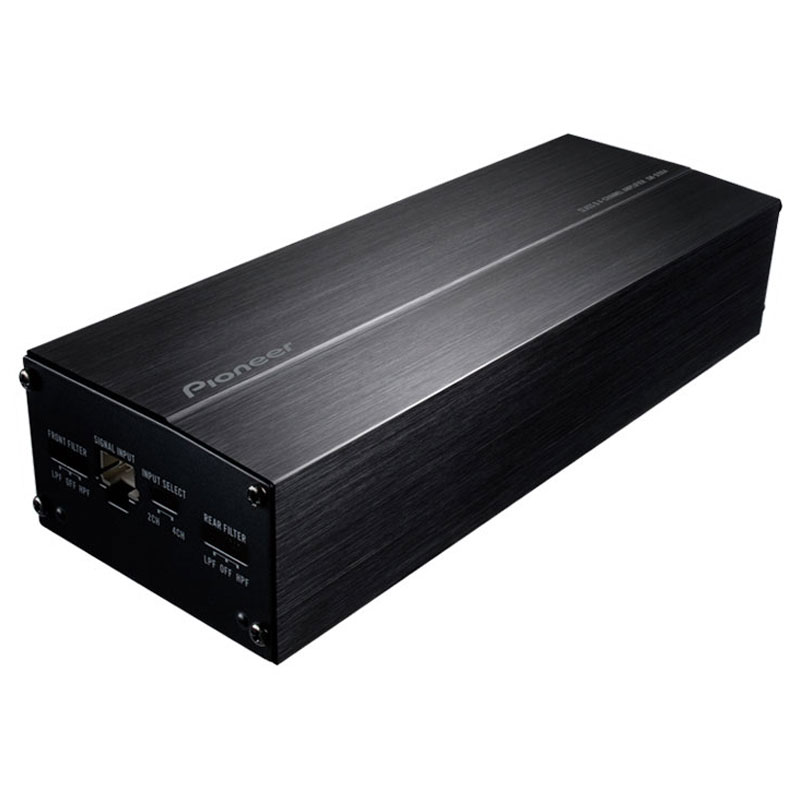

Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
Compact Design
The Pioneer GM-D1004 is a compact and versatile amplifier that delivers powerful sound and easy installation. Designed for use in car audio systems, the GM-D1004 is a must-have for anyone looking to enhance their listening experience on the road. The GM-D1004 features a Class FD topology and can deliver up to 400 watts of maximum power. The amplifier is equipped with Pioneer's patented A/B channel architecture, which ensures high-fidelity sound reproduction and efficient power handling. Additionally, the GM-D1004 features a compact design that makes it easy to install in any car audio system.
Pioneer TS-D68F D Series 6x8" 80W RMS (240W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers
Smooth & Natural Sound
Take your car audio experience to the next level with the Pioneer TS-D69F speakers. These high-quality speakers are designed to deliver exceptional performance and are the perfect upgrade for audiophiles seeking superior sound reproduction.
Pioneer GM-D1004 Slim Series 45W RMS x 4 @2Ohms, 400W Max Power Class D 4-channels Compact Bridgeable Amplifier
Features:
- Allowable Load Impedance: 2 ohm to 8 ohm allowable
- Avg Current Consumption (amps x #ch): 1.7 A x 4-Channel - 4 Ohm / 1.7 A x 2-Channel - 2 Ohm / 1.7 A x 4-Channel - 2 Ohm
- Bass Boost: 75 dB
- Continuous-Power-Output: 45 W x 4-Channel - 4 Ohm / 45 W x 4-Channel - 2 Ohm / 90 W x 2-Channel - 4 Ohm Bridged
- Crossover Network Channel: LPF - A/B Ch 80 Hz / HPF - A/B Ch 80 Hz
- Crossover Network Channel Slope: -12db/oct (A/B Ch)
- Crossover Network Subwoofer Channel: 80 Hz
- Crossover Network Subwoofer Slope: -12 dB/octave
- Frequency Response – Subwoofer Channel: 10 Hz to 40 kHz
- Frequency Response Channel: 10Hz to 40kHz (+0dB,-3dB) A/B Ch
- Fuse Rating: 15 A
- Maximum Power Output: 100 W x 4-Channel (4 Ohm) / 100 W x 4-Channel (2 Ohm) / 200 W x 2-Channel (4 Ohm Bridged)
- RCA Input: 4-Channel
- Signal to Noise: 74 dBA (Reference: 1 W into 4 ohm)
- Speaker Line input Sensor: Yes
- THD - Subwoofer: < 0.05% (1 kHz)
- THD-A/B/C Channel: < 0.05% (1 kHz) A/B Ch
Specifications:
- 400 Watts Max Power
- Variable High Pass and Low-Pass Filters
- Refined Class FD Design Offers Extreme Efficiency and High-Quality Sound
- Bridgable: Yes
- Class: D
- Grounding System: Negative
- Power Source: 14.4V (10.8 V to 15.1 V allowable)
- Protection Control system: Yes
- Terminal Type: Removable

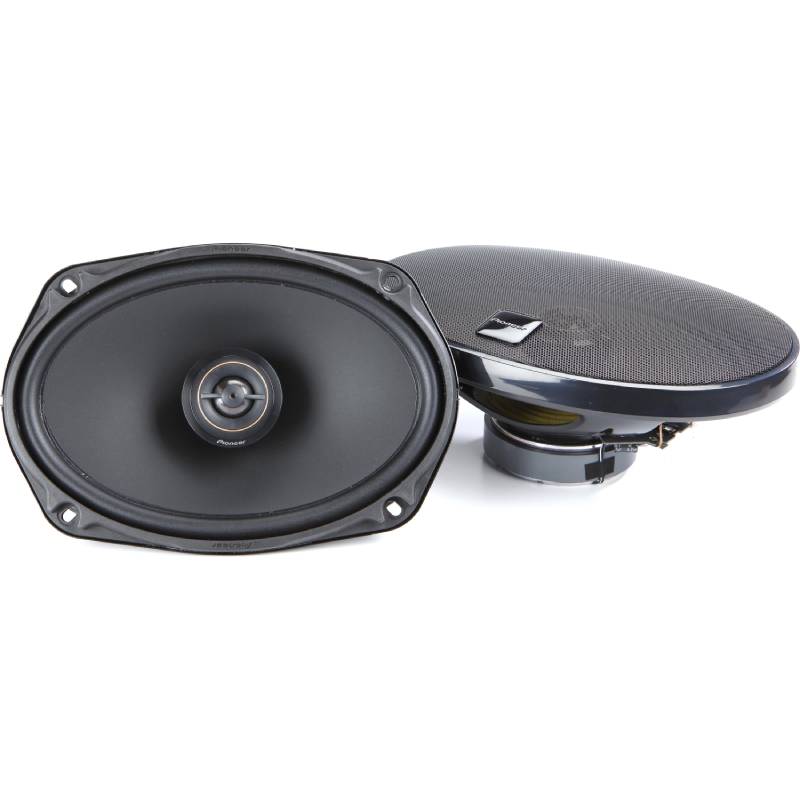

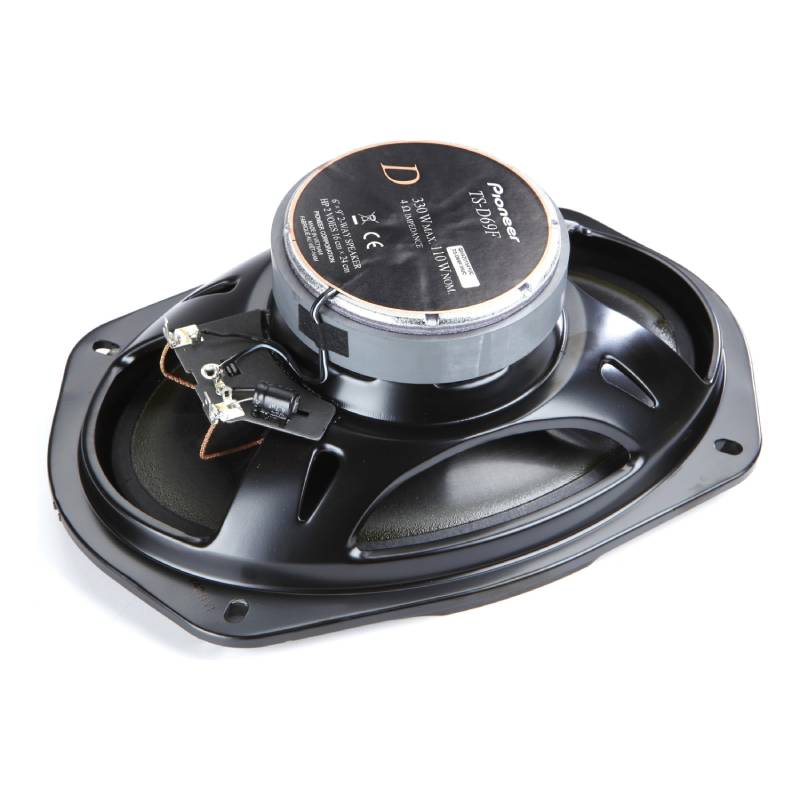

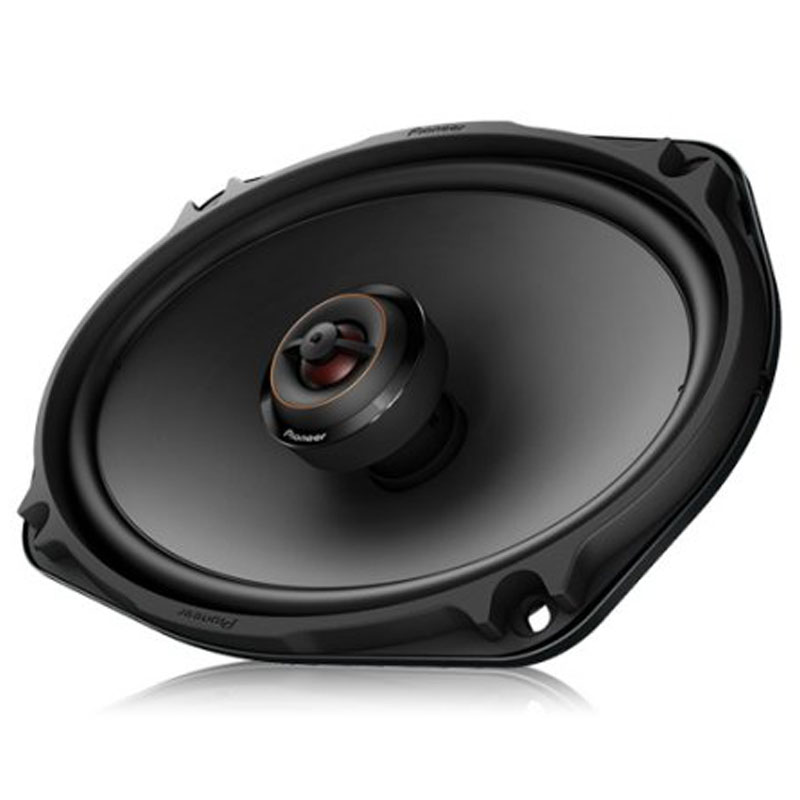

Pioneer TS-D69F D Series 6x9" 110W RMS (330W Peak Power Handling) 4 Ohms 2-Way Car Coaxial Speakers
Features:
- 26mm Polyester Soft Dome Tweeter with Swivel Capability
- Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) Cone Construction
- Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality
- System Type: 2-way Coaxial
- Sound Pressure Level (Sensitivity):87dB (+- 1.5dB)
- Frequency Range: 33 Hz to 42 kHz
- Continuous Power Handling (RMS): 110 Watts
- Maximum Peak Power Handling: 330 Watts
- Nominal Impedance: 4 ohms
- Diameter: 6” x 9”
- Cone Material:Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
- Surround Material: Butyl Rubber
- Magnet Material: Ferrite
- Magnet Weight: 15.2 oz
- Type: Soft Dome
- Diameter: 26mm
- Diaphragm Material: Polyester
- Magnet Material: Neodymium
- Magnet Weight: 6.4 g
- Swivel Type: Yes
- UPC: 798418841277
- Weight: 35
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
