Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

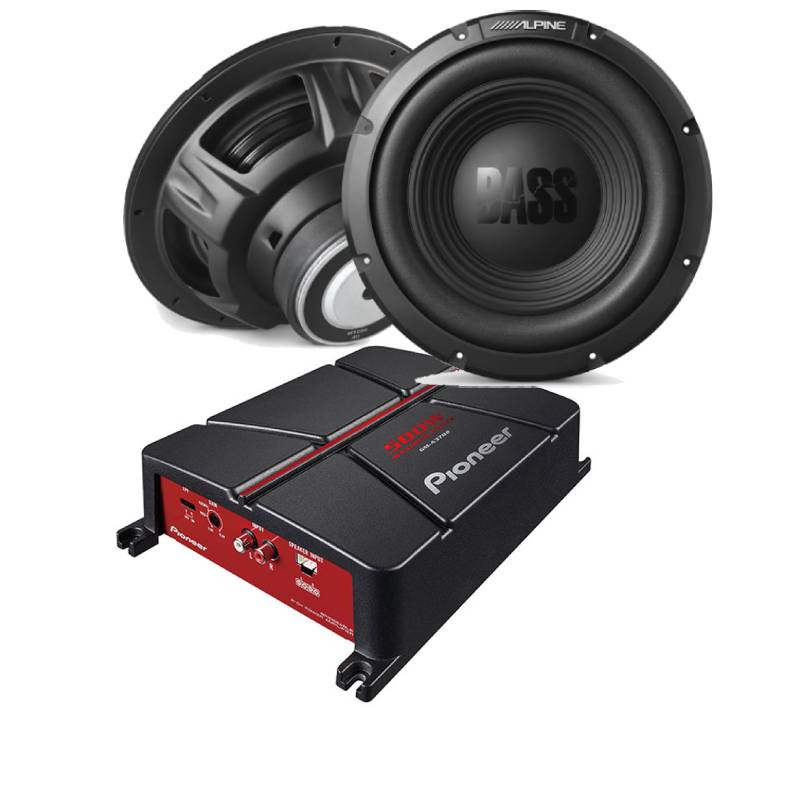

Pioneer GM-A3702-Bundle2 Pioneer GM-A3702 95W RMS x 2 @2Ohms, 500W Amplifier + Alpine W10S4 BassLine Series 10" 250W RMS Car Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products.
What's Inside?
- •Pioneer GM-A3702 95W
- •Alpine W10S4
- •Owner's Manual
Pioneer GM-A3702 95W RMS x 2 @2Ohms, 500W Max Power Class A/B 2-channels Bridgeable Amplifier
Automatic Signal Sensing and Turn-On
Enhance your car audio system with the Pioneer GM-A3702 amplifier, a powerhouse that delivers exceptional performance and amplification for your in-car sound experience. The Pioneer GM-A3702 is a two-channel bridgeable amplifier that provides a continuous power output of 95 watts at 2 ohms per channel, giving your speakers the boost they need to produce a rich and dynamic sound. Its Class AB amplifier design combines the efficiency of Class D amplifiers with the superior sound quality of Class A/B amplifiers.
Alpine W10S4 BassLine Series 10" 250W RMS (750W Peak Power Handling) Single 4 ohm Voice Coil Car Subwoofer - 1 PC Only
Bass for All
The Alpine W10S4 is a 10-inch subwoofer designed to deliver powerful and deep bass performance in your car audio system. With its robust construction and advanced features, the W10S4 provides an immersive low-frequency experience.
GM-A3702 2-Channel Bridgeable Amplifier, 500 Watts Max Power, Hi-Volt input level control, Automatic signal sensing and Turn-ON
General
- Number of Channels2
- Amplifer ClassClass AB
- Maximum Power Output500W
- Maximum Power Output at 2 Ohms250W x 2
- Maximum Power Output at 4 Ohms170W x 2
- Maximum Power Output - Bridged at 4 Ohms500W
- Nominal Power (RMS) Output at 2 Ohms95W x 2
- Nominal Power (RMS) Output at 4 Ohms60W x 2
- Nominal Power (RMS) Output - Bridged at 4 Ohms190W x 1
- Frequency Response10Hz ~ 70kHz
- Total Harmonic Distortion (THD)<0.05 %
- Signal-to-Noise (SN) Ratio >95 dB
- Fuse Rating25A
Specifications
- RCA Inputs2-Ch.
- Speaker Level Inputs
- Crossover TypeLPF
- Low-Pass Crossover Frequency80Hz
- Low Pass Slope (dB/octave)-12db/oct
- Automatic Signal Sensing and Turn-On
- Hi-Volt Input Level Control0.3V to 6.5V (RCA in), 3.0V to 26V (SP in)
- Terminal TypeScrew-Type Terminal
- Load Impedance Allowance (Ohm)2 to 4
- Bridgeable
- Protection Control System
- Dimensions (WxHxD)(inches)246(W) X 60(H) X 180(D) mm
- Warranty1 Year
Alpine W10S4 BassLine Series 10" 250W RMS (750W Peak Power Handling) Single 4 ohm Voice Coil Car Subwoofer - 1 PC Only
Features:
- 10" 4-ohm subwoofer
- polypropylene and mica cone with poly-foam surround
- stamped steel frame
- power handling: 50-250 watts RMS
- peak power: 750 watts
- sensitivity: 86.6 dB
- frequency response: 24-200 Hz
- top-mount depth: 5-1/16"
- sealed box volume: 0.83 cu. ft.
- ported box volume: 1.51 cu. ft.
- grille not included
Specifications:
- Size: 10 -inch
- Impedance (Ohms): 4
- Cone Material: Polypropylene and Mica
- Surround Material: Poly-Foam
- Port diameter (inches): N/A
- Port length (inches): N/A
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 86.6 dB at 1 watt
- Frequency Response: 24 - 200 Hz
- Max RMS Power Handling: 250
- Peak Power Handling (Watts): 750
- Top Mount Depth (inches): 5 1/16
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 8 15/16
- Vas (liters): 34.7
- Fs (Hz): 32
- Qts: 0.44
- Xmax (millimeters): 10
- UPC: 713783829118
- Weight: 36
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
