Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.
Jensen JA1B-Bundle includes Jensen JA1B 690W Max Power Class D Monoblock Subwoofer Amplifier + Alpine W12S4 750W Peak Power Single 4 Ohms Voice Coil Subwoofer + SoundStorm AKS8 Amplifier Installation Kit
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Jensen JA1B
- • Alpine W12S4
- • SoundStorm AKS8

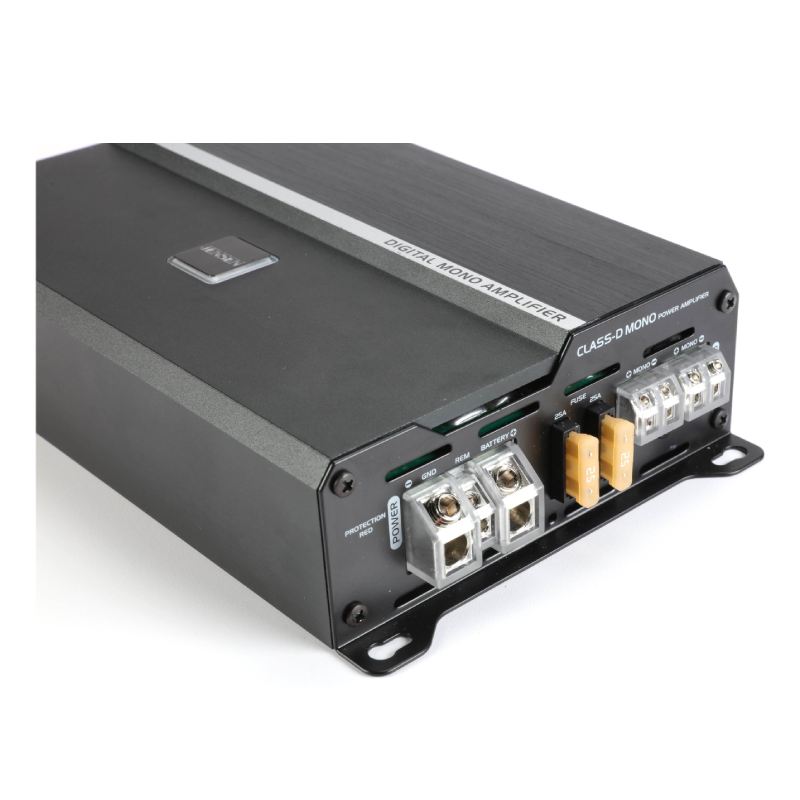

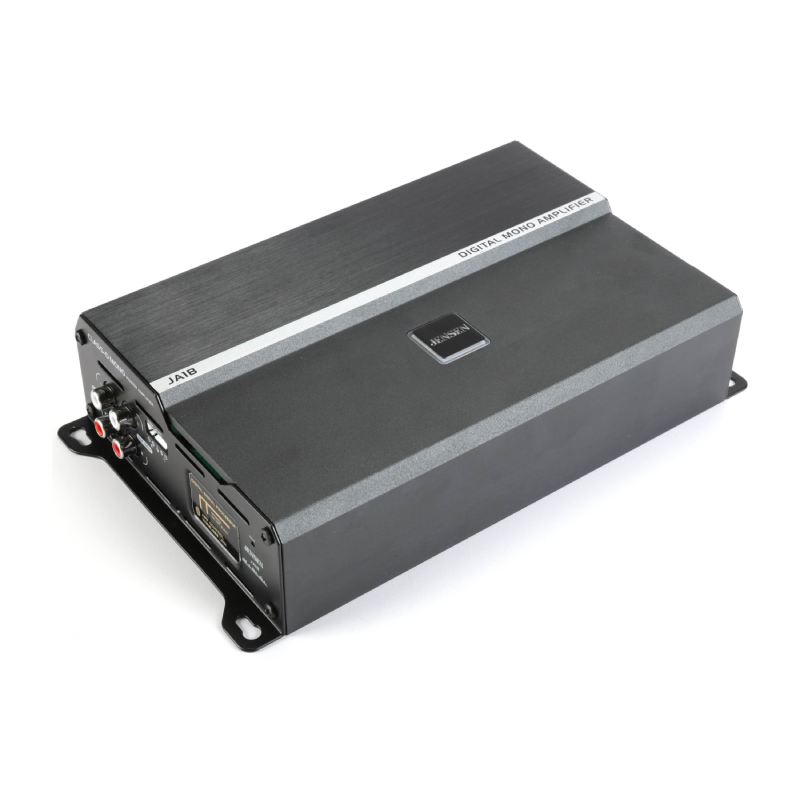

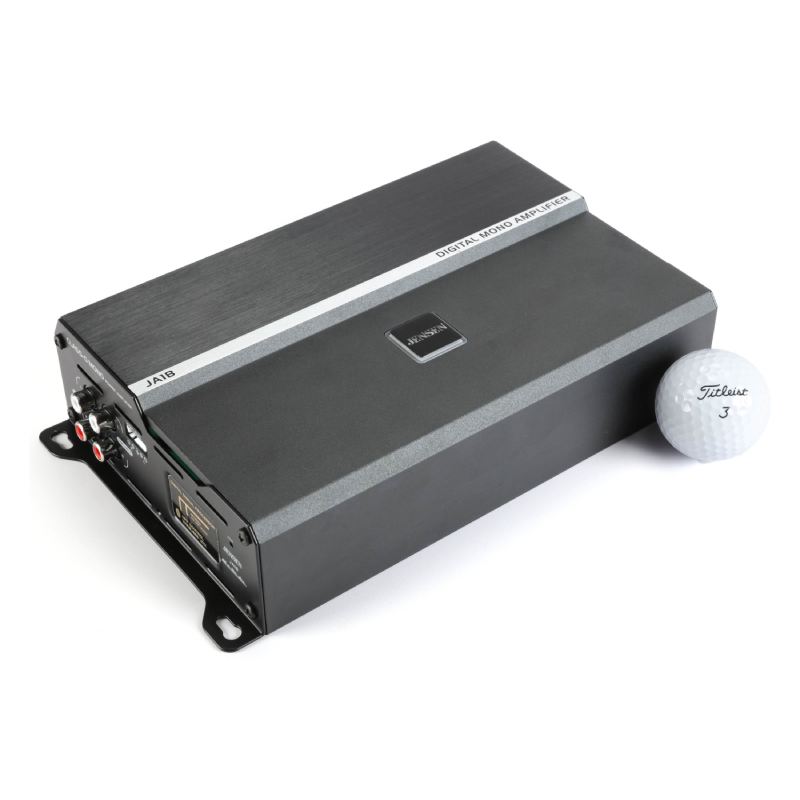

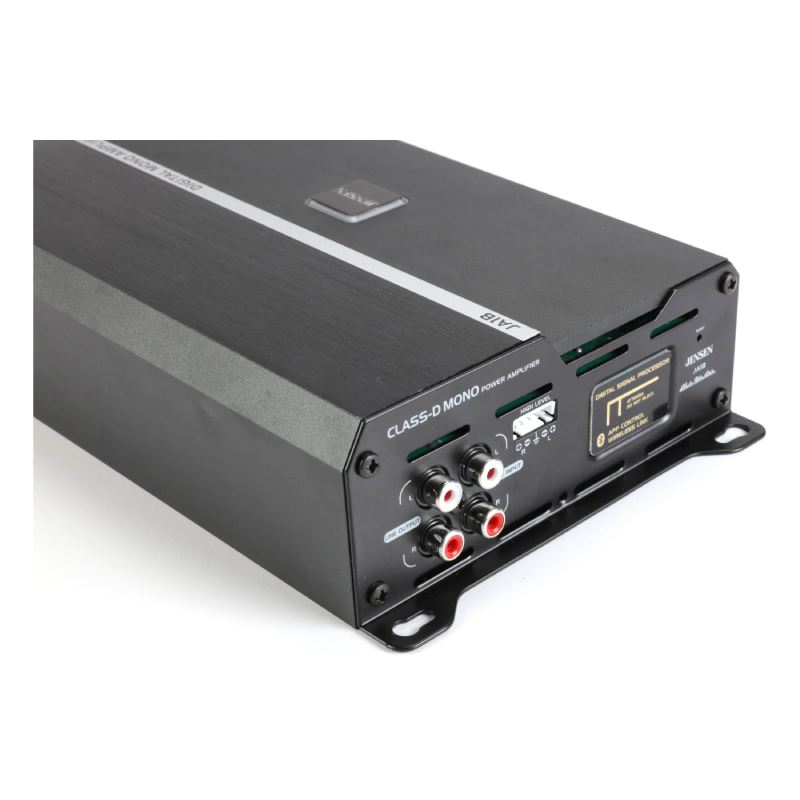

JA1B JA Series 290W x 1 (690W Max Power Handling) Class D Compact Mono Subwoofer Amplifier with Bluetooth App Control
Game-changer for Car Audio Enthusiasts
When it comes to superior car audio equipment, Jensen has established itself as a trusted brand, and the Jensen JA1B is a shining example of its commitment to excellence. The Jensen JA1B is a game-changer for car audio enthusiasts, designed to deliver exceptional sound quality and performance. The Jensen JA1B is a single-channel amplifier that packs a punch, boasting an impressive power output of 595 Watts RMS at 1 ohm.

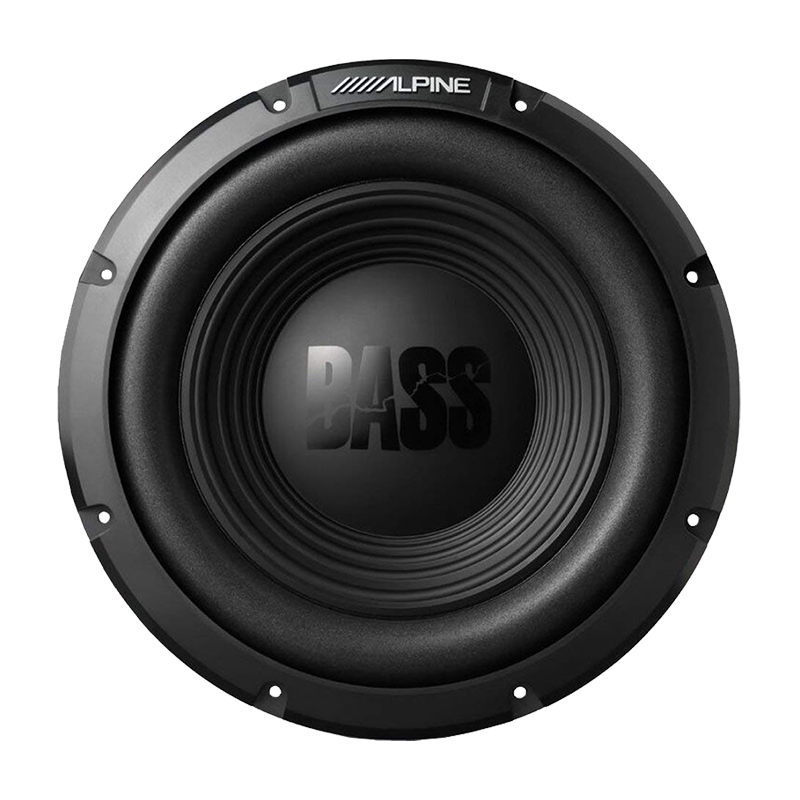

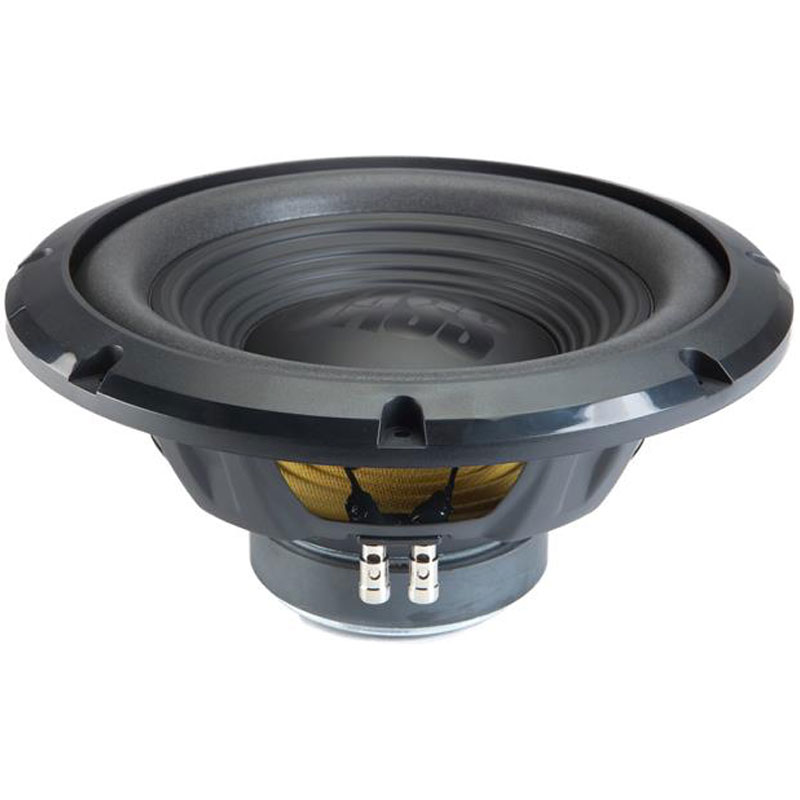

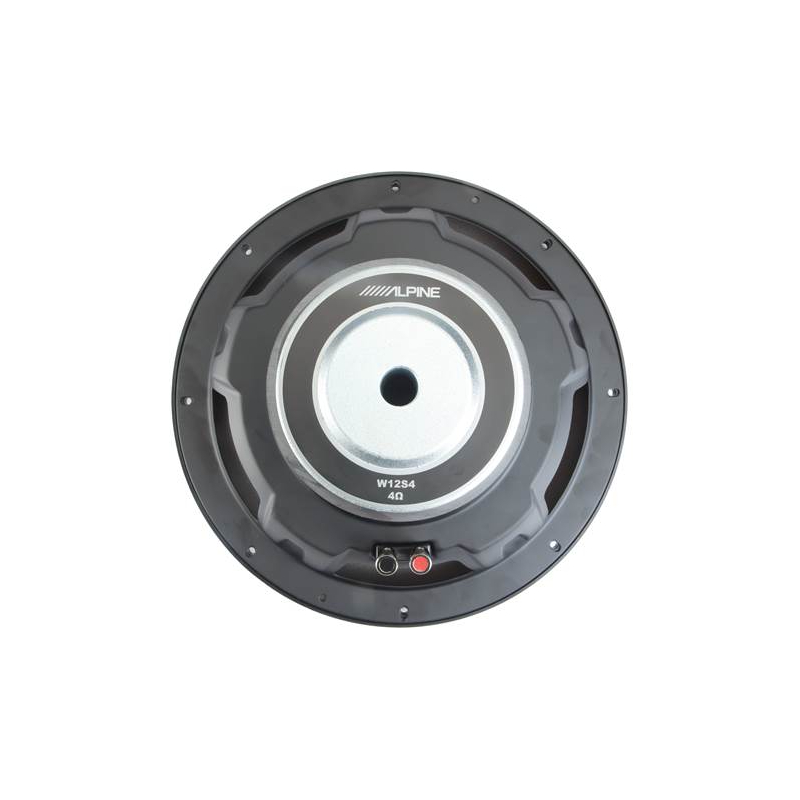

W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohm Voice Coil Car Subwoofer
Powering Your Ride's Low-End Glory!
The Alpine W12S4 BassLine Series is a 12-inch car subwoofer designed to enhance the low-frequency sound in a car audio system. The BassLine Series typically focuses on providing good sound quality and performance at an affordable price point within the Alpine product range. It features a single 4-ohm voice coil. The 4-ohm impedance determines how much electrical resistance the subwoofer presents to the amplifier.
AKS8 Complete 8 Gauge Amplifier Installation Kit
Power Your Sound with Precision
The AKS8 Complete 8 Gauge Amplifier Installation Kit is a package containing various components necessary for installing and powering a car audio amplifier. The kit usually includes all the necessary components and wiring to set up an amplifier in a vehicle, making installation more straightforward for users. The "8 Gauge" refers to the thickness or gauge of the power and ground wires included in the kit, indicating their capacity to handle electrical current.
JA1B JA-Series 470W x 1 @2Ohms, 690W Max Power Class D Monoblock Subwoofer Amplifier
Features:
- RGB Custom color illumination
- with Bluetooth App Control
- Class D design
- Pass-thru RCA outputs
- Adjustable bass boost @ 45Hz via Inputs: High
- (speaker wire) and Low (RCA) level
- Adjustable low-pass crossover: 32 Hz – 320 Hz
- Continuous Power Output: 290 W RMS x 1 Channel at 4?
- 470W RMS x 1 Channel at 2?
- 595W RMS x 1 Channel at 1? (50Hz and 1% THD+N)
- Maximum Dynamic Power: 325W RMS x 1 Channel at 50Hz at 4?,
- 565W RMS x 1 Channel at 50Hz at 2?
- 690W RMS x 1 Channel at 50Hz at 1? (10% THD+N)
- Signal to Noise: 72dBA
- reference 1 Watt RMS, THD+N: <0.14% at 1 Watt RMS from 20Hz to 20kHz
- Frequency response: 20Hz – 300Hz
- Dimensions: 2.16" x 9.56" x 5.59" (HxWxD)
Specifications:
- RMS Power Output (Watts x Channels): 290 x 1
- Peak Power Output (Watts x Channels): 325 x 1
- Power at 2 Ohms (Watts x Channels): 470 x 1
- Bridged Power (Watts x Channels): N/A
- Minimum Impedance Bridged: N/A
- Minimum Impedance Unbridged: 2
- Minimum Impedance: 2
- Best Frequency Response: 20-300Hz Hz
- THD at Rated RMS Power: 0.09%
- Signal to Noise Ratio: 68 dB
- Input Voltage: 14.4v
- Amplifier Class: D
- Low-Pass Crossover Frequency: 20-500Hz
- Low-Pass Slope (dB/octave): 6, 12, 18 dB/octave
- High-Pass Crossover Frequency: N/A
- High-Pass Slope (dB/octave): N/A
- Bass Boost: Yes
- Bass Boost Frequency : 45 Hz
- Fan Cooled: No
- Fuse Rating: 50
- Speaker Level Inputs: Yes
- Preamp Outputs 1 pair
- Width (inches): 9-9/16
- Height (inches): 2-1/4
- Depth (inches): 5-5/8
- Parts Warranty: 3 Years
- Labor Warranty: 3 Years

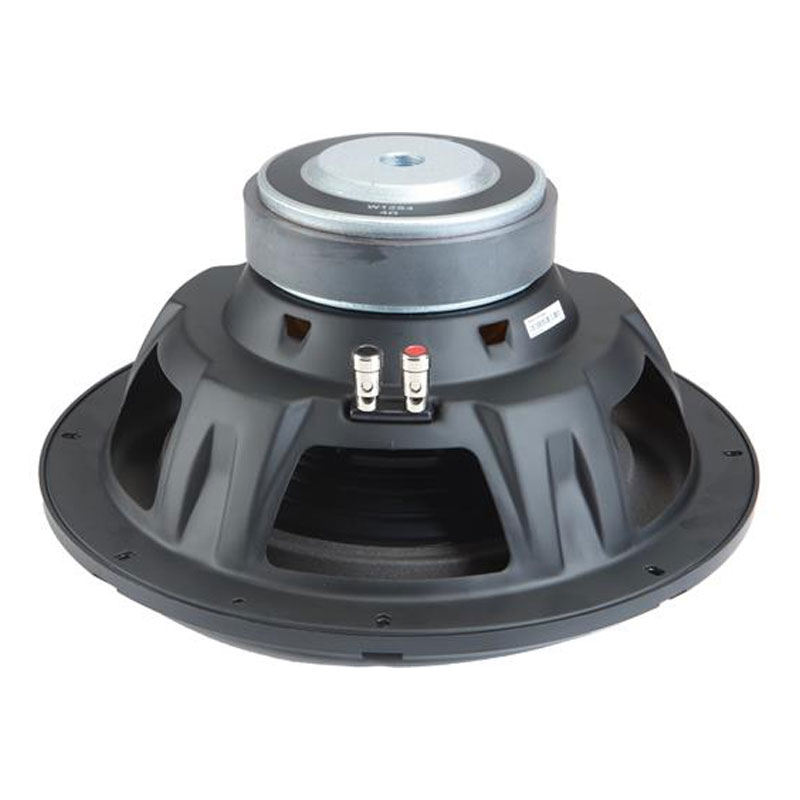

W12S4 BassLine Series 12" 250W RMS (750W Peak Power Handling) Single 4 Ohms Voice Coil Car Subwoofer
Features:
- 12" 4-ohm subwoofer
- polypropylene and mica cone with poly-foam surround
- stamped steel frame
- power handling: 50-250 watts RMS
- peak power: 750 watts
- sensitivity: 87.9 dB
- frequency response: 22-200 Hz
- top-mount depth: 5-5/16"
- sealed box volume: 1.09 cu. ft.
- ported box volume: 1.91 cu. ft.
- grille not included
Specifications:
- Size: 12 -inch
- Impedance (Ohms): 4
- Cone Material: Polypropylene and Mica
- Surround Material: Poly-Foam
- Port diameter (inches): N/A
- Port length (inches): N/A
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 87.9 dB at 1 watt
- Frequency Response: 22 - 200 Hz
- Max RMS Power Handling: 250
- Peak Power Handling (Watts): 750
- Top Mount Depth (inches): 5 5/16
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 10 9/16
- Vas (liters): 64.3
- Fs (Hz): 30
- Qts: 0.49
- Xmax (millimeters): 10
- Parts Warranty: 1 Year
- Labor Warranty: 1 Year
- Ideal Sealed Box Volume (cubic feet): 1.09
- Minimum Sealed Box Volume (cubic feet): 0.75
- Maximum Sealed Box Volume (cubic feet): 1.5
- Ideal Ported Box Volume (cubic feet): 1.84
- Minimum Ported Box Volume (cubic feet): 1.43
- Maximum Ported Box Volume (cubic feet): 2.43

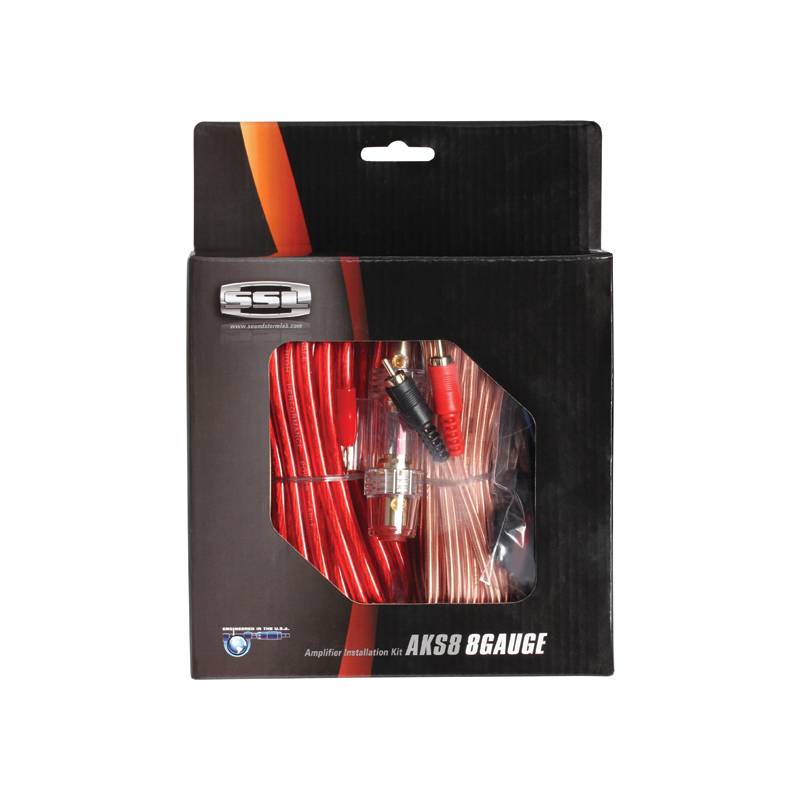

AKS8 Complete 8 Gauge Amplifier Installation Kit
Features:
- 17 ft. 8 GA Red Power Cable
- 3 ft. 8 GA Black Ground Cable
- 16 ft. 18 GA Blue Turn-On Wire
- 20 ft. Speaker Wire
- Competition High-Quality Fuse Holder and Fuse
- (7) 4” Wire Ties (1) Rubber Grommet #10 Gold-Plated Ring Terminal
- (2) Lg. Gold-Plated Spade Terminals (5) Sm. Gold-Plated Spade Terminals (2) Butt Splice Wire Connectors (2) Screws
- UPC: 713783828838
- Weight: 25
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
