Jensen  JA4B-Bundle5

Jensen JA4B JA-Series Class D 4-Channel Amplifier + Pioneer TS-A6960F A-Series 6x9" 90W RMS 4-Way Coaxial Speakers + Pioneer TS-A652F A-Series 6.5" 70W RMS 3-Way Coaxial Speakers

Item #92293

  Free 2-Years Warranty Included!
60 DAYS Returns Accepted.
FREE Lifetime Tech Support.
FREE Shipping (No Minimum).
60 DAYS Price change protection.


Huge Saving on Other items:


Exclusive Bundle Banner for OCS

Onlinecarstereo Exclusive Bundle

This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

Jensen JA4B-Bundle5 Jensen JA4B JA-Series Class D 4-Channel Amplifier + Pioneer TS-A6960F A-Series 6x9" 90W RMS 4-Way Coaxial Speakers + Pioneer TS-A652F A-Series 6.5" 70W RMS 3-Way Coaxial Speakers


Authorized Dealer Stamp

We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?
  • •Jensen JA4B
  • •Pioneer TS-A6960F
  • •Pioneer TS-A652F
  • • Owner's Manual

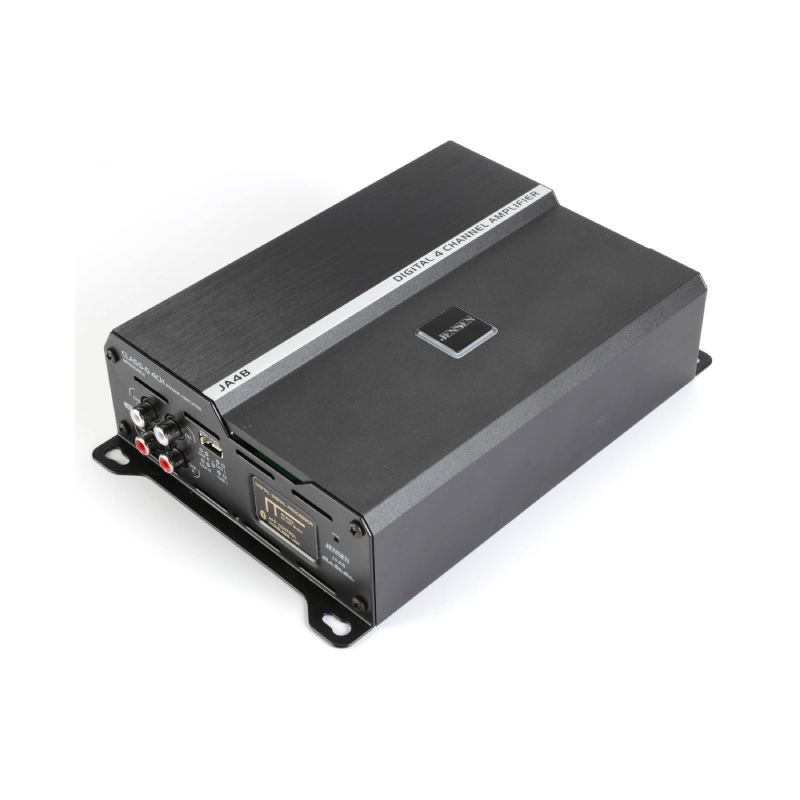

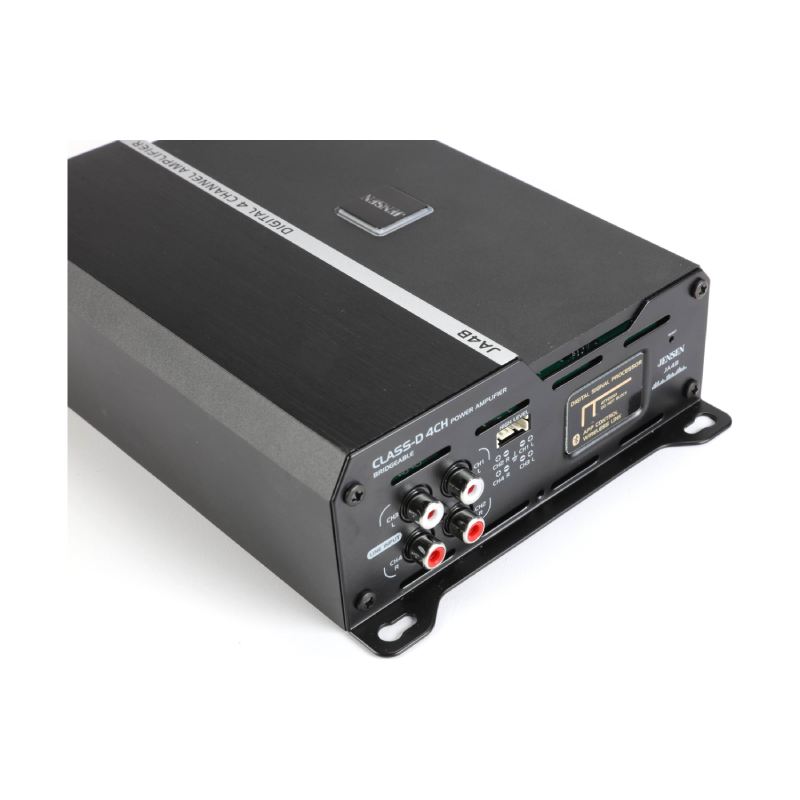

Jensen JA4B JA Series 90W RMS x 4 (740W Max Power Handling) Class D 4-Channel Amplifier with Bluetooth App Control

High-quality Car Audio Equipment

Jensen has long been synonymous with high-quality car audio equipment, and the Jensen JA4B 4-channel amplifier is no exception. Engineered to deliver exceptional sound performance, the Jensen JA4B is a game-changer for car audio enthusiasts. The Jensen JA4B provides ample power for your car audio system, with 90 watts RMS per channel at 4 ohms. This versatile 4-channel amp allows you to connect multiple speakers and components, ensuring a well-balanced and immersive audio experience.

Pioneer TS-A6960F A-Series 6x9" 90W RMS (450W Peak Power Handling) 4 Ohms 4-Way Coaxial Speakers

Easily Upgrade to High Performance

The A-series sound design by Pioneer intentionally ensures a harmonious blend between the subwoofer and full-range speakers, resulting in a cohesive and fluid auditory experience. This setup delivers powerful, impactful bass that not only allows you to hear the music but also feel its energy.

Pioneer TS-A652F A-Series 6.5" 70W RMS (320W Peak Power Handling) 4 Ohms 3-Way Coaxial Speakers

A-Series Speaker

If you are looking for a 3-way car speaker that not only takes the quality of your audio system to the next level but also does not break the bank, then Pioneer's TS-A652F is your best bet. Pioneer's A-Series speaker, like this one, has been a revelation to car enthusiasts looking for a speaker that allows you to hear it clearly anywhere you sit inside the vehicle.

JA4B JA Series 90W RMS x 4 (740W Max Power Handling) Class D 4-Channel Amp with Bluetooth App Control +

Features:

  • RGB Custom color illumination
  • Class D design
  • 2 Ohm stable stereo operation
  • Bridgeable operation for subwoofer applications
  • 10 Band EQ (5 per channel)
  • Inputs: High (speaker wire) and Low (RCA) level
  • Adjustable high and lowpass crossovers: 32 Hz – 320 Hz
  • Adjustable high and low-pass crossovers: 32 Hz – 320 Hz
  • Continuous Power Output: 90W RMS x 4 Channels at 4?
  • 115W RMS x 4 Channels at 2?
  • 230W RMS x 2 Channels at 4? BRIDGED (1% THD+N)
  • Maximum Dynamic Power: 125W RMS x 4 Channels at 1kHz at 4?
  • 185W RMS x 4 Channels at 1kHz at 2?,
  •  365W RMS x 2 Channels at 1kHz at 4? BRIDGED (10% THD+N)
  • Signal to Noise: 70dBA reference 1 Watt RMS
  • THD+N: <0.15% at 1 Watt RMS from 20Hz to 20kHz
  • Frequency response: 20Hz - 20kHz
  • Amplifier dimensions: 2.16" x 8.38" x 5.59" (HxWxD)



Specifications:

  • RMS Power Output (Watts x Channels): 90 x 4
  • Peak Power Output (Watts x Channels): 125 x 4
  • Power at 2 Ohms (Watts x Channels): 115 x 4
  • Bridged Power (Watts x Channels): 230 x 2
  • Minimum Impedance Bridged: 4
  • Minimum Impedance Unbridged: 2
  • Minimum Impedance: 2
  • Best Frequency Response: 20Hz-20k Hz
  • THD at Rated RMS Power: 0.15%
  • Signal to Noise Ratio: 70 dB
  • Input Voltage: 14.4v
  • Amplifier Class: D
  • Low-Pass Crossover Frequency: 20-500Hz
  • Low-Pass Slope (dB/octave): 6, 12, 18 dB/octave
  • High-Pass Crossover Frequency: 20-500Hz
  • High-Pass Slope (dB/octave): 6, 12, 18 dB/octave
  • Bass Boost: Yes
  • Bass Boost Frequency: 45 Hz
  • Fan Cooled: No
  • Fuse Rating: 50
  • Speaker Level Inputs: Yes
  • Preamp Outputs :No
  • Width (inches): 8-7/16
  • Height (inches): 2-1/4
  • Depth (inches): 5-5/8
  • Parts Warranty: 3 Years
  • Labor Warranty: 3 Years

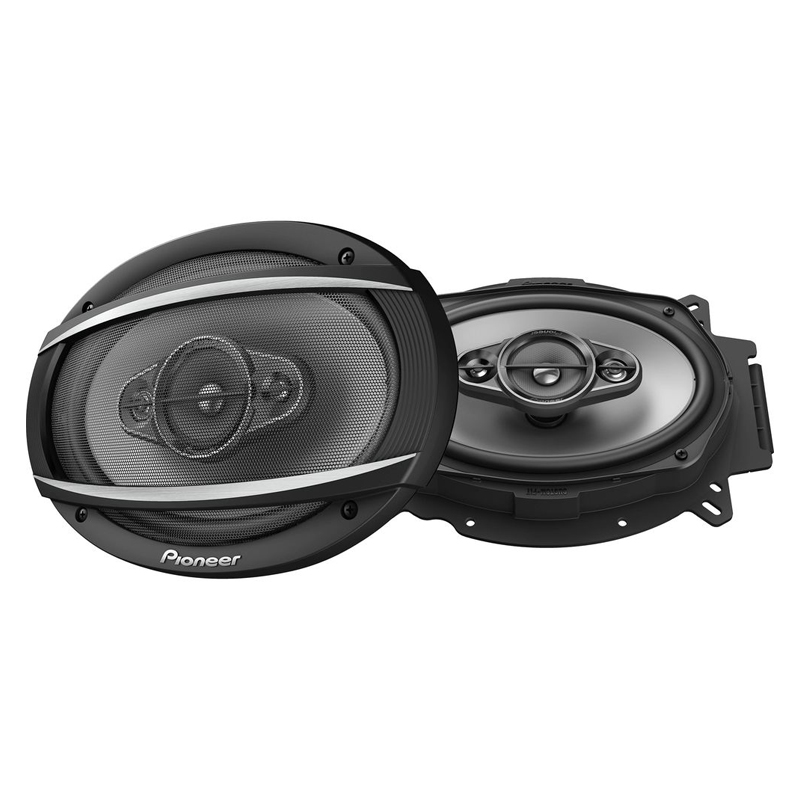

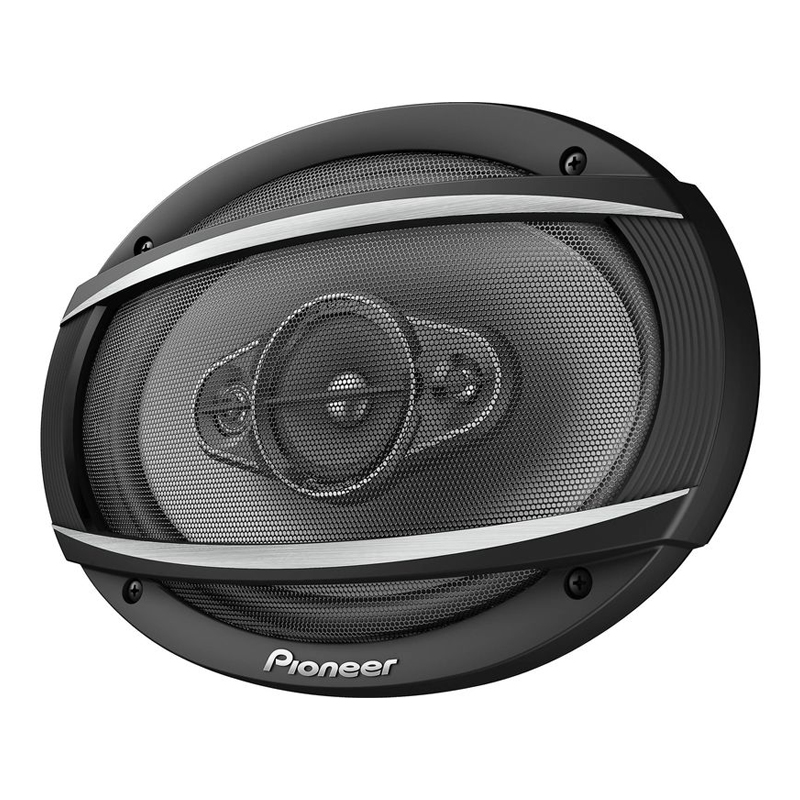

Pioneer  TS-A6960F A-Series 6x9" 90W RMS (450W Peak Power Handling) 4 Ohms 4-Way Coaxial Speakers

Features:

  • 450 Watts Max Power (90 Watts Nominal)
  • Twin polyethylene terephthalate (PET) hard dome tweeter
  • 2-1/4" cellulose fiber cone midrange
  • 6 x 9" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction



Specifications:

  • System Type: 4-way Coaxial
  • Sound Pressure Level (Sensitivity): 89 dB (+- 1.5dB)
  • Frequency Range: 35 Hz to 24 kHz
  • Continuous Power Handling (RMS): 90 Watts
  • Maximum Peak Power Handling: 450 Watts
  • Nominal Impedance: 4 ohms
  • Diameter: 6x9"
  • Cone Material: Carbon and mica reinforced IMPP in moonstone gray
  • Surround Material: Elastic polymer
  • Magnet Material: Ferrite
  • Magnet Weight: 11.3 oz
  • Mounting Depth: 2-7/8"
  • Tweeter Type: Polyethylene terephthalate (PET) dome tweeter (x2)
  • Diameter: 11 mm and 18 mm
  • Crossover Frequency: 3,600 Hz

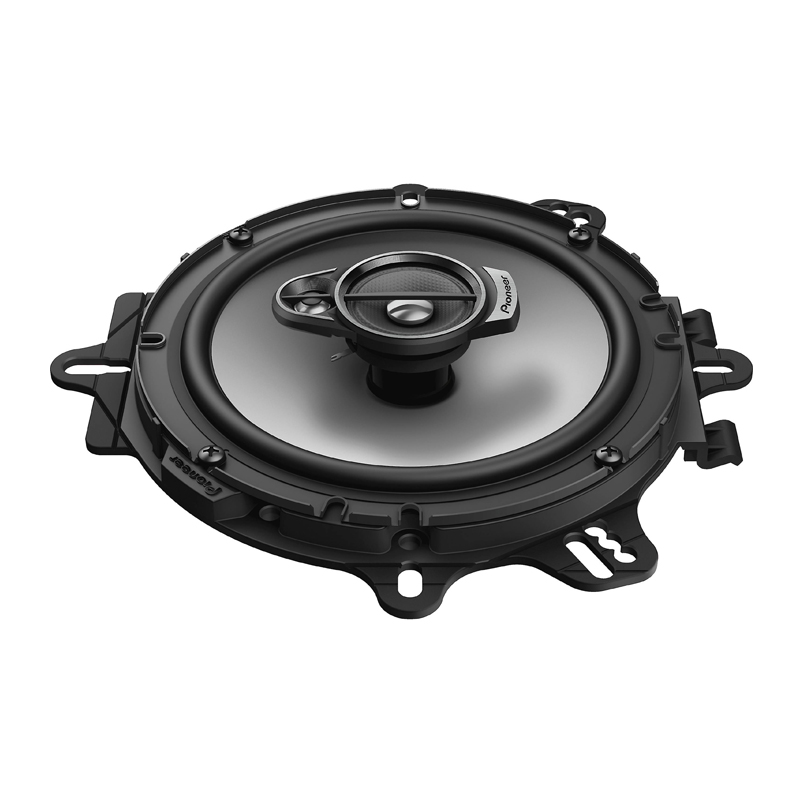

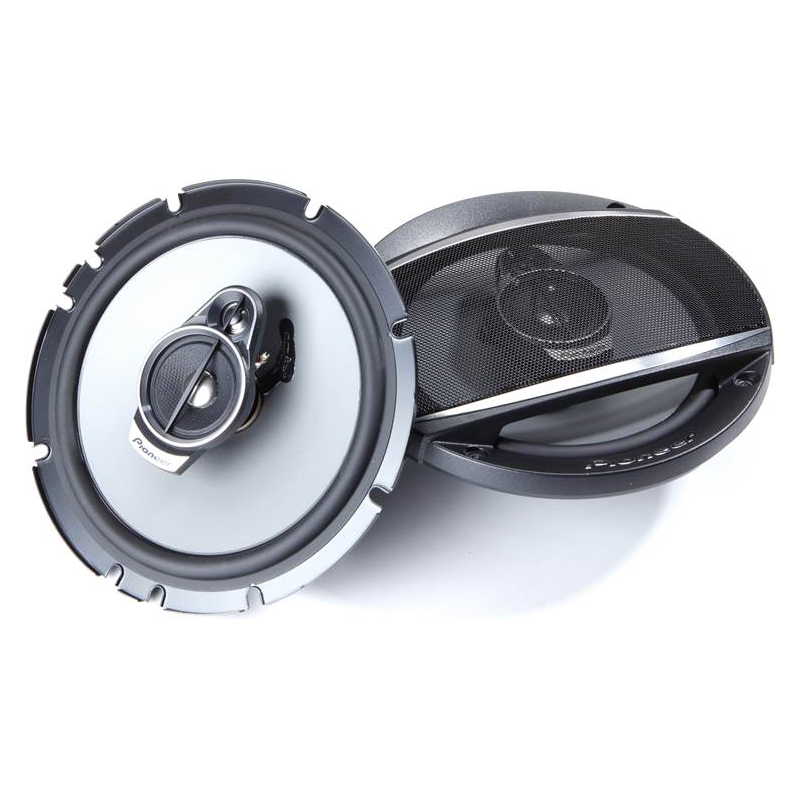

Pioneer  TS-A652F A-Series 6.5" 70W RMS (320W Peak Power Handling) 4 Ohms 3-Way Coaxial Speakers

Features:

  • 320 Watts Max Power (70 Watts Nominal)
  • 11mm Tweeter
  • 1-5/8" cellulose fiber cone midrange
  • 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction


Specifications:

  • System Type : 3 Way Coaxial
  • Sound Pressure Level (sensitivity): 87dB (+/- 1.5dB)
  • Frequency Range 34Hz to 24 kHz
  • Continuous Power Handling (RMS): 70 Watts
  • Maximum Peak Power Handling: 320 Watts
  • Nominal Impedance: 4 ohms
  • Woofer Cone Diameter: 6 - 1/2"
  • Woofer Cone Material: Carbon and mica reinforced IMPP in moonstone gray
  • Surround Material: Elastic polymer
  • Woofer Magnet: Material Ferrite
  • Woofer Magnet Weight: 7.6 oz
  • Type: Twin Polyethylene terephthalate (PET) dome
  • Diameter: 11 mm
  • Crossover Frequency: 3,600 Hz
  • UPC: 713783829804
  • Weight: 21
  • Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
