Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

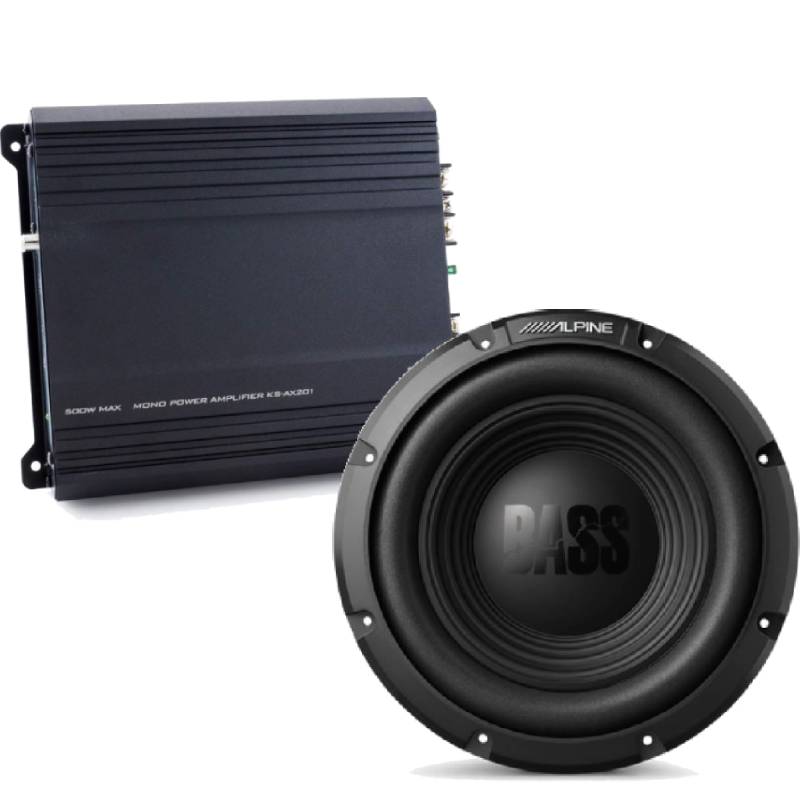

JVC KS-AX201-Bundle includes JVC KS-AX201 250W x 1 @2Ohms, 500W Max Power Class-AB Monoblock Amplifier + Alpine W10S4 10" 750W Peak Power Single 4 Ohms Voice Coil Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • JVC KS-AX201
- • Alpine W10S4

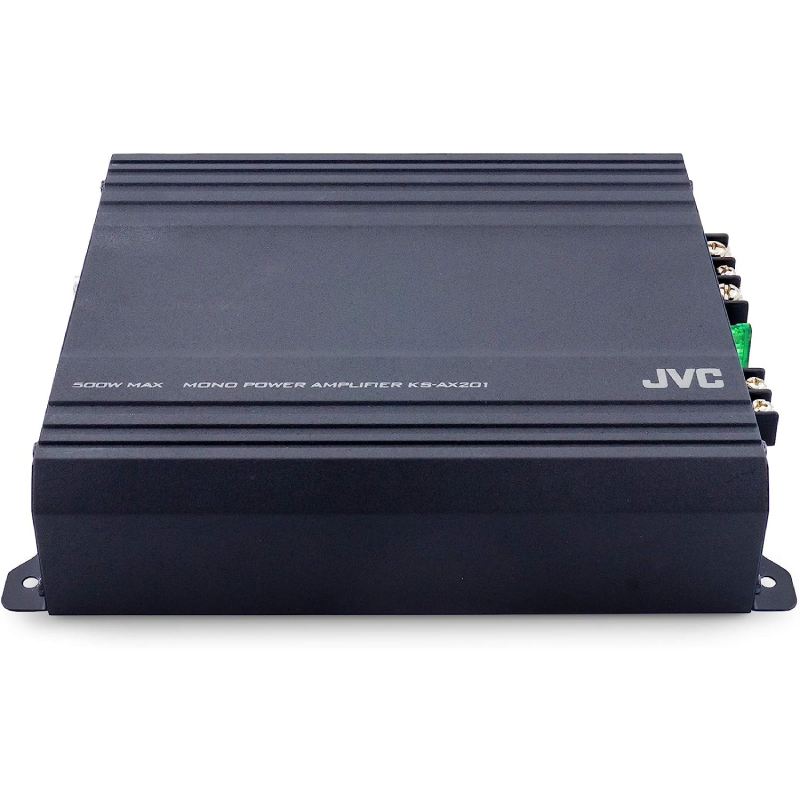

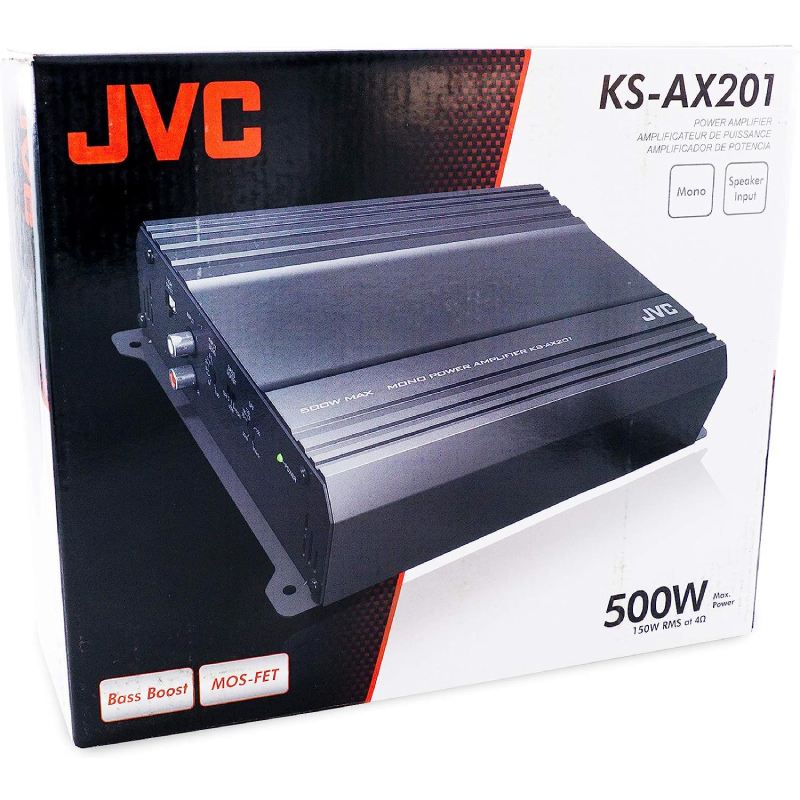

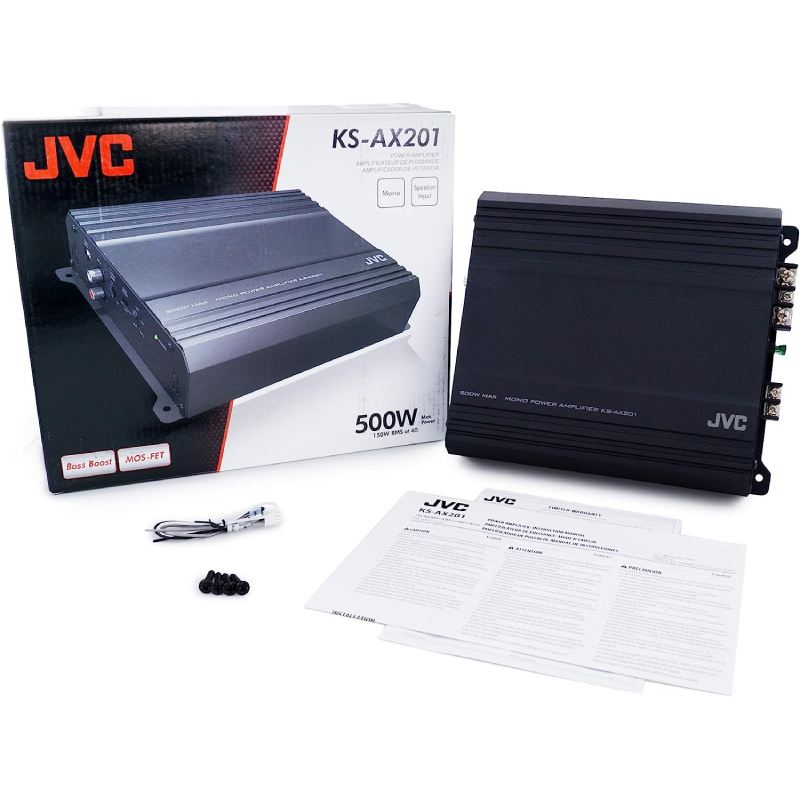

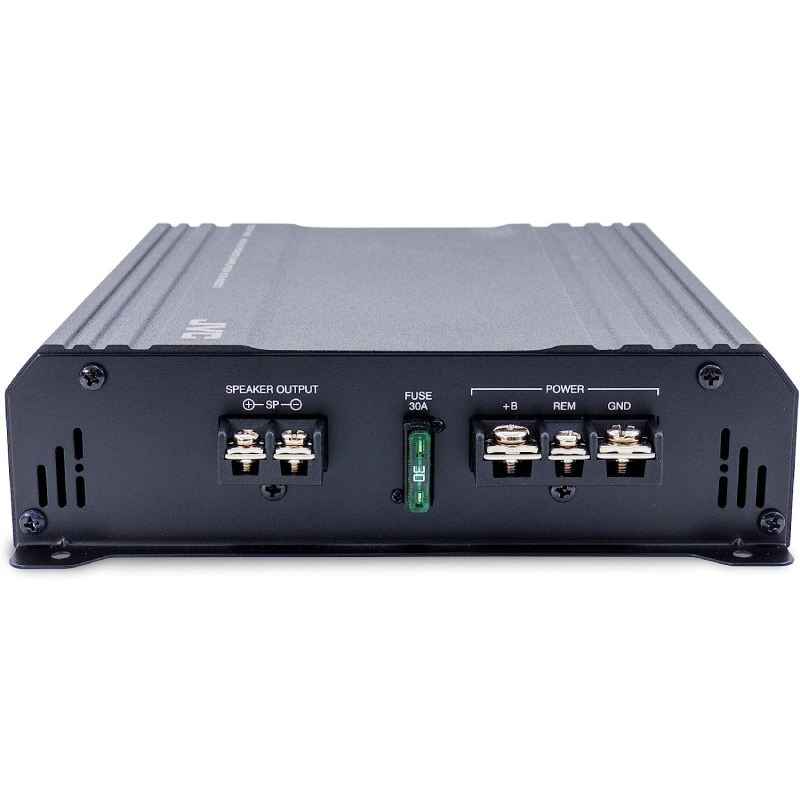

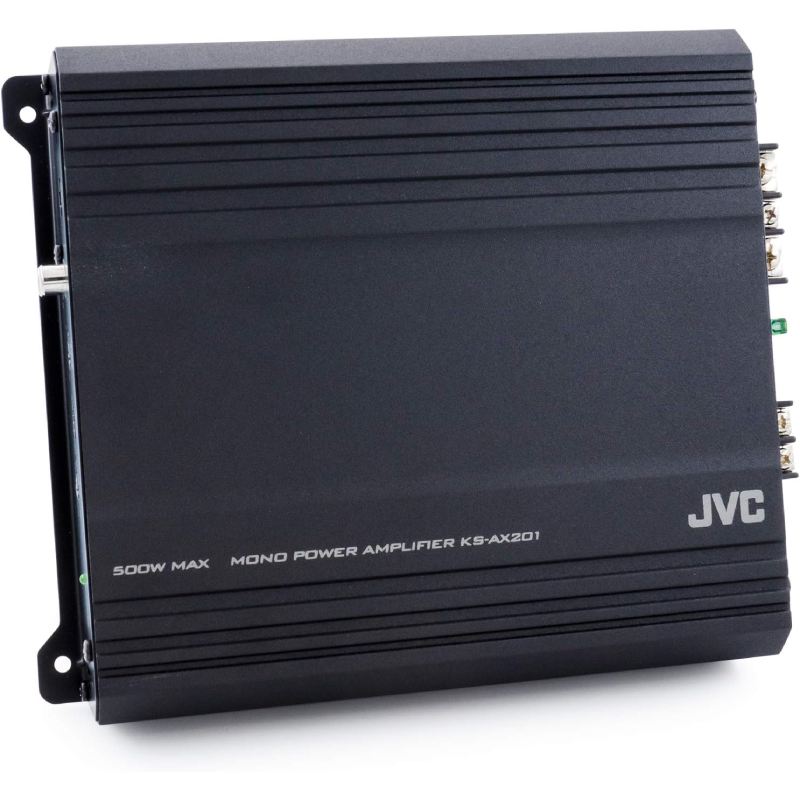

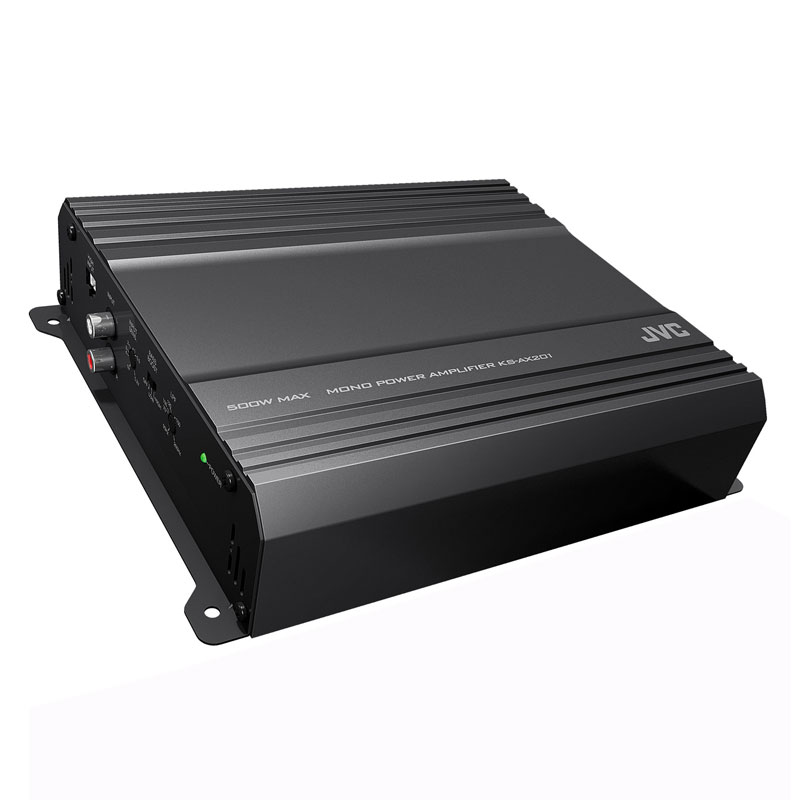

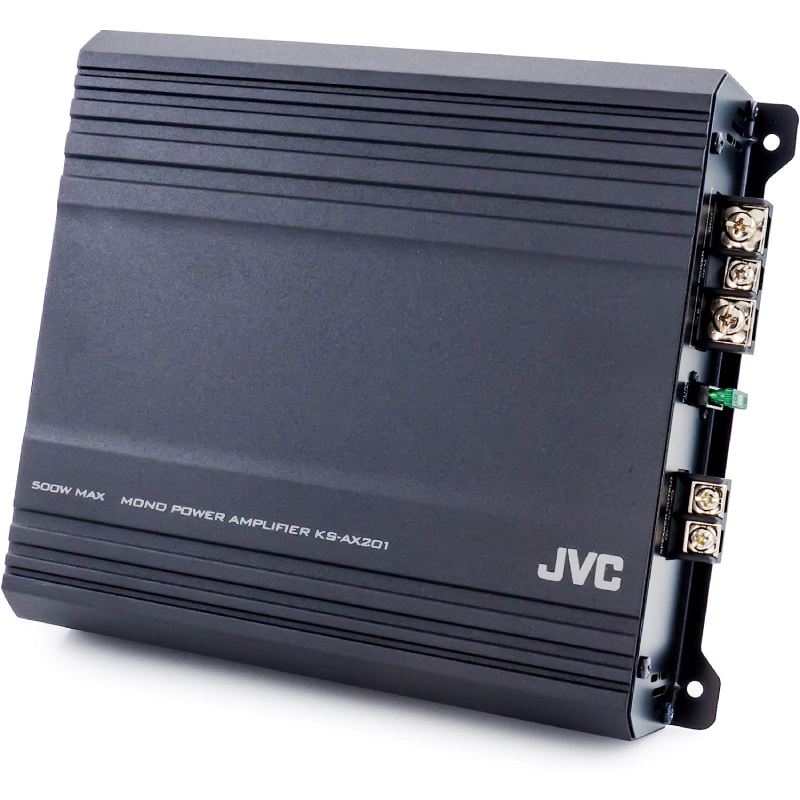

KS-AX201 AX2 Series 250W x 1 @2Ohms, 500W Max Power Class-AB Monoblock Amplifier
Delivering Powerful and Clear Sound Reproduction
The JVC KS-AX201 car amplifier is the perfect addition to your car audio system, delivering powerful and clear sound reproduction. Designed to elevate your audio experience, this amplifier ensures a dynamic and immersive soundstage on the road.
Precisely Drive Your Speakers
With a maximum power output of 500 watts, the KS-AX201 provides ample power to precisely drive your speakers or subwoofers. Its compact and slim design makes it easy to install in various locations within your vehicle.

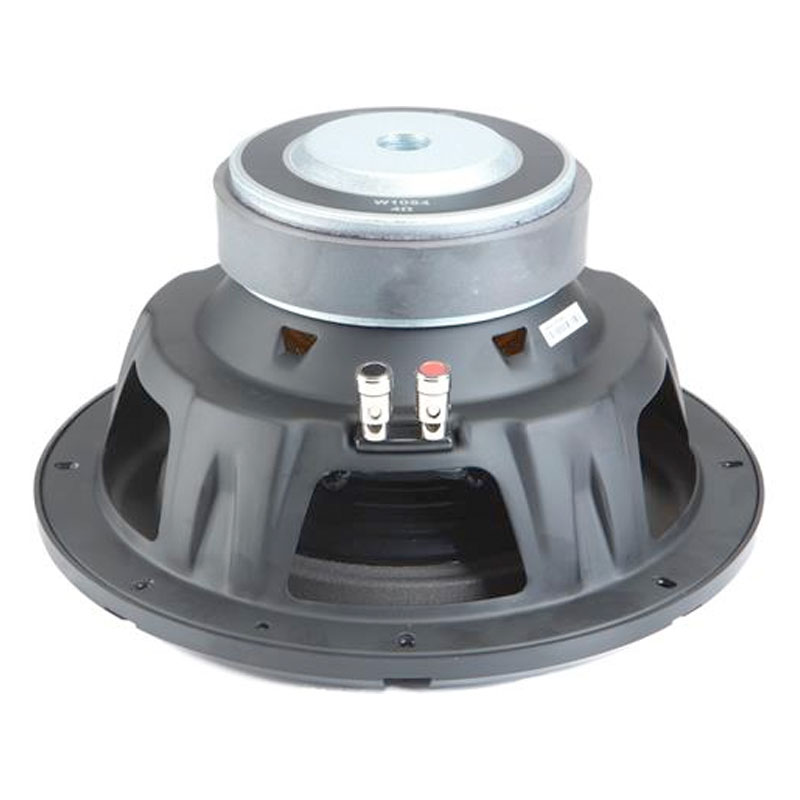

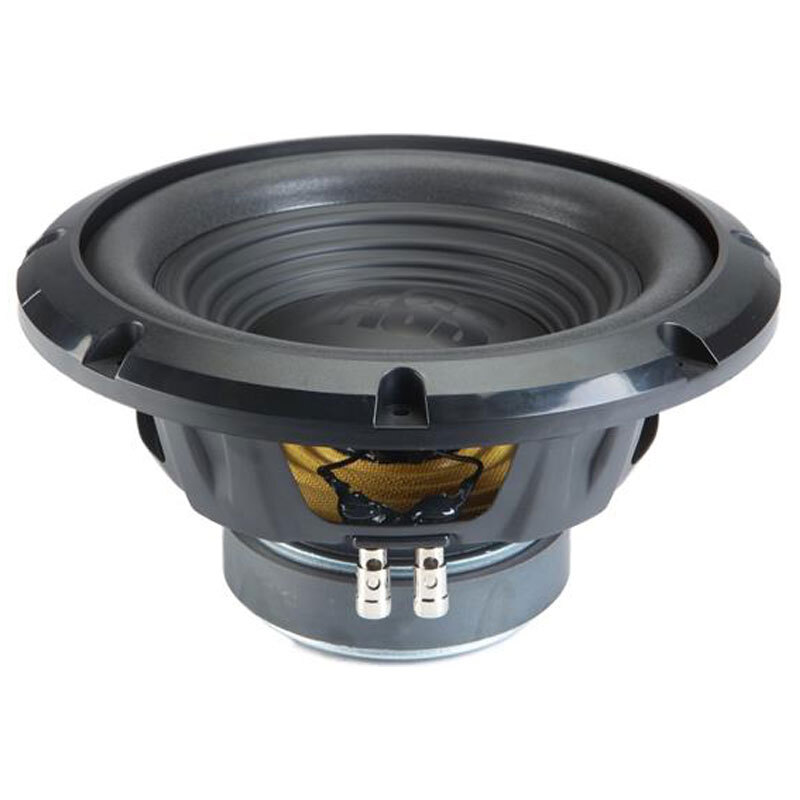

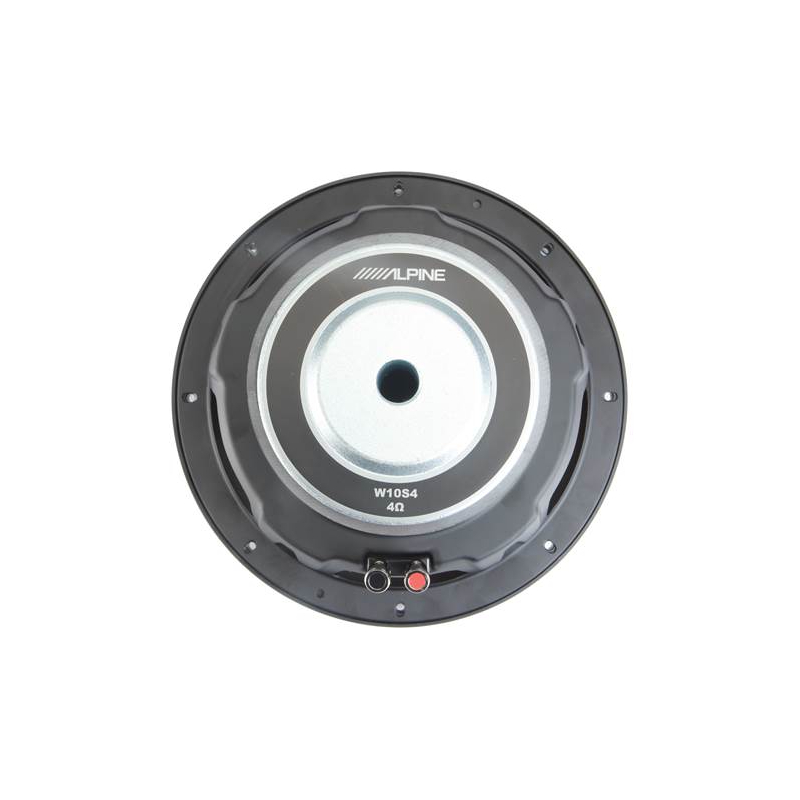

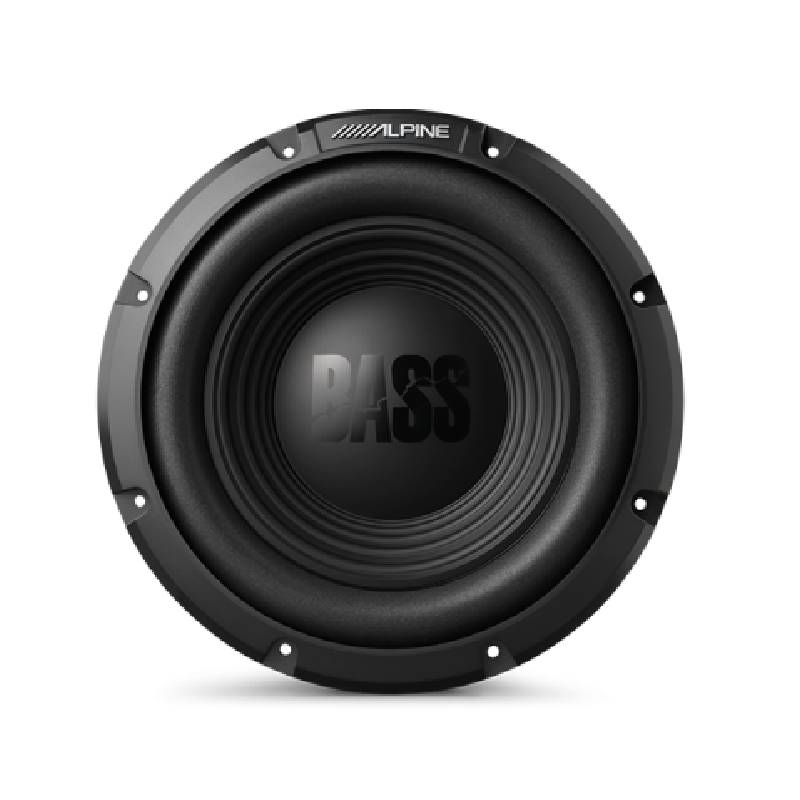

W10S4 BassLine Series 10" 250W RMS (750W Peak Power Handling) Single 4 ohm Voice Coil Car Subwoofer
Unleash the Power of Deep Bass
The Alpine W10S4 is a 10-inch subwoofer designed to deliver powerful and deep bass performance in your car audio system. With its robust construction and advanced features, the W10S4 provides an immersive low-frequency experience.
Experience Precision in Sound
This subwoofer features a cone made of polypropylene and mica, which offers durability and rigidity for accurate bass reproduction. The cone is surrounded by a high-roll poly-foam surround, allowing maximum excursion and enhanced bass response.
KS-AX201 AX2 Series 250W x 1 @2Ohms, 500W Max Power Class-AB Monoblock Amplifier
Features:
- Solid Sound Quality
- Easy Installation
- Bass Boost Control
Specifications:
- Maximum Power Output: 500W
- RMS Power Output:
- 4 ohm: 150W x 1 (20 - 200Hz)
- 2 ohm: 250W x 1 (20 - 200Hz)
- Class: Class-AB
- Frequency Response: 20 - 200Hz (+0, -3dB)
- Total Harmonic Distortion: < 0.08%
- Signal-to-Noise Ratio (CEA-2006 Compliant): > 80dB (reference: 1W into 4 ohms)
- Load Impedance Allowance: 2 - 8 ohms
- LPF: 50 - 200Hz (18dB)
- Subsonic Filter: 20Hz Fixed
- RCA Input: L/R
- High Level Input (Speaker Level Input): Yes
- Input Sensitivity: 0.2 - 5V
- Bass Boost Control at 45Hz: Switchable (OFF/LOW/HIGH)
- Protection Circuitry: Thermal/Short Circuit/Overload/DC Offset
- Anti-Pop Circuit: Yes
- Dimensions: 226 x 49.5 x 185mm (8-15/16" x 2" x 7-5/16")
W10S4 BassLine Series 10" 250W RMS (750W Peak Power Handling) Single 4 ohm Voice Coil Car Subwoofer
Features:
- 10” Single 4Ω Subwoofer
- Sold Individually
- Progressive Wavelet Ribs (P.W.R.) Cone Design
- Heavy Gauge Screw Terminals
- Polypropylene and Mica Cone
- Polyfoam Surround
- High Strength Custom Steel Frame
- 8 AWG Push Terminals
- Progressive Polyester Spider
- 2 Piece Yoke with Vented Pole Motor Structure
- Optimised Magnet Circuit
- Grille Included
Specifications:
- Size: 10 -inch
- Impedance (Ohms): 4
- Cone Material: Polypropylene and Mica
- Surround Material: Poly-Foam
- Port diameter (inches): N/A
- Port length (inches): N/A
- Free-Air: No
- Dual Voice Coil: No
- Sensitivity: 86.6 dB at 1 watt
- Frequency Response: 24 - 200 Hz
- Max RMS Power Handling: 250
- Peak Power Handling (Watts): 750
- Top Mount Depth (inches): 5 1/16
- Bottom Mount Depth (inches): N/A
- Cutout Diameter or Length (inches): 8 15/16
- Vas (liters): 34.7
- Fs (Hz): 32
- Qts: 0.44
- Xmax (millimeters): 10
- UPC:
- Weight: 16
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
