Kicker WX Series 4-Channel 3600W Max Power, Class D Monoblock Subwoofer Amplifier
We are a Kicker authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • Monoblock Subwoofer Amplifier
- • (2) Vertical mounting brackets
- • (4) 3/4" screws
- • Owner's Manual
Kicker Warhorse Amplifier: Engineered for SoloX® L7X™ Subwoofers

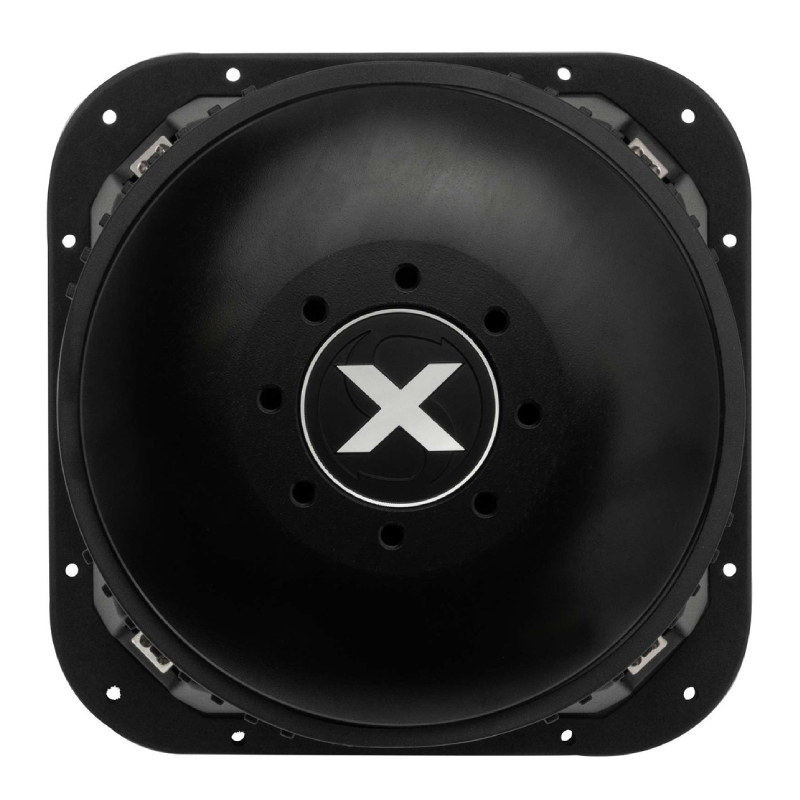

Kicker developed the Warhorse subwoofer amplifier specifically to drive their SoloX® L7X™ Series subwoofers. Available in 10-, 12-, or 15-inch sizes, these powerful 2000-watt rated subs come in dual voice coil (DVC) 1-ohm and 2-ohm models.
- One 10", 12", or 15" L7X DVC-2 sub wired at 4-ohms for a 1400-watt bass output.
- Two L7X DVC-2 subs wired together at 2-ohms for a 2500-watt bass output.
- One 10", 12", or 15" L7X DVC-1 sub wired at 2-ohms for a 2500-watt bass output (which may be a bit much, but Kicker thinks will be safe).
- Two L7X DVC-1 subs wired together at 1-ohm for the full 3600-watt bass output.

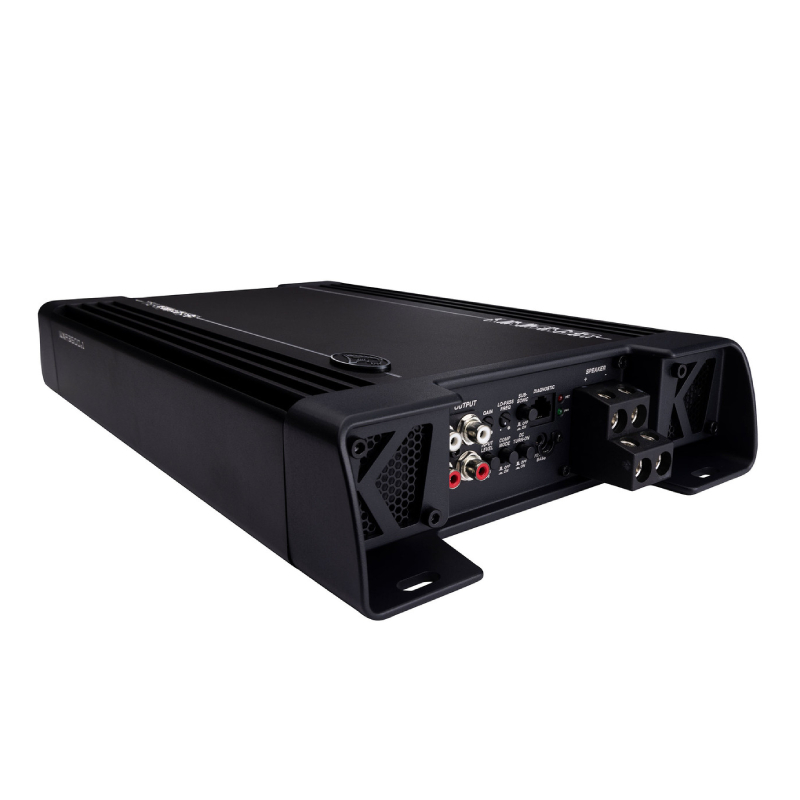

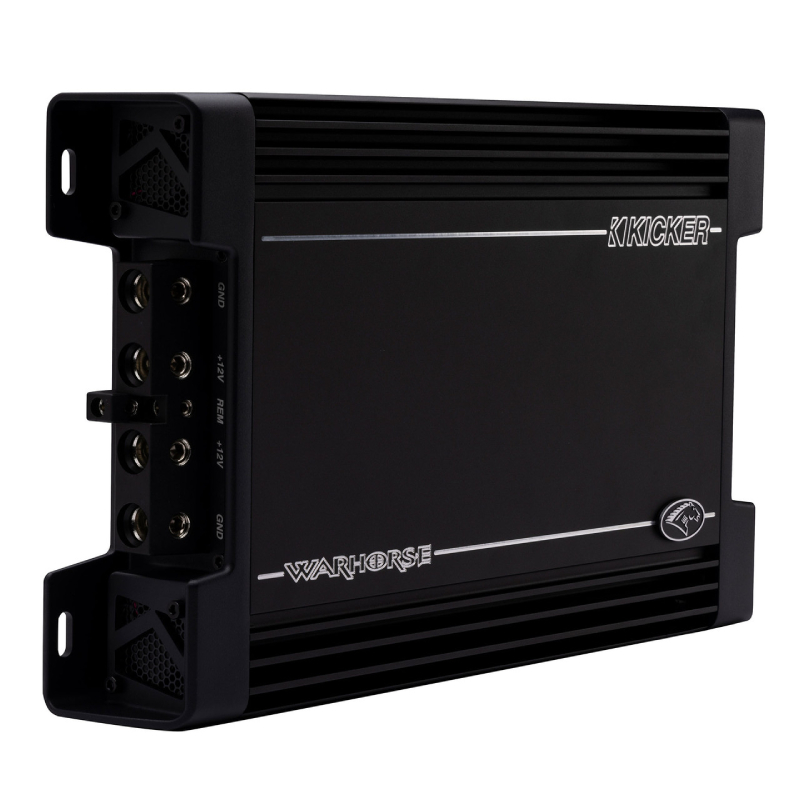

Powerful Warhorse Subwoofer Amplifier
Whether you're an SPL competitor or simply love it loud, Kicker's WXA3600.1 Warhorse subwoofer amplifier delivers up to 3600 watts RMS of wall-blasting bass with symmetrical power supply, microprocessor-controlled cooling, and rugged reliability, ensuring you dominate any battle for intense sound.
Essential Sound and Advanced Remotes
The low-pass and subsonic EQ filters enable exact tuning of your subwoofer's bass. You can adjust the bass level from the front seat using the remote control knob, and a remote diagnostic display keeps track of voltage, current, and temperature to ensure your system operates at peak performance, even under maximum load.
Kicker's Warhorse Competition Mode: Revolutionizing Bass Performance
In the realm of competition-level bass, the intense sound pressure can literally shake things up—causing hair to stand on end, windows to crack, and even twisting an amplifier’s tuning knobs out of place. Kicker’s "Livin' Loud" team addresses this challenge with their Warhorse Competition Mode button. Engaging this feature bypasses the physical rotary knobs on the amplifier, allowing for electronic adjustment of the gain and crossovers. This mode is optimized for playing bass as low as 10 Hz with a 4-watt speaker-level input signal. It works exceptionally well with digital signal processing (DSP) in your source unit, providing ultimate control over volume, balance, and tone. Additionally, the Competition Mode enables the amplifier to handle high-voltage systems—up to 17 volts DC—using lithium batteries or similar power sources.
- Maximum Power : 3600 Watts
- Low Frequency Response : 50-200 Hz
- Number of Channels : 4
- RMS Power Output : 1400 Watts
- Amplifier Class : D
- Fuse Rating : 400 A
Features and Specs :
- Engineered with extreme reliability for intense bass power and heavy use
- Designed entirely in-house by KICKER R&D
- Full-bridge Class-D design
- Equipped with four micro-controller-regulated cooling fans
- Supports daisy-chaining remote power across multiple amplifiers
- Features a competition mode switch to prevent potentiometer creep, lock crossover settings, and gain-match multiple amplifiers
- Includes a premium remote bass-level control with a magnetic mount
- Comes with a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage and amp protection status
- Fully compatible with most factory or aftermarket source units, thanks to FIT+™ differential inputs
Mono subwoofer amplifier
- 1400 watts RMS x 1 at 4 ohms
- 2500 watts RMS x 1 at 2 ohms
- 3600 watts RMS x 1 at 1 ohm
- Variable low-pass filter (50-200 Hz, 24 dB/octave)
- Selectable subsonic high-pass filter (25 Hz, 24 dB/octave)
Warhorse high-power features:
- Two microprocessor-controlled cooling fans
- Competition mode to prevent adjustment changes due to vibrations
- Gain set for 4-volts AC (approximately 4 watts) input
- Low-pass crossover set to 200 Hz, 24 dB/octave
- Handles high-voltage power (up to 17-volts DC) and switches cooling fans to high speed

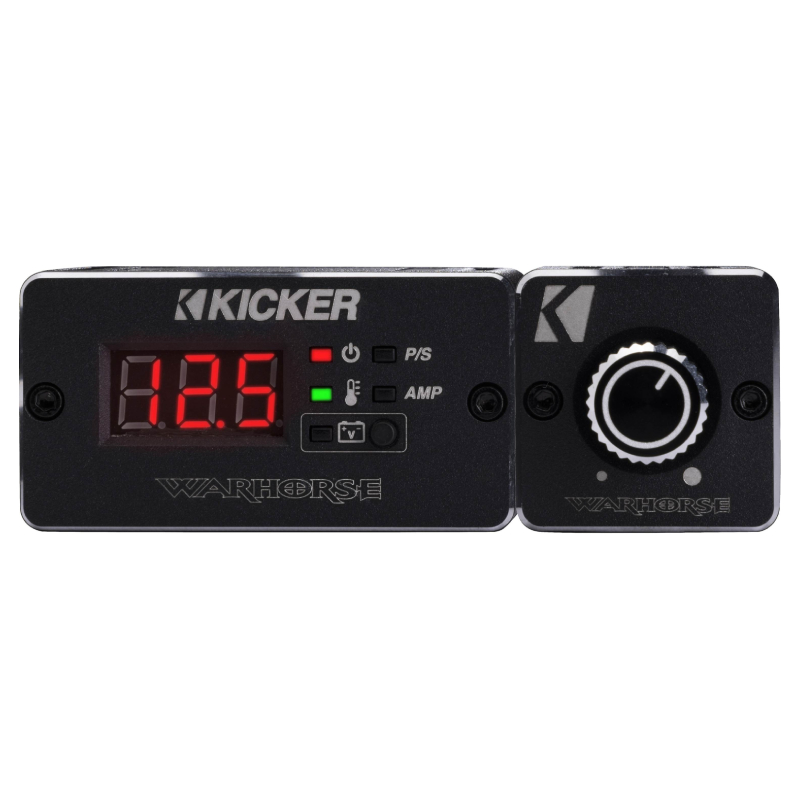

- Wired remote level control knob with magnetic mount included
- Cable locks to prevent connections from vibrating loose

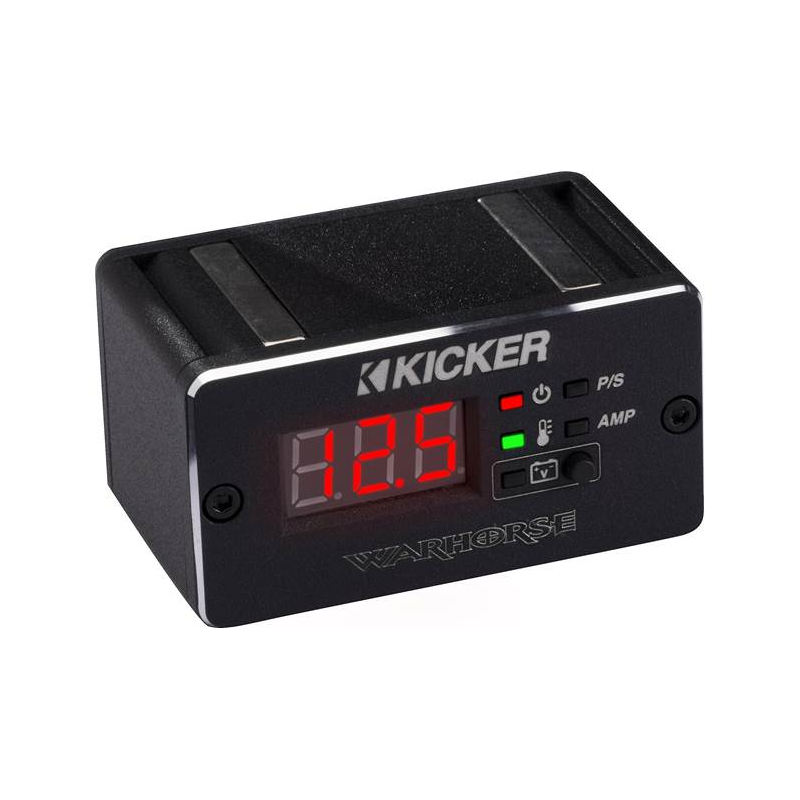

- Wired remote diagnostic display with magnetic mount included, showing present voltage, high/low voltage recent history, over-current protection, and high/low temperature indicators
More info:
- Speaker outputs can handle 4-gauge wires
- Preamp and speaker-level inputs
- Speaker-level inputs require speaker wire to RCA adapters
- Speaker-level inputs can handle up to 40-volts AC (about 400 watts)
- Preamp outputs

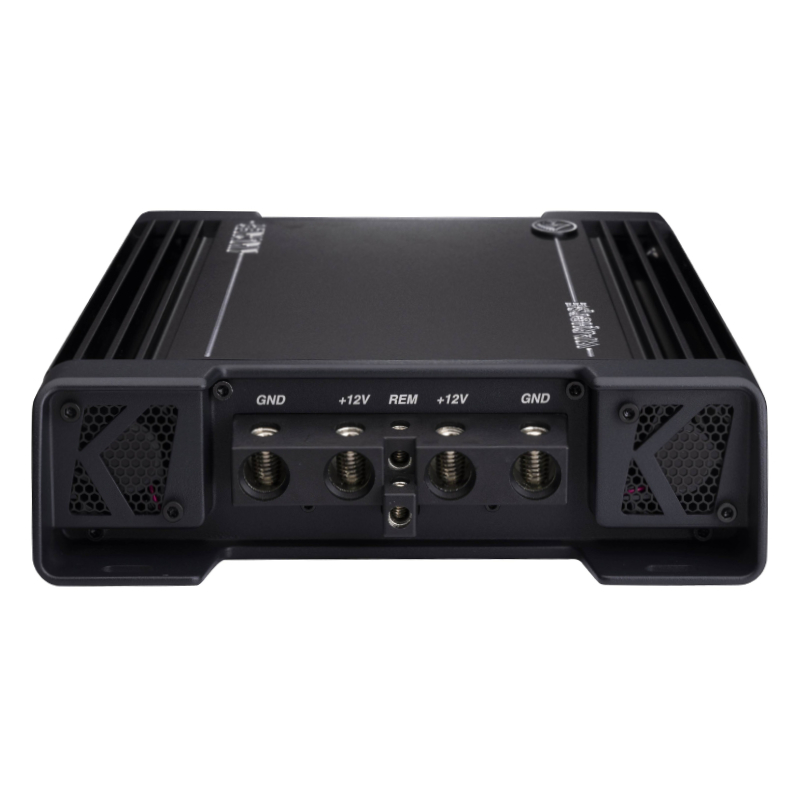

- Required high-power wiring, fuses, and hardware not included with the amplifier:
- Dual 1/0-gauge power and ground leads with two 200-amp fuses
- Big 3 battery wiring upgrade
- High-output alternator (180-amp or more at idle)
- Second battery (80+ Ah and 800+ CCA)
- Dimensions: 15.4"W x 2.6"H x 9.125"D
-
- Amplifier Class: D
- Low-Pass Crossover Frequency: 50-200 Hz
- Low-Pass Slope: 24 dB/octave
- Fan Cooled: Yes
- Fuse Rating: 400
- Speaker Level Inputs: Yes
- Preamp Outputs: 2
- Width: 15-7/16 inches
- Height: 2-5/8 inches
- Depth: 9-1/8 inches
- Parts Warranty: 2 Years
- Labor Warranty: 2 Years
- UPC: 713034013105
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
