Onlinecarstereo Exclusive Bundle
This exclusive package is brought to you by Onlinecarstereo. We have put together this bundle to kickstart your vehicle to the path of excellent car audio.

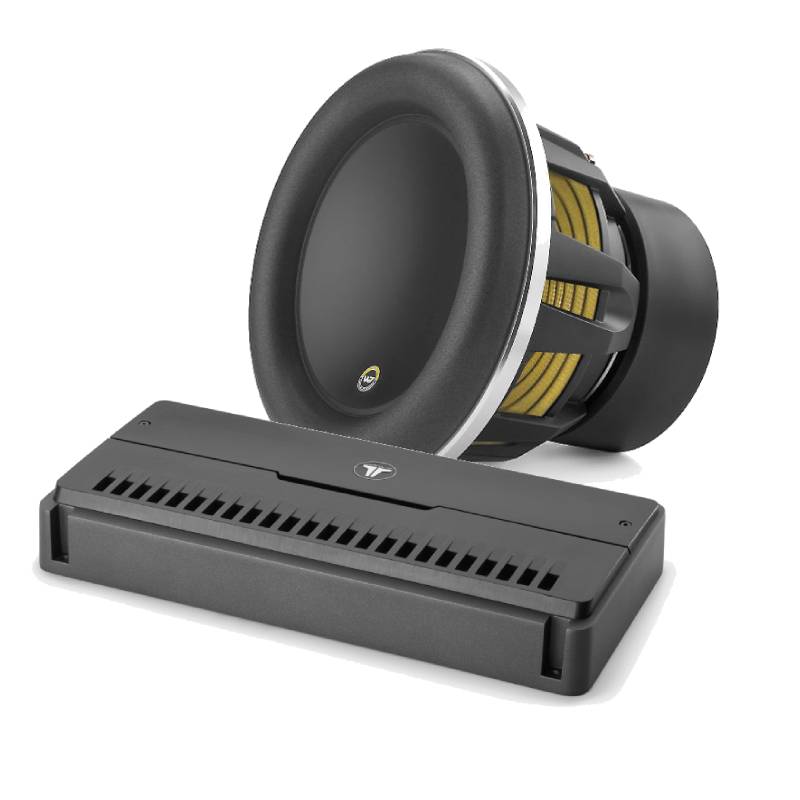

JL Audio RD1000/1-Bundle2 JL Audio RD1000/1 RD Series 1000W Class D Monoblock Full-Range Car Amplifier (Refurbished) + JL Audio 10W7AE-3 10" 750W RMS Subwoofer
We are an authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- •JL Audio RD1000/1
- •JL Audio 10W7AE-3
- •Owner's Manual

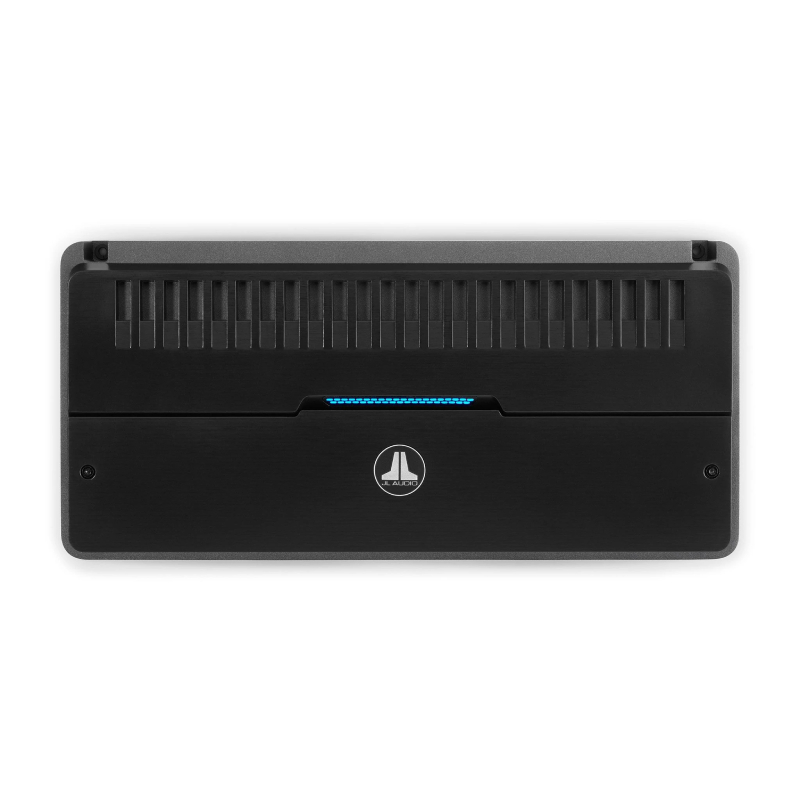

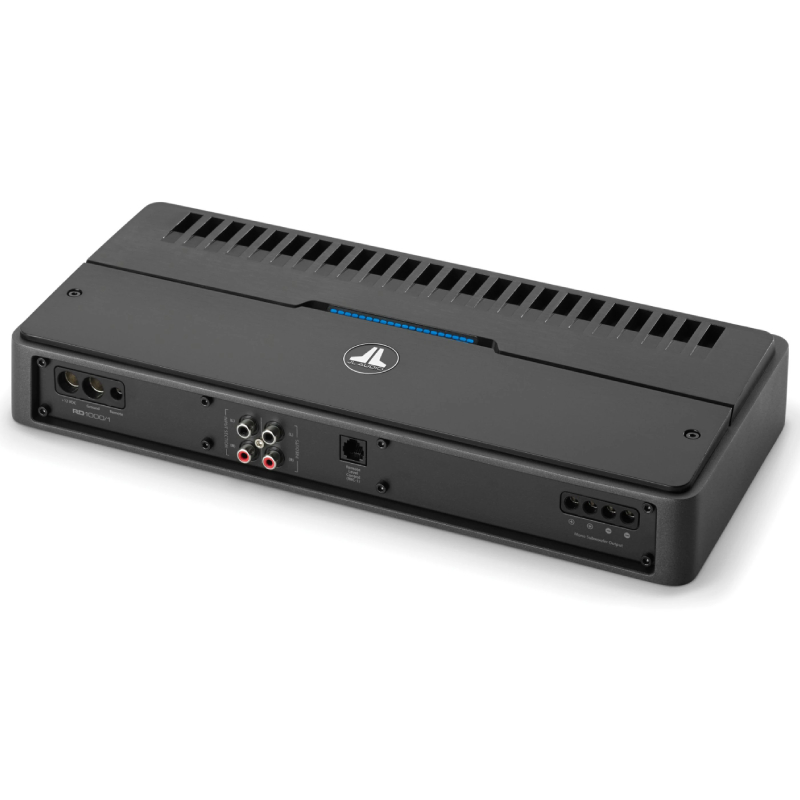

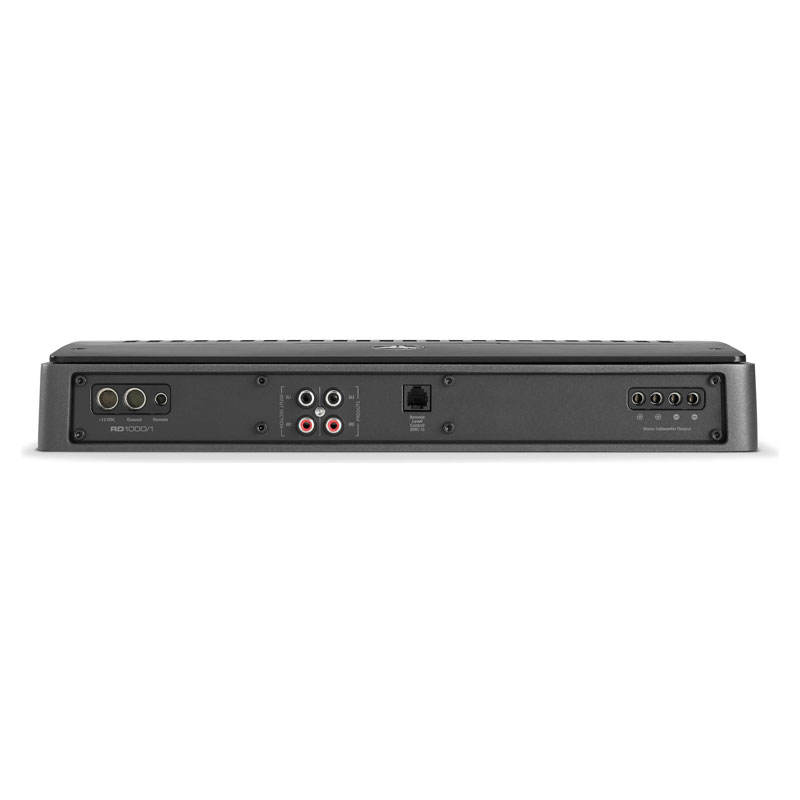

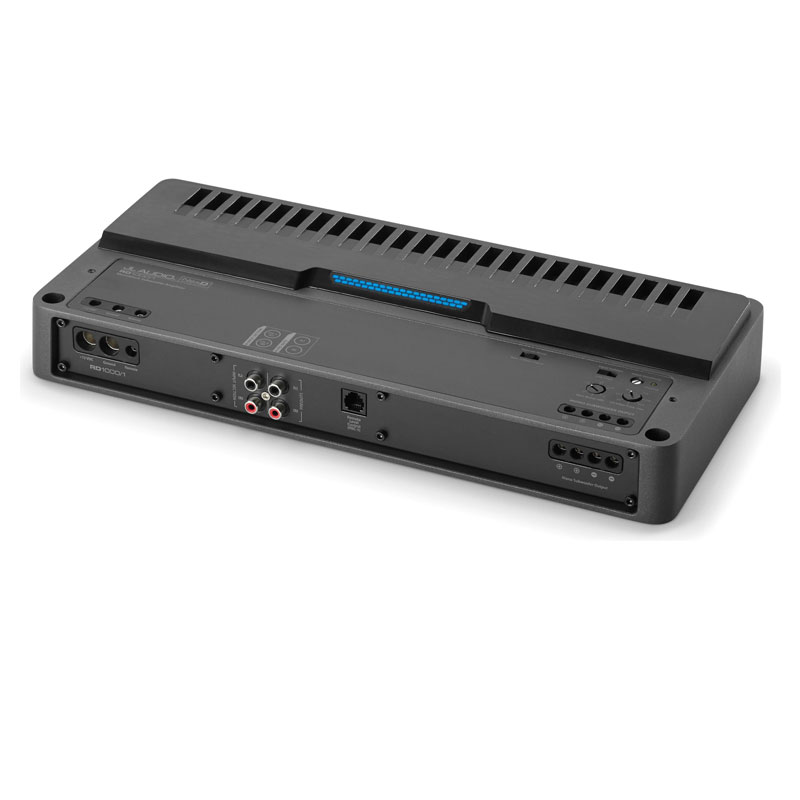

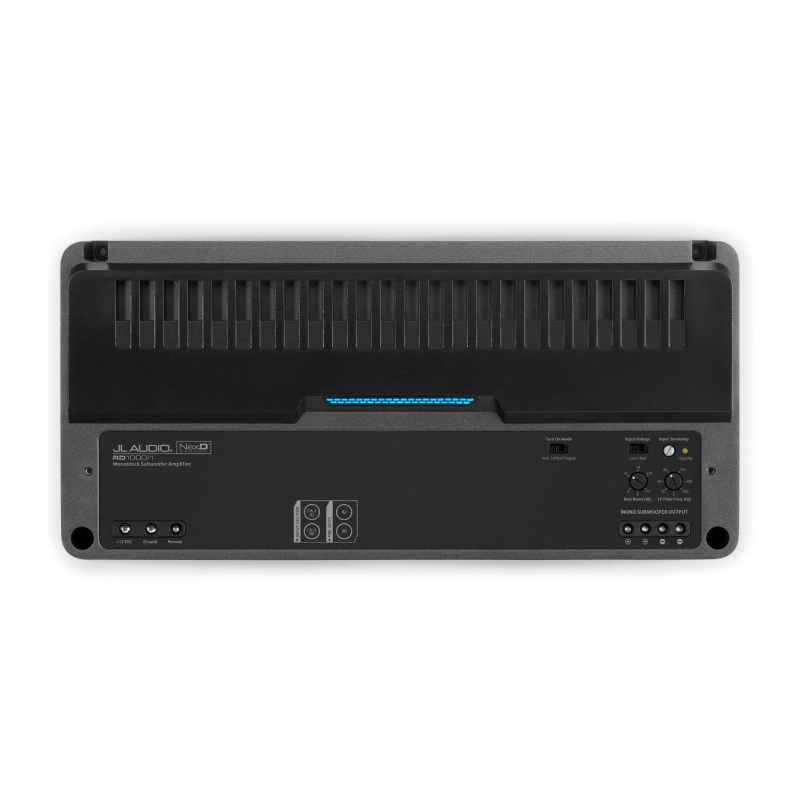

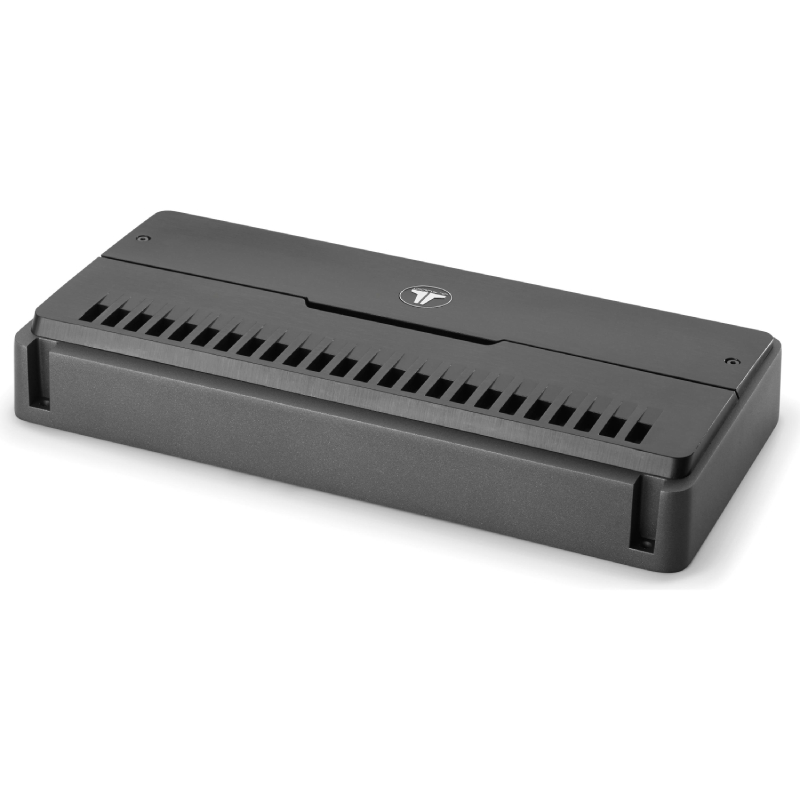

JL Audio RD1000/1 RD Series 1000W x 1 RMS @2Ohms, Class D Monoblock Full-Range Car Amplifier
Purpose-built for Subwoofer
Designed and made for subwoofer applications, the JL Audio RD1000/1 is a subwoofer amplifier purposely built for producing jaw-dropping bass with minimal distortion. Engineered using the latest technologies, JL Audio has made an excellent product for your specific bass needs.

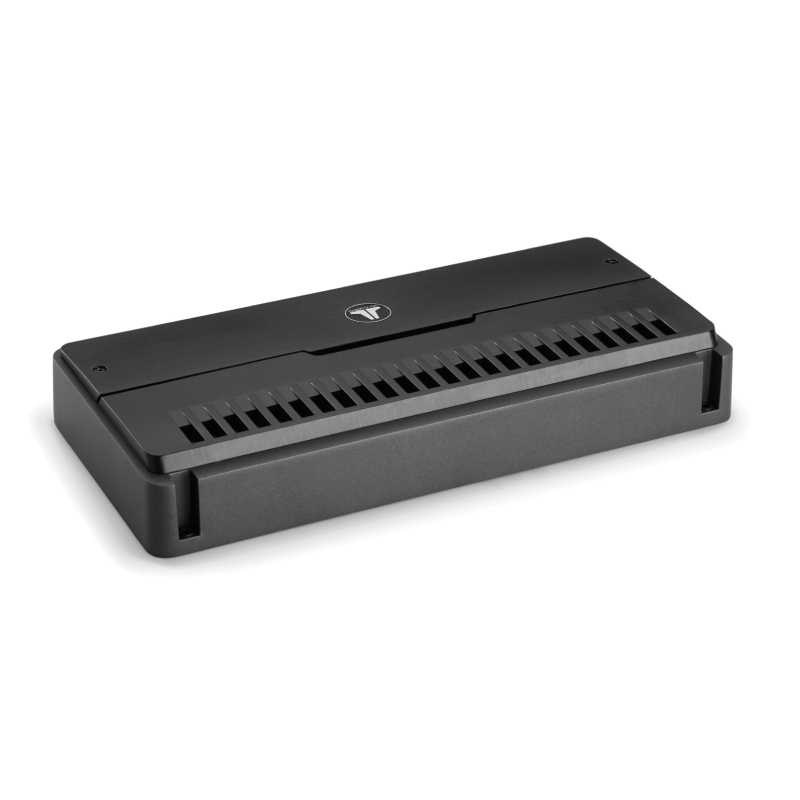

Heavy-duty Aluminum Heat Sinks
The JL Audio RD1000/1 also has some signal processing features on its own. It comes with a low pass filter frequency from 50 to 500 Hz, which gives more definition to the bass, and a bass boost of up to +12 dB if you are still not satisfied with the bass that your subwoofer produces.

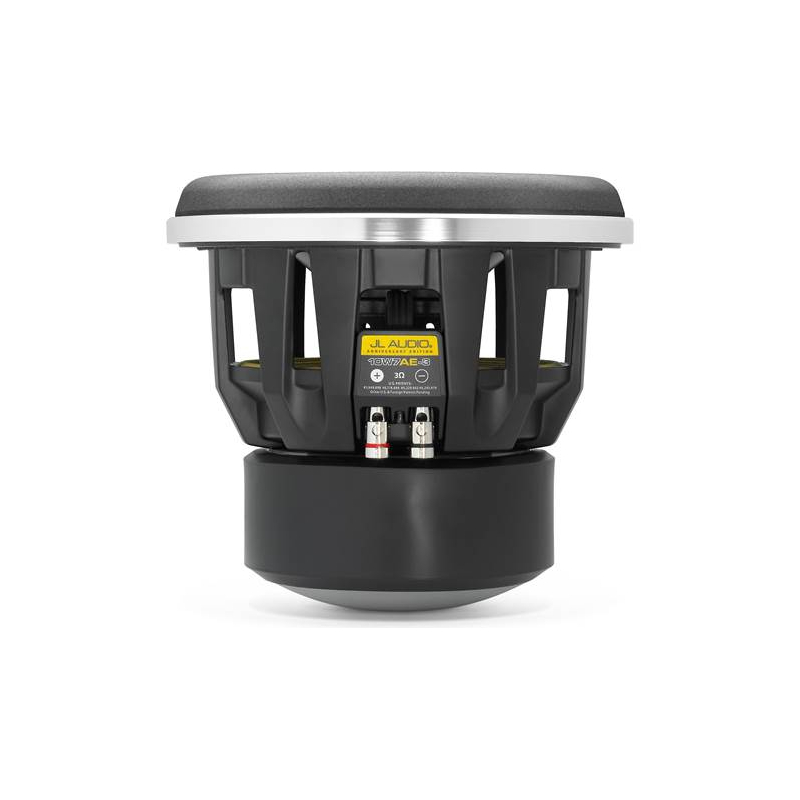

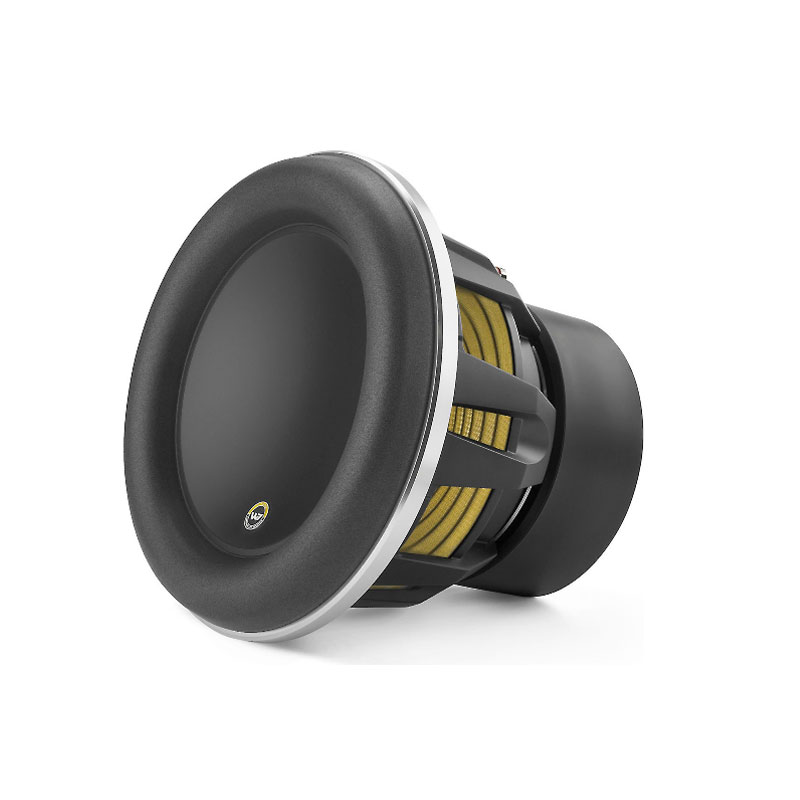

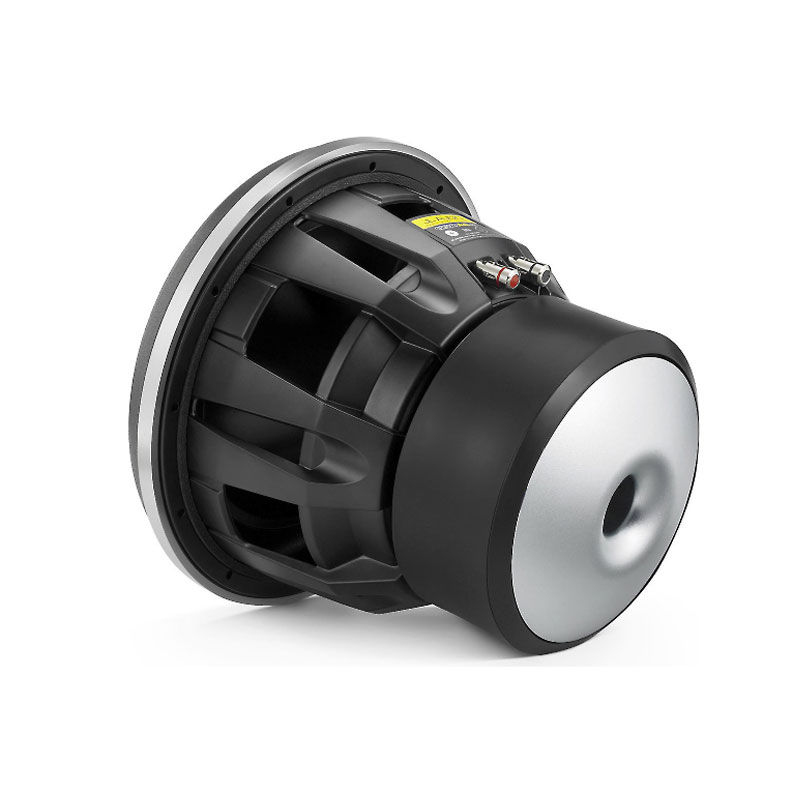

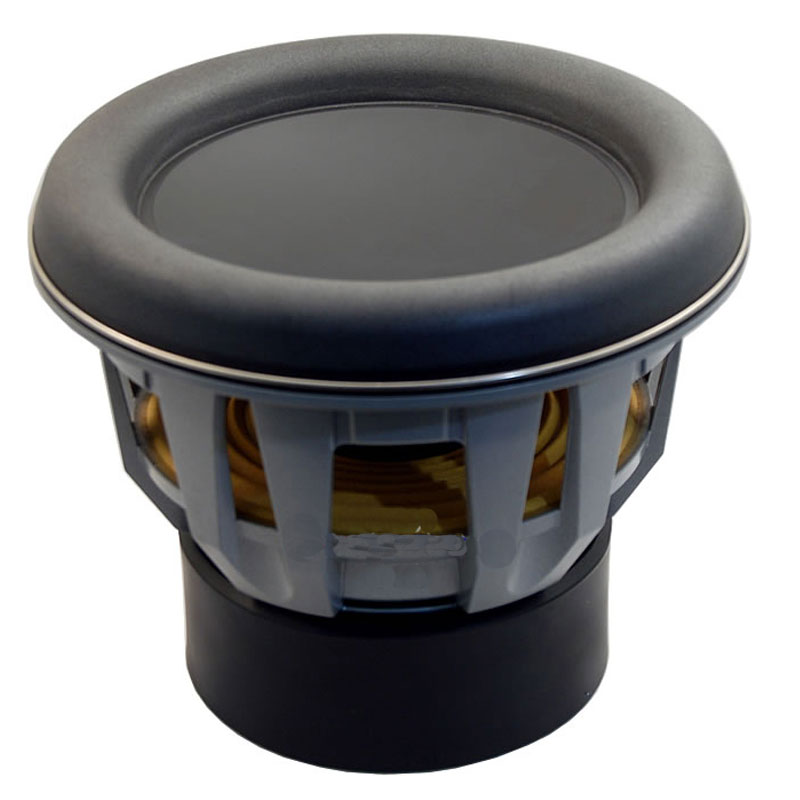

JL Audio 10W7AE-3 Anniversary Edition W7 Series 10" 750W RMS (1500W Peak Power Handling) Single 3 Ohms Voice Coil Car Audio Subwoofer
Preference for Flagship
If you always have a preference for flagship and top-notch car subwoofers, the JL Audio 10W7AE-3 is a top-of-the-line 10-inch subwoofer that is made using JL Audio's patented technologies, ensuring a bass output quality that you'll only get from a premium sub, such as this one.
Polypropylene W-cone and a Polyester Foam Surround
The JL Audio 10W7AE-3 subwoofer has a polypropylene W-cone and a polyester foam surround, allowing it to be lightweight but still ensuring that you get a heart-pounding and accurate bass response with minimal distortion. Utilizing the OverRoll technology allows for more cone area, resulting in the production of deeper lows.
RD Series 1000W x 1 RMS @2Ohms, Class D Monoblock Full-Range Car Amplifier
Features:
- mono subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)
- Class D amplifier design with NextD™ switching amp technology
- differential-balanced inputs help eliminate noise
- variable low-pass filter (50-500 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- LED clip light helps set gain
- blue LED accent lighting
- optional wired remote level control
- preamp inputs and outputs
- speaker-level inputs (speaker wire to RCA adapter required)
- 4-gauge power and ground leads and a 80-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
- 14-5/8"W x 2-3/16"H x 7"D
Specifications:
- Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- S/N Ratio, referred to 1 W: >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
- Damping Factor @ 4 Ω: >1000 / 50 Hz
- Damping Factor @ 2 Ω: >500 / 50 Hz
- THD+N @ Rated Power: <1% @ 2 Ω per Ch.
- Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
- Min.Copper Power / Ground Wire Gauge: 4 AWG wire
- Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 500 Hz
- Detented, Calibrated Filter Freq. Potentiometer: No
- Filter Defeat Function: No
- Infrasonic Filter: No
- Bass Boost EQ: Yes
- Output Polarity Switch: No
- Remote Subwoofer Level Control Optional (RBC-1)
- Remote Bass EQ Boost Control: No
- Pass-Through Preamp Output: Buffered
- Height (H): 2.13 in / 54 mm
- Width (W): 14.66 in / 372 mm
- Depth (D): 6.96 in / 177 mm
Rated Continuous (RMS) Power @ 14.4 V
- @ 4 Ohms: 600 W RMS x 1
- @ 3 Ohms: 800 W RMS x 1
- @ 2 Ohms: 1000 W RMS x 1
- @ 1.5 Ohms: N/A
Rated Continuous (RMS) Power: @ 12.5 V
- @ 4 Ohms: 500 W RMS x 1
- @ 3 Ohms: 650 W RMS x 1
- @ 2 Ohms: 800 W RMS x 1
- @ 1.5 Ohms: N/A
JL Audio 10W7AE-3 Anniversary Edition W7 Series 10" 750W RMS (1500W Peak Power Handling) Single 3 Ohms Voice Coil Car Audio Subwoofer
Features:
- 10" 3-ohm subwoofer
- polypropylene W-Cone with polyester foam surround
- solid cast-alloy basket
- no grille included: optional grille rods available
- power range: 250-750 watts RMS
- peak power handling: 1500 watts
- frequency response: 20-250 Hz
- sensitivity: 84.3 dB
- top-mount depth: 8-1/16"
- sealed box volume: 1.25 cubic feet
- ported box volume: 1.5 cubic feet
Specifications:
- Size: 10 -inch
- Impedance (Ohms): 3
- Cone Material: Polypropylene
- Sensitivity: 84.3 dB at 1 watt
- Frequency Response: 20 - 250 Hz
- Max RMS Power Handling: 750
- Peak Power Handling (Watts): 1500
- Top Mount Depth (inches): 8 1/8
- Cutout Diameter or Length (inches): 8 3/4
- Vas (liters): 36.1
- Fs (Hz): 30.6
- Qts: 0.537
- Xmax (millimeters): 23
- Ideal Sealed Box Volume (cubic feet): 1.25
- UPC:
- Weight: 40
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
