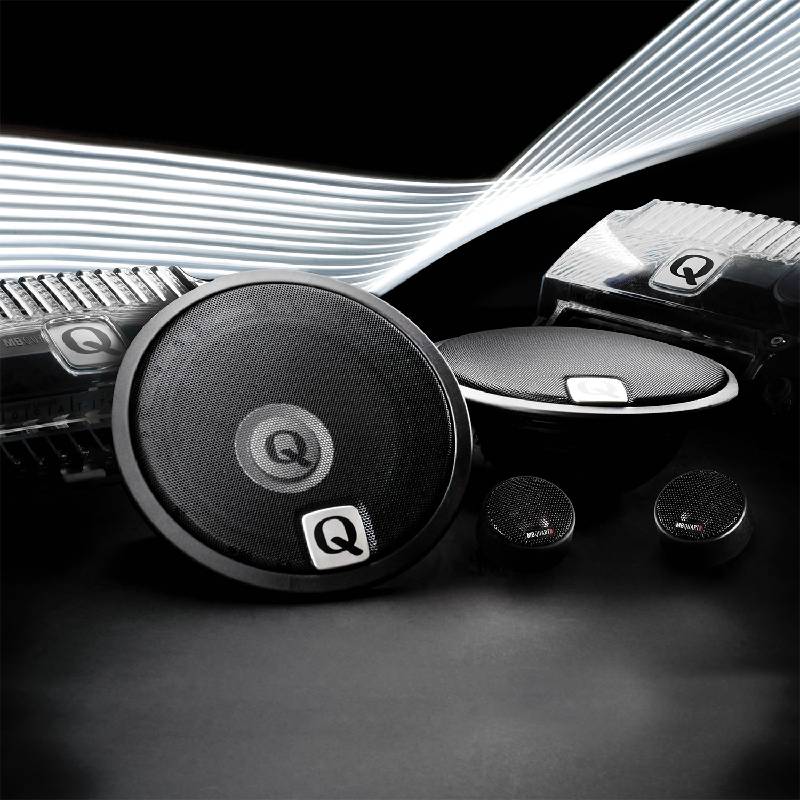

MB Quart QSE-216 - Q Series 6.5" German Built, 360W Peak Power Handling, 2-Way Component Speaker System
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

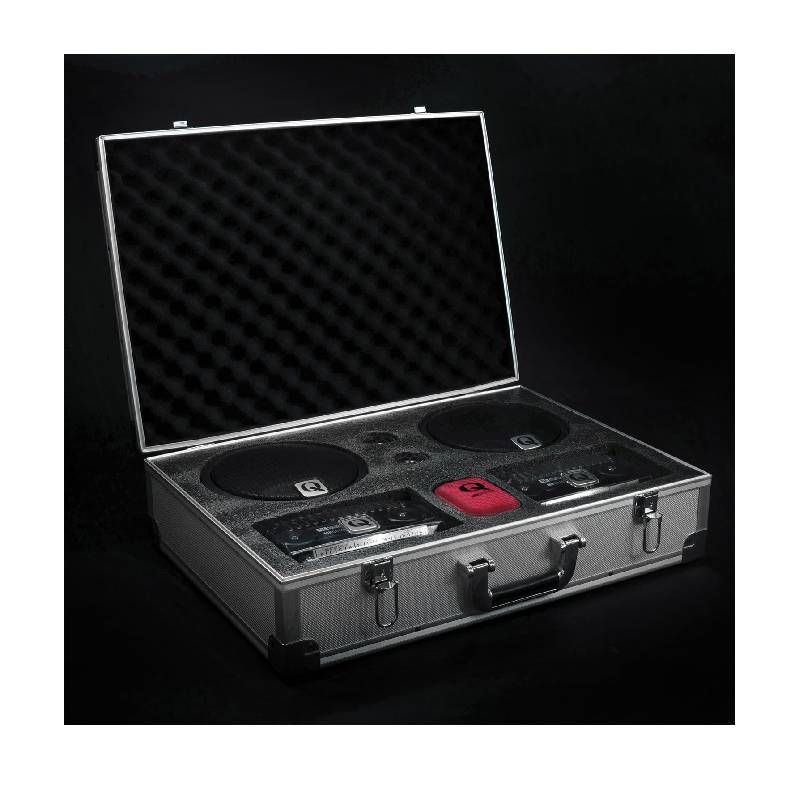

What's Inside?

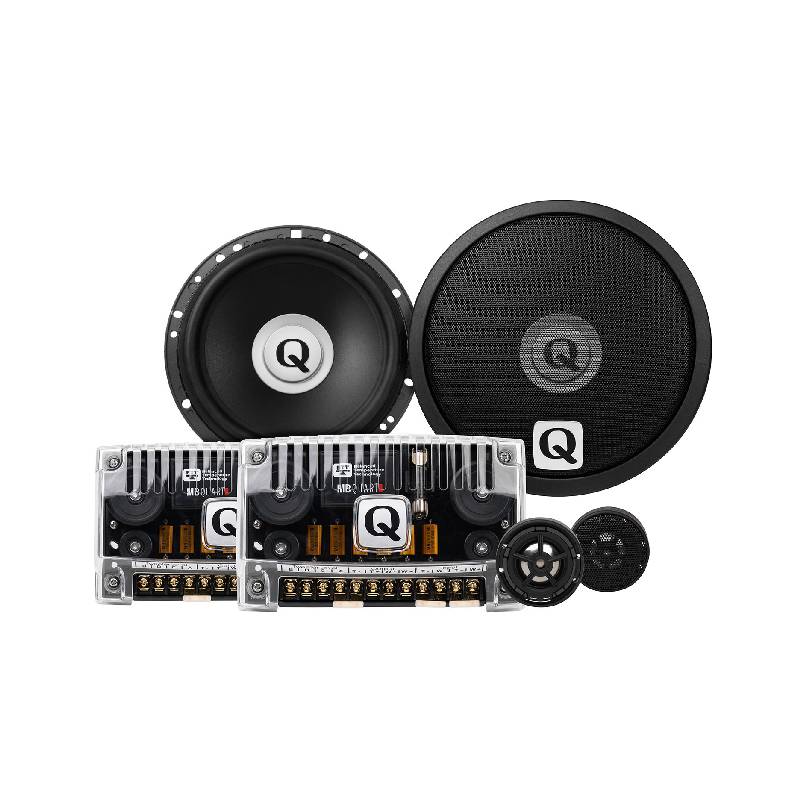

- • 2 QMF 160 Woofers
- • 2 Woofer top-mount rinigs (woofers installed)

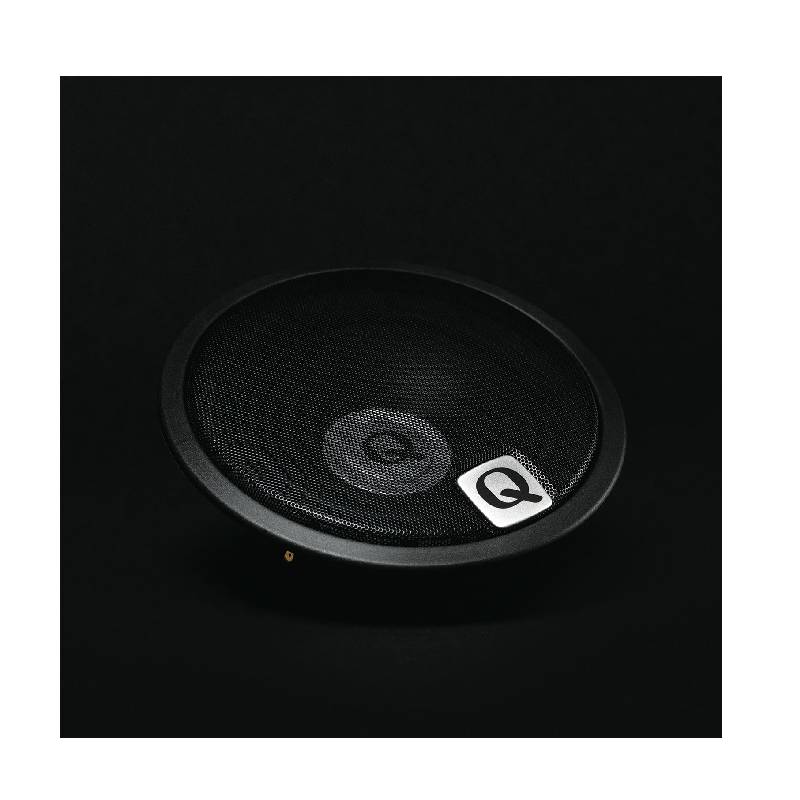

- • 2 Woofer grilles (installed)

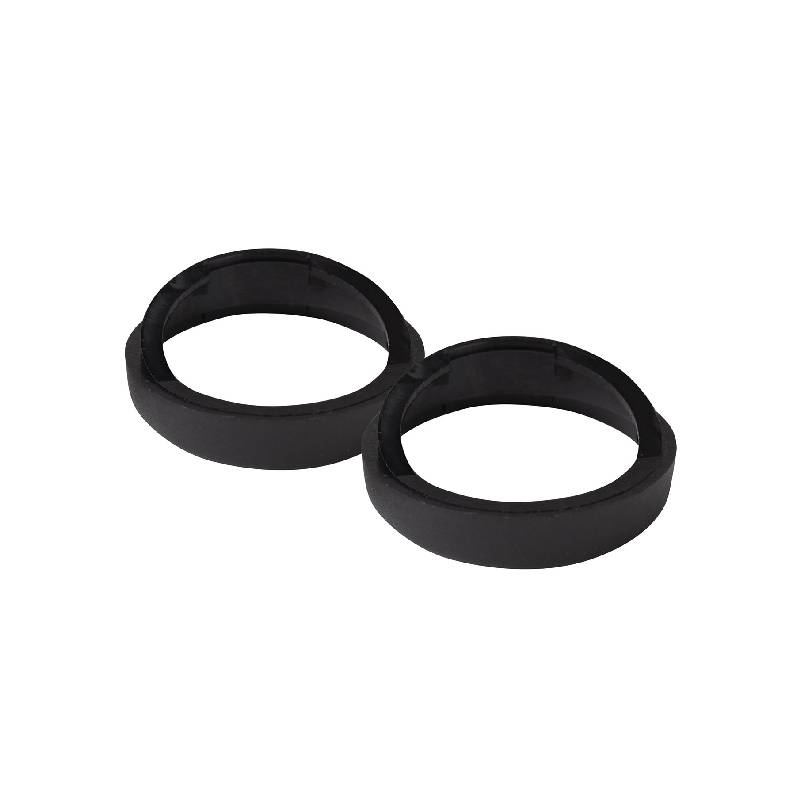

- • 2 Woofer top-mount spacer rings
- • 2 QSE-216 Tweeters (each has an 8" length of wire atteched)
- • 2 Tweeter grilles
- • 2 Crossovers
- • 6 Crossover wiring jumpers (installed)
- • 2 Surface-mount tweeter housings
- • 2 Flush-mount tweeter housings
- • 2 Angled flush-mount tweeter housings
- • 2 Flush-mount retaining clips
- • 2 Adhesive backed tweeter grille logo badges
- • 2 Adhesive backed woofer grille logo badges

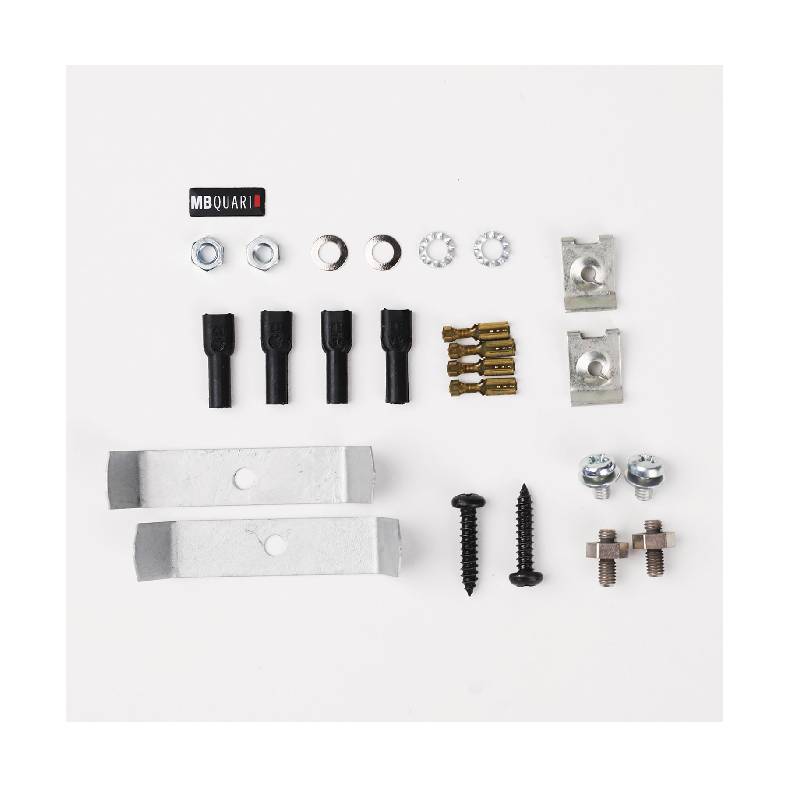

- • Two M4x6mm Machine screws (with flat washer attached)
- • Two M4 Nuts
- • 2 Star lock washers
- • 2 Flat washers
- • Fourteen 3/4" Screws
- • Eight 5/8" Screws
- • 14 Speed clips
- • 12 Mounting clips (for use with the woofer top-mount rings)
- • QR Code link to installation instructions
- • Woofer and tweeter templates

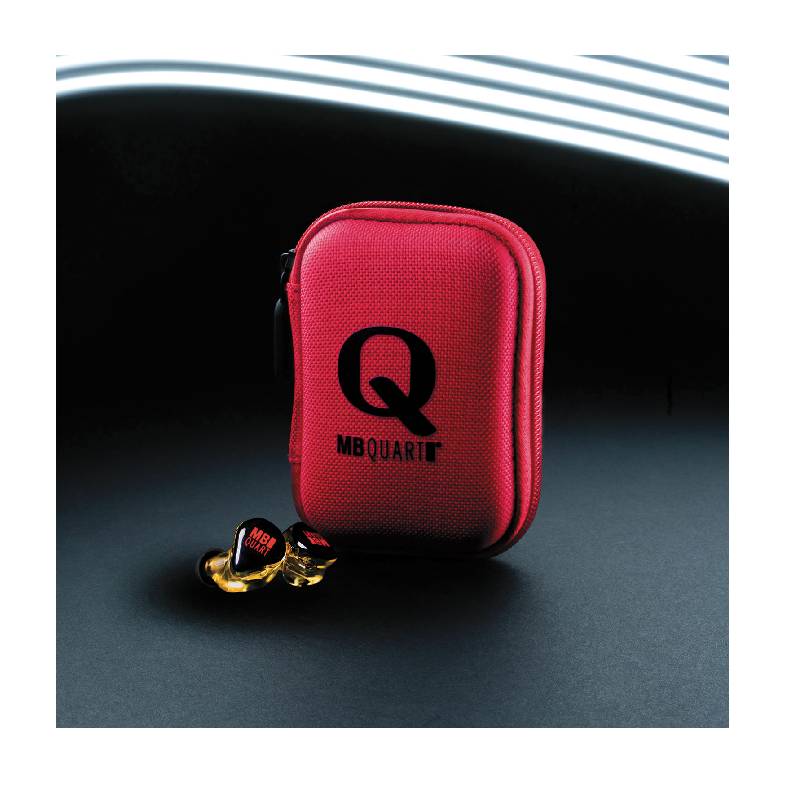

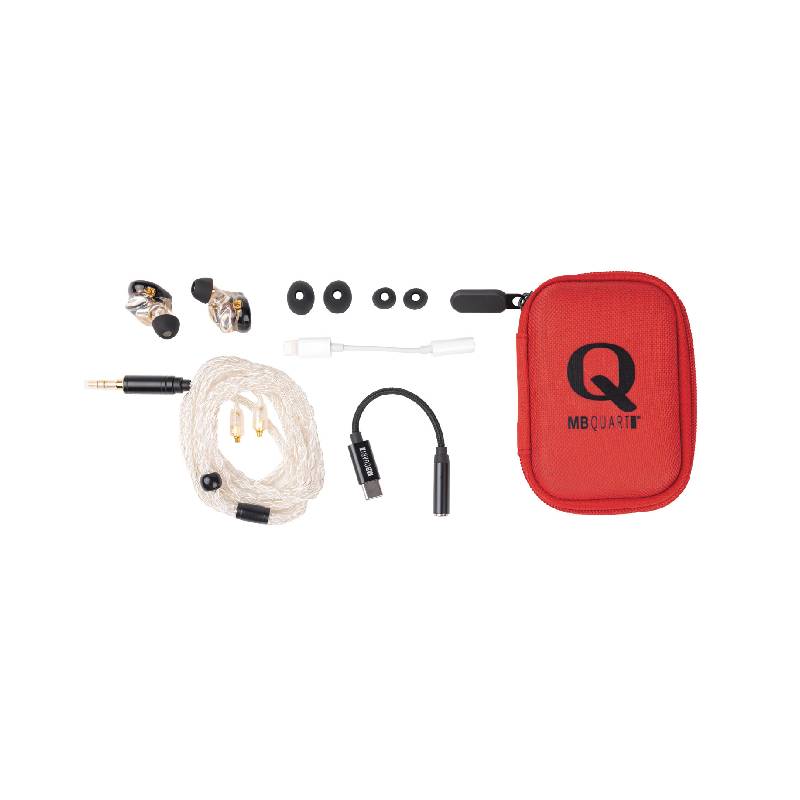

- • Q Series in-ear studio monitors (headphones) including:
- • - Left ear monitor
- • - Right ear monitor
- • - 48" Braided cable with a straight 3.5mm plug
- • - 3 Pair of silicone ear tips (S/M/L)
- • - Lightning to 3.5mm adapter
- • - USB-C to 3.5mm adapter
Germany Built
Established in Obrigheim, Germany, over six decades ago, MB Quart has experienced significant growth. Despite their expansion, the company remains deeply connected to its origins. The Q Series QSE-216 6-1/2" 2-way component speaker system, produced in the original MB Quart factory, embodies the brand's longstanding commitment to delivering a car audio experience that aligns with their vision of exceptional sound quality.

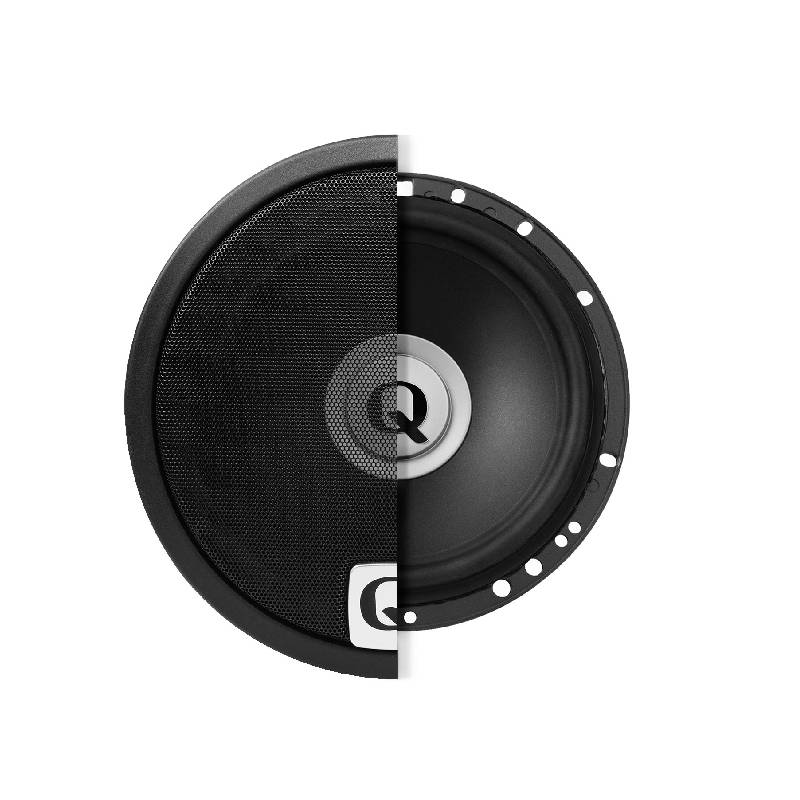

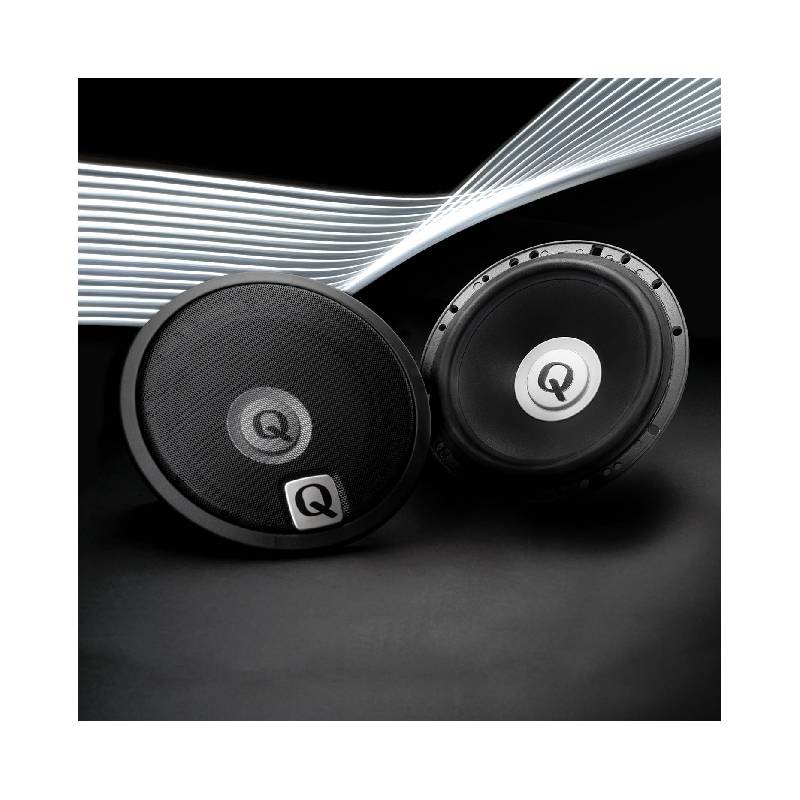

Woofer Excellence
The speaker system's woofer features a polypropylene cone filled with lightweight mica, striking a balance between rigidity and responsiveness to deliver impressive midbass. Designed to withstand the varying temperatures within a car door, the woofer incorporates a durable butyl rubber surround. Additionally, the cast aluminum radial sink speaker frame efficiently dissipates excess heat, ensuring reliable and enduring performance over the long term.

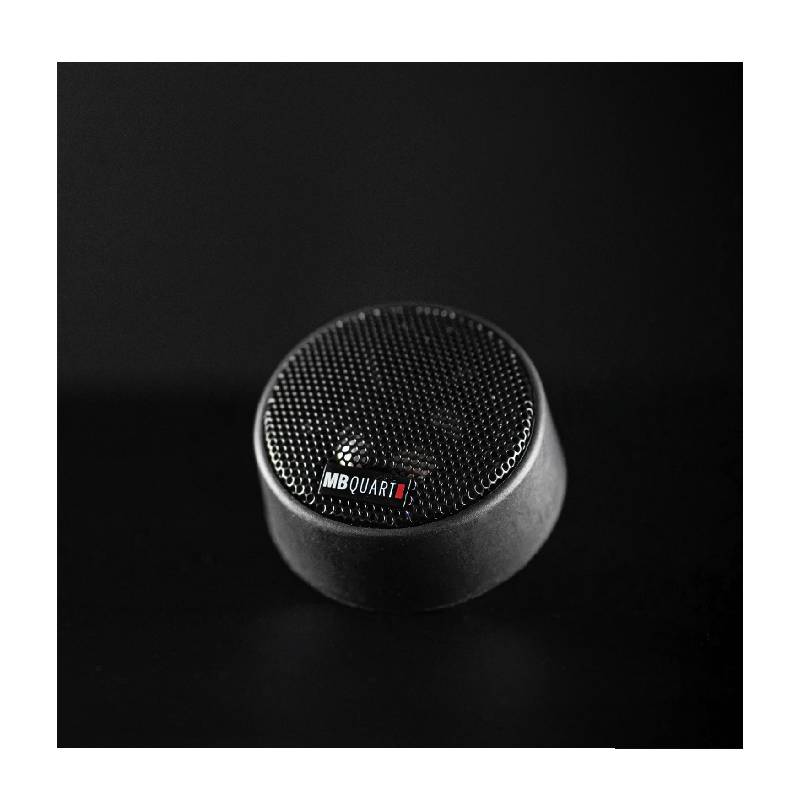

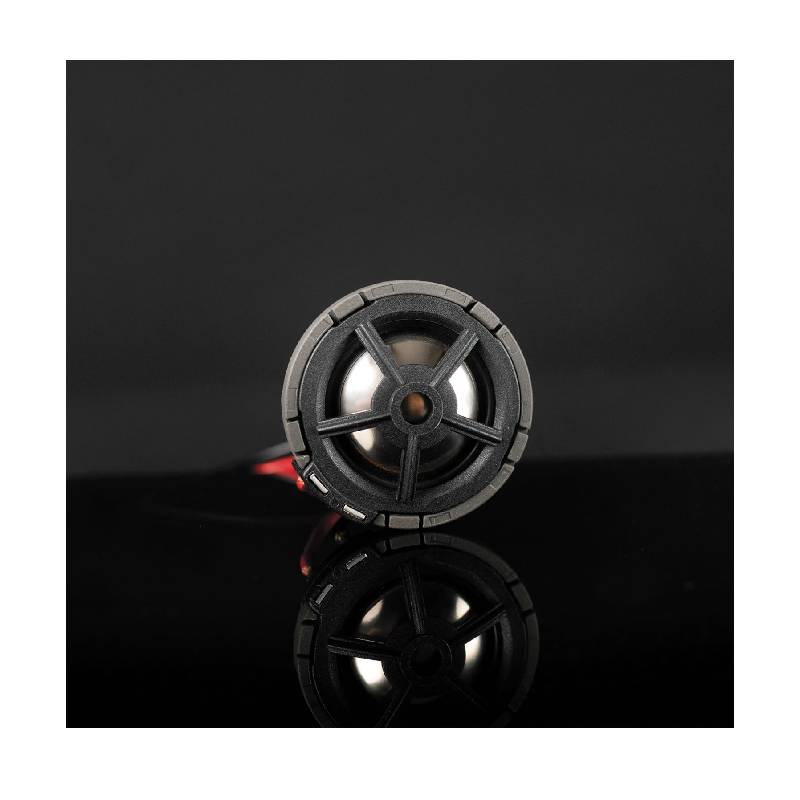

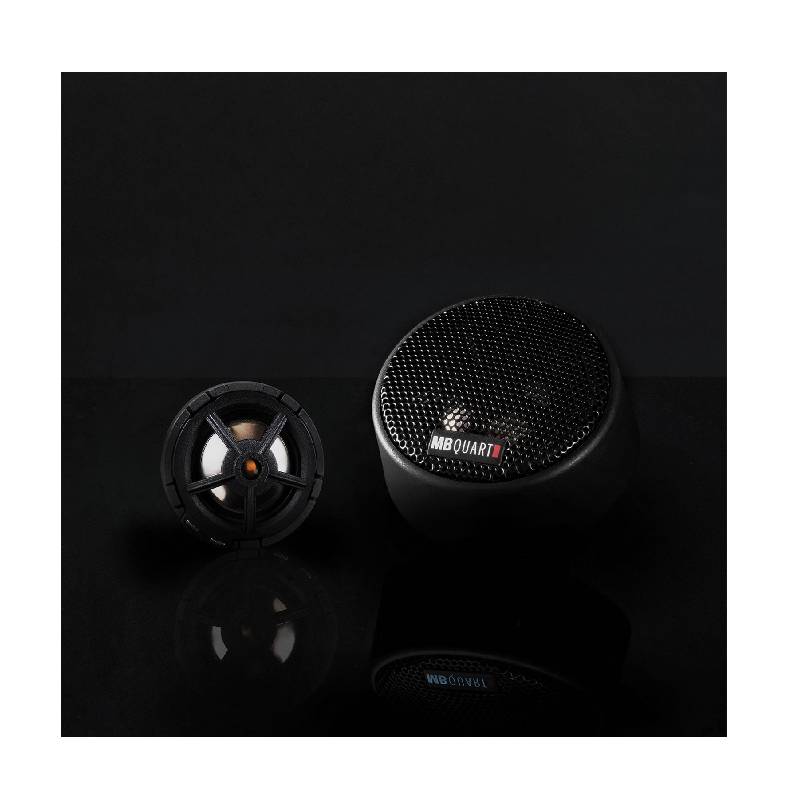

Tweeter Exception
Similar to the woofer, the tweeter benefits from an aluminum housing designed to efficiently dissipate heat, ensuring top-notch performance. Its titanium dome delivers captivating detail in the high frequencies, complemented by high-quality external crossovers that contribute to improved staging and imaging. MB Quart provides a variety of mounting options for optimal installation in your vehicle.
- Diameter : 6.5 Inch
- Sensitivity : 85.5 dB
- Frequency Response : 35-32000 Hz
- Peak Power Handling : 360 Watts
- RMS Power Handling : 170 Watts
Features:
- Vehicle Fitment: Universal
- Tweeters: 1" military A spec titanium dome tweeter w/ butyl rubber surround in a cast-aluminum housing
- Cone Material: Lightweight mica filled poly blend
- Surround / Cone Coupling: Natural butyl rubber surround
- Voice Coil / Former Assembly: 1.5" high temperature copper voice on Kapton former.
- Spider: Woven fiber cotton poly blend spider to stabilize the cone and voice coil in all musical situations.
- Tweeter Hardware: Hardware for multiple tweeter mounting solutions are included.
- Frame: Diecast aluminum basket is designed to be lightweight and extremely rigid.
- Motor: Solid neodymium magnet in a low carbon steel containment cup.
- Connectors: Gold plated 4-way connection terminal that is opposite mounted.
- Hardware: Flush-mount ring brack and holes accommodate OEM and custom installations for the midrange.
- External Component Crossover: Q Series QSE component (2-way) system feature an external audiophile Q Control crossover network.
Feature 1:
Use Balanced Temperature Technology (BTT) throughout every component in this speaker system. The cast aluminum radial sink speaker frame, crossover plate, and tweeter frame removes excess heat for predictable long-term performance.
Feature 2:

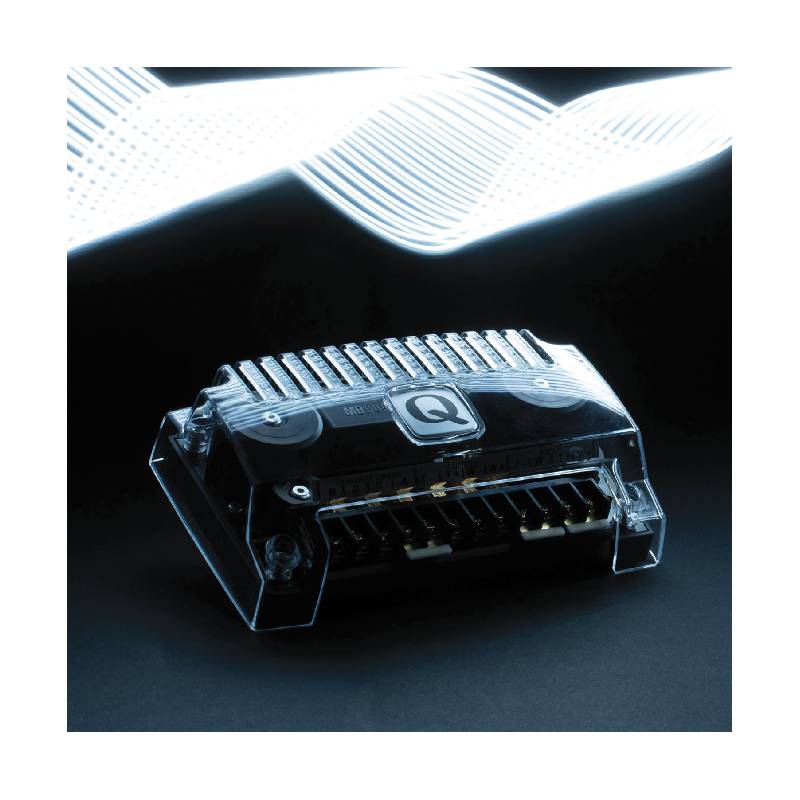

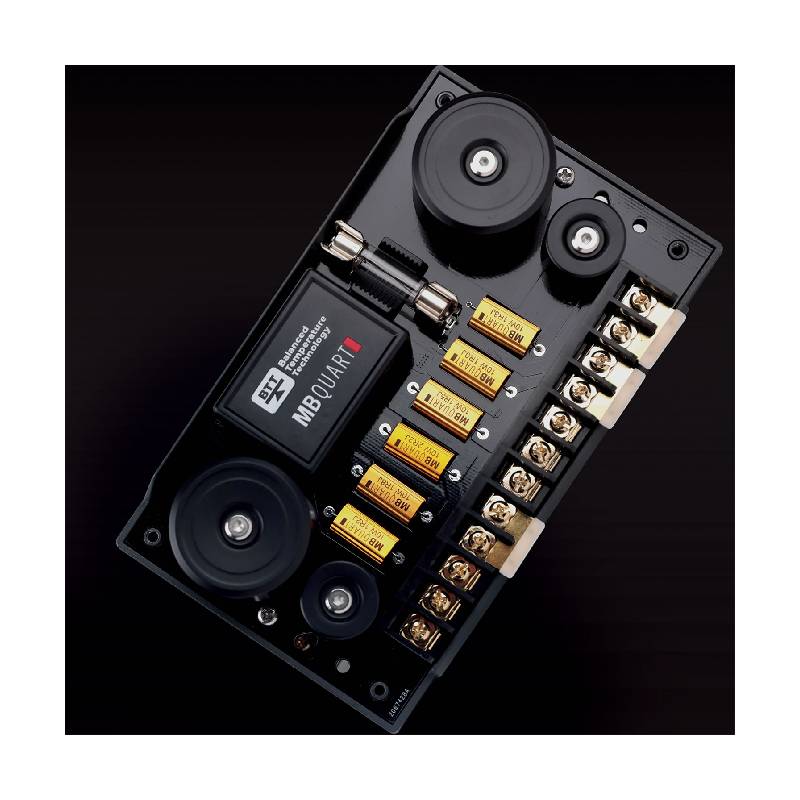

Feature an external audiophile Q Control crossover network which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components with "low loss" Polypropylene Film caps and air wound coils.
Feature 3:
Diecast aluminum basket is designed to be lightweight and extremely rigid. The low-profile form can be easily installed in most factory locations with little or no modification.
Feature 4:

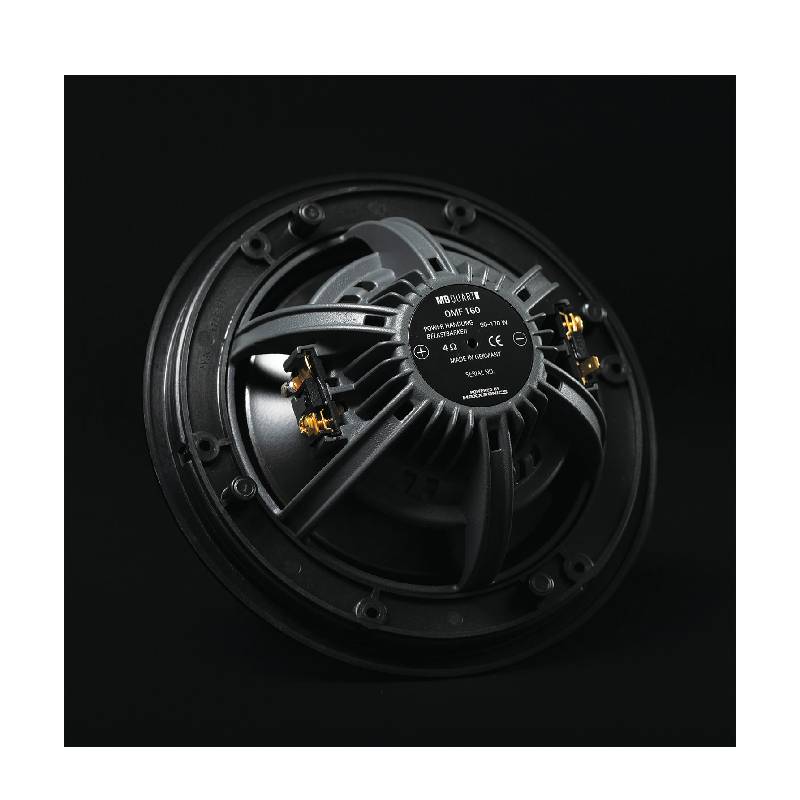

Gold plated 4-way connection terminal that is opposite mounted for consistent curvilinear cone performance. Connection types include solder, screw-down, spade or fork terminal.
Feature 5:

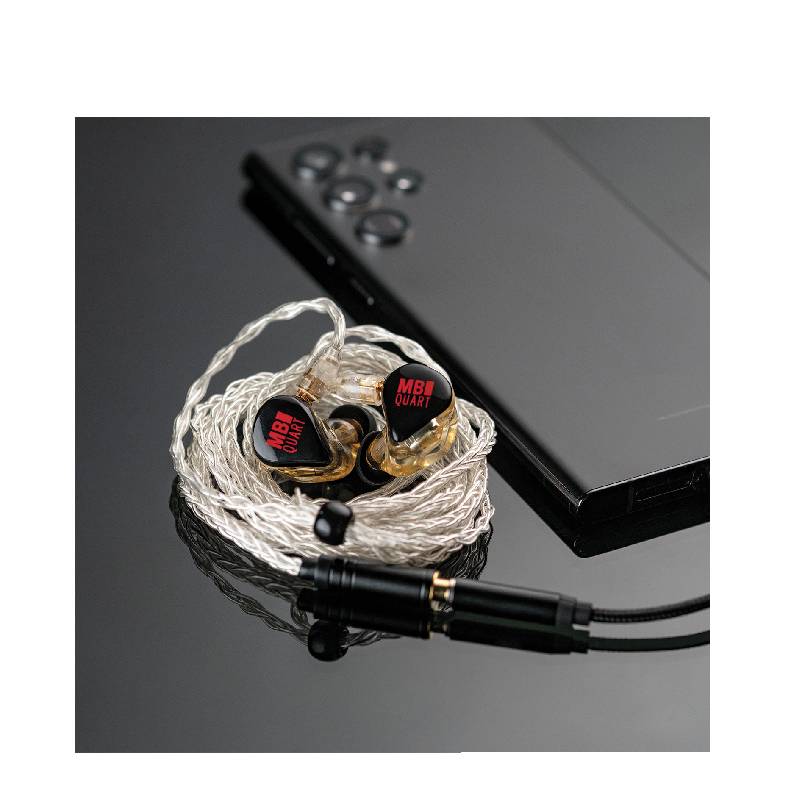

Q Series audiophile in-ear studio monitors are included to bring the Q listening experience on the go. 3.5mm connection with adapters for both USB-C and Lightning connection.
Specifications:
- Item Length (in): Crossover: 7.875, Midbass with grill: 7.875
- Item Width (in): Crossover: 4.75, Midbass with grill: 7.875
- Item Height (in): Crossover: 2.25, Midbass with grill: 3.5
- Type: Speaker
- Brand: MB Quart
- Series: Q Series
- Category: Mobile
- Condition: New
- Color: Black
- Warranty: 1 Year
- Compatible Vehicles: Universal
- Speaker RMS Power Handling (watts): 170
- Speaker Peak Power Handling (watts): 360
- Speaker Impedance (ohms): 4
- Speaker Frequency Response: 35Hz-32kHz
- Speaker Sensitivity: 85.5dB
- Speaker Crossover Slope: 12dB/octave
- Speaker Height (in): 2.875
- Speaker Width (in): 6.5
- Speaker Mounting Diameter / Cut Out (in): 5.68
- Speaker Outside Diameter (in): 6.5
- Speaker Mounting Depth / Chassis Depth (in): 2.5
- Speaker Size (in): 6.5
- UPC: 806576233466
- Weight: 11
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
