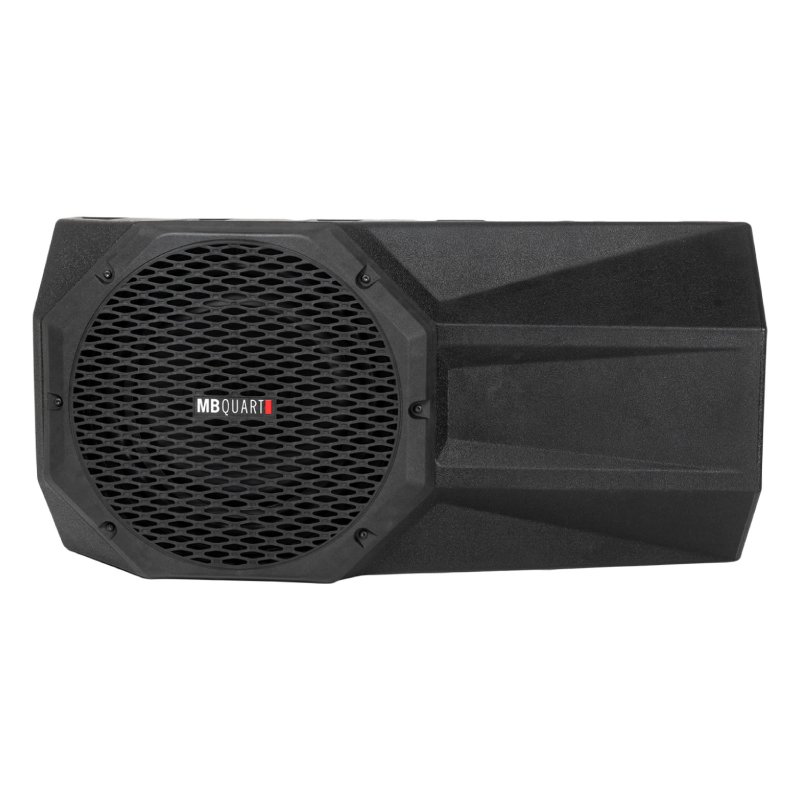

MB Quart MBQJL-302 - Tuned Series 400W ported subwoofer enclosure with 12" speaker, fits Jeep Wrangler 2018-up vehicles
We are a MB Quart authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
12" Subwoofer & Enclosure::
- • 12" Loaded subwoofer enclosure with attached 24" input harness

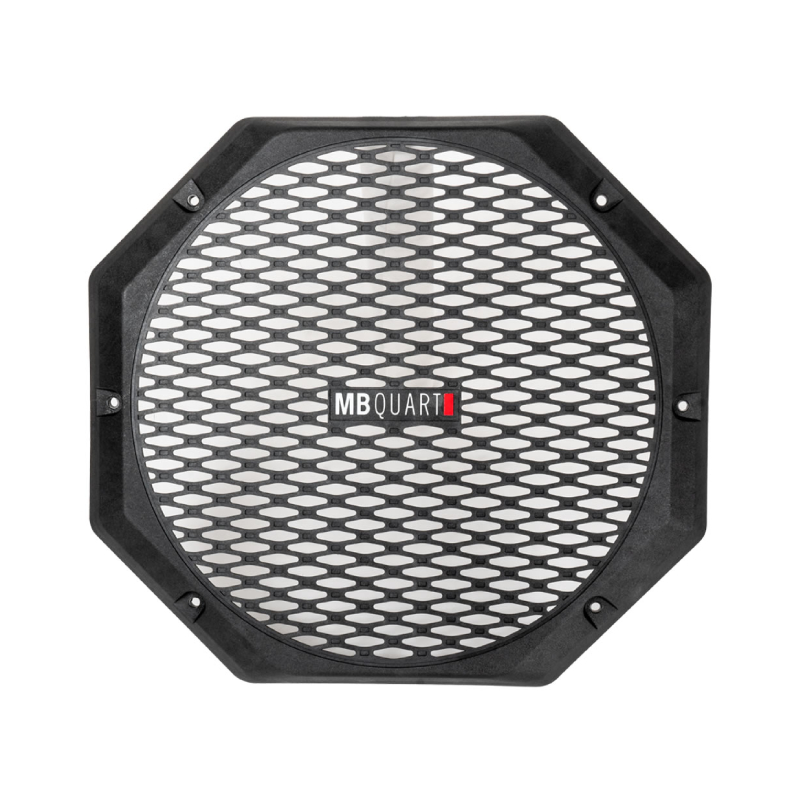

- • Grille
- • 2 L-Brackets
- • 11.5' Subwoofer harness
- • 46" Grille gasket
- • (2) 45mm aluminum spacers
- • (2) 30mm aluminum spacers
- • (4) 7mm rubber plugs
- • (2) 9mm rubber plugs
- • (2) M6x60mm hex-head bolts
- • (2) M6x60mm hex-socket bolts
- • (2) M6x16mm Torx screws (T40)
- • (14) 3/4" Torx screws (T20)
- • (2) Flat-washers
- • (6) 7" wire-ties
NA2-400.1 Amplifier:
- • Mono amplifier (attached 7" 3-pin & 2-pin harnesses)
- • 16" Power/ground harness (inline 30A ATC fuse)
- • 16" 2-Pin speaker harness
- • (4) 3/4" screws
- • (4) Flat-washers
- • (4) Lock-washers

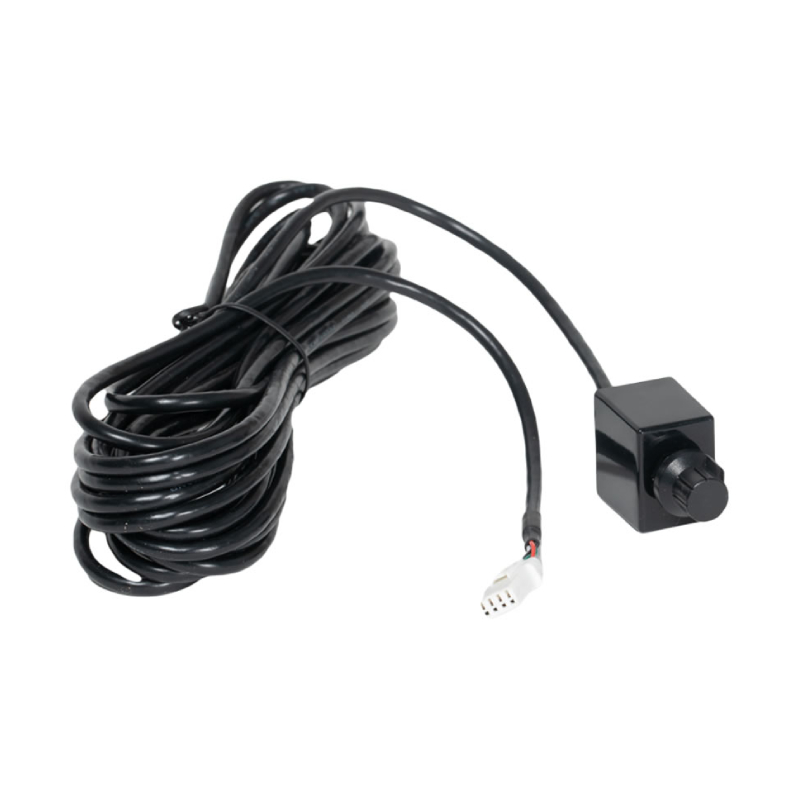

- • Remote level control (attached 15.5' cable w/ Molex connector)
- • Owner's Manual
Enhance your bass frequencies
The JL series Wrangler comes with additional features, but it lacks a powerful subwoofer. The MBQJL-302 ported enclosure addresses this by providing robust bass while conveniently mounting on the tailgate to save space. The Class D amplifier ensures a substantial 400 watts of bass power to the 12" subwoofer, delivering ample volume to overcome road noise. Safeguarded by a durable plastic enclosure and a protective metal speaker grille, this compact system promises an enhanced and immersive experience on every ride.
Plug & Play with any MB Quart STAGE 6 Wrangler System

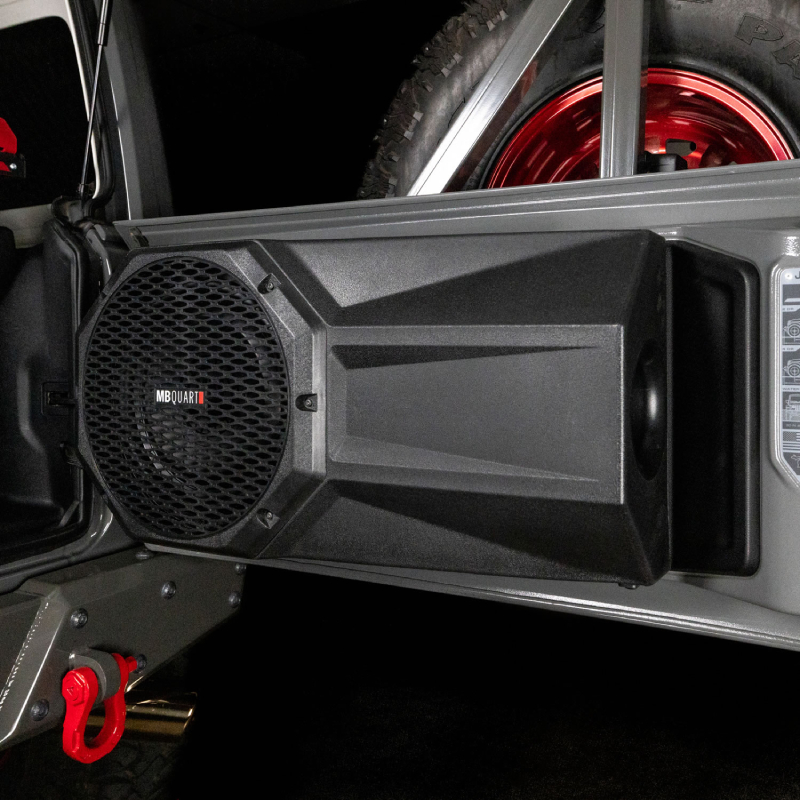

MB Quart 12″ subwoofer system powered by a 400 watt class-d amplifier. This system uses the interior tailgate panel for mounting the subwoofer enclosure. Plug & Play with any of the MB Quart STAGE 6 Wrangler (JL) systems.
- Diameter : 12 Inch
- Sensitivity : 86.6 dB
- Impedance : 2 Ohm
- Frequency Response : 24-500 Hz
- Number Of Subwoofers : 1
- Enclosure Type : Ported
- Color : Black
- Amplified : Yes
Features:

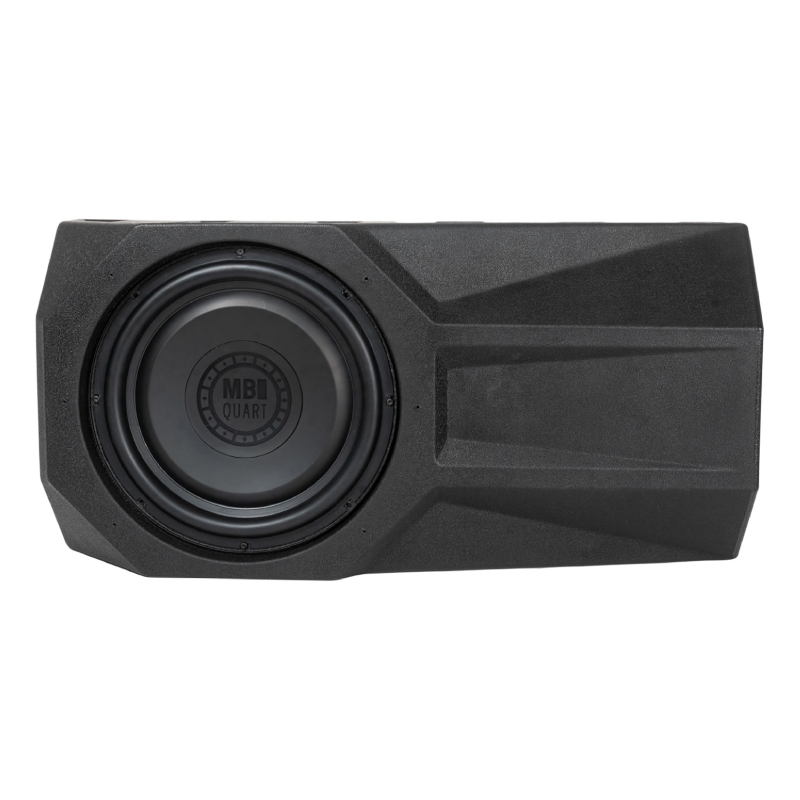

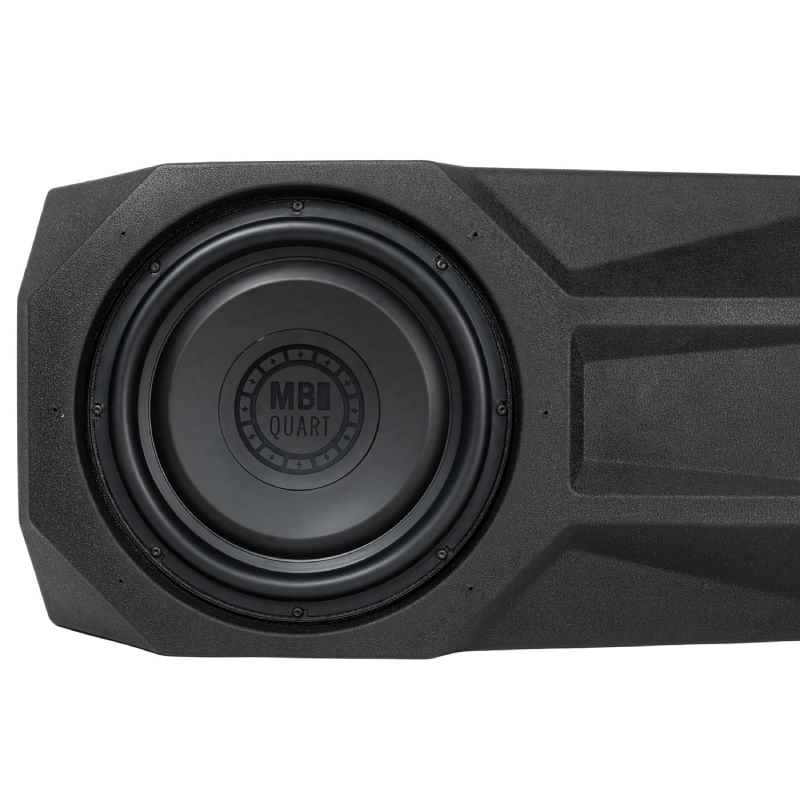

Loaded Subwoofer Enclosure: The MB Quart MBQJL-302 is a loaded 12" subwoofer enclosure designed specifically for 2018-up Jeep Wrangler JL vehicles. Its unique ported design allows it to be mounted inside the tailgate using both factory and included hardware.
Integration with MB Quart Jeep Speaker System: The subwoofer is powered by an NA2-400.1 amplifier, designed to seamlessly integrate with the MB Quart MBQJ-STG6A-1 or MBQJ-STG6AH-1 Jeep Speaker System (sold separately). This integration ensures optimal performance and compatibility.
Sub Wiring: The subwoofer enclosure features a 24" wire harness extending from the rear panel, connecting directly to the included NA2-400.1 subwoofer. An 11.5' subwoofer extension harness is also provided for extending the wiring into the vehicle.
Compatibility Note: The MBQJL-302 system is intended to plug directly into an MB Quart MBQJ-STG6A-1 or MBQJ-STG6AH-1 Jeep Speaker System. If installed without a Stage 6 system, a 10-gauge amplifier wiring kit is required (sold separately).

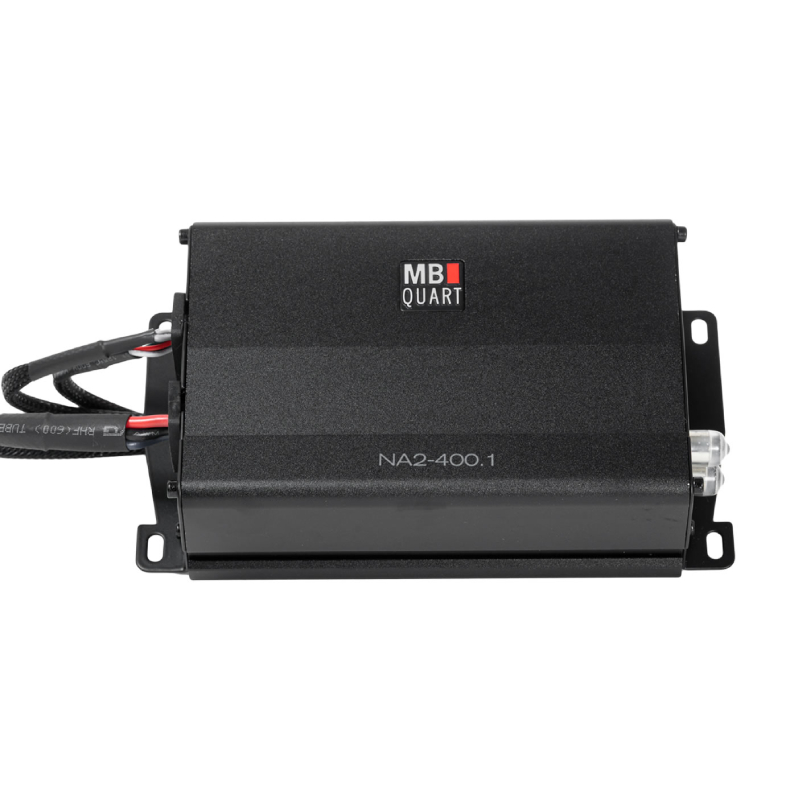

NA2-400.1 Sub Amplifier Features:
- Amplifier Output: Class-D amplifier with 400W @ 2Ω (200W @ 4Ω).
- Frequency Response: 20Hz - 20kHz.
- Conformal Coated PC Boards: Resists corrosion from salt spray and moisture.
- Q-Stasis Pre-amplifier Stage: Reduces incoming noise, improving sound quality.
- Pulse-Width Modulated Power Supply: Dual coil design maintains a constant steady voltage.
- Cooling: Aluminum heat sinks ensure efficient cooling.
- Inputs/Outputs & Controls:
- RCA Inputs for audio.
- 2-wire subwoofer speaker output with a 7" hardwired harness and 2-pin Molex connector.
- Power/Ground/Remote connections with a 7" hardwired harness and Molex connector.
- Wired Remote Input with a 4-pin Molex plug on a 7" harness, including a wired remote level control with a 15.5' cable.
- Low-Pass Filter (LPF) with a rotary adjustment ranging from 50Hz - 150Hz.
- Subsonic Filter with a range of 15Hz-50Hz.
- Boost: 2-way switch (0dB & 12dB) for applying a 12dB boost @45Hz.
- Level: Variable input signal level with a range of 9V - 0.2V.
Specifications:
- Ported enclosure with 12" subwoofer and 400-watt amplifier
- Mounts to interior tailgate panel
- Total impedance: 2 ohms
- Frequency response: 24-500 Hz
- Sensitivity: 86.6 dB
- Speaker grille included
- Dimensions: 35"W x 17"H x 10"D
- Weight: 53 lbs.
- UPC: 80657623425
- Weight: 35
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
