Crunch PZ2-1530.4D Powerzone 2 Series 1500W Max Power 4-Channel, Class-D Car Amplifier
We are a Crunch authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
Equipped With Quality Components
Introducing the Crunch POWERZONE 2 Amplifier, designed to elevate your mobile audio experience with its compact dimensions and powerful performance. With 1500 watts of max power spread across 4 channels, this Class D amplifier ensures crystal-clear sound and optimal versatility for any vehicle. Featuring variable electronic crossovers, built-in bass control, and compatibility with speaker level and pre-amp audio inputs, it offers precise tuning options tailored to your preferences. Equipped with quality components, it's the perfect choice to enhance your car audio system.
Maximum Power Efficiency
Discover the Crunch POWERZONE 2 Amplifier: Low voltage RCA inputs ensure top-notch sound quality, while high-level inputs seamlessly integrate with OEM systems. Its 4-channel operation mode allows for stereo or mono bridged operation, and variable electronic crossovers provide complete sound control. With onboard electronic equalizer and exclusive Crunch SPEED-FET MOSFET components, enjoy maximum power efficiency and minimized distortion for an exceptional audio experience.
Quick Thermal Dispersion
Experience the Crunch POWERZONE 2 Amplifier: QTD (Quick Thermal Dispersion) technology ensures cool operation with minimal distortions. Its rugged MOSFET Pulse Width Modulation power supply efficiently powers the amplifier without overtaxing the vehicle's electrical system. Nickel-plated brass connections with hex set screw terminals allow for secure connections resistant to erosion, while the LED System Protection Circuitry Diagnostics monitor overload and speaker short protection with illuminated indicators.
- Maximum Power : 1500 Watts
- Low Frequency Response : 40-400 Hz
- High Frequency Response : 40-400 Hz
- Number of Channels : 4
- Frequency Response : 10-22000 Hz
- Built In Crossovers : Yes
- RMS Power Output : 4x375 Watts
- Amplifier Class : D
- Fuse Rating : 1x40 A
Features:

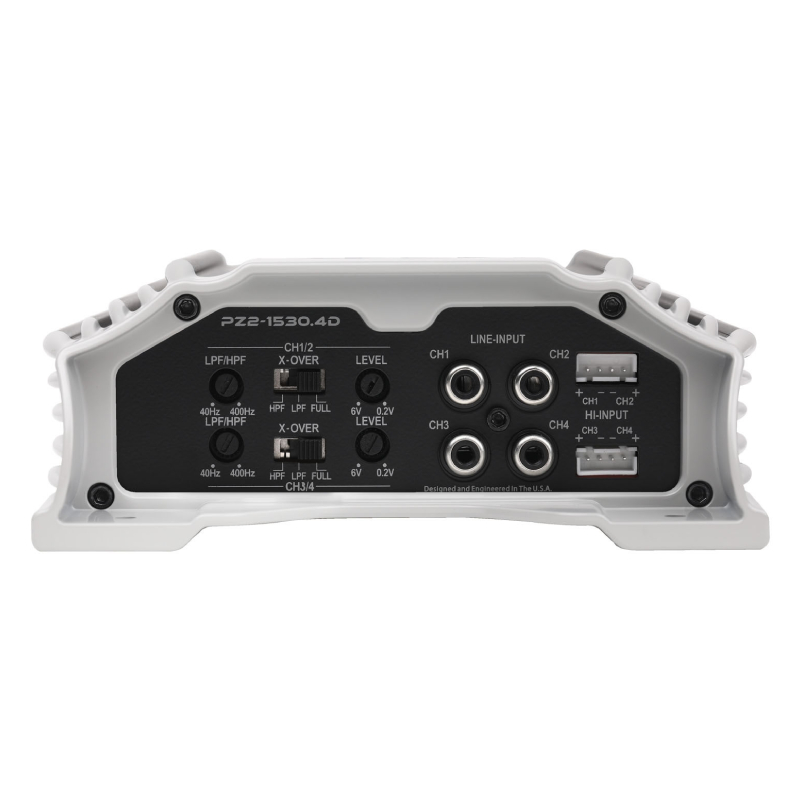

- RCA Inputs: Low voltage RCA inputs ensure the highest sound quality connection, minimizing interference and distortion in the signal path.
- High Level Inputs: Easily integrates with OEM audio systems lacking RCA output, with included Molex connector.
- Operation Mode: 4-channel operation mode allows for stereo or mono bridged operation.
- Crossover Type: Variable electronic crossovers provide complete control of the sound.
- Electronic Equalizer: On-board electronic crossover tailors specific frequencies to speakers and subwoofers for optimal output.
- Class / Topology: Very efficient D-Class design drives additional power while maintaining a small footprint.
- Output Device Technology: Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency and minimize distortion.
- Heat Sink: QTD (Quick Thermal Dispersion) technology ensures cool operation with minimal musical distortions.
- Power Supply: Rugged MOSFET Pulse Width Modulation power supply efficiently powers the amplifier without taxing the vehicle's electrical system.

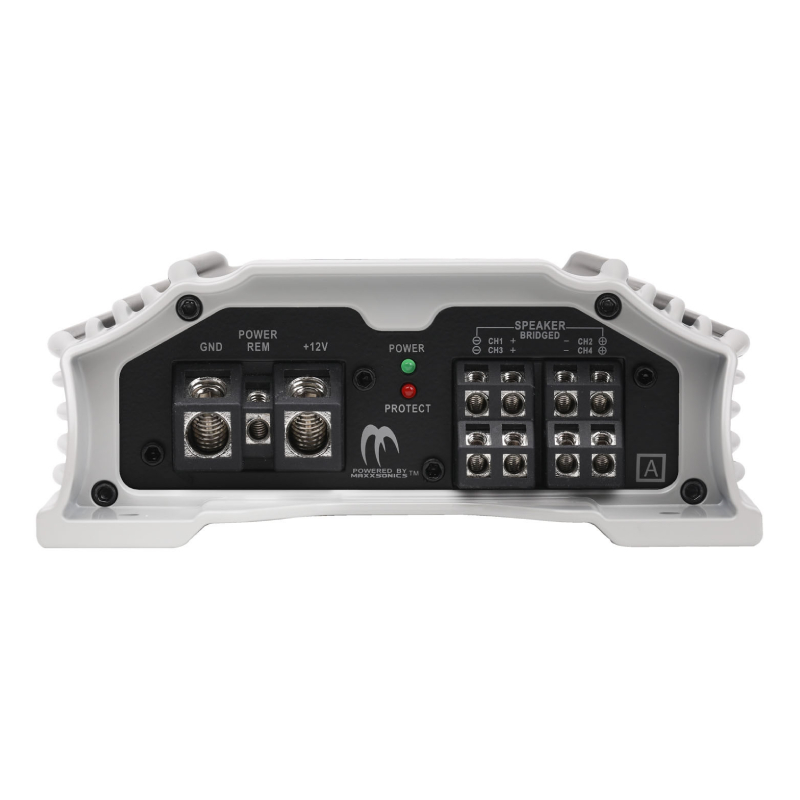

- Output Connections: Nickel-plated brass connections with hex set screw terminals allow for secure connections resistant to erosion.
- Connection Type: Secure connection for all power, ground, and speaker connections.

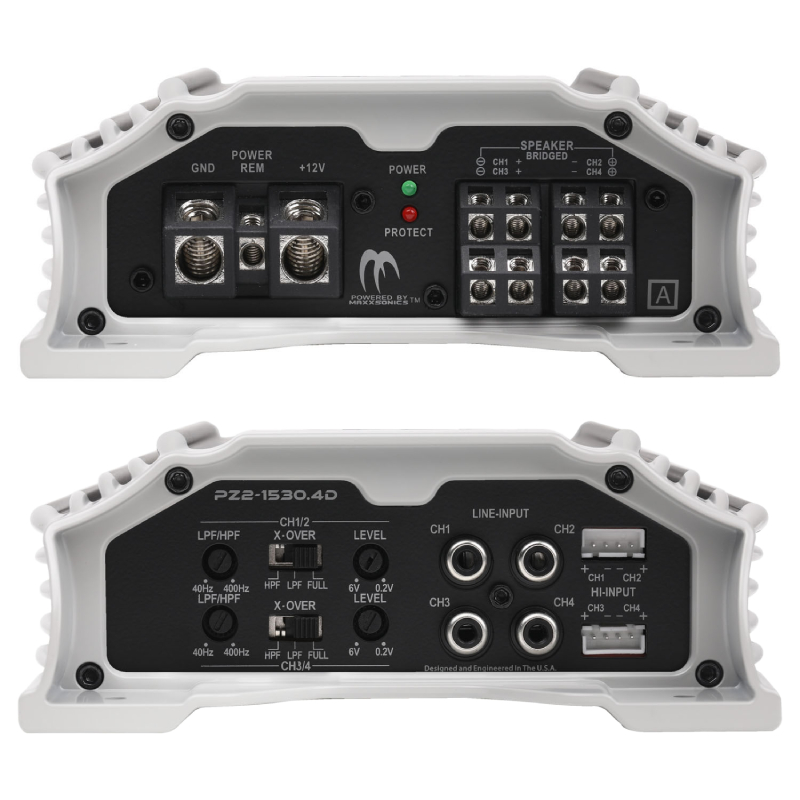

- LED System Protection Circuitry Diagnostics: Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.
Details and Specifications:
- Dimensions: 11.75 × 7 × 3.25 inches
- Type: Amplifier
- Brand: Crunch
- Series: POWERZONE 2
- Category: Mobile
- Condition: New
- Color: Black/Gray
- Model Replaced: PZ-1520.4
- Compatible Vehicles: Universal
- Class: Class D
- Total Channels: 4
- Max Power (watts): 1500
- Power @ 2 Ohms (ch x watts): 4 x 375
- Power @ 4 Ohms (ch x watts): 4 x 200
- Mono Bridged @ 4 Ohms (ch x watts): 2 x 750
- Crossover: Variable Electronic 12dB Per Octave
- Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
- Variable Low Pass Crossover 12dB per Octave: 40Hz-400Hz
- Tone Control / Parametric EQ: Built-in Bass Control
- Variable Voltage: 0.2-6V
- Frequency Response: 10Hz-22kHz
- Total Harmonic Distortion (THD): < 0.5%
- Speaker Level Audio Inputs: Yes
- Pre-amp Audio Outputs: Full Range, RCA
- Power Terminal 12v/GND: 4 AWG
- Speaker Terminal Wire Gauge: 12 AWG
- Fusing: External 40A
- UPC: 806576233534
- Weight: 3.75
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
